Kärcher HD 2.0/1000 Ed User manual

9.801-810.0

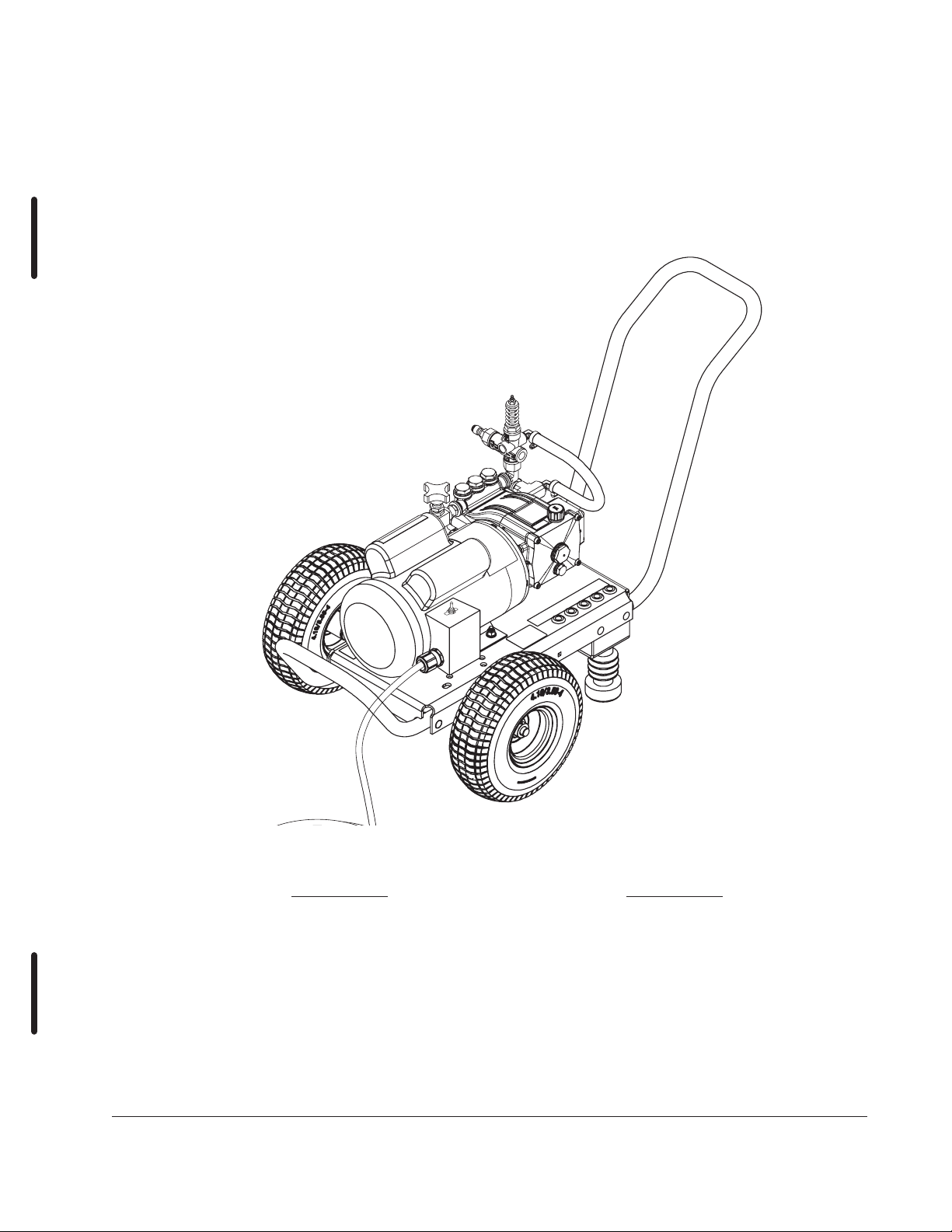

OPERATOR’S MANUAL
MODEL # ORDER #
HD 2.0/1000 Ed 1.106-124.0
HD 1.9/1300 Ed 1.106-125.0
HD 3.0/1000 Ed 1.106-126.0
HD 3.5/2000 Ea
HD 1.8/1300 Ed
1.106-127.0
1.106-128.0
KNA, Inc.4555 Airport Way Denver, CO 80239

3
CONTENTS
Model Number ______________________________
Serial Number ______________________________
Date of Purchase ___________________________
The model and serial numbers will be found on a decal attached
to the pressure washer. You should record both serial number and
date of purchase and keep in a safe place for future reference.
• 9.801-810.0 • Operator's Manual • Rev. B
Important Safety Information ................................................................4-5
Component Identication......................................................................... 6
Assembly Instructions.............................................................................. 7
Operating Instructions.............................................................................. 8

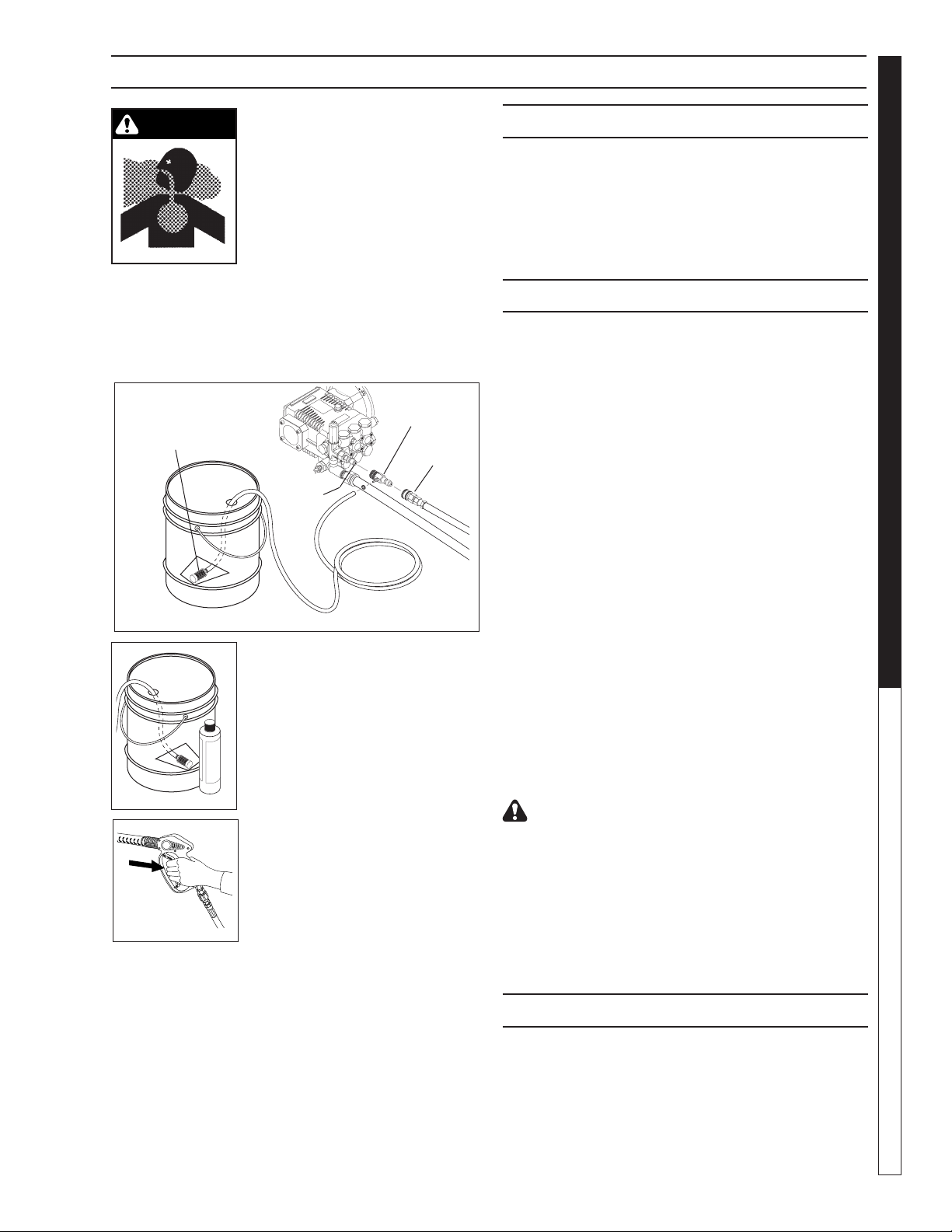

Detergent and General Operating Techniques ........................................ 9
Shut Down and Clean-Up...................................................................... 10
Storage .............................................................................................. 10
Troubleshooting ..................................................................................... 11
Preventive Maintenance ........................................................................ 12

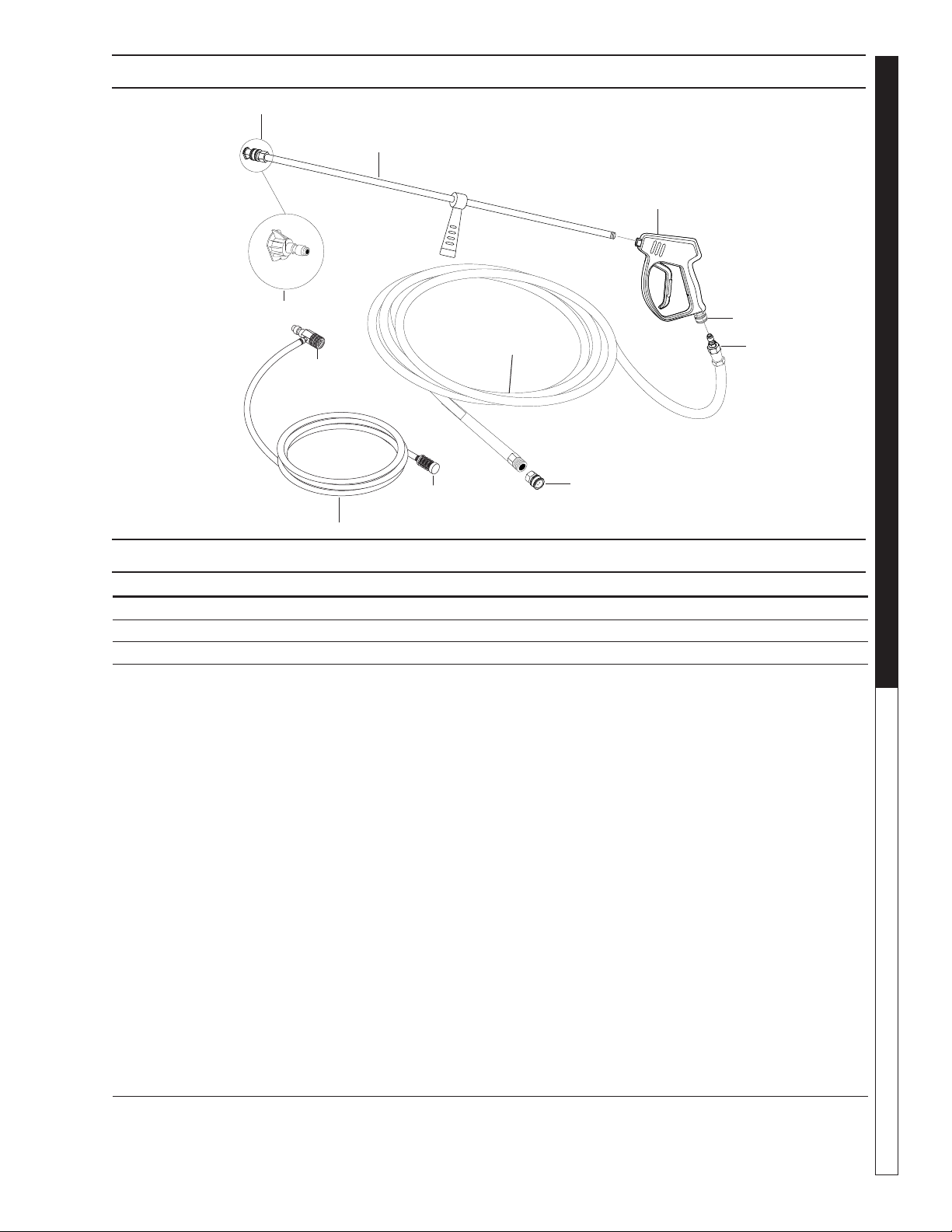

Accessories and Parts list.................................................................13-15
Oil Change Record ................................................................................ 16

• 9.801-810.0 • Operator's Manual • Rev. B
OPERATOR’S MANUAL PRESSURE WASHER
4
INTRODUCTION & IMPORTANT SAFETY INFORMATION
Thank you for purchasing this Pressure Washer.
We reserve the right to make changes at any time
without incurring any obligation.
Owner/User Responsibility:
The owner and/or user must have an understanding of
the manufacturer’s operating instructions and warnings
before using this pressure washer. Warning information
should be emphasized and understood. If the operator is
not uent in English, the manufacturer’s instructions and
warnings shall be read to and discussed with the opera-
tor in the operator’s native language by the purchaser/
owner, making sure that the operator comprehends its
contents.
Owner and/or user must study and maintain for future
reference the manufacturers’ instructions.
The operator must know how to stop the machine
quickly and understand the operation of all controls.
Never permit anyone to operate the engine without
proper instructions.
SAVE THESE INSTRUCTIONS
This manual should be considered a permanent
part of the machine and should remain with it if
machine is resold.
When ordering parts, please specify model and
serial number. Use only identical replacement parts.
This machine is to be used only by trained operators.
IMPORTANT SAFETY
INFORMATION
READ OPERATOR’S
MANUAL THOROUGHLY
PRIOR TO USE.
WARNING: To reduce the risk of
injury, read operating instruc-
tions carefully before using.
1. Read the owner's manual
thoroughly. Failure to follow
instructions could cause mal-
function of the machine and
result in death, serious bodily
injury and/or property damage.
2. Know how to stop the ma-
chine and bleed pressure quickly. Be thoroughly
familiar with the controls.
3. Stay alert — watch what you are doing.
4. All installations must comply with local codes.
Contact your electrician, plumber, utility company
or the selling distributor for specic details. If your
machine is rated 250 volts or less, single phase will
be provided with a ground fault circuit interrupter
(GFCI). If rated more than 250 volts, or more than
single phase this product should only be connected
to a power supply receptacle protected by a GFCI.
DANGER: Improper connection of the equipment-
grounding conductor can result in a risk of elec-
trocution. Check with a qualified electrician or
service personnel if you are in doubt as to whether
the outlet is properly grounded. Do not modify the
plug provided with the product - if it will not t the
outlet, have a proper outlet installed by a qualied
electrician. Do not use any type of adaptor with
this product
WARNING
KEEP WATER
SPRAY AWAY FROM
ELECTRICAL WIRING.
WARNING: Keep wand, hose, and
water spray away from electric
wiring or fatal electric shock may
result.
5. To protect the operator from
electrical shock, the machine
must be electrically grounded.
It is the responsibility of the
owner to connect this machine
to a UL grounded receptacle of proper voltage and
amperage ratings. Do not spray water on or near
electrical components. Do not touch machine with
wet hands or while standing in water. Always dis-
connect power before servicing.
RISK OF EXPLOSION:
DO NOT SPRAY
FLAMMABLE LIQUIDS.
WARNING
WARNING: Flammable liquids can
create fumes which can ignite,
causing property damage or se-
vere injury.
WARNING: Risk of explosion —
Do not spray ammable liquids.
6. Do not allow acids, caustic
or abrasive uids to pass through the pump.
7. Never run pump dry or leave spray gun closed
longer than 1-2 minutes.
8. Keep operating area clear of all persons.
WARNING
USE PROTECTIVE
EYE WEAR
AND CLOTHING
WHEN OPERATING
THIS EQUIPMENT.
WARNING: High pressure spray
can cause paint chips or other
particles to become airborne and
y at high speeds. To avoid per-
sonal injury, eye, hand and foot
safety devices must be worn.
9. Eye, hand, and foot pro-
tection must be worn when
using this equipment.

• 9.801-810.0 • Operator's Manual • Rev. B
5
PRESSURE WASHER OPERATOR’S MANUAL
IMPORTANT SAFETY INFORMATION
TRIGGER GUN KICKS
BACK - HOLD WITH
BOTH HANDS
WARNING
WARNING: Grip cleaning wand
securely with both hands before
starting. Failure to do this could
result in injury from a whipping
wand.
RISK OF INJECTION
OR SEVERE INJURY
TO PERSONS. KEEP
CLEAR OF NOZZLE.
WARNING
WARNING: High pressure devel-
oped by these machines will
cause personal injury or equip-
ment damage. Keep clear of
nozzle. Use caution when oper-
ating. Do not direct discharge
stream at people, or severe in-
jury or death will result.
10. To reduce the risk of injury, close supervision is
necessary when a machine is used near children.
Do not allow children to operate the pressure
washer. This machine must be attended during
operation.
11. Never make adjustments on machine while in op-
eration.
12. Be certain all quick coupler ttings are secured
before using pressure washer.
WARNING
PROTECT FROM
FREEZING
WARNING: Protect machine from
freezing.
13. To keep machine in best
operating conditions, it is
important you protect machine
from freezing. Failure to protect
machine from freezing could
cause malfunction of the
machine and result in death,
serious bodily injury, and/or property damage. Fol-
low storage instructions specied in this manual.
14. Inlet water must be clean fresh water and no
hotter then 90°F.
15. Manufacturer will not be liable for any changes
made to our standard machines or any components
not purchased from us.
16. The best insurance against an accident is precau-
tion and knowledge of the machine.
WARNING
RISK OF INJURY
FROM FALLS WHEN
USING LADDER.
WARNING: Be extremely careful
when using a ladder, scaffolding
or any other relatively unstable
location. The cleaning area
should have adequate slopes
and drainage to reduce the pos-
sibility of a fall due to slippery
surfaces.
17. Do not overreach or stand on unstable support.
Keep good footing and balance at all times.
18. Do not operate this machine when fatigued or under
the inuence of alcohol, prescription medications,
or drugs.
19. Follow the maintenance instructions
specied in the manual.

• 9.801-810.0 • Operator's Manual • Rev. B
OPERATOR’S MANUAL PRESSURE WASHER
6

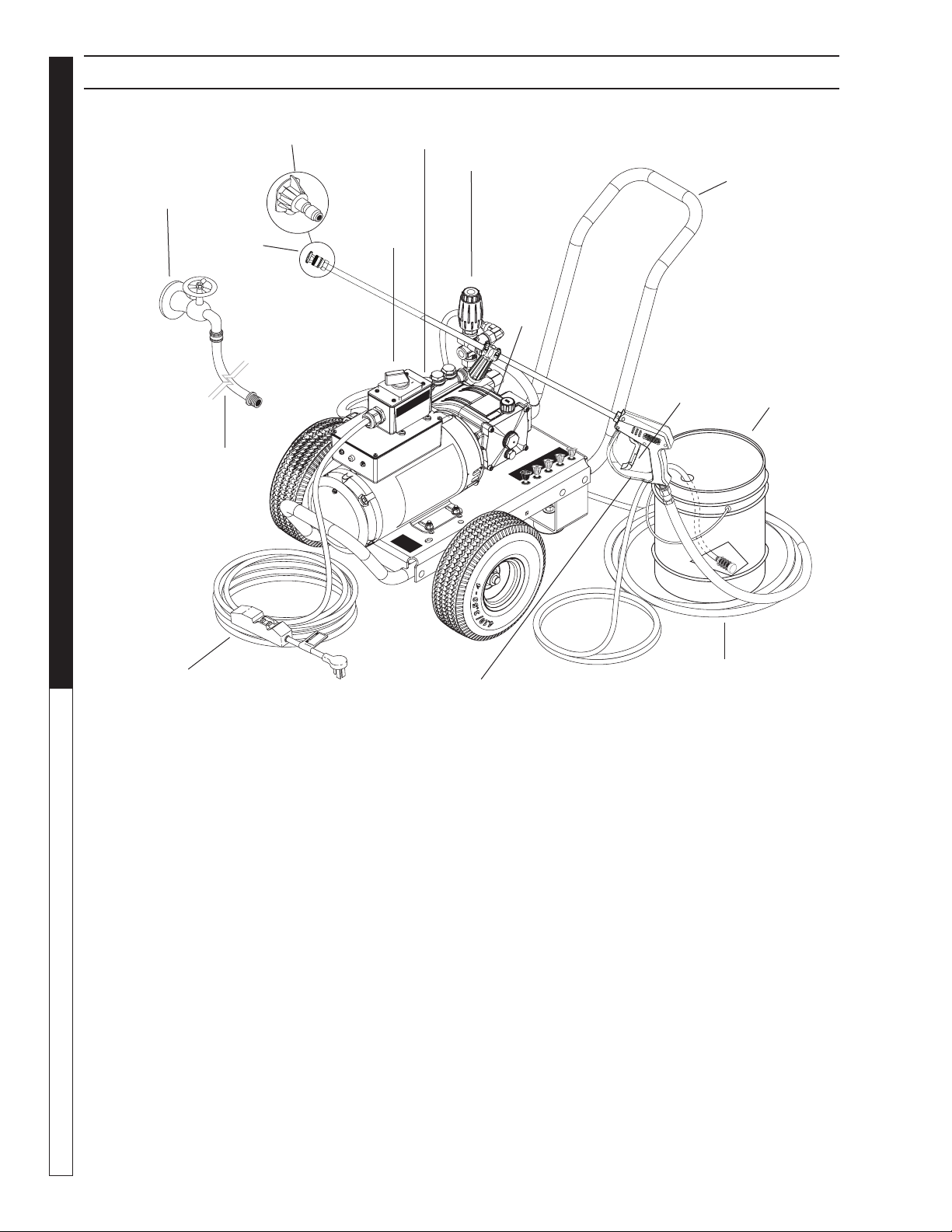

COMPONENT IDENTIFICATION
Pump — Develops high pressure.
Spray Gun — Controls the application of water and
detergent onto cleaning surface with trigger device.
Includes safety latch.
Wand — Must be connected to the spray gun.
Unloader — Safety device that relieves pressure when
spray gun trigger is closed.
High Pressure Hose — Connect one end to water
pump discharge nipple and the other end to spray gun.
Pump Protector — Cycles fresh cool water through
pump when recirculating water reaches 140°F.
GFCI — Ground fault circuit interrupter trips when
voltage leaks to ground.
Note:If trigger on spray gun is released for more
than 1-2 minutes, water will leak from valve. Warm
water will discharge from pump protector onto
oor. This system prevents internal pump damage.
Spray Gun
and Wand
High Pressure
Hose
Pump
Pressure
Nozzle
Garden Hose
(not included)
Unloader
Detergent
Bucket (not
included)
Water Supply
(not included)
Handle
Quick
Coupler
On/Off
Switch
GFCI
Pump
Protector
Safety
Latch

• 9.801-810.0 • Operator's Manual • Rev. B
7
PRESSURE WASHER OPERATOR’S MANUAL
STEP 1: Attach the high pressure
hose to the spray gun using teon
tape on hose threads.
STEP 4: Release the coupler collar
and push the nozzle until the collar
clicks. Pull the nozzle to make sure
it is seated properly.
STEP 5: Connect the high pressure
hose to the discharge nipple. Push
coupler collar forward until secure.
STEP 2: Attach wand to spray gun
using teon tape on wand threads.
STEP 3: Pull spring-loaded collar
of the wand coupler back to insert
your choice of pressure nozzle.
STEP 6: Connect garden hose to
the cold water source.
ASSEMBLY INSTRUCTIONS
STEP 7: Check inlets lters, re-
move debris, then connect the
garden hose to pump water inlet.
CAUTION: Do not run the pump
without water or pump damage
will result.
Safety
Latch
Spray
Gun
High
Pressure Hose
Wand
Spray
Gun/Wand
Wand
Coupler
Pressure
Nozzle
Pressure
Nozzle
Wand
Coupler
Coupler
Collar
Discharge
Nipple
High
Pressure
Hose
Cold
Water
Source
Garden
Hose
Pump
Water Inlet
Garden
Hose
Coupler Collar

• 9.801-810.0 • Operator's Manual • Rev. B
OPERATOR’S MANUAL PRESSURE WASHER
8
OPERATING INSTRUCTIONS
STEP 1: Connect garden hose to
the cold water source and turn water
on completely. Never use hot water.
STEP 2: Trigger the spray gun to
eliminate trapped air then wait for
a steady ow of water to emerge
from the spray nozzle.
Cold
Water
Source
Garden
Hose
WARNING! Never replace
nozzles without engaging the
safety latch on the spray gun
trigger.
Safety
Latch
STEP 3: Connect to appropriate
power supply. Push reset button
on GFCI.
STEP 4: Turn machine on by turning
switch at top of motor.
On/Off
Switch
The four color-coded quick connect nozzles provide a wide array of spray
widths from 15° to 40° and are easily accessible when placed in the conve-
nient rubber nozzle holder, which is provided on the front of the machine.
NOTE: For a more gentle rinse, select the white 40° or green 25° nozzle.
To scour the surface, select the yellow 15° nozzle. To apply detergent
select the black nozzle.

• 9.801-810.0 • Operator's Manual • Rev. B
9
PRESSURE WASHER OPERATOR’S MANUAL
WARNING: Some detergents
may be harmful if inhaled or
ingested, causing severe nau-
sea, fainting or poisoning. The
harmful elements may cause
property damage or severe
injury.
STEP 1: Connect detergent injector to discharge nipple
on machine. Connect high pressure hose to injector
with quick coupler. (Check to make sure locking cou-
pler sleeves are in proper position before applying
water pressure).
STEP 2: Use detergent designed
specifically for pressure wash-
ers. Household detergents could
damage the pump. Prepare deter-
gent solution as required by the
manufacturer. Fill a container with
pressure washer detergent. Place
the lter end of detergent suction
tube into the detergent container.
STEP 3: With safety latch on
spray gun engaged, secure black
detergent nozzle into quick cou-
pler. NOTE: Detergent cannot be
applied using a pressure nozzle.
STEP 4: With the motor running,
pull trigger to operate machine.
Liquid detergent is drawn into the machine and mixed
with water. Apply detergent to work area. Do not allow
detergent to dry on surface.
IMPORTANT: You must ush the detergent injec-
tion system after each use by placing the suction
tube into a bucket of clean water, then run the
pressure washer in low pressure for 1-2 minutes.
THERMAL PUMP PROTECTION
If you run the motor on your pressure washer for 1-2
minutes without pressing the trigger on the spray gun,
circulating water in the pump can reach high tempera-
tures. When the water reaches this temperature, the
pump protector engages and cools the pump by dis-
charging the warm water onto the ground. This thermal
device prevents internal damage to the pump.
CLEANING TIPS
Pre-rinse cleaning surface with fresh water. Place de-
tergent suction tube directly into cleaning solution and
apply to surface at low pressure (for best results, limit
your work area to sections approximately 6 feet square
and always apply detergent from bottom to top). Allow
detergent to remain on surface 1-3 minutes. Do not
allow detergent to dry on surface. If surface appears
to be drying, simply wet down surface with fresh water.
If needed, use brush to remove stubborn dirt. Rinse at
high pressure from top to bottom in an even sweeping
motion keeping the spray nozzle approximately 1 foot
from cleaning surface. Use overlapping strokes as you
clean and rinse any surface. For best surface cleaning
action spray at a slight angle.
Recommendations:
• Before cleaning any surface, an inconspicuous
area should be cleaned to test spray pattern and
distance for maximum cleaning results.
• If painted surfaces are peeling or chipping, use
extreme caution as pressure washer may remove
the loose paint from the surface.
• Keep the spray nozzle a safe distance from the
surface you plan to clean. High pressure wash a
small area, then check the surface for damage. If
no damage is found, continue to pressure washing.
CAUTION - Never use:
• Bleach, chlorine products, other corrosive chemicals
• Liquids containing solvents (i.e., paint thinners,
gasoline, oils)
• Tri-sodium phosphate products
• Ammonia products
• Acid-based products
These chemicals will harm the machine and will dam-
age the surface being cleaned.
RINSING
It will take a few seconds for the detergent to clear.
Apply safety latch to spray gun. Remove black soap
nozzle from the quick coupler. Select and install the
desired high pressure nozzle. NOTE: You can also stop
detergent from owing by simply removing detergent
siphon tube from bottle.
WARNING
DETERGENTS AND GENERAL OPERATING TECHNIQUES
Detergent
Injector
Quick
Coupler
Filter
Discharge
Nipple

• 9.801-810.0 • Operator's Manual • Rev. B
OPERATOR’S MANUAL PRESSURE WASHER
10

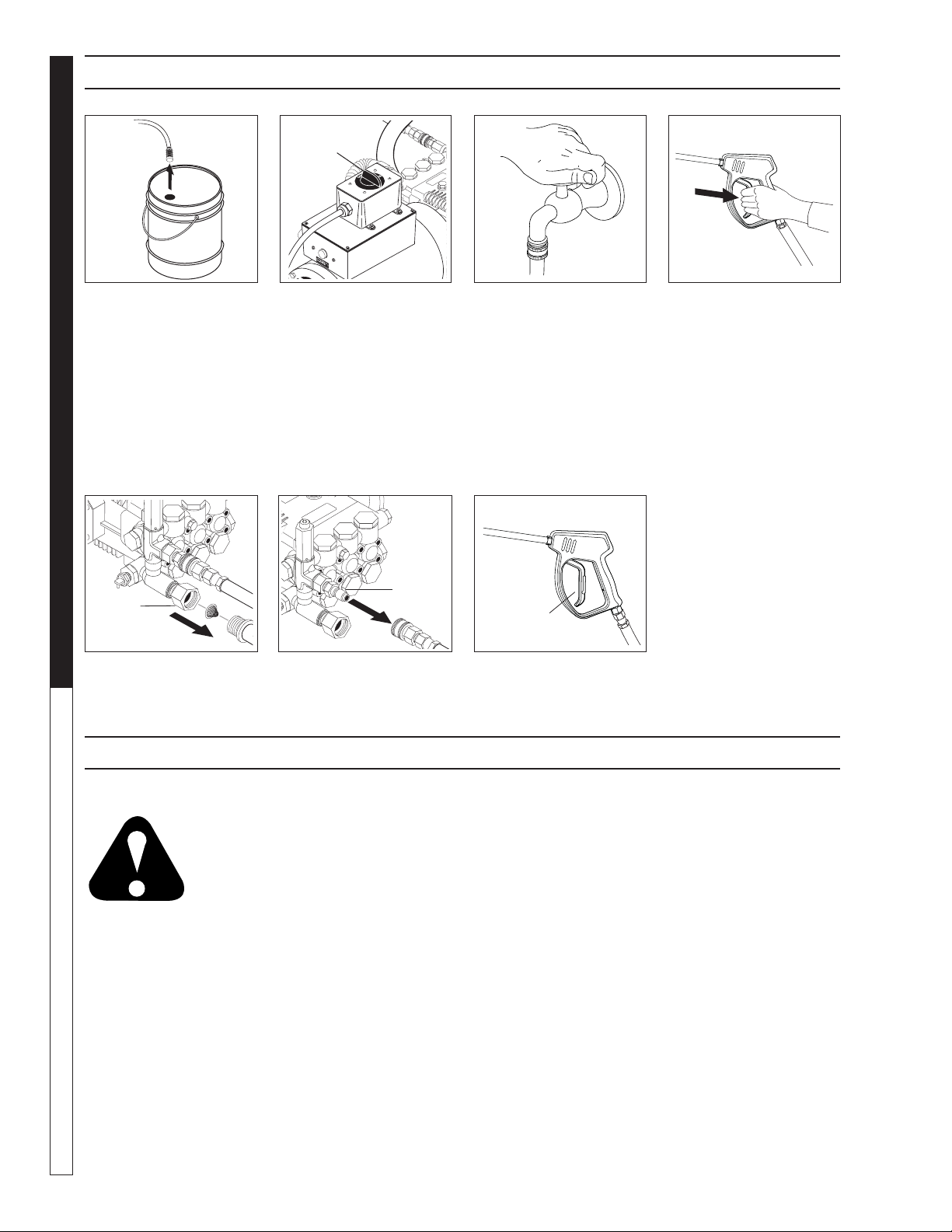

SHUTTING DOWN AND CLEAN-UP
STEP 1: Remove deter-
gent suction tube from
container and insert into
one gallon of fresh water.
Slide nozzle forward for
low pressure or use black
detergent nozzle. Pull
trigger on spray gun and
siphon fresh clean water
for one minute.
STEP 2: Turn off machine
by turning switch to “OFF”
switch.
STEP 5: Disconnect the
garden hose from the wa-
ter inlet on the machine.
STEP 6: Disconnect the
high pressure hose from
the discharge nipple.
STEP 7: Engage the
spray gun safety lock.
STEP 4: Press trigger to
release water pressure.
Pump
Water
Inlet
High
Pressure
Outlet
Safety
Latch
STORAGE
CAUTION
Pump Storage
CAUTION: Always store your pres-
sure washer in a location where the
temperature will not fall below 32°F
(0°C). The pump in this machine is
susceptible to permanent damage if
frozen.
FREEZE DAMAGE IS NOT COVERED B Y WA R -
RANTY.
If you must store your pressure washer in a location
where the temperature is below 32°F, you can minimize
the chance of damage to your machine by draining your
machine as follows:
1. Stop the pressure washer and detach supply hose
and high pressure hose. Squeeze trigger of spray
gun to drain all water from the wand and hose.
2. Restart pressure washer and let it run briey (about
5 seconds) until water no longer discharges from
the high pressure outlet.
STEP 3: Turn off water
supply.
On/Off
Switch

• 9.801-810.0 • Operator's Manual • Rev. B
11
PRESSURE WASHER OPERATOR’S MANUAL
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
PUMP RUNNING
NORMALLY BUT
PRESSURE LOW ON
INSTALLATION
Pump sucking air Check water supply and possibility of air seepage.
Check valves sticking Check and clean or replace if necessary.
Unloader valve seat faulty Check and replace if necessary.
Nozzle incorrectly sized Check and replace if necessary.
Worn piston packing Check and replace if necessary.
FLUCTUATING
PRESSURE
Valves worn Check and replace if necessary.
Blockage in valve Check and replace if necessary.
Pump sucking air Check water supply connections.
Worn piston packing Check and replace if necessary.
Insufcient water Check lter and hose for breakage.
PRESSURE LOW AFTER
PERIOD OF NORMAL
USE
Nozzle worn Check and replace if necessary.
Suction or delivery valves worn Check and replace if necessary.
Suction or delivery lines blocked Check and clean if necessary.
Unloader valve seat worn Check and replace if necessary.
Worn piston packing Check and replace if necessary.
Water temperature excessive Reduce to below 160o F.
PUMP NOISY Air in suction line Check water supply and connections on suction
line.
Broken or weak suction or delivery
valve spring Check and replace if necessary.
Foreign matter in valves Check and clean if necessary.
Worn bearings Check and replace if necessary.
Excessive temperature of water Reduce to below 160o F.
PRESENCE OF WATER
IN PUMP OIL
Oil seal worn Check and replace if necessary.
High humidity in air Check and replace if necessary.
Piston packing worn Check and replace if necessary.
WATER DRIPPING FROM
UNDER PUMP
Piston packing worn Check and replace if necessary.
O-ring plunger retainer worn Check and replace if necessary.
WATER DRIPPING FROM
PUMP PROTECTOR
Water supply pressure too high (over
90 PSI) Lower water supply pressure using a regulator.
Spray gun is in the off position for over
5 minutes Turn machine off if not in use for over 1-2 minutes.
OIL DRIPPING Oil seal worn Check and replace if necessary.
EXCESSIVE VIBRATION
IN HIGH PRESSURE
HOSE
Irregular functioning of the pump
valves Check and replace if necessary.
MOTOR DOES
NOT START WHEN
SWITCHED ON
Plug not well connected or lack of
power supply Check plug, cable and switch.
WHEN SWITCHING ON
THE MACHINE, MOTOR
HUMS BUT DOES NOT
RUN
Main voltage is insufcient, lower than
the minimum required
Check to make sure main power supply is ad-
equate.
The pump is stuck or frozen Check by turning the motor manually.
MOTOR STOPS Tripped thermal overload due to over-
heating
Check that main voltage corresponds to the speci-
cations. Wait a few minutes before turning on the
machine again by resetting the GFCI cord.

• 9.801-810.0 • Operator's Manual • Rev. B
OPERATOR’S MANUAL PRESSURE WASHER
12
PREVENTATIVE MAINTENANCE
This pressure washer was produced with the best available materials and quality craftsmanship. However,
you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular pre-
ventative maintenance procedures will assist in preserving the performance of your equipment. Contact your
dealer for maintenance. Regular preventative maintenance will add many hours to the life of your pressure
washer. Perform maintenance more often under severe conditions.
OIL CHANGE RECORD
Check pump oil and engine oil level before rst use of your new pressure washer.
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change
MAINTENANCE SCHEDULE
Pump Oil
(Non foaming)
SAE 10W-40
Inspect Daily inspect the oil level
Change After rst 50 hours, then every 500 hours or annually
Replace High Pressure Nozzle Every 6 months
Replace Quick Connects Annually
Clean Water Screen/Filter Weekly
Replace HP Hose Annually if there is any sign of wear
Grease Motor Every 10,000 hours
PREVENTATIVE MAINTENANCE

• 9.801-810.0 • Operator's Manual • Rev. B
13
PRESSURE WASHER Troubleshooting Guide
ACCESSORIES ASSEMBLY
ACCESSORIES ASSEMBLY PARTS LIST
1
2
10
6
5
8
3
ITEM PART NO. DESCRIPTION QTY
1 8.925-129.0 HOSE, 3/8" X 50' 1W 4000PSI SW X SO 1
2 8.750-247.0 Gun, M407 1
3 8.783-039.0 Wand 30" Zinc Plated, Handle & Coupler 1
4 Quick Connect Nozzle Kit (3.5) (HD 2.0/1000 Ed)
8.712-338.0 ▲ Nozzle, SAQCMEG 1503.5, Yellow 1
8.712-339.0 ▲ Nozzle, SAQCMEG, 2503.5, Green 1
8.712-340.0 ▲ Nozzle, SAQCMEG 4003.5, White 1
8.712-398.0 ▲ Nozzle Compl, Qcem-6540 Brass (chem) 1
Quick Connect Nozzle Kit (3.25) (HD 1.9/1300 Ed)
8.712-338.0 ▲ Nozzle, SAQCMEG, 1503.25, Yellow 1
8.712-339.0 ▲ Nozzle, SAQCMEG, 2503.25, Green 1
8.712-340.0 ▲ Nozzle, SAQCMEG, 4003.25, White 1
8.712-398.0 ▲ Nozzle Compl, Qcem-6540 Brass (chem) 1
Quick Connect Nozzle Kit (5.5) (HD 3.0/1000 Ed)
8.712-358.0 ▲ Nozzle, SAQCMEG 1505.5, Yellow 1
8.712-359.0 ▲ Nozzle, SAQCMEG 2505.5, Green 1
8.712-360.0 ▲ Nozzle, SAQCMEG 4005.5, White 1
8.712-398.0 ▲ Nozzle Compl, Qcem-6540 Brass (chem) 1
Quick Connect Nozzle Kit (5.0) (HD 3.5/2000 Ea)
8.712-354.0 ▲ Nozzle, SAQCMEG 1505, Yellow 1
8.712-355.0 ▲ Nozzle, SAQCMEG 2505, Green 1
8.712-356.0 ▲ Nozzle, SAQCMEG 4005, White 1
8.712-398.0 ▲ Nozzle Compl, Qcem-6540 Brass (chem) 1
Quick Connect Nozzle Kit (3.0) (HD 1.8/1300 Ed)
8.712-333.0 ▲ Nozzle, SAQCMEG 1503, Yellow 1
8.712-334.0 ▲ Nozzle, SAQCMEG 2503, Green 1
8.712-335.0 ▲ Nozzle, SAQCMEG 4003, White 1
8.712-398.0 ▲ Nozzle Compl, Qcem-6540 Brass (chem) 1
4
7
9
5

• 9.801-810.0 • Operator's Manual • Rev. B
OPERATOR’S MANUAL PRESSURE WASHER
14
ACCESSORIES ASSEMBLY PARTS LIST
ITEM PART NO. DESCRIPTION QTY
5 9.802-166.0 Coupler, 3/8" Female, Brass 1
6 9.802-170.0 Coupler 3/8"PLUG, FEMALE, STEEL/ZINC 1
7 9.802-216.0 Injector, Chem, 0.083 1
8 6.388-216.0 Hose DN 5 1
9 5.731-652.0 Filter with weight 1
10 9.802-169.0 Coupler, 3/8" Socket, Male, Brass 1
▲ Not Shown

• 9.801-810.0 • Operator's Manual • Rev. B
15
PRESSURE WASHER OPERATOR’S MANUAL
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change
OIL CHANGE RECORD
Check pump oil and engine oil level before rst use of your new pressure washer.

KNA, Inc.4555 Airport Way Denver, CO 80239
Form #9.801-810.0 • Rev. B • Printed in U.S.A. or Mexico
