K 4 Compact
59672590 (11/16)
English 10
Autogoods “130”
130.com.ua

2
Autogoods “130”
130.com.ua

3
Autogoods “130”
130.com.ua

4
Autogoods “130”
130.com.ua

– 5
Please read and comply with these origi-
nal operating instructions and the en-
closed safety instructions. Proceed ac-
cordingly. Keep both booklets for future reference or
subsequent owners.
This high pressure cleaner is designed for domestic use
only.
– for cleaning machines, vehicles, buildings, tools,
facades, terraces, gardening tools, etc. by means
of a high-pressure water jet (if necessary, with ad-
ditional cleaning agents).
– with accessories, replacement parts and cleaning
agents approved by KÄRCHER. Please observe
the information accompanying the cleaning agents.
DANGER
Pointer to immediate danger, which leads to severe in-
juries or death.
몇WARNING
Pointer to a possibly dangerous situation, which can
lead to severe injuries or death.
몇CAUTION
Pointer to a possibly dangerous situation, which can
lead to minor injuries.
ATTENTION
Pointer to a possibly dangerous situation, which can
lead to property damage.
몇CAUTION
Safety installations serve the protection of the user
and may not be modified or bypassed.
The appliance switch prevents unintentional operation
of the appliance.
This lock locks the lever of the trigger gun and prevents
the inadvertent start of the appliance.
The overflow valve prevents the permissible working
pressure from being exceeded.
If the lever on the trigger gun is released the pressure
switch turns off the pump, the high pressure jet is
stopped. If the lever is pulled the pump is turned on
again.
The motor protection switch switches off the device if
the power consumption is high.
Notes about the ingredients (REACH)
You will find current information about the ingredients
at:
www.kaercher.com/REACH
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 5
Environmental protection. . . . . . . . . . . . . . . . EN 5
Description of the Appliance . . . . . . . . . . . . . EN 6
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 6
Start up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 6
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . .EN 7
Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN 7
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 8
Care and maintenance . . . . . . . . . . . . . . . . . EN 8
Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . EN 8
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . EN 8
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN 9
Technical specifications. . . . . . . . . . . . . . . . . EN 9
EU Declaration of Conformity . . . . . . . . . . . . EN 9

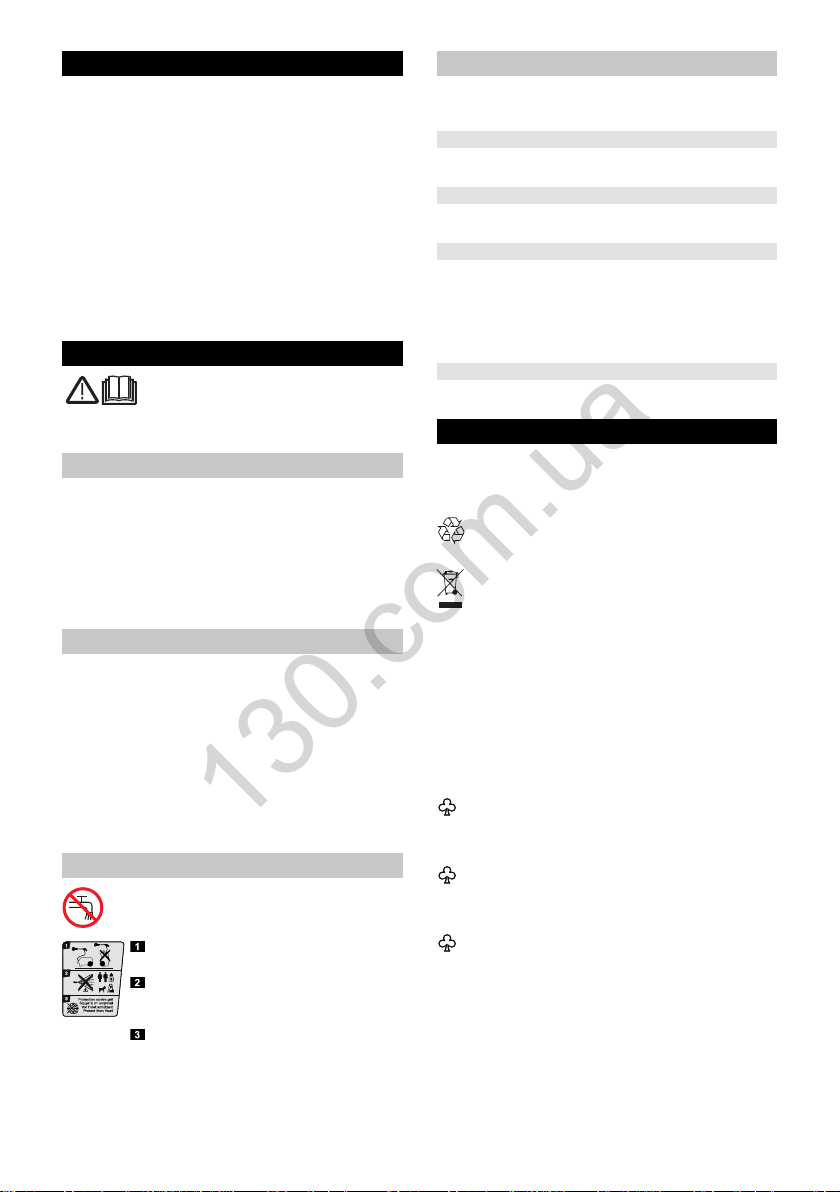

Safety
Proper use
Hazard levels
Symbols on the machine
The appliance must not be directly connect-
ed to the public drinking water network.
The appliance must only be operated lay-
ing down (horizontal).
Thehighpressurejetmustnotbedirected
at persons, animals, live electrical equip-
ment or at the appliance itself.
Protect the appliance against frost.
Safety Devices
Appliance switch
Lock trigger gun
Overflow valve with pressure switch
Motor protection switch
Environmental protection
The packaging material can be recycled. Please
arrange for the environmentally appropriate dis-
posal of the packaging.
Electrical and electronic devices often contain
components which could potentially pose a dan-
ger to human health and the environment if han-
dled or disposed of incorrectly. However, these
components are necessary for the proper opera-
tion of the device. Devices marked with this sym-
bol must not be disposed of with regular house-
hold rubbish.
Old appliances contain valuable recyclable mate-
rials that should be recycled properly. Batteries
and accumulators contain substances that must
not enter the environment. Please dispose of old
devices and batteries or accumulators in an envi-
ronmentally friendly way.
Cleaning operations which produce oily waste wa-
ter, e.g. engine washes, underbody washes, may
only be carried out using washing stations
equipped with an oil separator.
Work with detergents must only be performed on
liquid-tight work surfaces with a connection to the
sewer system. Do not let release detergent into
waters or earth.
The extraction of water from public waters is pro-
hibited in some countries.
10 EN
Autogoods “130”
130.com.ua

– 6
These operating instructions describe the maximum
equipment. Depending on the model, there are differ-
ences in the scopes of delivery (see packaging).
See fold-out page 3 for illustrations
1 Storage for accessories
2 Transport handle, detachable
3 Carrying handle
4 Quick coupling for high pressure hose
5 Appliance switch „0/OFF“ / „I/ON“
6 Mains cable with mains plug
7 Carrying handle
8 Bearing wheel
9 Water connection with integrated sieve
10 Coupling element for water connection
11 Detergent suction hose (with sieve)
12 Trigger gun
13 Lock trigger gun
14 High pressure hose
15 Key to detach the high pressure hose from the trig-
ger gun
16 Spray lance with pressure regulation (Vario Power)
Carrying out the most common cleaning tasks. The
work pressure can be stagelessly regulated be-
tween "Min" and "Max". You can add detergent
when "Mix" is selected.
In order to adjust the working pressure, release the
lever of the trigger gun and turn the spray lance to
the desired position.
17 Spray lance with Dirtblaster
For strong contaminations
* Optional accessories
18 Washing brush
Suitable for use with detergents.
19 Rotary washing brush
Especially suitable for cleaning cars.
20 Foam nozzle with detergent container
With powerful foam for effortless cleaning.
Mount loose parts delivered with appliance prior to start-
up.
See fold-out page 4 for illustrations
Illustration
Screw the coupling element to the water connec-
tion on the appliance.
Illustration
Push the high pressure hose into the trigger gun
until it locks audibly.
Note: Make sure the connection nipple is aligned
correctly.
Check the secure connection by pulling on the high
pressure hose.
Park the appliance laying down (horizontal) on an
even surface.
Illustration
Push the high pressure hose into the quick cou-
pling until it locks audibly.
Insert the mains plug into the socket.
For connection values, see type plate/technical data.
ATTENTION
Impurities in the water can damage the high-pressure
pump and the accessories. For protection, the use of
the KÄRCHER water filter (optional accessory, order
no. 4.730-059) is recommended.
Observe regulations of water supplier.
ATTENTION
Hose couplings made of metal with aquastop can dam-
age the pump! Please use plastic couplings or KÄRCH-
ER brass couplings.
Illustration
Attach the water supply hose to the coupling on the
water connection.
Connect the water supply hose to the water supply.
Completely open the water tap.
This high-pressure cleaner is suited to work with the
KÄRCHER suction hose with backflow valve (Optional
accessory, order no. 4.440-238) to draw in surface wa-
ter, e.g. from water butts or ponds (see specifications for
max. suction height).
Remove coupling from the water connection.
Fill the suction hose with water.
Screw the suction hose into the water connection of
the appliance and insert it into the water source
(e.g. rainwater drum).
Remove air from appliance before operation.
Turn on the appliance “I/ON”.
Unlock the lever on the trigger gun.
Pull on the lever of the trigger gun; the device will
switch on.
Let the appliance work until the water exits at the
hand spray gun without bubbles (max. 2 minutes).
Release the lever on the trigger gun.
Note: Release the lever of the trigger gun; the de-
vice will switch off again. High pressure remains in
the system.
Lock the lever on the trigger gun.
Description of the Appliance
** Additionally required
21 Fabric-reinforced water hose with commercially
available coupling.
– Minimum diameter, 1/2 inches (13 mm).
– Minimum length 7.5 m.
Assembly
Start up
Water supply
Water supply from mains
Drawing in water from open reservoirs
11EN
Autogoods “130”
130.com.ua

– 7
ATTENTION
Dry running of more than 2 minutes leads to damage of
the high-pressure pump. If the appliance does not build
up pressure within 2 minutes, switch the appliance off
and proceed in accordance with the instructions in
Chapter "Troubleshooting".
ATTENTION
Risk of damage! The appliance must only be oper-
ated laying down (horizontal).
몇CAUTION
Keep a distance of at least 30 cm when using the jet for
cleaning painted surfaces to avoid damage.
ATTENTION
Car tyres, paint or sensitive surfaces such as wood
should not be cleaned with the dirt blaster, as there is a
risk of damage.
Illustration
Push the spray lance into the trigger gun and fasten
it by turning it through 90°.
Turn on the appliance “I/ON”.
Unlock the lever on the trigger gun.
Pull on the lever of the trigger gun; the device will
switch on.
Note: Release the lever of the trigger gun; the de-
vice will switch off again. High pressure remains in
the system.
ATTENTION
Risk of damage to the paintwork
Whenworking with the washingbrush, it must be free of
dirt or other particles.
Push the washing brush into the trigger gun and
fasten it by a 90° turn.
Note: If required, the washing brushes can be used to
work with detergent.
Note: Detergent can only be added when the device is
operated in low pressure mode.
DANGER
When using detergents, the material data safety sheet
issued by the detergent manufacturer must be adhered
to, especially the instructions regarding personal pro-
tective equipment.
Illustration
Pull detergent suction hose as far as is required out
of the housing.
Suspend end of detergent suction hose in a con-
tainer filled with detergent.
Use spray lance with pressure regulation (Vario
Power).
Turn the spray lance to "Mix" position.
Note: This will mix the detergent with the water
stream.
Spray the detergent sparingly on the dry surface
and allow it to react, but not to dry.
Spray off loosened dirt with the high pressure jet.
Optional
Fill the detergent solution in the detergent tank of
the foam nozzle (observe dosage instructions on
the packaging of the detergent).
Connect the detergent tank to the foam nozzle.
Connect the foam nozzle to the trigger gun.
Release the lever on the trigger gun.
Lock the lever on the trigger gun.
During longer breaks (more than 5 minutes), also
turn the appliance off using the "0/OFF" switch.
몇CAUTION
Only separate the high-pressure hose from the hand
spray gun or the appliance when there is no pressure in
the system.
After operation with detergent: Run the machine for
approximately 1 minute for a clear rinse.
Release the lever on the trigger gun.
Turn off the appliance "0/OFF".
Disconnect the mains plug from the socket.
Turn off tap.
Press the lever on the trigger gun to release any re-
maining pressure in the system.
Lock the lever on the trigger gun.
몇CAUTION
When disconnecting the supply or high pressure hose,
hot water may leak from the connections after opera-
tion.
Detach the appliance from the water supply.
몇CAUTION
Risk of personal injury or damage!
Mind the weight of the appliance during transport.
Illustration
Lift appliance by the carrying handles and carry it.
Illustration
Pull out the transport handle until it audibly snaps
into place.
Pull the appliance by its transport handle.
Secure the appliance against shifting and tipping
over.
Operation
High pressure operation
Operation with washing brush
Operation with detergent
Recommended cleaning method
Foam nozzle
Interrupting operation
Finish operation
Transport
When transporting by hand
When transporting in vehicles
12 EN
Autogoods “130”
130.com.ua

– 8
몇CAUTION
Risk of personal injury or damage!
Consider the weight of the appliance when storing it.
Park the machine on an even surface.
Press the disconnect on the trigger gun and re-
move the high pressure hose from the trigger gun.
Push the casing of the quick coupling for the high
pressure hose toward the rear and disconnect the
high pressure hose from the appliance.
Illustration
Insert the trigger gun in its holder.
Engage the spray lance in its compartment.
Stow away the mains cable and the high-pressure
hose on the appliance.
ATTENTION
Appliances and accessories that are not completely
drained can be destroyed by frost. Completely drain ap-
pliance and accessories and protect them against frost.
To avoid damage:
Completely drain all water from the appliance:
Switch the appliance on with detached high pres-
sure hose and detached water supply (max. 1 min-
ute) and wait, until no more water exits at the high
pressure connection. Turn off the appliance.
Store the appliance and the entire accessories in a
frost free room.
Prior to extended storage periods, as during the winter,
also observe the instructions in the Care section.
DANGER
Risk of electric shock.
Prior to all work on the appliance, switch off the ap-
pliance and pull the power plug.
ATTENTION
The sieve must not be damaged.
Remove coupling from the water connection.
Illustration
Pull the sieve out using flat pliers.
Clean the sieve under running water.
Reinsert the sieve into the water connection.
Illustration
Remove filter from suction hose for detergent and
clean under running water.
Use only original KÄRCHER spare parts. You will find a
list of spare parts at the end of these operating instruc-
tions.
You can rectify minor faults yourself with the help of the
following overview.
If in doubt, please consult the authorized customer ser-
vice.
DANGER
Risk of electric shock.
Prior to all work on the appliance, switch off the ap-
pliance and pull the power plug.
Pull on the lever of the trigger gun; the device will
switch on.
Check whether the voltage indicated on the type
plate corresponds to the voltage of the mains sup-
ply.
Check the mains connection cable for damages.
Motor overloaded, the motor circuit breaker has
tripped.
– Turn off the appliance "0/OFF".
– Allow the device to cool down for one hour.
– Switch on the device and put it into operation again.
If the malfunction occurs repeatedly, have the de-
vice checked by the customer service.
Voltage reduction due to weak mains supply or when
using an extension cable.
When switching on, first pull the lever of the trigger
gun and then switch the appliance switch to "I/ON".
Check water supply for adequate delivery rate.
Pull out the sieve in the water connection using flat-
nose pliers and clean under running water.
Appliance ventilation: Switch the appliance on with
the high-pressure hose detached and operate
(max. 2 minutes) until the water exits the high-pres-
sure connection without bubbles. Switch off appli-
ance and reconnect high-pressure hose.
Suction height of 0.5 m when vacuuming from open
container has been exceeded.
Clean high-pressure nozzle: Remove dirt and de-
bris from the nozzle bore, using a needle and rinse
through with water from the front.
Check water flow quantity.
Slight leakage from the appliance pump is normal.
If the leakage increases contact the authorized
customer service.
Use spray lance with pressure regulation (Vario
Power).
Turn the spray lance to "Mix" position.
Clean the detergent suction hose filter.
Check the detergent suction hose for kinks.
Storage
Storing the Appliance
Frost protection
Care and maintenance
Clean the sieve in the water connection
Cleaning the detergent filter
Spare parts
Troubleshooting
Appliance is not running
Appliance does not start, motor hums
Pressure does not build up in the appliance
Strong pressure fluctuations
Appliance is leaking
No detergent infeed
13EN
Autogoods “130”
130.com.ua

– 9
The warranty terms published by the relevant sales
company are applicable in each country. We will repair
potential failures of your appliance within the warranty
period free of charge, provided that such failure is
caused by faulty material or defects in manufacturing. In
the event of a warranty claim please contact your dealer
or the nearest authorized Customer Service centre.
Please submit the proof of purchase.
Addresses can be found under:
www.kaercher.com/dealersearch
We hereby declare that the machine described below
complies with the relevant basic safety and health re-
quirements of the EU Directives, both in its basic design
and construction as well as in the version put into circu-
lation by us. This declaration shall cease to be valid if
the machine is modified without our prior approval.
The undersigned act on behalf and under the power of
attorney of the company management.
Authorised Documentation Representative
S. Reiser
Alfred Kärcher GmbH Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
Phone: [phone]
Fax: [phone]
Warranty
Technical specifications
Electrical connection
Voltage 230
1~50 V Hz
Connected load 1,8 kW
Protection class IP X5
Protective class I
Mains fuse (slow-blow) 10 A
Water connection
Max. feed pressure 0,8 MPa
Max. feed temperature 40 °C
Min. feed volume 9 l/min
Max. Suction height 0,5 m
Performance data
Working pressure 11 MPa
Max. permissible pressure 13 MPa
Water flow rate 6,3 l/min
Max. flow rate 7,0 l/min
Detergent flow rate 0,3 l/min
Recoil force of trigger gun 13 N
Dimensions and weights
Length 516 mm
Width 295 mm
Height 282 mm
Weight, ready to operate with acces-
sories 12,2 kg
Values determined as per EN 60335-2-79
Hand-arm vibration value
Uncertainty K <2,5 0,3 m/s2
m/s2
Sound pressure level LpA
Uncertainty KpA
75
3dB(A) dB(A)
Sound power level LWA + Uncertainty
KWA
91 dB(A)
Subject to technical changes.
EU Declaration of Conformity
Product: High pressure cleaner
Type: 1.637-xxx
Relevant EU Directives
2000/14/EC
2014/30/EU
2006/42/EC (+2009/127/EC)
2011/65/EU
Applied harmonized standards
EN 50581
EN 55014–1: 2006+A1: 2009+A2: 2011
EN 55014–2: 2015
EN 60335–1
EN 60335–2–79
EN 61000–3–2: 2006+A1: 2009+A2: 2009
EN 61000–3–3: 2013
EN 62233: 2008
Applied conformity evaluation method
2000/14/EC: Appendix V
Sound power level dB(A)
Measured: 87
Guaranteed: 91
Winnenden, 2016/04/01
CEO Head of Approbation
14 EN
Autogoods “130”
130.com.ua

http://www.kaercher.com/dealersearch
Autogoods “130”
130.com.ua
