Küschall K-SERIES User manual

User manual
Active wheelchair

küschall® is a registered trademark.
© Küschall AG, Switzerland
Every eort has been made to ensure that the contents of this
publication are fully up-to-date at the time of going to print. As
part of its ongoing improvement of products, Küschall® AG re-
serves the right to modify existing models at any time. Küschall®
dealers will be notied of any such modications. Any use of
this publication, or of parts thereof, as well as any reproduction
of images, must have the written consent of Küschall® AG.
This product complies with Directive 93/42/EEC concerning medical devices.

K-Series Contents
3
Contents
1General 5
1.1 Information about the User Manual 5
1.2 Symbols 5
1.3 Guarantee 5
1.4 Service life 6
1.5 Copyright protection 6
2Safety 7
2.1 Safety information 7
2.2 Correct use 7
2.3 Safety devices 8
3Technical data 9
3.1 Dimensions and weight 9
3.2 Environmental conditions 10
3.3 Tyre pressure 10
3.4 Identification label 10
4Components and their function 11
4.1 Overview 11
4.2 Parking brakes 12
4.3 Backrest 13
4.4 Push handles 14
4.5 Sides 15
4.6 Footrest 17
4.7 Antitipper 18
4.8 Vario-Ax 18
4.9 Rear wheel extension 19
4.10 Seat cushion 19
4.11 Seat position 19
4.12 Accessories 20
5Set-up 23
6Using the wheelchair 24
6.1 Safety information 24
6.2 Braking during use 24
6.3 Getting in and out of the wheelchair 25
6.4 Driving and steering the wheelchair 25
6.5 Negotiating steps and kerbs 26
6.6 Going up and down stairs 27
6.7 Negotiating ramps and slopes 28
6.8 Stability and balance when seated 30
7Transport 32
7.1 Safety information 32
7.2 Folding and unfolding the wheelchair 32
7.3 Removing and fitting the rear wheels 33
8Maintenance 35
8.1 Maintenance schedule 35
8.2 Cleaning 37
8.3 Disinfection 37
9Troubleshooting 38
9.1 Identifying and repairing faults 39

   K-Series
4
10 After use 40
10.1 Re-use 40
10.2 Disposal 40

K-Series General
5
1General
1.1 Information about the User Manual
Thank you for choosing a Küschall® wheelchair.
This User Manual contains important information about using
the wheelchair. In order to ensure safety when using your
wheelchair, read the User Manual carefully and follow the
safety information.
The equipment of your wheelchair may differ from the
descriptions and diagrams given here due to the wide range
of models available.
1.2 Symbols
Warnings
In this User Manual warnings are indicated by symbols. The
warning symbols are accompanied by a heading that
indicates the severity of the danger.
WARNING
Indicates a hazardous situation that could result in
serious injury or death if it is not avoided.
CAUTION
Indicates a hazardous situation that could result in
minor or slight injury if it is not avoided.
IMPORTANT
Indicates a hazardous situation that could result in
damage to property if it is not avoided.
Tips and recommendations
Gives useful tips, recommendations and information
for efficient, trouble-free use.
1.3 Guarantee
General conditions
Küschall AG guarantees that their wheelchairs are free from
defects and are fully functional. The guarantee covers all
faults and defects which are verifiably attributable to faulty
construction, substandard materials or poor workmanship.
Guarantee claims against Küschall AG may only be made by
the distributor and not by the wheelchair user.
Limitation of liability
The guarantee does not cover normal wear and tear, the
consequences of improper handling or damage, poor
maintenance and incorrect assembly or commissioning by
the purchaser or a third person or faults which are
attributable to circumstances beyond our control. The
guarantee is voided if modifications are made to the
wheelchair which were not authorised and not performed by
the specialist dealer or if inappropriate spare parts are used.
The Küschall AG warranty does not cover consequential costs

General   K-Series
6
arising from the rectification of defects such as freight and
travel expenses, labour costs, fees etc.
Term of the guarantee
The term of the guarantee is 24 months. The frame is
guaranteed for 5 years. Wearing parts are not covered by the
guarantee.
1.4 Service life
We estimate that the Küschall® wheelchair has a service life
span of five years. It is difficult to state the exact length of the
service life of our products, and the length stated is an
estimated average life span based on normal use.
The life span may be considerably longer if the wheelchair is
used to a limited extent, and if it is used with care, maintained
and handled properly. The life span may be shorter if the
wheelchair is subjected to extreme use.
1.5 Copyright protection
This User Manual is protected by copyright. It may not be
reprinted or copied or transferred to third parties in part or in
full without the prior written consent of the manufacturer.

K-Series Safety
7
2Safety
This section contains important safety information for the
protection of the wheelchair user and assistant and for safe,
trouble-free use of the wheelchair.
2.1 Safety information
WARNING! Risk due to driving style being
unsuitable for the conditions
There is a risk of skidding on wet ground, gravel or
uneven terrain.
Always adjust your speed and driving style to the
conditions (weather, surface, individual ability, etc.).
WARNING! Risk of injury
In a collision you could sustain injury to parts of your
body that extend beyond the wheelchair (e.g. feet or
hands).
- Avoid an unbraked collision
- Never drive into an object head-on
- Drive carefully through narrow passages.
WARNING! Risk due to wheelchair being out of
control
At high speed you could lose control of your
wheelchair and overturn.
- Never exceed a speed of 7 km/h.
- Avoid collisions in general.
CAUTION! Risk of burning
The wheelchair components can heat up when
exposed to strong sunlight.$
CAUTION! Risk of getting fingers caught
There is always a risk of getting, e.g. fingers or arms,
caught in the moving parts of the wheelchair.
- Make sure when activating the folding or insertion
mechanisms of moving parts, such as the
removable axle of the rear wheel, folding backrest
or antitipper, that nothing becomes caught.
2.2 Correct use
The wheelchair is propelled manually and should only be
used for independent or assisted transport of a disabled
person with mobility difficulties. When used without an
assistant, it should only be used by persons who are physically
able to use the wheelchair safely (e.g. to propel themselves,
steer, brake). The wheelchair should only be used on level
ground and accessible terrain, as well as indoors.
WARNING!
Any other or incorrect use of the wheelchair could
lead to hazardous situations.

Safety   K-Series
8
2.3 Safety devices
WARNING! Risk of accidents
Safety devices that are incorrectly set or no longer
working (brakes, antitipper) can cause accidents.
- Always check that the safety devices are working
before you use the wheelchair and have them
checked regularly by the specialist dealer.
The functions of the safety devices are described in Section 4 –
Components and their function.
The wheelchair has been tested in accordance with EN 12183.
It includes a test for flammability.

K-Series Technical data
9
3Technical data

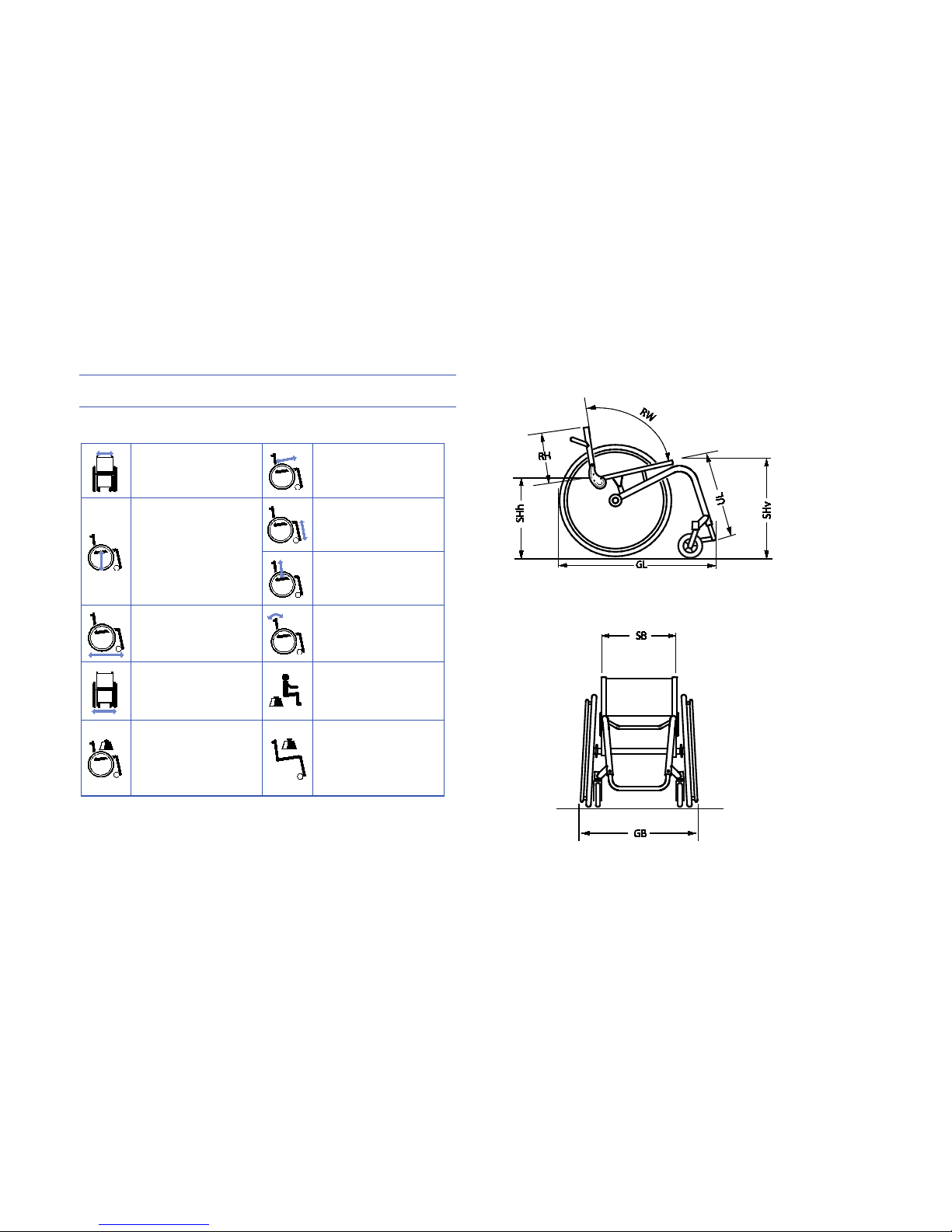

3.1 Dimensions and weight
Seat width (SB)
340 – 480 mm
Seat depth (ST)
375 – 525 mm
Seat height front
(SHv) 450 – 520 mm
Seat height rear
(SHh) 380 – 490 mm
Lower leg length
(UL) 290 – 480 mm
Backrest height (RH)
270 – 480 mm
Total length (GL) 3)
760 - 830 mm
Backrest angle (RW)
74°, 78°, 82°, 86°, 90°
Total width (GB) 1)
515 – 740 mm
Maximum user
weight
120 kg
Weight 2)
7.7 kg
Transport weight
(without rear
wheels)
approx. 5.4 kg
1)
GB = SB + 175 mm/ wheel camber 0°, SB + 210 mm/ 3°, SB + 260 mm/ 6°
2)
lightest configuration with SB 40 and ST 40, aluminium frame
3)
depending on configuration

Technical data   K-Series
10
3.2 Environmental conditions
Do not expose the wheelchair to temperatures below -20°C or
above 40°C.
3.3 Tyre pressure
The ideal pressure depends on the tyre type:
Tyre Max. pressure
Low-resistance tyre 7 bar 700 kPa 101 psi
Treaded tyre (marathon) 7.5 bar 750 kPa 108 psi
Slick tyres (speed run) 10 bar 1000 kPa 145 psi
Mountain bike tyre 4 bar 400 kPa 58 psi

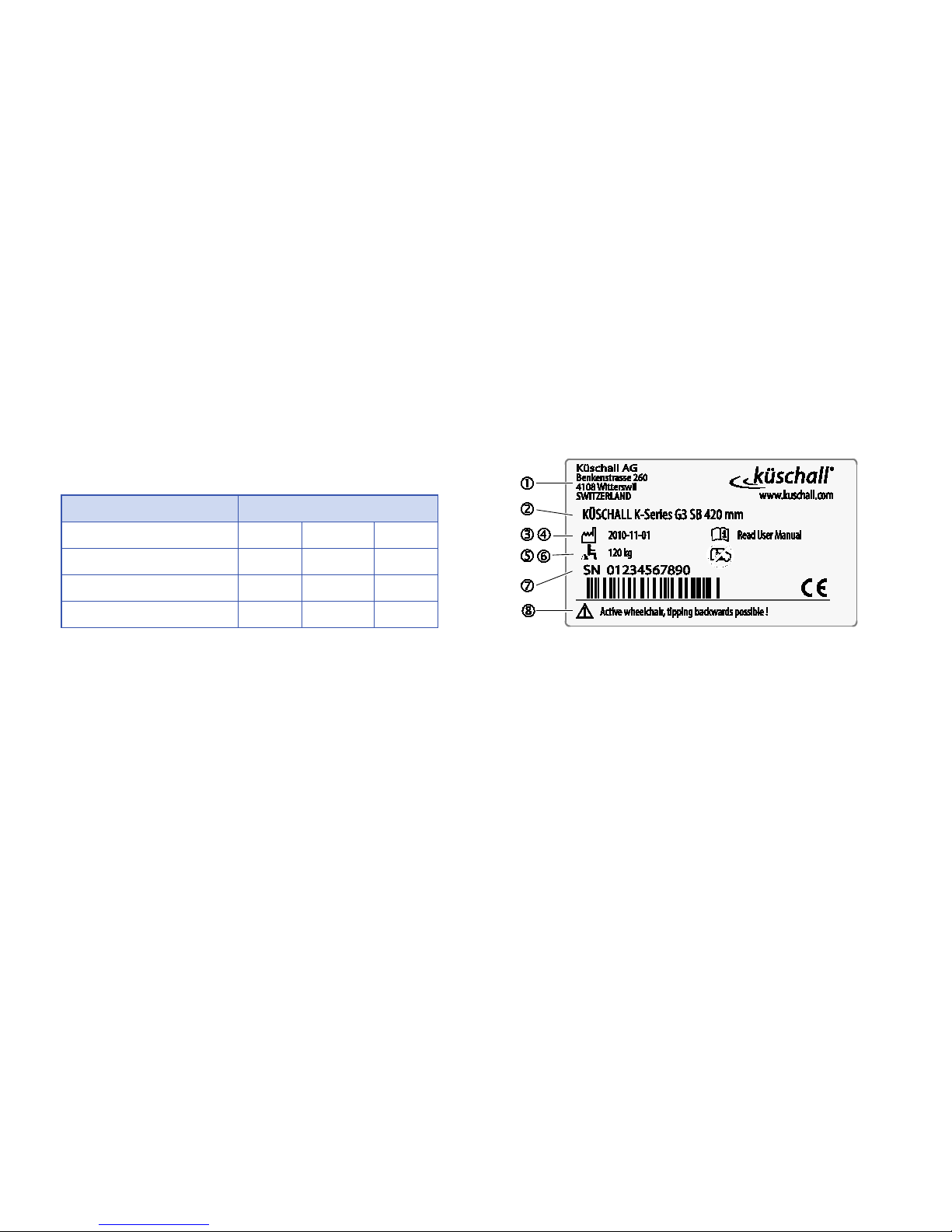

3.4 Identification label
The identification label is attached to the frame of your
wheelchair and gives the following information:
Manufacturer’s address
Product description
Date of manufacture
Instruction to read the User Manual
Maximum user weight
Instruction that this wheelchair is not designed for
passenger transport in vehicles
Serial number
Warning that this is an active wheelchair and can tip
backwards

K-Series Components and their function
11
4Components and their function

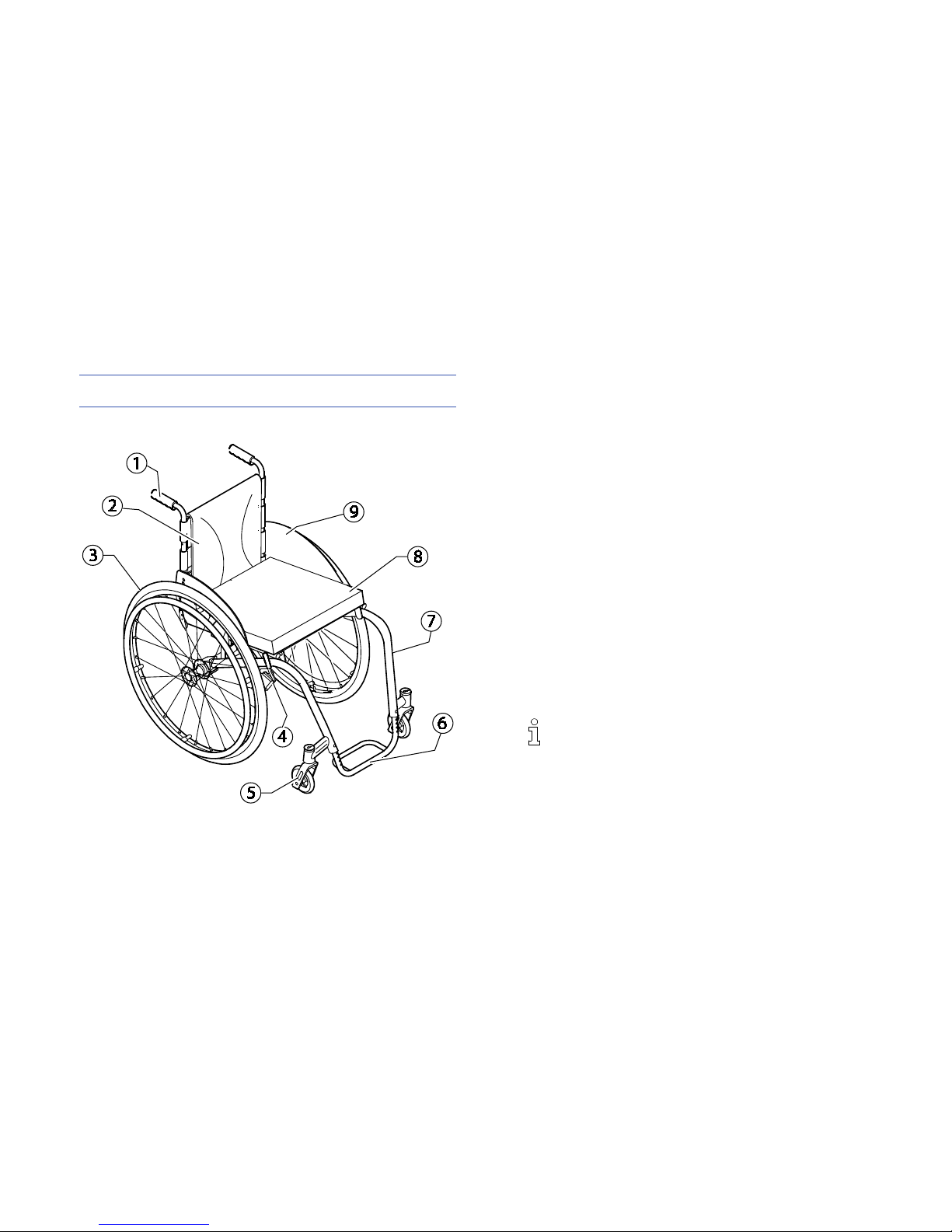

4.1 Overview
Push handle
Back
Rear wheel with handrim
Parking brake
Front wheel fork with front wheel
Footrest
Frame
Seat
Clothes-guard
Short description
The Küschall K-Series is a rigid frame wheelchair with folding
backrest.
The equipment of your wheelchair may differ from
the diagram as each wheelchair is manufactured
individually to the specifications in the order.

Components and their function   K-Series
12
4.2 Parking brakes
The parking brakes are used to immobilise the wheelchair
when it is stationary to prevent it from rolling away.
WARNING! Risk of overturning if you brake
sharply
If you apply the parking brakes while you are
moving, the direction of movement can become
uncontrollable and the wheelchair may stop
suddenly, which can lead to a collision or to you
falling out.
- - Never apply the parking brakes while you are
moving.
WARNING! Risk of overturning
The parking brakes will not operate correctly unless
there is sufficient air in the tyres.
(Section 3 – Tyre pressure)
Standard brake
To apply the brake, push the brake lever forwards as far as
possible.
To release the brake, pull the brake lever backwards.
Performance brake
To apply the brake, push the brake lever forwards as far as
possible.
To release the brake, pull the brake lever backwards.

K-Series Components and their function
13
Active brake
To apply the brake, pull the brake lever forwards beside or
between your knees as far as possible.
To release the brake, push the brake lever backwards
beside or between your knees.
4.3 Backrest
Backrest cover
You can adjust the tension of the backrest cover as required.
Adjusting the backrest cover
Remove the backrest cushion.
Loosen the Velcro® tapes on the rear of the backrest cover
by simply pulling on them.
Tighten or loosen the tapes as required then reattach
them.
IMPORTANT
If the bands are set very loose, the tipping point of
your wheelchair is changed for the worse.

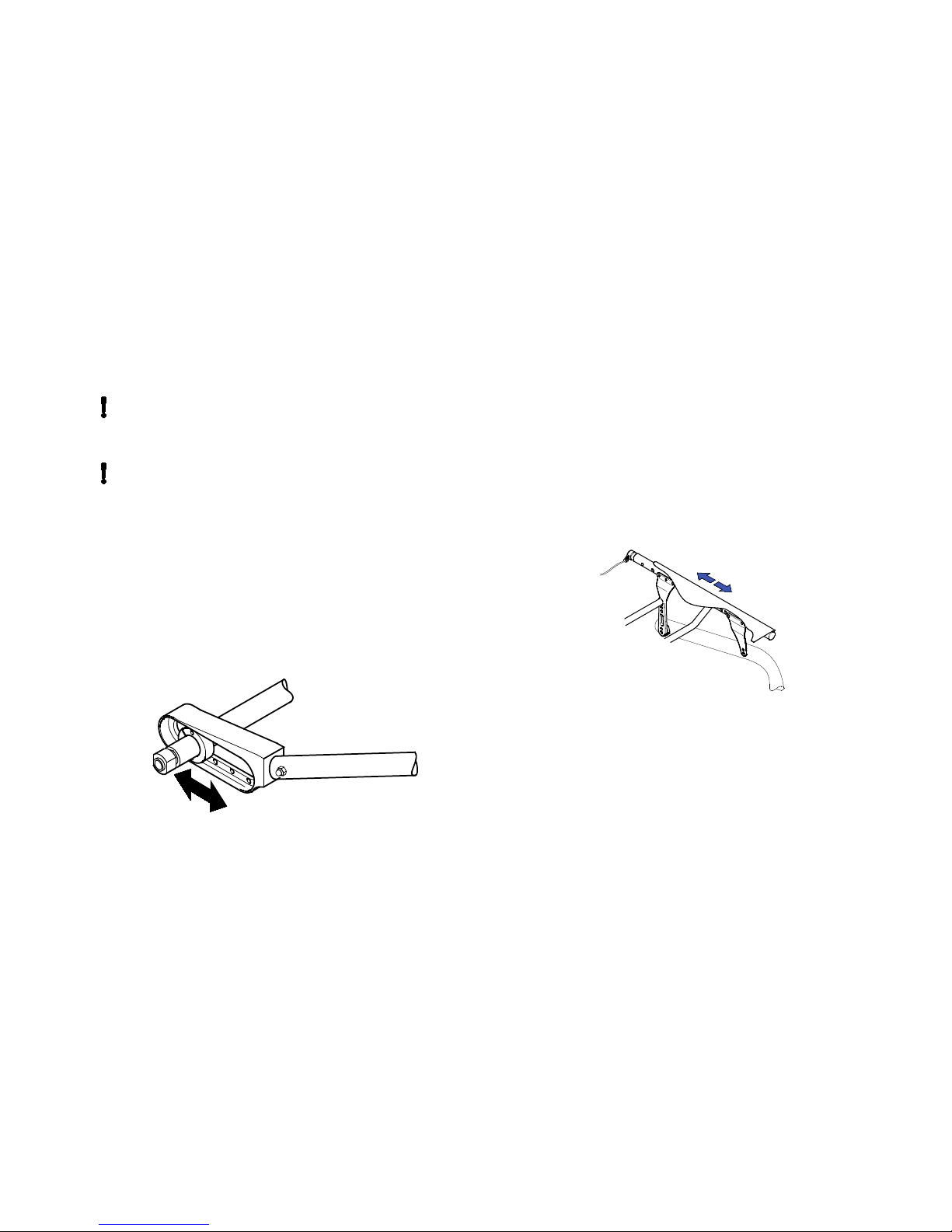

Backrest height
The height of the backrest can be adjusted. The adjustment
must be carried out by the specialist dealer.

Components and their function   K-Series
14
Backrest angle
The angle of the backrest can be adjusted. The adjustment
must be carried out by the specialist dealer.
Backrest bar
WARNING! Risk of accidents
The backrest bar is not suited for lifting or carrying
the wheelchair with the user sitting in it as it can
break.
-The backrest bar should not be used to lift or carry
the wheelchair while the user is sitting in it.
4.4 Push handles
IMPORTANT
Always check the push handles before using the
wheelchair, as to whether the hand grips are secure,
cannot be turned and cannot be pulled off.
Foldable push handles (optional)
Foldable push handles are used when the push handles are
only required occasionally.

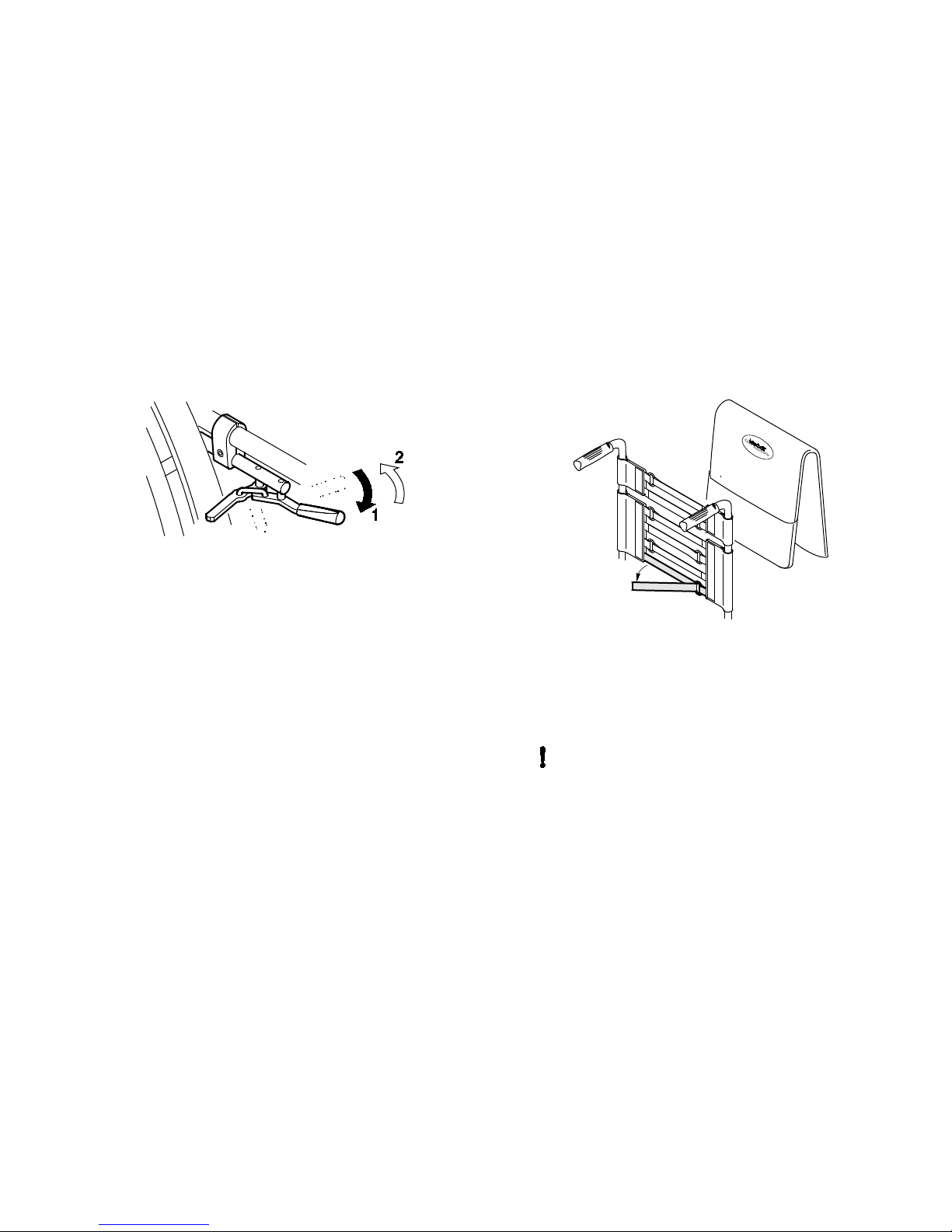

To fold down the push handles, hold the wheelchair with
one hand. Grip the push handle with the other and using
your thumb activate the release that is concealed under
the plastic. (1)
At the same time pull the push handle backwards (2) and
fold it down (3).
To fold the push handles up, bring the push handle into
the horizontal position until it engages.
IMPORTANT
Make sure that the push handle does actually
engage so that it does not accidentally fold down
while pushing the wheelchair.

K-Series Components and their function
15
Height adjustable, angled push handles
(optional)

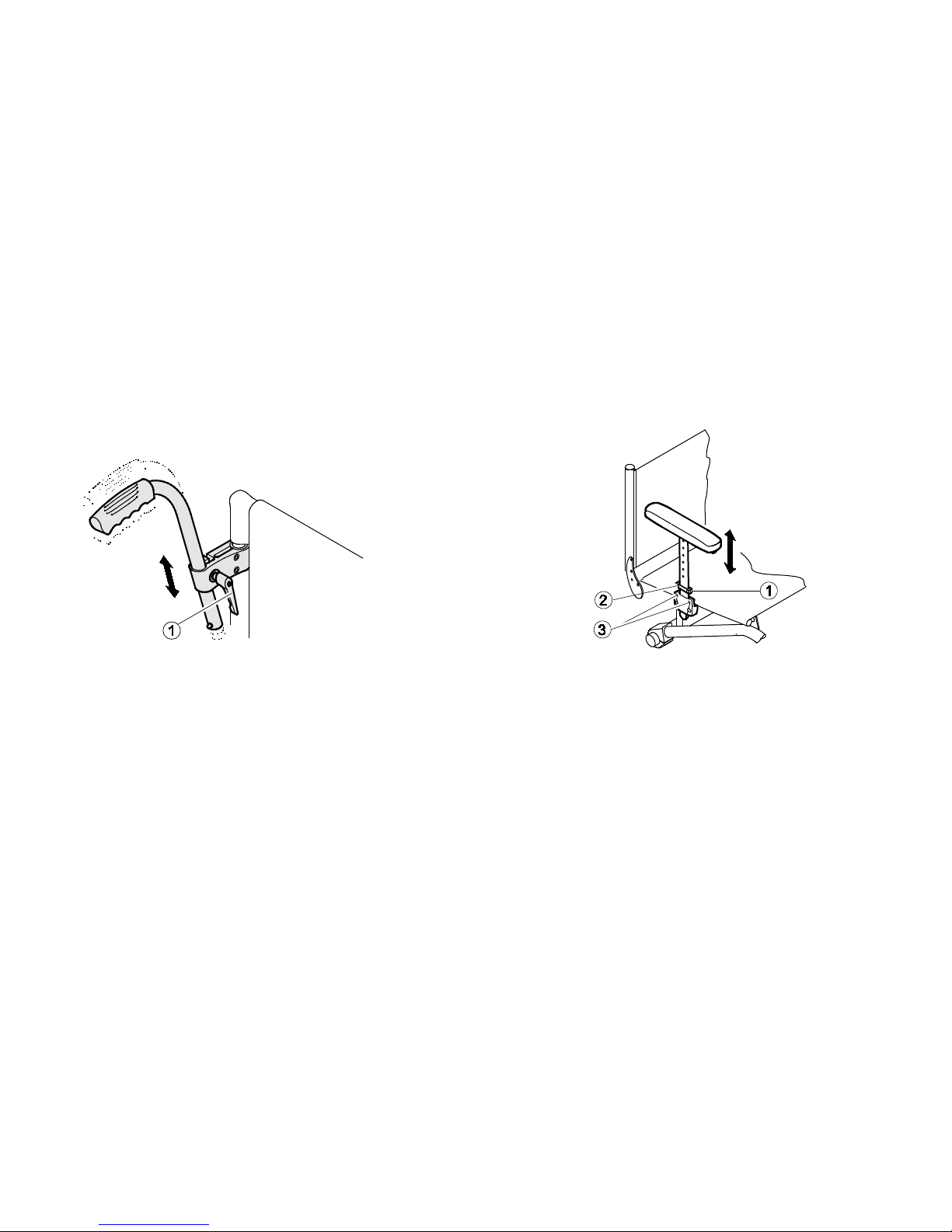

The infinitely height adjustable push handles allow any
assistant to adjust the handles to a comfortable level.
To set the height of the push handles, loosen the bolt ,
push the handle to the desired position and tighten the
bolt again.
4.5 Sides
Side rest, infinitely height adjustable
Removing
Pull the side rest by the arm cushion out of the holder.
To adjust how easy or difficult it is to pull the side rest out
of the holder, change the degree to which the screws 
are tightened.
Fitting
Push the side rest into the holder.
Adjusting the height
Loosen the screw of the retaining plate .
Move the armrest upwards or downwards until you reach
the desired height.

Components and their function   K-Series
16
Tighten the screw .
Perform the setting on both sides.
Simple armrest, height-adjustable, swivelling
Removing
Raise the armrest and pull it upwards out of the holder.
Fitting
Push the armrest into the holder.
Adjusting the height
Pull the armrest out of the holder.
Loosen the screw on the tube of the armrest and screw it
back in at the desired height.
Push the armrest back into the holder.
Perform the setting on both sides.
Swivelling
Raise the armrest a little and swivel it outwards.
Mudguard
In order to prevent dirt from the wheels spraying upwards, a
removable mudguard can be fitted. The position of the
mudguard can be adjusted. The adjustment must be carried
out by the specialist dealer.
Removing
Pull the mudguard upwards out of the holder.
To adjust how easy or difficult it is to pull the mudguard
out of the holder, change the degree to which the screws
are tightened.

K-Series Components and their function
17
Fitting
Push the mudguard into the holder.
Clothes-guard
A clothes-guard can be fitted to protect your clothes. Before
folding the back of the wheelchair, the clothes-guard must
first be folded inwards against the backrest.
Folding in
Raise the clothes-guard at the front and swivel it inwards in
front of the backrest.
4.6 Footrest
The height of the footrest can be adjusted. The adjustment
must be carried out by the specialist dealer.

Components and their function   K-Series
18
4.7 Antitipper
An antitipper prevents the wheelchair from tipping
backwards.
Activating the antitipper
Push the antitipper downwards against the spring and
swivel it backwards through 90° until it engages.
CAUTION! Risk of tipping
An activated antitipper can catch when negotiating
a step or an edge.
Always deactivate the antitipper before driving over
a step or kerb.
Deactivating the antitipper
Push the antitipper downwards against the spring and
swivel it inwards through 90° until it engages.
Setting the height
Press the spring pin on the antitipper and push the inner
section to the position required. Allow the spring pin to
engage in the nearest hole.
4.8 Vario-Ax
Your wheelchair can be fitted with a Vario-Ax. The Vario-Ax
makes it possible to change the wheel camber.
Adjusting the Vario-Ax
Loosen the knurled screw on the Vario-Ax.
Pull the wheel by the hub until the desired angle is set.
A gentle engagement will indicate when it has reached
one of the four possible positions.
Retighten the knurled screw .

K-Series Components and their function
19
Perform the same setting on both sides.
IMPORTANT!
Do not overtighten the knurled screw as this can
damage its mechanism.
IMPORTANT!
Changing the wheel camber can impair or negate
the function of the parking brakes.
4.9 Rear wheel extension
Your wheelchair can be fitted with a rear wheel extension. The
rear wheel extension makes it possible to alter the position of
the rear wheel and thus the tipping stability of the
wheelchair. The adjustment must be carried out by the
specialist dealer.
4.10 Seat cushion
A suitable cushion is needed to provide an even pressure
distribution on the seat.
4.11 Seat position
The seat position and thus the tipping stability of your
wheelchair can be altered. The adjustment must be carried
out by the specialist dealer.
Seat height front (SHv)
The SHv can be adjusted. The adjustment must be carried out
by the specialist dealer.
Seat height rear (SHh)
The SHh can be adjusted by several centimeters. The
adjustment must be carried out by the specialist dealer.

Components and their function   K-Series
20
4.12 Accessories
Postural belt
Your wheelchair can be fitted with a postural belt. The
postural belt prevents you from sliding forward in your
wheelchair.
Fitting a safety belt
IMPORTANT
Safety belts must be fitted by a specialist dealer.
Opening the safety belt
Push in the PRESS button and pull the catch out of the
buckle .The safety belt opens.
Closing the safety belt
Push the catch into the buckle .
Tighten the belt until you are held securely in the
wheelchair.
Air pump
The air pump is fitted with a universal valve connection.
Remove the dust cap from the valve connection.
Push the valve connection onto the open valve on the
wheel and pump the wheel up.
Passive illumination
You can attach reflectors to the rear wheels.
