Küschall K-SERIES User manual

Service Manual
KÜSCHALL K-SERIES

3
KÜSCHALL K-SERIES
© Küschall AG, Switzerland | 2014-07
Service Manual
TABLE OF CONTENTS
GENERAL...................................................................................................................... 4
Introduction 4
Spare parts and adaptations 4
Tightening Allen screws 4
Torque 5
Checks 5
Identifying and alleviating malfunctions 5
FRAME............................................................................................................................6
SEAT ...............................................................................................................................7
Seat width (SB) 7
Seat depth (ST) 7
Front seat height (SHv) 7
Rear seat height (SHh) 9
Seat angle (SW) 9
Tipping point adjustment 10
Suspension 10
BACKREST...................................................................................................................11
Backrest height (RH) 12
Adjusting the backrest height 12
Securing/adjusting the release cord 12
Replacing the backrest tube 13
Replacing the handle 14
Replacing foldable push handles 14
Backrest angle (RW) 15
FOOTRESTS ...............................................................................................................16
Lower leg length (UL) 16
Replacing footrests 16
Adjusting the footrest height 16
Fitting and adjusting high-mounted footrest 17
Angle-adjustable footplate, adjusting the angle 17
Fit fold-up footrest 17
SIDE PARTS .................................................................................................................18
Armrest 18
Clothes-guard/mudguard 19
FRONT WHEELS.........................................................................................................21
Replacing a front wheel 21
Replacing a front wheel fork 21
REAR WHEELS ........................................................................................................... 22
Ensuring the rear wheels are parallel 22
Adjusting the removable axle 22
Fitting and adjusting a rear wheel extension 22
Changing the wheel chamber / Fitting and adjusting an axle 23
BRAKES ....................................................................................................................... 24
Fitting / adjusting the parking brake 24
OPTIONS & ACCESSORIES...................................................................................... 25
Antitipper 25
Active antitipper 26
Transit wheels 26
Fitting the pelvic belt 27
Attaching the snap hook symbols 27

4
KÜSCHALL K-SERIES
© Küschall AG, Switzerland | 2014-07
Service Manual
GENERAL
Introduction
This service manual is part of the instructions and contains the tech-
nical information for servicing, configuring and repairing a küschall®
wheelchair.
WARNING!
Danger of accident and severe injuries.
If the wheelchair is improperly set it can cause
accidents and severe injuries.
▸Changes to the wheelchair may only be carried out
by the provider.
To guarantee the required safety and reliability, all wheelchairs must
be comprehensively checked once a year.
In part, assembly and adjustment require extensive experience.
For this reason, the following assembly instructions have been split
into three categories:
Requirement Symbol
Easy – technical understanding required 
Intermediate – specialist knowledge required 
Dicult – specialist wheelchair assembly knowledge
and experience required

The required tools and their respective sizes are listed above each
instruction. The instructions include information on the torques with
which the respective screw connections must be tightened. Adhering
to the given torques requires the use of a torque spanner.
Tools Symbol
Allen key Ã3, 4, 5
Phillips screwdriver Ò2
Straddle spanner 10, 11, 19
Socket spanner/ring spanner 8, 10
Spare parts and adaptations
All spare parts can be purchased from Küschall®'s Customer Services.
An electronic spare parts catalog is available by logging onto www.
kuschall.com. Only original spare parts may be used. Installing additi-
onal adaptations to a küschall®wheelchair requires the prior written
approval of Küschall AG.

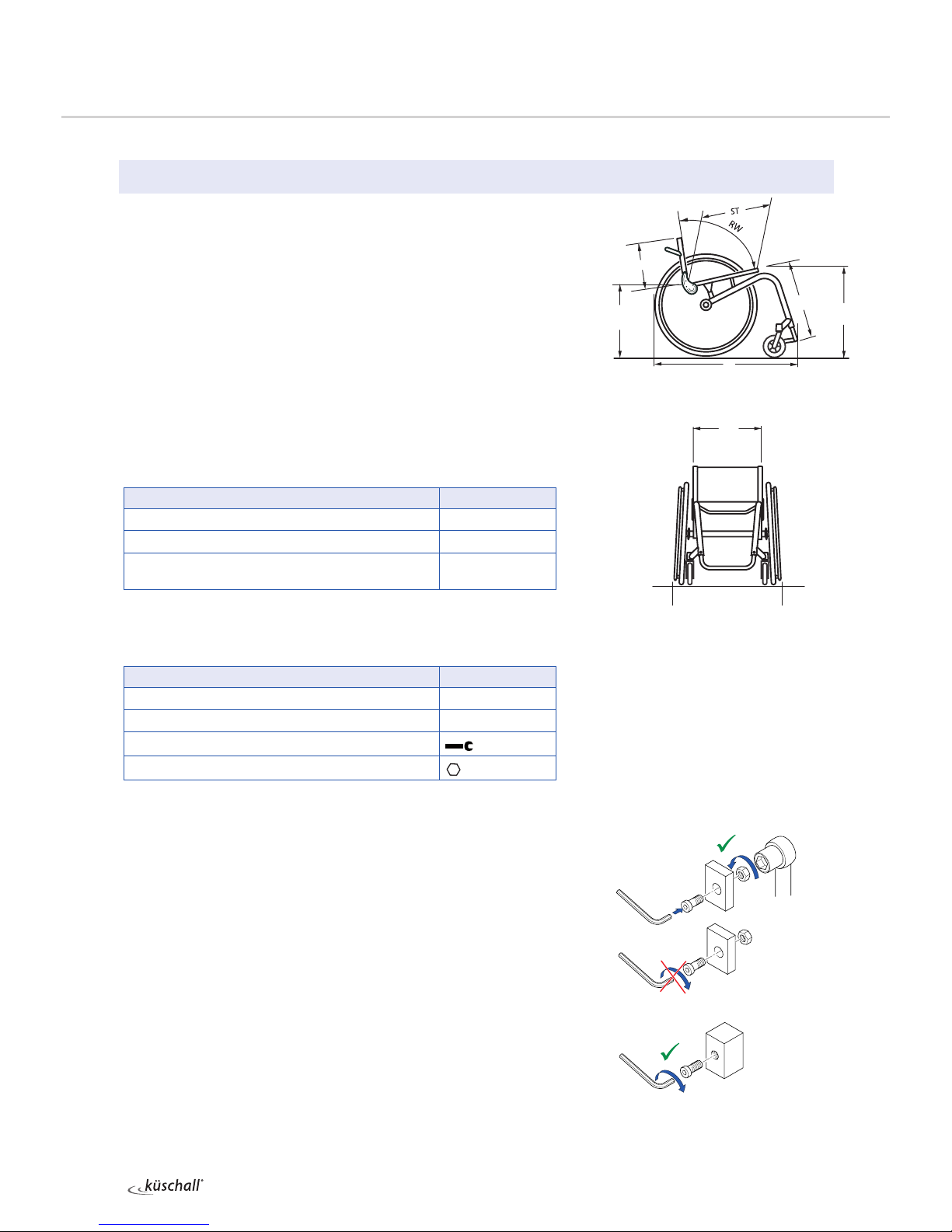

Tightening Allen screws
Allen keys are not designed for greater forces. When tightening or
loosening an Allen screw, it is therefore advisable to apply force to
the nut to prevent the hexagon socket from being damaged.
Tightening and loosening
Turn the nut with a socket spanner (only use a straddle spanner
if there is insucient space) and merely hold the screw tight with
the Allen key.
RH
SHv
SHh
UL
SB
GL

5
KÜSCHALL K-SERIES
© Küschall AG, Switzerland | 2014-07
Service Manual
Tightening and loosening if there is no nut
If an Allen screw is directly screwed into a screw thread, the screw must be tightened
using an Allen key.
iEnsure that the Allen key is of good quality and not worn.
Torque
All screw connections must be tightened with the torques specified in the following
instructions.
Checks
Visual check
Check the entire frame for cracks, especially the areas around joints and welded
seams.
Checking the screw connections
Check all bolts with the torques specified in the instructionsregularly, and adjust if
required.
CAUTION! Several screw connections have been secured with safety seals. If these are opened,
they must be secured again using new safety seals.
High-power and low power adhesives are available. For torque entries notice shall be
made whether an adhesive and which adhesive needs to be used.
Identifying and alleviating malfunctions
Malfunction Possible cause Measure
The wheelchair will not
move in a straight line
Incorrect tire pressure in a rear wheel Correct tire pressure
One or more spokes broken Replace defective spoke(s)
Spoke unevenly tensioned Tighten excessively loose spokes
Dirty or damaged wheel bearings Clean or replace bearings
The wheelchair tips
backwards too easily
Rear wheels have been fitted too far forward Fit rear wheels further back
Backrest angle too great Reduce backrest angle
Seat angle too great Use longer vertical struts
The brakes engage poorly
or asymmetrically
Incorrect tire pressure in one or both rear wheels Correct tire pressure
Brake setting incorrect Correct brake setting
Roll resistance is too great Insucient tire pressure in the rear wheels Correct tire pressure
Rear wheels are not parallel Ensure that the rear wheels are parallel
The front wheels wobble
when moving fast
Insucient tension in the front wheel bearings block Lightly tighten the nut in the bearings
block axle
Front wheel is worn flat Replace front wheel
The front wheel is sti or
stuck Dirty or damaged bearings Clean or replace the bearings
Increased forward tip
tendency Frame deformed Replace frame

6
KÜSCHALL K-SERIES
© Küschall AG, Switzerland | 2014-07
Service Manual
FRAME
The K-Series frame is available in aluminium, titanium and carbon. Aluminium and titanium frames
come with frame angles of 75° and 90°; carbon frames come with a frame angle of 75°. Further-
more, the 75° and the 90° aluminium frames come with adduction and in a short, respective +5
version.
Frame
Front seat
height (SHv) in
mm
(with a 24”rear
wheel)*
Lower leg length
(UL) with standard-
mounted bar
Lower leg length (UL) with
standard-mounted fold-
up footrest
Seat depth
(ST)
Aluminium
75° short 450 to 470 SHv -120** to SHv -30 SHv -160** to SHv -30 375 to 450
75° standard 480 to 500 SHv -110** to SHv -30 SHv -150** to SHv -30 375 to 450
75°+5 500 to 520 SHv -110** to SHv -30 SHv -150** to SHv -30 450 to 525
90° short 450 to 470 SHv -140** to SHv -40 SHv -180** to SHv -40 375 to 450
90° standard 480 to 500 SHv -130** to SHv -40 SHv -170** to SHv -40 375 to 450
90°+5 500 to 520 SHv -130** to SHv -40 SHv -170** to SHv -40 450 to 525
75° adduction 480 to 500 SHv -110** to SHv -30 SHv -150** to SHv -30 375 to 450
90° adduction 480 to 500 SHv -130** to SHv -40 SHv -170** to SHv -40 375 to 450
Titanium
75° standard 480 to 500 SHv -110** to SHv -30 SHv -150** to SHv -30 375 to 450
90° standard 480 to 500 SHv -130** to SHv -40 SHv -170** to SHv -40 375 to 450
Carbon
75° standard 490 to 500 SHv -110** to SHv -30 SHv -150** to SHv -30 375 to 450
*With a 25”rear wheel, the SHv is 10 mm greater in each case. With a 26”rear wheel, the SHv is 20
mm greater in each case.
**With a 25”rear wheel, deduct 10 mm in each case when calculating the lower leg length. With a
26”rear wheel, deduct 20 mm in each case from the SHv (see examples in the following Table).
Examples:
Frame SHv in mm
Lower leg length
(UL) with standard-
mounted bar
Lower leg length with
standard-mounted fold-up
footrest
75° short, 25” rear wheel 460 to 480 SHv -130 to SHv -30 SHv -170 to SHv -30
75° short, 26” rear wheel 470 to 480 SHv -140 to SHv -30 SHv -180 to SHv -30
For lower leg lengths, the high-mounted footrest must be used. àChapter: Footrests, ‹Assemb-
ling and adjusting high-mounted footrests›
FRAME

7
KÜSCHALL K-SERIES
© Küschall AG, Switzerland | 2014-07
Service Manual
SEAT
Seat width (SB)
Available seat widths: SB 340 to 480 in 20 mm steps.
Changing the seat width is very complicated and requires the replacement of numerous parts.
Seat depth (ST)
Available seat depths: ST 375 to 525 in 25 mm steps.
Changing the seat depth requires the replacement of the complete seat module including the
seat cover and the seat rail and potentially also the seat cushion.
Front seat height (SHv)
The front seat height is dependent on several factors that interact with each other. The size
of the rear wheels determines the height of the sub-structure. In addition to the size and the
positioning of the brackets on the seat module, the frame, seat depth and rear seat height
influence the seat height.
26
25
24
3'' 4'' 5''
A B C D E F
75° / 75°+5 75°short
90° / 90°+5 90°short
SEAT

8
KÜSCHALL K-SERIES
© Küschall AG, Switzerland | 2014-07
Service Manual
SEAT
If the rear wheel, front wheel and front wheel fork are defined, the
front seat height can be adjusted by changing the position of the seat
module within the frame. There are 2 brackets available, each with 2
fixing options.

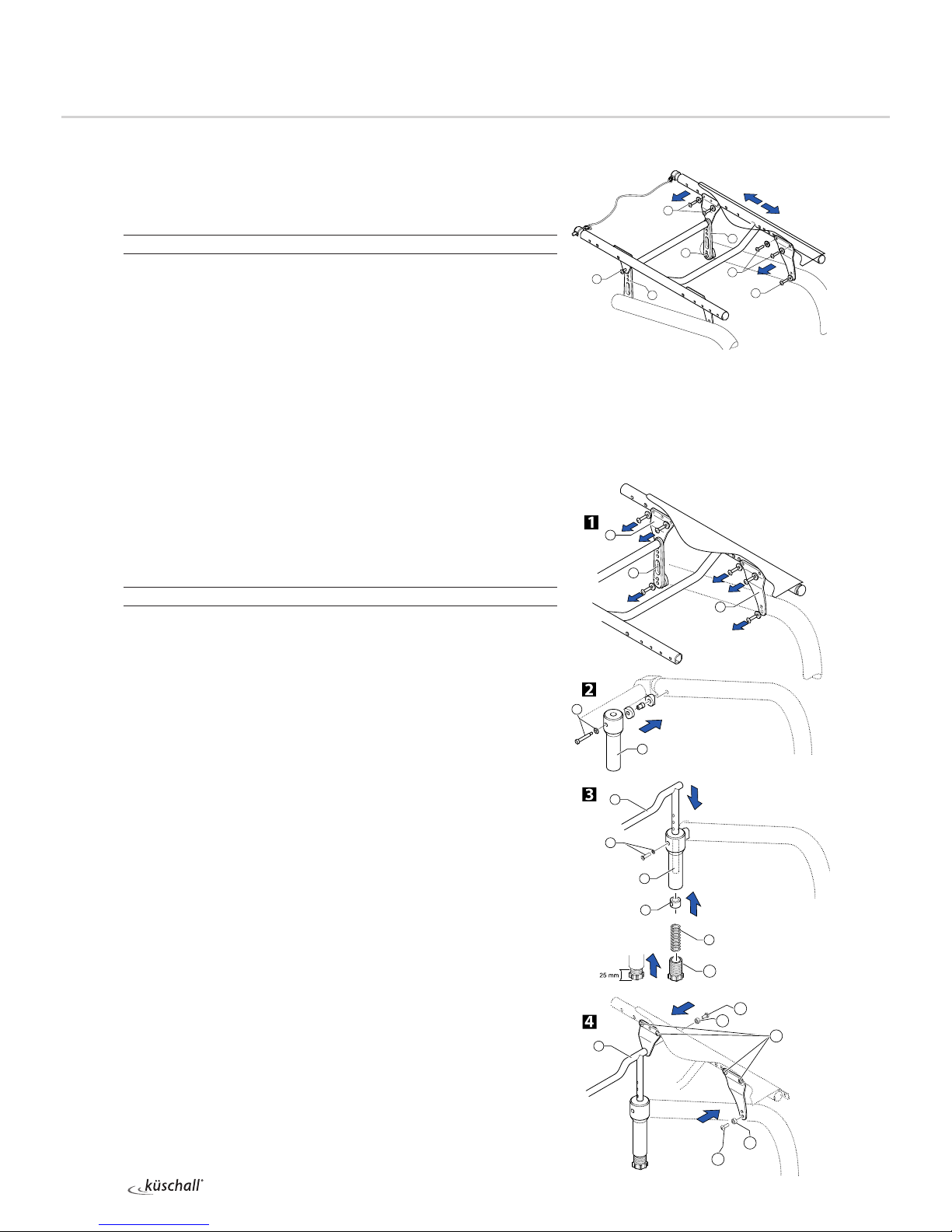

Positioning or replacing the brackets at the front for
setting the front seat height (SHv)
Diculty:  Tools: Ã4, 5
Remove the rear wheels, fold the backrest forward and place the
wheelchair on its back.
Loosen the screws and that connect the seat brace to the
seat module or the frame on both sides.
Remove the screw and place it in the bracket’s other hole.
If you require a new bracket, remove the screws and , replace
the bracket and fix it using the screws and .
Refit the rear wheels, stand the wheelchair back up and check the
position of the seat braces . They must be as perpendicular to
the ground as possible.
Tighten the screw connections and of the seat braces and 
and of the front brackets again.
Carry out the same setting on both sides.
iNote: ensure that adjusting the front seat height results in a change to the seat angle. It may be necessary to correspondingly
adjust the rear seat height (SHh) or the backrest angle.
Possible front and rear wheel combinations
Rear
wheel Frame 3'' 4'' 5''
24‘‘
75° short F E D
75° / 75°+5 / 90°short D C B
90° / 90°+5 B A --
25‘‘
75° short -- F E
75° / 75° +5 /
90°short E D C
90° / 90°+5 C B --
26‘‘ 75° / 75° +5 F E D
90° / 90°+5 D C B
iOnly select combinations listed in the Table to ensure that the frame is straight and the front wheel supports are perpendicular to
the ground.
1cm
1
3
2
4
6
5
à7 Nm
à13 Nm
à7 Nm
à7 Nm

9
KÜSCHALL K-SERIES
© Küschall AG, Switzerland | 2014-07
Service Manual
SEAT

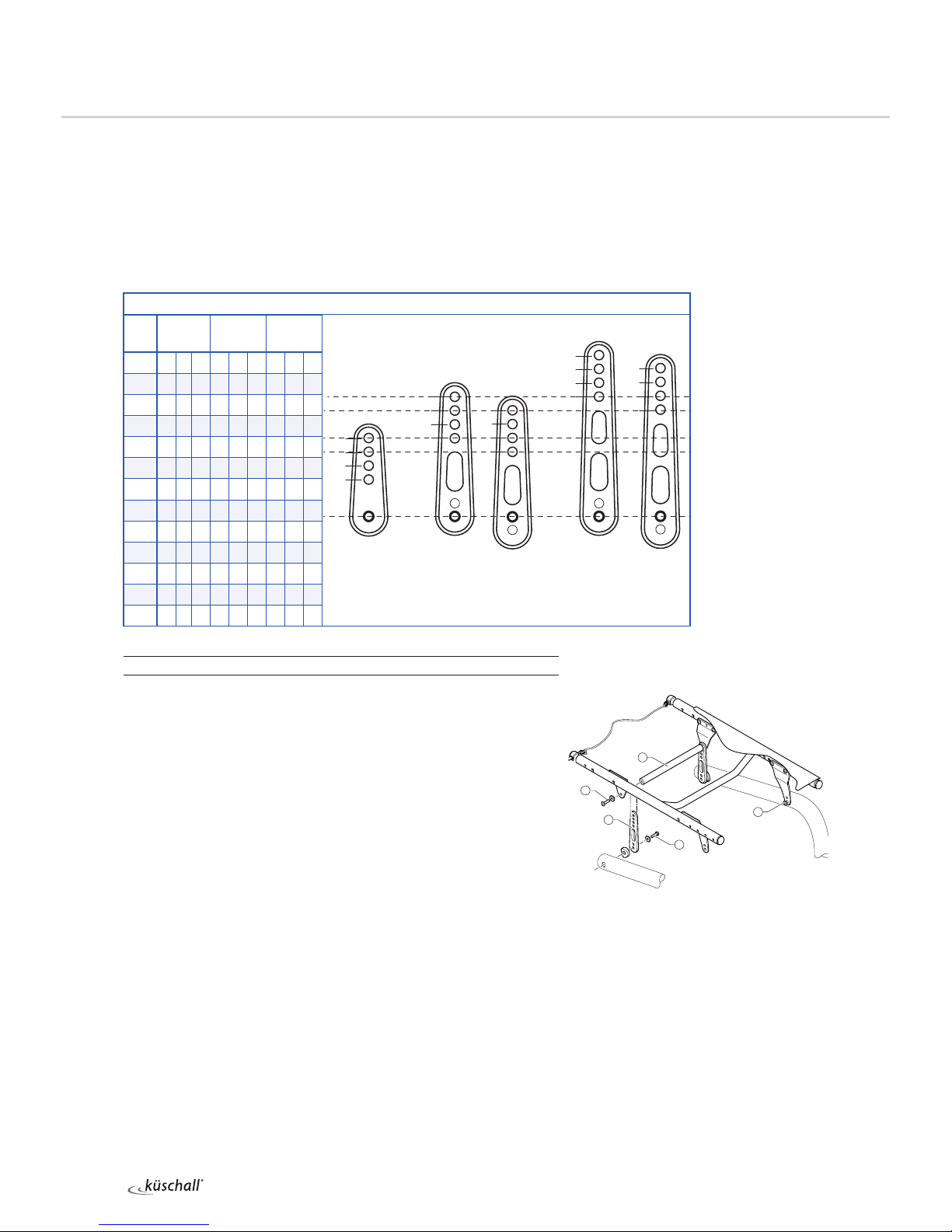

Rear seat height (SHh)
The seat braces can be repositioned to adjust the rear seat height.
The seat braces are available in three dierent sizes, covering seat
heights of between 380 and 490 mm.
Generally, we recommend fixing the seat braces to the lower hole on
the frame.
Adjusting the rear seat height (SHh)
Diculty:  Tools: Ã5
Remove the rear wheels, fold the backrest forward and place the
wheelchair on its back.
Loosen the screw for the front bracket on both sides.
If you can set the desired seat height using the existing seat
brace , loosen the screw and remove the screw and the
connecting bar .
If you require a new seat brace, remove the existing one and the
connecting bar and loosely fix the new seat brace to the frame
using screw .
Slide the seat brace against the rear bracket so that the required
holes overlap.
Insert the connecting bar and fix it with screw .
Carry out the same setting on both sides.
Refit the rear wheels, stand the wheelchair back up and check the
position of the seat brace . It must be as perpendicular to the
ground as possible.
Tighten the screws , and .
iNote: ensure that adjusting the rear seat height results in a change to the seat angle. It may be necessary to correspondingly adjust
the front seat height (SHv) or the backrest angle.
Seat angle (SW)
The seat angle is determined by the dierence between the rear seat
height (SHh) and the front seat height (SHv).
Rear seat height based on wheel position and wheel size
24”
wheel
25”
wheel
26”
wheel
SHh S M L S M L S M L
380 1
390 1 1
400 2 1 1
410 3 5a 2 1
420 4 5 3 5a 2
430 6 4 5 3 5a
440 7 9a 6 4 5
450 8 9 7 9a 6
460 10 8 9 7 9a
470 11 10 8 9
480 12 11 10
490 12 11
1
2
3
45
6
7
89
10
11
12
5a
6a
7a
8a 9a
10a
11a
12a
S M L
1
2
3
4
5
à7 Nm
à13 Nm
à7 Nm

10
KÜSCHALL K-SERIES
© Küschall AG, Switzerland | 2014-07
Service Manual
SEAT
Tipping point adjustment
The tipping point of the wheelchair can be adjusted by changing the
horizontal position of the seat module.
Diculty:  Tools: Ã4, 5
Remove the rear wheels, fold the backrest forward and place the
wheelchair on its back.
Loosen the screws , and .
Remove the screws and and slide the seat module forwards
or backwards.
Fix the seat module with the screws and and tighten the
screws , and again.
Carry out the same setting on both sides.
There are 3 possible positions for the rear bracket and 5 possible
positions for the front bracket.
iNote: ensure that the seat brace is as vertical as possible following an adjustment.
Suspension
A suspension can be fitted for a SHh of between 380 and 460.
Fitting a suspension
Diculty:  Tools: Ã4, 5
Remove the rear wheels, fold the backrest forward and place the
wheelchair on its back.
Remove the seat module by removing the brackets at the front 
and the rear .
Removing the seat brace .
Fit the suspension housing to the frame. Here, slide the screw
with the washer through the suspension housing and place the
lubricated sleeve with the spacer elements on the screw. Slide the
screw through the frame into the axle holder stay and tighten it
firmly.
Function check:
It must be possible to rotate the suspension housing , but it must
not be loose.
Insert the suspension seat strut from above into the suspension
housing . Slide the sleeve from below over the suspension
seat strut and position it at the desired seat height. Fix it using
the screw and the washer .
Carry out the same setting on both sides.
Lubricate the springs and insert them into the suspension
housing . Insert the screws into the suspension housing until
they protrude by 25 mm.
Fix the front and rear spring brackets to the seat module
(screws a), insert the lubricated rotating sleeves band fix the
seat module to the frame (screws c) again.
Reattach the wheels and stand the wheelchair up again.
Check:
Check the front seat height. When fitting the mudguard, ensure that
it is at least 4 mm from the wheel. Check the suspension function.
1
4
2
3
5
7
7
à7 Nm
à7 Nm
à7 Nm
à7 Nm
à13 Nm
1
2
3
4
4
6
7
9
8
6
12
12
13
13
5
10
11
à7 Nm
à4 Nm
aà7 Nm
cà7 Nm

11
KÜSCHALL K-SERIES
© Küschall AG, Switzerland | 2014-07
Service Manual
BACKREST
BACKREST
The adjustable back is fitted with velcro bands and a cover. Apart
from the adjustable back there is the light cover, which is produced
individually for each backrest height (RH) and seat width (SB).
A 1-band strap is placed beneath the stabilizing bar if there is a
clothes-guard, and a 2-bands strap if there is a mudguard.
5
6
1
2
3
4
8
8
7
7
9
Backrest height (RH) to pushhandles, telescopic tubes and bands
RH
without pushhandles height adjustable pushhandles,
rearset 
bands above
stabilizing bar
top
band
telescopic
tube bended

bands above
stabilizing bar
top
band
270 1-band 
endband, 5 cm 
- - -
285 1-band S1-band 
endband, 5 cm 
300 1-band S1-band 
315 1-band S1-band 
330 1-band 
endband, 10 cm 
S1-band 
345 1-band S1-band 
10
cm

360 1-band S1-band 
375 1-band M2 x 1-band 
5 cm 
390 2 x 1-band M2 x 1-band 
405 2 x 1-band M2 x 1-band 
endband, 10 cm 
420 2 x 1-band M2 x 1-band 
435 2-bands+1-band L 2 x 1-band 
450 2-bands+1-band L 2-bands+1-band
465 2-bands+1-band L 2-bands+1-band
480 2-bands+1-band L 2-bands+1-band
Backrest height (RH) to cover, backrest tube, pushhandles and bands
RH cover backrest
tube 
standard pushhandles 
foldable pushhandles 
pushhandle 
telescopic tube
straight 
bands above
stabilizing bar
top
band
270* S S S 1-band 
backrest- band, 5 cm 
285 S S S 1-band 
300 S S S 1-band 
315 S L S 1-band 
backrestband, 10 cm 
330 S L S 1-band 
345 M L S 1-band 
360 M L S 1-band 
375 M L S 2 x 1-band 
390 M L L 2 x 1-band 
405 M L L 2 x 1-band 
420 L L L 2-bands+1-band
435 L L L 2-bands+1-band
450 L L L 2-bands+1-band
465 L L L 2-bands+1-band
480 L L L 2 x 2-bands 
* RH 270 only for standard pushhandles

12
KÜSCHALL K-SERIES
© Küschall AG, Switzerland | 2014-07
Service Manual
BACKREST
Backrest height (RH)
The height of the backrest can be adjusted by moving the backrest
tube.

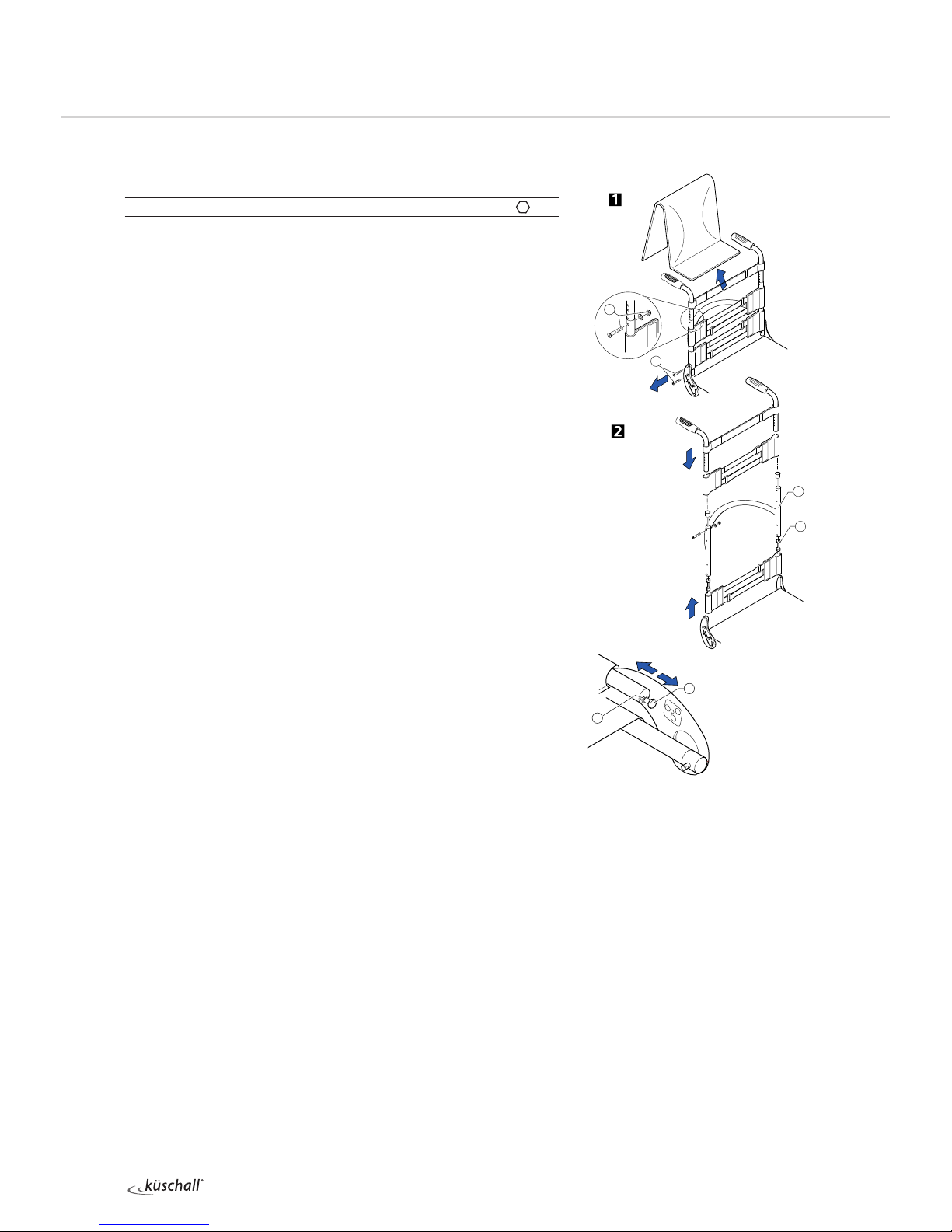

Adjusting the backrest height
Readjusting the push handle/telescopic tube
Diculty:  Tools: Ã38
Remove the backrest padding.
Remove the screw connection and adjust the desired height of
the push handle or the telescopic tube. Insert the screw
connection again and tighten the nut.
Carry out the same setting on both sides.
Refit the backrest padding.
iIf the desired height cannot be achieved, you must use a dierent telescopic tube or push handle.
Securing/adjusting the release cord
Diculty: 
WARNING! Risk of injury to the user during use as a result of the backrest
folding over unintentionally.
If the release cord is too taut, the locking mechanism can open
unintentionally.
Make sure that the release cord is not too taut.
Knot the release cord , left and right, to the wire rings such
that it is free from tension, but still ensuring that there is only
minimal slack (< 5 mm).
1
à7 Nm





13
KÜSCHALL K-SERIES
© Küschall AG, Switzerland | 2014-07
Service Manual
BACKREST
Replacing the backrest tube
Diculty:  Tools: Ã3,4 8, 10
Remove the backrest padding.
Slide the backrest bands upwards or downwards to gain access to
the screws . Remove the screws and nuts on both sides.
Remove the push handles or the telescopic tubes and remove the
upper Velcro® bands.
Remove the screws on the backrest joint.
Remove the lower Velcro® bands and the sleeve with the
adjustment screw from the backrest tube and fit both to the
new backrest tube.
Fit the backrest tube to the backrest joint with the screws . Here,
first fit the lower screw followed by the upper screw.
Fit the upper Velcro® bands and the push handles or the
telescopic tubes again and fix them with screws and nuts.
Carry out the same setting on both sides.
Refit the backrest padding.
The excentre plates must be adjusted identically on both sides of
the wheelchair, Adjusting the backrest angle.
Check:
Check the settings of the adjustment screws on both sides. The
screw head must only lightly touch the seat module when the
backrest is in the upright position. If necessary, readjust the length by
releasing the counter nut and tightening or loosening the adjustment
screw. Then retighten the counter nut .
Incorrectly adjusted adjustment screws result in damage to the
backrest joint’s mechanism, Adjusting the backrest joint.
1
2
4
3
à7 Nm
à7 Nm
à7 Nm
5
6

14
KÜSCHALL K-SERIES
© Küschall AG, Switzerland | 2014-07
Service Manual
BACKREST

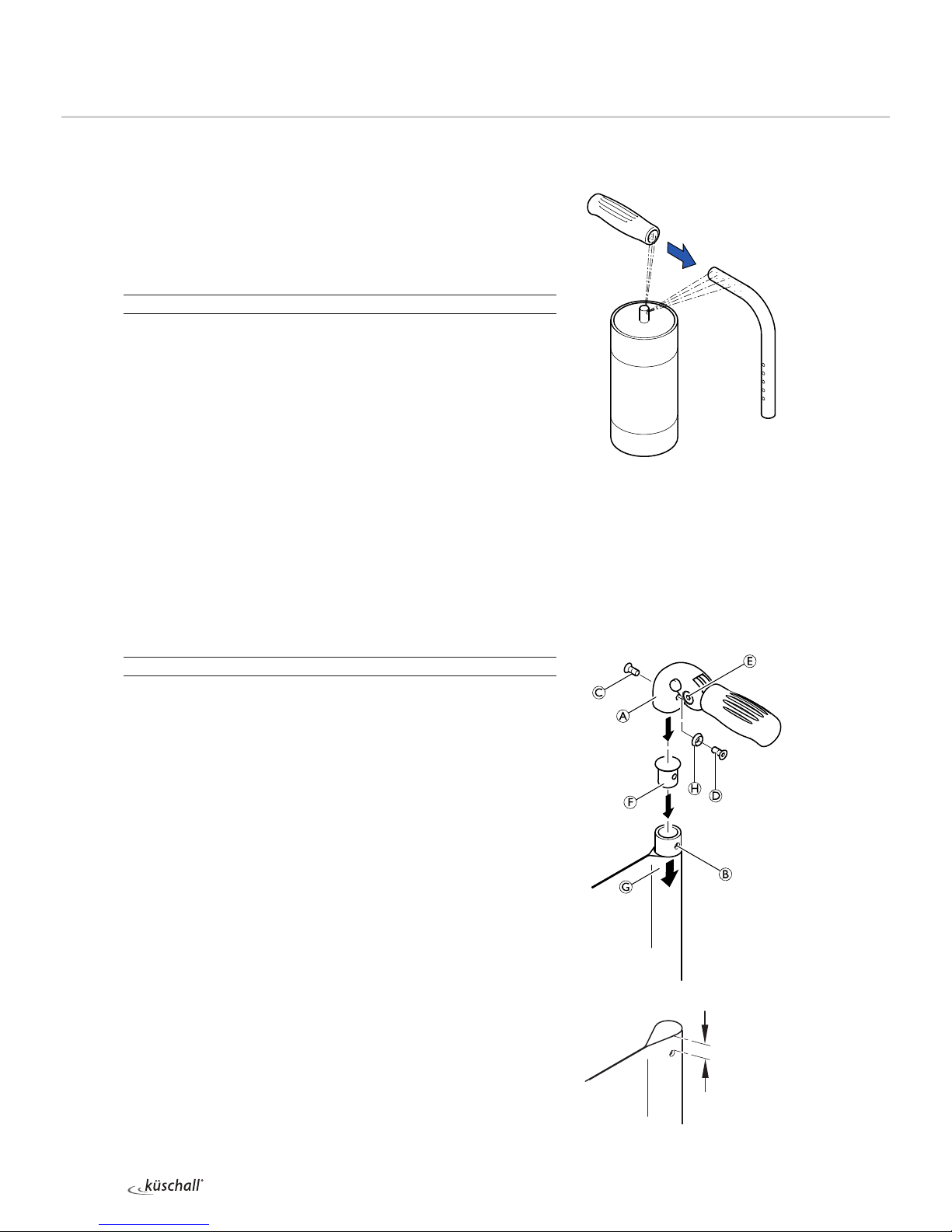

Replacing the handle
An adhesive (e.g. hair spray) is used in these instructions. When
applied to the handle, this substance works as a lubricant and as an
adhesive once dry.
After drying, the adhesive used must be able to resist a pull-o force of 750 N. If in doubt, contact Küschall®AG.
Diculty: 
Remove the old handle.
Remove any residue (residual adhesive, grease, dust) from the
push handle tube.
Apply a thin layer of hair spray all over the surface of the push
handle tube onto which the handle is to be slid.
Apply a thin layer of hair spray to the inside of the handle.
Slide the new handle onto the push handle tube.
Move the handle into the correct position (grooves facing
upwards).
i
If a long handle has been fitted and this is to be replaced with a
short one, the push handle tube must be shortened by 35 mm.
The push handle tube must be replaced when switching from a
short to a long handle.
Replacing foldable push handles
Diculty:  Tools: Hole punch pliers 6mm, Ã3, 4
Remove the old foldable push handle.
Pull down the backrest cover G on the telescopic tube, until its
hole B is uncovered.
!IMPORTANT! Make sure that the threaded insert F(part no. 1580450) supplied
with the new push handle is used for assembly.
Place the threaded insert Fin the telescopic tube.
Punch a hole through the backrest cover with a distance of
10 mm from the upper egde, using hole punch pliers (see graphic
below).
Slide the new foldable push handle Aonto the telescopic tube.
Fix the foldable push handle with screw C(M5x12).
Pull up the backrest cover, until it covers completely the rear hole
in the pushhandle.
Fix the foldable push handle with screw D(M5x14) and washer H.
Check screws Eon both sides of the push handle and re-tighten
if necessary.
Carry out the same steps for the other push handle.
!IMPORTANT! Make sure that the folding force is approximately 5 N (0.5 kg).
i
The retrofit of foldable push handles requires new tubing.
Cà3 Nm (low-strength)
Dà7 Nm (low-strength)
10 mm

15
KÜSCHALL K-SERIES
© Küschall AG, Switzerland | 2014-07
Service Manual
BACKREST
Backrest angle (RW)
The angle of the backrest can be changed by repositioning the
excentre plate in the backrest joint plate.
The following angles (measured from the seat) can be set:
Adjusting the backrest angle
Diculty:  Tools: Ã3, 10
Fold down the backrest and release the counter nut of the
adjustment screw and screw it in completely.
Remove the screw on the excentre plate . Remove the
excentre plate and reinsert it in the desired position.

The excentre plates must be set identically on both sides of the
wheelchair.
Reinsert the screw and tighten it.
Fold the backrest up until the stop bolts engage and unscrew
the adjustment screw until it touches the frame and the
backrest joint no longer moves.
Tighten the counter nut .
Adjusting the backrest joint
Diculty:  Tools: 10
Put the backrest up and let the pin engage.
Press the backrest forwards to ensure the joint cannot move.
Unscrew the screw until it touches the spigot of the seat
frame.
Screw the screw back in by between a ¼ and a ½ turn and
counter with the counter nut .
Correctly adjust the backrest joint on both sides.
Function check:
Sit in the wheelchair and lean back so that the backrest is strained.
Upon pulling the release cord , the pin must be easily removed
on both sides and must fully glide back in upon letting go of the
release cord.
86°
90°
78°
82°
82°
74°
74° 78° 82° 86° 90°
86°
90°
78°
82°
82°
74°
86°
90°
78°
82°
82°
74°
86°
90°
78°
82°
82°
74°
86°
90°
78°
82°
82°
74°
1
4
2
3
1
5
4
à4 Nm
à7 Nm
4
3
3
5
2
1
à7 Nm

16
KÜSCHALL K-SERIES
© Küschall AG, Switzerland | 2014-07
Service Manual
FOOTRESTS
FOOTRESTS
The footrest must be selected in accordance with the seat width.
A standard footrest and an angle-adjustable footrest are available.
Furthermore, there is a choice between a high-mounted footrest and
a fold-up footrest.
Lower leg length (UL)
To change the lower leg length, the footrest can be fixed at a high-
er or lower position. Table, Chap. Frame. The shortest lower leg
lengths can be achieved using the high-mounted footrest. ‹Fitting
and adjusting high-mounted footrest›
Replacing footrests
Diculty:  Tools: Ã48
Remove the screw connections on both sides.
Remove the footrest and replace it with a new one.
Tighten the screw connections on both sides.
Carry out the same setting on both sides.
Adjusting the footrest height
Diculty:  Tools: Ã48
The height of the footrest can be adjusted in 10 mm steps.
Remove the screw connections on both sides.
Slide the footplate to the desired height.
Tighten the screw connections on both sides.
Carry out the same setting on both sides.
iIf the desired lower leg length cannot be achieved, a high-
mounted footrest must be used ‹Fitting and adjusting a high-
mounted footrest›
1
à4 Nm
1
à4 Nm

17
KÜSCHALL K-SERIES
© Küschall AG, Switzerland | 2014-07
Service Manual
FOOTRESTS
Fitting and adjusting high-mounted footrest
Diculty:  Tools: Ã4, 5 8, 10
Fit the frame bar for the high-mounted footrest to the front
frame on both sides using the screw connections .
Fix the clamp set to both sides of the frame using the screw
connection . Only tighten lightly.
Slide the high-mounted footplate into the clamp set and to the
desired height.
Tighten the screw connections on both sides.
Angle-adjustable footplate, adjusting the
angle
Diculty:  Tools: Ã410
To adjust the angle, release the four screw connections until the
footplate can be moved.
Check and/or adjust the distance between the left and the right
sides by pushing in or pulling out the tubes below the footplate
in such a way that the bearings blocks are perpendicular to the
ground.
Tilt the footplate into the desired position and tighten the screw
connections .
The angle of the footplate must be set so that the user’s feet cannot slide o the plate.
Fit fold-up footrest
Diculty:  Tools: Ã4, 5 8, 10
Fix the reinforcing bar to the frame and position it so that the
bearings blocks are perpendicular to the ground. Then, firmly
tighten the screw connection .
On both sides, slide the telescopic tubes into the frame. On
both sides, fix the telescopic tubes at the desired height using the
screw connection .
Carry out the same setting on both sides.
Insert the sleeve into the mounting part of the right
telescopic tube. Fix it using the screw .
Place the left tube of the footplate into the mounting part on
both sides of the left telescopic tube, each with a washer. Fix it
using the screw .
Insert the right tube of the footplate into the mounting part of the
right telescopic tube. Adjust the distance between the left and
the right sides by pushing in or pulling out the tubes below the
footplate in such a way that the bearings blocks are perpendicular
to the ground.
Tilt the footplate into the desired position and tighten the footplate
screws, Angle-adjustable footplate, adjusting the angle.
iThe footrest can also be fitted the other way around (right footrest tube fixed, left tube moving).
1
4
5
2
3
à7Nm
à7 Nm
1
1
à13 Nm
2
3
4
5
7
9
8
1
6
à7 Nm
à7 Nm
à7 Nm
à7 Nm

18
KÜSCHALL K-SERIES
© Küschall AG, Switzerland | 2014-07
Service Manual
SIDE PARTS
SIDE PARTS
Armrest
The clothes-guard fitted as standard can be augmented with an
armrest.
Fitting and adjusting an armrest
Diculty:  Tools: Ã3, 4, 5 8, 10
Fold the backrest forwards.
Remove the backrest spigotsand replace them with the armrest
holders on both sides .
Fit the connecting tube on both sides using the screws .
To adjust the height as required, position the sleeve in the tube
so that the screw connection can be fixed to the appropriate
hole in the tube. Place the armrest in the holder.
Set the desired armrest height on both sides.
Fitting and adjusting a height-adjustable armrest
Diculty:  Tools: Ã4, 5 Ò2
Fit the holder and the bracket to the seat module on both
sides. Tighten the screws only lightly.
Fit the bar between the two brackets using the screws .
Tighten the screws .
To adjust the armrest height, insert the armrest into the
holder .
Loosen the screws for the height adjustment and slide it into
the desired position.
Then retighten the screws for the height adjustment.
By tightening or loosening the screws , you can adjust how
easily the armrest can be pulled out or pushed in.
3
1
2
4
5
à7 Nm
à7 Nm
6
1
1
2
3
4
7
5
2
8
à7 Nm
à7 Nm
à4 Nm

19
KÜSCHALL K-SERIES
© Küschall AG, Switzerland | 2014-07
Service Manual
SIDE PARTS

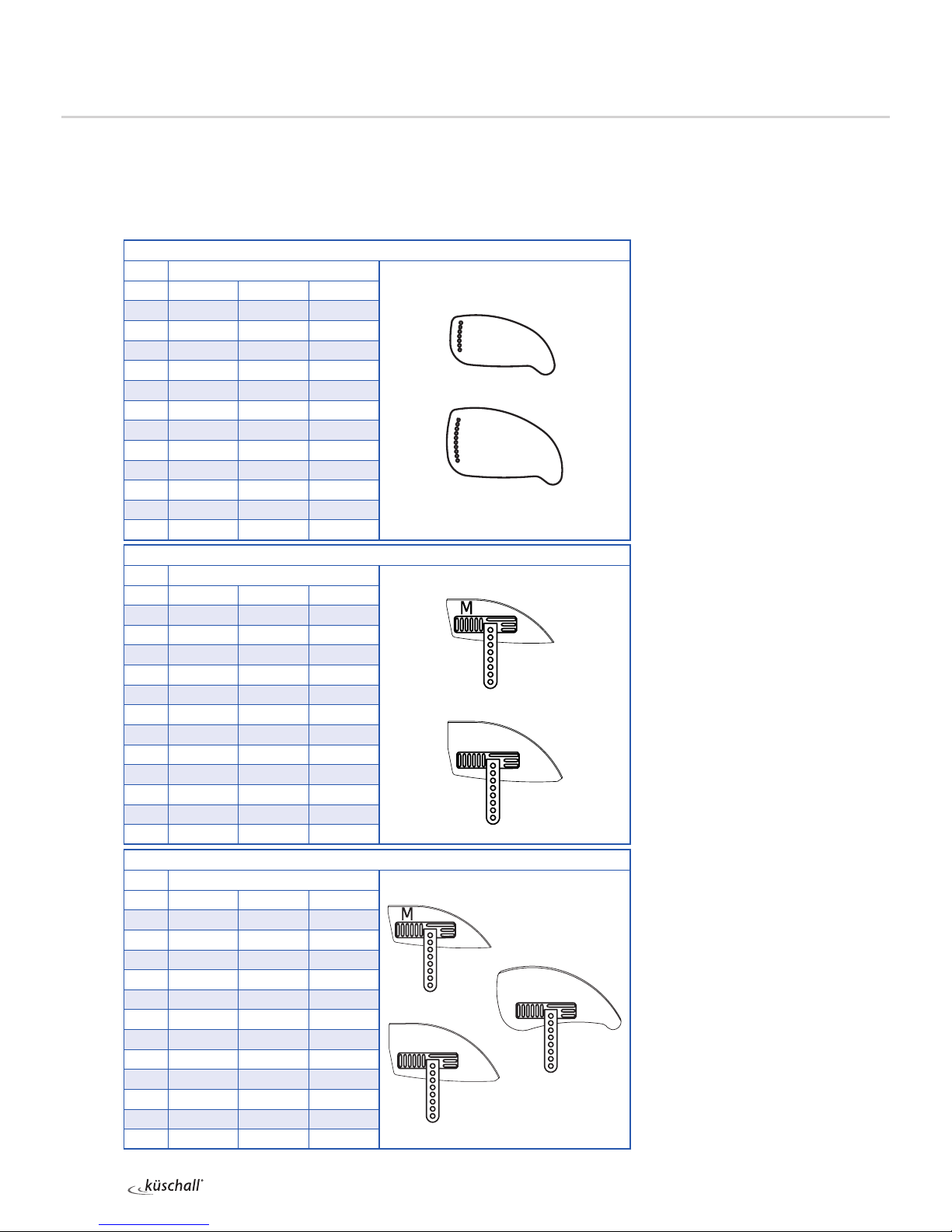

Clothes-guard/mudguard
The clothes-guard fitted as standard can be replaced by a mudguard. Clothes-
guard and mudguard are available in plastic or in carbon. For the carbon mudguard
there is an additional size (XL) for the two smallest rear seat hights (SHh).
Mudguard size plastic
Wheel size
SHh 24‘‘ 25‘‘ 26‘‘
380 L — —
390 L L —
400 L L L
410 M L L
420 M L L
430 M L L
440 M M L
450 M M L
460 M M M
470 M M M
480 M M M
490 M M M
L
Clothes-guard size
Wheel size
SHh 24‘‘ 25‘‘ 26‘‘
380 L — —
390 L L —
400 L L L
410 L L L
420 L L L
430 L L L
440 M L L
450 M L L
460 M L L
470 M M L
480 M M L
490 M M L
L
M
Mudguard size carbon
Wheel size
SHh 24‘‘ 25‘‘ 26‘‘
380 L / XL — —
390 L / XL L / XL —
400 L L / XL L / XL
410 L L L / XL
420 L L L
430 L L L
440 M L L
450 M L L
460 M L L
470 M M L
480 M M L
490 M M L
L
XL

20
KÜSCHALL K-SERIES
© Küschall AG, Switzerland | 2014-07
Service Manual
SIDE PARTS

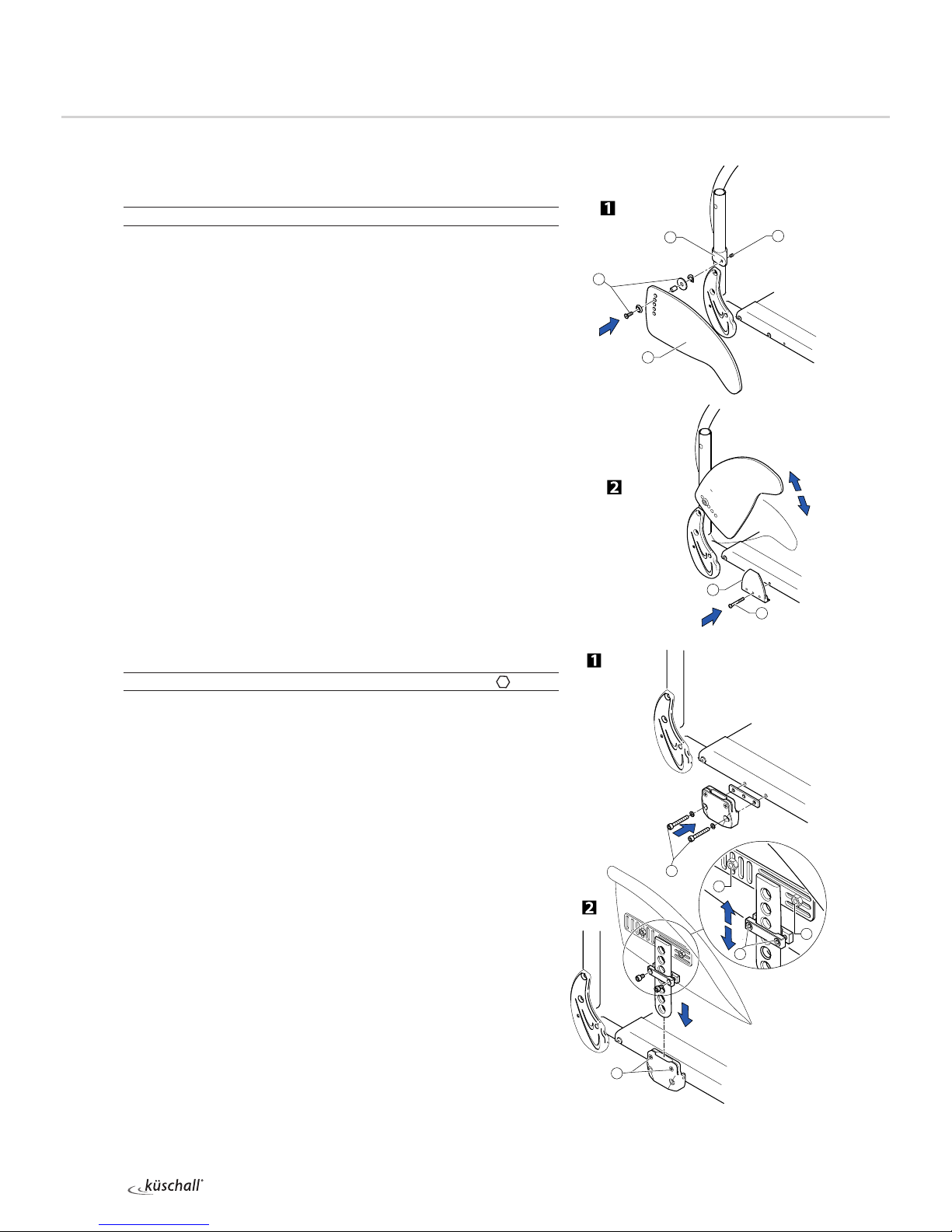

Replacing the clothes-guard
The mounting element on the backrest must already be fitted.
Diculty:  Tools: Ã3, 4
If present, remove the clothes-guard to be replaced by loosening
the screw connection .
Check the correct position of the clothes-guard with fitted rear
wheel. Here, find the suitable height on the clothes-guard for
fixing the screw connection to the backrest mount .
If necessary, the holder on the seat module can be replaced.
Here, remove the screw .
i
The clothes-guard is correctly positioned if it can be inserted
between the seat module and the holder and the upper edge runs
above the rear wheel.
Fitting the mudguard
Diculty:  Tools: Ã3, 410 Ò2
Remove the clothes-guard and the mounting elements on the back-
rest and the seat.
Fit the holder to the seat module using the screw connections 
and then refit the rear wheel.
Slightly loosen the screws on the adjustment plate and slide
it along the mudguard carrier until the mudguard is at the right
height.
The position of the mudguard can also be adjusted: Here, loosen
the screw connections and , position the mudguard as
required and tighten the screw connections and again.
Tighten the screws again.
Carry out the same setting on both sides.
By tightening or loosening the screws you can adjust how
easily the armrest can be pulled out or pushed in.
iIf the wheelchair is equipped with a suspension, the distance between the mudguard and the wheel must be at least 40 mm.
iThe existing axle may not be suciently long for the new configuration with mudguard. In this case, a longer axle must be
fitted. Changing the wheel chamber / fitting and adjusting an
axle
The distance between the mudguard and the wheel must be either < 8 mm or > 25 mm to prevent fingers from becoming
caught between the wheel and the mudguard.
1
3
4
2
5
6
à4 Nm
à7 Nm
à4 Nm
2
3
4
1
5
à7 Nm
à4 Nm
à7 Nm
à7 Nm
