Ferno EZ Glide 59-T Series User manual

FERNO®
When It’s Critical®
Users’ Manual
Models 59, 59-T EZ Glide®Evacuation Chair
May 2009 GLO
Pub. No. 234-3298-02
Read this Manual
and Retain for
Future Reference
MODEL 59-T SERIES
MODEL 59 SERIES

2© Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide®
Disclaimer
This manual contains general instructions for the use, operation
and care of this product. The instructions are not all-inclusive. Safe
and proper use of this product is solely at the discretion of the
user. Safety information is included as a service to the user. All
other safety measures taken by the user should be within and under
consideration of applicable regulations. It is recommended that
training on the proper use of this product be provided before using
this product in an actual situation.
Retain this manual for future reference. Include it with the product
in the event of transfer to new users. Additional free copies are
available upon request from Customer Relations.
Proprietary Notice
The information disclosed in this manual is the property of Ferno-
Washington, Inc., Wilmington, Ohio, USA. Ferno-Washington, Inc.
reserves all patent rights, proprietary design rights, manufacturing
rights, reproduction use rights, and sales use rights thereto, and
to any article disclosed therein except to the extent those rights
are expressly granted to others or where not applicable to vendor
proprietary parts.
Limited Warranty Statement
The products sold by Ferno are covered by a limited warranty,
which is printed on the invoice you received when you purchased
the product. Please refer to the warranty terms as printed on
your invoice. The complete terms and conditions of the limited
warranty, and the limitations of liability and disclaimers, are also
available upon request by calling Ferno at 1.800.733.3766 or
1.937.382.1451.
Ferno Technical Support
Customer service and product support are important aspects of each
Ferno product. Please have the product serial number available
when calling, and include it in all written communications. For
technical support questions:
Telephone (Toll-free) 1.800.733.3766 ext. 1010
Telephone [phone] ext. 1010
Email quality[email protected]
Ferno Customer Relations
For ordering assistance or general information:
CANADA AND THE U.S.A.
Telephone (Toll-free) 1.877.733.0911
Telephone [phone]
Fax (Toll-free) 1.888.388.1349
Fax [phone]
Internet www.ferno.com
ALL OTHER LOCATIONS
For assistance or information, please contact your Ferno distributor.
If you do not have a Ferno distributor, please contact Ferno
Customer Relations:
Ferno-Washington, Inc.
70 Weil Way
Wilmington, Ohio 45177-9371, U.S.A.
Telephone [phone]
Fax [phone]
Internet www.ferno.com
EUROPEAN REPRESENTATIVE
Ferno (UK) Limited
Stubs Beck Lane, Cleckheaton
West Yorkshire BD19 4TZ, United Kingdom
Telephone [phone]
Fax [phone]
Internet www.ferno.co.uk
© Copyright Ferno-Washington, Inc. All Rights Reserved.
Serial Number _________________________
Location: Rear of Seat Panel Frame
USERS’ MANUAL
AND TRAINING CD-ROMS
To request additional free users’
manuals or training CD-ROMs,
contact Ferno Customer Relations,
your Ferno distributor, or visit
www.ferno.com.

3
© Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide®
TABLEOFCONTENTS
Section Page Section Page
Ferno Technical Support _______________________ 2
Ferno Customer Relations______________________ 2
Illustrations ___________________________________ 4
1 - Safety Information___________________________ 5
1.2 Important_______________________________ 5
1.2 Warning________________________________ 5
1.3 Bloodborne Disease Notice_________________ 5
1.4 Symbol Glossary_________________________ 5
1.5 Safety and Instruction Labels _______________ 5
2 - Operator Skills and Training __________________ 7
2.1 Skills __________________________________ 7
2.2 Training________________________________ 7
3 - About the Chair _____________________________ 8
3.1 Chair Description ________________________ 8
3.2 GeneralSpecications ____________________ 8
3.3 Components - Model 59-T and Model 59______ 9
4 - Chair Setup _______________________________ 10
4.1 RestraintCongurationsfor
Chair with ABS Panels ___________________ 10
4.2 Using One-Piece Restraints _______________ 10
4.3 Ankle Restraint _________________________ 11
4.4 Attaching Restraints to Chair
With Soft Vinyl Seating __________________ 11
5 - Using the Features __________________________ 12
5.1 Chair Lock Bar _________________________ 12
5.2 Track System - Model 59-T Only ___________ 13
5.3 Extending Lift Bar ______________________ 14
5.4 Telescoping Lift Handles _________________ 14
5.5 Footrest _______________________________ 15
5.6 Wheel Locks ___________________________ 15
6 - Using the Chair ____________________________ 16
6.1 Before Placing the Chair in Service _________ 16
6.2 General Guidelines for Use________________ 16
6.3 Transferring the Patient___________________ 17
6.4 Rolling the Chair________________________ 17
6.5 Gliding the Chair Down Stairs -
Model 59-T Only _______________________ 18
6.6 Transporting the Patient
Down Stairs - Model 59 Only______________ 20
6.7 Transporting the Patient Up Stairs
Models 59-T and 59 _____________________ 21
6.8 Using Additional Help ___________________ 22
7 - Maintenance _______________________________ 23
7.1 Maintenance Schedule ___________________ 23
7.2 Disinfecting/Cleaning Restraints ___________ 23
7.3 Disinfecting/Cleaning Chair _______________ 23
7.4 Cleaning Track and Belts _________________ 23
7.5 Inspecting the Chair _____________________ 24
7.6 Lubricating the Chair -
Model 59-T and Model 59 ________________ 25
7.7 Do Not Lubricate Track System
on Model 59-T _________________________ 25
7.8 Adjusting Track-Belt Tension ______________ 26
7.9 Reconditioning the Track Belts_____________ 28
7.10 Removing and Attaching the ABS Panels ____ 29
7.11 Removing and Attaching
the Soft Vinyl Seating ___________________ 30
8 - Accessories and Related Products _____________ 31
8.1 EZ Glide Chair Accessories _______________ 31
8.2 Restraints______________________________ 31
9 - Parts and Service ___________________________ 32
9.1 U.S.A. and Canada ______________________ 32
9.2 Worldwide_____________________________ 32
9.3 Parts List ______________________________ 32
9.4 Parts Diagrams _________________________ 33
Training Record ______________________________ 34
Maintenance Record___________________________ 35

4© Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide®
Safety Labels 6, 7
Components - Model 59-T and Model 59 9

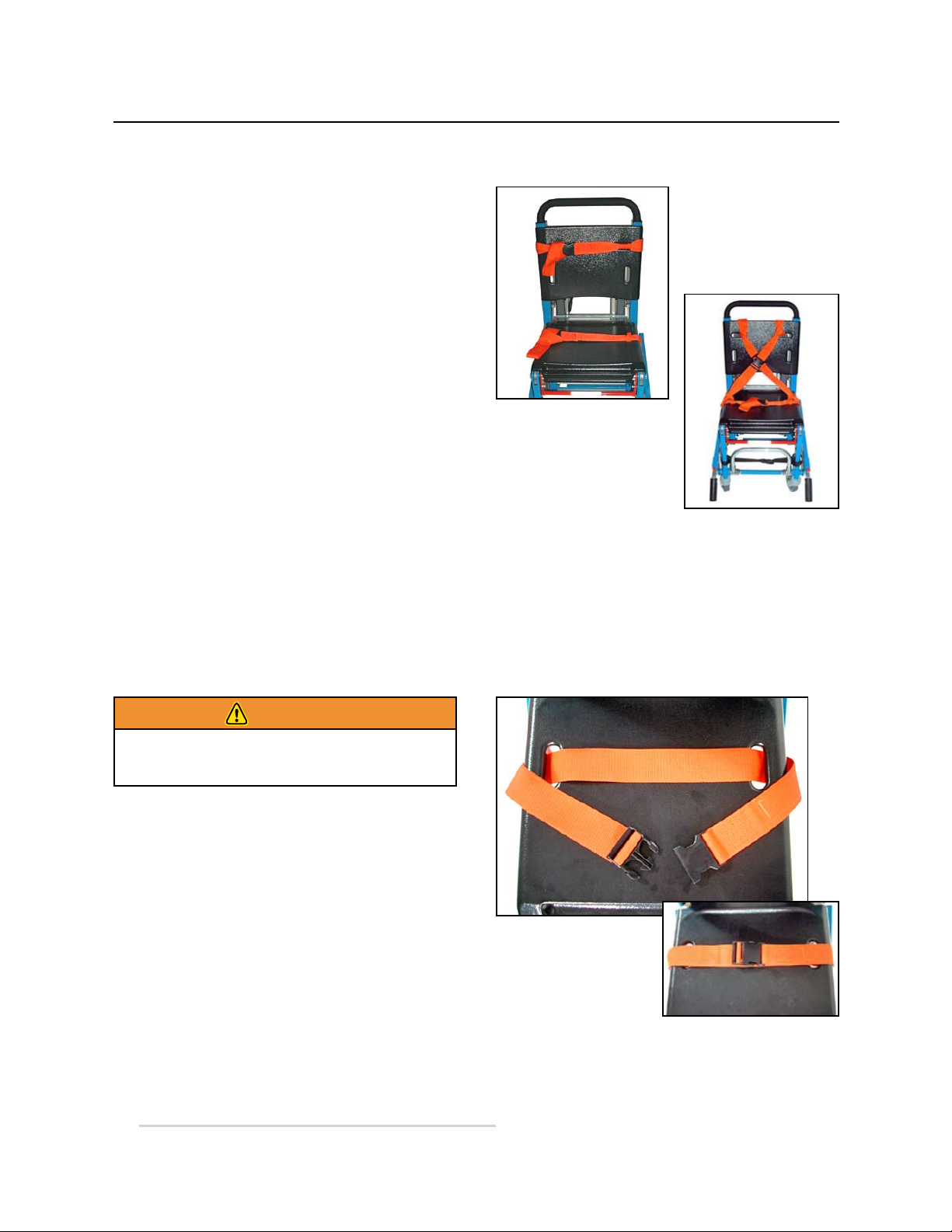

Figure1- HorizontalRestraintConguration 10
Figure2- Criss-CrossRestraintConguration 10
Figure 3 - Top: Correctly Wrapped One-Piece Restraint
Inset: Restraint Buckled 10

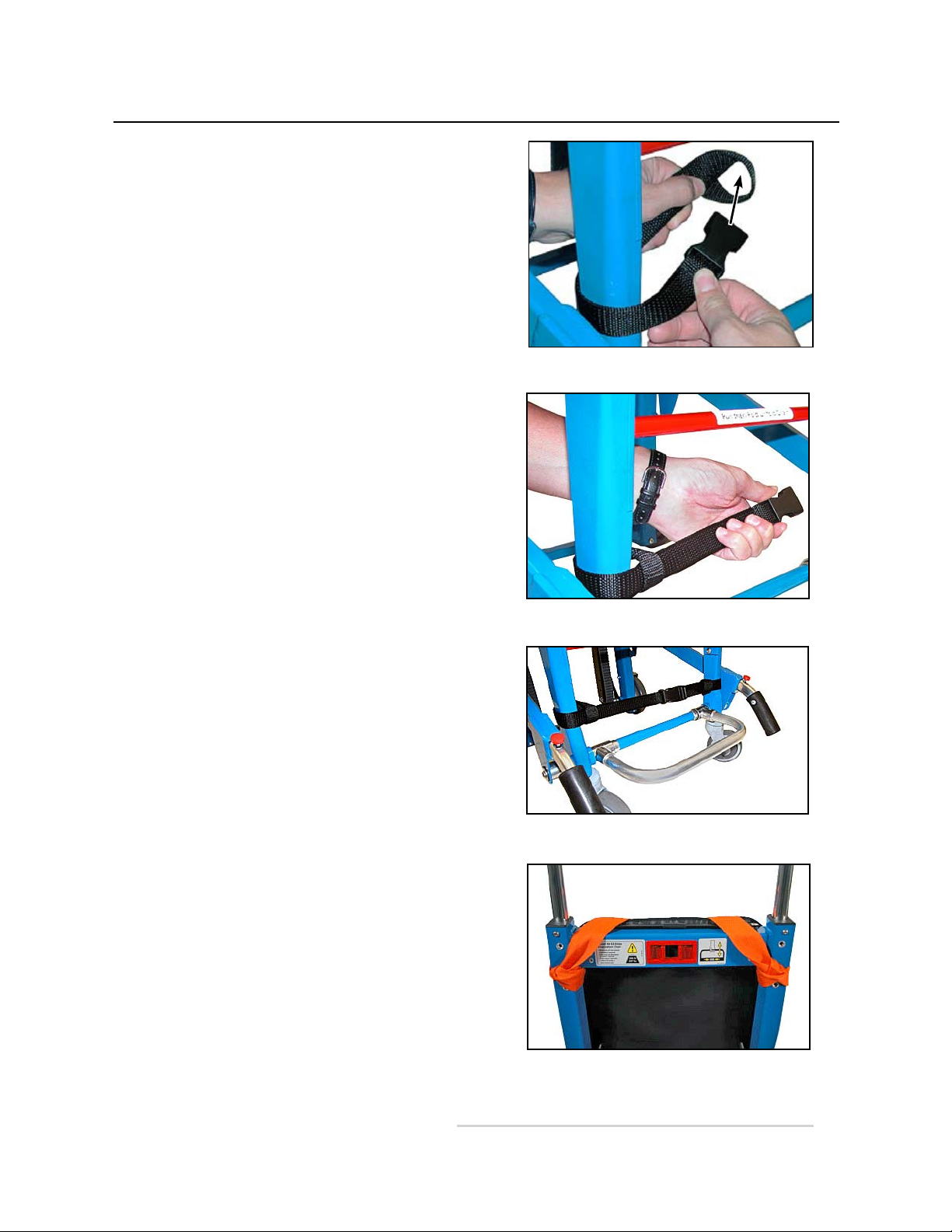

Figure 4 - Threading Buckle Through Loop 11
Figure 5 - Tightening Strap 11
Figure 6 - Ankle Restraint Attached 11
Figure 7 - Torso Restraints on Chair
with Soft Vinyl Seating 11

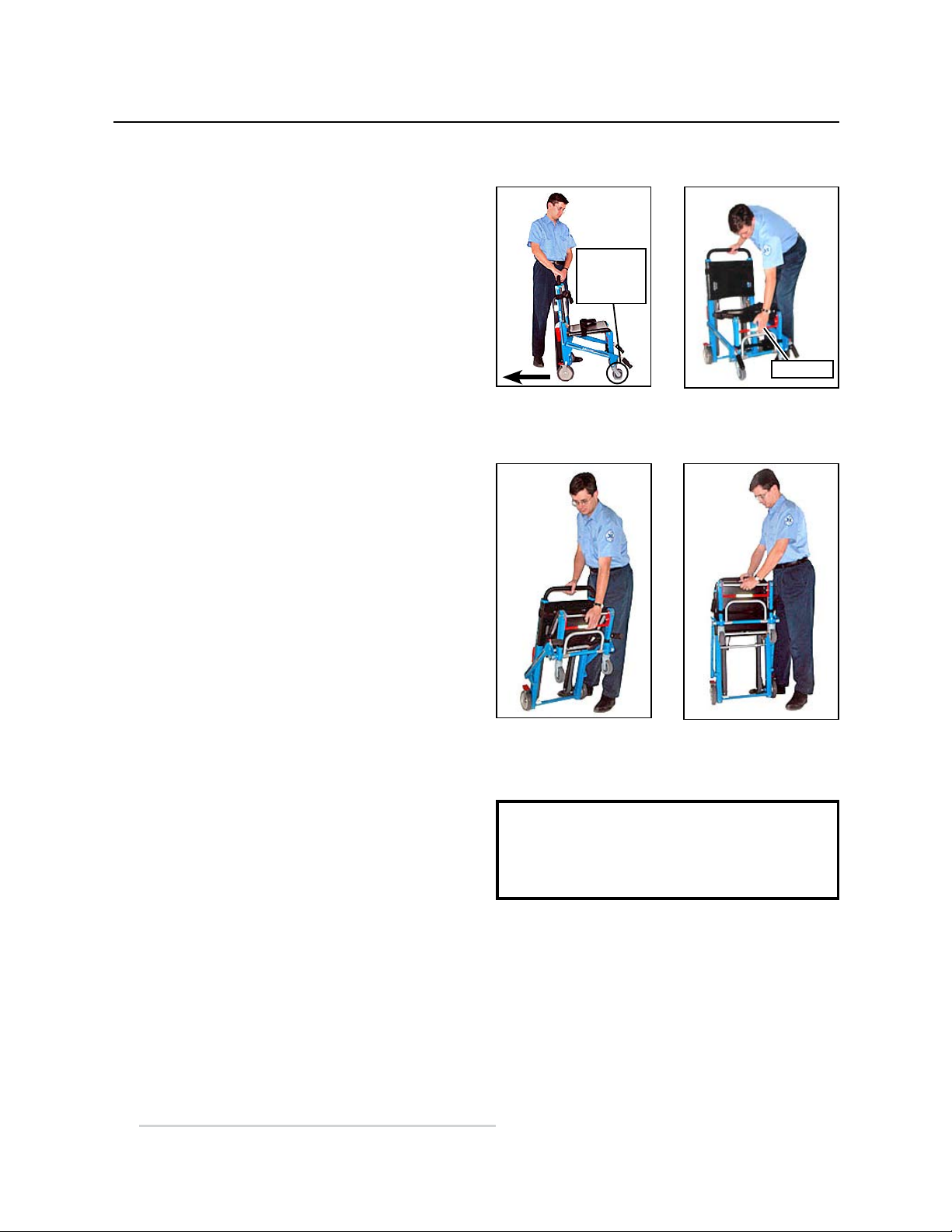

Figure 8 - Aligning the Wheels 12
Figure 9 - Disengaging the Lock 12
Figure 10 - Folding the Chair 12
Figure 11 - Engaging the Lock 12

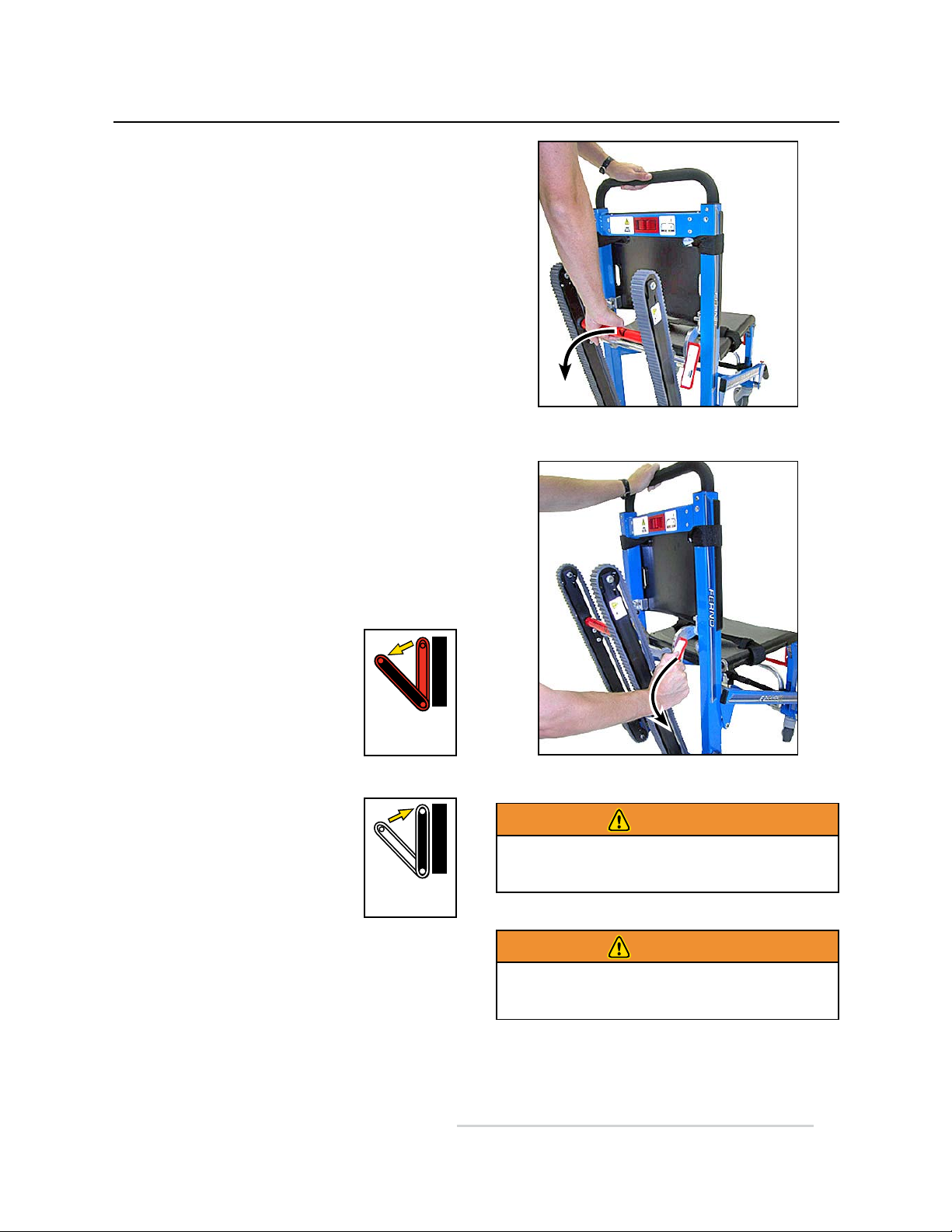

Figure 12 - Opening the Track 13
Figure 13 - Closing the Track 13
Figure 14 - Left: Lift-Bar Positions
Inset: Adjusting Lift Bar Height 14
Figure 15 - Right: Lift Handle Positions
Inset: Extending/Retracting a Lift Handle 14

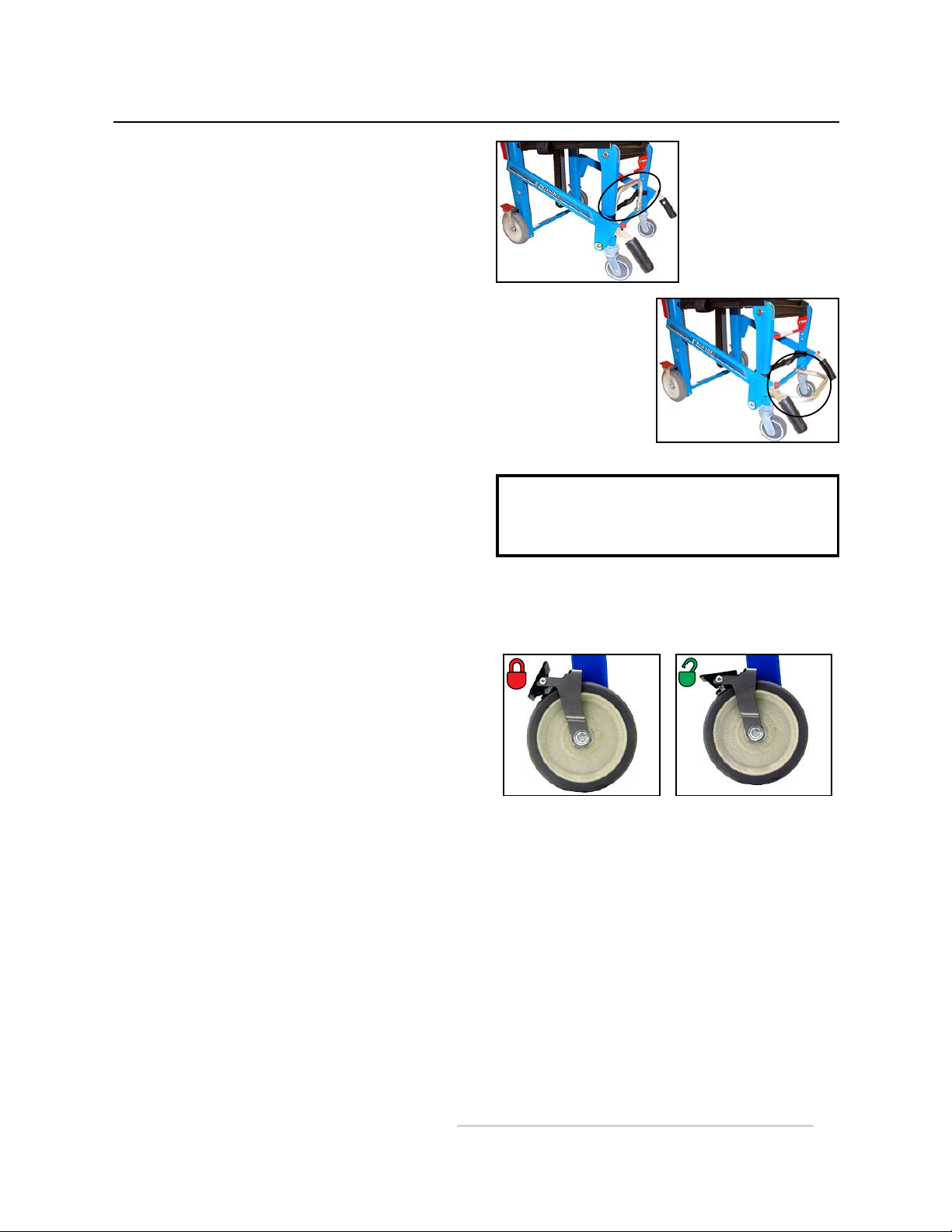

Figure 16 - Footrest Folded for Storage 15
Figure 17 - Footrest Lowered for Use 15
Figure 18 - Wheel Lock Engaged 15
Figure 19 - Wheel Lock Disengaged 15
Figure 20 - Patient Secured in Chair with Restraints 17
Figure 21 - Rolling the Chair 17
Figure 22 - Gliding the Chair Down a Curb 17
Figure 23 - Preparing Model 59-T for Descent 18
Figure 24 - Track Belts Engaging Top Step 18
ILLUSTRATIONS
Figure 25 - Establishing the Glide Angle 19
Figure 26 - Preparing to Roll the Chair 19
Figure 27 - Pausing on the Stairs 19
Figure 28 - Carrying the Model 59 Chair Down Stairs 20
Figure 29 - Pausing on the Stairs - Model 59 Chair 20

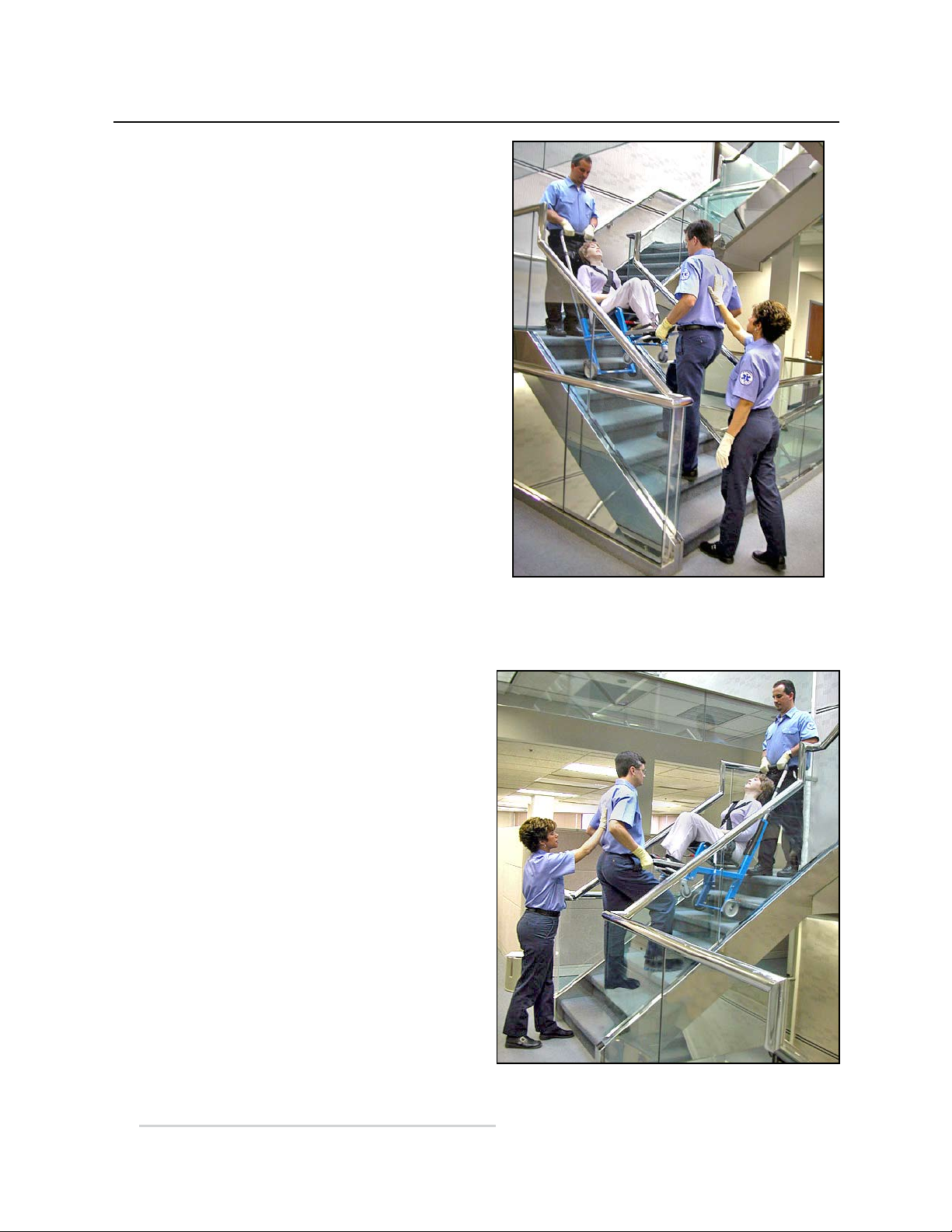

Figure 30 - Preparing to Carry Model 59-T (Tracked)
Chair Up Stairs 21
Figure 31 - Carrying Model 59 (Untracked)
Chair Up Stairs 21
Using Additional Help 22
Minimum Maintenance Intervals 23
Figure 32 - Top: Lubrication Point Locations
Bottom: Lubrication Point Close-up 25
Figure 33 - Label on Chair Track 25
Figure 34 - Chair Ready for Tensioning Procedure 26
Figure 35 - Belt Ready for Tensioning 26
Figure 36 - Tensioning the Belt 26
Figure 37 - Checking Tension with Chair Laying on Its
Tracks on a Work Bench 27
Figure 38 - Checking Tension
with Chair Standing on Its Wheels 27
Figure 39 - Marking Starting Point for Sanding Belt 28
Figure 40 - Sand in Direction of Arrows 28
Figure 41 - Releasing a Bottom Corner of Backrest 29
Figure 42 - Lifting the Backrest Panel Over the Keepers 29
Figure 43 - Releasing a Corner of the Seat Panel 29
Figure 44 - Unfasten Snaps 30
Figure 45 - Unbuckle Straps 30
Figure 46 - Unfasten Seat Snaps 30
Figure 47 - Tighten Straps 30
Parts Diagrams 33

5
© Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide®

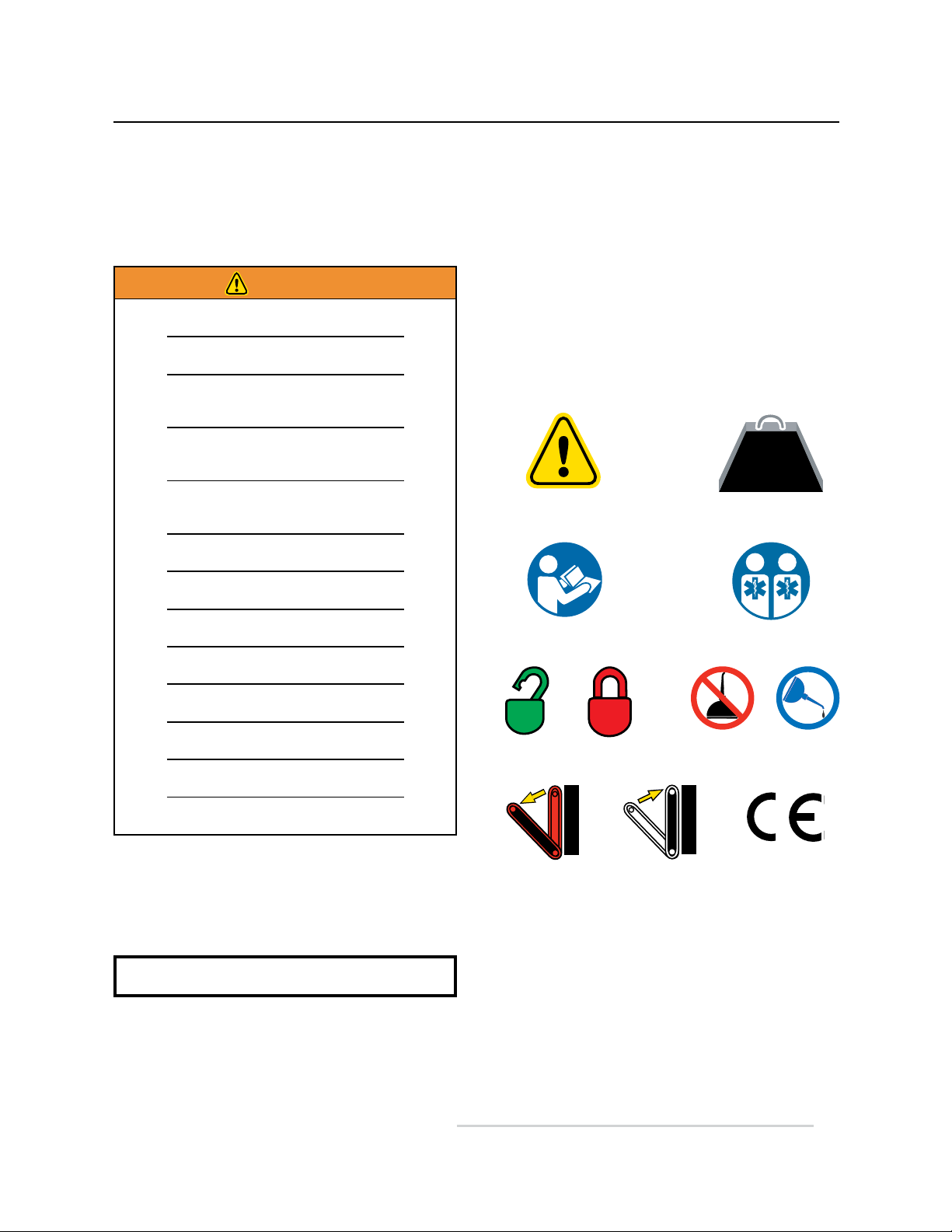

1 -SAFETY INFORMATION
Safety Information

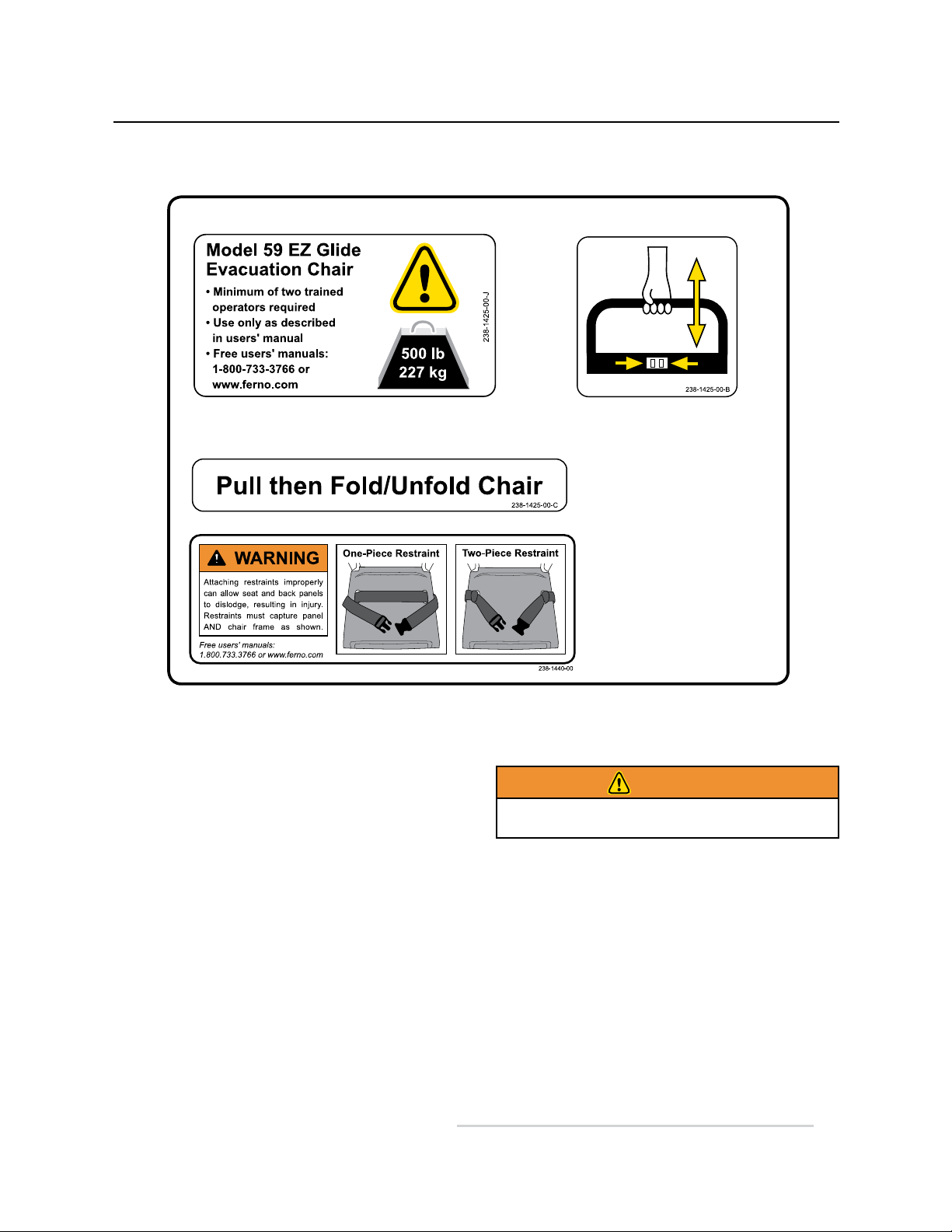

1.5 Safety and Instruction Labels
Safety and instruction labels place important information
from the users’ manual on the chair.
Read and follow label instructions. Replace worn or
damaged labels immediately. New labels are available
from EMSAR (page 32), Ferno, or your Ferno distributor
(page2).Thelabelsillustratedonpages6and7areafxed
to the chair.
1.1 Warning
Warning notices indicate a potentially hazardous situation
which, if not avoided, could result in injury or death.
WARNING
Untrained operators can cause injury or be injured. Permit
only trained personnel to operate the chair.
Improper use of the chair can cause injury. Use the chair
only for the purpose described in this manual.
Attaching one-piece restraints improperly can allow seat
and back panels to dislodge, resulting in injury. Restraints
must capture panels AND chair frame.
Using the chair with the track unlocked can cause injury.
Verify that the track is locked before transporting the
patient.
Lubricating the track system can result in injury to the
patient and/or operators. Never lubricate the track or
belts.
Improper operation can cause injury. Operate the chair
only as described in this manual.
An unattended patient can be injured. Stay with the
patient at all times.
An unrestrained patient can fall othe chair and be
injured. Use restraints to secure the patient on the chair.
Helpers can cause injury or be injured. Maintain control
of the chair, operate the controls, and direct all helpers.
Improper maintenance can cause injury. Maintain the
chair only as described in this manual.
Attaching improper items to the chair can cause injury.
Use only Ferno-approved items on the chair.
Improper parts and service can cause injury. Use only
Ferno parts and Ferno-approved service on the chair.
Modifying the chair can cause injury and damage. Use the
chair only as designed by Ferno.
1.2 Important
Important notices emphasize important usage or maintenance
information.
Important
1.3 Bloodborne Disease Notice
To reduce the risk of exposure to bloodborne diseases such
as HIV-1 and hepatitis when using the chair, follow the
disinfecting and cleaning instructions in this manual.
1.4 Symbol Glossary
The symbols dened below are used on the chair and in
this users’ manual. Ferno uses symbols recognized by the
International Standards Organization (ISO), American
National Standards Institute (ANSI) and the emergency
medical services industry.
General Warning of
Potential Injury
Load Limit
Read the Users’
Manual
Chair Operation Requires
Two Trained Operators
Do Not
Lubricate
Lubricate
Unlocked Locked
Product meets
European Union
Standards
2
500 lb
227 kg
Close Track
System
Open Track
System

6© Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide®
Safety Information
1.5 Safety and Instruction Labels (continued)
MODEL 59-T EVACUATION CHAIR LABELS
Label C - Instruction for Folding and Unfolding Chair
Label 234-1440-00 Safety Instruction:
How to Attach One- and Two-Piece Restraints
Label D
Safety Instruction:
Do NOT Lubricate
Track System
Label A
Basic Safety Guidelines and Load Limit
Label B
Instruction for Adjusting Lift Bar Height
Label F
Instruction for
Closing Track
Label E - Instruction for Opening Track

7
© Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide® Operator Skills and Training
1.5 Safety and Instruction Labels (continued)
MODEL 59 EVACUATION CHAIR LABELS
Label C - Instruction for
Folding and Unfolding Chair
Label J
Basic Safety Guidelines and Load Limit
Label 234-1440-00
Safety Instruction: How to Attach
One- and Two-Piece Restraints
2 -OPERATOR SKILLSAND TRAINING
2.1 Skills
Operators using the chair need:
a working knowledge of emergency patient-handling●
procedures.
the ability to assist the patient.●
WARNING
Untrained operators can cause injury or be injured.
Permit only trained personnel to operate the chair.
2.2 Training
Operator trainees need to:
read and understand this manual.●
be trained on the use of the chair.●
practice with the chair before using it with a patient.●
record their training information. A sample training●
record sheet is provided on page 34.
Label B
Instruction for Adjusting Lift Bar Height

8© Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide®
3 -ABOUT THE CHAIR
3.1 Chair Description
The Model 59-T and Model 59 EZ Glide®Evacuation Chairs
(referred to as the chair in this manual) are emergency
patient-handling devices designed to transport a seated
patientupanddownstairsandoveratsurfaces.
The chair is for professional use by a minimum of two
trained operators. A third person to “spot” may be required
by local protocols, and additional help may be required
when working with heavy patients.
The Model 59-T is designed with belted tracks that enable
operators to “glide” the chair down stairs instead of carrying
it. The Model 59 is untracked and is carried down stairs.
CHAIR FEATURES:
Belted track system for “gliding” chair down stairs●
(Model 59-T only)
Choice of molded ABS seat and back panels or soft●
vinyl seating
Choice of color●
5-position extending lift bar at rear of chair●
5-position telescoping front lift handles●
6" rear locking wheels●
4" front swivel wheels●
Folding footrest●
Ankle restraint●
Multiple patient restraint options●
OPTIONAL ACCESSORIES:
Rear lift handles, locking or non-locking●
IV bag holder●
O● 2 bottle holder
Headrest (head pad with strap)●
Kwik Klip● ™Restraint System
Secure Mount (with spring release) for storing chair in●
ambulance or station
Bracket (with hooks) for storing chair in station●
About the Chair
3.2 General Specications
Height
Maximum 63.5 in/161 cm
Minimum 37.5 in/95 cm
Width
Overall 20.313 in/51.6 cm
Seat 16.5 in /42cm
Depth (front to back, Model 59-T)
Tracks Closed, Handles Retracted 28 in/73 cm
Tracks Open, Handles Extended 51 in/130 cm
Depth (front to back, Model 59)
Handles Retracted 27 in/69 cm
Handles Extended 40 in/102 cm
Folded (Model 59-T) 37.5 in x 20.313 in x 8 in
95 cm x 51.6 cm x 20 cm
Folded (Model 59) 37.5 in x 20.313 in x 7 in
95 cm x 51.6 cm x 18 cm
Weight*
Model 59-T 33 lb/15 kg
Model 59 26 lb/12 kg
Load Limit 500 lb/227 kg
* without restraints or accessories
Some specications are rounded to the nearest whole number.
Metric conversions are calculated before rounding the Imperial
measurements. For more information, contact Ferno Customer
Relations (page 2).
Fernoreservestherighttochangespecicationswithoutnotice.
WARNING
Improper use of the chair can cause injury. Use the
chair only for the purpose described in this manual.
500 lb
227 kg
LOAD LIMIT
Inspect the chair if the load
limit has been exceeded (see
Inspecting the Chair, page 24).

9
© Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide®
3.3 Components - Model 59-T and Model 59
Components of both chair models are the same except for those parts
marked “59-T Only.”
About the Chair
Soft Vinyl Seating Option
59-T and 59
To request additional free
users’ manuals, contact
Ferno Customer Relations
(page 2).
USERS’ MANUALRESTRAINT
OPTIONS
Model 430-P
Model 430
Coated Restraint
Model 416
Model 59-T
Track Belt (2)
59-T Only
Lift Bar Release
Track
59-T Only
Track-Closing
Handle
59-T Only
Track-Release Bar
59-T Only
Removable
ABS Seat Panel
with Restraint
Slots
Extending
Lift Bar
Removable
ABS Back Panel
with Restraint
Slots
Folding
Footrest
Telescoping
Lift Handle (2)
4" Swivel
Wheel (2)
6" Wheel
with Lock (2)
Chair
Lock Bar
Patient
Restraint
Ankle
Restraint
Model 59

10 © Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide®
4 -CHAIR SETUP
Chair Setup
4.1 Restraint Congurations for
Chair with ABS Panels
Followlocalprotocolswhenchoosingaconguration.Two
possiblecongurationsaredescribedbelow.
HORIZONTAL CONFIGURATION
Use one restraint for the chest and one restraint for the lap
(Figure 1).
Attach the chest straps through matching horizontal or1.
vertical slots in the backrest panel.
Attach the lap straps through the seat panel slots.2.
CRISS-CROSS CONFIGURATION
Use two restraints for the torso. Ferno recommends using a
third restraint for the lap (Figure 2).
Attach one strap of a restraint through a vertical slot1.
on the backrest panel of the chair.
Attach the other strap of the restraint through the seat2.
panel slot on the opposite side of the chair.
Repeat with the second restraint, attaching its straps to3.
opposite sides of the chair.
Attach the lap restraint through the seat-panel slots.4.
4.2 Using One-Piece Restraints
Ferno recommends using two-piece restraints with the
backrest and seat panels, but if you choose to use one-
piece restraints, they must capture both the panel and
frame, as follows:
Work from the patient side of the panel and feed the1.
ends of the restraint through the slots on opposite sides
of the panel.
Wrap the restraint around the aluminum chair frame,2.
capturing the panel and the frame (Figure 3 Top).
Buckle the restraint (Figure 3 Inset) and adjust the3.
length.
Figure 1 - Horizontal
Restraint Conguration
Figure 2 - Criss-Cross
Restraint Conguration
with Lap Belt
Figure 3 - Top: Correctly Wrapped Restraint
Inset: Restraint Fastened
WARNING
Attaching one-piece restraints improperly can allow
seat and back panels to dislodge, resulting in injury.
Restraints must capture panels AND chair frame.

11
© Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide®
4.3 Ankle Restraint
Attach the two-piece ankle restraint to the front legs of the
chair. To attach the restraint:
Unbuckle the restraint to separate the straps.1.
Wrap a strap around one front leg of the chair and2.
thread the buckle through the loop (Figure 4).
Pull the strap until the looped end is tight around the3.
chair leg (Figure 5).
Attach the remaining strap to the other front leg of the4.
chair.
Buckle the restraint and adjust the length (Figure 6).5.
Chair Setup
4.4 Attaching Restraints to Chair
With Soft Vinyl Seating
With soft vinyl seating, use the criss-cross restraint
conguration plus a lap restraint (Figure 2, page 10). To
attach the restraints:
Unbuckle a restraint to separate the straps.1.
Attach the strap with the female buckle piece to the left2.
or right side of the backrest frame (Figure 7). Follow
instructions in the restraint users’ manual for attaching
a two-piece restraint.
Attach the strap with the male buckle piece to the3.
exposed area of the seat frame on the opposite side of
the chair.
Repeat steps 1-3 to attach the second torso restraint.4.
Attach a lap restraint alongside the restraints already5.
attached to the seat frame.
Fasten and adjust the restraints.6.
Figure 4 - Threading Buckle Through Loop
Figure 5 - Tightening Strap
Figure 6 - Ankle Restraint Attached
Figure 7 - Torso Restraints on Chair
with Soft Vinyl Seating

12 © Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide®
5 -USING THE FEATURES
Using the Features
UNFOLDING THE CHAIR
Stand beside the chair and grasp the backrest with one1.
hand and the lock bar with the other hand.
Pull the lock bar forward, then pull the seat away from2.
the backrest until it is fully unfolded and the lock
engages.
Verify that the lock has engaged by holding the3.
backrest in place while pulling up on the chair frame
at the front of the seat without pulling the lock bar. The
chair will not fold if the lock is engaged.
FOLDING THE CHAIR
Buckle the restraints and adjust them to prevent1.
interference when folding the chair.
Roll the chair backward a foot or two to reverse the2.
swivel wheels (Figure 8).
Stand at the side of the chair and grasp the chair3.
backrest with one hand and the lock bar with the other
hand (Figure 9).
Pull the lock bar forward,4. then begin folding the seat
toward the backrest.
As you fold the seat, tilt the chair forward a little
(Figure 10) to keep the front wheels turned outward
so they will not hold the frame away from the seat and
prevent the lock from engaging.
Press the seat against the backrest until the lock5.
engages (Figure 11).
Verify the lock is engaged by pulling the seat away6.
from the backrest without pulling the lock bar. The
seat will not move if the lock is engaged.
5.1 Chair Lock Bar
The red lock bar below the front edge of the seat disengages
the lock for folding and unfolding the chair. Before seating a
patient, verify that the chair is completely unfolded and the
lock is engaged.
Important
The chair lock must be disengaged before beginning
to fold or unfold the chair. Pull the lock bar forward,
then begin to fold or unfold the chair.
Figure 10 - Folding
the Chair
Figure 11 - Engaging
the Lock
Figure 8 - Aligning
the Wheels
Figure 9 - Disengaging
the Lock
Lock Bar
Swivel
Wheels
Reversed

13
© Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide®
5.2 Track System - Model 59-T Only
The Model 59-T track system enables operators to glide the
chair down stairs instead of lifting and carrying it.
GUIDELINES FOR USING THE TRACK SYSTEM
Using the chair on stairs requires a minimum of two●
trained operators. Ferno recommends using a third
person as a “spotter” (see Gliding the Chair Down
Stairs, page 18).
Verify that the track system is fully opened and locked●
into place before using it.
Never lubricate track belts. Lubricated track belts can●
perform unpredictably, resulting in injury to the patient
and/or operators.
Moisture, water, snow, ice, or debris on or between the●
trackandbeltscancauseirregulartrack-beltperformance
that results in sudden changes in the weight operators
must support. Make sure the track and track belts are
clean and dry before using the chair on stairs.
Water, snow, ice, or debris on the stairs can cause poor●
footing for operators. To avoid possible injury, clear
the stairs or select an alternate route.
Using the Features
WARNING
Using the chair with the track unlocked can cause
injury. Verify that the track is locked before
transporting the patient.
WARNING
Lubricating the track system can result in injury to
patient and/or operators. Never lubricate the track
or belts.
Figure 12 - Opening the Track
Figure 13 - Closing the Track
OPENING THE TRACK
Grasp the track-release bar located1.
near the top of the track (Figure
12)andrmlypullitbackuntilthe
track locks into the fully extended
position.
Verify that the lock is engaged by2.
trying to push the track closed. If the
lock is fully engaged the track will
not move.
Open Track
System
CLOSING THE TRACK
With your hand, push down on the red
track-closing handle (Figure 13) until the
track closes completely. Close Track
System

14 © Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide®
5.3 Extending Lift Bar
Grasp the lift bar to move and guide the chair as you glide it
down stairs, carry it up stairs or over obstacles, and roll it.
Theliftbaradjuststovelockedpositions(Figure14,Left).
Adjust the height according to operator preference and the
task or situation at hand.
EXTENDING AND RETRACTING THE LIFT BAR
With one hand, squeeze the lift-bar release tabs1.
together and with the other hand grasp the lift bar and
raise or lower it (Figure 14, Inset).
Verify that the lift bar is locked by trying to raise or2.
lower it without squeezing the release tabs. When the
lock is engaged the lift bar will not move.
5.4 Telescoping Lift Handles
Thetelescopinglifthandlescanbeadjustedtovelocked
lifting positions (Figure 15, Right). Adjust the handles
according to operator preference and the task at hand.
EXTENDING AND RETRACTING
THE LIFT HANDLES
Press the release button (Figure 15, Inset) and push or1.
pull the handle until it is near the stop point desired.
Release the button and slide the handle a little forward2.
or backward until it locks into the stop point.
Verify that both handles are locked by trying to push or3.
pull them without pressing the release buttons. When
the locks are engaged, the handles will not move.
Using the Features
Figure 14 - Left: Lift-Bar Positions
Inset: Adjusting Lift- Bar Height
1
2
Figure 15 - Right: Lift-Handle Positions
Inset: Extending/Retracting a Lift Handle
1
2

15
© Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide®
5.5 Footrest
The footrest has two positions: raised, for storage, (Figure
16) and lowered for use (Figure 17).
To lower the footrest, swing it down until it stops.
To raise the footrest, swing it up until it stops.
GUIDELINES FOR USING THE FOOTREST
Use the footrest properly to ensure that is does not interfere
with patient’s or operators’ feet.
Before transferring the patient onto the chair, make●
sure the footrest is raised in the storage position.
When preparing to transfer the patient off the chair,●
unfasten the ankle restraint and raise the footrest into
the storage position before unfastening the patient’s
torso and lap restraints. This will prevent the patient
from attempting to stand before the footrest has been
stored out of the way of his/her feet.
Keep the footrest raised when it is not in use.●
5.6 Wheel Locks
Therearwheelsofthechairarettedwithwheellocksto
help keep the chair from rolling during patient transfer.
Stay with the chair and maintain control of it at all times. Do
not use the wheel locks as a substitute for operator control.
To engage a wheel lock, press down on the rear end of the
lock pedal (Figure 18).
To disengage a wheel lock, press down on the forward end
of the lock pedal (Figure 19).
Using the Features
Important
Raise the footrest into the storage position before
transferring the patient onto or ofrom the chair.
Figure 16 - Footrest
Raised for Storage
Figure 17 - Footrest
Lowered for Use
Figure 18 - Wheel Lock
Engaged
Figure 19 - Wheel Lock
Disengaged

16 © Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide®
6 -USING THE CHAIR
6.1 Before Placing the Chair
in Service
Personnel who will work with the chair need to read●
this manual.
Set up the chair, following the instructions in● Chair
Setup (pages 10, 11).
Conrmthatthechairoperatesproperly.See● Inspecting
the Chair, page 24.
6.2 General Guidelines for Use
Medical advice is beyond the parameters of this●
manual.
It is the users’ responsibility to ensure safe practices●
for the patient and themselves.
A minimum of two trained operators is required.●
Follow standard emergency patient-handling●
procedures when operating the chair.
Operators work together and maintain control of●
the chair at all times.
Operators communicate with one another and use●
coordinated movements to operate the chair.
Ferno recommends that a third trained person serve as●
a “spotter” while the chair is being moved up or down
stairs.
Lift only the weight you can safely handle. Use●
additional help when working with heavy loads
(patient and equipment). For placement of help, see
Using Additional Help, page 22.
Stay with the patient at all times.●
Always use patient restraints to secure the patient on●
the chair.
Using the Chair
WARNING
Improper operation can cause injury. Operate the
chair only as described in this manual.
WARNING
An unattended patient can be injured. Stay with the
patient at all times.
WARNING
An unrestrained patient can fall othe chair and be
injured. Use restraints to secure the patient on the
chair.

17
© Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide® Using the Chair
6.3 Transferring the Patient
Always assist the patient onto and off from the chair.
ASSISTING THE PATIENT ONTO THE CHAIR
Unfold the chair and verify that it is locked.1.
Engage the locks on the rear wheels.2.
Make sure the footrest is in the storage position.3.
Assist the patient onto the chair using accepted4.
practices and following local protocols.
Fasten and adjust the torso and lap restraints.5.
Lower the footrest and place the patient’s feet on it.6.
Fasten and adjust the ankle restraint (Figure 20).7.
ASSISTING THE PATIENT OFF FROM THE CHAIR
Unfasten the ankle restraint.1.
Raise the footrest to the storage position.2.
Unfasten the torso and lap restraints.3.
Assist the patient off from the chair using accepted4.
practices and following local protocols.
6.4 Rolling the Chair
GENERAL GUIDELINES
Roll the chair on smooth, at surfaces whenever●
possible (Figure 21).
For patient comfort, pull the chair backward over low●
obstacles such as door sills.
Use the extending lift bar and telescoping foot-end●
handles to lift and carry the Model 59 chair over curbs,
obstacles, rough surfaces and rough terrain.
Use the tracks on the Model 59-T chair to “glide” the●
chair down over curbs or single steps (Figure 22).
TO ROLL THE CHAIR
Head-End Operator:1. Release the wheel locks.
Head-End Operator:2. Adjust the lift bar to a
comfortable height and grasp it to push and guide the
chair on all four wheels (Figure 21), or tilt the chair
back and roll it on its rear wheels.
Foot-End Operator:3. Assist the head-end operator as
needed and attend the patient.
Figure 20 - Patient
Secured in Chair
with Restraints
Figure 21 - Rolling
the Chair
Figure 22 - Gliding the Chair Down a Curb

18 © Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide®
Using the Chair
6.5 Gliding the Chair Down Stairs -
Model 59-T Only
GENERAL GUIDELINES
Using the chair on stairs requires a minimum of two●
operators. Use additional help as needed to control the
chair (see Using Additional Help, page 22).
Ferno recommends that the two operators face each●
other when transporting a patient down stairs and that
a third trained person “spot” for the foot-end operator.
However, the foot-end operator may face forward
(with back to patient) if desired. Follow your local
protocols for carrying chairs.
Remove any water, ice, snow, or debris from the stairs●
before using the chair on them.
Remove any water, ice, snow, or debris from the track●
and tread belts before using the chair on stairs.
Verify that the track is locked in the open position●
before starting down the stairs with the chair.
GLIDING THE CHAIR DOWN STAIRS
Head-End Operator:1. Roll the chair to the stairs and
engage the wheel locks.
Foot-End Operator:2. Extend the foot-end lift handles
to the desired stop point. Verify that both handles are
locked.
Spotter:3. Stand below the foot-end operator with a
hand on the operator's back to help steady and guide
him/her throughout the descent.
Head-End Operator:4. Pull the track system toward
yourself until the track locks open. Verify that the
track is locked.
Head-End Operator:5. Raise the lift bar to the desired
position and verify that it is locked (Figure 23).
Head-End Operator:6. Disengage the wheel locks
(Figure 23) and tilt the chair back.
Both Operators:7. Working together, guide the chair
over the edge of the top step, allowing the track belts
to engage the step (Figure 24).
WARNING
Using the chair with the track unlocked can cause
injury. Verify that the track is locked before
transporting the patient.
WARNING
Lubricating the track system can result in injury to
patient and/or operators. Never lubricate the track
or belts.
Figure 23 - Preparing Model 59-T for the Descent
Figure 24 - Track Belts Engaging Top Step

19
© Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide® Using the Chair
Move the chair slowly downward until the8. tracks are
resting on the top two or three steps. This establishes
the glide angle (Figure 25).
To maintain the glide angle as you descend, work9.
together as follows:
The○head-end operator applies slight downward
pressure on the extended lift bar.
The○foot-end operator applies slight upward
pressure on the foot-end lift handles.
Both Operators:10. When the chair reaches the bottom
ofthestepsandtherearwheels are ontheoor,the
head-end operator tips the chair forward until all four
wheels are on the oor and the foot-end operator
retracts the lift handles (Figure 26).
Head-End Operator:11. Close the tracks and adjust the
lift bar to a comfortable height, then roll the chair.
To Pause During the Descent
To pause during the descent, tilt the chair forward
just enough to allow the rear wheels to rest on the
step while both operators hold the chair in place
(Figure 27).
To continue down the stairs, tilt the chair back to the
glide angle and engage the belts on the steps.
Figure 25 - Establishing
the Glide Angle
Figure 27 - Pausing on the Stairs
Figure 26 -
Preparing to
Roll the Chair

20 © Ferno-Washington, Inc 234-3298-02 May 2009
59, 59-T EZ Glide®
Using the Chair
6.6 Transporting the Patient
Down Stairs - Model 59 Only
GENERAL GUIDELINES
Carrying the chair down stairs requires a minimum●
of two operators. Use additional help as needed (see
Using Additional Help, page 22).
Ferno recommends that the two operators face each●
other when transporting a patient down stairs and
that a third person “spot” for the foot-end operator.
However, the foot-end operator may face forward
(with back to patient) if desired. Follow your local
protocols for carrying chairs.
CARRYING THE CHAIR DOWN STAIRS
Head-End Operator:1. Roll the chair to the stairs and
engage the wheel locks.
Foot-End Operator:2. Extend the foot-end lift handles
to the desired stop point. Verify that both handles are
locked and maintain your grasp.
Spotter:3. Stand below the foot-end operator with a
hand on the operator’s back to help steady and guide
him/her throughout the descent.
Head-End Operator:4. Raise the lift bar to the desired
position and verify that it is locked.
Head-End Operator:5. Disengage the wheel locks and
tilt the chair back.
Operators and Spotter:6. Operators work together to
lift the chair and carry it down the stairs. The spotter
keeps a hand on the foot-end operator’s back and
provides verbal guidance (Figure 28).
To pause during the descent, allow the rear wheelsNote:
of the chair to rest on a step while both operators hold the
chair in place (Figure 29). To continue down the stairs, tilt
the chair back and lift and carry it.
Operators:7. At the bottom of the stairs, the operators
setthechairontheoorandretractthelifthandles.
Head-End Operator:8. Adjust the lift bar to a
comfortable height before rolling the chair.
Figure 28 -Carrying the
Model 59 Chair Down Stairs
Figure 29 -Pausing on the Stairs - Model 59 Chair
