Kaise SK-8535 User manual

BATTERY
CHECKER
Instruction Manual
SK-8535

CONTENTS
Thank you for purchasing "BATTERY CHECKER SK-8535". To obtain the maximum
performance of this instrument, read this Instruction Manual carefully, and take safe
measurement.
SAFETY PRECAUTIONS・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
OPERATING PRECAUTIONS・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
FEATURES・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
UNPACKING AND INSPECTION・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・

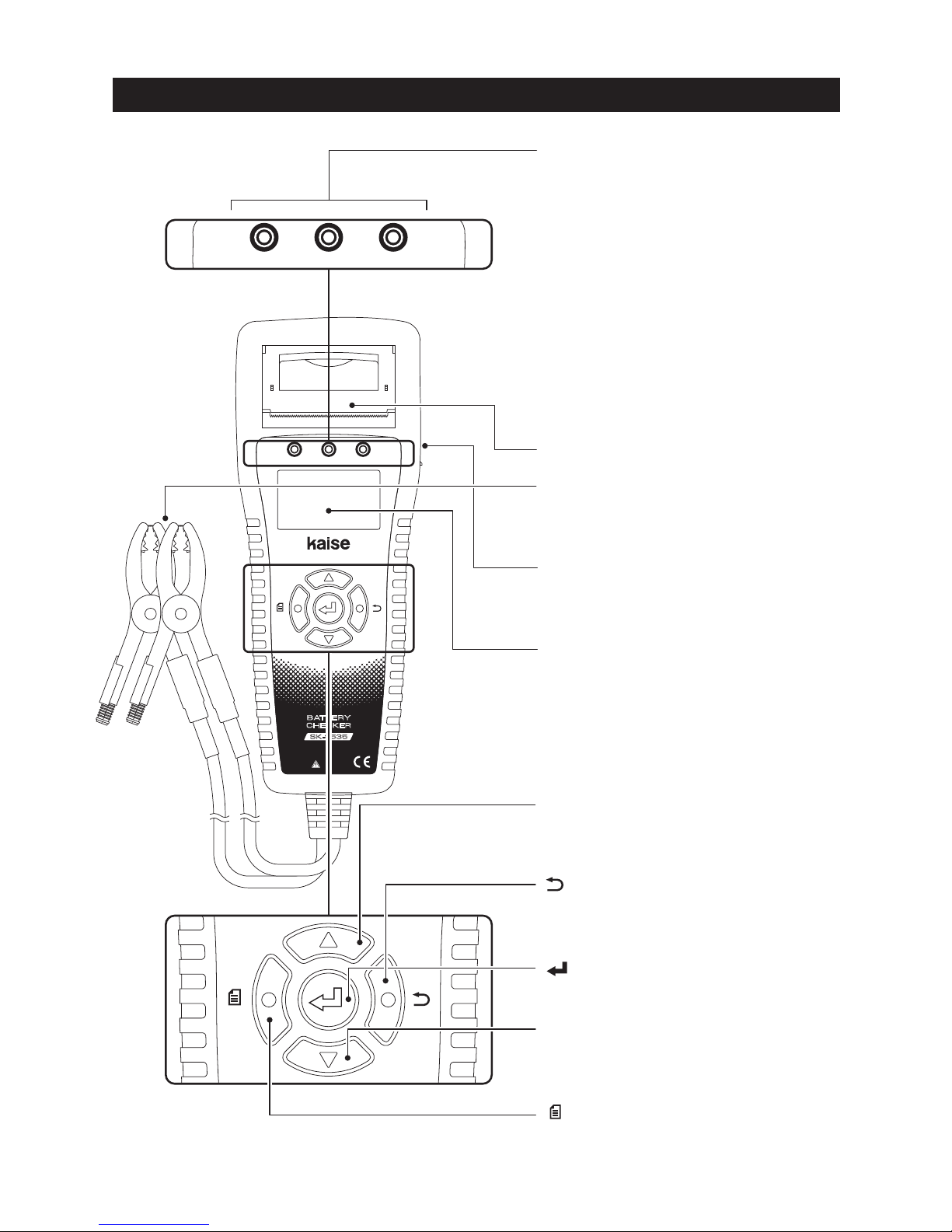

NAME ILLUSTRATION・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
SPECIFICATIONS
1. General Specifications・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
2. Measurement Specifications・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
BEFORE USE
1. Technical Words・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
2. Language / Date & Time Settings・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
3. Others・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
BATTERY TEST・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
CCA VALUE LIST・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
GUIDES TO CHECK THE BATTERY CCA VALUES・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
SYSTEM TEST・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
PC CONNECTION・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
MENU
1. Print out・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
2. Save theTest Result・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
3. View the Saved Data・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
4. Delete the Saved Data・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
5. Date and Time Setting・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
6. Language Setting・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
7. Contrast Adjustment・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
8.Temperature Setting・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
MAINTENANCE
1. Changing the Printer Paper・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
2. Formatting the Removable Disk・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
3. DMP Folder・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
4. Periodical Check and Calibration・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
5. Software Version Update・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
6. Others・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
TROUBLE SHOOTING & REPAIR・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
WARRANTY・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
1 - 3
4
5
6
7
- 8
9
9
10
- 11
11
11
12
- 19
20
- 21
22
23
- 26
27
- 29
30
- 32
33
- 34
35
36
37
38
38
39
40
- 41
42
43
43
43
43
44
45

1
SAFETY PRECAUTIONS (strict observance is required)
This instruction manual contains the important contents to prevent harm to
user or others and damage of property, and to use the instrument safely and
correctly.
Read this manual carefully and obey the contents after having understand the
following terms and symbols.
■Following symbols in this manual describe the harm and damage that
would be caused by incorrect ueage.
WARNING
CAUTION
■Caution marks that require your attention (equivalent marks have the same
meanings.)
This symbol in this manual advises the user of
an electrical shock hazard that could result in
serious injury or even death.
This symbol in this manual advises the user of
an electrical shock hazard that could cause
injury or material damages.
This symbol shows the warnings and cautions.
This symbol shows the prohibited matters.
This symbol shows the matters that is forced to do.

2
SAFETY PRECAUTIONS (strict observance is required)
Do not place this instrument in any place where it will be subjected to
direct sunlight, high temperatures or the inside of the sun-heated vehicles.
Fire, electric shock or damage to the instrument may occur.
Make sure that the shift lever is set to "Parking" position (set to "Neutral" for
stick shift vehicle).
The vehicle runs accidentally and could cause unexpected accident,
electric shock, fire or damage to the instrument / vehicle.
Make sure that the parking brake is applied.
The vehicle runs accidentally and could cause unexpected accident,
electric shock, fire or damage to the instrument / vehicle.
Keep the instrument away from babies or children.
Important to prevent any accident, injury, or electric shock hazard.
Take the measurement under well-ventilated environment.
The hydrogen gas which stayed around battery catches fire from the spark
that occurred when connecting the Battery Clips and might explode.
Do not drive the vehicle keeping the instrument connected.
Accident, electric shock, fire, or damage to the instrument / vehicle may occur.
Do not use this instrument with the hands or Battery Clips wetting.
Accident, electric shock, fire, or damage to the instrument / vehicle may occur.
Do not take the measurement for the battery which does not have enough battery fluid.
It causes combustion and the explosion of the battery.
Do not take the measurement around inflammables such as gasoline or oil.
Fire or explosion may occur.
Do not work in the dark place.
Accident, electric shock, fire, or damage to the instrument / vehicle may occur.
Do not get the instrument wet.
Fire or electric shock may occur.
Do not use the faulty instrument that can recognize such as display trouble,
switch failure.
Stop using the instrument immediately and consult with your local dealer.
Using the faulty instrument may cause the unexpected accident, fire, or
electric shock.
Do not touch the USB port with finger or insert the foreign objects in the USB port.
Accident, electric shock, fire, or damage to the instrument may occur.
Do not touch the heated part of the engine such as exhausting parts.
Important to prevent burn injury.
WARNING

3
SAFETY PRECAUTIONS (strict observance is required)
WARNING
Do not use the instrument if it is in the abnormal condition.
Stop using the instrument immediately and consult with your local dealer
when recognizing smoke, strange smell, or abnormal noise.
Using the faulty instrument may cause the accident, fire, or electric shock.
Do not attempt to disassemble or modify the instrument.
Fire, electric shock, or damage to the instrument may occur.
Do not use the cables with which coating were damaged.
Fire or electric shock may occur.
Be careful about the instrument or the cables not to touch the heated part
of the engine such as exhausting parts.
Important to prevent any accident, or damage to the instrument / vehicle.
Be careful about the instrument or the cables not to be caught in the engine belt or cooling fan.
Short circuit or wire breaking may occur that could cause unexpected
accident, electric shock, or damage to the instrument / vehicle.
CAUTION
Be careful not to get the battery fluid into eyes or not to attach it to skin and clothes.
Loss of eyesight or injury may occur. If it gets into eyes, rinse immediately
and submit to medical treatment.
When testing the battery on vehicle, take the measurement after stopping
the engine and turning off the power supply of all in-vehicle apparatuses.
It causes injury or damage to the instrument.
Connect the Battery Clips to the battery with the correct polarity.
Reverse connection causes damage to the instrument.
Disconnect this instrument from battery soon after finishing the test.
It causes consumption of the battery and the ignition.
Do not use the other USB cable except the supplied one.
Damage to the instrument or PC may occur.
Do not hit, thrust and make scratch on the LCD display part.
It causes trouble or damage to the LCD.
Be careful not to jam the fingers in the Battery Clip.
It causes injury.
Be careful about your hands, gloves and clothes not to be caught in the engine
belt or cooling fan.
Important to prevent injury.

4
OPERATING PRECAUTIONS
Cautions for Handling
●Do not apply the engine oil to the metal part of the Battery Clips or USB Plug to prevent
contact failure.
●Do not apply engine oil, gasoline, antifreeze or battery fluid to the instrument to prevent
any damage on its surface.
●Do not polish the case with the fluid that contains alcohol to prevent the cracking.
●Use this instrument under the environment of -10℃to 50℃, 80％RH or less to obtain
the accurate measurement. (Printer is operating at 0℃to 50℃)
●Cables which coating are heat damaged might cause the short circuit. Do not use them
and replace into the new ones.
●Disconnect this instrument from battery soon after finishing the test to prevent trouble
of this instrument and running out of battery power.
●Do not touch the inside of the printer with finger to prevent trouble of this instrument.
●Do not put serious pressure on Printer Lever or Printer Cover to prevent trouble or
damage to this instrument.
●If Date and Time are not able to set, built-in battery for backup is exhausted. Ask
KAISE AUTHORIZED SERVICE AGENCY through your local dealer for repair service.
●Keep this instrument in supplied Carrying Case to avoid malfunction of the printer
trouble by dust penetration.
●Do not apply mechanical shock.
The shock such as dropping or beating might damage the instrument and may cause
the trouble.
●Do not pull cables forcibly.
Pulling the cables forcibly, such as when removing the Battery Clips from the battery
or USB Plugs from USB Port, may cause trouble such as the breaking of wire.
Cautions for Safekeeping
●Keep away the instrument from the following place.
・ Dusty area
・ The place where has the water splash
・ The place where applies the hard shock
・ -20℃or less, 60℃or more, 70%RH or more
・ The place where has the condensation
・ The place where is exposed to direct sunlight

5
FEATURES
■Portable instrument that can operate
with one hand.
■The software is upgradeable by
connecting supplied USB cable with
PC.(※)
■Capable of saving the test results up
to 359 data. Moreover, the test data
can edit on PC as text data by using
the supplied USB cable.
■Batteries for the vehicle equipped
with charge control system or idle
reduction system are testable.
■Test result can be printed on site by
built-in printer. English or Japanese
selectable.
■SK-8535 can test State of Charge
(SOC), State of Health (SOH), Start
Performance and Charging System
of the car battery.
※PC with Internet access is necessary.
File Edit View Favorite Tool Help
1631501B.TXT
Text Document
1KB
1631502B.TXT
Text Document
1KB
1631503B.TXT
Text Document
1KB
1631504B.TXT
Text Document
1KB
1631505B.TXT
Text Document
1KB
1631506B.TXT
Text Document
1KB
1631507B.TXT
Text Document
1KB
1631508B.TXT
Text Document
1KB
1631509B.TXT
Text Document
1KB
1631510B.TXT
Text Document
1KB
1631511B.TXT
Text Document
1KB
1631512B.TXT
Text Document
1KB
1631513B.TXT
Text Document
1KB
BAD
GOOD CHARGE
MENU
[ バッテリーテスト ]
交換(バッテリー劣化)
JIS規格 95D31
565 CCA
MAX 32V
BA
TTERY
CHECKER
SK-8530
[ BATTERY TEST ]
Replace
JIS
95D31
BADGOOD CHARGE
MENU
MAX 32V
BA
TTERY
CHECKER
SK-8530
Linking to PC…
Serial Number
: 00001
Soft Ver : 3.00
■Auxiliary battery for hybrid car is
testable.
1631501B.TXT - Notepad
BatteryTest Report
Date andTime
2016/03/15 15:00:00
------------------------------
BatteryTest
(Aging test mode)
Test Result: Good
BatteryType: JIS
Battery Size: Q-85
Measured CCA: 615CCA
Battery Voltage: 12.780V
BatteryTemperature: 24℃
Testing Mode
: Charge Controller / Idle Reduction
File Edit Format View Help
Test Result : Good
Date andTime
2016/03/1515：00
(AgingTest Mode)
Battery Test Report
Periodical test is
recommended.
SOC (State of Charge) : 100％
SOH (State of Health) : 100％
BatteryType
Model No.
Measured CCA
Battery Voltage
Temperature
Testing Mode
JIS
Q-85
615CCA
12.780V
24℃
Charge controller / Idle Reduction
Store Name
Person in Charge
System Test Report
Date andTime
2016/03/1515：00
(12V System)
Test Result : Good
Test Result : Good
Periodical test is
recommended.
START PERFORMANCE TEST
CHARGING SYSTEM TEST
Cranking
Start Performance
8.619V
100％
Charging Voltage
Ripple Voltage
14.523V
0.110V
Store Name
Person in Charge
BA
TTERY
CHECKER
SK-8535
CHARGE
BADGOOD
MAX 32V
MENU
BA
TTERY
CHECKER
SK-8535
CHARGE
BAD
GOOD
MAX 32V
MENU
Choose the test
12.462 V
BatteryTest
SystemTest
BA
TTERY
CHECKER
SK-8535
CHARGE BAD
GOOD
MAX 32V
MENU

6
UNPACKING AND INSPECTION (Check before use)
Confirm if the following items are contained in the package in good condition.
If there are any damages or missing items, ask your local dealer for replacement.
①Battery Checker…1 pce.
③Printer Paper…2 rolls
(installed, and spare)
Available Printer Paper (10pcs per set)
Parts number：851
(Paper width：approx. 57mm,
length：approx. 5.8m)
②USB Cable (934)…1 pce.
⑤Instruction Manual…1 pce.
・Use above parts number when ordering.
※The following desiccant is enclosed
in the package for maintenance of
quality. Throw it away after opening
the package.
MENU
BAT TERY
CHECKER
SK-8535
CHARGE BADGOOD
MAX 32V
④Carrying Case…1 pce.
SILICA
THROWAWAY
"DO NOT EAT"
THROWAWAY
"DO NOT EAT"
DESICCANT
GEL

MENU
B AT TERY
CHECKER
SK-8535
CHARGE BADGOOD
MAX 32V
MENU
7
NAME ILLUSTRATION
Front Side ●LED Indicators
①GOOD (Green LED)：
L
ights up when battery test result is
"Good".
②CHARGE (Yellow LED)：
Lights up when the battery is weak
and needs re-charging.
③BAD (Red LED)：
lights up when battery test result is
"Replace" or needs replacement.
Flashes when battery test result is
"Attention" or "Weak Start Power".
●USB Port
Plug the USB Cable into this port
when connecting to PC.
Connect to the battery.
Red to ○＋, black to ○−.
●Battery Clips (Red・Black)
●Printer
●LCD
●△(UP SCROLL) Key
Scrolls up the display / use for
numerical settings.
Press this key to return to the
previous screen.
● (BACK) Key
●(ENTER) Key
Press this key to fix the settings.
● (MENU) Key
Display the Menu screen.
MENU
●▽(DOWN SCROLL) Key
Scrolls down the display / use for
numerical settings.
CHARGE BADGOOD

8
NAME ILLUSTRATION
Rear Side
●Serial Number
How to clip :
Open the battery clip widely and clip
it to the holder in the plastic part of
the clip. (Do not clip in the metal
part)
Clip Battery Clips here when not in
use.
●Battery Clip Holder
●Do not clip in the metal part of the Battery clip. To prevent any
damages of the Battery Clip and Clip Holder.
CAUTION
00001
KAISE JAPAN4301-8530-1 110 6
TO AVOID ELECTRICAL SHOCK, DO NOT CONNECT
BATTERY WITH WET HAND OR WET BATTERY CLIP.
感電事故防止のため、手やバッテリークリップ等がぬれた状態
で 、バ ッテリーに接続しないでください。
SERIAL No.
WARNING
www.kaise.com

SPECIFICATIONS
Dot presentation, 128×64dots
English, Japanese (Default: English)
1 time/second
Green：Lights up when battery test result is "Good"
Yellow：Lights up when battery is weak and needs re-charging
Red：Lights up when battery test result is "Replace"
Flashes when battery test result is "Attention" or
"Weak Start Power"
Built-in
Approx.70cm (Clip and Bush are not included)
Testing battery or USB connection
DC8V to 32V (Testing battery), DC5V (USB Connection)
12V lead batteries ※For 24V battery, only Start-up
PerformanceTest or Charging SystemTest are possible.
JIS, DIN, EN, SAE, BCI, CCA and Industrial Rating
CCA：100 to 1400, Industrial Rating：1.0mΩto 50.0mΩ
12V battery : BatteryTest / Start PerformanceTest and Charging SystemTest
24V battery : Start PerformanceTest and Charging SystemTest
Accuracy at 23°C±5°C×0.01/°C
Test results can be saved to the internal memory up to 359 data.
※The data can be sent to PC via USB connection
From web site via USB connection
-10°C to 50°C, less than 80％RH (in non-condensing)
-20°
C to 60° C , less than 70％RH (in non-condensing)
CE marking approved EN61326-1
248
mm (H)×96 mm (Ｗ)×50 mm (Ｄ) ※ Cable and Bush are not included
Approx. 550g ※Printer paper is not included
1. General Specifications
2. Measurement Specifications (23°C±5°C, ＜80%RH in non-condensing)
LCD
LANGUAGE
DISPLAY RATE OF
VOLTAGE MEASUREMENT
LED INDICATION
PRINTER
BATTERY CABLE LENGTH
POWER SUPPLY
TESTING VOLTAGE
TESTABLE BATTERIES
TESTABLE BATTERY STANDARDS
TESTABLE BATTERY PERFORMANCE
MEASURABLE TESTS
TEMPERATURE COEFFICIENT
FOR VOLTAGE MEASUREMENT
DATA SAVING
SOFTWARE UPDATE
OPERATING TEMPERATURE & HUMIDITY
STORAGE TEMPERATURE & HUMIDITY
SAFETY LEVEL
DIMENSION
WEIGHT
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
※Specification and appearance are subject to change without notice.
Range
16.000V
32.000V
Resolution
1mV
Maximum Input
Lower than 32V
Accuracy
(8V to 16V)：± 0.15%±3dgt
(16V〜32V)：± 0.15%±3dgt
Battery Voltage
※Overload indication："Over voltage" is displayed.
Range
-20°C to 60°C
Resolution
1°C
Maximum Input
-20°C to 60°C
Accuracy
±3°C
Temperature
※ Accuracy is applied when measuring after leaving under constant temperature more than an hour.
9

10
BEFORE USE
●What is CCA?
CCA stands for Cold Cranking Amperes. It is defined as the current a battery at 0°F
(-18°C) can discharge for 30 seconds and maintain at least 7.2V (for JIS, SAE and BCI).
And it is defined as the current a battery at 0°F (-18°C) can discharge for 10 seconds
and maintain at least 7.5V (for EN and DIN). The battery which has the bigger CCA,
the higher ability to start an engine, CCA is one of the criterion for selection of the
battery.
●What is SOH (Stateof Health)?
SOH is the health condition of the battery, the state is expressed in percentage (%).
1.Technical Words
The current discharge at 0°F (-18°C) for 30 seconds
and maintain at least 7.2V.
The current discharge at 0°F (-18°C) for 10 seconds
and maintain at least 7.5V.
CCA definition of various standards
Standards CountriesCCA Definition
JIS
SAE
BCI
EN
DIN
Japan
USA
USA
EU
Germany
●What is SOC (StateofCharge)?
SOC is the charging condition of the battery, the state is expressed in percentage (%).
Definition of SOH in this product：
SK-8535 defines SOH 30% as the threshold of the battery replacement recommendation.
Test result shows "Replacement is necessary" when measured SOH is 30% or less and test
result of SOC is not "Charge/Retest".
※SOH(%) is calculated as the ratio of CCA standard value to CCA measured value.
※SOH(%) fluctuates due to the rate of deterioration and charging condition.
Definition of SOC in this product：
SK-8535 defines as SOC 100% when the battery voltage is higher than 12.756V. (Higher than
13.056V for the battery for industry)
※SK-8535 does not show the exact measurement voltage when testing the battery just after
an engine shutdown or just after charging. Test the battery after reducing the stimulated
condition according to the procedure mentioned in page 12.

11
BEFORE USE
2. Language / Date & Time Settings
●Set date and time before using this instrument. (Refer to "5. Date and Time Setting"
in page 37).
●Language changeable from English (default setting) to Japanese or simplified
Chinese. (Refer to "6. Language Setting" in page 38).
●What is Ripple Voltage?
Ripple Voltage is the feeble change of charging voltage which occurs when rectifying
the generated voltage by diode. If diode is damaged, the ripple voltage fluctuated
sharply and adversely affects battery and in-vehicle apparatus.
3. Others

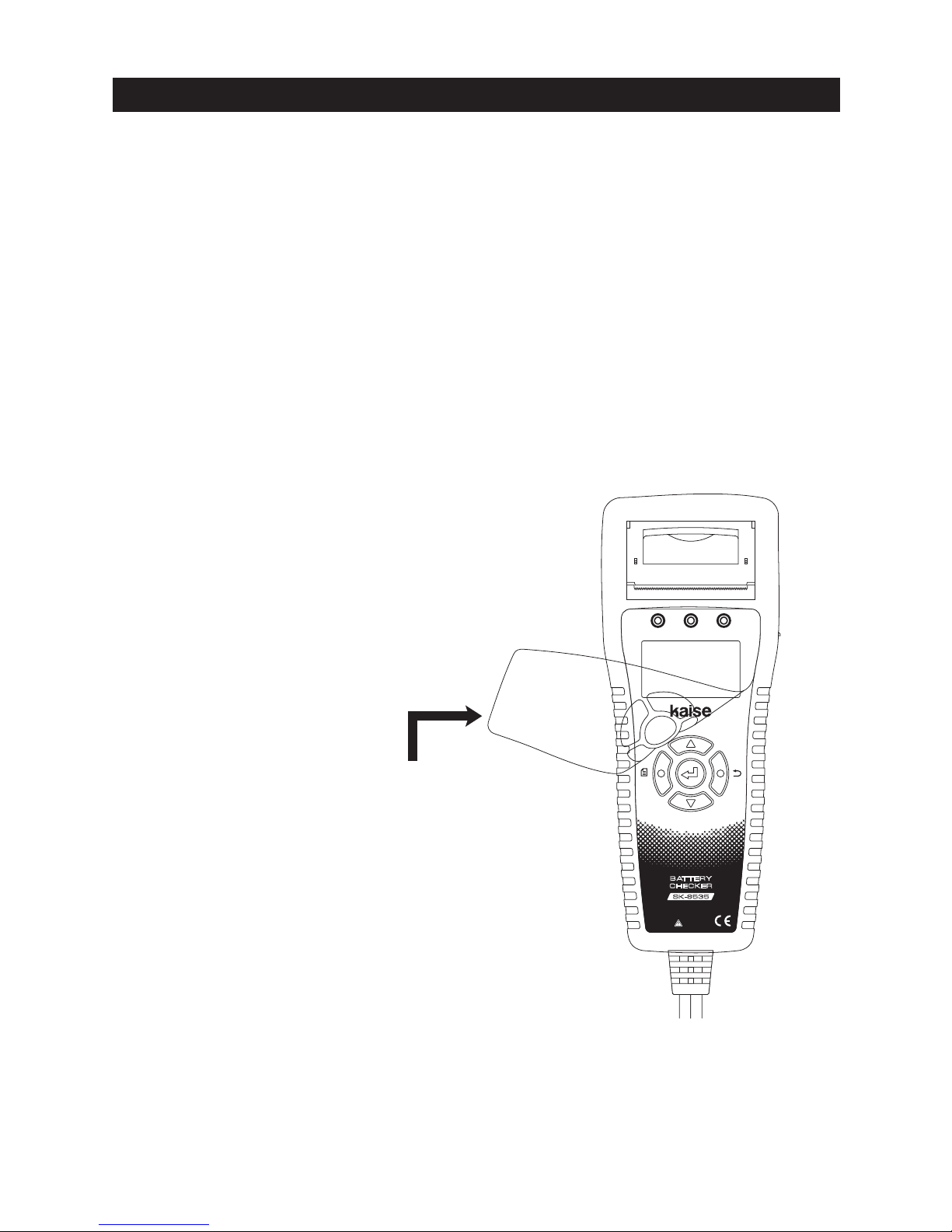

●Protection film is put on the front plate of the
unit before shipment. Tear off the protection
film before using this instrument.
Tear off the protection film. MENU
B AT TERY
CHECKER
SK-8535
CHARGE BADGOOD
MAX 32V
●Initial display shows the factory default
settings.

12
BATTERY TEST
●This instrument forced to be restarted if the testing battery is extremely
exhausted and cannot afford to supply the workable current.
●
Test the battery in the state of the engine shutdown to obtain the accurate
measurement.
● When testing 24V battery, test each 12V battery which is connected in series.
● When testing the battery on vehicle, test the parked car after turning off the power
supply of all in-vehicle apparatuses which are using the electricity from battery
and locking the car door to obtain the accurate measurement.
● Test result may change when testing the same battery repeatedly. Also, test result
may change when testing the weak battery after using the printer.
● Test result may change, even when testing the same battery, depending on the
battery condition or change the storage environment.
●Test results may be higher than usual just after driving. When testing the battery
test of such a car, test it after doing the following procedure.
・Turn on the headlights for approx. 20 seconds.
・Turn off the headlights and test it more than 3 minutes after turning off the
headlights.
In case of the test result is "Charge/Retest" by turning on the headlights, shorten
the time of turning on the headlights after re-charging the battery, and lengthen
the time of intervals before testing.
When you do not perform the procedure mentioned above or testing battery unit
just after charging, test after an interval more than 2 hours.
●This instrument judges the battery condition with testing the basic use of the lead
battery such as charge-discharge characteristics. Test result is not for judging
whether the special control function can use for the vehicle or not.
●This instrument is for testing fundamental battery performance, charging and
discharging ability, but not for judging the capability of actuating the special
control function such as idle reduction system.
For the batteries working with such funcitons, charging ability may be weakened
in its using process. When the relevant functions cannot be activated, check the
system details in the maintenance manual of the vehicle.
●
The maximum CCA displayed with this unit is up to 1400CCA.
CAUTION

13
BATTERY TEST

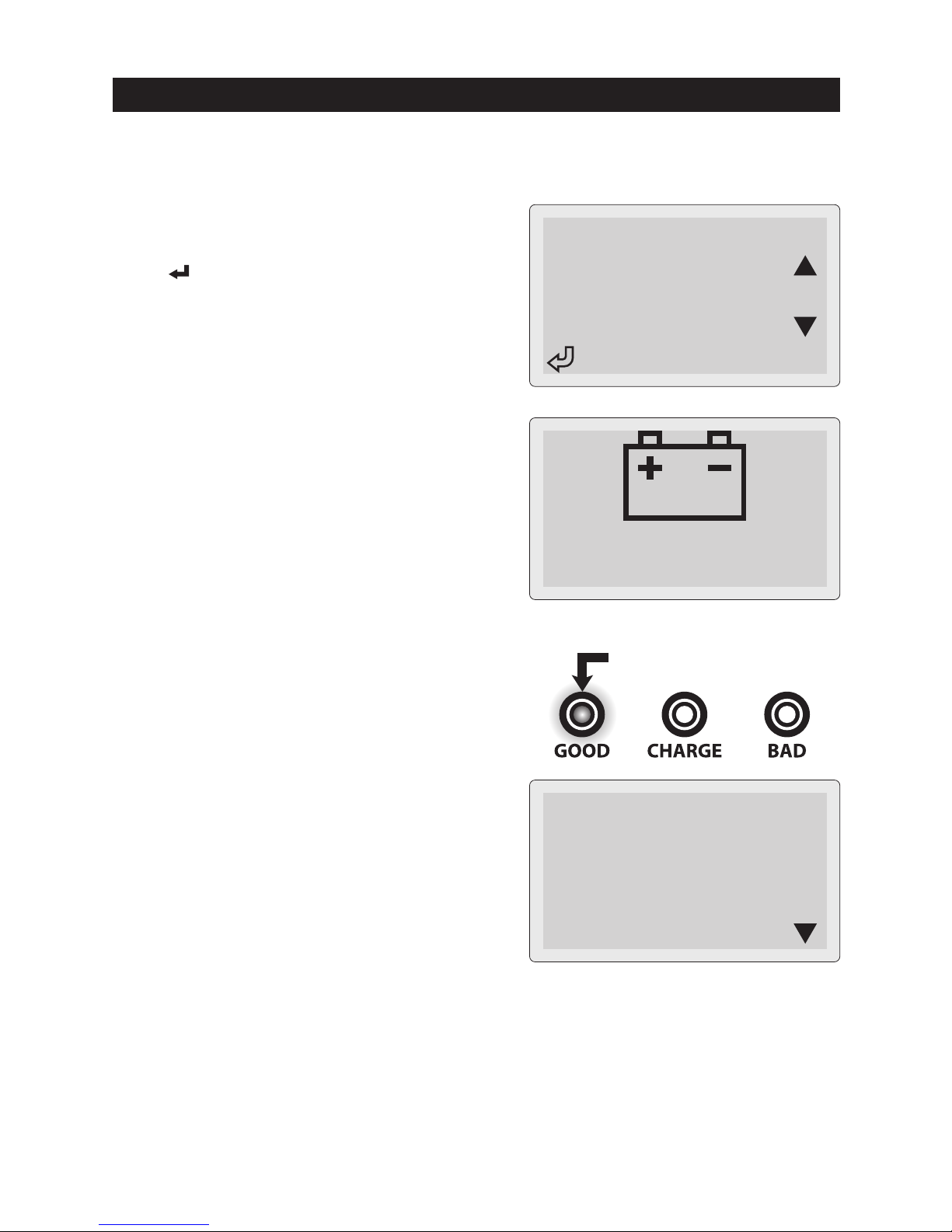

Test the SOC (State of Charge) and SOH (State of Health) of the battery.
①Connect Black and Red battery clips to
minus ○− and plus ○＋ battery terminals.
※Connect them to the nearest part of the
terminals is acceptable if the clips cannot
catch the battery terminals.
In this case, CCA may be measured lower
than the actual value.
Red
Black
Battery
●Make visual inspection for the battery to be tested before connecting battery clips
to the battery terminals.
●Replace the battery terminals if there is corrosion or crack occurs on the terminals.
●Connect the battery clips to the battery terminals tightly without loosening.
●Clean up the battery terminals and battery clips if there is greasy dirt.
●Do not test the battery which has any damages on its body or terminals. Replace
immediately.
●As for the battery which battery fluid almost decreases to LOWER line, refill the
purified water and make auxiliary charging.
●Replace the battery which battery fluid is discolored and decreases under the
LOWER line.
Test Preparation
MENU
BATTERY
CHECKER
SK-8535
CHARGE BADGOOD
MAX 32V
●Make sure to connect the battery clips tightly to battery terminals
to obtain the accurate measurement.
●Clean up the battery terminals and the battery clips before testing
to obtain the accurate measurement.
CAUTION

Choose the test
12.462 V
Battery Test
System Test
14
BATTERY TEST
Battery voltage
②The instrument turns on automatically and enters "Choose the test" screen (step ③)
after displaying the model number / software version number.
BATTERY CHECKER
SK-8535
Soft Version Number
Ver 3.00
Current version number
Battery Type?
12.462 V
JIS
DIN
③Select Battery Test, press (ENTER) Key.
※Display shows the connected battery voltage.
● (MENU) Key :
Move to MENU screen. (see page 35)
MENU
④Select the battery type to be tested. Select
the battery type, and press (ENTER) Key.
※Battery test does not work when the battery
voltage is higher than 13.6V. LCD shows
WARNING.
※When the battery voltage is higher than 16V,
LCD shows "OVER VOLTAGE" warning.
※When testing the batteries for industrial,
golf cart, leisure boat, or deep-cycle, select
"Input CCA" if the CCA is shown on the
battery. Oherwise, choose "Industry".

15

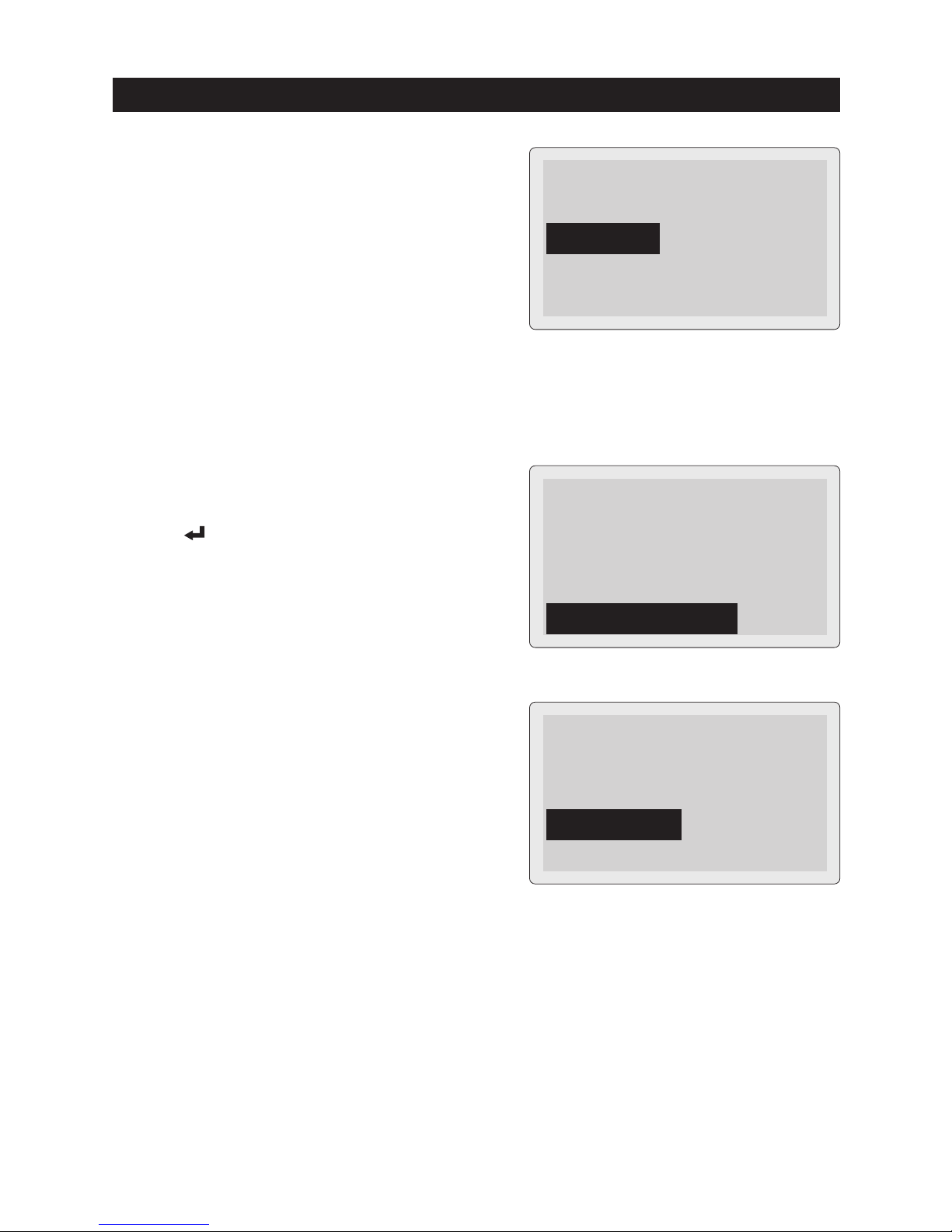

BATTERY TEST
Testing Mode ▲▼
Standard
Charge Controller/
Idle Reduction
Testing Mode ▲▼
Charge Controller/
Idle Reduction
Hybrid Auxiliary
Which Test Mode?
Aging Test
Unused Battery Test
⑥Select Test Mode.
Aging Test：for deterioration check.
Unused Battery Test：
for condition check of unused battery
⑤Select testing mode.
Select "Standard" for normal batteries.
Select "Charge Controller / Idle Reduction"
when testing following batteries ;
●Charge control / idle reduction compatible
batteries
●Batteries in Charge control / idle reduction
vehicles
※LCD shows "Industrial Rating" screen when
selecting "Industry" at ④in page 14.
●When testing the auxiliary battery for
hybrid car, select "Hybrid Auxiliary" and
press (ENTER) Key.

16

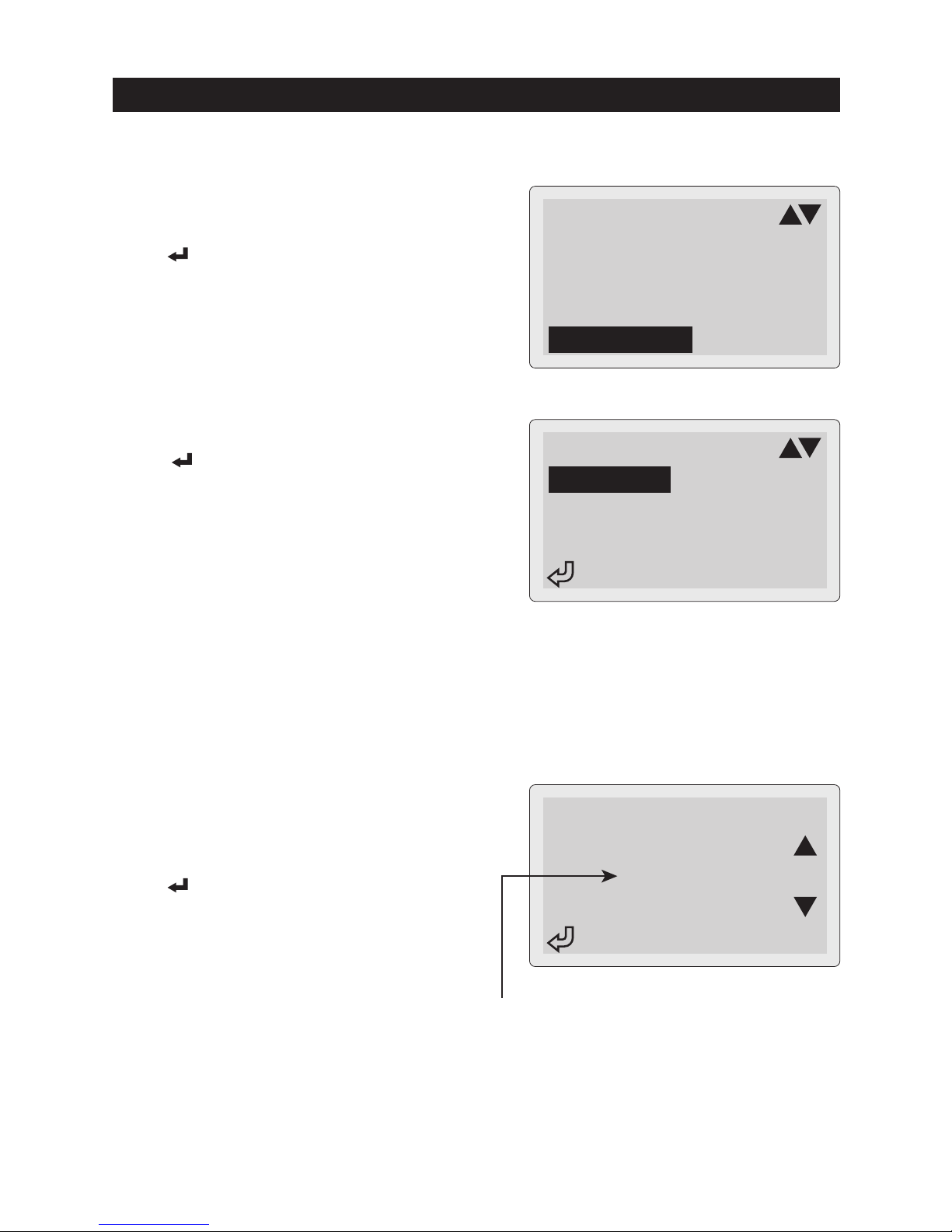

BATTERY TEST
Input EN(DIN) Rating
1400 CCA
Test Start
※Selected battery standard is retained.
※If knowing only battery size like B24, D31, etc., select JIS of the greatest specifications
which is replaceable.
Input CCA rating
Select Model
Test Start
28B19
34B19
38B19
Select the Battery
A17
A19
B17
B19
⑦The following screen is displayed depending on the selected battery standards.
●"JIS"
Select the battery group from the list, and
press (ENTER) Key.
The list is classified by battery size or
functions such as idle reduction or hybrid
auxiliary.
Select battery number to be tested.
Press (ENTER) Key to start battery test.
Input the CCA rating using △(UP SCROLL) /
▽(DOWN SCROLL) Keys.
Press (ENTER) Key to start battery test.
※Selected battery rating is retained.
●"EN(DIN)" / "SAE(BCI)" / "CCA input"

17

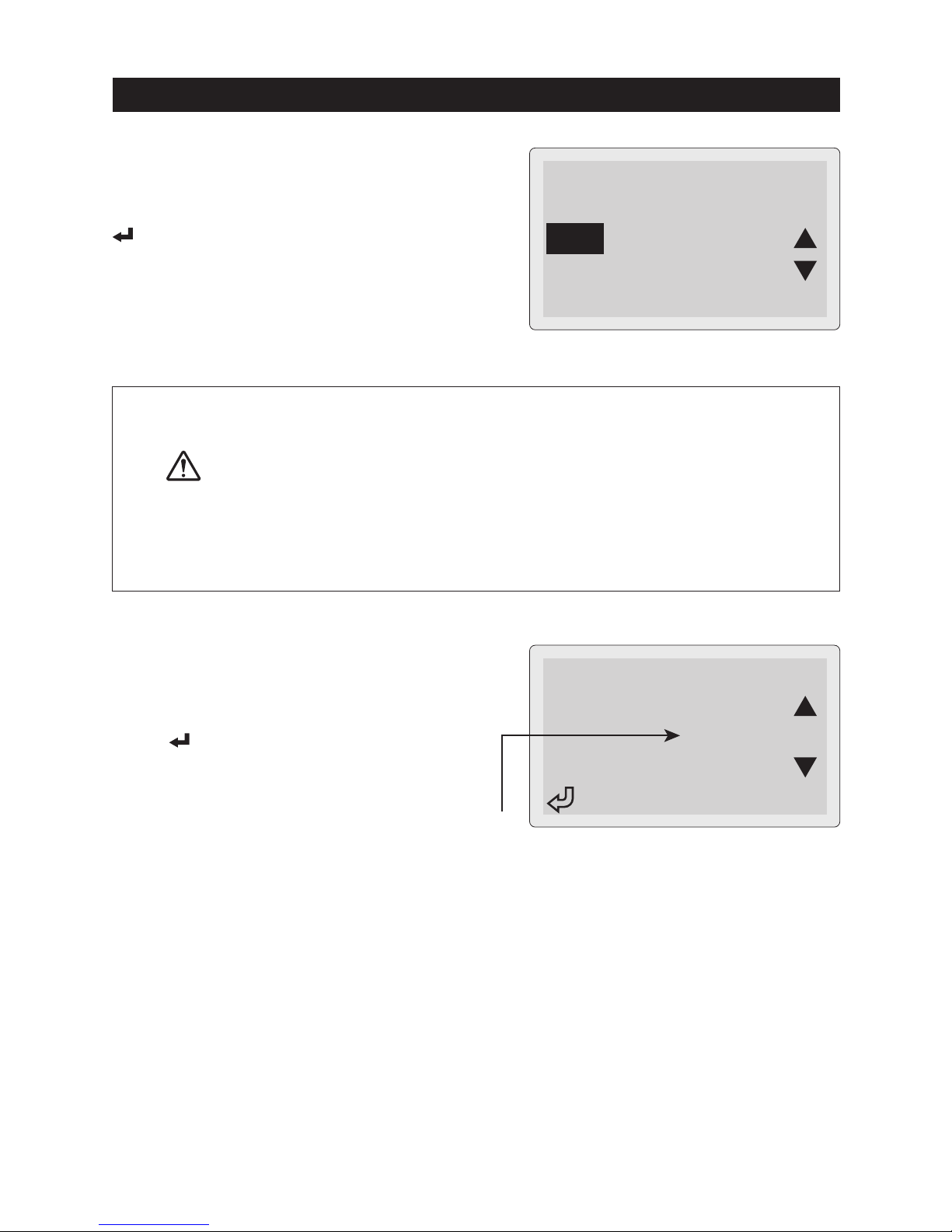

BATTERY TEST
※Input internal resistance (mΩ) value if it is available on the battery body or its
manual. If not, test the new (full-charged) battery selecting "NO" in the above step
to record the initial internal resistance. Input that value from the next testing.
※Battery condition (good / bad) cannot be tested without inputting internal
resistance (mΩ) value.
※Selected resistance value is retained.
Input mΩ
50.0 mΩ
Test Start
Input mΩvalue
●Remove the all electric loads connected to the battery to be tested
to obtain the accurate measurement.
●
Battery test is effective for only 12V lead battery.
● Generally, industrial battery is recommended to be replaced when
the internal resistance comes up to double of the unused battery.
Based on this, SK-8535 judges "Bad" when the test result becomes
double of the input industrial rating.
CAUTION
Industrial Rating?
YES
NO
(Test Start)
●"Industry"
Select "YES" if you can input the industrial
rating (internal resistance mΩ) and press
(ENTER) Key.
When choosing "NO", battery test starts.
※Battery condition (good / bad) is not tested
when choosing "NO".
(When selecting "YES")
Input mΩvalue with using △(UP SCROLL) /
▽(DOWN SCROLL) Keys.
Press (ENTER) Key to start battery test.

18
BATTERY TEST
Green LED lights up when
test result is "Good"
[BATTERY TEST ]
Good
JIS
55B24
・Battery voltage
・Testing method
・Testing Mode
・Comment
・CCA value (Standard mΩfor Industry)
・Measured CCA (measured mΩfor Industry)
・Temperature
・SOC (State of Charge)
※You can see following results on LCD.
・Battery test result
・Selected battery type
・Model (JIS only)
・SOH (State of Health)
⑧"Now testing..." is shown on LCD during
battery testing.
Now testing…
Battery Temperature
25 ℃
Test Start
●Input Battery Temperature
(when selecting manual temperature input in page 39, "8. Temperature Setting")
Input battery temperature in ℃using △(UP
SCROLL) / ▽(DOWN SCROLL) Keys.
Press (ENTER) Key to start battery test.
※Input the temperatures of the battery fluid
or ○＋terminal.
※Selected temperature value is retained.
⑨Read the test result on LCD.
Scroll the display with △(UP SCROLL) /
▽(DOWN SCROLL) Keys.
You can also check the results by LED.
・Green lights up when test result is "Good"
・Green & Yellow lights up when the battery
is fine but needs re-charging
・Yellow lights up when re-charging and
retest are needed.
・Red flashes when the test result is "Caution"
・Red lights up when battery replacement is
needed.
