Landis+Gyr ULTRAHEAT T230 User manual

ULTRAHEAT®T230
ULTRACOLD®T230
Technical description
32 18 101 001 e
Date: 24.10.2018
Landis+Gyr GmbH
Ultrasonic heating and cooling meter
T230
Residential

Outstanding features 2/26
Outstanding features
Meter for measurement of flow and energy in a heat or cold circuit with water using the ultra-
sonic principle.
Important properties are:
•Non-wearing due to non-moving parts
•Measuring range of 1:100 according to EN1434:2007, 1:1.000 total range
•Temperature measurement
•Easy installation and read out
•Removable electronic unit
•Large, easy readable display
•Flow measurement with maximum values
•2 set days for in whole 24 months (can be parameterized)
•Yearly set day (can be parameterized)
•Battery lifetime up to 11 years
•Optical interface according to EN 62056-21:2003
•Communication interfaces for remote readout or system connection
•Self-diagnosis

Contents 3/26
Contents
1General notes ____________________________________________________________4
Other available documents __________________________________________________4
2Safety information ________________________________________________________5
3Technical Data ___________________________________________________________7
Dimensions (qp 0.6 –2.5 m³/h)_______________________________________________8
4Installation ______________________________________________________________9
Installation Notes__________________________________________________________9
Examples of installation (directly immersed sensor)______________________________10
Installation notes for sensor adapter set _______________________________________11
Asymmetric mounting (temperature sensor) ____________________________________11
4.1 Installation for cooling metering and combined heat/cooling meters _______________11
5Dimension of electronic unit_______________________________________________12
6Operating elements ______________________________________________________14
6.1 Displaying current meter status ___________________________________________14
User loop “LOOP 0“_______________________________________________________14
Current values “LOOP 1“___________________________________________________15
Previous month's values “LOOP 2“ ___________________________________________15
General / Communication “LOOP 3“ __________________________________________16
Other “LOOP 4“ __________________________________________________________16
6.2 Monthly values ________________________________________________________16
7Resolution of the display__________________________________________________17
8Power supply ___________________________________________________________ 17
9Communication _________________________________________________________18
Electronic unit interfaces___________________________________________________18
9.1 M-Bus_______________________________________________________________18
9.2 Pulse output __________________________________________________________18
9.3 Wireless M-Bus _______________________________________________________19
Data telegram F000 –stationary radio (sending interval 15 min.)____________________19
Data telegram F001 –mobile data reading (sending interval 20 sec., battery life time 6
years) 19
Data telegram F002 –mobile data reading (sending interval 20 sec., battery life time 11
years) 20
10 Error codes_____________________________________________________________21
11 Order codes (type number key) ____________________________________________22
12 Additional ordering information for wireless M-Bus ___________________________23
13 Pressure loss ___________________________________________________________25

Contents 4/26
1 General notes
Note:In the text below, the term meter refers both to the heat
meter and to the cooling meter and the combined heat and cooling
meter, unless otherwise specified.
The meter is used as a meter for heating or cooling consumption measure-
ment in systems with water.
The meter consists of a high-tech composite volume measurement unit, two
temperature sensors connected in a fixed position and an electronic unit that
calculates the energy consumption from the volume and temperature differ-
ence.
This technology is thus wear free, robust and largely maintenance free. High
precision and long-term stability guarantee precise and equitable cost ac-
counts.
Other available documents
•Operating and Installation Instructions T230
•Respective module operating and installation instruction
•Illustrated catalogue
Additional information’s are available on request.

Safety information 5/26
2 Safety information
The meter may only be used in building service engineering
systems and only for the applications described.
The local regulations (installation etc.) must be adhered to.
The operating conditions according to the type plate must be
complied with during use. Non-compliance can result in hazard-
ous situations and the expiry of all claims arising from liability for
defects as well as liability based on any expressly granted guar-
antees.
Do not under any circumstances carry out welding, drilling or
soldering work close to the meter.
Adhere to the requirements regarding circulating water (CEN /
TR 16911:2016).
The meter is only suitable for circulating water in heating sys-
tems.
The meter is not suitable for drinking water.
Only personnel, trained in the installation and operation of me-
ters in heating and cooling systems, may install and remove the
meter.
Only install or remove the meter when the pipes are pressure-
less.
After installing the meter, check the leak-tightness of the sys-
tem.
Guarantee and calibration validity will lapse if the calibration
relevant security seal is broken.
Only clean the meter from outside with a soft, lightly wetted
cloth. Do not use any spirit or cleaning solvent.
As far as disposal is concerned, the meter is a waste electronic
appliance in the sense of European Directive 2012/19/EU
(WEEE) and it must not be disposed of as domestic waste. The
relevant national, legal regulations must be observed as the
appliance must be disposed of via the channels provided for this
purpose. The local and currently valid legislation must be ob-
served.
The meter contains lithium batteries. Do not dispose of the
meter and the batteries with domestic waste. Observe the local
stipulations and laws on disposal.
You can return the lithium batteries to the manufacturer for
appropriate disposal following use. When shipping please ob-
serve legal regulations, in particular, those governing the label-
ling and packaging of hazardous goods.

Safety information 6/26
Do not open the batteries. Do not bring batteries into contact
with water or expose to temperatures above 80 °C.
The meter does not have any lightning protection. Ensure light-
ning protection via the in-house installation.

Contents 7/26
3 Technical Data
General
Measuring accuracy
Class 2 or 3 (EN 1434)
Environment class
A (EN 1434) for indoor installation
Mechanical class
M1 *)
Electromagnetic class
E1 *)
*) according to 2014/32/EU Directive on Measuring Instruments
Ambient humidity
< 93% rel. humidity at 25 °C, without
condensation
Max. height
2000 m above sea level
Storage temperature
-20 … 60 °C
Electronic unit
Ambient temperature
5 … 55 °C
Housing protection rating
IP 54 according to EN 60529
Power supply
Battery for 6 or 11 years
Operation threshold for T
0.2 K
Temperature difference T
3 K … 80 K
Temperature measurement range
0 ... 180 °C
LCD
7 digit
Optical interface
Standard, EN 62056-21
Communication
Optional
Separability
Always, cable length 1.5 m
Temperature sensor
Type
Pt 500 according to EN 60751, not
detachable
Connection type
Pt 500, 2 wire technology
Cable length
1.5 m (optional 5 m)
Construction type
Bulb sensor ø 5.2 × 45 mm
Temperature range
0 ... 95 °C
Volume measurement unit
Protection class
IP 65 according to EN 60529
Mounting place
Hot side / cold side
Installation position
Any
Flow straightening
None
Measuring range
1:100
Temperature range
5 … 90 °C
National type approvals may be differ-
ent.
Maximum overload
qs = 2 x qp, permanent
Nominal pressure
PN16 (1.6 MPa; PS16)
qp m³/h
Overall length and connection
0.6
110 mm (3/4 '')
1.5
110 mm (3/4 '')
130 mm (1 '')
2.5
130 mm (1 '')

Technical Data 8/26
Nominal flowrate
qp
Overall length
Connection
Maximum flowrate
qs
Minimum flowrate
qi
Response threshold
(variable)
Pressure loss at
qp
Kv flowrate at
Δp 1 bar
Kv flowrate at
Δp 100 mbar
Weight
m3/h
mm
G/DN
m3/h
l/h
l/h
mbar
m3/h
m3/h
g
0.6
110
G 3/4
1.2
6
1.2
75
2.2
0.7
520
1.5
110
G 3/4
3
15
3
135
4.1
1.3
520
1.5
130
G1
3
15
3
135
4.1
1.3
560
2.5
130
G1
5
25
5
135
6.8
2.2
560
Tolerance of pressure loss: +/- 5%

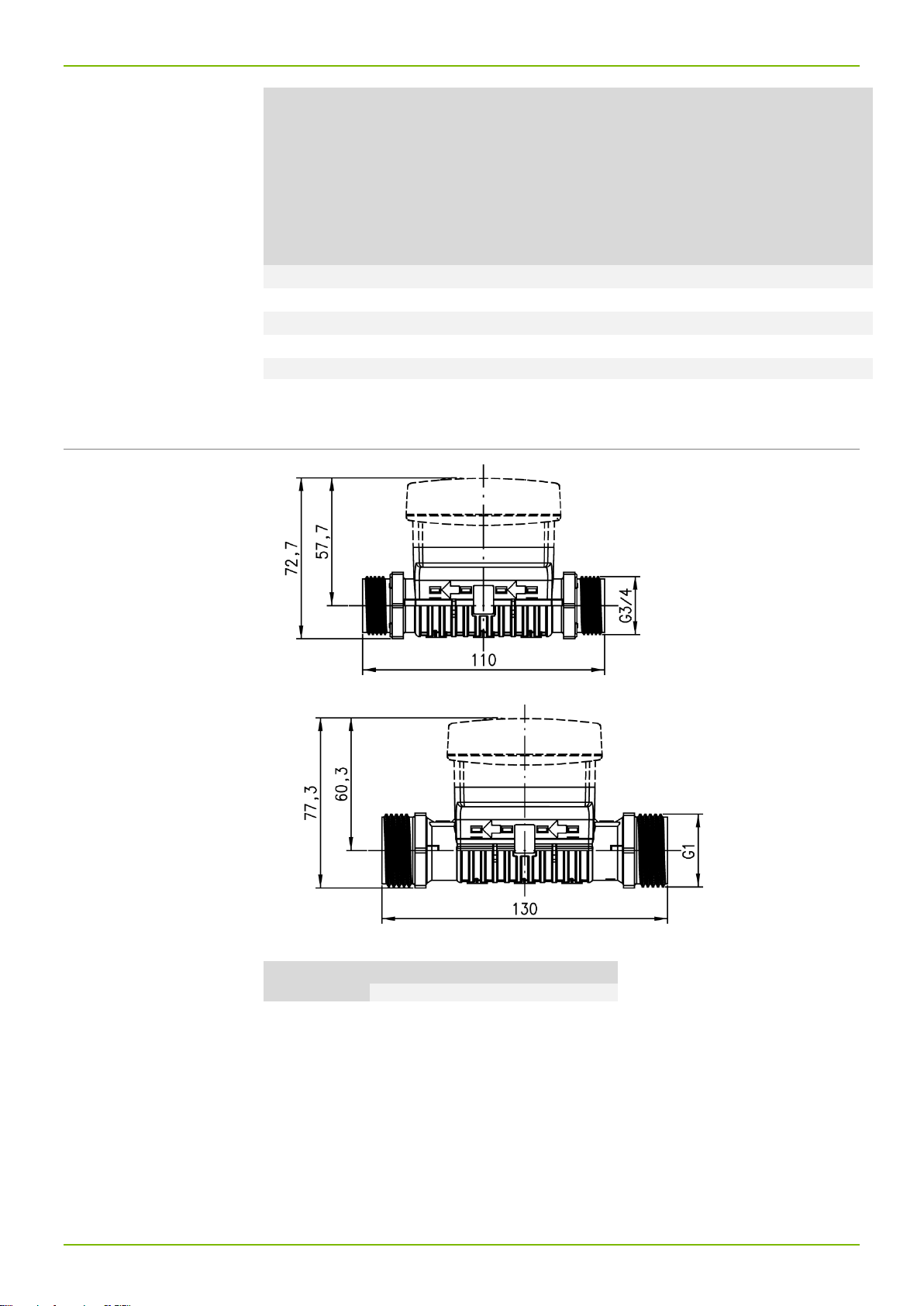

Dimensions (qp 0.6 –2.5 m³/h)
Fig. 1: Overview dimensions overall length 110 mm
Fig. 2: Overview dimensions overall length 130 mm
Order-No.
qp
PN
Overall length
m³/h
bar
mm
T230-x05
0.6
16
110
T230-x21
1.5
16
110
T230-x26
1.5
16
130
T230-x36
2.5
16
130

Installation 9/26
4 Installation To install the meter proceed as follows:
•Determine the place of installation in line with the inscription on the meter.
Note: For a heating meter the mounting place of the flow sensor
cold side is equivalent to return . The mounting place of the
flow sensor hot side is equivalent to flow .
Note: For a cooling meter the mounting place of the flow sensor
hot side is equivalent to the return . The mounting place of the
flow sensor cold side is equivalent to flow .
•Observe the dimensions of the meter and check whether there is sufficient
space available.
•Rinse the system thoroughly before installing the meter.
•Fit the meter vertically or horizontally between two slide valves so that the
arrow on the housing and the flow direction match. Also observe the instal-
lation situations and the following examples of installation.
Note: Only use the rubber EPDM flat seals that are supplied.
•The meter must not be exposed to tensions or forces caused by pipes or fit-
tings. If this cannot be permanently guaranteed, it is necessary to improve
the point of installation or fix the lines in position, by means of suitable con-
necting brackets for example.
•Fit the temperature sensors in the same circuit as the meter.
•Seal the temperature sensor and the fittings to protect against manipula-
tion.
•If you install the meter for cooling metering, follow the appropriate notes.
Recommendation: If you are installing several meters, the same installation
conditions must be consistent for all meters.
Installation Notes Inlet or outlet sections are not necessary. If you install the meter in the com-
mon return of two circuits, determine a place of installation with a minimum
distance of 10 × DN from the T-piece. This distance ensures a good thorough
mixing of the different water temperatures. You can install the temperature
sensors in T-pieces, ball valves, directly immersed or in pockets depending on
the version. The temperature sensor ends must reach to at least the middle of
the pipe cross section.
Note: Protect the meter against damage through impacts or vibra-
tions at the place of installation.

Installation 10/26
Examples of installation (directly immersed sensor)
You can install the meter in any position e.g. vertically or horizontally. In order
to avoid accumulation of air and disruption in operation, fit the meter in a verti-
cal installation position and not in the uppermost area of a pipeline.
*This position is not permitted for cold
meters and in cases where moisture can
enter the electronic unit due to conden-
sation (e.g. during an interruption in the
summer).
Fig. 3:
Fig. 4:
Fig. 5: Installation for circulation with admixing; placement of temperature sensors
Fig. 6: Installation for circulation with throttling configuration (flow sensor in flow direction before control
valve / differential pressure regulating valve)

Installation 11/26
Installation notes for sensor adapter set
A mounting set is included for meters with 5.2 × 45 mm temperature sensor.
With this you can fit the temperature sensor directly immersed into an insert or
a ball valve for example.
1. Install with O-ring at the point of installation with the fit-up aid/pen provided.
2. Place both halves of the plastic bolting round the 3 notches of the tempera-
ture sensor.
3. Press the bolting together and screw the bolting hand tight into the point of
installation until it comes to a stop (tightening torque 3 ... 5 Nm).
Fig. 7: Mounting adapter set
Asymmetric mounting (temperature sensor)
The meter can be mounted asymmetric, too. This means one temperature
sensor is directly immersed in the volume measuring tube, whereas the other
temperature sensor is mounted in a protection pocket. For the lower value of
the temperature difference is then 5 K valid at the respective lower flow limit
qi. For this kind of installation the mentioned protection pockets must be used.
Furthermore the national regulations of the respective country have to be ob-
servered.
Type of protection
pocket
Inside diame-
ter
Rack length
from upper edge
Thread size
[mm]
[mm]
[mm]
SPX/50/5.2
5.2
42
½‘‘
WZT-M35
5.2
46
½‘‘
JUMO 00420848
5.2
46
½‘‘
WZT-M50
5.2
50
½‘‘
JUMO 00326403
5.2
50
½‘‘
1/2“ SPX-TH *)
5.2
37
½‘‘
*)The sensor pocket must be installed in isolation.
4.1 Installation for cooling metering and combined heat/cooling meters
Fit the electronic unit separate to the volume measurement unit, e.g. on the
wall for water temperatures below 10° C. Make a loop downwards in order to
prevent condensation running along the connected lines into the electronic
unit. Install the temperature sensors into the pipe from below.
Note: Wall adapter plates are available as an accessory.

Dimension of electronic unit 12/26
5 Dimension of electronic unit
Fig. 15: Dimensions of electronic unit
Fig. 16: Wall adapter (view from above and side)
Note: Wall adapter plates are available as an accessory.
Fig. 17: Maximum screw head height (if using the wall bracket)

Dimension of electronic unit 13/26
Fig. 18: Wall mounting

Operating elements 14/26
6 Operating elements
Fig. 17: LCD
No.
Description
1
Identification previous year value
2
Previous year value
3
Maxima
4
Previous month value
5
Identification previous month value
6
Activity display at flow
7
Calibrated value
6.1 Displaying current meter status
The meter displays the current meter status in kWh, MWh, MJ or GJ.
Note: In order to prevent reading errors, the decimal places of
the values displayed are marked with a frame.
Note: Calibrated values can be recognized by an additionally
displayed star symbol.
Note: Both display range and data displayed can differ from
the description depending on the appliance parameterization.
Certain button functions can also be blocked.
User loop “LOOP 0“
User loop
Energy quantity
Cooling registers (optional)
Volume
Segment test
In case of error: message with error code

Operating elements 15/26
Current values “LOOP 1“
Current values
Current flow
Current heat power
Alternate current temperature hot and cold side in 2 s
cycles
Temperature difference
Operating time with flow
Missing time
Time with flow
Previous month's values “LOOP 2“
Previous month's values
Log date
Energy quantity
Cooling registers at the reporting date (optional)
Volume on set day
Missing time on set day
Max. flow on set day in 2 s cycles with date stamp
Max. power in 2 s cycles with date stamp
Max. temperature hot side in 2 s cycles with date stamp
Max. temperature cold side in 2 s cycles with date stamp

Operating elements 16/26
General / Communication “LOOP 3“
General / Communication
Device number, 7-digit
Optional interface
Primary address (only for M-Bus)
Secondary address
7-digit - for M-Bus
Yearly set day
Monthly set day
Firmware version
CRC-Code
Other “LOOP 4“
Other
Date
Time
Code entry for test / para operation
6.2 Monthly values
The meter stores the following values for 24 months on the monthly set day
•Energy
•Volume
•Missing time
and the maxima with date stamp for
•Flow
•Power
•Temperature hot side
•Temperature cold side
The monthly values can be read via optical interface.
Note: Central European Time (CET) applies as the standard time.
During summer time the storage takes place at the corresponding
times.

Resolution of the display 17/26
7 Resolution of the display
Note: The number of places after the decimal point of a value is
based on the chosen measurement path and the chosen dimension.
8 Power supply
The meter is equipped with batteries.
Options:
•6 years battery
•11 years battery
kWh
MWh
MJ
GJ
m³/h
m³
1.5 2.5
0.001 MWh
1 kWh
1 MJ
0.001 GJ
Nominal flow rate in m³/h
0.01 m³
0.001 m³/h
0.6

Communication 18/26
9 Communication
Electronic unit interfaces
The meter is equipped with an optical interface in accordance with EN 62056-
21:2002 as standard.
Note: You can find further information in their respective documen-
tation.
9.1 M-Bus If the meter is equipped with the option M-Bus, it is supplied with a 2-wire ca-
ble which you can extend by fitting a junction box.
Standard
EN 13757-2 and -3
Reading interval
>1 min @ 2400 baud
Power supply
2 Batteries type AA
9.2 Pulse output
The pulse exit permits the output of pulses that can be derived from the ener-
gy, the volume or the error status.
Two channels are available whose functions can be parameterized with the
service software or who can be adapted in “Para menu” of the meter.
Output takes the form of standard pulses or as “high-definition pulses”.
The pulse duration is identical for channel 1 and channel 2.
Cable labelling
passive pulse output
Cable
1.5 m; 4-wired, LL84201 4xAWG28 /
0.2 mm²
Cable diameter
4 mm
Output type
open drain
Voltage
max. 30 V
Current
max. 30 mA
Dielectric strength
500 Veff against ground
Classification
OB/OC (according to EN 1434-2)
ON/OFF resistance
100 Ω / 6 MΩ
Output connection

Communication 19/26
9.3 Wireless M-Bus
The wireless M-Bus function enables the meter to communicate with a sta-
tionary unit (radio concentrator, MUC –Multi Utility Controller) or a mobile unit
(Handheld, e.g. pocket pc) using 868 MHz radio frequency (unlicensed).
The function supports the OMS1)-compliant data transfer.
The wireless M-Bus function is available with integrated antenna.
Standard
Open Metering System Specification (Issue
3.0.1); EN 13757-4
Frequency
868.95 MHz (min. 868.90 MHz to max.
869.00 MHz)
Transmission power
Min. 3.16 mW (5 dBm) to max. 25 mW (13.9
dBm)
Range2)
- Free field
Up to max. 400 m
Power supply
3 batteries type AA
Sending interval
- Mobile data reading
- Stationary data reading
- User defined data reading
20 s
15 min
Acc. to telegram length 12 –900 s
1) Open Metering System
2) May vary depending on terrain and building structure
Data telegram F000 –stationary radio (sending interval 15 min.)
Following data are available by default for data reading:
•Current energy
•Current volume
•Current flowrate
•Current power
•Current temperature hot side
•Current temperature cold side
•Error (manufacturer specific)
•Current timestamp (type I)
Data telegram F001 –mobile data reading (sending interval 20 sec., battery life
time 6 years) Following data are available by default for data reading:
•Current energy
•Current volume
•Energy: previous month on reference date
•Volume: previous month on reference date
•Monthly reference date
•Energy: previous year on reference date
•Annual reference date
•Error (manufacturer specific)
•Current timestamp (type I)

Communication 20/26
Note: Please tell us if encryption needs to be set at factory.
The unique encryption key for every meter will be created and you
will get a file by email (meter number <> encryption key).
Data telegram F002 –mobile data reading (sending interval 20 sec., battery life
time 11 years) Following data are available by default for data reading:
•Current energy
•Energy: previous month on reference date
•Monthly reference date
•Energy: previous year on reference date
•Annual reference date
•Error (manufacturer specific)
•Current timestamp (type I)
Note: Please tell us if encryption needs to be set at factory.
The unique encryption key for every meter will be created and you
will get a file by email (meter number <> encryption key).
