Kaiser Baas K1000 User manual

Quick & Easy to use
Full 1080P Playback
Network Connection
MediaPlayer
Network
K1000
UserManual

Contents
MediaPlayer
Network
K1000
UserManual
2
Product Features
Safety Precautions
Product Specifications
Descriptions/ Contents
Assembling Remote Control
Part Descriptions
Remote Controller
Physical Connections
USB Host Connection
Network Connection setup 98/ME
Network Connection setup 2000
Network Connection setup XP
Network Connection setup Vista
Player’s System setting
Movie Play
Music Play
Photo Play
Virtual DVD
Firmware Update
Troubleshooting
3
4
5
6
7
8
9-10
11-13
14
15-18
18-22
22-26
27-34
35-39
40
41
42
43
44
45

MediaPlayer
Network
K1000
UserManual
3
1. Product Features
HD Playback (including MKV)
The K1000 can playback high definition video (up to 1920 x 1080p) and HD still images.
High definition file formats such as .TR, .TP, .TRP, .ASF, .VOB and .MKV are supported.
It also supports standard definition video codecs such as MPEG 1-2-4, DivX and Xvid.
Supports Advanced Compression Technology H.264 / MPEG-4 AVC
The K1000 features high compatibility with modern video codecs including H.264 (BP@L3,
[email protected] and [email protected]) which is the most advanced video codec available.
Direct Network Play
The K1000 supports media streaming directly from your local area network. Enjoy your
favourite media files streamed from either your PC or media server without the need to copy files.
HDMI 1.2
With the HDMI connection you can now enjoy unparalleled video and audio quality
using the one cable. (cable not included)
USB 2.0
The included USB 2.0 host port allows you to enjoy all your media files from external USB devices
such as USB memory sticks, USB flash card reader, MP3 players and external hard drives.
DVD Juke Box
Create your own virtual DVD library by storing your DVD collection in either .ISO or .IFO format
on your portable hard drive and watch them exactly as if you were running the original DVD
including all features such as menu navigation, chapter selection, subtitles, and audio streams.
JPEG Playback
Play your jpeg images from your digital camera as a slideshow.
Firmware Upgradeable
The K1000 has firmware that is upgradeable. New formats and features can be supported
and any product bugs can be fixed. Check our website – www.kaiserbaas.com for new
firmware updates periodically.

MediaPlayer
Network
K1000
UserManual
4
2. Safety Precautions
Please use the product after carefully reading the following instructions.
Copyrights Software, audio, video, or any intellectual properties are protected by copyright and international laws.
It is the user’s responsibility when s/he reproduces or distributes the content(s) created by this product.
Codec Check This product may not support some media codec formats. Please check the available codec
types. Moreover, even with a supported codec, some files may not be played because of file
property or system environment
Drop / Shock Do not drop or shock the product. This may cause severe problems to the product
Foreign
Substances
Do not insert any metals (e.g., coin, hairpin etc.)or inflammable foreign substances into the
interior. This may cause a damage to the circuit or cause a fire
Load Do not place any heavy object on the top of the product. This may cause the product damage
or cause injury to the user.
Power Please use the power adapter provided.
Do not use many electronic produc ts with a single outlet. Firmly insert the power plug.
In the middle of the use, do not unplug the product unnecessarily. After using the product,
turn off the product and disconnect the adapter
Chemicals Do not clean the product using chemicals or cleansers. This may cause damage to
the surface of the product.
Water and
Moisture
Do not contact the product with water or liquid. This may cause a fire or electric shock.
If any conductive liquid enters the product, turn off the product and disconnect the power
cable immediately
Magnet or
Magnetic
Properties
Do not place the product near an object with a strong magnetic field. This may
cause a malfunction of the product or damage to the stored data .
Heat Do not place the product under the direct sunlight or near a heat source. Do not
keep the product for a long time in high temperature
Vision /
Hearing
Do not watch a TV or hear loud sounds for long time. This may cause a vision or hearing
problems
Fire During the use of the product, if you detect smoke or an unusual smell, turn off the product and
disconnect the adapter immediately, and request Assistance from Kaiser Baas
Children /
Infants
Do not let children or infants touch the product. This may cause an injury or damage to the product.

MediaPlayer
Network
K1000
UserManual
5
3. Product Specifications
Specification
Supported File
Formats
Video
Codec
MPEG-1, MPEG -2, MPEG-4, WMV9(MP@HL) , MPEG-2 HD TS
MPEG -4 ASP L5(Without GMC), DVD -VIDEO AND Superbit DVD
H.264(BP@L3, [email protected], [email protected]), VC -1(MP@HL, AP@L3)
MKV(H.264+AAC+1080p, H.264+AC3+1080p, H.264+MP3+1080p,
Xvid+AAC+1080p, Xvid+A C3+1080p, Xvid+MP3+1080p,
Dvix5+AAC+1080p, Dvix5+AC3+1080p, Dvix5+MP3+1080p)
DivX Video (3.11, 4.x, 5.x) XviD(except GMC
,QPEL options)
Video
Format
MPEG 1,2,4 (avi, wmv, mpg, iso, vob, ifo, mp4, asf, tp, trp, ts,)
H.264( mkv. mov)
DivX ™ Video (3.11, 4.x, 5.x), XviD(except GMC,QPEL options)
Audio
codec
MPEG -1 and MPEG -2 Layers I, II and III (MP3)2.0, MPEG -2 and MPEG -4 A
AC -LC 2.0 , Dolby Digital, Windows Media Audio 9 (WMA9)2.0, 16 -Bit Linear
PCM, DVD -Audio With MLP option , Ogg Vorbis, FLAC
Audio
format
.MP3, .AAC, .OGG, .WMA, .WAV, .AC3, (DTS Pass through Only) ,
.FLAC, .PCM, .M4A,
Photo JPG (JPEG), BMP
Connections USB2.0 (Host) 1 Ports LAN(10/100Mbps)
Video output Video: HDMI(up to 1080p) , Composite
Audio output Digital : Optical, HDMI / Analog: Stereo RCA
Subtitle
Text Subtitle: SMI, SUB, SRT, UT F, MKV SUBTITLE
SUB(with IDX)
File system
FAT32: read or write
NTFS: read only
Language English, Fr ench, German, Spanish, Czech, Cyrillic, Russian, Chinese,Korean,
Memory SDRAM 128M Flash: 16M
Power 5.5V/3A
System Requirements (for PC)
PC Requirement for
USB Connection
-USB 2.0
-Operating System
Windows98,ME,2000,XP,VISTA32
*Specifications subject to change with each firmware update. See www.kaiserbaas.com for details

MediaPlayer
Network
K1000
UserManual
6

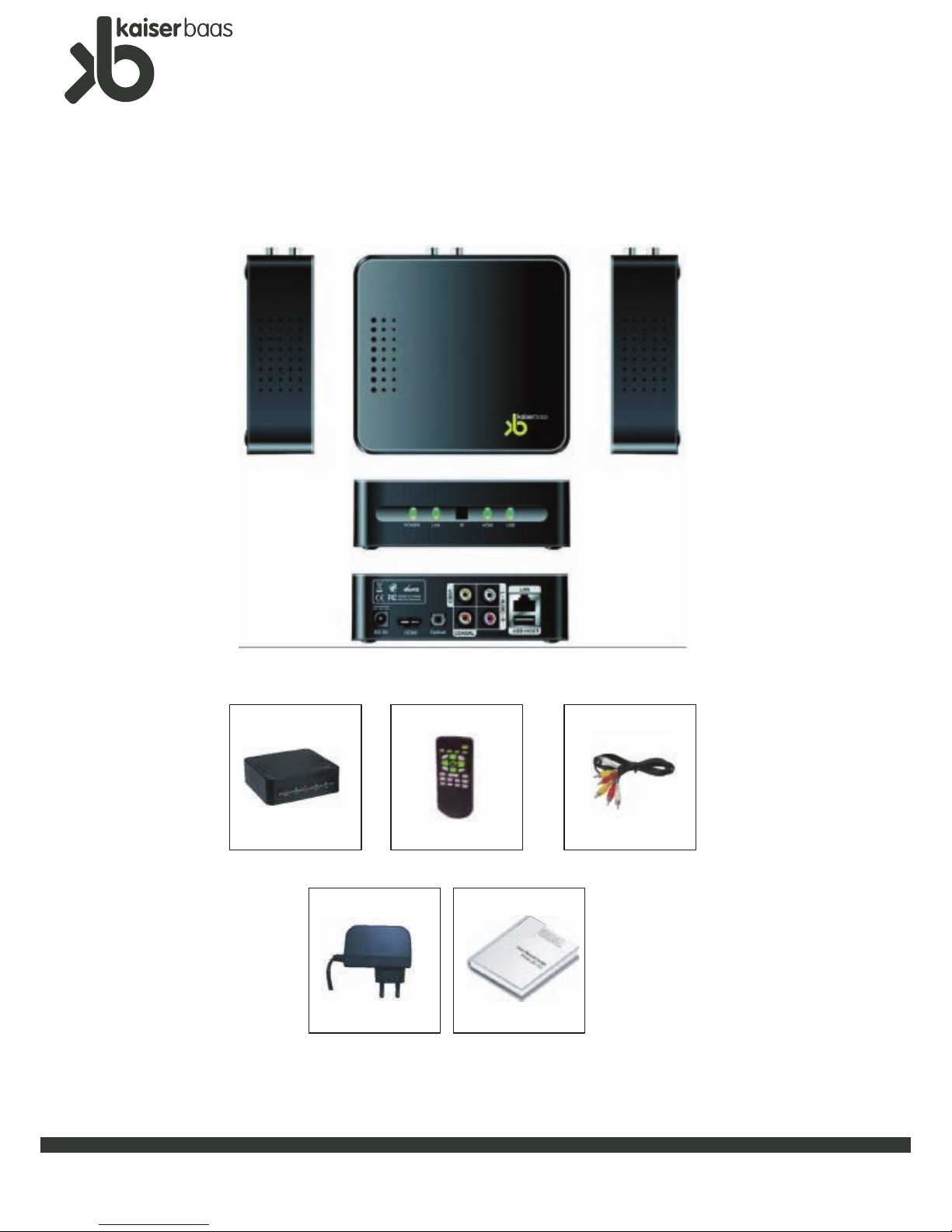

4. Descriptions & Product Contents
Product Packing List
K1000 Remote Controller A/V Cable
Power Adapter User Guide

MediaPlayer
Network
K1000
UserManual
7
4-1. Assembling Remote Control
At the bottom of the Remote control there is a
battery bracket. Pull out the battery bracket in the
direction shown here.
Keep the battery bracket side with ‘+’ top.
Insert a new Battery in the bracket, ‘+’ side up.
Note: Make sure battery and battery bracket have
‘+’ logo in the same side.
Battery required is a CR2025 lithium button cell.
Insert battery bracket together with battery, back
in to remote control.
Note: During the whole process keep battery
bracket with ‘+’ as upper side.

MediaPlayer
Network
K1000
UserManual
8
4-2. Part Descriptions
Product part Function Description
Power Input
Terminal Connect the provided AC adapter to this DC IN Terminal (DC 5.5V/3A)
USB HOST Port An external HDD, ODD, memory stick etc. can be connected
to this port
HDMI Output Terminal The product can be connected to a digital TV with a HDMI cable.
COAXIAL Digital Audio
Output Terminal
Y ou can enjoy 5.1 Channel sound by connecting the product
to a home theatre amplifier or receiver using a coaxial cable.
OPTICAL Digital Audio
Output Terminal
You can enjoy 5.1 Channel sound by connecting the product to
a home theatre amplifier or receiver using an optical cable.
Composite Video
Output Terminal
A composite cable is connected to this terminal for connection
to a TV, when HDMI is not available.
Stereo Audio
Output Terminal These terminals are for analog stereo output, when digital is not available
LAN Port Connect to PC, network or router.
DC IN HDMI Optical COAXIAL USB HOST
LAN
VIDEO
L - AUDIO - R

MediaPlayer
Network
K1000
UserManual
9
5. Remote Controller

MediaPlayer
Network
K1000
UserManual
10
5-1. Remote Controller
Specification for Remote control
Power Turn on or Turn off power
Setup Enter into Setup menu, or finishing setting up.
Lang Choose the language you want
Picture Adjusts the brightness, contrast, and colour. It selects a picture property
according to the following order. (Brightness -> Contrast -> Colour)
Change the value of each property by using the left and right arrow button.
TV out You can change different TV output mode with this Button eg. HDMI output
Play Play or pause, play JPG slideshow
UP Move up, down between different options or items
DOWN
Left Move back
right Move left, right in setting up mode, to choose the right mode.
Stop Stop the currently played file or go back to previous Menu
OkConfirm your selection or setting
>>| Skip forward to next track or media file
|<< Skip back to previous track or media file
>> Forward or backward search of the current movie (Each click doubles
the search speed -x2,x4,x8,x16,and x32 speeds).
<<
+Volume up
-Volume down
Mute All sound becomes silent
Goto Jump to the desired position of movie during playback.
Bookmark Supports stopped points and bookmarked
points (up to 9 in order)
Audio Selects a specific audio source when multiple audio sources exist in a
movie file
INFO Displays the information of a played file
Repeat
button
Click once, it repeats the track once, click twice, it loops all files in
the same folder, click 3 times, the repeat function is turned off.

MediaPlayer
Network
K1000
UserManual
11
6. Physical Connections
6-1. Connection with Ordinary (Composite) TV Output
Power adapter connection
P lease connect power
adapter to K1000
MediaPlayer DC jack.
Picture in the right table
is for your reference.
Note:
Only use the power
adapter provided with
the product.
Connect Player and your TV using the yellow video cable. Turn on the player and TV.
Select appropriate video input mode on your TV until you can get the initial MediaPlayer screen

MediaPlayer
Network
K1000
UserManual
12
Connect red and white audio cables from K1000 to same coloured input jack of TV or audio
device.
6-3. Connection with 2Ch of Normal Audio

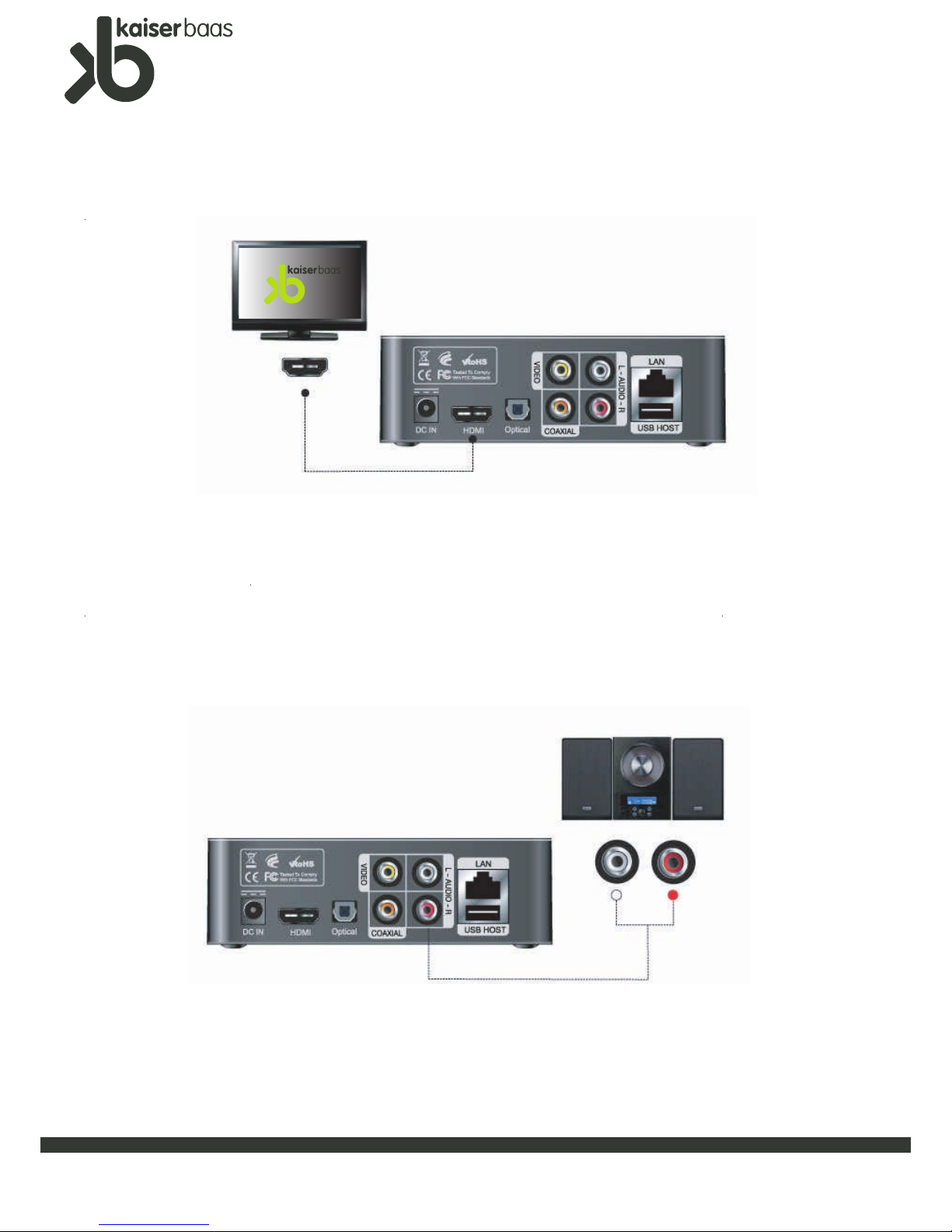

6-2. Connection with HDMI Output
Connect the MediaPlayer and your TV with HDMI cable, Turn on the MediaPlayer and your TV. Please
confirm your TV is on HDMI mode, then set the K1000 to HDMI mode by pressing the “TV out”
button of the remote controller several times until the picture appears. The HDMI light on the front of the unit
should be illuminated

MediaPlayer
Network
K1000
UserManual
13
6-5. Connection with Optical output
6-4. Connection with Coaxial Output
When you have a multi channel decoder/amplifier with coaxial input, you can enjoy 5.1CH
high quality sound through a coaxial cable. The illustration above shows how to connect
with a coaxial cable. You will need to set the K1000 to digital output in the setup menu.
When you have a multi channel Decoder/amplifier with optical input, you can enjoy 5.1CH
high quality sound through optical cable.
The illustration on the top shows how to connect with optical cable
You will need to set the K1000 to digital output in the setup menu.

MediaPlayer
Network
K1000
UserManual
14
7. USB Host Port connection
7-1 Connect External Storage or USB Device
Locate ‘USB HOST’ port on rear of K1000 and connect your USB device. (USB Flash drive,
external hard drive etc.)
7-2 USB Disk setup
-Power on K1000 and Television
-When the Main Menu appears, choose the ‘ USB disk’ option. You should see your USB disk name >
> The name of the storage device > The files and folders stored inside.
-Browse through and play any desired files.
If you cannot find your
USB storage,
please choose ‘Refresh’
And press ‘ok’ until your
Storage Device appears
Note: If your USB device
requires power, ensure it
is connected and turned on.
Refresh
Button

MediaPlayer
Network
K1000
UserManual
15
8. Network based data sharing with a PC
1. Connection to a PC
You can use either a direct or cross cable for the connection. (cable not supplied)
2. Connection using a HUB (or internet Router)
For the connection to a hub or internet router, use a direct cable, Connect the LAN port of the K1000
to a LAN port of the hub or Internet router using a LAN cable.
NOTE
To be connected to MediaPlayer a PC (Notebook) should have a 10/100Mbps LAN card.
Either a cross or direct LAN cable can be used for the connection.
8-1. LAN Cable connection between PLAYER and a PC

MediaPlayer
Network
K1000
UserManual
16
8. Network based data sharing with a PC
8-2. Data Sharing setup for Windows 98/ME
[1]. Select a folder you want to share and select “Sharing” menu using the mouse right button
[2]. Check “Sharing” and type “[Share Name]. Example: “my movie”
WARNING
1. “Share name” should be less than 12 letters.
2. Set Access Type to Read-Only.
3. Do not give passwords

MediaPlayer
Network
K1000
UserManual
17
8-2. Data Sharing setup for Windows 98/ME

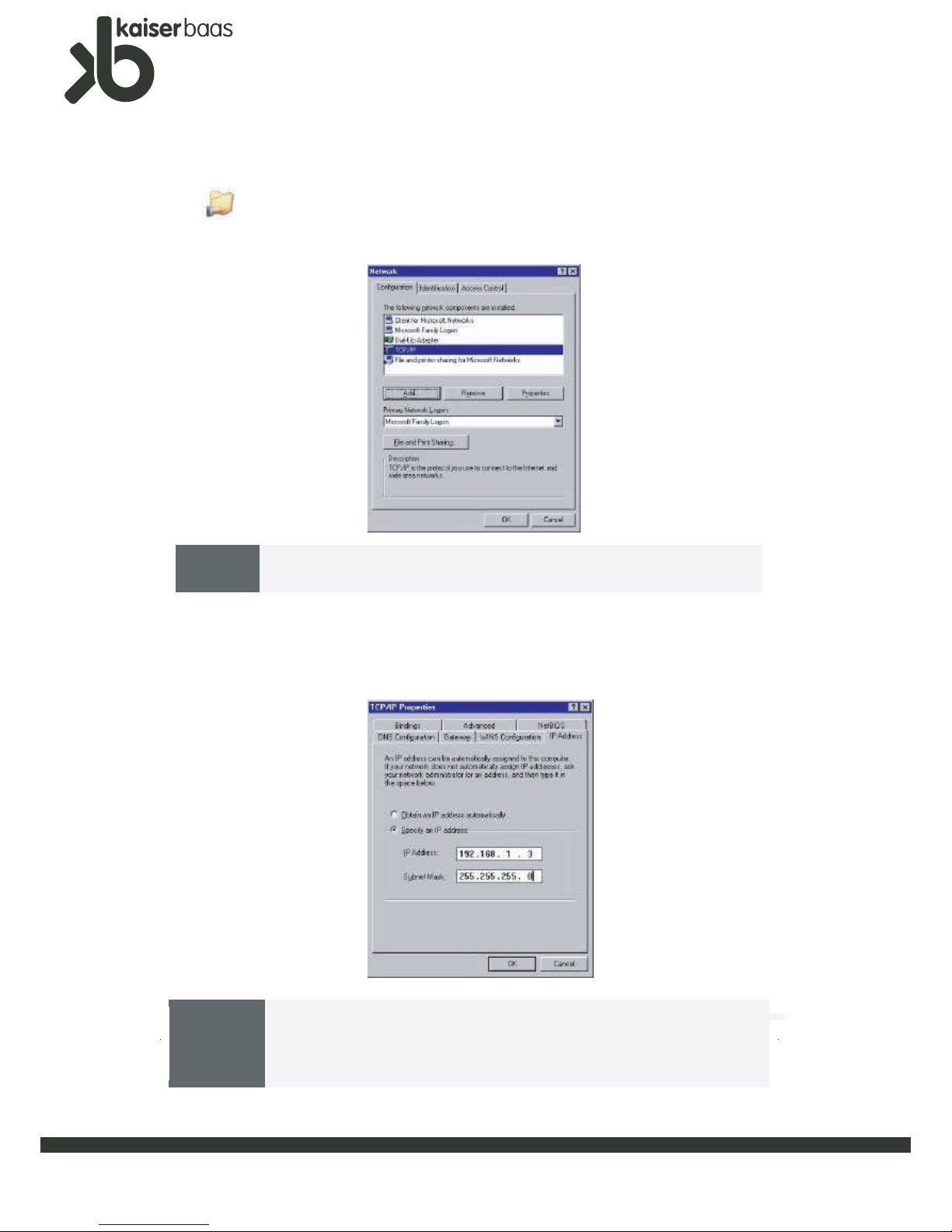

[3]. If the folder is shared, you will see a hand mark on the folder icon.
My Movie
[4]. Go to “Control Panel > Network” and , among the displayed items, select “ TCP/IP > LAN card name ”
[5]. After checking “Specify an IP address ” enter your IP address and subnet mask.
Then click “OK”.
Example. IP Address : 192.168.1.3 / Subnet Mask : 255.255.255.0
WARNING You can find the LAN card name under “Device Manager—Network Adapter”
WARNING
If your PC already has “Obtain IP address automatically ” checked
and the IP is automatically assigned from an internet router or DHCP server, You
may not need this setup.
If you want this IP setup, please obtain an available IP address and subnet mask
from the router manufacturer or DHCP service provider

MediaPlayer
Network
K1000
UserManual
18
8-2. Data Sharing setup for Windows 98/ME
8-3. Data Sharing setup for Windows 2000
[6]. Configure K1000’s network environment. After pressing “SETUP” buttom, select “IP SETUP”
among the “NETWORK” setup items and IP address and subnet mask.
Example. IP Address : 192.168.1.10 / Subnet Mask : 255.255.255.0
After finishing the setup, save the setup value by pressing the “Setup” button once again
[1]. Select a folder your want to share and select “Sharing” menu using the mouse right button
[2]. Check “Sharing” and type “Share Name” Example. My Movies
WARNING
If IP address of your PC is automatically assigned by an internet router or
DHCP server, You may not need this setup. In this case, set “IP SETUP” to
Auto. Then the IP will be automatically assigned.
If you want a manual setup, please obtain an available IP address and subnet
mask from the router manufacturer or network
WARNING “Share Name” should be less than 12 letters

MediaPlayer
Network
K1000
UserManual
19

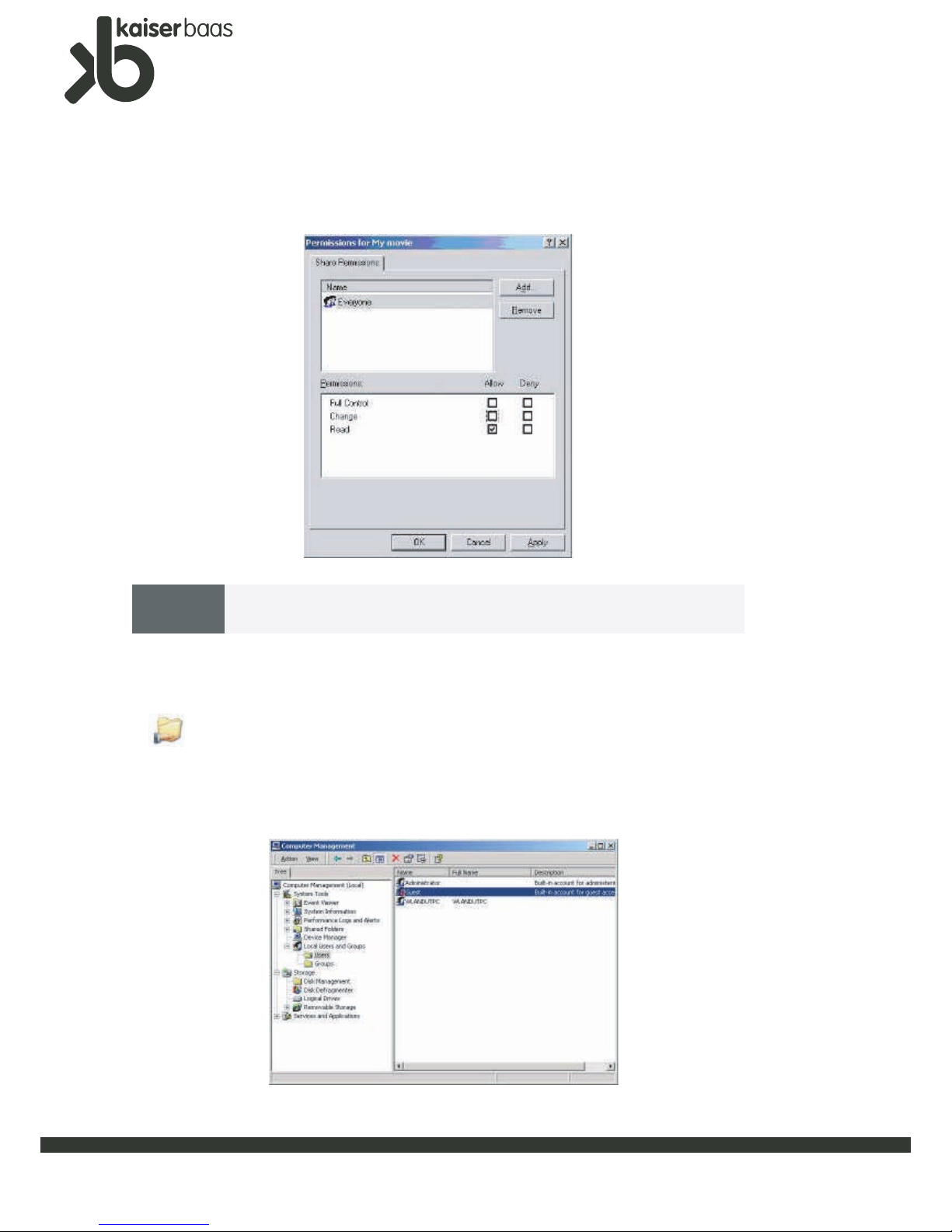

[3]. In the above screen, click on “Permissions” and check an account exists. If there
isn’t one add one by clicking on “Add” button.
[4]. If the folder is shared, you will see a hand mark on the folder icon.
MY Movie
[5]. Go to “Control Panel > Administrative Tools > Computer Management > Local
Users and Group” and, among the displayed items, double click the ‘Guest’ item.
WARNING Set permissions to Read -Allow

MediaPlayer
Network
K1000
UserManual
20

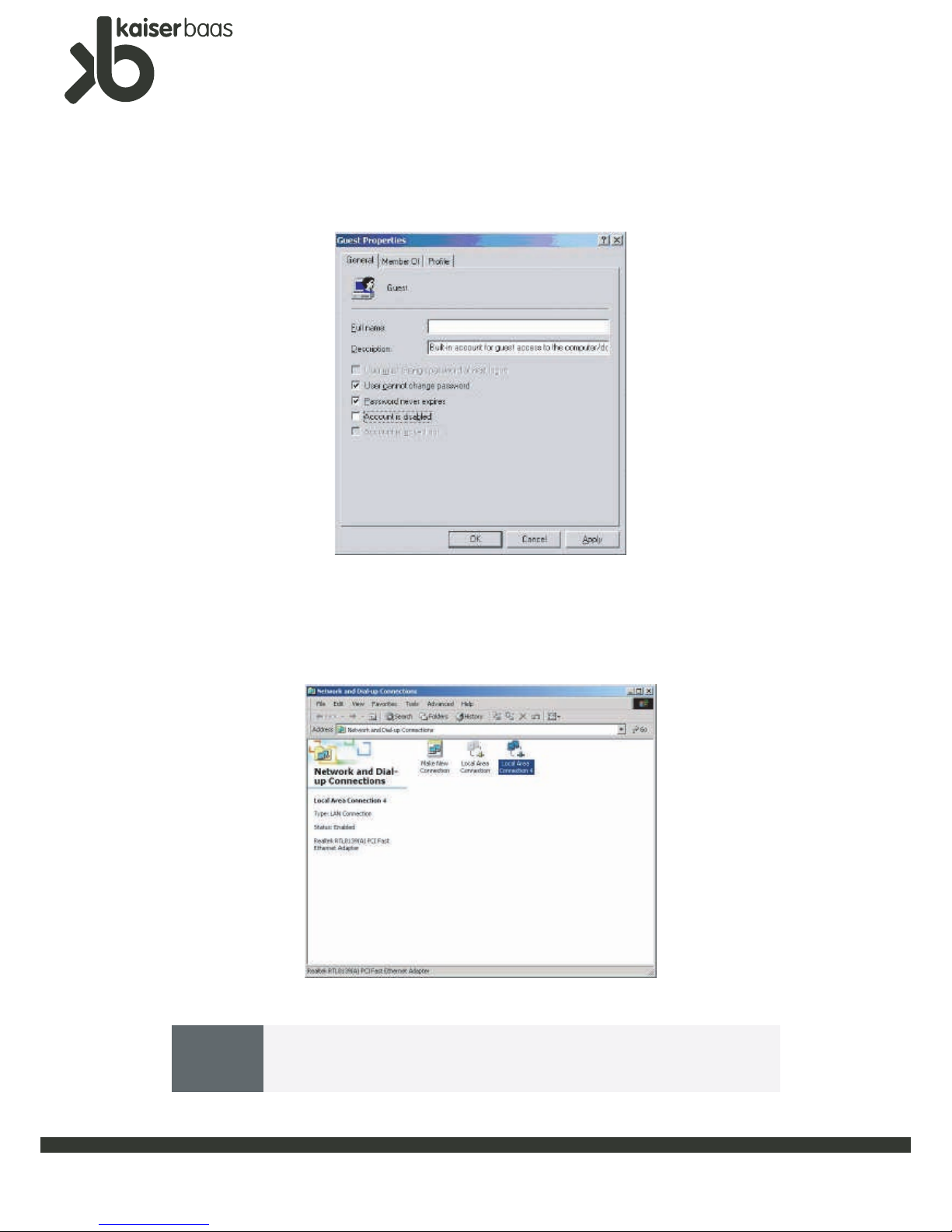

[6]. After Checking “User cannot change password” and “Password never expires”, keep the other
checkboxes unchecked. Then click on “OK”.
[7]. Go to “Control Panel > Network and Dial up Connections”. Select “Local Area Connection” and
open its property window by using the mouse right button and selecting “Properties”.
WARNING
If there are more than two “Local Area Connections”, select the LAN card
that is connected to the MediaPlayer K1000.
