ViewSonic VS13057 User manual

VMP72
FULL HD media player
Model No.: VS13057
- User Guide
- Guide de l’utilisateur
- Guía del usuario
- Bedienungsanleitung
- Guida dell’utente
3RGUĊF]QLNXĪ\WNRZQLND
3\ɤɨɜɨɞɫɬɜɨɩɨɥɶɡɨɜɚɬɟɥɹ
$QYlQGDUKDQGERN
- ٺҢЙы

9LHZ6RQLF VMP72
&RPSOLDQFH,QIRUPDWLRQ
&(&RQIRUPLW\IRU(XURSHDQ&RXQWULHV
The device complies with the EMC Directive 2004/108/EC and Low Voltage
Directive 2006/95/EC.
)ROORZLQJLQIRUPDWLRQLVRQO\IRU(8PHPEHUVWDWHV
The mark is in compliance with the Waste Electrical and Electronic Equipment
Directive 2002/96/EC (WEEE).
The mark indicates the requirement NOT to dispose the equipment including any
spent or discarded batteries or accumulators as unsorted municipal waste, but
use the return and collection systems available.
If the batteries, accumulators and button cells included with this equipment,
display the chemical symbol Hg, Cd, or Pb, then it means that the battery has
a heavy metal content of more than 0.0005% Mercury or more than, 0.002%
Cadmium, or more than 0.004% Lead.
i

9LHZ6RQLF VMP72
'HFODUDWLRQRI5R+6&RPSOLDQFH
This product has been designed and manufactured in compliance with Directive 2002/95/
EC of the European Parliament and the Council on restriction of the use of certain
hazardous substances in electrical and electronic equipment (RoHS Directive) and is
deemed to comply with the maximum concentration values issued by the European
Technical Adaptation Committee (TAC) as shown below:
Substance Proposed Maximum
Concentration Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex of the
RoHS Directives as noted below:
Examples of exempted components are:
0HUFXU\LQFRPSDFWÀXRUHVFHQWODPSVQRWH[FHHGLQJPJSHUODPSDQGLQRWKHUODPSV
QRWVSHFL¿FDOO\PHQWLRQHGLQWKH$QQH[RI5R+6'LUHFWLYH
/HDGLQJODVVRIFDWKRGHUD\WXEHVHOHFWURQLFFRPSRQHQWVÀXRUHVFHQWWXEHVDQG
electronic ceramic parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight
or more lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium
containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by
weight.
ii

9LHZ6RQLF VMP72
&RS\ULJKW,QIRUPDWLRQ
Copyright©ViewSonic Corporation, 2010. All rights reserved.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered
trademarks of ViewSonic Corporation.
Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or consequential damages resulting from
furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right
WRFKDQJHSURGXFWVSHFL¿FDWLRQVZLWKRXWQRWLFH,QIRUPDWLRQLQWKLVGRFXPHQWPD\FKDQJH
without notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any
purpose without prior written permission from ViewSonic Corporation.
)RU<RXU5HFRUGV
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
VMP72
ViewSonic FULL HD media player
VS13057
VMP72_UG_ENG Rev. 1B01-11-10
_____________________________
_____________________________
3URGXFWGLVSRVDODWHQGRISURGXFWOLIH
ViewSonic is concerned about the preservation of our environment. Please dispose of
this product properly at the end of its useful life. Your local waste disposal company may
provide information about proper disposal.
iii

Safety Instructions
This product has been engineered and manufactured to assure your personal safety.
However, improper use can result in potential electric shock or fire hazards. In order
not to defeat the safe-guards incorporated in this instrument and its accessories,
please adhere to the following instructions when installing, operating and servicing.
Power Source Warning
A marking label attached on the rear side of the adapter (supplied) indicates the correct
power source for this equipment. Operate this product only from an electrical outlet
with the voltage and frequency indicated on the product label. Incorrect power source
may result in a risk of electric shock or fire. If you are uncertain of the type of power
supplied to your home, consult your local power company or appliance dealer.
Only use the power cord and adapter provided by the manufacturer. Internal
component may be damaged if you use a different adapter to power this product. To
avoid electric shock and fire hazard, match the plug and outlet connections carefully,
then fully insert. If the plug fails to fit the outlet, please contact an electrician to update
your power outlets.
Do not overload electrical outlets, extension cords, or integral convenience receptacles
as this can result in a risk of fire or electric shock. And to prevent power cord damage,
arrange all power cords so that people cannot walk on the cords. Do not place objects
on the cords.
Place this product in a location that is close enough to an electrical outlet and where the
power cord is easily accessible to be disconnected from the wall outlet.
9LHZ6RQLF VMP72
1

Usage Warning
To reduce the risk of electric shock, do not remove the cover or attempt to disassemble
this product. There are no user-serviceable parts inside. Please refer all servicing to
qualified service personnel.
Protect this product from foreign objects. Never push object of any kind into this
product through openings as they may touch dangerous voltage points or short-out
parts that could result in a fire or electric shock.
Do not expose this product to liquids, rain or moisture.
This product has ventilation openings that protect it from overheating. Never block or
cover these openings. And do not place this product near heat sources such as
radiators, heat registers, stoves or other products producing heat.
Before cleaning or wiping this product, make sure your power cord is already unplugged
from the electrical outlet. Only use damp cloth to clean this product, and never use a
liquid cleaner or an aerosol cleaner.
During a thunderstorm, or when this product is unused for long periods of time, unplug
power cord from the wall outlet. This will prevent damage to the product due to
lightning and power-line surges.
Service Warning
Refer all servicing to qualified service personnel. For damage that requires service,
please unplug your power cord from the AC outlet first, and contact your dealer or
servicing personnel to obtain service for the following conditions.
zIf there is damage to the adapter, power cord or plug.
zIf liquid enters this product.
zIf you drop this product, a heavy object falls on this product, or
damage occurs to the cover of this product.
zIf you expose this product to rain or water.
zIf this product does not operate normally by following the operating
instructions.
zIf this product exhibits a distinct change in performance.
9LHZ6RQLF VMP72
2

Table of Contents
1 INTRODUCTION 4
Package Content 4
Specifications 5
Front View 6
Back View 6
Remote Control 7
2 SETTING UP FOR VMP72 9
3 NETWORK CONNECTIONS 12
Wired Network Setup 12
4 MEDIA CENTER 14
Video Playback 16
Music Playback 17
Photo Playback 18
Thumbnail mode 19
Full Screen mode 20
Torrent Download 21
5 SETUP MENU 23
Audio 23
Video 24
System 25
Miscellaneous 26
6 Trouble Shooting 27
9LHZ6RQLF VMP72
3

1INTRODUCTION
VMP72 is a high-definition multimedia player and streamer connecting to the
external USB hard drives and your HD TV, bringing PC and internet entertainment
to the living room. VMP72 is also a BitTorrent downloader with built-in BitTorrent
engine. It downloads media files into the attached USB hard drives corresponding
to the BitTorrent seeds already saved on the USB drive. Playing and downloading
your favorite media files is now PC-free. It supports most video/audio/image
formats so you do not need to convert downloaded media to another format. You
can plug in your USB devices to the VMP72 to play music, movies and pictures on
TV by following the on-screen display (OSD) menu. The VMP72 can also access
the shared folders on the remote PCs through the intranet (local area network)
and play the digital media files there on your TV. It supports high-definition
media playback with HDMI output.
Package content
Please make sure the following items are included within your new VMP72
package. VMP72 might not be compatible with some accessories made by other
manufacturers. We highly recommend that you use only the specific accessories
we suggest.
9LHZ6RQLF VMP72
4

5
Specification
Interfaces
Video Output HDMI、YPbPr、Composite Video
Audio Output Audio L/R、S/P DIF (Optical)
Data Transfer USB x 2、Ethernet Port
General Specifications
MPEG1 (AVI/MKV/TS/DAT/MPG/MPEG/VOB)
MPEG2
(MKV/DAT/MPG/MPEG/VOB/ISO/IFO/TS/TP)
/M2TS
MPEG4 (AVI/MP4/MKV/MOV/WMV/ASF)
DivX 3/4/5/6、Xvid (AVI/MKV/MP4/MOV)
H.264/AVC
(TS/AVI/MP4/MKV/MOV/FLV)/M2TS
VC-1 (TS/AVI/ASF/WMV)/M2TS
WMV9 (ASF/WMV)
Video
Real Video 8/9/10 (RM/RMVB)
Audio
MP3、MPEG Audio、Dolby Digital、DTS 、
WMA、PCM、LPCM、ADPCM、FLAC、WAV、
AAC、RA、OGG、MKA
Photo HD JPEG、GIF、PNG、BMP、TIF、TIFF
Subtitle SRT、SMI、SUB、SSA、IDX+SUB
Support Media
Format
USB Device
File Systems
EXT3、NTFS、FAT16/32
Decoding
Up to 1080p (RMVB up to 720p)
Output Up to 1080p
Dimension 204 mm× 145.4 mm× 40 mm (8.0 x 5.7 x 1.6 inch)
Power Supply 100~240V ±10% input voltage/ 12V @ 2A
9LHZ6RQLF VMP72

6

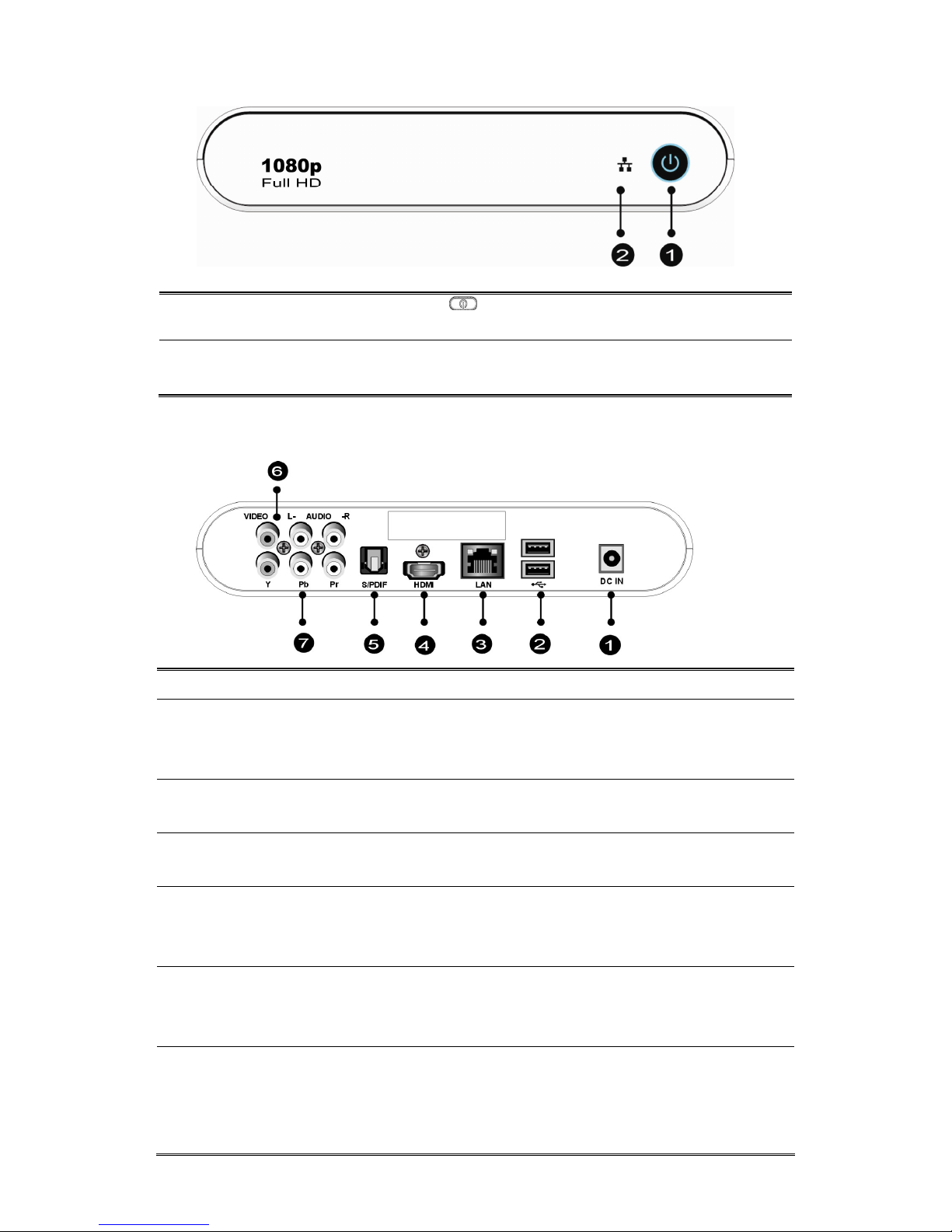

Front View
Back View
① Power Press to turn the VMP72 on.
② Network LED The LED blinks when VMP72 accesses to
Network.
①DC IN Connects to the DC output of the power adapter.
②USB Port
Plug the supported USB devices into USB ports,
such as USB hard drives, cameras, camcorders
and wireless USB dongles.
③LAN
Connects to the RJ-45 Ethernet 10/100 based
network. Not compatible with the telephone line.
④HDMI OUT
Connects to the HDMI jack on the display; a
single cable transmits both audio and video data.
⑤S/PDIF
Connects the VMP72 to a display that has an
optical digital audio port, using an optical digital
audio (also called S/PDIF) cable.

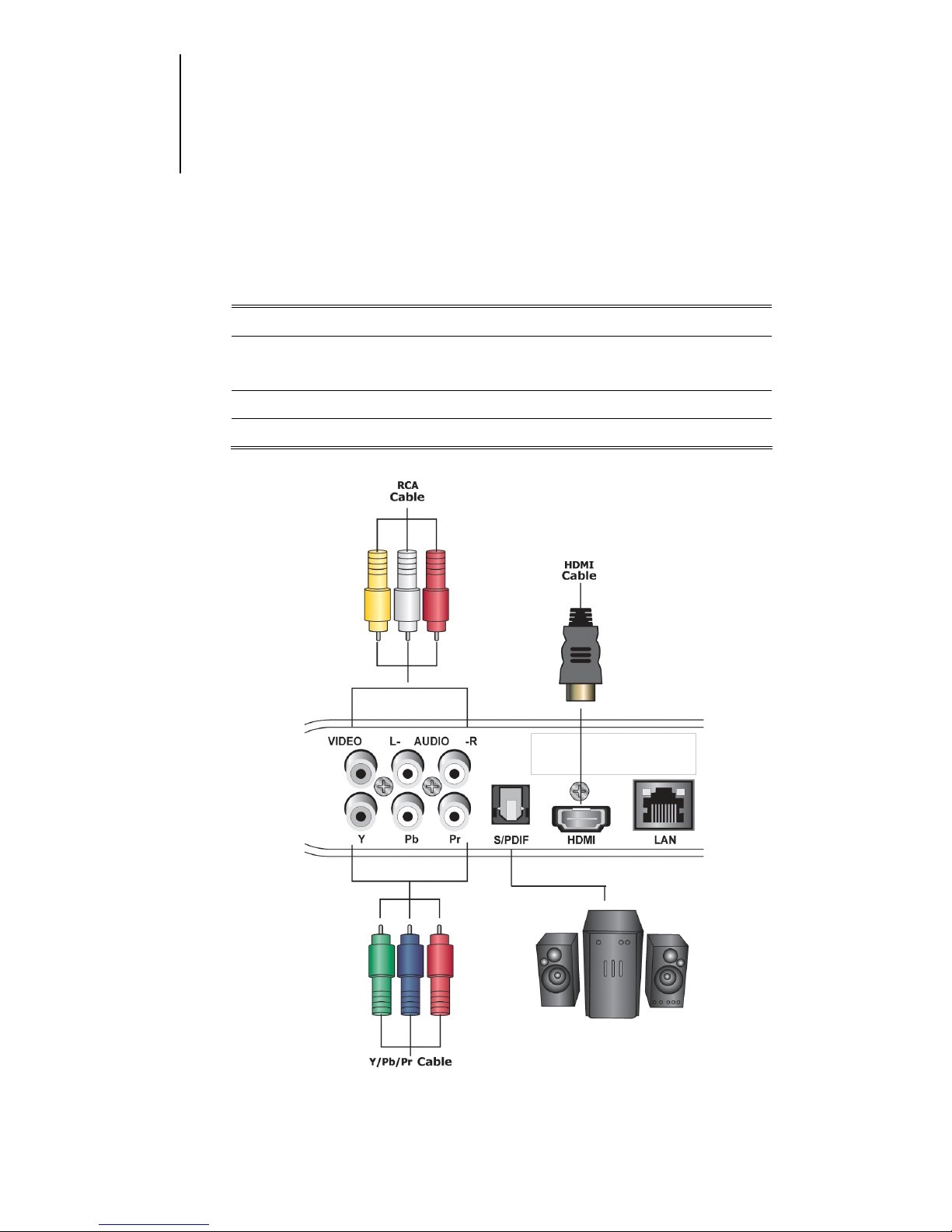

⑥AUDIO L/R/ VIDEO Connects to the display with the VIDEO IN/
AUDIO L/R IN jacks on the display using VIDEO
(Yellow)/ AUDIO L (White)/R (Red) cables.
⑦Y/Pb/Pr
Connect to a Y/Pb/Pr-compatible display using
three video (Y/Pb/Pr) and two audio jacks
(AUDIO L/R), through a component video cable
with green, blue, and red connectors.
9LHZ6RQLF VMP72

7
REMOTE CONTROL
3
4
7
8
1 2
9
6
10
11
16
5
13 15
14
17 19
18
12
9LHZ6RQLF VMP72

8
REMOTE CONTROL
①
POWER Press to turn on the VMP72; press again to
switch to stand-by mode.
②
MUTE Press to mute the sound.
③
Number 1-9 number keys for selecting desired
options.
④
GOTO Video/movie chapter selection.
⑤
INFO Display the information of media files while
in play mode.
⑥
BACK Return to the previous display.
⑦ VOL Increase/decrease the volume.
⑧ CHANNEL Reserved keypad.
⑨
HOME Hot key to the main OSD menu.
⑩ REPEAT Enable/disable repeat of file playback.
REPEAT A-B Press once to mark desired repeat point A;
press again to mark desired repeat point B;
press yet again to turn this feature off
ANGLE Switch DVD display angles.
DVD MENU Show DVD Menu.
○
⑪
Navigate through menu screen or media
libraries.
○
⑫ OK Confirm or select.
○
⑬ ASPECT Adjust aspect ratio
○
⑭ SETUP Enter setup menu
○
⑮ SUBTITLE Switch subtitle files.
○
⑯
MULTI-FUNCTION: Refer to the instructions
in the screen.
PALY/ PAUSE Play/pause selected file.
PREV Return to previous file.
NEXT Go to next file.
STOP Stop playback and return to the previous
screen.
SLOW MOTION Play films in slow mode.
○
⑰ L/R Enable/disable Left/Right speaker.
○
⑱ AUDIO Switch audio outputs.
○
⑲ ZOOM Zoom video or image display on screen.
9LHZ6RQLF VMP72

9
2 SETTING UP VMP72
Step1: Cable connections.
Match the cables to the connections on your TV or display. Your choices
of connection include:
HDMI For both audio and video output
RCA Cable For composite video (yellow) and stereo
audio (white and red)
Y/Pb/Pr (RGB) For component video output
S/PDIF
For audio output
9LHZ6RQLF VMP72

10
Plug the Ethernet cable to the “LAN” jack on the rear panel of VMP72,
for wired Internet connection. VMP72 will detect the network
automatically.
9LHZ6RQLF VMP72

11
Step3: Connect USB devices
Step4: Power cord connection
Plug one end of the power cord into the back
of the VMP72 and the other end into a power
outlet. VMP72 will start automatically without
pressing any other button once the power is
connected.
Step5: Switch your TV Input/Source
After choosing the desired video and audio connection, you need to
select appropriate video input mode using the remote control for your
TV/display to switch to the corresponding video output by pressing the
Input/Source button on the remote control.
9LHZ6RQLF VMP72

12
3 Network Connections
Wired Network Setup
> DHCP
Step 1:
To access “Setup” on the main menu.
Select “Network”.
+ Step 2:
Select “Wired” on the Network menu.
Select “DHCP”.
+
Step 3:
Select Yes to implement DHCP network
setting. VMP72
will automatically
receive its IP address from a DHCP
sever that is built into the access point
or IP sharing router.
9LHZ6RQLF VMP72

13
> Static IP
+
Step 1:
Select “Wired” on the Network menu.
Select “Static IP”.
+
Step 2:
Input the value IP Address, Subnet
mask, Gateway, and DNS text box
respectively.
PS Please acquire information of these setting values from your ISP（Internet
Service Provider）first.
+
Step 1:
Select “Wireless setup” on the
Network menu.
+ Step 2:
VMP72
provides you multiple profiles
for use across multiple networks.
> Ad-Hoc Setup
9LHZ6RQLF VMP72

14
4 Media Center
Remote Description
+
Enter OSD Menu > Play Media
+
Under Play Media, select
the media source
from USB Device/ PCs/ UPnP/ Playlist.
+
Open your selected folders. A folder/file list
will be shown on the left.
Play the selected video/music/photo file.
> USB Media
VMP72 searches and plays all available image, music and video files
on the external USB device.
> PC Media
Connect VMP72 to your PC using a USB 2.0 cable. By connecting your
PC to the Local Area Network, you can play the media files on the
remote PCs. Before you do so, please confirm the network settings
and file-sharing setup have been finished successfully. (See Chapter
3 for more information.)
9LHZ6RQLF VMP72

15
Note: The limitation on the HD video content playback over the network: The HD
video quality may suffer when the video is streamed over the network. This is
caused by intranet environment limitations. As a result, users might sometimes
experience unsmooth video playback. Therefore, we recommend a wired Intranet
for best playback quality, although the transmission over WiFi and PLC is supported.
> UPnP
UPnP (Universal Plug and Play) allows you to connect UPnP-enabled
devices (available on the network) and share their content with the
media player. When you enter UPnP application, VMP72 will
automatically detect the PCs inside LAN. Please make sure that your
PC supports Windows Media Player Version 11 and higher. Due to
compatibility issue, some PCs may not support UPnP.
> Playlist
Playlist allows you select a sequence of music, photo and video files
stored on the HDD. You can configure any sequence of music, photos,
and video files to create a playlist.
Remote
Description
+ Add to Playlist
Select/cancel the files which will be added.
Edit
Rename/delete file.
Note: For the files added to the playlist, VMP72 will categorize the media files
with video/music/photo tags.
9LHZ6RQLF VMP72

16
VIDEO PLAYBACK
FULL SCREEN MODE
Remote Description
Play/pause selected file.
Rewind/Forward
Slow motion.
Return to previous file.
Go to next file.
Zoom Zoom in/out on photos or movies.
Stop playback and leave full screen mode.
Remote
Description
Enter Play Media > Video Playback .
Navigate the media file you want to play. The
preview window will show the highlighted
video.
Edit
Rename /Delete file.
+ Add to Playlist
Add selected file to Playlist.
Back
Return to previous display.
Full screen mode.
9LHZ6RQLF VMP72
