Kaiweets KM601 User manual

KAIWEETS
User Manual
True RMS 10000 Counts IR
Smart Digital Multimeter
July 2021
©2021 Kaiweets Corporation. All rights reserved.
Specifications are subject to change without notice.
Contact us: [email protected]
KAIMEETS Pl
gy
A2
CHrmm = |
quum-IE E E-n
avoreL 1.OLC0. D0
g
<\\\ C€ gorrer [ //)7

Contents
Safety Information
Warnings
Symbols
Product Familiarization
Overview
Features
Display
Terminals
Making Measurements
Warnings
SMART (AUTO) Measurement Mode
Turn on & Ready to use
MANUAL Measurement Mode
EN Instruction manual

AC/DC voltage measurement
Resistance measurement
Continuity test
Diode test
Capacitance measurement
AC/DC mV voltage measurement
Frequency/Duty measurement
Temperature measurement
Non-contact AC voltage detection
Live wire detecting
Ampere (A) current measurement
mA current measurement
Maintenance
Replace Fuses
15
16
17
18
19
20
21
22
23
24
26
28
30
30

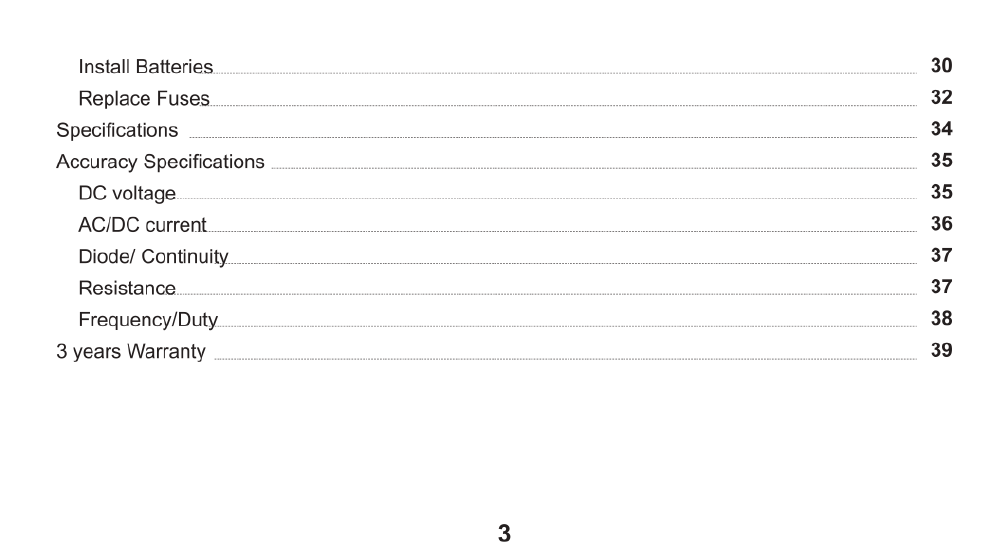

Install Batteries
Replace Fuses
Specifications
Accuracy Specifications
DC voltage.
AC/DC current
Diode/ Continuity
Resistance
Frequency/Duty.
3 years Warranty
30
32
34
35
35
36
37
37
38
39

Safety Informati
A Warning identifies conditions and procedures that are dangerous to the user.
Warnings
« To prevent possible electrical shock, fire, or personal injury:
« Read all safety information before you use the Product
+ Do not alter the Product and use only as specified, or the protection supplied by the Product can be compromised.
« Carefully read all instructions
« Comply with local and national safety codes. Use personal protective equipment (approved rubber gloves, face protection, and
flame-resistant clothes) to prevent shock and arc blast injury where hazardous live conductors are exposed
« Limit operation to the specified measurement category, voltage, or amperage ratings.
« Use Product-approved measurement category (CAT), voltage, and amperage-rated accessories (probes, test leads, and
adapters) for all measurements.
+ Do not touch voltages >30 V ac RMS, 42 V ac peak, or 60 V dc.
4

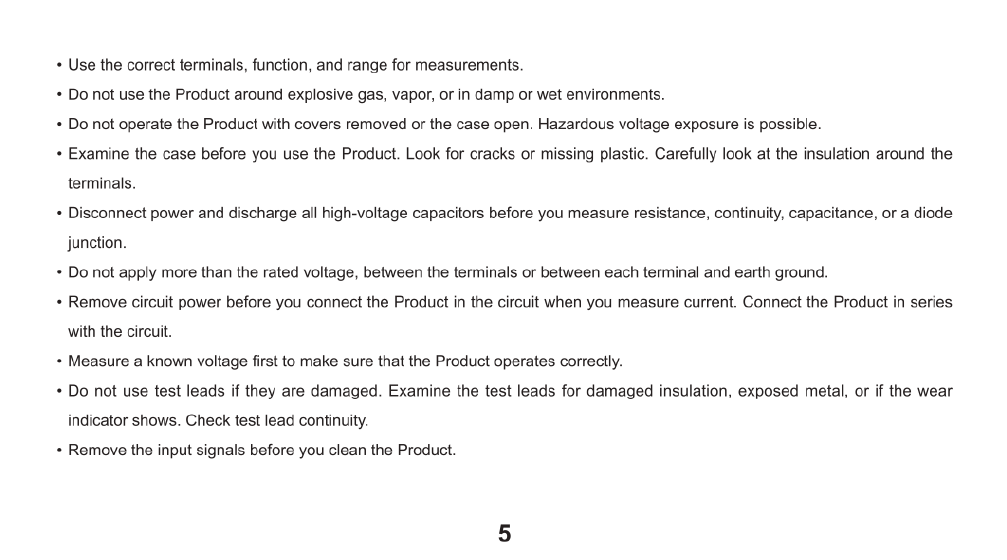

+ Use the correct terminals, function, and range for measurements.
+ Do not use the Product around explosive gas, vapor, or in damp or wet environments.
+ Do not operate the Product with covers removed or the case open. Hazardous voltage exposure is possible.
+ Examine the case before you use the Product. Look for cracks or missing plastic. Carefully look at the insulation around the
terminals.
« Disconnect power and discharge all high-voltage capacitors before you measure resistance, continuity, capacitance, or a diode
junction.
+ Do not apply more than the rated voltage, between the terminals or between each terminal and earth ground
+ Remove circuit power before you connect the Product in the circuit when you measure current. Connect the Product in series
with the circuit.
+ Measure a known voltage first to make sure that the Product operates correctly.
+ Do not use test leads if they are damaged. Examine the test leads for damaged insulation, exposed metal, or if the wear
indicator shows. Check test lead continuity.
« Remove the input signals before you clean the Product.

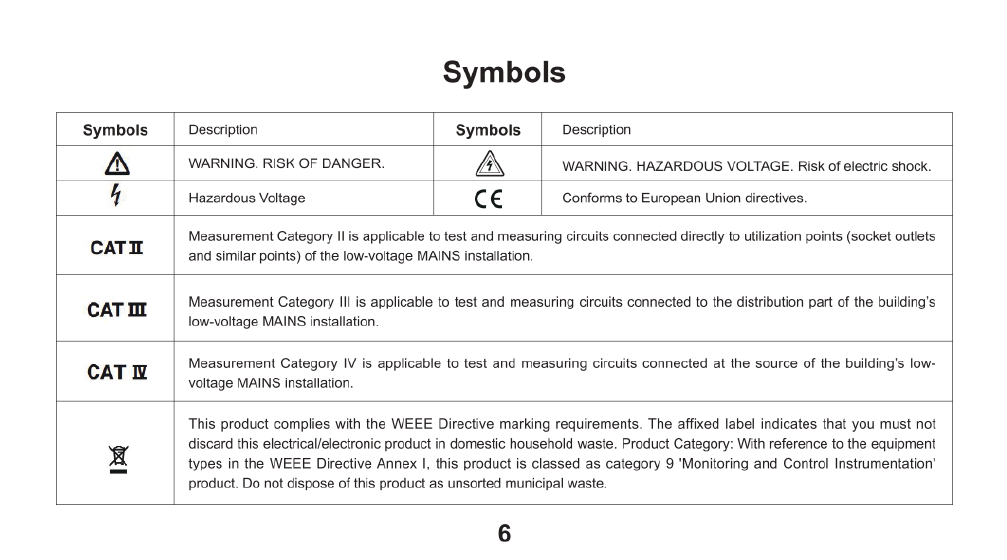

Symbols
Symbols
Description
Symbols
Description
WARNING. RISK OF DANGER.
Hazardous Voltage
Vi
ce
WARNING. HAZARDOUS VOLTAGE. Risk of electric shock.
Conforms to European Union directives.
Measurement Category Il is applicable to test and measuring circuits connected directly to utilization points (socket outlets
CATI and similar points) of the low-voltage MAINS installation.
Measurement Category Il is applicable to test and measuring circuits connected to the distribution part of the building's
CATIT .
low-voltage MAINS installation
CATI | Measurement Category IV is applicable to test and measuring circuits connected at the source of the building’s low-
voltage MAINS installation.
This product complies with the WEEE Directive marking requirements. The affixed label indicates that you must not
discard this electricallelectronic product in domestic household waste. Product Category: With reference to the equipment
types in the WEEE Directive Annex I, this product is classed as category 9 ‘Monitoring and Control Instrumentation’
product. Do not dispose of this product as unsorted municipal waste.
6

Product Familiarizati
Overview
(@ NCV Detection sensor
@ Power button
3 10A Jack
@ mA Jack
(3 COM Jack
© VR Jack
®
(@ Flashlight button
® Alarm indication light
@© Colorful LCD Screen
(@ Functions&buttons
@ Jack indication light
@ APO button
® Flashlight
() Organizer bag
) K-Type Thermocouple
® Test leads

Features
Function
Button
Function
Press and hold the * (1) * button for about 2
seconds to turn on/off the meter.
Press ' " button to turn on/off flashlight.
Press the 'APO’ button to turn on/off Auto
Power Off function.
Without any operation in about 15 minutes,
the meter will automatically turn off. 1 minute
before turn off, there will be 5 beeps.
It will be on by default
and ' (' symbol will be
displayed.
Power on is in SMART mode by default.
Press the “gne” button to manual mode.
Then press again to switch measurement
modes;
wro,
Press and hold the Ao key for about 2
seconds to return to the SMART (auto) mode.
In SMART Mode, the * AUTO ' signal
will be displayed on the screen, and
the top left comer will display ' SMART ",

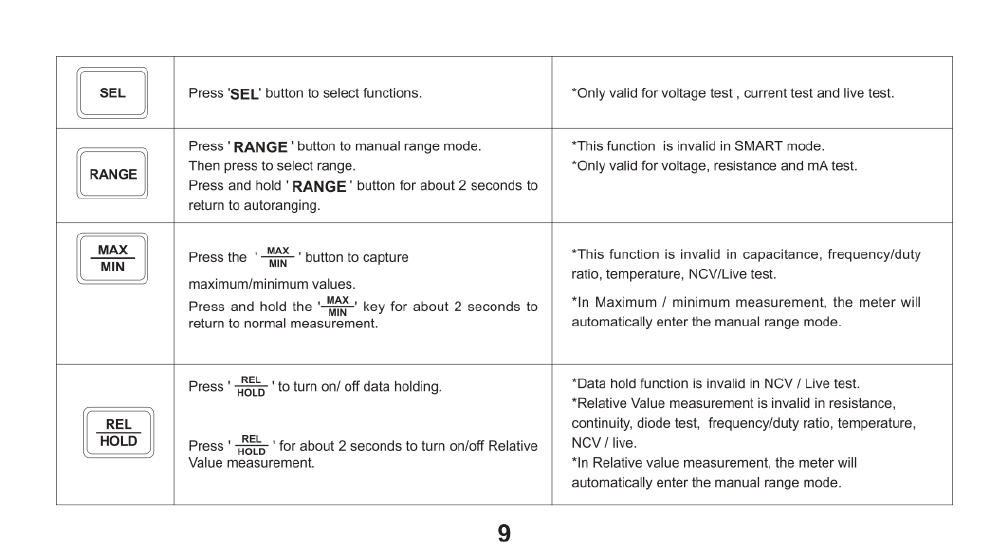

Press 'SEL' button to select functions. *Only valid for voltage test , current test and live test.
Press' RANGE ' button to manual range mode. “This function is invalid in SMART mode.
RANGE Then press to select range. *Only valid for voltage, resistance and mA test.
Press and hold ' RANGE ' button for about 2 seconds to
return to autoranging.
W Press the ' MAX_ byion to capture *This function is invalid in capacitance, frequency/duty
maximum/minimum values.
Press and hold the “Jax-' key for about 2 seconds to
return to normal measurement.
ratio, temperature, NCV/Live test.
*In Maximum / minimum measurement, the meter will
automatically enter the manual range mode.
REL
Press ' figt ' to turn on off data holding
Press ' " for about 2 seconds to tum on/off Relative
Value measurement.
*Data hold function is invalid in NCV / Live test.
*Relative Value measurement is invalid in resistance,
continuity, diode test, frequency/duty ratio, temperature,
NGV / live.
*In Relative value measurement, the meter will
automatically enter the manual range mode

Display
Symbol | Description Symbol Description Symbol | Description
\"2 Voltage A Current o Low Battery
~ AC (Altemating Current ) DC (Direct Current) Double insulated
»* Diode Test =+ Earth Q Resistance Test
L3 Capacitance Test Live Live Wire Detection NCV Non-contact Voltage Detection
= | Fuse = Damaged Fuse SMART | Smart Mode
Hzh Frequency / Duty Ratio o) Audible Continuity Test MANUAL | Manual Mode
10

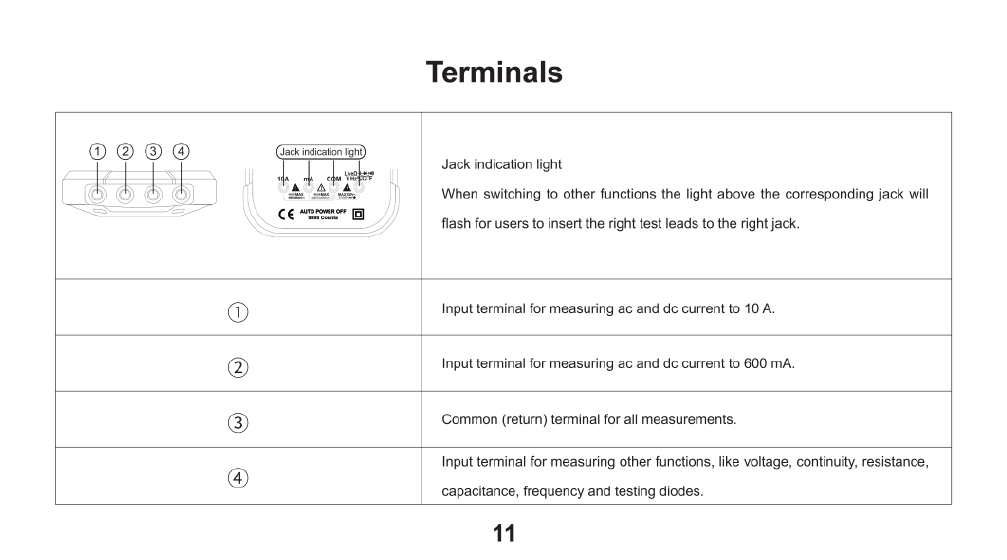

Terminals
Jack indication light
When switching to other functions the light above the corresponding jack will
flash for users to insert the right test leads to the right jack.
Input terminal for measuring ac and dc current to 10 A.
Input terminal for measuring ac and dc current o 600 mA.
Common (return) terminal for all measurements.
®|®
|
e
e
Input terminal for measuring other functions, like voltage, continuity, resistance,
capacitance, frequency and testing diodes.
1"

Making Measurements
When connecting the test leads to the circuit or device, connect the common (COM) test lead before connecting the live lead;
when removing the test leads, remove the live lead before removing the common test lead
Warnings
« Do not measure the voltage higher than DC1000V or AC750V, otherwise, the meter may be damaged.
+ Pay attention to safety when measuring high voltage to avoid electric shock or personal injury.
« Before use, test the known voltage or current with the meter to confirm that the meter is in good condition.
SMART (AUTO) Measurement Mode
The Meter defaults to SMART mode. In the SMART mode, the Meter can test DC voltage, AC voltage, resistance, continuity, it
selects the range with the best resolution automatically.
12

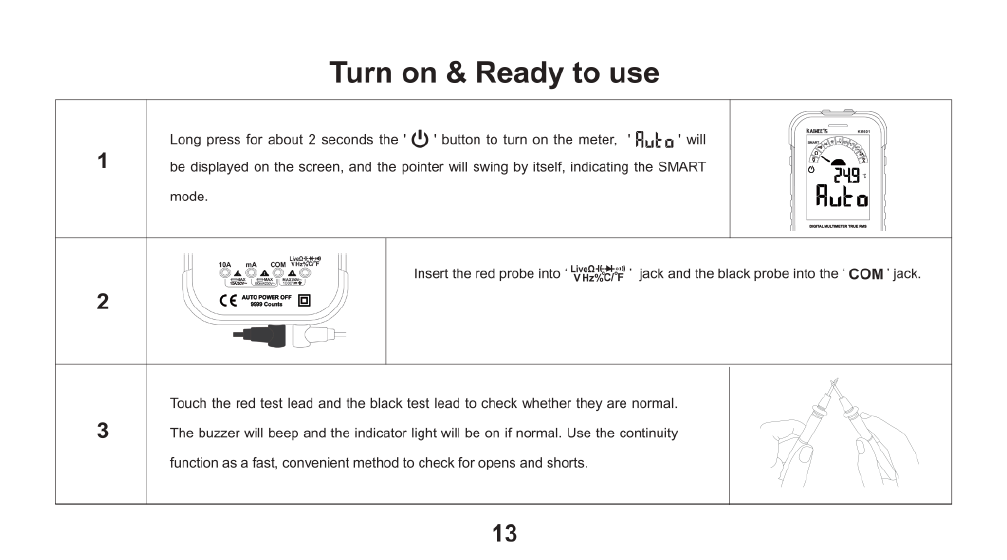

Turn on & Ready to use
Long press for about 2 seconds the * () * button to tum on the meter, * Ak g * will
be displayed on the screen, and the pointer will swing by itself, indicating the SMART ‘
mode.
Insert the red probe into * E2&%* jack and the black probe into the ' COM " jack.
Touch the red test lead and the black test lead to check whether they are normal.
The buzzer will beep and the indicator light will be on if normal. Use the continuity
function as a fast, convenient method to check for opens and shorts.
13

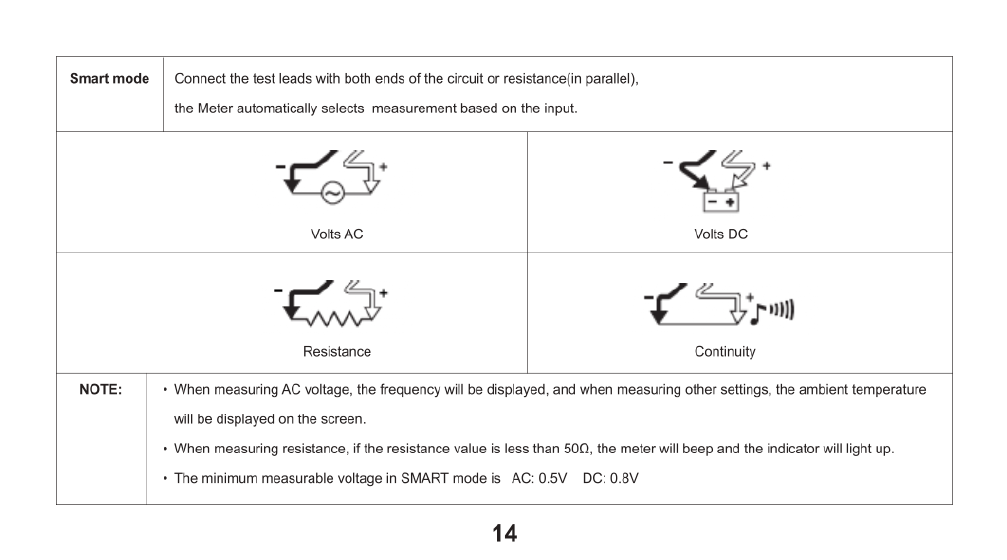

Smart mode | Connect the test leads with both ends of the circuit or resistance(in parallel),
the Meter automatically selects measurement based on the input.
- + - +
Volts AC Volts DG
+ - +
oy & Srm
Resistance Continuity
NOTE: | * When measuring AC voltage, the frequency will be displayed, and when measuring other settings, the ambient temperature
will be displayed on the screen.
+ When measuring resistance, if the resistance value is less than 500, the meter will beep and the indicator will ight up.
+ The minimum measurable voltage in SMART mode is AC: 0.5V DC: 0.8V
14

MAN Measurement Mode
The Meter defaults to SMART mode. In the SMART mode, press the ' fmg ' button to switch to manual mode and select
function from left to right.
ACIDC voltage measurement
1 Turn on & Ready to use ( ook at page 13)
2 Press the ' SUye " button to* 7 * setting, * D signal and * \/ * signal will be displayed '3’5 ‘
on the screen, indicating DC voltage measurement. Volts DG
Press the ' SE L ' button, ' AC * signal and ' \/ * signal will be displayed on the -‘_/Q .+
3 @L\L
screen, indicating AC voltage measurement. Volls AC
NOTE: + When measuring AC voltage, the frequency will be displayed
+ When measuring DC voltage, the ambient temperature will be displayed on the screen.
+ Do not use the AC voltage test function to test DC voltage and vice versa.
+ Do not measure voltage exceeding 1000V DC or 750V AC to avoid damage to the meter.
15

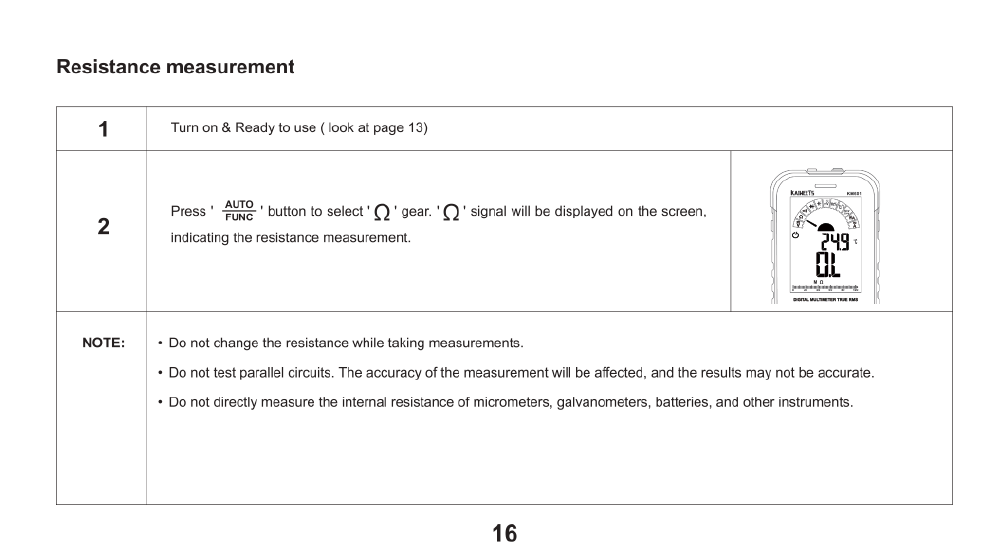

Resistance measurement
1 Tum on & Ready to use ( look at page 13)
Press ' AUt * button to select ' ()" gear. ' () " signal will be displayed on the screen,
2
indicating the resistance measurement
NOTE: | Do not change the resistance while taking measurements.
+ Do not test parallel circuits. The acouracy of the measurement will be affected, and the results may not be accurate.
+ Do not directly measure the intemal resistance of micrometers, galvanometers, batteries, and other instruments.
16

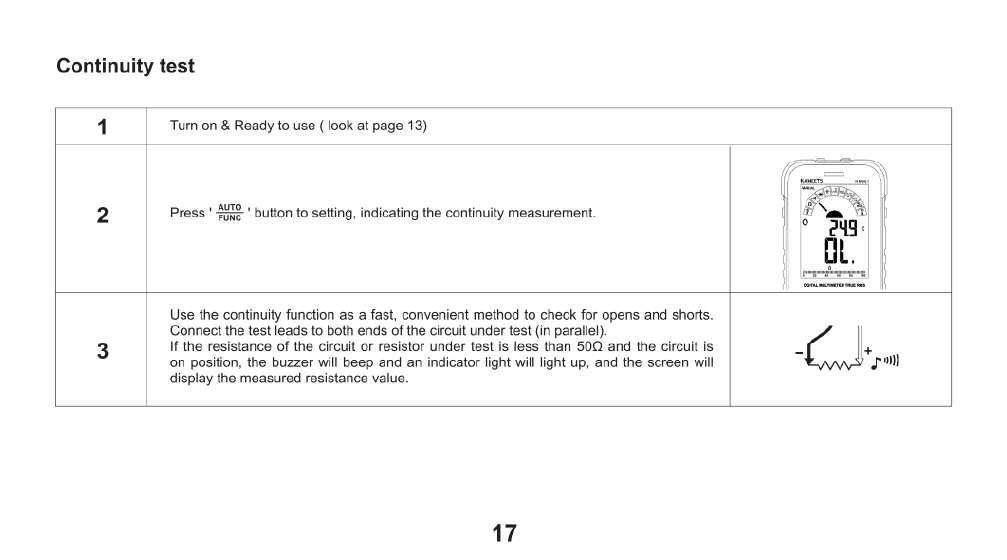

Continuity test
1 Tum on & Ready to use (look at page 13)
2 Press ' fime ' button to setting, indicating the continuity measurement.
Use the continuity function as a fast, convenient method to check for opens and shorts.
Connect the test leads to both ends of the circuit under test (in parallel).
3 If the resistance of the circuit or resistor under test is less than 50Q and the circuit is
on position, the buzzer will beep and an indicator light will light up, and the screen will
display the measured resistance value
17

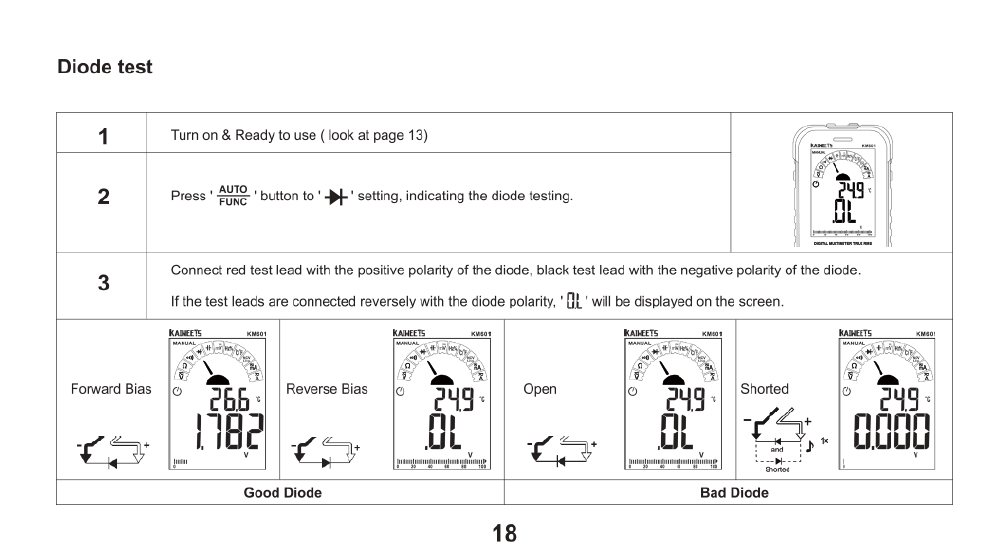

Diode test
1 Tum on & Ready to use ( look at page 13)
2 Press ' Ame ' bution to -} setting, indicating the diode testing.
Connect red test lead with the positive polarity of the diode, black test lead with the negative polarity of the diode.
3
If the test leads are connected reversely with the diode polarity, ' [} ' will be displayed on the screen.
Py s sy s sy aserre
Ty
Forward Bias | Reverse Bias |0
Shorted
Good Diode Bad Diode
18

Capacitance measurement
1 Tum on & Ready to use ( look at page 13)
2 Press ' £gue * button to ' {f-* setting, * | signal will be displayed on the screen,
indicating capacitance testing.
( !
|
I m———
NOTE: | - If the measured value is significantly different from the value marked on the capacitor, the capacitor is damaged,
+ Before measuring the capacitor, discharge the capacitor to avoid damage to the Meter. Do so by connecting the capacitor to
a high-powered resistor.
« Discharge the capacitor after measurement to avoid any potential safety hazards.
« If the capacitance is large, it may take a long time for the reading to stabilize.
19
