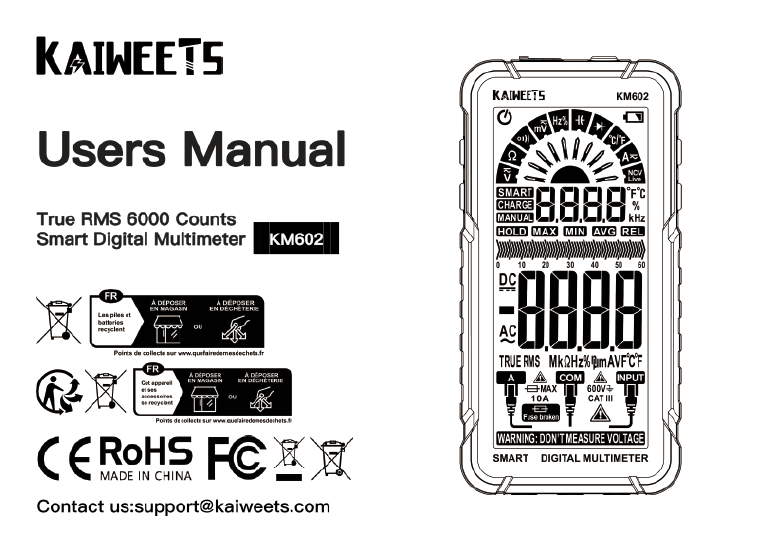

Kaiweets KM602 User manual

KAIWEETS
Users Manual
True RMS 6000 Counts
Smart Digital Multimeter m
(€ROHS FE £ ¥
Contact us:[email protected]
'y
L 4 T
st G Y
SMART _ DIGITAL MULTIMETER

Safety Specificatio
/A\Warning
To avoid possible electric shock or personal injury, please observe the following
specifications:
© Please read this manual carefully and pay special attention to safety waring information before
using the meter.
® Operate the meter according to the manual, otherwise the protection function provided by the
instrument may be damaged or weakened.
® Take special care when measuring values that above 60V dc, 30V ac RMS, 42V peak. This kind of
voltage has the danger of electric shock.
® Do not measure voltage higher than the rated value between terminals or between terminals and
ground.
® Measure the known voltage to check whether the meter works normally. If it is not normal or
damaged, please do not use it again.
© Before using the meter, please check whether there are cracks or damaged plastic parts in the
instrument shell. If so, please do not use it again.
© Before using the meter, please check whether the probe is cracked or damaged. If so, please
replace the probe with the same model and electrical specification.
® Please use the meter according to the measurement category, voltage or current rating specified in
the meter or manual
@ Please observe local and national safety regulations. Wear personal protective equipment (such as
EN
1

approved rubber gloves, masks and flame retardant clothing, etc.) to prevent injury caused by
electric shock and electric arc when dangerous live conductors are exposed.
© When the "{C§ " symbol is displayed on the meter, please charge battery in time to prevent
measurement error.
© Do not use the meter in the environment with explosive gas or steam or humid environment.
® When using the probe, please hold your fingers behind the probe finger guard.
® When measuring, please connect the null or ground wire first, then the live wire; when
disconnected, please disconnect the live wire first, and then the null or ground wire.
® Remove the probe from the meter before opening the case or battery cover. Do not use the meter
when the meter is disassembled or the battery cover is opened.
® The meter can only be used together with the probe provided to meet the requirements of the
safety standard. If the probe is damaged and needs to be replaced, the probe of the same model
and electrical specification must be replaced.
Safety symbol meaning
Symbols | Description Symbois | Description
WARNING. RISK OF DANGER. A WARNING. RISK OF ELECTRIC SHOCK|
Z Hazardous Voltage [{3 Conforms to European Union directives.
CATH | Suitable for testing circuits directly connected 1o power points (sockets and similarities) of low voltage power
installations
GATI | Sitable for measring circuits connecied to the distibution partof Iow voliage power supply devices in
building.
GATIV_| Suitable for measuring Gircuils connected to the power supply of low voliage power inslallations in buildings.
2

Product Descri
Overview
S
N
—xT
o
T@moop0oTw
Charging Port
Power Button
Select Button
FUNC Button
LCD Display Screen
Current Jack
COM Jack
Input Jack
Flashlight/Hold Button
MAX/MIN Button
Flashlight
FUSE Location

Function buttons
O
Press and hold the button for about 2 seconds to turn the power on or off.
Press the FUNC button to select the appropriate measurement function.
Long press the FUNC button to enter the smart measurement mode.
Press the SEL button to select specific functions of the composite function.
For example, you can press "f]" button to select " § " gear, and then press the
button to select AC voltage or DC voltage.
Press the button briefly to activate/cancel data hold on function.
Long press the button for about 2 seconds to turn on/off the Flashlight.
Short press the button to enter the maximum and minimum measurement function, while
displaying the maximum value.
Another short press to cycle through the maximum and minimum values.
Another long press for about 2 seconds to return to normal measurement

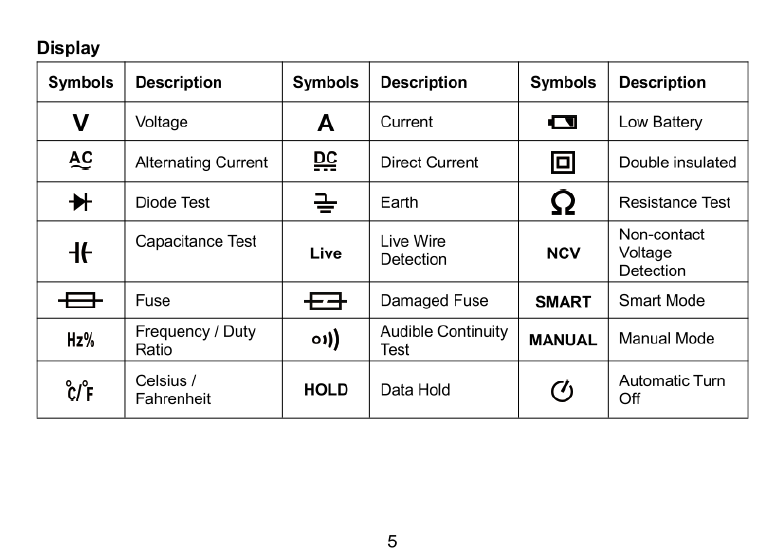

Display
Symbols | Description Symbols | Description
V | Voltage ¥ | LowBatiery
AC Alternating Current Dc Direct Current =] Double insulated
| Diode Test EN Earth Q Resistance Test
Capacitance Test Live Wire Non-contact
4¢ P Live " NCV | Voltage
Detection e
Detection
= | Fuse £ | DamagedFuse | SMART | Smart Mode
Frequency / Duty Audible Continuity
He% Rty o1)) Tost MANUAL | Manual Mode
Celsius / Automatic Tum
| Fanrennet HOLD | Data Hold O on

Operating Introduction
Gear selection
Press the "E]" button to activate the manual gear selection mode to choose a suitable measurement
function.
Press the "(w] " button to choose AC or DC mode when measuring AC/DC voltage and AC/DC current.
Press and hold the "{u " button for 2 seconds in any position to return to AUTO mode.
Power on defaultin SMART (AUTO) measurement mode.

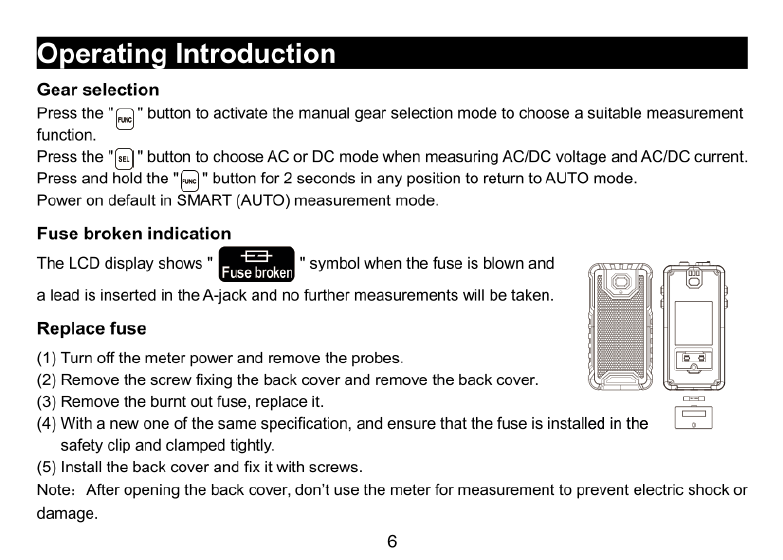

Fuse broken indication
The LCD display shows " " symbol when the fuse is blown and (
alead is inserted in the A-jack and no further measurements will be taken.
Replace fuse
(1) Turn off the meter power and remove the probes.
(2) Remove the screw fixing the back cover and remove the back cover.
(3) Remove the burnt out fuse, replace it.
(4) With a new one of the same specification, and ensure that the fuse is installed inthe L=
safety clip and clamped tightly.
(5) Install the back cover and fix it with screws.
Note: After opening the back cover, don't use the meter for measurement to prevent electric shock or
damage.

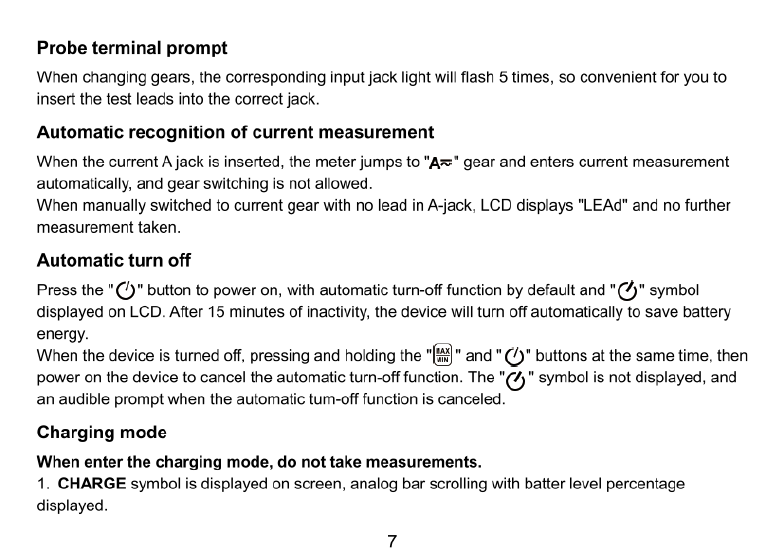

Probe terminal prompt
When changing gears, the corresponding input jack light wil flash 5 times, so convenient for you to
insert the test leads into the correct jack.
Automatic recognition of current measurement
When the current Ajack is inserted, the meter jumps to "A=" gear and enters current measurement
automatically, and gear switching is not allowed.
When manually switched to current gear with no lead in Ajack, LCD displays "LEA" and no further
measurement taken.
Automatic turn off
Press the " ()" button to power on, with automatic turn-off function by default and "(%" symbol
displayed on LCD. After 15 minutes of inactivity, the device will tum off automatically to save battery
energy.
When the device is tuned off, pressing and holding the (&) " and " ()" buttons at the same time, then
power on the device to cancel the automatic turn-off function. The "(% " symbol is not displayed, and
an audible prompt when the automatic tum-off function is canceled.
Charging mode
When enter the charging mode, do not take measurements.
1. CHARGE symbol is displayed on screen, analog bar scrolling with batter level percentage
displayed.

2. "WARNING: DON'T MEASURE VOLTAGE" displays at the bottom of the screen.
Note:
® About 3 hours to be fully charged
® Charger specification:5V 1A

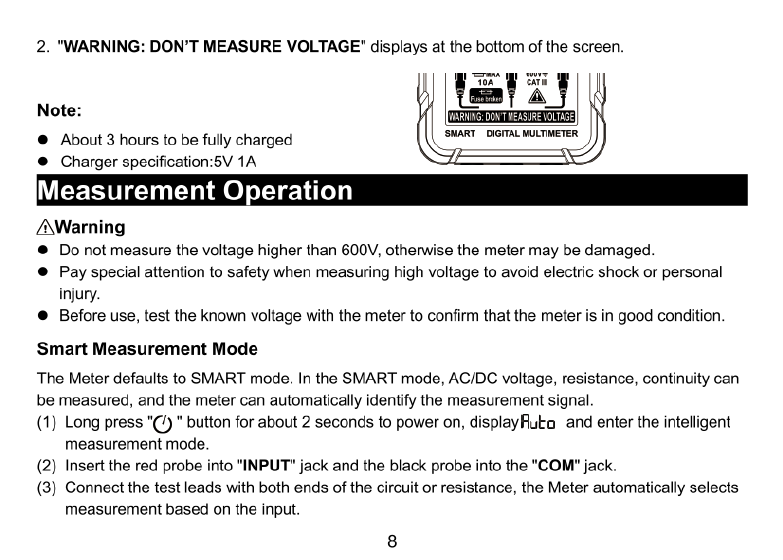

Measurement Operati
/A\Warning
@ Do not measure the voltage higher than 600V, otherwise the meter may be damaged.
@ Pay special attention to safety when measuring high voltage to avoid electric shock or personal
injury.
® Before use, test the known voltage with the meter to confirm that the meter is in good condition.
Smart Measurement Mode
The Meter defaults to SMART mode. In the SMART mode, AC/DC voltage, resistance, continuity can
be measured, and the meter can automatically identify the measurement signal.
(1) Long press "(%) " button for about 2 seconds to power on, displayRuta and enter the intelligent
measurement mode.
(2) Insert the red probe into "INPUT" jack and the black probe into the "COM" jack.
(3) Connect the test leads with both ends of the circuit or resistance, the Meter automatically selects
measurement based on the input.

(4) When measuring the resistance, the resistance value is less than about 500, the buzzer sounds.
(5) Read the results from the display.

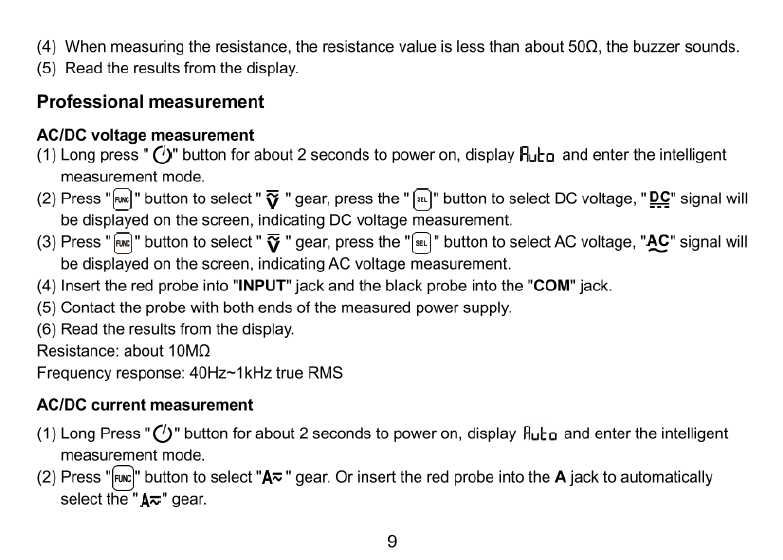

Professional measurement
AC/DC voltage measurement
(1) Long press " ()" button for about 2 seconds to power on, display Fuka and enter the intelligent
measurement mode.
(2) Press "[ue]" button to select " §f " gear, press the *
be displayed on the screen, indicating DC voltage measurement.
(3) Press " [u)" button to select " " gear, press the button to select AC voltage, "AC" signal will
be displayed on the screen, indicating AC voltage measurement
(4) Insert the red probe into "INPUT" jack and the black probe into the "COM" jack.
(5) Contact the probe with both ends of the measured power supply.
(6) Read the results from the display.
Resistance: about 10MQ
Frequency response: 40Hz~1kHz true RMS
button to select DC voltage, "BC" signal wil
AC/DC current measurement
(1) Long Press "()" button for about 2 seconds to power on, display Auta and enter the intelligent
measurement mode.
(2) Press "[udf button to select "A%" gear. Or insert the red probe into the A jack to automatically
select the " A=" gear.

(3) Press " (s} button to switch AC or DC current measurement
(4) Insert the red probe into A jack and the black probe into the "COM" jack.
(5) Disconnect the measured power supply, connect the meter with the power supply, and then tum on
the measured power supply.
(6) Read the results from the display.
Overload protection: F10A/250V fuse
Response frequency: 40Hz~1kHz, True RMS
Resistance measurement
(1) Long press " ()" button for about 2 seconds to power on, display Auka and enter the intelligent
measurement mode.
(2) Press "[2" button to select "Q" gear. "Q" signal will be displayed on the screen, indicating the
resistance measurement (the resistance value is less than about 5002 The buzzer sounds).
(3) Insert the red probe into "INPUT" jack and the black probe into the "COM" jack
(4) Contact the probe with both ends of the measured resistance.
(5) Read the results from the display.
Overload protection: 250V
Continuity test
(1) Long press " ()" button for about 2 seconds to power on, displayAuta and enter the intelligent
measurement mode
(2) Press "] button to select "’ gear.
10

(3) Insert the red probe into "INPUT" jack and the black probe into the "COM" jack.
(4) Contact the probe with both ends of the measured resistance or circuit.
(5) When the resistance value is less than about 500, the buzzer sounds.
AC/DC mV voltage measurement
(1) Long press "()" button for about 2 seconds to power on, display Auka and enter the intelligent
measurement mode.
(2) Press "[#" button to select " 7" gear, press the * ()" button to select DC voltage, * BE" signal will
be displayed on the screen, indicating DC mV voltage measurement
(3) Press "[#)" button to select "y * gear, press the " ()" button to select AC voltage, "AC" signal will
be displayed on the screen, indicating AC voltage measurement.
(4) Insert the red probe into "INPUT jack and the black probe into the "COM" jack.
(5) Contact the probe with both ends of the measured power supply.
(6) Read the results from the display.
Frequency/Duty measurement
(1) Long press " ()" button for about 2 seconds to power on, display Auta and enter the intelligent
measurement mode.
(2) Press "[ue]" button to select "Hz" gear, "Hz" signal and "%" will be displayed on the screen,
indicating Frequency/Duty testing
(3) Insert the red probe into "INPUT" jack and the black probe into the "COM" jack
(4) Contact the probe with both ends of the measured power supply.
1

(5) Read the results from the display.
Overload protection: 250V
Capacitance measurement
(1) Long press " ()" button for about 2 seconds to power on, display Auta and enter the intelligent
measurement mode.
(2) Press "[ue]" button to select " 4¢ " gear, "nF" signal will be displayed on the screen, indicating
capacitance testing.
(3) Insert the red probe into "INPUT" jack and the black probe into the "COM" jack.
(4) Contact the probe with both ends of the measured capacitance
(5) Read the results from the display.
Overload protection: 250V
Diode test
(1) Long press " ()" button for about 2 seconds to power on, display Auka and enter the intelligent
measurement mode.
(2) Press " fu" button to select " " gear, indicating the diode testing.
(3) Insert the red probe into "INPUT" jack and the black probe into the "COM" jack
(4) The red probe contacts the anode of the diode and the black probe contacts the cathode of the
diode.
(5) If the probe polarity is opposite to the diode polarity, the display will display "OL".
(6) Read the results from the display.
12

Open circuit voltage: about 3V

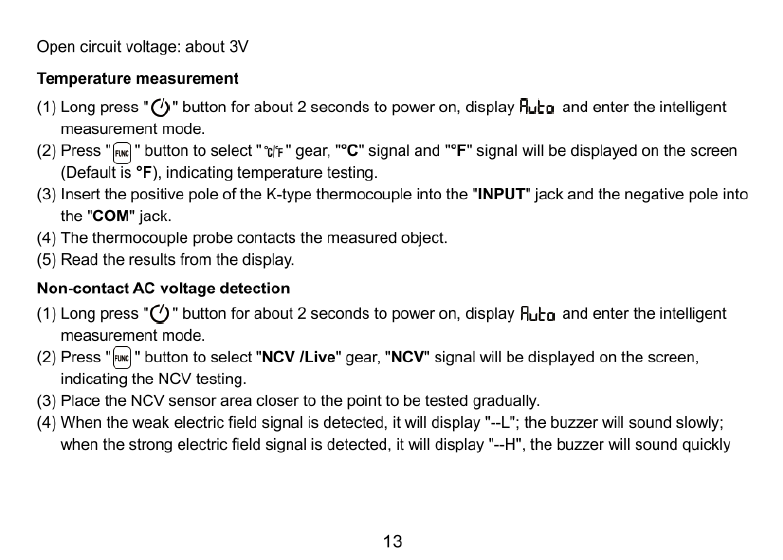

Temperature measurement
(1) Long press " ()" button for about 2 seconds to power on, display Auta and enter the intelligent
measurement mode.
(2) Press "[w)" bution to select "¢ gear, "C" signal and "°F" signal will be displayed on the screen
(DefaultTs °F), indicating temperature testing.
(3) Insert the positive pole of the K-type thermocouple into the "INPUT" jack and the negative pole into
the "COM" jack.
(4) The thermocouple probe contacts the measured object.
(5) Read the results from the display.
Non-contact AC voltage detection
(1) Long press "())" button for about 2 seconds to power on, display Auta and enter the intelligent
measurement mode.
(2) Press "[]" button to select "NCV /Live" gear, "NCV" signal will be displayed on the screen,
indicating the NCV testing.
(3) Place the NCV sensor area closer to the point to be tested gradually.
(4) When the weak electric field signal is detected, it will display "-L"; the buzzer will sound slowly;
when the strong electric field signal is detected, it will display "~-H", the buzzer will sound quickly
13

Live wire detecting
(1) Long press for * ()" button about 2 seconds to power on, display Auka and enter the intelligent
measurement mode.
(2) Press " o) button to select "NCV /Live" gear, press the " (=] button to switch to live wire
measurement, the "LIVE" symbol will show on the screen, indicating the Live testing.
(3) Insert the red probe into "INPUT" jack and remove the black probe.
(4) Use the red probe contact the conductor.
(5) When the weak electic field signal is detected, it will display
(6) When the strong electric field signal is detected, it wil display "
" and the buzzer will sound slowly;
H"; the buzzer will sound quickly.
14

eneral Technical Specificatio
Securty Level CATIII 600V
Pollution level 2
Alttude <2000m
Working temperature and humidity: 0~40°C (<B0%RH, <10°C non condensing)
Storage temperature and hurmidity -10~60°C (<70%RH)
Temperature coefficient 0.1 accuracy/°C (<18°C or >28°C),
Fuse protection F10A250V fuse
Sampling rate approx. 3 times/second
Display 6000 counts
Over range indication oL
Low battery indication » 3 » will be displayed.
Input polarity indication display "—"
Power requirement 3.7V Livion battery
15

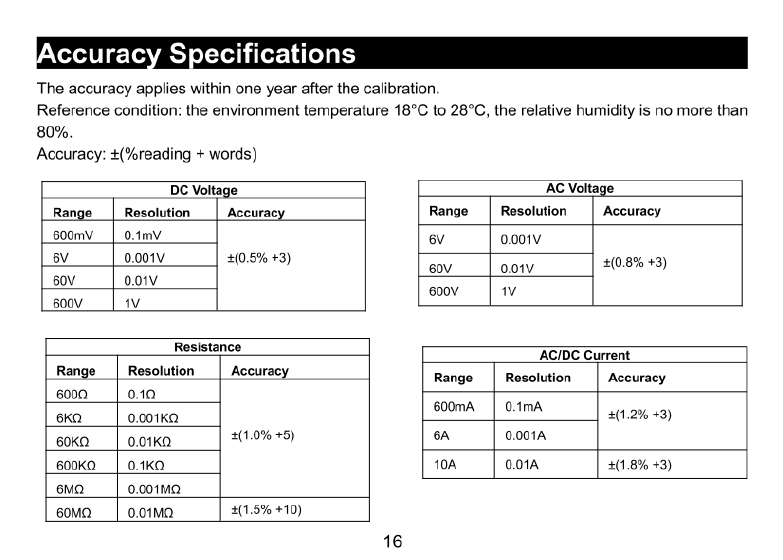

ccuracy Specifications
The accuracy applies within one year after the calibration
Reference condition: the environment temperature 18°C to 28°C, the relative humidity is no more than
80%.
Accuracy: #(%reading + words)
DC Voltage AC Voltage
Range | Resolution | Accuracy Range | Resolution | Accuracy
600mv_| 0.1mv o 0001V
v 0001V £(0.5% +3) +0.8% +
1 ) 60V 001V £(0.8% +3)
60v 0.01v
6oV | v
soov | v
Resistance b e
Range | Resolution | Accuracy Range | Resolion | Accuracy
6000 | 010 oo o
m m
6ka 0.001KQ £(1.2% +3)
60KQ 0.01KQ +(1.0% +5) 6A 0.001A
600k | 0.1k 108 0.01A +(1.8% +3)
M0 0.001M0
60MQ 0.01MQ #(1.5% +10)
16

Capacitance
Frequency/Duty
Range
|
Resolution
Accuracy
Range
Accuracy
6nF
0.001nF
60Hz
60nF
0.01nF
600Hz
0.1Hz
F
+(4.0%
+5)
6KHz
1KH.
6000
0.4nF
0.001KHz
H1.0%49)
6uF
0.001pF
60kHz
0.01kHz
60uF 0.014F
600KHZ
0.1kHz
600uF
|
O.ApF
SMHz
0.001MHz
6mF
X
10MHz
0.01MH
m
0.001mF
+5.0%
15)
iz
60mF
|
0.01mF
10-99.0%
|
0.1%
£(1.0%
+2)
Diode/Cont
Temperature
|
Display
diode
voltage
drop
Range Accuracy
:pen
cvcsn:;(n
\lfl:age‘
aboflm
av
c
ACOC
+3C
10X
<500,
on)|
Appr
uzzer
will
sound
vC-1000C
|
20%
or2'C
F
-40°F
~32°F
+6°F
32F~832%F
|
£20%or
+4°F
17
Note: use K-type thermocouple probe

Maintenance
Clean
When cleaning the meter, please follow the following steps:
(1) Turn off the meter power and remove the probes
(2) Wipe the case with a damp cloth or mild detergent. Do not use abrasives or solvents. Wipe the
contacts in each input socket with a clean swab soaked in alcohol
Note: Always keep the inside of the meter clean and dry to prevent electric shock or damage to the
meter.
18
