Kaiweets HT106B User manual

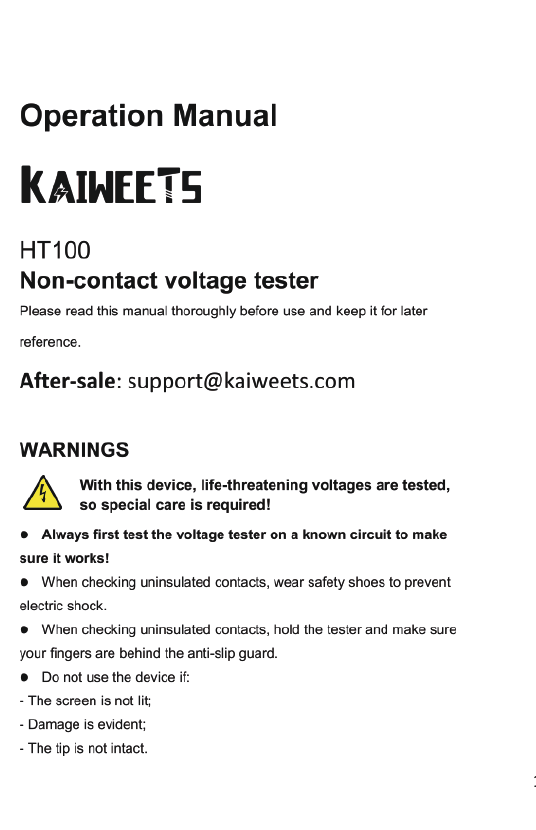

Operation Manual
KAIWEETS
HT100
Non-contact voltage tester
Please read this manual thoroughly before use and keep it for later
reference.
After-sale: [email protected]
WARNINGS
With this device, life-threatening voltages are tested,
s special care is required!
© Always first test the voltage tester on a known circuit to make
sure it works!
® When checking uninsulated contacts, wear safety shoes to prevent
electric shock.
® When checking uninsulated contacts, hold the tester and make sure
your fingers are behind the anti-slip guard.
® Do not use the device if:
- The screen is not lt;
- Damage is evident;
- The tip iis not intact.
® Do not put the device in more than 1000V.
® This equipment can only be used indoors and should be protected from
water, high air humidity and heat.
® ATTENTION: Even without indication, the voltage could stil be present.
The voltage detector indicates the effective voltage when a supply voltage
generates enough intensive electrostatic field. If the field is very weak, the
voltage detector can't detect the existence of voltage.
® We do not accept any liability for property damage or personal injury
caused by incorrect operation or failure to follow safety instructions. In
this case, any warranty claim will lapse.

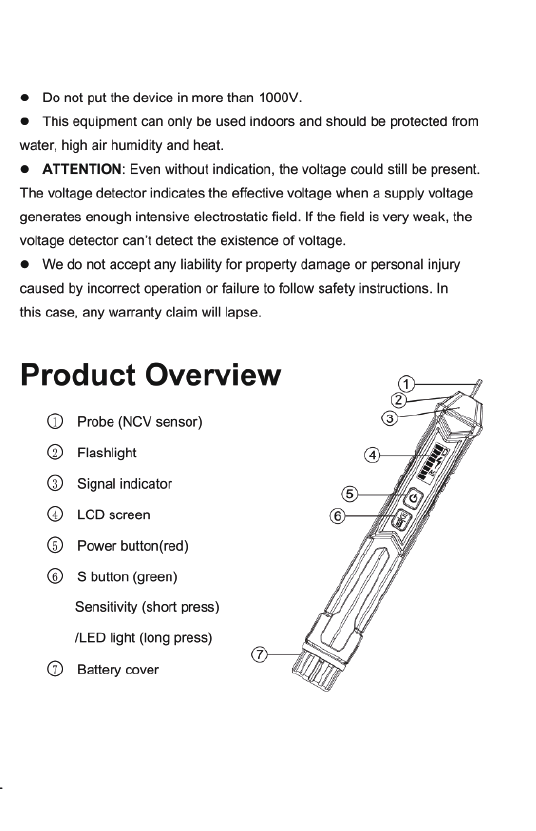

Product Overview
Probe (NCV sensor)
Flashlight
Signal indicator
LCD screen
Power button(red)
[ONSNSNONCNS]
S button (green)
Sensitivity (short press)
JLED light (long press)
@ Battery cover

Operation Manual
KAIWEETS
HT100
Non-contact voltage tester
Please read this manual thoroughly before use and keep it for later
reference.
After-sale: [email protected]
WARNINGS
With this device, life-threatening voltages are tested,
s special care is required!
© Always first test the voltage tester on a known circuit to make
sure it works!
® When checking uninsulated contacts, wear safety shoes to prevent
electric shock.
® When checking uninsulated contacts, hold the tester and make sure
your fingers are behind the anti-slip guard.
® Do not use the device if:
- The screen is not lt;
- Damage is evident;
- The tip iis not intact.
® Do not put the device in more than 1000V.
® This equipment can only be used indoors and should be protected from
water, high air humidity and heat.
® ATTENTION: Even without indication, the voltage could stil be present.
The voltage detector indicates the effective voltage when a supply voltage
generates enough intensive electrostatic field. If the field is very weak, the
voltage detector can't detect the existence of voltage.
® We do not accept any liability for property damage or personal injury
caused by incorrect operation or failure to follow safety instructions. In
this case, any warranty claim will lapse.
Product Overview
Probe (NCV sensor)
Flashlight
Signal indicator
LCD screen
Power button(red)
[ONSNSNONCNS]
S button (green)
Sensitivity (short press)
JLED light (long press)
@ Battery cover

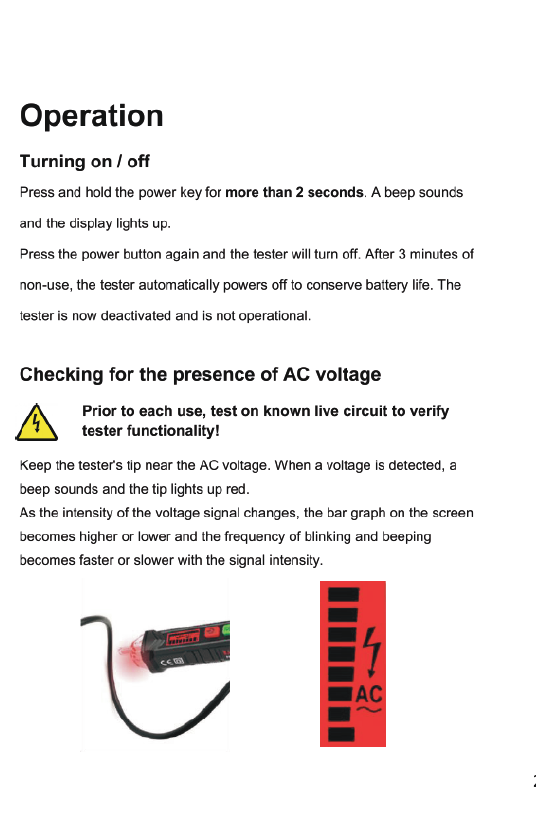

Operation
Turning on / off
Press and hold the power key for more than 2 seconds. A beep sounds.
and the display lights up.
Press the power button again and the tester will turn off. After 3 minutes of
non-use, the tester automatically powers off to conserve battery life. The
tester is now deactivated and is not operational.
Checking for the presence of AC voltage
Prior to each use, test on known
tester functionality!
Keep the testers tip near the AC voltage. When a voltage is detected, a
e circuit to verify
beep sounds and the tip lights up red.
As the intensity of the voltage signal changes, the bar graph on the screen
becomes higher or lower and the frequency of blinking and beeping
becomes faster or slower with the signal intensity.
R
The signal intensity is affected by the distance from the voltage. The further
the tester is from the circuit, the weaker the signal becomes.

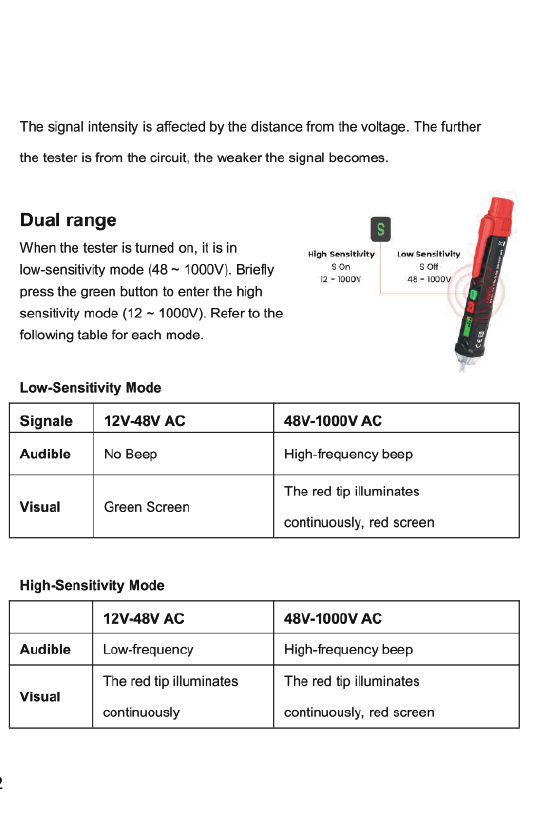

Dual range .
When the tester is turned on, itis in R
low-sensitivity mode (48 ~ 1000V). Briefly 2 ey
press the green button to enter the high
sensitivity mode (12 ~ 1000V). Refer to the
following table for each mode.
Low-Sensitivity Mode
Signale | 12v48V AC 48V-1000V AC
Audible | NoBeep High-frequency beep
The red tip illuminates
Visual Green Screen
continuously, red screen
High-Sensitivity Mode
12v-48V AC 48V-1000V AC
Audible | Low-frequency High-frequency beep
The red tip illuminates The red tip illuminates
Visual
continuously continuously, red screen

Operation
Turning on / off
Press and hold the power key for more than 2 seconds. A beep sounds.
and the display lights up.
Press the power button again and the tester will turn off. After 3 minutes of
non-use, the tester automatically powers off to conserve battery life. The
tester is now deactivated and is not operational.
Checking for the presence of AC voltage
Prior to each use, test on known
tester functionality!
Keep the testers tip near the AC voltage. When a voltage is detected, a
e circuit to verify
beep sounds and the tip lights up red.
As the intensity of the voltage signal changes, the bar graph on the screen
becomes higher or lower and the frequency of blinking and beeping
becomes faster or slower with the signal intensity.
R
The signal intensity is affected by the distance from the voltage. The further
the tester is from the circuit, the weaker the signal becomes.
Dual range .
When the tester is turned on, itis in R
low-sensitivity mode (48 ~ 1000V). Briefly 2 ey
press the green button to enter the high
sensitivity mode (12 ~ 1000V). Refer to the
following table for each mode.
Low-Sensitivity Mode
Signale | 12v48V AC 48V-1000V AC
Audible | NoBeep High-frequency beep
The red tip illuminates
Visual Green Screen
continuously, red screen
High-Sensitivity Mode
12v-48V AC 48V-1000V AC
Audible | Low-frequency High-frequency beep
The red tip illuminates The red tip illuminates
Visual
continuously continuously, red screen

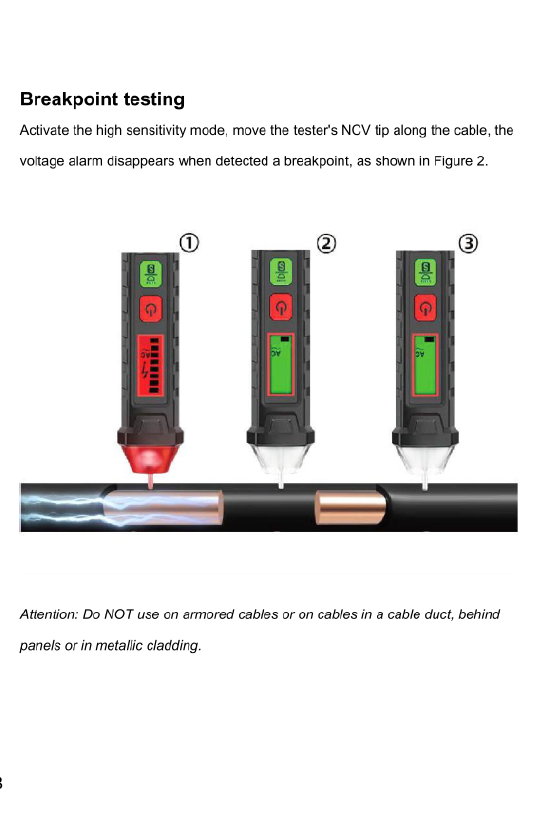

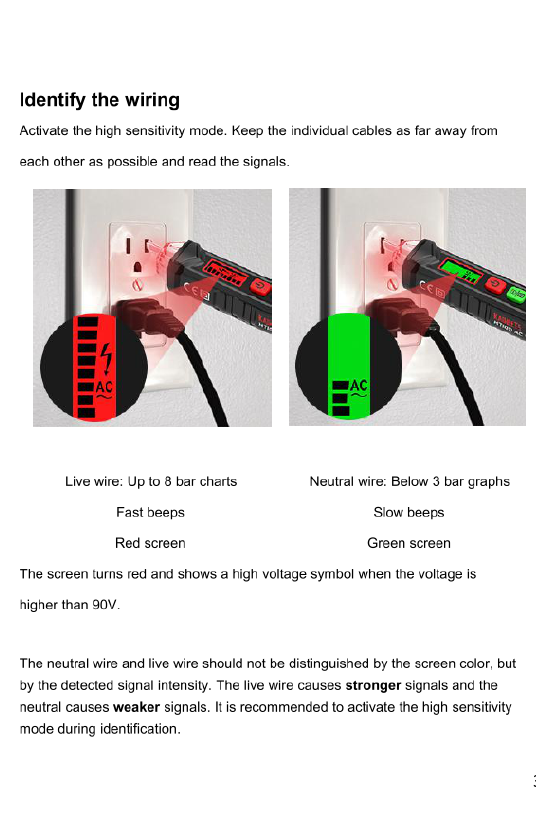

Identify the wiring Breakpoint testing
Activate the high sensitivity mode. Keep the individual cables as far away from Activate the high sensitivity mode, move the tester's NCV tip along the cable, the
each other as possible and read the signals. voltage alarm disappears when detected a breakpoint, as shown in Figure 2.
@ @ ®
Live wire: Up to 8 bar charts Neutral wire: Below 3 bar graphs
Fast beeps Slow beeps
Red screen Green screen
The screen tums red and shows a high voltage symbol when the voltage is
higher
than
90V.
Attention:
Do
NOT
use
on
armored
cables
or
on
cables
in
a
cable
duct,
behind
panels or in metallic cladding.
The neutral wire and live wire should not be distinguished by the screen color, but
by the detected signal intensity. The live wire causes stronger signals and the
neutral causes weaker signals. It is recommended to activate the high sensitivity
mode during identification.

Identify the wiring Breakpoint testing
Activate the high sensitivity mode. Keep the individual cables as far away from Activate the high sensitivity mode, move the tester's NCV tip along the cable, the
each other as possible and read the signals. voltage alarm disappears when detected a breakpoint, as shown in Figure 2.
@ @ ®
Live wire: Up to 8 bar charts Neutral wire: Below 3 bar graphs
Fast beeps Slow beeps
Red screen Green screen
The screen tums red and shows a high voltage symbol when the voltage is
higher
than
90V.
Attention:
Do
NOT
use
on
armored
cables
or
on
cables
in
a
cable
duct,
behind
panels or in metallic cladding.
The neutral wire and live wire should not be distinguished by the screen color, but
by the detected signal intensity. The live wire causes stronger signals and the
neutral causes weaker signals. It is recommended to activate the high sensitivity
mode during identification.

LED flashlight
Press and hold the green button for more than 2 seconds to turn the LED
light on and off. If no button is pressed and no voltage signal s detected. After 3
minutes, it will automatically shut down to save power.
Low battery indicator
If the battery voltage is less than 2.5 volts, the display will show the * E—' symbol.
If the battery voltage is less than 2.3 volts, the tester automatically tums off.
Technical specifications
Voltage: AC 12~1000V,50/60Hz
Operating temperature: ~40C
Storage temperature: -10~50'C
Humidity: <95%
Operating AlftUde: ..o S <2000m
Security level: CE, CAT IIl 1000V, CAT IV 600V
BAHEMES: ..o 2x1.5V AAA
Battery replacement
A, oo he batery cover ff bogy,remov the ateies, and inser
the positive terminal of the new battery toward the tip of the tester.
Rotate cap to the body untilitis fully seated. Before locking, do not
use the tester to test the electricity to avoid electric shock.
Use only a soft, slightly damp cloth to clean the device, never use chemicals
Cleaning
or abrasives, alcohol, ammonia or cleaners containing solvents to clean
tester. Make sure that the device is completely dry before use.
Three years warranty
The KAWEETS electronic test and measurement devices are guaranteed
for three years from the date of purchase.
CCERRHSFECE
EN18100V10
