Kaleido SNIPER M6 User manual

Thank you very much for purchasing Kaleido products.
・ Please read this manual carefully to ensure the correct and safe use
of this product.
・ Please carefully read the "Important Notes" and "Safety Warnings" (Page 2-3)
before use.
・ Please keep this manual properly for future use.
・ Kaleido will not be responsible for improper operation of this product or
failure to follow the relevant instructions.
Warranty certificate
attached separately
Instruction manual
Straight fire coffee bean roaster
SNIPER M6
目 录 Catalog
Safety Alert 2
Prohibited, Mandatory, Precautions
Catalog
Product Overview
Installation instructions
3
4
IInstall the heat shield
4
Performance parameter table
5
Maintenance and replacement parts 5

When the machine is received, the heating pipe does not work in two cases:
1. The heating tube glass tube is broken due to the vibration during
logistics transportation, and the heating tube cannot work.
2. The heating wire is broken due to vibration during logistics transportation, and
the heating pipe cannot work after 1-3 times of using the machine.
The following problems will occur due to the inevitable falling of articles
during transportation:
In case of the above situation, our company promises to send a new
heating tube and a replacement video to Shunfeng Bao. Replacing the
heating tube is very simple.
Important note:
Please be sure to confirm receipt after unpacking inspection. If the shell is bumped,
contact customer service to send a new shell.(If the paint is knocked o ffin special
parts, contact the customer service to replace the machine)
warning
To ensure the safety of use and avoid injury and property damage to you and others
●
●
●
●
●
●
●
●
●
●
●
●
Do not open the rear cover plate when power is on. Non professionals shall not carry
out live maintenance.When replacing accessories, unplug the power plug before
opening the rear cover plate. Only after the replacementis completed can the
machine be plugged in and tested.
Over roasting of coffee beans is prohibited.
Do not wet the power socket with water.
Please do not leave during roasting!Avoid excessive heating and
burning of coffee beans due to no supervision.
Safety warnings must be learned. It is forbidden for non learners to operate
the baking machine. Children should stay away from the baking machine.
When heating, the bean bin must be stirred, otherwise the bean
bin will be deformed due to excessive heat on one side.
The set bean temperature should not exceed degrees.230
The silver peel of coffee beans collected should be cleaned in time
to avoid burning due to the accumulation of silver peel.
The device must be placed in a well-ventilated place,
and no flammable materials behind. Do not cover the .exhaust vents
During the baking and heating, the surface temperature of the
equipment is high.Do not touch the surface of the device to avoid
burns. (The red area is the high temperature area)
after roasting is completed, and stirr the bean cabin
turn on the exhaust smoke.And turned off the roaster after
temperature of the beans drops .below 50 degrees
the new equipment will have some smell of the
spray paint, and it will dispel after baking times.2-3
Heat shield
fixing button
高温区
High
temperature
area

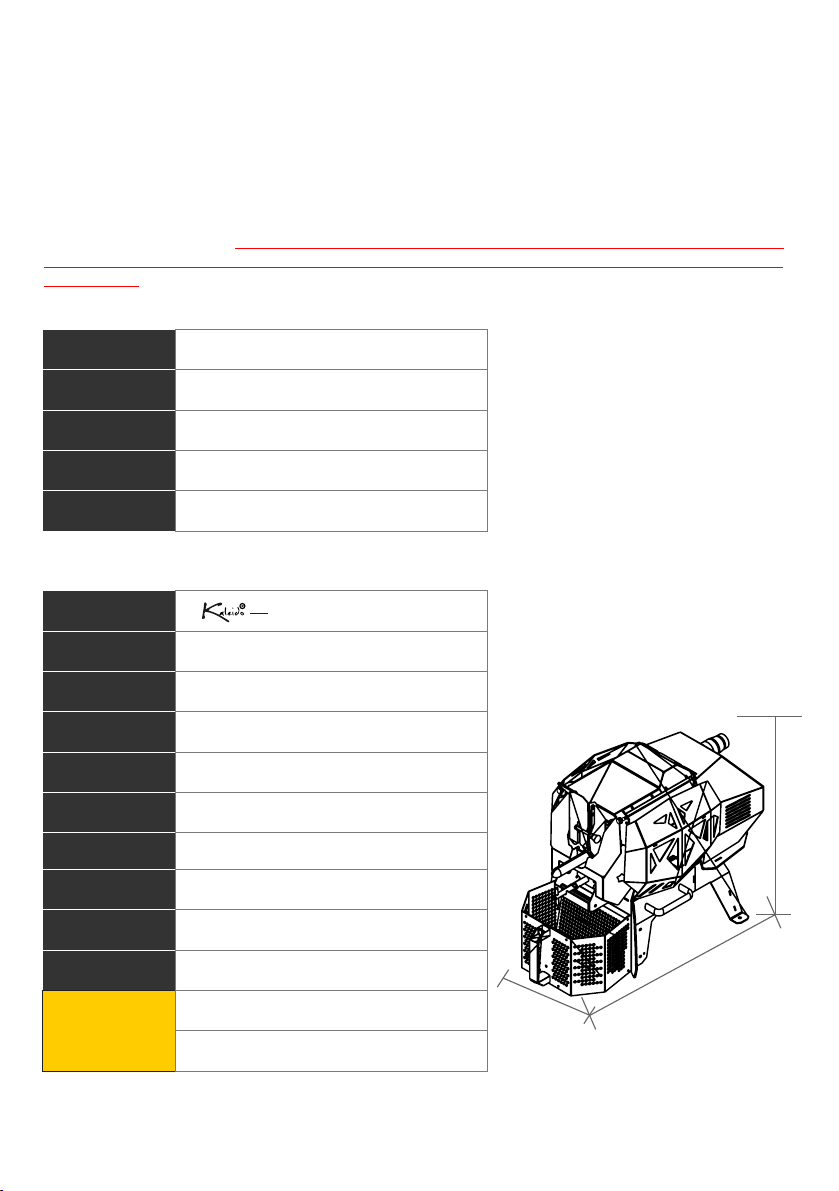

Performance parameter table
M6 is compact, powerful and integrates with many new technologies.
It is a powerful weapon for roasting coffee beans.
Capacity description
Baking degree
Baking capacity
/ single
Baking time
Up to 2500g Raw beans.
Extremely light baking / light baking / medium baking
/ Italian combination, etc., can be arbitrarily baked.
Design optimum capacity 200g-640g, up to 700g.
5-15 minutes.
Baking volume
per hour
Suitable beans wet coffee beans , various types of dry coffee beans,
hard beans, aged beans.
Technical parameter
Product number
Heating method
Heating power
(adjustable)
Boiler
(adjustable speed)
Heating capacity
Cooling
Silver skin
collection
Operation mode
Product size
and weight
Safety protection
Electric heating: Imported carbon fiber infrared
electric heating tube.
110V~220V, , total equipment power 2000W.
Patent. Stainless steel 304 boiler, adjustable boiler
speed.
The surface of the heating tube is instantaneously
500 degrees at once.
Independent cooling system, rapid cooling in 3 ~ 5
minutes.
Patent. Automatic silver skin collection system, no
traditional silver skin collector.
Full touch screen operation. Without any industrial
buttons.
610 * 300 * 420 (length, width and height)
Net weight: 20KG.
Double safety protection: anti-leakage safety plug +
internal temperature upper limit to stop heating
protection.
heating tube 220V, all other components 12V.
Air damper
(adjustable )
Electronic air damper, touch screen to adjust the
air volume.
SNIPER M6
Scope of application: sample bean roasting, cup test roasting, fine coffee bean roasting,
coffee training and teaching, coffee shop self-use and sales bean roasting, various coffee
places, etc.
H: 420 mm
L: 610 mm
W: 300 mm

①Twist the screws
②Take out the bare metal
③Then take out the cooling box
2. Take out bare metal
3. Then take out the cooling box.
After unpacking, the m6 does not
need to be installed,just connect the touch
screen and USB connector, plug it in and use it
1. Unpacking the box and unscrewing
the two screws of the arrow first
Installation Notes
Installation instructions
(installation of heat shield)
Pull the fixing pin of the
heat shield outward
Loosen fixing pin
Put in heat shield
Pull the fixing pin of the
heat shield outward
Loosen fixing pin
complete
Then open the
heat shield
upwards
Heat shield
closed downward

Product overview
Right view
Exhaust pipe
Back cover
Into the bean column
Heat shield
Sample collector
Beans outdoor handle
Bean storage
Hidden cooling fan
Silver skin drawer
Anti-leakage plug
Into bean funnel
Insulation fixing bolt
Quartz observation window
Beans outdoor handle
Stirring motor
Heat shield
Exhaust pipe
Back cover
Carry handle
Sample collector
Top view
隔热板
Maintenance and
replacement parts
M10 is very easy and simple to maintain.
1.
Daily maintenance: Clean the tiny silver skin and dust remaining in the boiler.
Clean deflated beans and crushed beans on the bean bin grid!
Pull out the of the heat shield, then lift up the heat shield, fixing pin
and then release the , the heat shield will be stuck on the .fixing pin fixing pin
3.
2.Remove the heat insulaon plates
on both sides
Use a small brush to clean the tiny silver
skin and dust remaining in the boiler. Clean
deflated beans and crushed beans on the
bean bin grid!
Heating tube replacement:
The heating tube wire no have positive or negative.
If the heating tube reaches the service life.
(5000-8000 hours life)
You can remove the two fixing screws on the
back cover and take off the back cover.
Loosen the two nuts of the heating
tube, disconnect the heating tube
connection
You can remove the old heating tube
and install the new one.
Tighten the two nuts and connect the wire,
then it is ready to use.
The two screws of the back cover fixed
There is a screw at the bottom of the back cover.
For maintenance or
replacement of accessories,
the plug must be unplugged
before operation.
Warning:
