KALITE KL-530 User manual

INSTRUCTION MANUAL
Model: KL-530
www.kalite.vn

Thank you for using our products KALITE KL-530. Please read carefully this manual before using. This
products will be very helpful for your family. If you have any questions, please call KALITE Vietnam's
customer care department directly for guidance.We sincerely thank you!
Table of contents
Preparation Of Pure Beverage:....................................................................................................................................
Abnormal Phenomena & Solutions:..........................................................................................................................
Product Features:............................................................................................................................................................
Safety Notice:....................................................................................................................................................................
Disassembly Of The Device:.........................................................................................................................................
Product Specication:....................................................................................................................................................
Assembly Instructions:..................................................................................................................................................
Part And Components:..................................................................................................................................................
Cleaning & Storage:.........................................................................................................................................................
Operation Instruction:................................................................................................................................................... 10
13
16
3
7
6
8
12
15
17
All contents of this document have been carefully checked. If there are any mistakes we will correct in
the next reprint. In case the product is upgraded, we will change the content accordingly.
2

SAFETY NOTICE
Read the Manual carefully before use. Keep properly for future reference.
Danger
It is forbidden to soak the engine device (main engine) in water or to wash in tap water.
Caution
For safety and proper use, please read every caution tips thoroughly before using the
product.
1. This appliance cannot be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge unless
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
2. Cleaning and user maintenance shall not be made by children without supervision.
3. Before connecting the device to power, please conrm that the local voltage is in
conformity with the voltage instruction at the bottom part of the device.
4. Check the power line, plug and components before use.
7. Please do not use the appliance when the power cord or plug is lose or damaged.
8. If the power line is damaged, for the sake of safety, it must be replaced by authorized
maintenance company or similar professional.
9. Please do not clean the appliance with running water, when the product is wet.
6. Please do not plug or unplug the power cord with wet hands.
5. Please do not forcefully pull out or push in the power cord from the electrical outlet. Do
not twist or bend the power cord. Do not put the power cord near heating device.
10. Please do not disassemble the machine while operating nor put anything into juice and
pulp outlet while operating.
3

SAFETY NOTICE
20. Keep the appliance and its cord out of reach of children. Children shall not play with the
appliance.
18. Conrm whether the components are assembled properly before use. The components
may not be disassembled while the device is running
19. If the plug, power line or other component is damaged, do not use the device.
13. In case of any unusual odor, heat or smoke, stop operating immediately and contact the
nearest service center for service.
21. If the power cord is damaged, for the sake of safety, it must be replaced by Service Center,
authorized maintenance department or similar professional.
23.To protect against electric shock, do not immerse main parts of the product, cord or plug
in water or other liquids.
11. Please keep the product away from children.
14. When the device is running, don’t stretch nger or other thing into the feeding pipe,
except the pushing rod.
12. Please do not use the appliance longer than 10 minutes, excessive use can cause
overheating which can lead motor failure.
16. Please do not use the appliance when the drum cap is disassembled.
15. Please plug in the power cord properly.
17. Please do not attempt to repair or modify a defective power cord by yourself. Contact a
service center to replace the power cord by qualied electrician.
22. Indoor use only. Household use only.
4

SAFETY NOTICE
2. It is forbidden to contact the plug with wet hand. Danger of electric shock.
5. No drop or shock to the device. Danger of damage and malfunction.
9. Do not use or keep the device close to gas utensil. Danger of deformation and color
change.
11. It is forbidden to clean the device with chemical or volatile substance. Danger of color
change, discoloration and re.
1. It is forbidden to use several plugs in one socket. Abnormal heating may cause re.
7. While the power is on, it is forbidden to insert nger, chopsticks or anything else into inlet
orice. Danger of safety accident.
The following is safety notice. In order to avoid hidden danger or property loss, please
read carefully before using the device.
10. Do not disassemble, repair or reform optionally the main engine. Danger of abnormal
phenomena, re and injury.
6. Do not drag the wire while pulling the plug out. Danger of electric shock and re while the
wire is outworn.
4. When there is dust or water in the power plug pin, clean with a duster. Danger of electric
shock and re.
12. It is forbidden to use the device in an inclined or uneven place, because overturn is a
cause of device damage and accident.
3. When going out or not in use, pull the power plug out. Danger of electric shock and re.
8. It is forbidden to clean the components in washer or with hot water. Danger of shortening
longevity.
13. No bending or stressing to the power line. Danger of damage and re.
14. Use and keep out of a child’s reach. Danger of safety accident and injury.
15. No spray of ammable liquid or water. Danger of explosion, re and electric shock
5

PRODUCT FEATURES
2. Multifunctional
5. Heavy-duty motor is adopted
It may well extract ber-rich vegetable (such as celery). Extract suck kind vegetable, you
should forward and reverse for a while. It will be good and helpful for juice rate.
6. Low-noise running
It adopts long longevity DC reducing motor, which reaches 20 minutes each time, with low
speed, low noise and less vibration.
7. Separation of juice and dreg and successive extraction
Separation of juice and dreg may effectively eliminate the remains of heavy-metal and
pesticide. Digestible and absorbable. It may extract fresh fruit juice continuously for thirty
minutes each time, which avoids the trouble of interruption for removing slag.
For one extraction, if desiring to enjoy other fruit juice, just injecting water into the inlet
orice for simple washing while it runs.
8. Automatic & easy cleaning
It has multifunction as extracting vegetable juice, soybean milk, fruit juice, soybean curd,
etc. It may prepare dinner more quickly and conveniently as requested.
1. To extract juice in low-speed extracting method
To extract juice in extracting method shall not destroy the nutritive elements and keep the
natural original taste and avor.
3. Simple operation, in separating structure
The separating structure of container and main engine is convenient for cleaning and
washing.
4. Design of dual switch
Place the extracting cup on the main engine, cover the upper cap, and then start the switch
to operate.
6

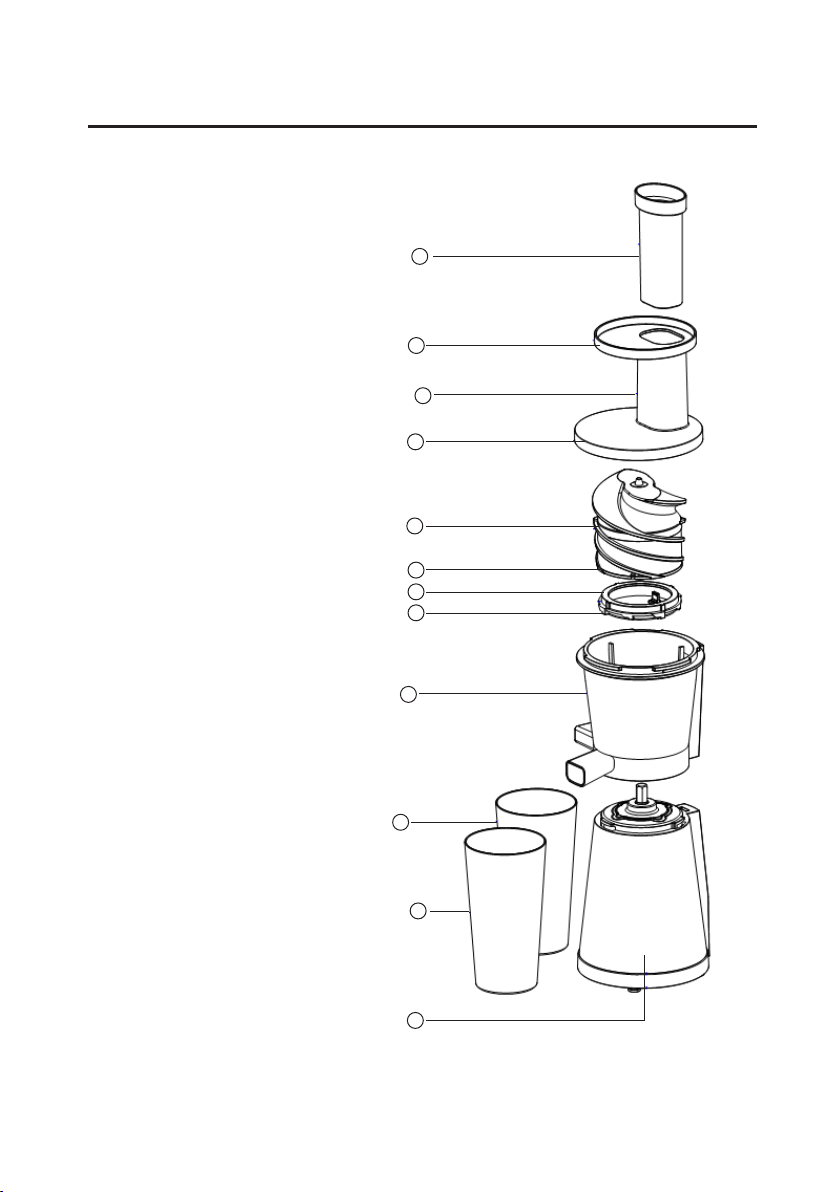

PARTS AND COMPONENTS
10. Pulp Cup
2. Feeding Tray
3. Feeding Hole
6. Separator base
5. Juice Squeezer
4. Drum Cap
1. Push Tube
7. Squeezing Drum
8. Pulp Outlet
9. Juice Outlet
12. Main Body
11. Juice Cup
1
2
3
4
5
6
9
10
11
12
7
8
7

ASSEMBLY INSTRUCTIONS
1. Open the product package, take out the product and accessories, and dispose the
packing material.
3. Before assembly the squeezing drum on the main body, rstly make sure the sealing strip
on the bottom is inserted properly. If the sealing strip is not inserted properly, the sealing
will be loss or the juice will ow outside from it.
Reverse the steps carefully when disassembling
2. Clean the product surface, and wash the accessories by water, besides the main body.
Sealing Strip

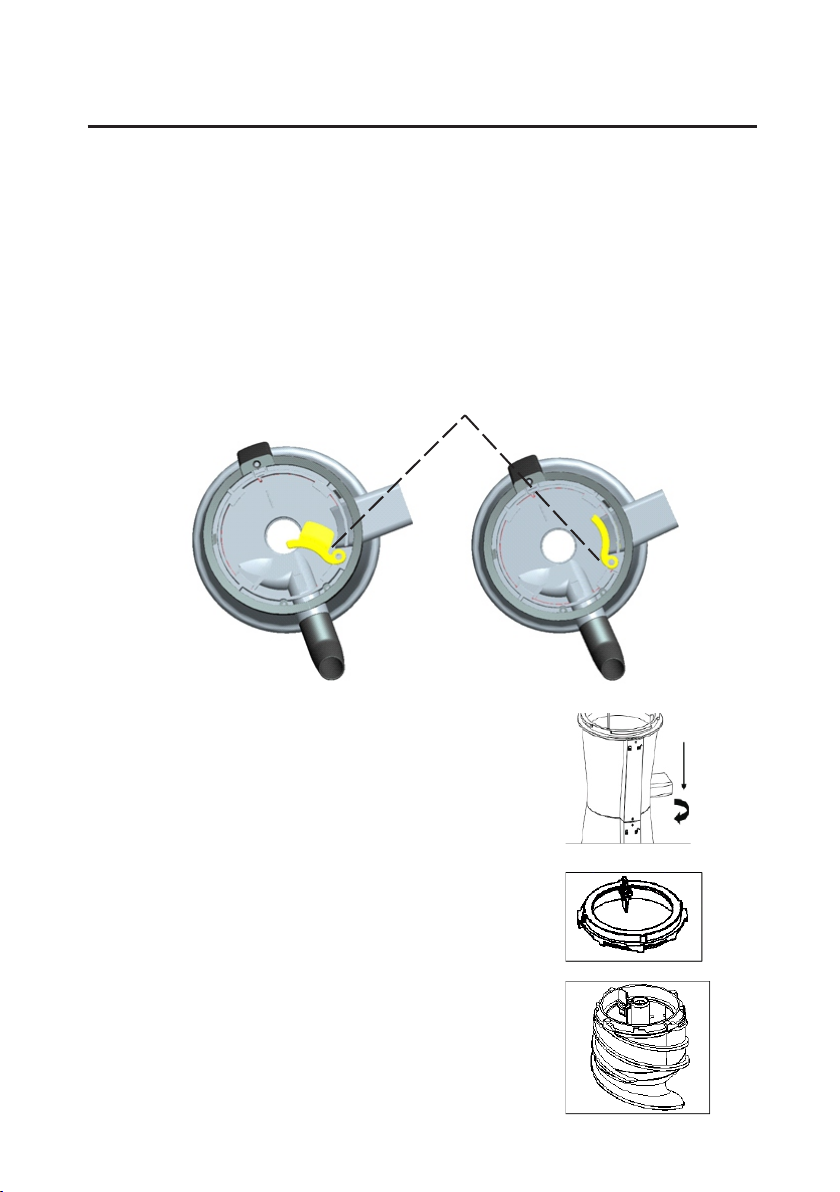

4. Put the squeezing drum on the main body, and use
the mark point on the squeezing drum to aim at the
mark point of the main body, rotate the cup clockwise.
See Fig.
5. Insert silicone brush into the squeezer base, and
install the squeezer base into the juice squeezer.
8

ASSEMBLY INSTRUCTIONS
6. Install the squeezer into the squeezing drum upright; connect the squeezer axle sleeve
with the motor rotating rod.
7. Install the drum cap on the drum, and use the mark point on the drum cap aim at the mark
point of the cup, and rotate the drum cap clockwise.
8. Put the pushing bar in the feeding hole, and put the juice cup and pulp cup below the
juice mouth and pulp outlet.
9

OPERATION INSTRUCTION

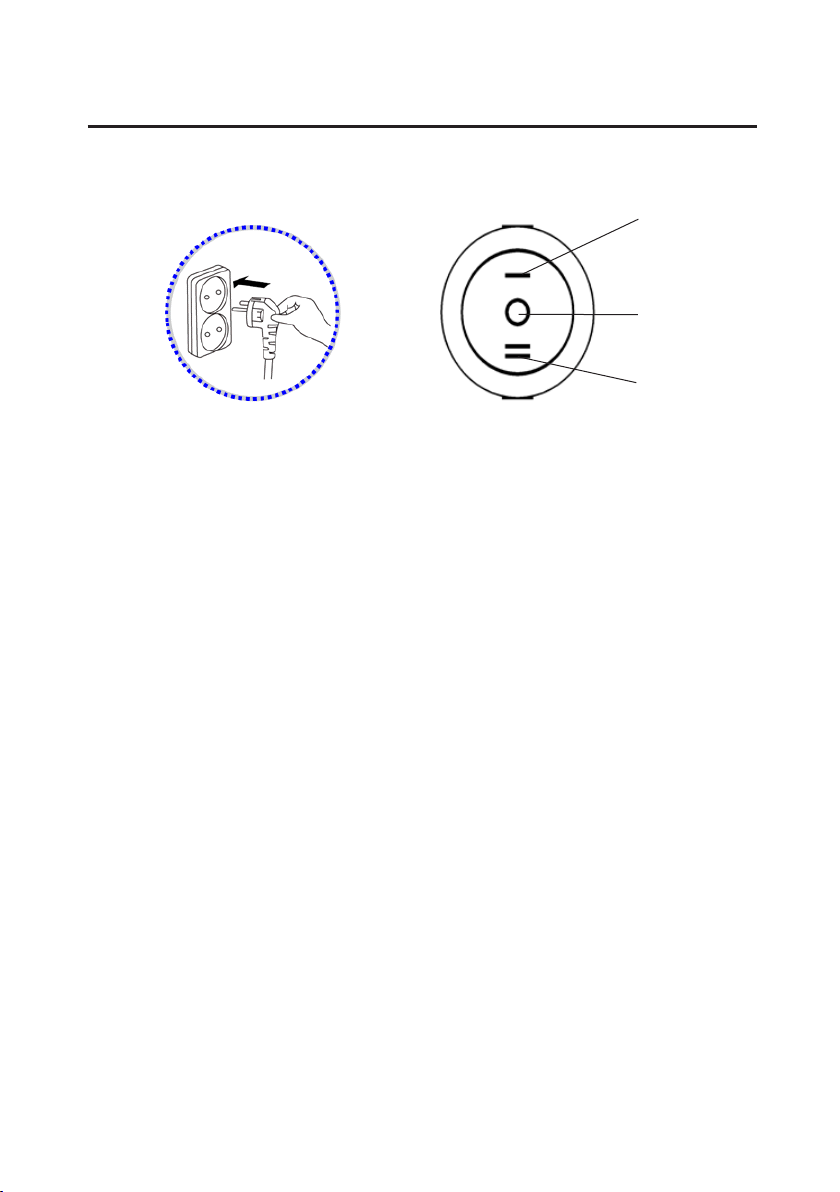

1. Install the squeezer into the squeezing drum upright; connect the squeezer axle sleeve
with the motor rotating rod.
ON
OFF
REV
OFF: Stops the operation. Place the button at the center to turn off the product.
REV: Activates the reverse operation. Use this button when something is stuck.
ON: Activates the motor and starts making juice.
3. After washing and cutting, put ingredients slowly into the machine. Use the pusher if
necessary. Remove any hard seeds from ingredients before juicing.
2. Wash every fruit or vegetables thoroughly before cutting and putting them into the
machine.
Note
B). Hard-ber ingredients, such as celery, shall be cut into proper size (such as 5-10cm in
length).
A).The ingredients shall be put one by one. When one nishes, put into another; the
ingredients size recommend to be 10x3x2cm.
C). Fiber-poor ingredients, such as carrot, are preferred to extract with ber-rich ingredients
such as pine needles, celery. Cut a carrot into four equal parts (due to difference of moisture
content of ingredients, there is difference of juice amount).
10

OPERATION INSTRUCTION
D) Stale stuff shall have less juice due to its less moisture content. The stuff kept in a
refrigerator for several days shall be soaked in pure water rst, and then extracted after the
stuff has absorbed sufficient water.
E). Stale ingredients shall have less juice due to its less moisture content. The ingredient
kept long time in refrigerator shall be soaked in pure water rstly, and then extracted after
the ingredients have absorbed sufficient water.
F). Different ingredients has different juice effect, in order to juice better, do not put the
ingredients over max level of the squeezing drum, otherwise the juice and the pulp cannot
outlet easily and the juice will leakage from the squeezing drum mouth, especially for
ingredients, like cucumber, cherry or tomato.
4. If the machine stops suddenly, press the OFF button rstly to stop the machine; then
press REV the button, upward the ingredients between the squeezer and drum, and then
press ON the button. (Repeat the operation if necessary)Note: If the above operation does
not work, disassemble the machine; clean the squeezing drum before reuse.Note: If
“reverse” operation is needed, press OFF button rstly, then press “reverse” button after the
machine stops.
5. Turn off the machine after juicing.
6. Clean the machine after juicing.
The slow juicer is equipped with the overload protection device and overheat protection
device. When there is an overload happens, or long time operation, there may be an
overheat, then the overload protection device or overheat protection device will works,
and the slow juicer will stop work. The solution is to press the button to the OFF position,
unplug the slow juicer, and wait 30-40 minutes till the protection device recovery. Then
insert the plug into the socket again, and press the control button to ON position to test the
protection device is recovery or not. If not, unplug again and wait some time more. If ok, you
can continue your juicing operation.
Remark:
11

DISASSEMBLY OF THE DEVICE

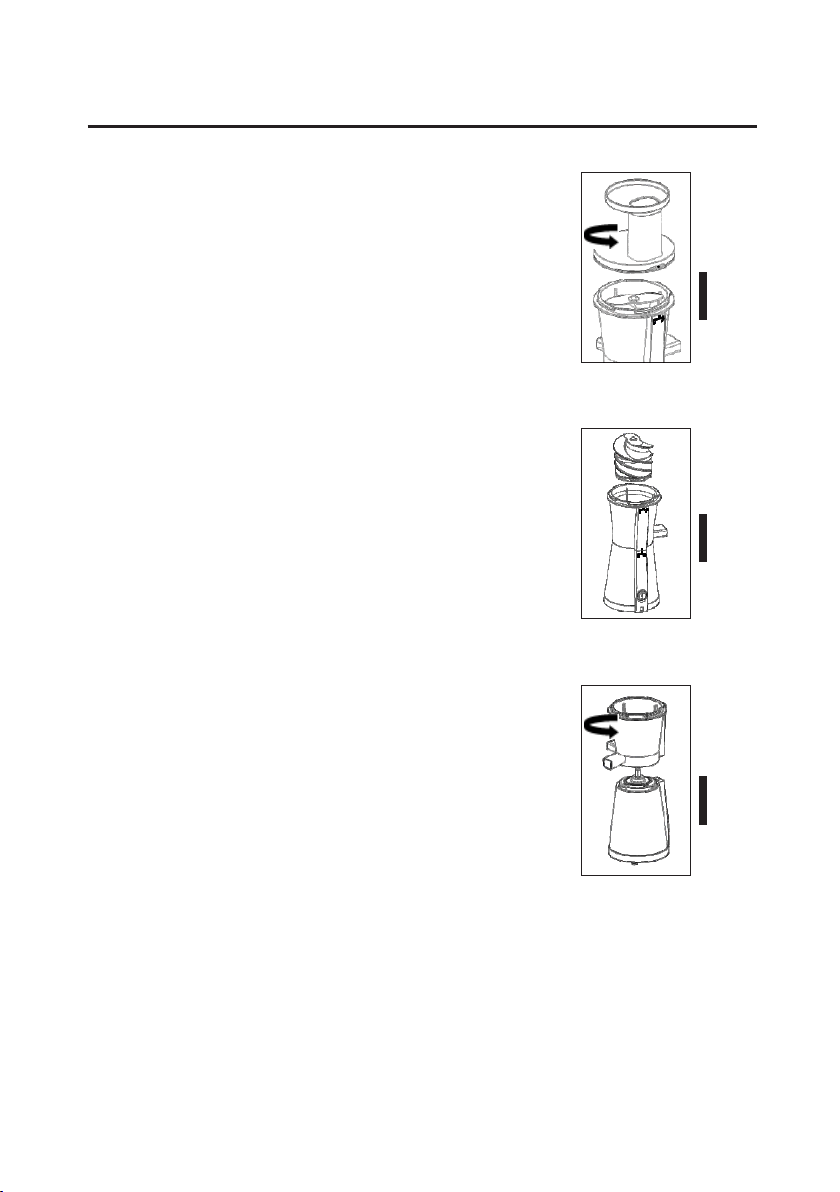

1.After the device stops, rotate the Upper cap at the arrow direction, then pull upward the
drum cap See Fig
►
2.Pull upward the squeezer. see Fig
3.Rotate the squeezing drum at arrow direction then pull upward. See Fig
►
►
Note: Disassembly of the components in the squeezing cup is in the opposite sequence
of assembly
12

PREPARATION OF PURE BEVERAGE
2. Putting one kg soaked soybean and 2000ml water into basin and start “corotation”,
feeding one spoon by one spoon into the inlet orice.
Soybean curb
Healthy prescriptionCarrot has rich vitamin A, which may prevent ageing of skin, improve
eyesight and strengthen immunity. It also has rich dietary ber, which is helpful to lose
weight. Taking a cup one day may help digestion, reduce the rate of cancer and improve
immunity, especially with good effect to woman’s beauty.
3. Cook the ltered soybean milk in medium temperature for ten minutes (turn off the re
when the soybean milk begins to boil)
5. Pour the boiled soybean milk into the basin with coagulator (while the soybean is hot)
6. Stir the soybean for twice or three times, and in ve minutes, the soybean shall concrete.
7. Tile the ltering gauze in the curb frame, and pour the concreted soybean milk into the
frame. Wrap the soybean milk with gauze, put on the frame cover, and press for 15 to 20
minutes with a 1-2kg subject, the soybean curb is ready.
3. Put the cut stuff into the inlet orice one by one. Return the juice into the inlet orice and
lter again, which may reduce the remains in the screen holder and the juice liquid shall be
ner.
2. Cut the carrot slender so as to put into the inlet orice.
1. Soak the dry soybean in water400g dry soybean soaked in water for a certain time (six
hours in summer and ten hours in winter) will become about one kg around.
4. Put coagulator (bittern) in another basin (above three liters of capacity).
13

PREPARATION OF PURE BEVERAGE
Remove the hard fruit stone such as peach, plum, mango, apricot, jujube, haw, which may
damage the device.
While extracting stuff with less water and rich ber, cut the stuff as small as possible and put
into the inlet orice slowly.
It is better not to use cane.
Do not put overmuch stuff once. Danger of being jammed and stopped.
Tomato juice
Tomato juice is a typical kind of vegetable juice, with cool and refreshing taste. It contains
lycopene haematochrome, which may inhibit ageing. The sourness of citric acid may irritate
the above functions. It is better to have one cup in the morning. Sweet little tomato, yellow
tomato or green tomato all have its particular taste, and may be used to prepare juice of
different colors.
Tomato is helpful in preventing and curing cancer, cerebral thrombosis, heart disease and
other diseases. Tomato contains rich vitamin A & C. Its particular sourness may allay
tiredness and relieve nausea. In addition, it is helpful in relieving alcoholism and
refreshment. (Compared to ordinary tomato, small-scale tomato has more nutrient content
and higher thickness, more energy, and more suitable for juice extraction).
TIP: Temperature for optimal taste
2. Drag the stuff into the feeding tray (cut the stuff in small piece when it is overlarge).
Apple: 5℃ (41°F), tomato: 12-13℃ (54°F), grape: 4-5℃(39°F)
1. Simple cleaning for organic agricultural tomato. Wipe the ordinary tomato with
detergent rst, and then wash with clean water.
Carrot is the king of vegetable containing rich nutrition, has good avor, and is one of the
favored vegetable juice. It has particular sweet taste, and may be extracted together with
acrid vegetable. Carrot is that kind of vegetable which contains the most Vitamin A and
renieratene. Eating two carrots one day may take four times of vitamin A of daily demand.
Orange: 1-5℃ (34-41°F), carrot: 1-5℃ (34-41°F), peach: 8-13℃ (46-55°F)
Carrot juice
1. Simple cleaning for organic agricultural carrot. Wipe the ordinary carrot with detergent
rst, and then wash with clean water.
14

CLEANING&STORAGE:
Note: clean after use at once, otherwise the dried dreg shall cling to the components, uneasy
for cleaning or disassembly, also decline the performance.
4. Wipe up the main engine with dry and soft duster. Note: after extracting pigment-rich stuff
such as carrot, spinach, etc., wipe the container surface with oil, and then wash with neutral
detergent.
1. Turn the power to OFF position and then pull the power plug out. Note: Press to “stop”
position after the ber in the squeezing cup is completely cleared.
2. After operation, hold the juice nozzle, turn the drum cap to the opening direction, and the
drum cap may be disassembled. (Disassembly of the components in the opposite sequence of
assembly.)
3. Clean the squeezer, squeezing drum, drum cap, pushing cylinder with soft brush and
neutral detergent, and then dry.
ABNORMAL PHENOMENA&SOLUTIONS
b. Please conrm whether assembly the ttings properly?
1. NoiseAfter stopping the device, inspect carefully the assembly status of ttings.Conrm the
ingredients amount and size.
2. The motor doesn’t work.
c. Restart after one-hour stop.
a. Make sure whether the power plug is inserted well?
4. Points for attention of authorized repair.
3. Sudden stop during the operation. When there is sudden stop during the operation, turn
the switch to OFF position, and press the “reverse” button. Push upward the ingredients
clipped between the squeezing drum and squeezer, and then press ON the button.
d. Sudden stop during the running, please make sure whether there are overmuch
ingredients, or overheat of motor causing motor protection. Stop the machine till the motor
cool down.
15

ABNORMAL PHENOMENA&SOLUTIONS
Symptom Contents to be conrmed
Sudden stop of motor during
running
Please check whether the plug is well inserted
Please try to see whether “reversion” operation is
workable or not.
Please make sure whether the motor is
overloaded, and reuse after the motor cool
down
Less juice Different ingredients has different moisture
content
Stale ingredients has less juice
The ingredients kept long time in refrigerator
shall be soaked in pure water rst, and then juice
after the ingredients have absorbed sufficient
water.
Please check whether the sealing strip is
assembled properly
Fiber-poor ingredients such as carrot are
preferred to juice with ber-rich ingredients such
as cabbage, pine needles, celery. Cut a carrot into
four equal parts and put into one by one (put one
into after the previous ingredients has nished
extraction) so as to get higher a juice rate.
More moisture of pulp content Please check whether the sealing strip is
assembled properly
Juice ow out from the upper
part of the main engine
If the sealing strip is not assembled properly,
juice will be leaked from the sealing.
Sudden stop during operation Overmuch ingredients put, or overheat of motor
causing start of protector, at this moment, restart
the device when the motor cool down.
Remove the hard fruit seeds which may damage
16

PRODUCT SPECIFICATION
Model No.: KL-530 Voltage: 220-240V~50/60Hz
Power: 200W
Net weight: 3Kg
Working time: Less than 10 min
Unit dimension: 145x155x390mm
DISPOSAL: Do not dispose this product as unsorted municipal
waste. Collection of such waste separately for special treatment is
necessary.
By collecting and recycling waste, you help save natural resources,
and make sure the product is disposed in an environmental friendly
and healthy way.
This product must not be disposed together with the domestic
waste. This product has to be disposed at an authorized place for
recycling of electrical and electronic appliances.
17

HƯỚNG DẪN SỬ DỤNG
Model: KL-530
www.kalite.vn

Cảm ơn quý khách hàng đã sử dụng sản phẩm KALITE KL-530. Quý khách vui lòng đọc kỹ hướng dẫn
để tận dụng tối đa tính năng của máy, chúng tôi tin rằng chiếc máy này sẽ mang lại sự tiện dụng giúp
quý khách hàng dễ dàng chế biến nhiều món ăn cho gia đình.
Chúng tôi xin chân thành cảm ơn !
Mọi thắc mắc quý khách vui lòng gọi trực tiếp đến bộ phận chăm sóc khách hàng của KALITE Việt Nam
để được hướng dẫn.
Mục lục
Hướng dẫn vận hành:....................................................................................................................................................
Hiện tượng thông thường và giải pháp:.................................................................................................................
Bộ phận và linh kiện:......................................................................................................................................................
Hướng dẫn sử dụng:.......................................................................................................................................................
Đặc điểm sản phẩm:.......................................................................................................................................................
Thông báo an toàn:.........................................................................................................................................................
Hướng dẫn lắp ráp:..........................................................................................................................................................
Việc tháo rời thiết bị:......................................................................................................................................................
Chuẩn bị nước giải khát tinh khiết:...........................................................................................................................
Vệ sinh và bảo quản:......................................................................................................................................................
Thông số sản phẩm:....................................................................................................................................................... 33
23
26
32
31
20
24
25
22
29
28
Tất cả nội dung của tài liệu này đã được kiểm tra cẩn thận. Nếu có bất kỳ sai xót chúng tôi sẽ chỉnh sửa
trong lần tái bản sau. Trong trường hợp sản phẩm được nâng cấp chúng tôi sẽ thay đổi nội dung phù
hợp. Màu sắc, và hình dạng của máy phụ thuộc vào thực tế.
19

HƯỚNG DẪN SỬ DỤNG
Đọc kỹ Hướng dẫn sử dụng trước khi dùng. Giữ sách để tham khảo trong tương lai.
Nguy hiểm
Không được ngâm thiết bị động cơ (máy chính) trong nước hoặc rửa trong vòi nước.
Thận trọng
Để sử dụng an toàn và đúng cách, vui lòng đọc kỹ các khuyến cáo cẩn thận trước khi
sử dụng máy.
2. Trẻ em không được làm vệ sinh và bảo trì sản phẩm nếu không có sự giám sát.
1. Thiết bị này không được dùng bởi trẻ em từ 8 tuổi trở lên và những người bị suy giảm khả
năng thể chất, giác quan hoặc tinh thần hoặc thiếu kinh nghiệm và kiến thức trừ khi họ được
giám sát hoặc hướng dẫn về việc sử dụng thiết bị theo cách an toàn và hiểu rõ các mối nguy
có liên quan.
3. Trước khi kết nối thiết bị với nguồn điện, hãy kiểm tra để đảm bảo nguồn điện áp phù hợp
với chỉ dẫn điện áp như dưới đáy máy.
4. Kiểm tra đường dây điện, phích cắm và các linh kiện trước khi sử dụng.
5. Vui lòng không kéo mạnh hoặc đẩy dây nguồn ra khỏi ổ cắm điện. Không xoắn hoặc uốn
cong dây nguồn. Không đặt dây điện gần thiết bị sưởi.
6. Vui lòng không cắm hoặc rút dây nguồn khi tay ướt.
10. Vui lòng không tháo rời máy khi đang vận hành cũng như không cho bất cứ thứ gì vào
hộp nước trái cây và bã khi đang vận hành.
9. Vui lòng không làm sạch thiết bị bằng dòng nước đang chảy để tránh máy bị ướt.
8. Nếu đường dây điện bị hư hỏng, để đảm bảo an toàn, nó phải được thay thế bởi công ty
bảo trì được ủy quyền hoặc chuyên gia về điện.
7. Vui lòng không sử dụng thiết bị khi dây nguồn hoặc phích cắm bị mất hoặc bị hỏng.
20
