KALOS KLEH163-0600C User manual

Headline
Ibiza Electric
Wall/Ceiling Mounted Heater - 2000W
KLEH163-0600C
Assembly Instructions
IMPORTANT
PLEASE KEEP THIS BOOKLET FOR FUTURE REFERENCE.
THIS IS IMPORTANT INFORMATION REGARDING THE USE AND
CARE OF YOUR OUTDOOR HEATER.
Nov 2021
ASSEMBLY
TIME
PERSONS
REQUIRED

Important Information
Important advice before you begin:
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved.
Children should not play with the appliance.
Cleaning and user maintenance should not be made by children without supervision.
Do not use any other tools other than those recommended to build this product.
Please do not use substitute parts. Use only additional or replacement parts supplied by Kettler.
In the unlikely event that this product has missing or damaged parts, please visit our website
www.kettler.co.uk/shop.
Unpack the outdoor heater making sure that all of the items are present and that
there are no components left in the box and the heater head is free from any
packaging material. Extra packaging is added to some models for transportation
protection which must be removed before assembly.
Using the detailed drawing following the steps to assemble the outdoor heater
(where relevant).
DO NOT connect the outdoor heater to the electrical supply until the assembly is
complete.
DO NOT connect the outdoor heater to the electrical supply if any of the
components or power cord is damaged in any way.
CAUTION - Risk of Electric Shock. DO NOT open or try to repair the heater yourself.

For Your Safety
1. Site the heater outside or in a large
open area and well away from any
obstructions such as branches or where
the heater is near any objects that can
be aected by heat, such as furniture,
curtains or other inammable objects
(minimum distance 1 metre).
2. DO NOT use this heater in the immediate
surroundings of a bath, a shower or a
swimming pool. Do not use near water.
3. DO NOT use in unventilated areas.
4. DO NOT use where gas, petrol, paint or
other surely ammable goods are stored.
5. DO NOT push any items through,
obstruct or cover the grill of the heater
head.
6. DO NOT position immediately above or
below an electrical socket.
7. DO NOT move when connected to an
electrical supply and always wait for
the patio heater to cool down before
cleaning / storing away.
8. DO NOT touch the heater head when in
use.
9. DO NOT leave turned on and
unattended especially when children
and or animals are in the vicinity.
10. The indication of the dierent positions
of switches shall be visible from a
distance of 1M.
Warning
• This heater is not equipped with a device
to control the room temperature. DO NOT
use this heater in small rooms when they
are occupied by persons not capable of
leaving the room on their own, unless
constant supervision is provided.
• Children of less than 3 years should be
kept away unless continuously supervised.
• Children under 8 years shall not plug
in, regulate and clean the appliance or
perform user maintenance.
Caution
• Some parts of this product can become
very hot and cause burns. Particular
attention must be given where children,
vulnerable people and animals are
present.
• For oor mounted heaters only use
the heater on a rm solid horizontal
area where all the feet on the base are in
contact with the oor. (Should the heater
be tilted or fall over the auto cut o switch
will activate).
• Risk of Electric Shock. DO NOT open or
try to repair the heater yourself.
• Any maintenance or repairs including
replacing the tube(s) should only be
carried out by a qualied electrician or by
a qualied service centre.

For Your Safety
11. The marking concerning covering should
be visible after the heater has been
installed. It shall not be placed on the
back of portable heaters.
12. The unit must be placed with the
clearance of 15cm from side wall, 25cm
from ceiling and 180cm from oor.
13. The unit must be correctly installed
according to the instructions.
14. The unit is at high temperature during
operation. It keeps hot for a period after
shut down. Potential danger would occur
when touching it during this period.
Unplug the unit and wait till it cools
before cleaning.
15. DO NOT place the unit close to curtain
and/or other ammable objects.
Otherwise there will be a danger of
catching re.
16. DO NOT cover the unit with anything
during operation or a short time after it is
shut down.
17. DO NOT wrap the power supply cord on
the unit.
18. The unit must be handled with care, and
avoid vibration or hitting.
19. An apparatus with CLASS I construction
shall be connected to a MAINS socket
outlet with a protective earthing
connection.
20. DO NOT use if the unit or power cable is
damaged.
21. DO NOT attempt to repair or adjust any
electrical or mechanical functions on this
unit. Doing so will void your warranty.
The inside of the unit contains no user
serviceable parts. Servicing / Repair
should only be performed by a qualied
electrician or qualied service centre.
22. DO NOT use this unit in place where
causticity or volatile air exists, i.e. dust,
steam, gas, etc.
23. DO NOT use this unit as a cloth drier or
towel drier.
24. DO NOT use this unit as a sauna heater.
25. DO NOT use this unit as a room heater.
26. DO NOT use this unit in place of animal
propagating and raising.
27. DO NOT immerse this unit into water for
cleaning.
28. The unit should be plugged in a socket,
which is easily visible and reachable.
29. DO NOT use this heater with a
programmer, timer or any other
device that switches the heater on
automatically, since a re risk exists
if the heater is covered or positioned
incorrectly.
30. Children should be supervised to ensure
that they do not play with the appliance.
31. When assembling, keep clear from any
board or ammable material.

For Your Safety
32. DO NOT insert or allow foreign objects to
enter any ventilation or exhaust opening
as this may cause an electric shock or re,
or damage the heater.
33. Use only for intended household use as
described in this manual. Any other use
not recommended by the manufacturer
may cause re, electric shock, or injury
to persons. The use of attachments not
recommended or sold by unauthorized
dealers may cause hazards.
34. The unit is for household use only. It is not
safe to use on a building site, greenhouse,
barn or stable where there’s ammable
dust.
35. Avoid the use of an extension cord
because the extension cord may overheat
and cause a risk of re. However, if you
must use an extension cord, the cord shall
be rated to 13A (Minimum conductor
size 1.5mm2) and if the cord is on a reel it
must be fully unwound before use.
36. Disconnect the power cable from the
electrical supply when the heater is not in
use. If the power cord becomes damaged,
it must be replaced by a qualied
electrician.
37. This appliance is not intended for use by a
person (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for
their safety.
38. One dark point may exist on the surface
of the heating elements during the
rst few minutes after it is turned on.
This is normal, and will not aect the
performance of the unit.
39. To avoid re or shock hazard, plug the
unit directly into a 220-240 Vac and 13A
electrical socket outlet.

M6x10 Screw
When using the heater, please carefully follow
the instructions and recommendations below.
• You could loosen the two M6*10 screws by
the ‘L’ hexagonal wrench to change the best
Angle of heating. Then retighten them.
Installation to Wall
• When xing the heater to a wall, ensure
hinges are in the underside so that the lid
hands down in the open position.
• Minimum required distances:
a) 150mm from the side wall
b) 250mm from the ceiling
c) Installation height above 1.8M
• The heater must be xed to a wall with
the bracket supplied to allow adequate
ventilation.
Installation
FLOOR
min.
25cm
WALL
min.
15cm
180cm

123 4
Assembly to Wall
Parts
Ref Name Qty
1 Expanding bolt M6*50 4
2 M6 spanner 1
3 ‘L’ hexagonal wrench(4mm) 1
4 Remote control 1
1• Step 1: put 4 x expanding
bolts M6*50 into the wall.

Assembly to Wall
2
3
• Step 2: Take o the nuts,
the spring locks washers
and the plain washers from
four expanding bolts. Keep
them for the next step.
• Step 3: Install the heater
on the wall

Finished
Assembly to Wall
4

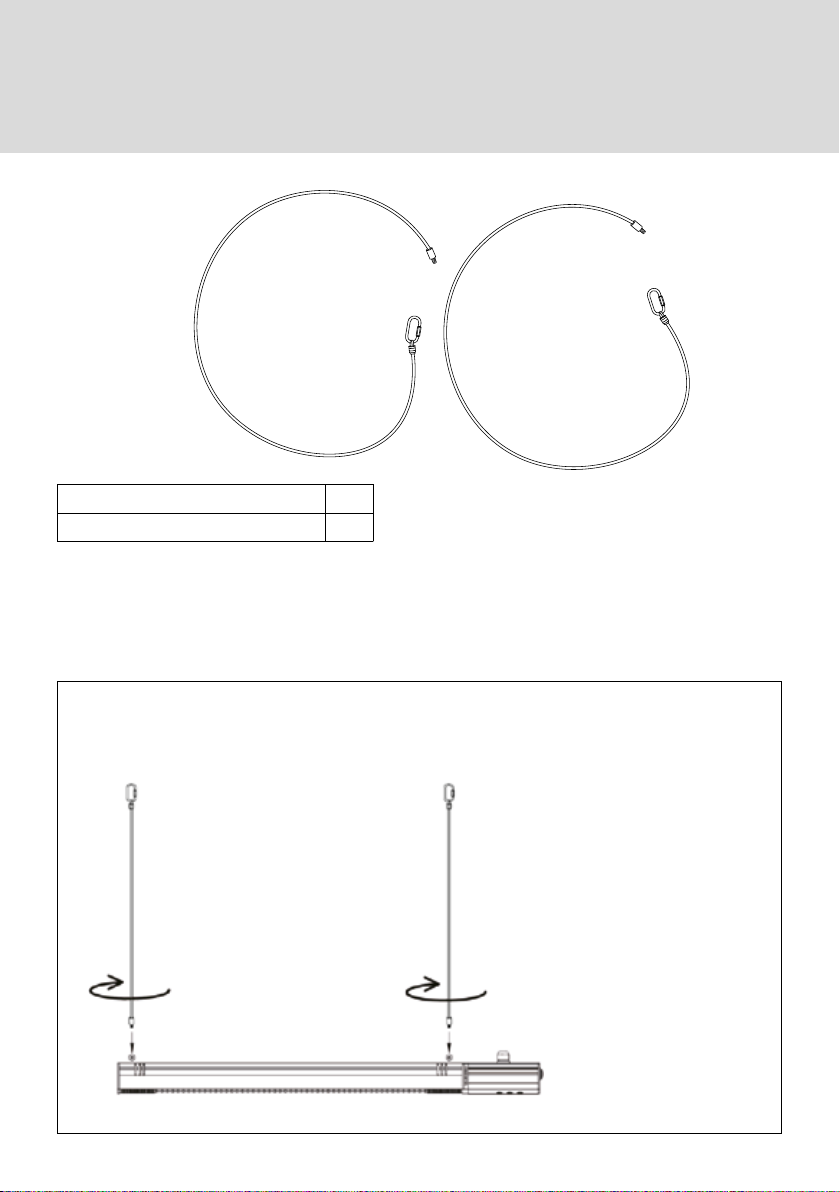

Assembly to Ceiling
1• Step 1: Attach the hanging
screw on the hanging
cable component into the
screw holes on the back of
the product and secure in
place tightly.
Parts
Name Qty
Hanging Cable 2

Assembly to Ceiling
2• Step 1: Hang the product
from a secure ceiling.
CEILING
Finished

Connect the power cable to a 13 amp supply which is located in
a safe, dry area.
The switch on the heater is used to control the Heater. When
the position mean on the , the standby light will be turn
orange, the heater will be in standby mode. The position will
turn o the Heater.
Operation Instructions
The Panel Control
• Touch the for low heat, touch it again to turn the heater o.
• Touch the for medium heat, touch it again to turn the heater o.
• Touch the for high heat, touch it again to turn the heater o.
Remote Control
• Touch the for low heat, touch it again to turn the heater o.
• Touch the for medium heat, touch it again to turn the heater o.
• Touch the for high heat, touch it again to turn the heater o.
• Although the heater is showerproof, do not use when raining or in
wet conditions.
• Disconnect the power cable from the electrical supply, when the
patio heater is not in use.

Trouble Shooting
If the heater will not operate, please check
the following before seeking repair of service:
• Check if the power cord is plugged into an
electrical outlet, if not plug in.
• Check if electricity to the main fuse
isworking.
• Make certain the power switches are turned
on. If not, choose a setting.
Technical specication
• Power supply 220V-240V 50Hz
• Wattage max 2000W
• Insulation class I
• Width 10cm; Length:81.8cm
WEEE: This product contains
recyclable materials. Do not
dispose this product as unsorted
municipal waste. Please contact
your local municipality for the nearest
collection point.
Operation Instructions

Headline
Maintenance and Care Instructions
www.kettler.co.uk
Warranty For Home Use
This product is covered by a 12 month
warranty against manufacturing faults.
This warranty applies to domestic use
only. It does not cover commercial use,
mis-use or accidental damage.
To validate your warranty, register
at www.kettler.co.uk and quote
the product code from the front of
this booklet.
12Mth
Warranty
• Unplug the unit and let it cool completely.
• When disconnected from the electrical supply, clean the outside of the patio heater with a
damp cloth. Never use corrosive or solvent cleaners or immerse in water.
• Any maintenance or repairs including replacing the halogen tube should only be carried out by
a qualied electrician or by a qualied service centre.
Storage
• If the heater will not be used for a long period of time, store it in a cool, dry location when not
in use. To prevent dust and dirt build-up, use the original packaging to repack the unit.
