KALOS KLEH104-0100-C User manual

Headline
Feb 2022
ASSEMBLY
TIME
PERSONS
REQUIRED
Plush Electric Heater
Overhang
KLEH104-0100-C
Assembly Instructions
IMPORTANT
PLEASE KEEP THIS BOOKLET FOR FUTURE REFERENCE.
THIS IS IMPORTANT INFORMATION REGARDING THE USE AND
CARE OF YOUR OUTDOOR HEATER.

Important Information
Important advice
before you begin:
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use
of the appliance in a safe way and understand the
hazards involved.
Children should not play with the appliance.
Cleaning and user maintenance should not be made by children
without supervision.
Do not use any other tools other than those recommended to build this
product.
Please do not use substitute parts. Use only additional or replacement
parts supplied by Kettler.
In the unlikely event that this product has missing or damaged parts,
please visit our website www.kettler.co.uk/shop.
Unpack the outdoor heater making sure that all of the items are present and that
there are no components left in the box and the heater head is free from any
packaging material. Extra packaging is added to some models for transportation
protection which must be removed before assembly.
Using the detailed drawing following the steps to assemble the outdoor heater
(where relevant).
DO NOT connect the outdoor heater to the electrical supply until the assembly is
complete.
DO NOT connect the outdoor heater to the electrical supply if any of the
components or power cord is damaged in any way.
CAUTION - Risk of Electric Shock. DO NOT open or try to repair the heater yourself.

For Your Safety
1. Site the heater outside or in a large
open area and well away from any
obstructions such as branches or where
the heater is near any objects that can
be aected by heat, such as furniture,
curtains or other inammable objects
(minimum distance 1 metre).
2. DO NOT use this heater in the immediate
surroundings of a bath, a shower or a
swimming pool. Do not use near water.
3. DO NOT use in unventilated areas.
4. DO NOT use where gas, petrol, paint or
other surely ammable goods are stored.
5. DO NOT push any items through,
obstruct or cover the grill of the heater
head.
6. DO NOT position immediately above or
below an electrical socket.
7. DO NOT move when connected to an
electrical supply and always wait for
the patio heater to cool down before
cleaning / storing away.
8. DO NOT touch the heater head when in
use.
9. DO NOT leave turned on and
unattended especially when children
and or animals are in the vicinity.
10. The indication of the dierent positions
of switches shall be visible from a
distance of 1M.
Warning
• This heater is not equipped with a device
to control the room temperature. DO NOT
use this heater in small rooms when they
are occupied by persons not capable of
leaving the room on their own, unless
constant supervision is provided.
• Children of less than 3 years should be
kept away unless continuously supervised.
• Children under 8 years shall not plug
in, regulate and clean the appliance or
perform user maintenance.
Caution
• Some parts of this product can become
very hot and cause burns. Particular
attention must be given where children,
vulnerable people and animals are
present.
• For oor mounted heaters only use
the heater on a rm solid horizontal
area where all the feet on the base are in
contact with the oor. (Should the heater
be tilted or fall over the auto cut o switch
will activate).
• Risk of Electric Shock. DO NOT open or
try to repair the heater yourself.
• Any maintenance or repairs including
replacing the tube(s) should only be
carried out by a qualied electrician or by
a qualied service centre.

For Your Safety
11. The marking concerning covering should
be visible after the heater has been
installed. It shall not be placed on the
back of portable heaters.
12. The unit must be placed with the
clearance of 50cm to the wall and 25cm
to the ceiling.
13. The unit must be correctly installed
according to the instructions.
14. The unit is at high temperature during
operation. It keeps hot for a period after
shut down. Potential danger would occur
when touching it during this period.
Unplug the unit and wait till it cools
before cleaning.
15. DO NOT place the unit close to curtain
and/or other ammable objects.
Otherwise there will be a danger of
catching re.
16. DO NOT cover the unit with anything
during operation or a short time after it is
shut down.
17. DO NOT wrap the power supply cord on
the unit.
18. The unit must be handled with care, and
avoid vibration or hitting.
19. An apparatus with CLASS I construction
shall be connected to a MAINS socket
outlet with a protective earthing
connection.
20. DO NOT use if the unit or power cable is
damaged.
21. DO NOT attempt to repair or adjust any
electrical or mechanical functions on this
unit. Doing so will void your warranty.
The inside of the unit contains no user
serviceable parts. Servicing / Repair
should only be performed by a qualied
electrician or qualied service centre.
22. DO NOT use this unit in place where
causticity or volatile air exists, i.e. dust,
steam, gas, etc.
23. DO NOT use this unit as a cloth drier or
towel drier.
24. DO NOT use this unit as a sauna heater.
25. DO NOT use this unit as a room heater.
26. DO NOT use this unit in place of animal
propagating and raising.
27. DO NOT immerse this unit into water for
cleaning.
28. The unit should be plugged in a socket,
which is easily visible and reachable.
29. DO NOT use this heater with a
programmer, timer or any other
device that switches the heater on
automatically, since a re risk exists
if the heater is covered or positioned
incorrectly.
30. Children should be supervised to ensure
that they do not play with the appliance.
31. When assembling, keep clear from any
board or ammable material.

For Your Safety
32. DO NOT insert or allow foreign objects
to enter any ventilation or exhaust
opening as this may cause an electric
shock or re, or damage the heater.
33. Use only for intended household use as
described in this manual. Any other use
not recommended by the manufacturer
may cause re, electric shock, or injury
to persons. The use of attachments not
recommended or sold by unauthorized
dealers may cause hazards.
34. The unit is for household use only. It
is not safe to use on a building site,
greenhouse, barn or stable where there’s
ammable dust.
35. Avoid the use of an extension cord
because the extension cord may
overheat and cause a risk of re.
However, if you must use an extension
cord, the cord shall be rated to 13A
(Minimum conductor size 1.5mm2) and
if the cord is on a reel it must be fully
unwound before use.
36. Disconnect the power cable from the
electrical supply when the heater is
not in use. If the power cord becomes
damaged, it must be replaced by a
qualied electrician.
37. This appliance is not intended for use
by a person (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning
use of the appliance by a person
responsible for their safety.
38. One dark point may exist on the surface
of the heating elements during the
rst few minutes after it is turned on.
This is normal, and will not aect the
performance of the unit.
39. To avoid re or shock hazard, plug the
unit directly into a 220-240 Vac and 13A
electrical socket outlet.

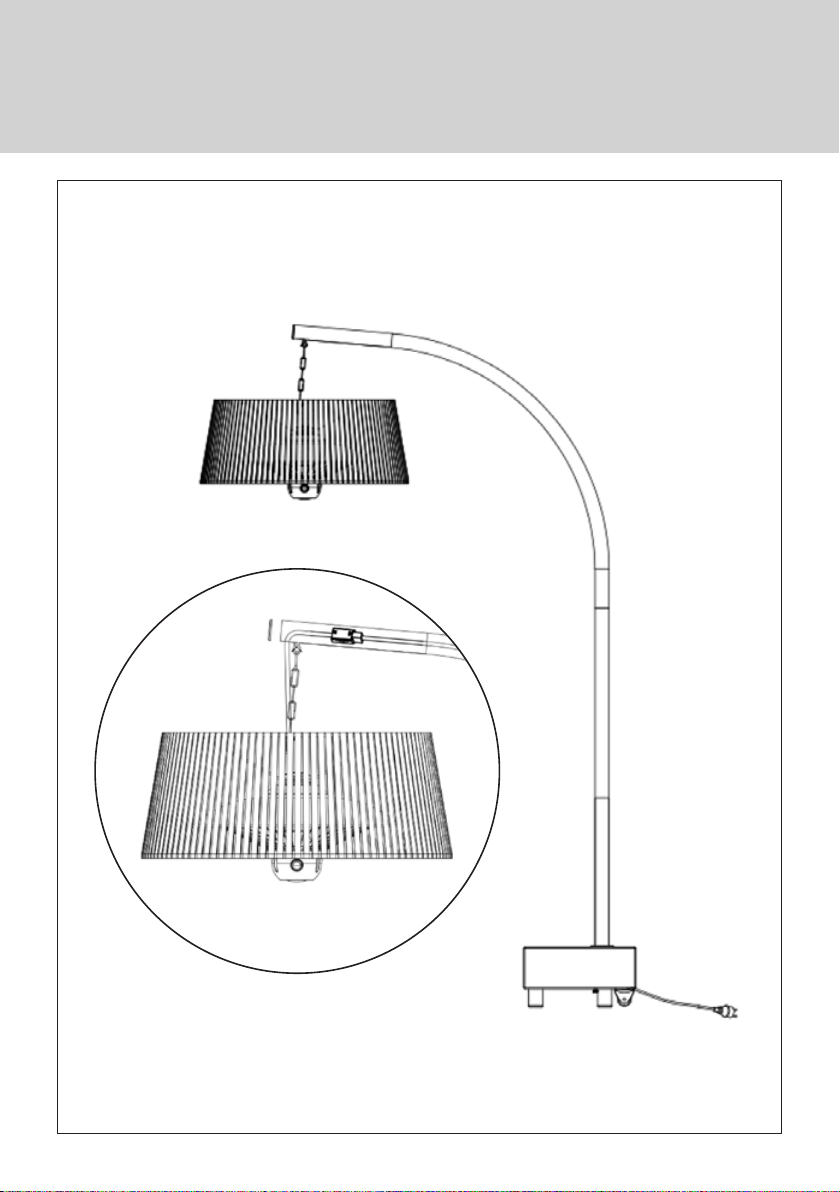

Assembly
• Step 1: Fill the base with
ne sand then cover it with
the four lids.
• Step 2: Place the bottom
tube through base, Then
connect them together
using the large screw nut.
1
2

3 4
Assembly
• Step 4: Place the power
cord plug through
the middle tube,Then
Connect them together by
screwing.
• Step 3: Place the power
cord plug through base,
bottom tube.

5
Assembly
• Step 5: Place the power
cord plug through the
bent tube,Then Connect
them together by
screwing.
Finished

6
Assembly
• Step 6: Place the heater
on the bent tube,Then
connect the power cord
plug to the socket in the
heater head.

7
Assembly
• Step 7: Place the socket
into the bent tube and
cover it with a lid.
Finished

Installation
The heater is built with the best quality components in accordance to the prevailing legal
regulations and certied for safety in use. For best results, please ensure that the installation
is done by a qualied electrician in accordance with the following instructions and taking full
account of current regulations. When using the heater, please carefully follow the instructions
and recommendationsbelow.

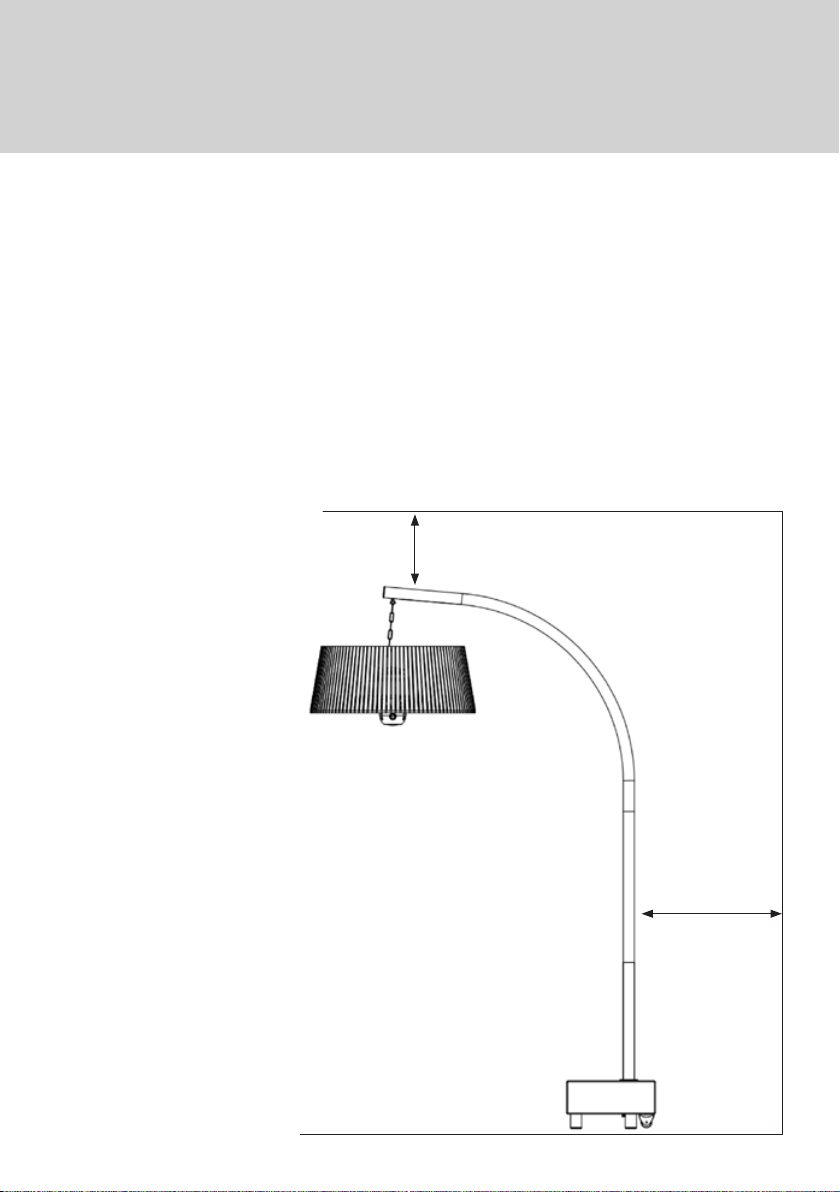

Minimum required distances of installation:
• 500mm from the side wall
• 250 mm from the ceiling
• Generally heaters must be placed at a safe distance (clear space) of at least 2.0m from
combustible materials and glass walls. If installed in workshops or garages where inammable
or combustible paints are used, the heaters must be installed at a distance of at least 4.0m from
the source ofdanger.
• If the heaters are placed in
areas where spray painting
of any description is taking
place, they should not be
used during the painting
operations.
• Never use the heater in
particularly dusty and
explosive areas.
CEILING
min.
25cm
WALL
min. 50cm

Operating Instructions
Connect the power cable to a 13 amp supply that is located in a safe, dry area.
A. Plug the Patio Heater into a grounded 230V, 50-60 Hz power outlet
B. Only operate the heater when it is in the upright position.
C. Our Electric Patio Heater is equipped with two heat settings
WARNING: The heater must be properly installed before it is used.
This unit is equipped with two heat settings.
Manual operating instructions
• Press the touch switch once for low heat (800W).
• Press the touch switch twice for high heat (1800W)
• Press the touch switch three times to turn the heater o and LED on.
• Press the touch switch four times for high heat and LED.
• Press the touch switch ve times to turn all o

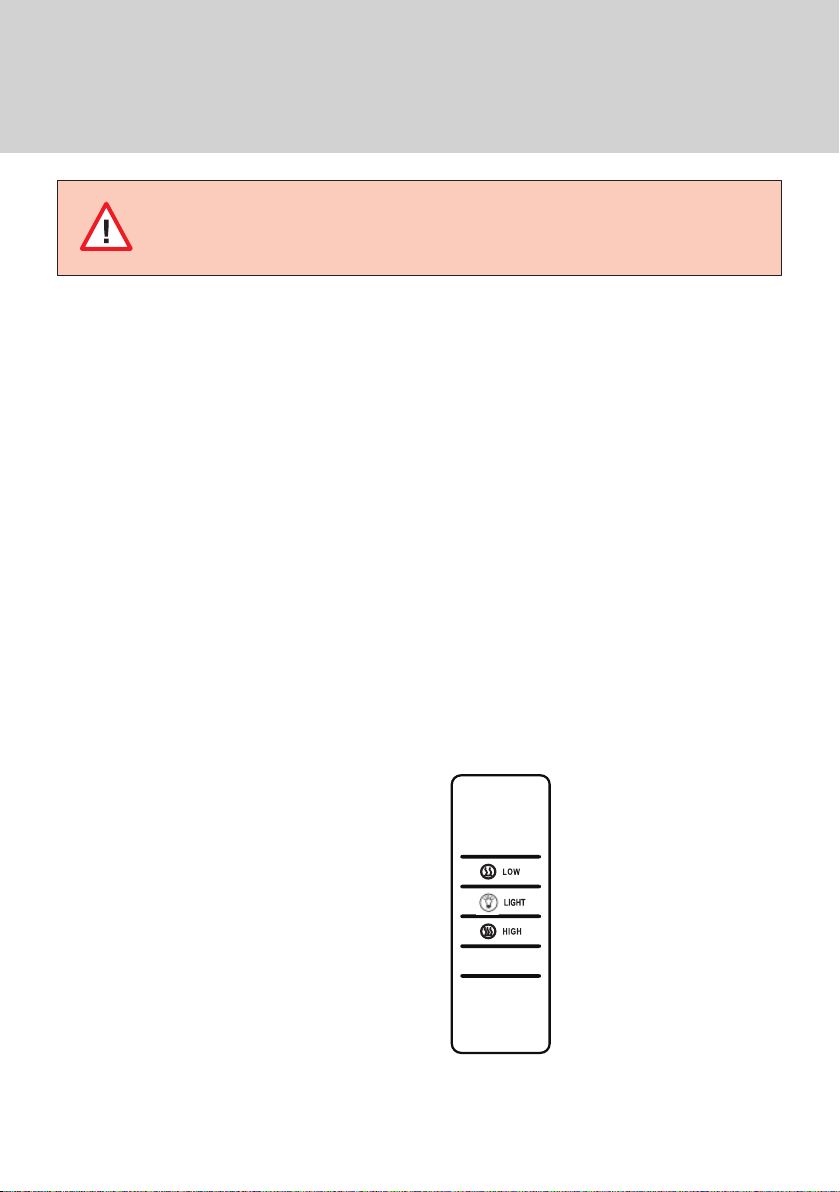

Remote control operation
A. Press the On/O switch to activate
theheater
B. To operate the heater on low power
(800W), press the low button on the
remote control
C. To operate the heater on medium
(1000W), just press the HIGH button on
the remote control
D. Press both HIGH and LOW buttons on
the remote control for maximum power
(1800W)
E. To operate the LED light, press the LIGHT
button on the remote control

Headline
Trouble Shooting
If the heater will not operate, please check
the following before seeking repair or service:
• Check if the power cord is plugged into an
electrical outlet, if not plug in.
• Check if electricity to the main fuse
isworking.
• Make certain the power switches are turned
on. If not, choose a setting.
Technical specication
• Ratings: 220-240V 50Hz
• Power consumption: 800/1800W
• Height: 230CM
• Insulation: class 1

Headline
Maintenance and Care Instructions
• Unplug the unit and let it cool completely.
• To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a
mild detergent if necessary. After cleaning, dry the unit with a soft cloth.
• DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean
the heater. This may cause damage or deterioration to the surface of the heater.
• Although this heater is outdoor approved, DO NOT immerse the heater into water for cleaning
for your safety.
• Wait until the unit is completely dry and cools o before use.
• Check all components regularly for correct function, damage and loose connections especially
at the start of the season and at 1-2 month intervals dependent on use.
• Damaged components may endanger your safety or shorten the life of the product. Replace all
damaged parts immediately. Use only spare parts manufactured by Kettler. Should you wish to
purchase spare parts, they can be ordered directly from: www.kettler.co.uk/shop
• Kettler will not be responsible for damaged caused by improper use.
Storage
• If the heater will not be used for a long period of time, store it in a cool, dry location when not
in use. To prevent dust and dirt build-up, use the original packaging to repack the unit.
Warranty For Home Use
This product is covered by a 12 month
warranty against manufacturing faults.
This warranty applies to domestic use
only. It does not cover commercial use,
mis-use or accidental damage.
To validate your warranty, register
at www.kettler.co.uk and quote
the product code from the front of
this booklet.
12Mth
Warranty
www.kettler.co.uk
The symbol indicates that the
product should not be discarded as
unsorted waste but must be sent
to separate collection facilities for
recovery and recycling.
