KALOS KLEH163-0600C User manual

Headline
Ibiza Wall Mounted
Electric Heater
KLEH163-0600C
Assembly Instructions
IMPORTANT
PLEASE KEEP THIS BOOKLET FOR FUTURE REFERENCE.
THIS IS IMPORTANT INFORMATION REGARDING THE USE AND
CARE OF YOUR HALOGEN HEATER.
Oct 2020
ASSEMBLY
TIME
PERSONS
REQUIRED

Important Information
Important advice before you begin:
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved.
Children should not play with the appliance.
Cleaning and user maintenance should not be made by children without supervision.
Do not use any other tools other than those recommended to build this product.
Please do not use substitute parts. Use only additional or replacement parts supplied by Kettler.
In the unlikely event that this product has missing or damaged parts, please visit our website
www.kettler.co.uk/shop.
Unpack the halogen heater making sure that all the items are present and that
there are no components left in the box and that the heater head is free from any
packing material.
Using the detailed drawing follow the steps to assemble your halogen heater.
DO NOT connect the halogen heater to the electrical supply until all the
assemblyiscomplete.
DO NOT connect the halogen heater to the electrical supply if any of the
components or the power cord is damaged in any way.
If in doubt contact your supplier.

For Your Safety
Warning
• This heater is not equipped with a
device to control the room temperature.
DO NOT use this heater in small rooms
when they are occupied by persons
not capable of leaving the room on
their own, unless constant supervision
isprovided.
• Children of less than 3 years should
be kept away unless continuously
supervised.
• Children under 8 years shall not plug
in, regulate and clean the appliance or
perform usermaintenance
Caution
• Some parts of this product can become
very hot and cause burns. Particular
attention has to be given where children
and vulnerable people are present.
• Only use the heater on a rm solid
horizontal area where all the feet on
the base are in contact with the oor.
(Should the heater be tilted or fall over
the auto cut o switch will activate)
1. Site the heater outside or in a large
open area and well away from any
obstructions such as branches or where
the heater is near any objects that can
be eected by heat, such as furniture,
curtains or other inammable objects
(minimum distance 1 metre).
2. DO NOT use this heater in the
immediate surroundings of a bath, a
shower or a swimming pool. Do not use
near water.
3. DO NOT use in unventilated areas
4. DO NOT use where gas, petrol, paint or
other surely ammable goods are stored.
5. DO NOT push any items through,
obstruct or cover the grill of the
heaterhead.
6. DO NOT position immediately above or
below an electrical socket.
7. DO NOT move when connected to an
electrical supply and always wait for
the patio heater to cool down before
storingaway.
8. DO NOT touch the heater wheninuse.
9. DO NOT leave turned on and
unattended especially when children
and or animals are in the vicinity.
10. The indication of the dierent positions
of switches shall be visible from a
distance of 1M.
11. The Marking concerning covering should
be visible after the heater has been
installed. It shall not be placed on the
back of portable heaters.

For Your Safety
12. The unit must be placed with the
clearance of 180cm to the oor and
30cm to the ceiling.
13. The unit must be correctly installed
according to the instructions.
14. The unit must be securely placed on a
horizontal and at surface.
15. The unit is at high temperature during
operation. It keeps hot for a period after
shut down. Potential danger would occur
when touching it during this period.
Unplug the unit and wait till it cools
before cleaning.
16. DON’T place the unit close to curtain
and/or other ammable objects.
Otherwise there will be a danger of
catching re.
17. DON’T cover the unit with anything
during operation or a short time after it’s
shut down.
18. DON’T wrap the power supply cord on
theunit.
19. The unit must be handled with care, and
avoid vibration or hitting.
20. The unit must be securely grounded
during operation.
21. If the unit gets damaged, it must be
repaired by professional electricians with
relevant qualications.
22. When the power supply cord is
damaged, it must be replaced by a
qualied engineer to avoid danger.
23. DON’T use this unit in place where
causticity or volatile air exists, i.e. dust,
steam, gas, etc.
24. DON’T use this unit as a cloth drier
ortowel drier.
25. DON’T use this unit as a sauna heater.
26. DON’T use this unit as a room heater.
27. DON’T use this unit in place of animal
propagating and raising.
28. DON’T immerse this unit into water
forcleaning.
29. The unit should be plugged in a socket,
which is easily visible and reachable.
30. DON’T use this heater with a
programmer, timer or any other
device that switches the heater on
automatically, since a re risk exists
if the heater is covered or positioned
incorrectly.
31. Children should be supervised to ensure
that they do not play with the appliance.
32. When assembling, keep clear from any
board or ammable material.
33. DO NOT insert or allow foreign objects
to enter any ventilation or exhaust
opening as this may cause an electric
shock or re, or damage the heater.
34. Use only for intended household use as
described in this manual. Any other use
not recommended by the manufacturer
may cause re, electric shock, or injury
to persons. The use of attachments not
recommended or sold by unauthorized
dealers may cause hazards.
35. Always use on a dry, level surface. Use on
ceiling only.

Installation
Ibiza Wall Mounted Heater is built with the best quality components in accordance to the
prevailing legal regulations and certied for safety in use. For best results from the appliance
please ensure that the installation is done by a qualied electrician in accordance with the
following instructions and taking full account of current regulations. When using the heater,
please carefully follow the instructions and recommendations below.

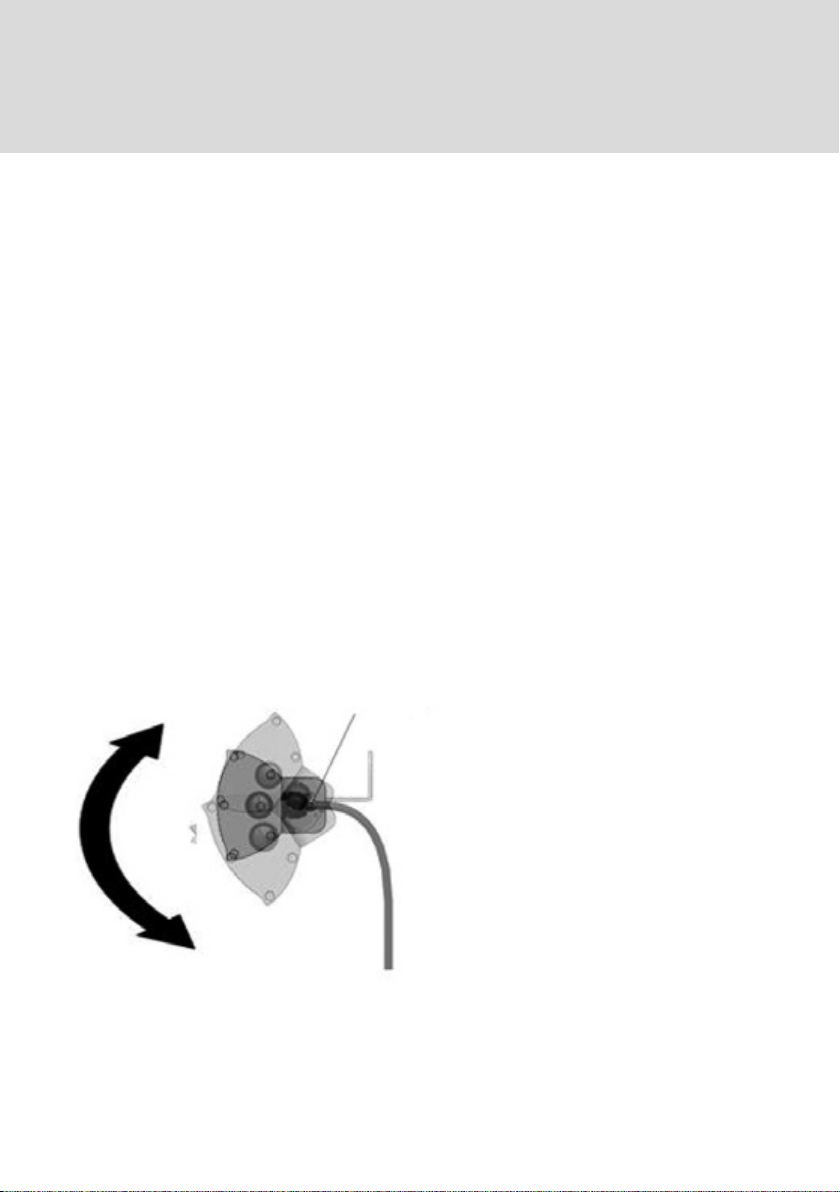

• You could loosen the two M6*10 screws by the ‘L’ hexagonal wrench to change the best Angle
of heating. Then retighten them.
Installation to Wall
• When xing the heater to a wall, ensure hinges are in the underside so that the lid hands down
in the open position.

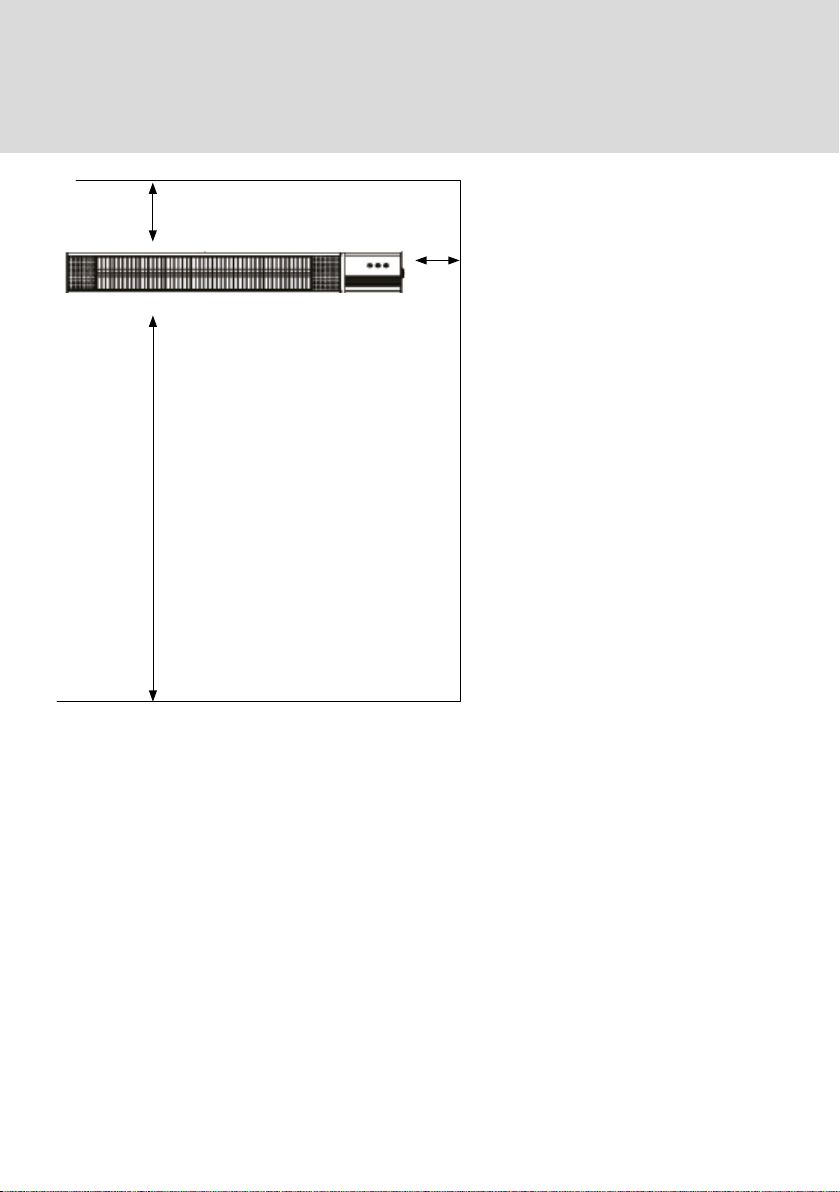

• Minimum required distances:
a) 150mm from the side wall
b) 250mm from the ceiling
c) Installation height above 1.8M
M6x10 Screw

• The heater must be xed to a wall with the bracket supplied to allow adequate ventilation.
• Never x or place heater near ammable or combustible materials.
• Generally heaters must be placed at a safe distance (clear space) of at least 2.0m from
combustible materials and glass walls. If installed in workshops or garages where inammable
or combustible paints are used, the heaters must be installed at a distance of at least 4.0m from
the source of danger.
• If the heaters are placed in areas where spray painting of any description is taking place, they
should not be used during the painting operations.
• Never use the heater in particularly dusty and explosive areas.
Connection to 220-240 Volts Power Supply
• It is important to ensure that the electricity supply is of adequate capacity for the electrical load
required by the appliance being installed.
• These appliances must be earthed.
Installation
CEILING
min.
25cm
WALL
min.
15cm
180cm

Assembly to Wall
123 4
Parts
Ref Name Qty
1 Explosive bolt M6*50 4
2 M6 spanner 1
3 ‘L’ hexagonal wrench(4mm) 1
4 Remote control 1
1• Step 1: put 4 Explosive
bolt M6*50 into the wall.

Assembly to Wall
2
3
• Step 2: Take o the nuts,
the spring locks washers
and the plain washers from
four explosive bolts. Keep
them for the next step.
• Step 3: Install the heater
on the wall

Finished
Assembly to Wall
4

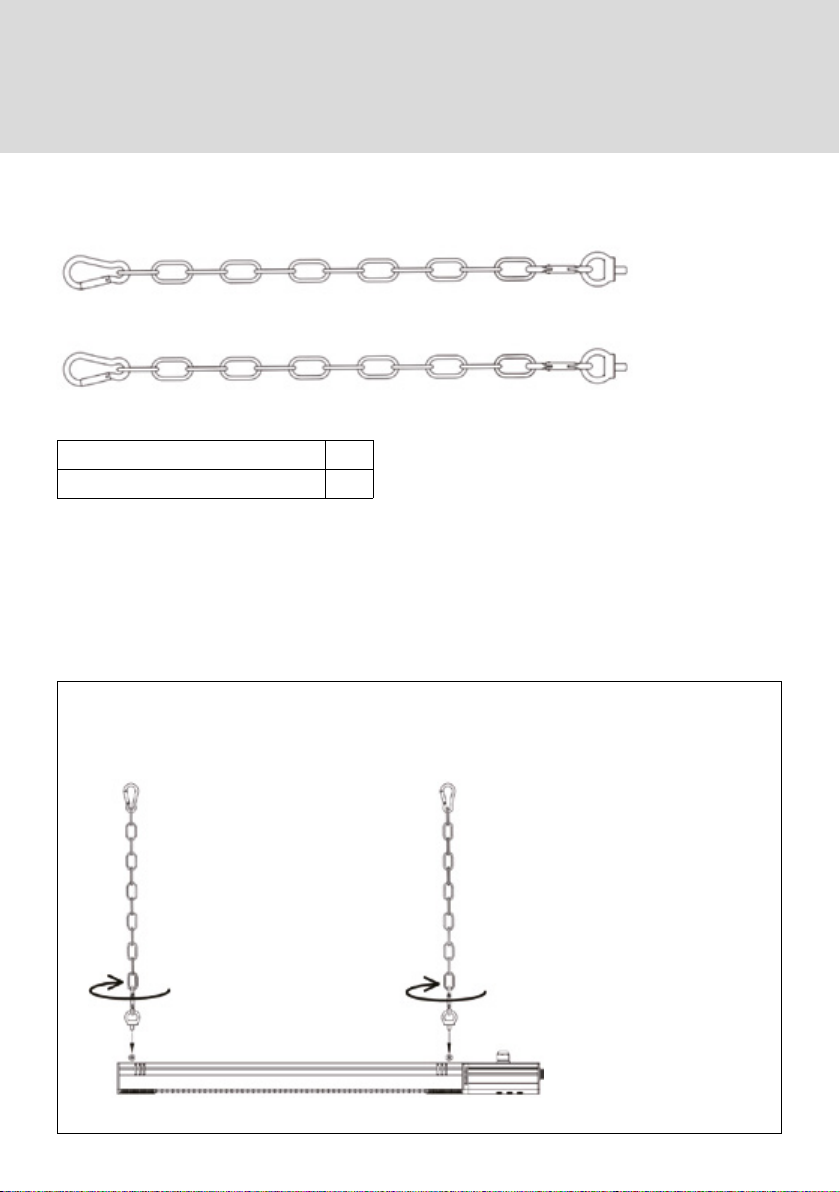

Assembly to Ceiling
1• Step 1: Install the lifting
ring screw on the lifting
chain component into 2
screw hol es on the back
of the product and twist
tightly.
Parts
Name Qty
Changing Chain Components 2

Assembly to Ceiling
2• Step 1: Hang the product
from a secure ceiling.
CEILING
Finished

Connect the power cable to a 13 amp supply which is located in
a safe, dry area.
The switch on the heater is used to control the Heater. When
the position mean on the , the standby light will be turn
orange, the heater will be in standby mode. The position will
turn o the Heater.

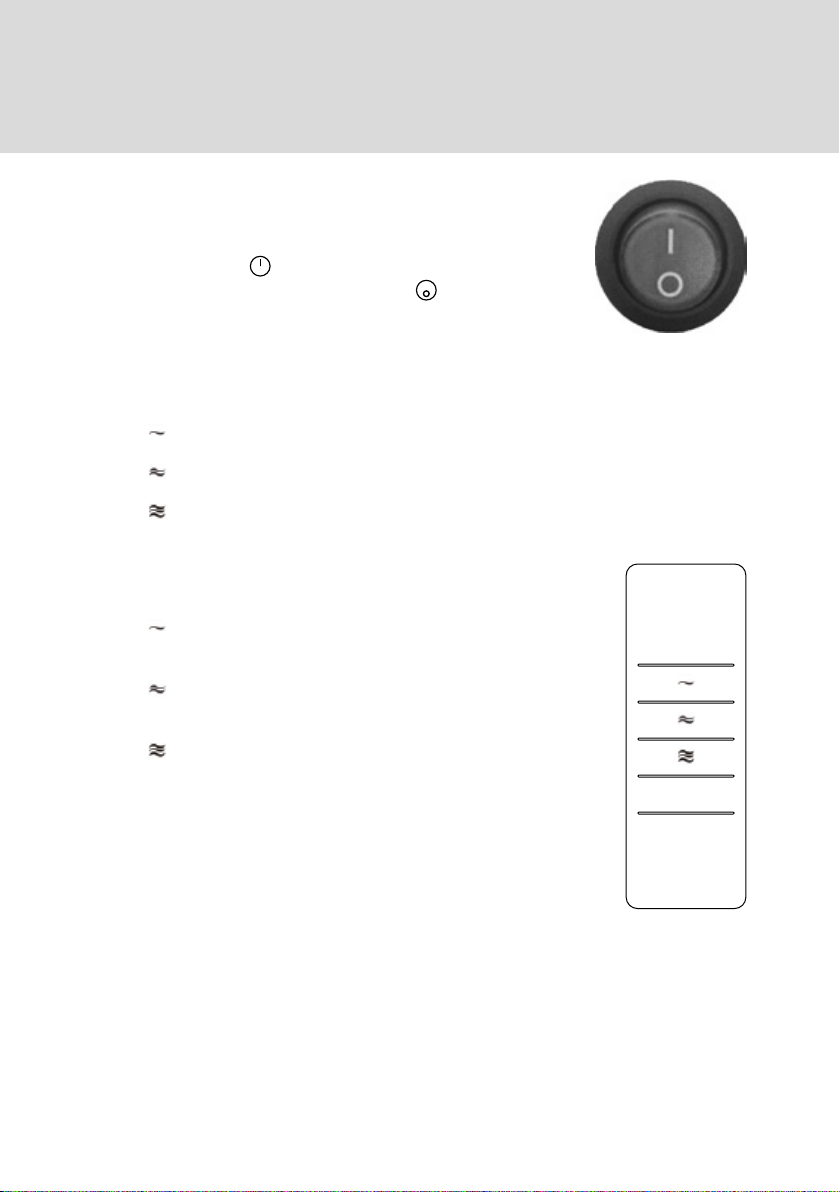

Operation Instructions
The Panel Control
• Touch the for low heat, touch it again to turn the heater o.
• Touch the for medium heat, touch it again to turn the heater o.
• Touch the for high heat, touch it again to turn the heater o.
Remote Control
• Touch the ,This heating tube is of low grade; touch it again, close
the heater.
• Touch the . The heating tube is in the middle range;touch it again,
close the heater.
• Touch the ,This heating tube is of high grade;touch it again, close
the heater.
• Although the patio heater is waterproof, do not use when raining or
in wet conditions.
• Never connect the power cable from the electrical supply, when the
patio heater is not in use.

Trouble Shooting
If the heater will not operate, please check
the following before seeking repair of service:
• Check if the power cord is plugged into an
electrical outlet, if not plug in.
• Check if electricity to the main fuse
isworking.
• Make certain the power switches are turned
on. If not, choose a setting.
Technical specication
• Power supply 220V-240V 50Hz
• Wattage max 2000W
• Insulation class I
• Width 10cm; Length:81.8cm
WEEE: This product contains
recyclable materials. Do not
dispose this product as unsorted
municipal waste. Please contact
your local municipality for the nearest
collection point.
Operation Instructions

Headline
Maintenance and Care Instructions
www.kettler.co.uk
Warranty For Home Use
This product is covered by a 12 month
warranty against manufacturing faults.
This warranty applies to domestic use
only. It does not cover commercial use,
mis-use or accidental damage.
To validate your warranty, register
at www.kettler.co.uk and quote
the product code from the front of
this booklet.
12Mth
Warranty
• Unplug the unit and let it cool completely.
• When disconnected from the electrical supply, clean the outside of the patio heater with a
damp cloth. Never use corrosive or solvent cleaners or immerse in water.
• Any maintenance or repairs including replacing the halogen tube should only be carried out by
a qualied electrician or by a recommended service center.
Storage
• If the heater will not be used for a long period of time, store it in a cool, dry location when not
in use. To prevent dust and dirt build-up, use the original packaging to repack the unit.
