KALOS KLEH111-0200 User manual

Universal Electric Heater
Floor Standing
KLEH111-0200
Assembly Instructions
Sept 2020
ASSEMBLY
TIME
PERSONS
REQUIRED
IMPORTANT
PLEASE KEEP THIS BOOKLET FOR FUTURE REFERENCE.
THIS IS IMPORTANT INFORMATION REGARDING THE USE AND
CARE OF YOUR HALOGEN HEATER.

Important Information
Important advice before you begin:
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
Children should not play with the appliance.
Cleaning and user maintenance should not be made by children
without supervision.
Do not use any other tools other than those recommended to
build this product.
Please do not use substitute parts. Use only additional or
replacement parts supplied by Kettler.
In the unlikely event that this product has missing or damaged
parts, please visit our website www.kettler.co.uk/shop.
Unpack the halogen heater making sure that all the items are present and that
there are no components left in the box and that the heater head is free from any
packing material.
Using the detailed drawing follow the steps to assemble your heater.
DO NOT connect the heater to the electrical supply until all the
assemblyiscomplete.
DO NOT connect the heater to the electrical supply if any of the components or the
power cord is damaged in any way.
If in doubt contact your supplier.

Warning
• This heater is not equipped with a
device to control the room temperature.
DO NOT use this heater in small rooms
when they are occupied by persons
not capable of leaving the room on
their own, unless constant supervision
isprovided.
• Children of less than 3 years should
be kept away unless continuously
supervised.
• Children under 8 years shall not plug
in, regulate and clean the appliance or
perform usermaintenance
Caution
• Some parts of this product can become
very hot and cause burns. Particular
attention has to be given where children
and vulnerable people are present.
• Only use the heater on a rm solid
horizontal area where all the feet on
the base are in contact with the oor.
(Should the heater be tilted or fall over
the auto cut o switch will activate)
For Your Safety
1. Site the heater outside or in a large
open area and well away from any
obstructions such as branches or where
the heater is near any objects that can
be eected by heat, such as furniture,
curtains or other inammable objects
(minimum distance 1 meter).
2. DO NOT push any items through,
obstruct or cover the grill of the heater.
3. Suggest follow the standard statement:
The heater must not be located
immediately below a socket outlet.
4. DO NOT move when connected to an
electrical supply and always wait for
the patio heater to cool down before
storingaway.
5. DO NOT touch the heater when in use.
6. The indication of the dierent positions
of switches shall be visible from a
distance of 1m.
7. The unit must be placed with the
clearance of 100cm to the wall.
8. The marking concerning covering should
be visible after the heater has been
installed. It should not be placed on the
back of portable heaters.
9. The unit must be securely placed on a
horizontal and at surface.
10. DON’T place the unit close to curtains
and/or other ammable objects.
Otherwise there will be a danger of
catching re.
11. DON’T wrap the power supply cord on
the unit.
12. The unit must be securely grounded
during operation.
13. The unit must be handled with care, and
avoid vibration or hitting.

For Your Safety
14. The unit must be handled with care, and
avoid vibration or hitting.
15. If the unit gets damaged, it must be
repaired by professional electricians.
16. The unit is for household use only. It
is not safe to use on a building site,
greenhouse, barn or stable where there’s
ammable dust.
17. The head of the unit is at high
temperature during operation.
Unplug the unit and wait till it cools
beforecleaning.
18. DON’T use this unit in place where
causticity or volatile air exists, i.e. dust,
steam, gas, etc.
19. DON’T use this unit as a cloth drier or
towel drier.
20. DON’T use this unit in place of animal
propagating and raising.
21. DON’T immerse this unit into water
forcleaning.
22. DO NOT use this heater in the
immediate surroundings of a bath, a
shower or a swimming pool. DO NOT
use near water.
23. DO NOT use in unventilated areas.
24. The unit should be plugged in a socket,
which is easily visible and reachable.
25. One dark point may exist on the surface
of the heating elements during the
rst few minutes after it is turned on.
This is normal, and will not aect the
performance of the unit.
26. DO NOT use this heater with a
programmer, timer, separate remote-
control system or any other device that
switches the heater on automatically,
since a re risk exist if the heater is
covered or positioned incorrectly.
27. This appliance is not intended for use by
person (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for
their safety.
28. Children should be supervised to ensure
that they do not play with the appliance.
29. If the supply cord is damaged, it must be
replaced by a qualied to avoid danger.
Warning
• These appliances must
beearthed.
• Before installing or replacing the
bulb, the appliance must be always
being disconnected from the
220-240V supply.
This warning symbol
indicates that the surface is
hot and caution is required.

Installation
This heater is built with the best quality
components in accordance to the prevailing
legal regulations and certied for safety
in use. For best results from the appliance
please ensure that the installation is done by
a qualied electrician in accordance with the
following instructions and taking full account
of current regulations. When using the heater,
please carefully follow the instructions and
recommendations below.
Connection to 220-240 Volts Power Supply
• It is important to ensure that the electricity
supply is of adequate capacity for the
electrical load required by the appliance
being installed.

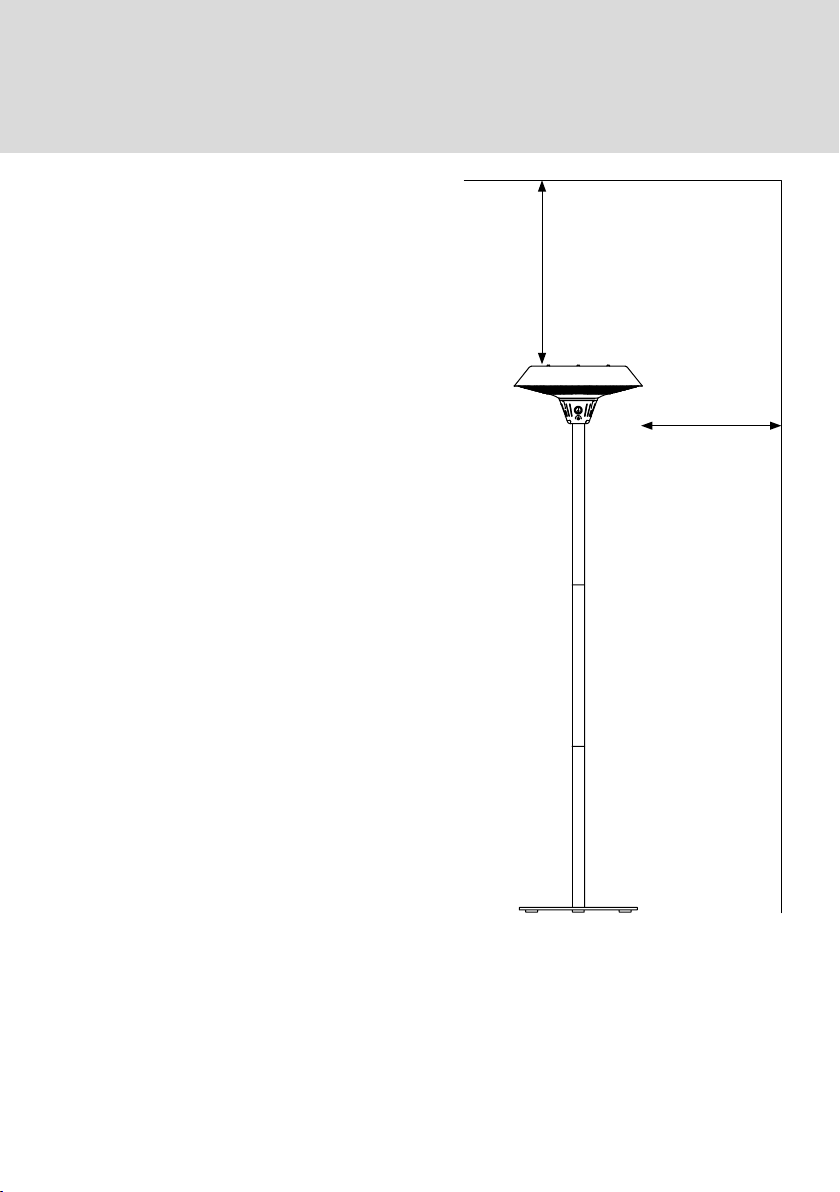

Minimum required
distances:
• 250mm from the side wall
• 500 mm from the ceiling
• Generally heaters must be placed at a safe
distance (clear space) of at least 2.0m from
combustible materials and glass walls. If
installed in workshops or garages where
inammable or combustible paints are
used, the heaters must be installed at a
distance of at least 4.0m from the source
ofdanger.
• If the heaters are placed in areas where
spray painting of any description is taking
place, they should not be used during the
painting operations.
• Never use the heater in particularly in dusty
and explosive areas.
CEILING
min. 25cm
min. 50cm
WALL

Assembly
WARNING: Please tear o all of the protective
lm around the shade rst.
• Step 1: Connect the tube
with base by screwing
them together.
• Step 2: Pull the power
cord through the pole
andbase.
• Step 3: Connect the power
cord plug to the socket in
the heater head.
1
2

Assembly
• Step 4: Connect the heater
head with the tube by
screwing them together.
• Step 5: Fixed the power
cord with the press clip in
the base.
• Step 6: Fix the heater on
the oor. Bore three holes
in the oor, x the heater
by three wedge bolts on
the oor tightening the
screws by spanner.
3
4

Operation & Technical Specications
Connect the power cable to a 220-240V, 13
amp supply that is located in a safe, dry area.
• Press the [ I ] button, the heater will enter
ready mode.
• Touch the touch switch once, the heater will
be on 800W.
• Touch the touch switch twice, the heater
will be on 1200W.
• Touch the touch switch three times, the
heater will be on 2000W.
• Touch the touch switch four times, the heat
will turn o.
• Press the button [ O ], the heater will turno.
Remote Control
• Press the LOW button, the heater will be
on800W.
• Press the High button, heater will be
on1200W.
• Press the LOW and High button at the same
time, heater will be on 2000W.
Technical Specications
• Power supply 230V~ 50-60Hz
• Wattage max 2100w
• Net weight 16.5 kg
• Insulation class I
WARNING: The heater must be properly installed before it is used. This unit is
equipped with one heat setting On I O.

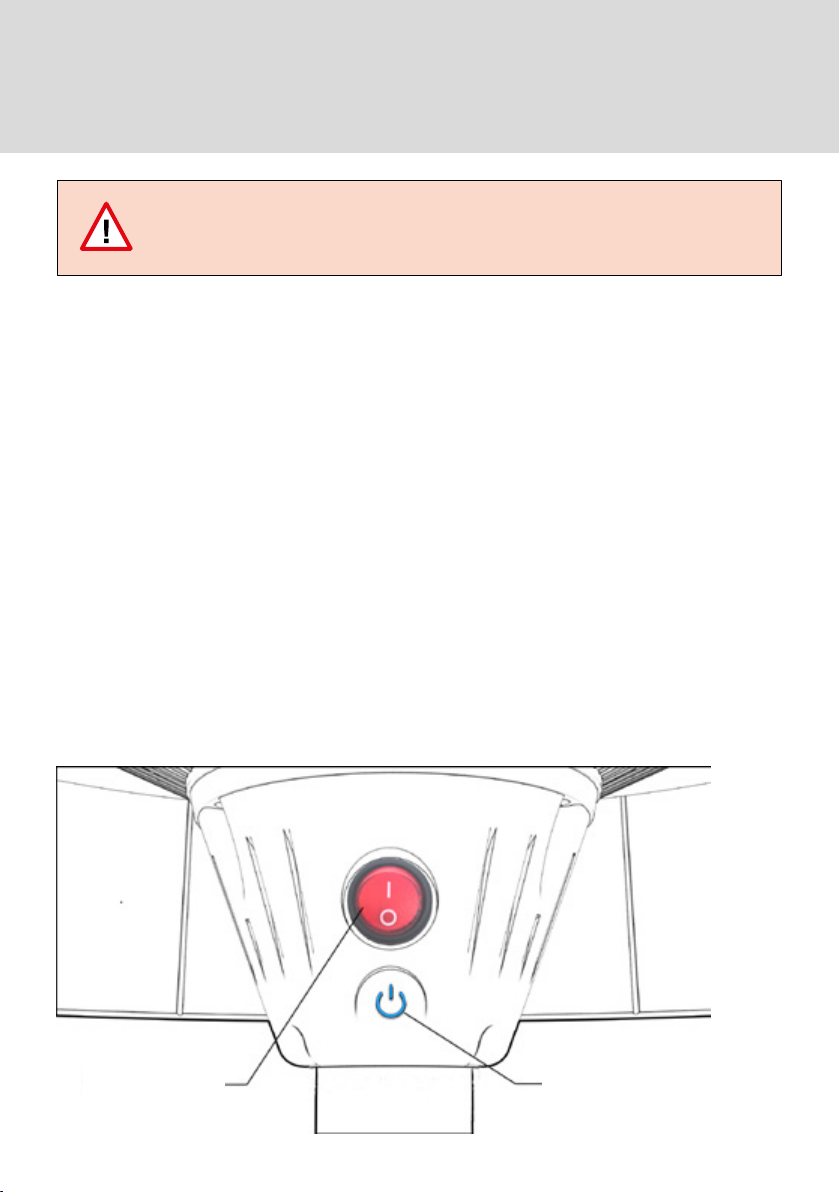

On | O Switch Touch Switch

Maintenance and Care Instructions
• When disconnected from the electrical supply, clean the outside of the patio heater with a
damp cloth. Never use corrosive or solvent cleaners or immerse in water.
• Any maintenance or repairs including replacing the halogen tube should only be carried out by
a qualied electrician or by a recommended service center.
• Check all components regularly for correct function, damage and loose connections especially
at the start of the season and at 1-2 month intervals dependent on use.
• Damaged components may endanger your safety or shorten the life of the product. Replace all
damaged parts immediately. Use only spare parts manufactured by Kettler. Should you wish to
purchase spare parts, they can be ordered directly from: www.kettler.co.uk/shop
• Kettler will not be responsible for damaged caused by improper use.
www.kettler.co.uk
Warranty For Home Use
This product is covered by a 12 month
warranty against manufacturing faults.
This warranty applies to domestic use
only. It does not cover commercial use,
mis-use or accidental damage.
To validate your warranty, register
at www.kettler.co.uk and quote
the product code from the front of
this booklet.
12Mth
Warranty
