Kanto YU5 User manual
User Manual
YU5 Powered Speakers
Supporting your digital lifestyle™
English
YUMI
POWERED SPEAKERS
2
Table of Contents
Important Safety Precautions . . . . . . . 2
Introduction / What’s in the Box? . . . . . 3
Front & Rear Panels . . . . . . . . . . . . 4
Remote Control . . . . . . . . . . . . . . 5
Setting Up Your Speakers. . . . . . . . . . 6
Connecting Audio Sources . . . . . . . . . 7
USB Charging . . . . . . . . . . . . . . . 9

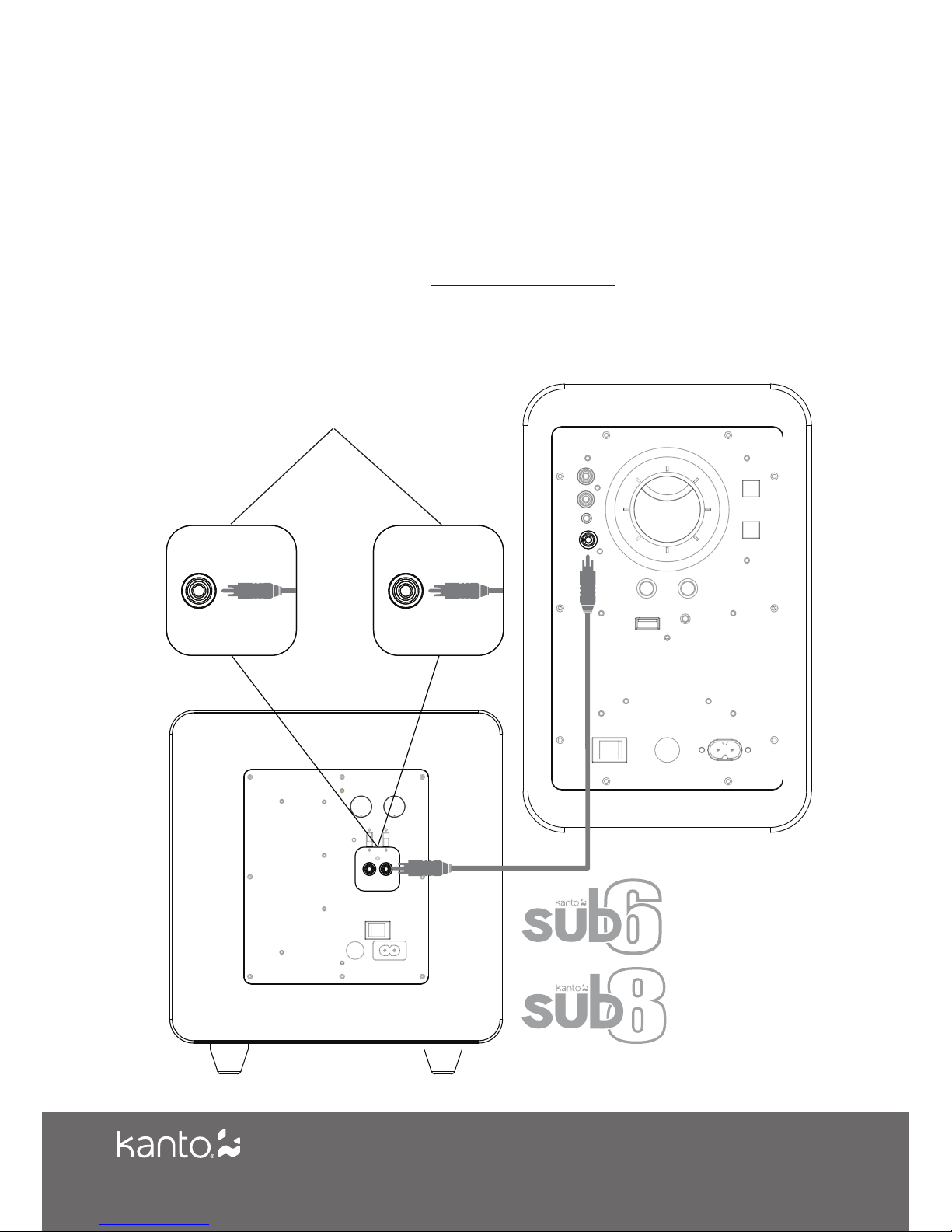

Connecting a Sub-Woofer. . . . . . . . . .10
Specifications . . . . . . . . . . . . . . . .11
Warranty . . . . . . . . . . . . . . . . . .12
Important Safety Precautions
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
• Protect the power-supply cord from being walked on or
pinched, particularly at plugs, convenience receptacles and
the point where they exit from the apparatus.
• Only use attachments / accessories specified by the
manufacturer.
• Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when
unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, the
apparatus does not operate normally, or the apparatus has
been dropped.
• Apparatus shall be connected to a MAINS socket outlet with
a protective earthing connection.
• An appliance input coupler is used as the disconnect device
- the disconnect device shall remain readily operable.
• Batteries or battery packs shall not be exposed to excessive
heat such as sunshine, fire or the like.
CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK, DO
NOT REMOVE BACK PANEL.
NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING
TO QUALIFIED SERVICE
PERSONNEL.
DANGEROUS VOLTAGE
The lightning flash with arrowhead, within an
equilateral triangle, is intended to alert the user
of the presence of non-insulated “dangerous
voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a
risk of electric shock to persons.
ATTENTION
The exclamation point within an
equilateral triangle is intended to
alert the user of the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the apparatus.
FCC Warnings
• Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules.
FCC Notice:
• This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Industry Canada Notice:
• Complies with CAN ICES-3(B) / NMB-3(B)
3Supporting your digital lifestyle™
Introduction
Thank you for choosing YU5 Powered Speakers, designed by Kanto in Canada. YU5 outputs 40W
RMS per channel into 4 Ohm speakers, for remarkably bold and clean sound. Excellent sensitivity
and frequency response provide deep thumping lows and clear, scintillating highs. YU5 is an
amazingly flexible speaker system that can accept five input sources and connect to a subwoofer
for enhanced low frequency effects (LFE). Additionally, it is equipped with the latest Bluetooth
technology and a USB port for charging USB devices. YU5 operates on a multi-voltage power
source from 110 V to 240 V and can be used worldwide.
We recommend you read all instructions carefully before using the system and keep them for
future reference. Kanto cannot be liable for damage or injury caused by incorrect setup or use of
this product.
This powered speaker system was carefully tested and inspected during production, and before
packaging and shipping. After unpacking, please check for any damage. It is rare that a unit is
damaged during shipping, but if this happens contact your retailer immediately. You can also

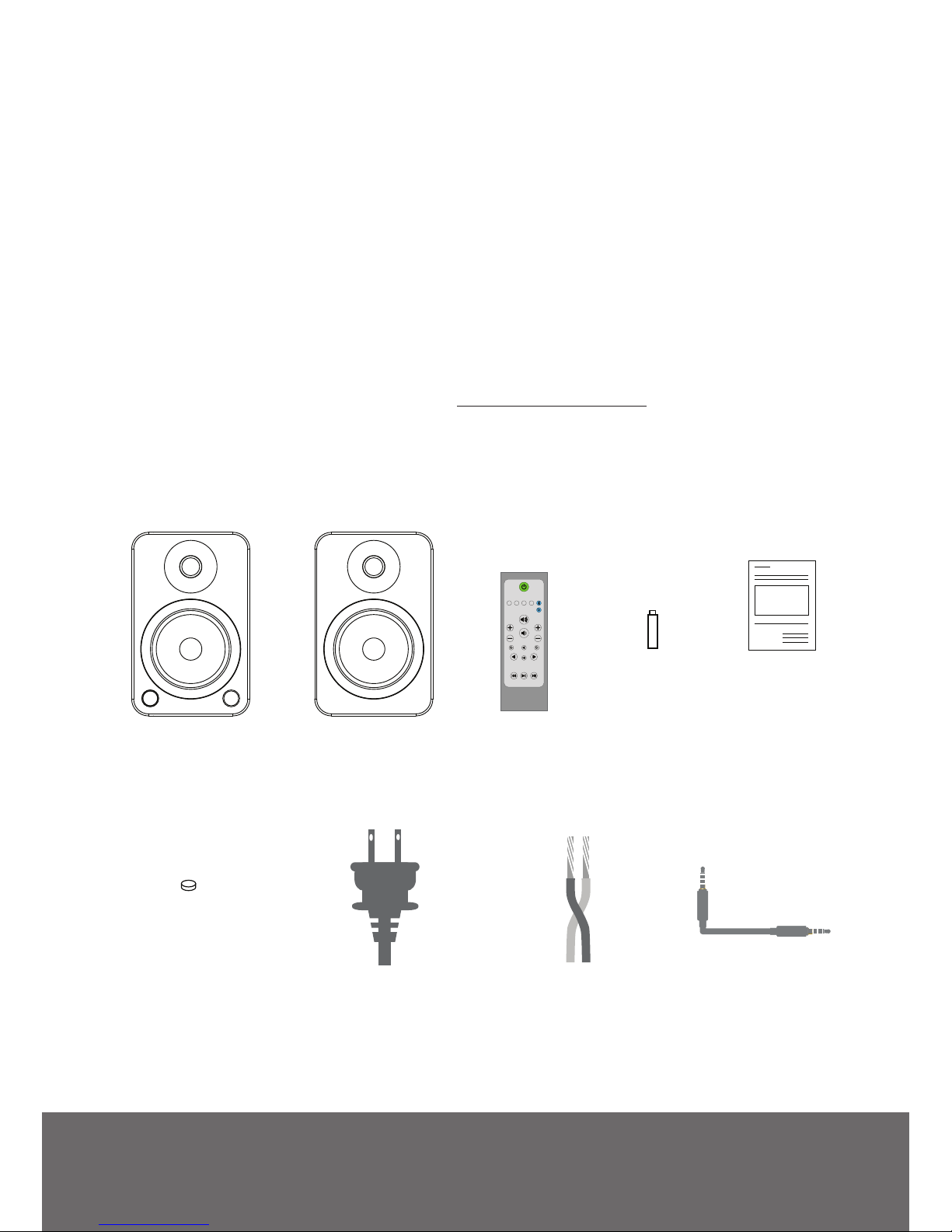

What’s In the Box?
YU5 Active
Speaker
(Left Channel)
YU5 Passive
Speaker
(Right Speaker)
Power
Cord
User
Manuals
x3
x8
Self-Adhesive
Rubber Feet
3.5 mm cable
AUX (10’)
Speaker
Wire (10’)
AUX
RCA OPT2OPT1
BALANCE
TREBLEBASS
YU5
Remote
x2
‘AAA’
Batteries
Front & Rear Panels
FRONT PANEL
1 1” Silk Dome Tweeter
2 5.25” Kevlar Mid/Woofer Driver
3 LED
Blue - Power on / Playback Mode
Yellow - Standby (solid)
- Mute (flashing)
White - Discover Mode (flashing)
- Paired (solid)
4 Volume / Input Select Knob
REAR PANEL
5 RCA L/R Input
6 3.5 mm Stereo Mini-Jack AUX Input
7 Subwoofer Output
8 Optical 1 and Optical 2 Inputs
9 Right Channel Output Terminals
(+ and −) for Passive Speaker
Connection
10 USB Charge Port (5 V 2.1A)
11 ON / OFF Switch
12 AC Input Connection (100 V - 240 V)
2
3
4
6
5
7
8
9
10
11
12
1
4
YU5’s volume knob functions as an input
select knob as well.
Push the knob to select an input source
- it cycles through the following inputs
depending on what input source was last
used.
RCA AUX OPT1 OPT2 BLUETOOTH
Volume/Input Select Knob
5Supporting your digital lifestyle™
AUX
RCA OPT2OPT1
BALANCE
TREBLEBASS

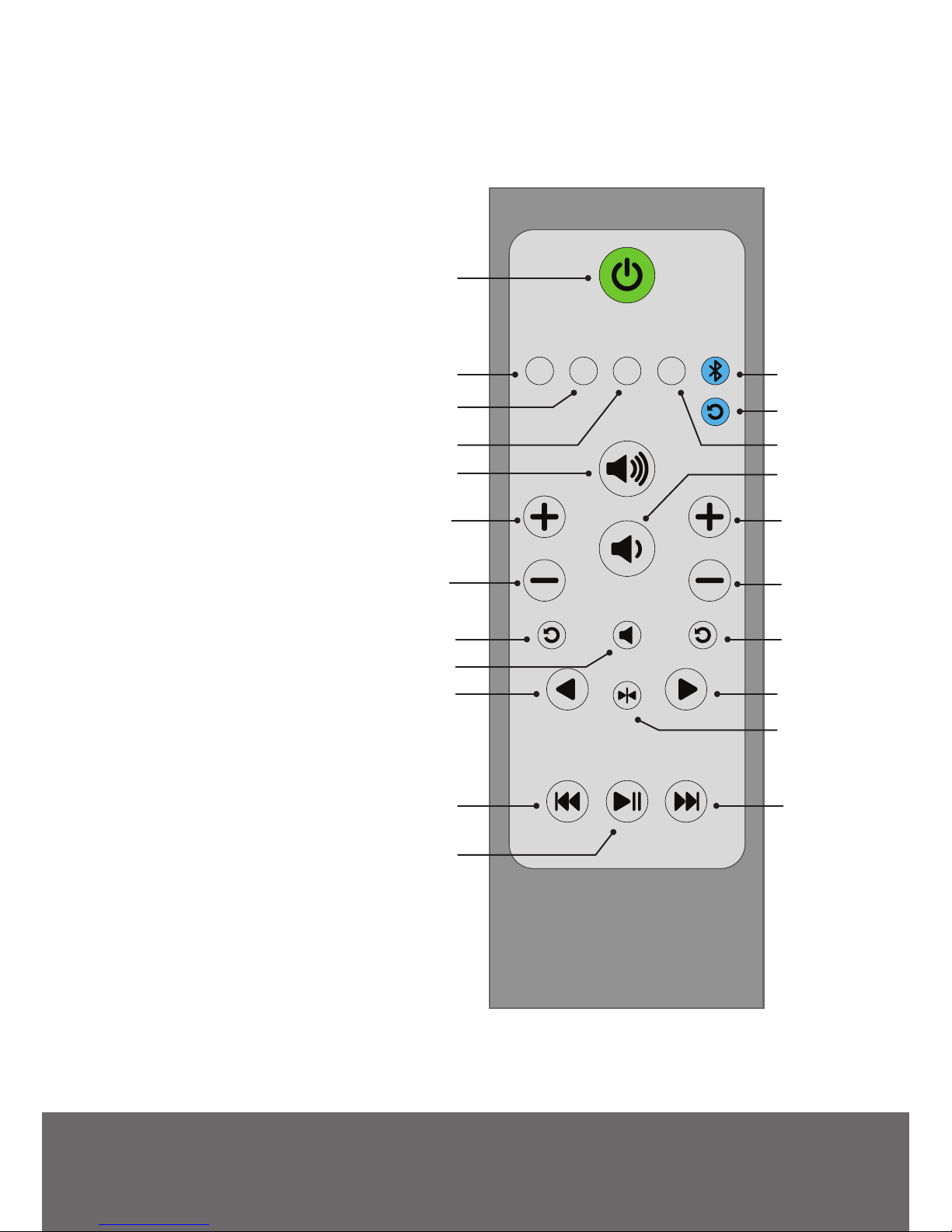

Remote Control
1 Standby Button - press to enter
Standby Mode or return to Playback
Mode
2 RCA Input Select
3 3.5 mm Stereo Mini-Jack AUX
Input Select
4 Optical 1 Input Select
5 Optical 2 Input Select
6 Bluetooth Input Select
7 Bluetooth Reset
8 Increase Volume
9 Decrease Volume
10 Increase Bass Output
11 Decrease Bass Output
12 Reset Bass Output
13 Increase Treble Output
14 Decrease Treble Output
15 Reset Treble Output
16 Mute
17 Balance Control Left Channel
18 Balance Control Right Channel
19 Reset Balance (Left and Right
Channels)
20 Previous Track (Bluetooth Operation)
21 Play / Pause (Bluetooth Operation)
22 Next Track (Bluetooth Operation)
2
3
1
6
7
8
4 5
9
10
11
13
14
15
12
18
19
17
16
20 22
21
Install two supplied AAA batteries in the back of your YU5 remote. Remote Control functions
are listed below.
6
Setting Up Your Speakers
The YU5 powered speaker system is designed for either bookshelf or stand mounting. The
stands should be of rigid construction, between 45 cm to 69 cm high and preferably have
spikes. We recommend the Kanto SP130 speaker stands to go with your YU5.
The space between the two speakers and the distance from the listener is important. If the
speakers are positioned too close or too far apart, stereo imaging will not be fully developed.
YU5 is designed to perform optimally positioned at least 20 cm from the rear wall in an average
listening room. However, it may not be possible to install the speakers in this position and since
rooms vary in shape, size, and furnishing, a certain amount of experimentation is necessary to
determine the most suitable position.
Moving the speakers very close to the rear wall will enhance the bass frequencies but will tend
to reduce soundstage depth, while moving the speakers away from the rear wall will tend
to have the opposite effect. Avoid positioning the speakers close to or in the corners of the
room, as this will excite undesirable room coupling in the low and middle frequencies. If the
width of the rear wall is limited then toe-in the speakers slightly to reduce reflections. Room
characteristics and positioning have a profound effect on the performance of the speakers, so
time and effort devoted to achieving the optimum positions will be rewarded.
Ensure that the ON/OFF Switch is in the OFF position.
Connect the two speakers together as shown below using the supplied speaker cable.
Connect the RED (+) and BLACK (−) terminals from the active speaker (left channel) to the
corresponding terminals on the passive speaker (right channel). If you wish to place your
speakers farther apart than the supplied cable will reach, we recommend that you purchase a
heavier gauge of speaker cable to minimize signal loss.
Follow the instructions on the ensuing pages to connect your audio sources to YU5. The
examples in the following pages are not meant to be exhaustive - just examples.
Connect the power cord from YU5’s active speaker to the wall outlet.
ATTENTION
When connecting audio cables the ON/OFF Switch must be turned OFF. After connecting all cables, the unit can be
turned ON.
When the volume is high, this system can produce noise levels that could permanently damage your hearing.
YU5 is a self-powered speaker system. Do not connect the speaker terminals to the speaker outputs of a stereo
amplifier. Damage may occur. Use only the power cord provided with the speakers.
7Supporting your digital lifestyle™
Connecting Audio Sources

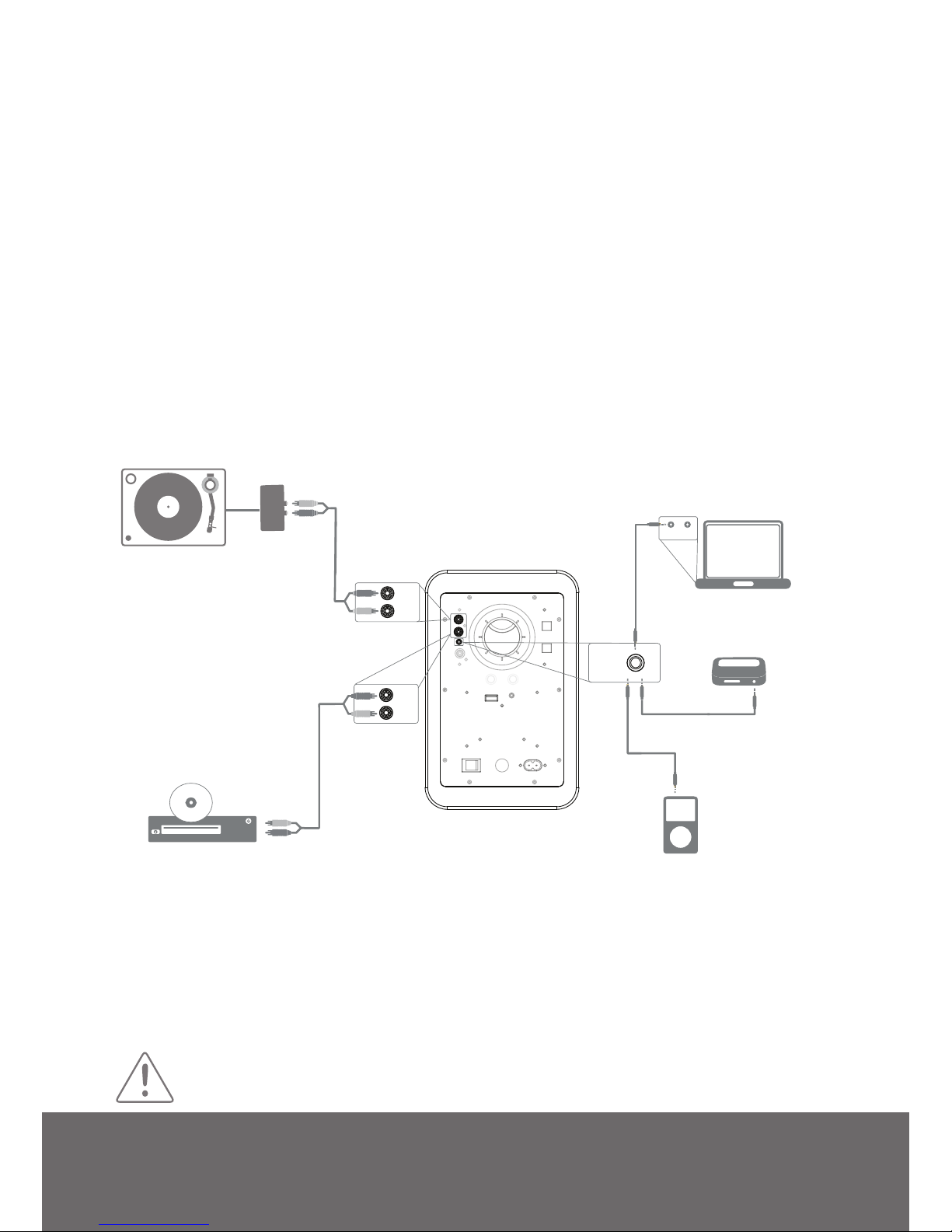

RCA & 3.5 mm Stereo Mini-Jack AUX Connection
YU5 features a high quality DAC (digital-to-analog converter) that supports data streams up to
24-bit/192 kHz resolution.
YU5 supports Bluetooth 4.0 with aptX CODEC technology.
Use the appropriate audio cable to connect your audio source components to your speakers.
Refer to the following diagrams on connectivity options.
• 3.5 mm stereo mini-jack AUX cable
• Stereo RCA to 3.5 mm stereo mini-jack ‘Y’ cable
• Optical Toslink cable
PHONO PRE-AMP
TURNTABLE
LAPTOP
MP3
AUDIO
IN
OUT
CD / DVD
MP3 DOCK
R
3.5mm
L
R
L
(if necessary)*
ATTENTION
*Some models of turntables include a built-in Phono Pre-Amp.
8
Bluetooth Pairing
Optical & Bluetooth Connection
MOBILE
DEVICES
OPT 1
OPT 2
GAME CONSOLES
DIGITAL DOCK
MEDIA PLAYERS
YU5 features Bluetooth 4.0 with aptX CODEC technology and can be paired with many devices
for wireless audio playback from your phone, MP3 player or tablet. Pairing is easy.
1. Press the Bluetooth button on YU5’s remote to select it as the input source. The
Bluetooth LED (white) will flash slowly to indicate that YU5 is in pairing mode.
2. Enable your Bluetooth device to search for a new device to pair with. Select ‘YU5 by Kanto’
from the list of Bluetooth devices available for pairing.
3. If pairing is successful, the Bluetooth LED (white) will remain solid. You will not need to pair
the same Bluetooth device again - ‘YU5 by Kanto’ will remain on your device list until you
remove it from the list.
4. If the device does not pair with YU5, turn the speaker’s ON/OFF Switch to the OFF
position, then repeat Steps 1 to 3. Alternatively, you can turn off Bluetooth in your device
and turn it back on again.
9Supporting your digital lifestyle™
USB Charging Operation
YU5 features one 5 V 2.1 A USB charging port on the back panel. This is a convenient power
source to charge your devices.
When YU5 is in Playback Mode (LED blue) and Standby Mode (LED yellow), the port is active,
and whatever device is connected is able to draw up to 2.1 A of power.
Bluetooth Operation
1. We recommend keeping a maximum distance of 10 meters between the speaker and your
device. The best signal fidelity is within this range.
2. If pairing is successful, the connection between the speaker and your device remains active
and functional – that is, you can stream audio from your device to the speaker using either
the player control buttons of your device or the control buttons of the remote control (see
diagram of Remote Control on page 5 of this manual – buttons #20, #21, and #22).
3. Take note of the following behavior and functionality during Bluetooth operation. When
you are successfully connected, the Bluetooth LED will be lit solid, and your device will
show as connected to ‘YU5 by Kanto’.
• The connection between speaker and device remains active even if input source has
changed. For instance, you can switch to another input source (e.g. CD player) and
return to Bluetooth operation without losing signal connection and, therefore, do not
need to pair with the device again.
• When the speaker is put in Standby mode or powered OFF, Bluetooth connection
with the device is lost. When the speaker returns to Playback mode, the Bluetooth
connection between the speaker and device is re-established. However, you may notice
a choppy playback signal for approximately 30 seconds after reconnection. It will
normalize.
• While the speaker can be paired with more than one device, only one device can play
and transmit audio signal at a time.
4. The YU5 remote control features a Bluetooth Reset button to quickly disconnect a paired
device and allow a second device to pair with the speaker (button #7 on the Remote
Control diagram on page 5).
• Press Bluetooth Reset button to disconnect a paired device.
• Follow the pairing instructions to pair another device.
• The same behavior and functionality apply to the second device.
10
Connecting a Subwoofer
YU5 is equipped with an RCA connector to provide output signal to a powered subwoofer.
Simply connect a single RCA subwoofer cable from the SUB OUT connection on the YU5 to the
AUDIO INPUT on your subwoofer. If your subwoofer has a stereo L/R RCA input, either left or
right inputs will work.
We recommend the Kanto sub6 or sub8 powered subwoofer with crossover and volume
controls. Most quality subwoofers offer these controls, which allow you to customize the
amount of bass you will experience.
Look for details on the Kanto website at: www.kantospeakers.com
L
L
R
R
Use either L or R
inputs
U
U
11 Supporting your digital lifestyle™
Specifications
Tweeters 1 inch Silk Dome
Woofers 5.25 inch Kevlar
Nominal Impedance 4 Ohm
Sensitivity 2.83V (/1W/1m) 87 dB
Amplifier Type Class D
Power Output 40 Watts RMS per channel
Input Sensitivity 550 mV
Total Harmonic Distortion < 0.3%
Crossover System 2-way
Crossover Frequency 2.0 kHz
Frequency Range 20 Hz - 20 kHz
Frequency Response 50 Hz - 10 kHz ± 6 dB
Inputs 1 x 3.5 mm stereo mini-jack AUX
1 x RCA L/R
2 x Optical (Toslink)
1 x Bluetooth 4.0 (Supports aptX CODEC)
Outputs 1 x Subwoofer
1 x USB Charge Port 5 V 2.1 A
Speaker Terminals Left and Right Binding Posts
Input Voltage / Frequency AC 100 V - 240 V 50/60 Hz (auto switching)
Standby Power Consumption < 0.5 W
Remote Included
Dimensions (each speaker) W 6.8”x H 10.7” x D 8.4” (175 x 272 x 215 mm)
Net Weight (Active) 9.2 lbs (4.2 kg)
Net Weight (Passive) 7.9 lbs (3.6 kg)
Gross Weight 20.5 lbs (9.3 kg) (boxed pair)
YU5 POWERED SPEAKER SYSTEM
NOTICE: The Bluetooth®word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Kanto Distribution Inc. is under license.
13-10
Limited Warranty To Original Purchaser
Kanto Distribution Inc. (Kanto) warrants the equipment it manufactures to be free from defects in material
and workmanship for the following limited warranty period of:
24 months parts and labour
If equipment fails because of such defects and Kanto or an authorized dealer is notified within 24 months
from the date of shipment with proof of original invoice. Kanto will, at its option, repair or replace the
equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse
or modifications. Equipment that fails under conditions other than those covered will be repaired at the
current price of parts and labor in effect at the repair. Such repairs are warranted for 90 days from the day
of reshipment to the original purchaser. This warranty is in lieu of all other warranties expressed or implied,
including without limitation, any implied warranty or merchantability or fitness for any particular purpose, all
of which are expressly disclaimed.
The information in the owner’s manual has been carefully checked and is believed to be accurate. However,
Kanto assumes no responsibility for any inaccuracies that may be contained in the manual. In no event will
Kanto, be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect
or omission in this manual, even if advised of the possibility of such damages.
Warranty
Tel 888.848.2643
To learn more about all our products, visit www.kantoliving.com
• Check out our full line of bookshelf and desktop speaker systems
• Available in a stunning array of colors
Kanto Speakers
• Full line of Audio and Video Cables
• Attractive white cables and heads
• HDMI, Optical, Mini-jack, RCA, USB
• Switchers, Hubs, Adapters
• Visit kantoliving.com/cable for more!
• Visit kantoaudio.com for more!
BEN
by
kantoliving kantoliving
Check out more great products from Kanto!
This manual suits for next models
2
Table of contents
Other Kanto Speakers manuals
