Operating Instructions HD 645 / HD 650 (SX) / HD 658 / HD 690 (SX) English
17

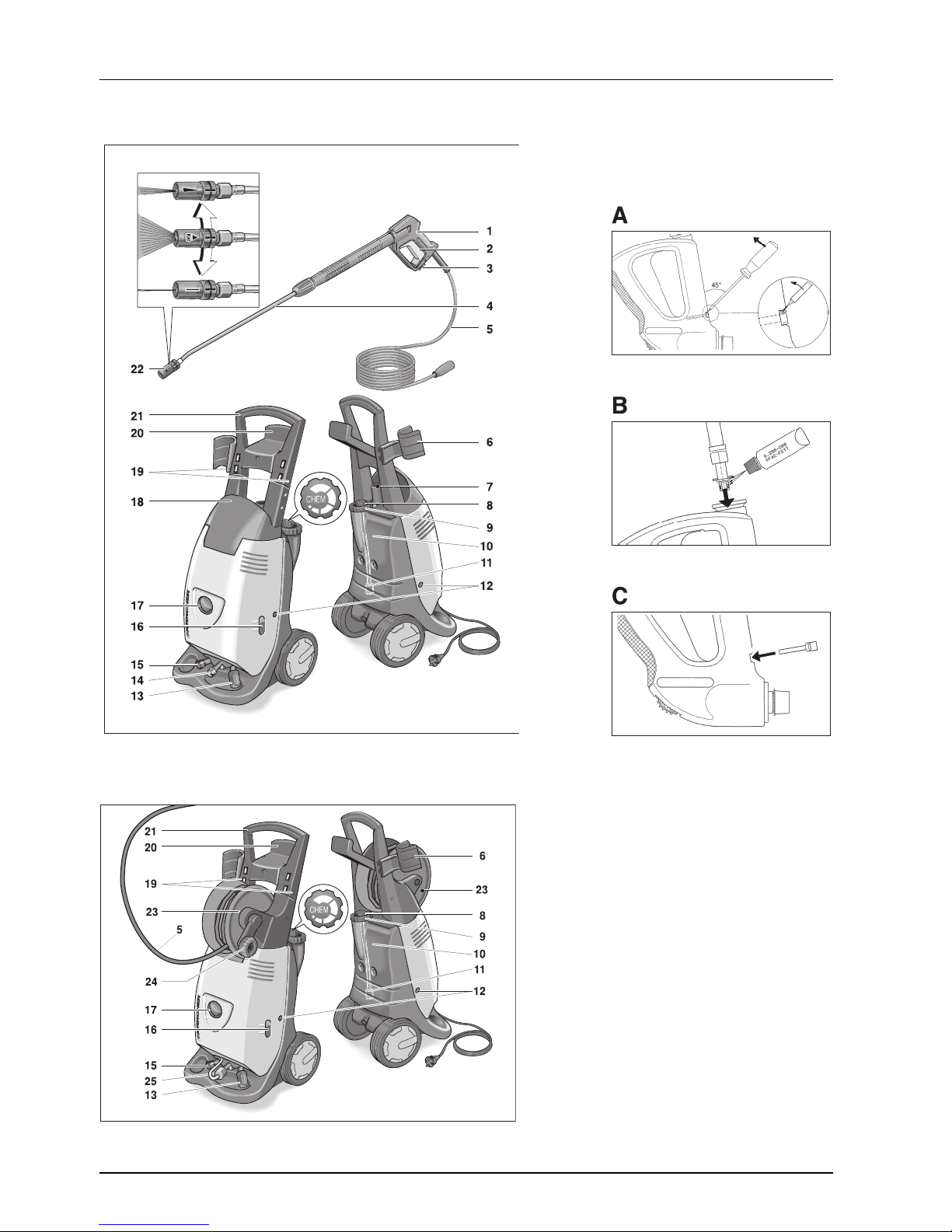

Unit parts
Please fold out illustration page at the front
1Handgun
2Lever
3Safety switch
4Spray lance
5High-pressure hose
6Handgun support
7Nozzle rest
8Detergent metering valve
9Cap for detergent reservoir
10 Detergent reservoir
11 Detergent suction-hose with filter
12 Fastening screws for unit cover
13 Pressure/flow control
14 High-pressure outlet
15 Water outlet with strainer
16 Checkpoint for oil level
17 Unit switch
18 Hose rest
19 Fastening screws for handle
20 Cable/hose rest
21 Handle
22 Nozzle
23 Hose reel
24 Crank handle
25 High-pressure pipeline
For your safety
Before you use the cleaner for the first time,
read these operating instructions and take
special note of the accompanying booklet
“Safety Instructions for High-pressure
Cleaners” No. 5.951-949.
Use of the cleaner
Use this cleaner exclusively for
– cleaning with high-pressure jet and
detergent (e.g. cleaning of machines,
vehicles, buildings, tools)
– cleaning with high-pressure jet without
detergent (e.g. cleaning facades,
terraces, gardening equipment).
For stubborn dirt we recommend the dirt
blaster as an optional accessory.
Safety features
Relief valve with pressure
switch
On reducing the flow rate with the pressure
and flow control, the relief valve opens and
part of the water runs back to the suction
side of the pump.
If the lever is released, the pressure switch
switches the pump off. If the lever is
retracted, the pressure switch switches the
pump on again.
Safety valve (only in HD 690/
HD 690 SX)
The safety valve opens when the maximum
allowable operating pressure is exceeded:
the water flows back to the suction side of
the pump.

English Operating Instructions HD 645 / HD 650 (SX) / HD 658 / HD 690 (SX)
18
Relief valve, pressure switch and safety
valve are set and sealed in the factory.
Adjustments are made only by Customer
Service.
Warranty
The warranty terms issued by our authorised
marketing company are valid in every
country. We remedy any fault in the cleaner
free of charge within the warranty period
providing the cause of the fault proves to be
a material or manufacturing error.
The warranty only becomes operative
when your dealer has completed the reply
card accompanying the sale of the unit, has
stamped and signed it and you have then
sent the reply card to the marketing
company in your country.
Should you wish to call upon the guarantee,
please apply to your dealer or nearest
authorised Customer Service centre taking
along also the accessories and bill of sale.
Preparing the cleaner for
use
Unpack the cleaner
– When unpacking the cleaner, check the
contents of the packaging. If there has
been any damage in transit inform the
dealer.
– Do not dispose of the packaging with the
household rubbish, hand it in at the
appropriate collection point for recycling.
Check the oil level
Fig. 1– 3
Screw out the fastening screws on the
left and right of the unit cover, remove
unit cover.
Cut off the tip on the cover to the oil
reservoir.
Check the oil level in the oil reservoir.
Fasten the unit cover.
Mount the accessories
Fig. 4– 9
Mount handle (screws and nuts
supplied).
Engage the holder for handgun at the
side of the handle.
Mount nozzle on the spray lance (see
markings on the top of the setting ring).
Mount spray lance on the handgun.
Insert and engage the crank handle in
the hose-reel axle.

Mount the high-pressure hose on the
hose reel. Insert the high-pressure hose
nipple through the opening in the hose-
reel hub and into the hose holder. Secure
the high-pressure hose with the hook.
Check: It should not be possible for the
hose nipple to be pulled out.
It is advisable to lay the high-pressure
hose out in a straight line before reeling
it up.
Wind the high-pressure hose up in even
layers on the hose reel by turning the
crank handle.

Operating Instructions HD 645 / HD 650 (SX) / HD 658 / HD 690 (SX) English
19
Using the cleaner for the
first time
Electrical connection
Caution!
The voltage specified on the model
rating plate must correspond to the
voltage supplied.
Caution!
Use an extension cable whose cable
cross-section is adequate (see
“Technical Specifications”) and unreel
it completely from the cable drum.
For connected loads see model rating
plate/Technical Specifications.
Water connection/suction
feed operation
Connection to water main
Caution!
Pay attention to the regulations of the
water supply company; according to
DIN 1988, the cleaner may not be
connected direct to the public drin-
king water supply. A short-term con-
nection via a non-return valve
(Order no. 6.412-578) is allowed.
For connected loads see Technical
Specifications.
Connect a supply hose (not supplied) to
the water outlet on the cleaner and to the
water inlet (e.g. water tap).
Open water inlet.
Suctioning water from an open
container
Screw suction hose with filter
(Order no. 4.440-238) to the water
outlet.
Venting the unit
To vent the unit, unscrew the nozzle and
leave the unit running until the water
exits with no air bubbles.
Switch off the unit and screw the nozzle
back on.
Operating the cleaner
Danger!
Observe the relative safety
regulations when using the cleaner at
filling stations or other high-risk
areas.
Caution!
Only clean engines in places which
have appropriate oil separators
(protection of the environment).
Caution!
Only wash animals with the low-
pressure fan jet (see “Selecting the
type of spray”).
Operating with high pressure
The cleaner is equipped with a pressure
switch. The motor only starts up when the
lever is retracted.
Unroll the required length of high-
pressure hose from the hose reel.
Fig. 9
Caution!
Should the hose-reel crank handle
protrude out in front, this should be
pulled out and put on again facing the
housing.
Press safety switch and retract lever.
Set unit switch to “I”.
Adjust operating pressure and flow rate
(+/–) by rotating the pressure/flow
control (infinitely variable).
!

English Operating Instructions HD 645 / HD 650 (SX) / HD 658 / HD 690 (SX)
20
Selecting the type of spray
The handgun must be closed.
Rotate the housing of the nozzle until the
desired symbol corresponds with the
marking:
High-pressure pencil jet
for particularly stubborn accu-
mulation of grime.
Low-pressure fan jet
for operating with detergent or
cleaning with negligible pressu-
re.
High-pressure fan jet
for dirt accumulation over a lar-
ge surface.
Operating with detergent
Caution!
Unsuitable detergents can harm the
cleaner and the object which is to be
cleaned. Use only detergents which
are released by Kärcher. Proportions
of detergent to be used and accom-
panying instructions should be noted
carefully. Use detergents sparingly
out of consideration for the environ-
ment.
Kärcher cleaning agents guarantee
trouble-free operation. Please seek advice
or ask for our catalogue of information
sheets on cleaning agents.
– Active cleaner RM 31 ASF
– Universal cleaner RM 55 ASF
– Active wash RM 81 ASF
Fill detergent reservoir.
Set nozzle to .
Set detergent metering valve to the
centre position. Adjust dosage with + or
– as required.
Recommended cleaning methods
Spray detergent sparingly over the dry
surface to be cleaned and let it take
effect but not dry out.
Spray off (rinse off) the loosened dirt
using the high-pressure spray.
When you have finished the operation,
set detergent metering valve to “0” and
switch the cleaner on for about 1 minute
and rinse it clear of detergent.
Interrupting the operation
Release lever, the cleaner switches off.
Retract lever again and the cleaner
switches on again.
Switching the cleaner off
Set unit switch to ”0” and pull out power
plug.
Close water inlet.
Retract lever until the cleaner is without
pressure.
Press safety switch to secure lever
against being activated unintentionally.
Transporting the cleaner
To transport the cleaner over relatively
long stretches, take hold of it by the
handle and pull it along behind you.
To transport it up steps or over ledges
pick it up by the handle.
Empty the detergent reservoir before
transporting it horizontally.
Storing the cleaner
Place the handgun in the support.
Reel in the high-pressure hose and hang
it over the hose rest.
Wind the high-pressure hose on to the
hose reel.
Coil the connecting cable round the
cable/hose rest.

Operating Instructions HD 645 / HD 650 (SX) / HD 658 / HD 690 (SX) English
21
Protection from sub-zero
temperatures
Caution!
Water which has frozen in the cleaner
can destroy parts of it. At best store
the cleaner in a heated room during
the winter or empty it or rinse it
thoroughly with antifreeze.
Empty the cleaner
– Unscrew supply hose and high-pres-
sure hose from the cleaner.
– Leave the cleaner running until the
pump and lines have emptied (max.
1 minute).
Putting in antifreeze
For longer intervals between operations,
pumping antifreeze through the cleaner
is to be recommended. By this means
also you obtain a sure protection against
corrosion.
Care and maintenance
Danger!
Before undertaking any care or
maintenance work on the cleaner,
pull out the power plug.
Caution!
When changing the oil, dispose of
any waste oil only at authorised
collection points.
Safety inspection/
maintenance contract
You can arrange with your dealer to have
a regular safety inspection carried out or to
have a maintenance contract. Please seek
advice on this.
Each time before operating
the cleaner
Check connecting cable for damage
(risk of getting an electric shock), have
a damaged connecting cable replaced
without delay by authorised Customer
Service personnel or an electrician.
Check high-pressure hose for damage
(danger of explosion), replace
a damaged high-pressure hose
without delay.
Check cleaner (pump) for any leaks.
Three drops per minute are allowable
and can appear on the underside of
the cleaner. Seek the help of Customer
Service if leaks are more serious.
Every week
Check oil level in oil reservoir: if the oil is
milky (water in oil), seek the help of
Customer Service immediately.
Clean the strainer at the water outlet.
Clean the filter at the suction hose for
detergent.
Annually or after
500 operating hours
Change the oil
– For oil quantity and type see
Technical Specifications.
– Undo fastening screws, remove unit
cover, remove cover of oil reservoir.
– Lay cleaner on its side and drain oil
into a suitable container.
– Fill slowly with fresh oil; air bubbles
have to escape.
!

English Operating Instructions HD 645 / HD 650 (SX) / HD 658 / HD 690 (SX)
22
Troubleshooting
Danger!
Before any repair work is undertaken,
switch the cleaner off and pull out the
power plug. Have electrical
components checked and repaired
only be authorised Customer Service
personnel.
For faults which are not identified in
this chapter, or when in doubt or
when expressly instructed to do so,
consult authorised Customer Service
personnel.
Cleaner does not work
Check mains voltage.
Check connecting cable for damage.
If the motor has overheated, let the
cleaner cool down. Then switch it on
again.
Consult Customer Service if there is an
electrical fault.
Cleaner does not come up to
pressure
Set nozzle to “high pressure”.
Clean nozzle or replace with new one.
Clean strainer at the water connection.
Evacuate air from the cleaner.
Check water inlet volume (see Technical
Specifications).
Check all supply lines to the pump for
leaks or obstructions.
Seek the help of Customer Service if
necessary.
Pump is leaky
Three drops per minute are allowable
and can appear on the underside of the
cleaner. Seek the help of Customer
Service if leaks are more serious.
Pump makes a knocking
noise
Check all supply lines as well as the
detergent system for leaks.
Evacuate air from the cleaner.
Seek the help of Customer Service if
necessary.
Detergent is not being drawn in
Set nozzle to “low pressure”.
Check detergent suction hose with filter
for leaks or obstructions and clean it if
necessary.
Clean/renew non-return valve in
detergent suction-hose connection.
Open detergent metering valve or check
it for leaks/remove obstruction. Also
clean venting orifice in the cap.
Tip the cleaner backwards over the
wheels. Empty the detergent reservoir
and rinse it out.
Seek the help of Customer Service if
necessary.

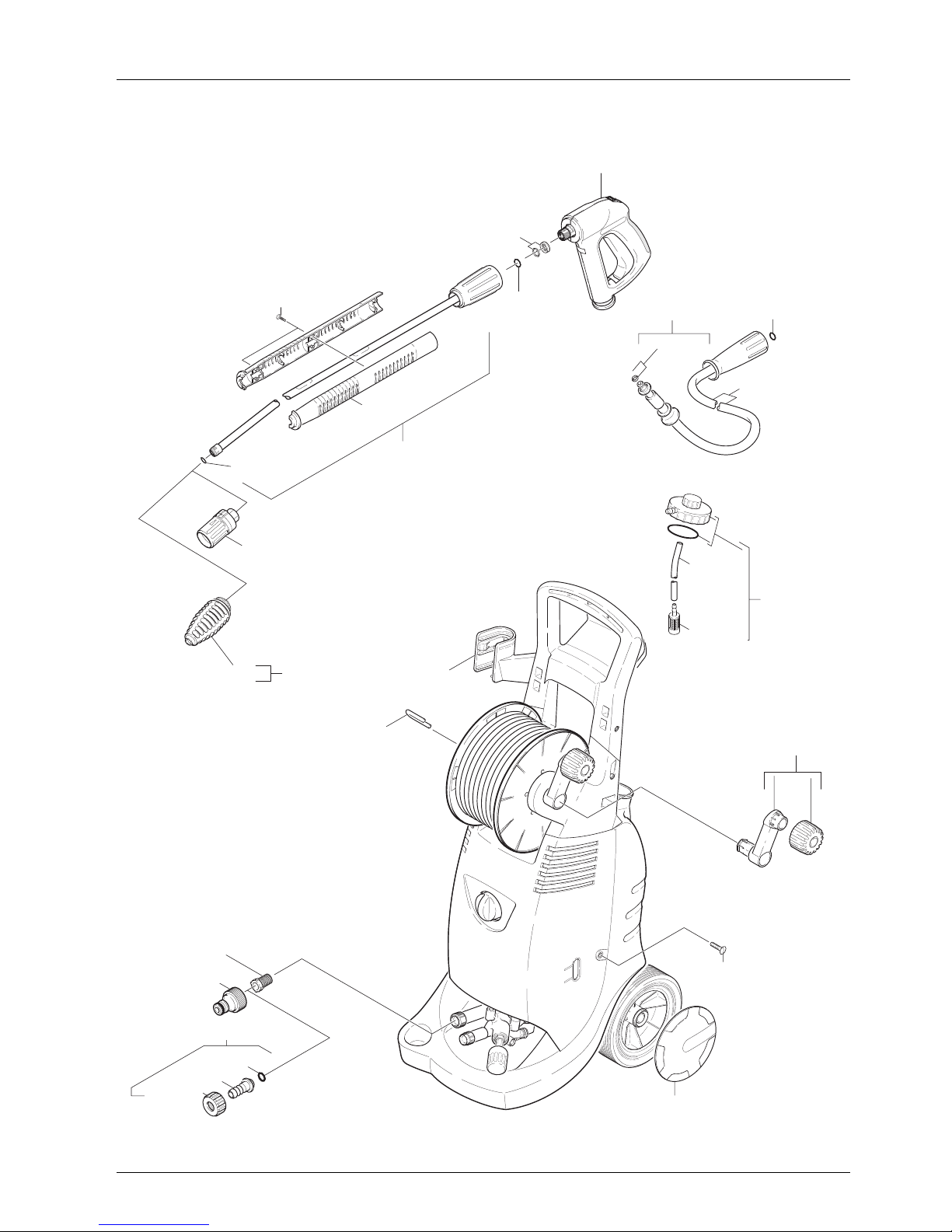

Spare parts
You will find a list of spare parts at the end
of these operating instructions.
!

Operating Instructions HD 645 / HD 650 (SX) / HD 658 / HD 690 (SX) English
23
EU Declaration of
Conformity
We hereby declare that the equipment described below
conforms to the relevant fundamental safety and health
requirements of the appropriate EU Directives, both in
its basic design and construction as well as in the
version marketed by us.
This declaration will cease to be valid if any
modifications are made to the machine without our
express approval.
Product: High-pressure cleaner
Model: 1.150-xxx, 1.151-xxx, 1.214-xxx
Relevant EU Directives:
EU Machinery Directive (98/37/CE)
EU Low-Voltage Equipment Directive (73/23/EEC)
amended by 93/68/EEC
EU Directive on Electromagnetic Compatibility
(89/336/EEC) amended by 91/263/EEC, 92/31/EEC,
93/68/EEC
EC directive on noise emissions (2000/14/EU)
Harmonised standards applied:
DIN EN 60 335-1
DIN EN 60 335-2-79
DIN EN 55 014-1: 2000 + A1: 2001
DIN EN 55 014-2: 1997
DIN EN 61 000-3-2: 2000
DIN EN 61 000-3-3: 1995 + A1: 2001
National standards applied: –
Applied conformity evaluation procedure: Appendix V
Appropriate internal measures have been taken to
ensure that series-production units conform at all times
to the requirements of current EU Directives and
relevant standards.
The signatories are empowered to represent and act
on behalf of the company management.
Alfred Kärcher GmbH & Co. KG
Cleaning Systems
D-71349 Winnenden
Alfred Kärcher Kommanditgesellschaft.
Sitz Winnenden;
Registergericht: Waiblingen, HRA 169.
Persönlich haftende Gesellschafterin: Kärcher
Reinigungstechnik GmbH; Sitz Winnenden,
2404 Registergericht Waiblingen, HRB
Geschäftsführer: Dr. Bernhard Graf,
Hartmut Jenner, Georg Metz
Measured sound power level: dB(A)
HD 645 HD 650 HD 658 HD 690
93 93 93 93
Guaranteed sound power level: dB(A)
HD 645 HD 650 HD 658 HD 690
95 95 95 95
H. Jenner S. Reiser

English Operating Instructions HD 645 / HD 650 (SX) / HD 658 / HD 690 (SX)
24
Technical Specifications
HD 645
1.150-500/-501
HD 645
1.150-502
HD 645
1.150-503/-504
Mains connection EU GB KAP
Voltage V 230 240 220
Type of current Hz 1~50 1~50 50 60
Connected load kW 2.7 3.1 3.1
Supply fuse (delayed-action) A 16 16 16
Extension cable 10m mm21.5 1.5 1.5
Extension cable 30m mm22.5 2.5 2.5
Water connection
Supply temperature (max.) °C 60 60 60
Supply volume (min.) l/h 700 700 700
Supply hose – length m 7.5 7.5 7.5
Supply hose – minimum diameter inches ½ ½ ½
Suction height from an open container 20 °C m 0.5 0.5 0.5
Supply pressure (max.) bar 10 10 10
Performance data
Operating pressure bar 20–130 20–130 20–120
Flow rate l/h 180–550 180–550 180–550
Detergent intake l/h 0–40 0–40 0–40
Recoil force of the handgun N 26 26 23
Noise emission
Sound level (EN 60704-1) dB(A) 78 78 78
Guaranteed sound power level (2000/14/EC)) dB(A) 95 95 95
Dimensions
Length mm 400 400 400
Width mm 340 340 340
Height mm 900 900 900
Weight without accessories kg 26.5 26.5 26.5
Reservoir capacity, detergent l 7 7 7
Oil quantity, pump l 0.4 0.4 0.4
Oil type, pump motor oil 15W40

Operating Instructions HD 645 / HD 650 (SX) / HD 658 / HD 690 (SX) English
25
Technical Specifications
HD 650 SX
1.150-411/-412
HD 690 SX
1.151-411
HD 650
1.150-121/-311
HD 690
1.151-112/-311
Mains connection EU EU I
Voltage V 230 400
Type of current Hz 1~50 3~50
Connected load kW 3.1 4.7
Supply fuse (delayed-action) A 16 16
Extension cable 10m mm21.5 1.5
Extension cable 30m mm22.5 2.5
Water connection
Supply temperature (max.) °C 60 60
Supply volume (min.) l/h 700 800
Supply hose – length m 7.5 7.5
Supply hose – minimum diameter inches 1/2 1/2
Suction height from an open container 20 °C m 0.5 0.5
Supply pressure (max.) bar 10 10
Performance data
Operating pressure bar 20–150 20–175
Flow rate l/h 180–550 240–700
Detergent intake l/h 0–40 0–48
Recoil force of the handgun N 26 34
Noise emission
Sound level (EN 60704-1) dB(A) 78 78
Guaranteed sound power level (2000/14/EC) dB(A) 95 95
Dimensions
Length mm 400 400
Width mm 340 340
Height mm 900 900
Weight without accessories kg 26.5 26.5
Weight with accessories, HD 650 SX kg 35.5 35.5
Reservoir capacity, detergent l 7 7
Oil quantity, pump l 0.4 0.4
Oil type, pump motor oil 15W40 motor oil SAE90

English Operating Instructions HD 645 / HD 650 (SX) / HD 658 / HD 690 (SX)
26
Technical Specifications
HD 650 SX 1.150-
-201 -202 -203 -204
HD 650 1.150- HD 658 1.214-
-101 -102 -103 -104 -109 -114 -101 -103 -108
Mains connection EU CH AUS GB KAP KAP EU AUS BR
Voltage V 230 230 240 240 220 208–240 230 240 220
Type of current Hz 1~50 1~50 1~50 1~50 1~60 1~50 1~50 1~50 1~60
Connected load kW 3.1 2.2 3.0 3.0 3.1 3,1 3.1 3.1 3.1
Supply fuse
(delayed-action) A161015131616161616
Extension cable 10 m mm² 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Extension cable 30 m mm² 2.5 1.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Water connection
Supply temperature (max.) °C 60 60 60 60 60 60 60 60 60
Supply volume (min.) l/h 700 700 700 700 700 700 600 600 600
Supply hose – length m 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5
Supply hose – minimum
diameter inches 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2
Suction height from an
open container 20 °C
m 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Supply pressure (max.) bar 10 10 10 10 10 10 10 10 10
Performance data
Operating pressure bar 20–150 20–110 20–150 20–125 20–130 20–130 20–170 20–170 20–170
Flow rate l/h 180–550 180–550 180–550 180–550 180–550 180–550 150–480 150–480 150–480
Detergent intake l/h 0–40 0–40 0–40 0–40 0–40 0–40 0–40 0–40 0–40
Recoil force of the
handgun N262226232323232323
Noise emission
Sound level (EN 60704-1) dB(A) 78 78 78 78 78 78 78 78 78
Guaranteed sound power
level (2000/14/EC) dB(A)959595959595959595
Dimensions
Length mm 400 400 400 400 400 400 400 400 400
Width mm 340 340 340 340 340 340 340 340 340
Height mm 900 900 900 900 900 900 900 900 900
Weight without
accessories kg 26.5 26.5 26.5 26.5 26.5 26,5 26.5 26.5 26.5
Weight with accessories,
HD 650 SX kg 35.5 35.5 35.5 35.5
Reservoir capacity,
detergent
l777777777
Oil quantity, pump l 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4
Oil type, pump motor oil 15W40 motor oil 15W40

Operating Instructions HD 645 / HD 650 (SX) / HD 658 / HD 690 (SX) English
27
Technical specifications
HD 690 SX 1.151-
-201 -202 -203
HD 690 1.151-
-101 -102 -103 -107 -108 -109
Mains connection EU I EU II AUS/GB BR KAP KAP
Voltage V 400 230 420 230 380 220
Type of current Hz 3~50 3~50 3~50 3~60 3~50 3~60
Connected load kW 4.7 4.7 4.7 4.7 4.7 4.7
Supply fuse (delayed-action) A 16 16 16 16 16 16
Extension cable 10 m mm² 1.5 1.5 1.5 1.5 1.5 1.5
Extension cable 30 m mm² 1.5 2.5 1.5 2.5 1.5 2.5
Water connection
Supply temperature (max.) °C 60 60 60 60 60 60
Supply volume (min.) l/h 800 800 800 800 800 800
Supply hose – length m 7.5 7.5 7.5 7.5 7.5 7.5
Supply hose – minimum diameter inches 1/2 1/2 1/2 1/2 1/2 1/2
Suction height from an open container
20 °C
m 0.5 0.5 0.5 0.5 0.5 0.5
Supply pressure (max.) bar 10 10 10 10 10 10
Performance data
Operating pressure bar 20–175 20–175 20–175 20–175 20–175 20–175
Flow rate l/h 240–700 240–700 240–700 240–700 240–700 240–700
Detergent intake l/h 0–48 0–48 0–48 0–48 0–48 0–48
Recoil force of the handgun N 34 34 34 34 34 34
Noise emission
Sound level (EN 60704-1) dB(A) 78 78 78 78 78 78
Guaranteed sound power level
(2000/14/EC)
dB(A)959595959595
Dimensions
Length mm 400 400 400 400 400 400
Width mm 340 340 340 340 340 340
Height mm 900 900 900 900 900 900
Weight without accessories kg 26.5 26.5 26.5 26.5 26.5 26.5
Weight with accessories, HD 690 SX kg 35.5 35.5 35.5
Reservoir capacity, detergent l 7 7 7 7 7 7
Oil quantity, pump l 0,4 0,4 0,4 0,4 0,4 0,4
Oil type, pump motor oil SAE90

143
6.362-422.0
6.388-216.0
04.04.2001
5.044-082.0
6.389-870.0
6.414-252.0
5.731-040.0
4.580-337.0
2.880-296.0
4.760-356.0
2.880-296.0
6.389-853.0 2.880-296.0
6.389-853.0
4.775-268.0
6.362-078.0
5.443-229.0
5.310-065.0
4.401-061.0
6.435-197.0
MAX
MIN
OI
6.304-099.0
HD 645
4.763-987.0
EUR
GB
4.763-212.0
1.150-500/-501/-502
1.150-503/-504

144
6.362-422.0
6.388-216.0
10/02
5.044-082.0
6.389-870.0
6.414-252.0
5.731-040.0
4.580-337.0
2.880-296.0
4.760-356.0
2.880-296.0
6.389-853.0 2.880-296.0
6.389-853.0
4.775-296.0
6.362-078.0
5.443-229.0
5.310-065.0
4.401-061.0
6.435-197.0
MAX
MIN
OI
6.304-099.0
HD 650
HD 690
HD 658
1.151-101.0
1.151-102.0
1.151-108.0
1.151-109.0
1.151-107.0
1.151-103.0
4.763-212.0
4.763-212.0
4.763-212.0
4.763-212.0
4.763-164.0
4.763-164.0
1.214-101.0
1.214-103.0
1.214-108.0
4.763-929.0
4.763-929.0
4.763-929.0
HD 650
HD 690 HD 658
1.150-101.0
1.150-103.0
1.150-104.0
1.150-102.0
1.150-109.0
1.150-114.0
4.763-269.0
4.763-269.0
4.763-269.0
4.763-163.0
4.763-133.0
4.763-133.0

145
HD 650 SX
08/02
4.767-022.0 1.150-411.0
4.763-269.0
2.880-296.0
4.760-355.0
5.321-493.0
6.303-025.0 6.362-524.0
6.362-532.0
4.775-270.0
6.362-422.0
6.389-853.0 2.880-296.0
6.389-853.0
6.388-216.0
5.731-040.0
4.580-337.0
5.960-131.0
6.304-099.0
6.435-197.0
4.037-013.0
5.044-082.0
4.481-157.0
MAX
MIN
O
6.414-252.0
6.389-870.0
4.401-061.0
6.362-078.0
5.443-229.0
5.310-065.0
1.150-411.0 *EUR
1.150-412.0 *EUR

146
HD 650
07/01
4.767-022.0 1.150-311.0
4.763-269.0
2.880-296.0
4.760-355.0
5.321-493.0
6.303-025.0 6.362-524.0
6.362-532.0
4.775-270.0
HD 650 PLUS
6.362-422.0
6.389-853.0 2.880-296.0
6.389-853.0
MAX
MIN
OI
5.044-082.0
6.388-216.0
5.731-040.0
4.580-337.0
6.304-099.0
6.435-197.0
6.414-252.0
6.389-870.0
4.401-061.0
6.362-078.0
5.443-229.0
5.310-065.0
1.150-311.0 *EUR
1.150-121.0 *EUR
