English Operating Instructions
24
Contents
Environmental protection 24
Unit illustration 25
Operating controls 25
Reference to operating
instructions 26
Commissioning 26
Operation 28
After every operation 31
Decommissioning 32
Maintenance 32
Maintenance tasks 32
Faults 33
Warranty 35
General notes 36
EC conformity declaration 37
Technical data 38
Parts list 405
Danger: Steam!
Danger of scalding! Steam escapes here.
Warning!
Prior to initial operation it is mandatory to
read the operating instructions and the
notes on safety no. 5.951-949!
Inform retailer immediately of any
transportation damage.
Environmental protection
Please dispose of packaging
environmentally responsibly
The packaging materials are recyclable.
Please do not throw the packaging in with
household rubbish but take it to a recycling
centre.
Please dispose of scrapped units
environmentally-responsibly
Scrapped units consist of valuable
recyclable materials that should be taken to
a recycling centre. Batteries, oil and similar
products must not be allowed to
contaminate the environment. Therefore,
please dispose of scrapped units via
appropriate disposal systems.
Please ensure engine oil, fuel oil, diesel
and petrol
to contaminate the environment. Please
protect the ground and dispose of used oil
ecologically.

Operating Instructions English
25
Unit illustration
Operating controls
1 Fuel tank inlet
2 Handle
3 Instrument panel
5 Cover latch
6 Compartment für accessories
7 Short operating instructions
8 Cover for compartment
9 Unit cover
10 Cover for tank inlet
11 Tank inlet für scale inhibitor
12 tank inlet for cleaning agent
13 High-pressure nozzle
14 Handle grips in the chassis
15 Steel pipe
16 Pressure and flow control
17 Swivel caster with parking brake
18 Water connection with strainer
19 High-pressure connection
20 Handgun with high-pressure hose
22 Electric power cord
23 Unit switch
24 Temperature regulator
25 Fuel indicator lamp
26 Scale inhibitor indicator lamp
27 Motor indicator lamp (not applicablt to
HDS Super M Eco/HDS Super MX Eco)
28 Ready for working indicator lamp
29 Pressure gauge
30 Metering valve for cleaning agent
31 Hose reel (applies only to MX / SX Eco)
32 Crank (applies only to MX / SX Eco)
33 Fine filter

English Operating Instructions
26
Reference to operating
instructions
All of the item numbers described below in
the operating instructions are referenced in
the illustration of the unit.
Commissioning
Warning!
Unit, piping, high-pressure hose and
connections must be in perfect working
order!
!Lock the hand brake.
Checking oil level
Fig. 1
Warning!
Immediately consult the Kärcher service
station when oil turns milky!
!If oil level is approaching MIN mark, fill
up with oil as far as MAX mark.
!Seal oil filler inlet.
Refer to technical data for oil grade.
Filling with scale inhibitor
Fig. 2
(sample pack included with scope of
delivery)
Scale inhibitor stops heating coil becoming
calcified when using hard tap water. Is is
metered in at the inlet in the water reservoir
one drop at a time.
By the manufacturer metering is set to a
mean water hardness.
!For other water hardnesses request
services of a Kärcher service station and
have it adapted to local conditions.
Filling with fuel
Warning!
Never operate unit with fuel tank empty!
Fuel pump would otherwise be destroyed!
Warning!
Fig. 3
Only fill with diesel fuel or light fuel oil.
It is forbidden to use unsuitable fuels,
e.g. benzine (explosion hazard, damage to
unit).
!Close tank cap
!Wipe off excess fuel
Fill with cleaning agent
—Use only Kärcher products.
—Never pour in solvent (petrol, acetone,
thinner etc.)!
—Avoid contact with eyes and skin
—Pay attention to cleaning-agent
manufacturer's instructions on safety
and handling
Kärcher offers a customised cleaning
and care agent range.
Your dealer will be pleased to advise you.
Fig. 4
Fill with cleaning agent

Operating Instructions English
27
Installing the handgun (units
without hose reel)
!Connect steel pipe (item 15) with
handgun (item 20)
!Insert high-pressure nozzle in union nut
!Mount and tighten unit nut
!Install the high-pressure hose to high-
pressure connection of unit. (Figure 6a)
Installing the handgun and the
hose reel (units with hose reel)
!Connect steel pipe (item 15) with
handgun (item 20)
!Insert high-pressure nozzle in union nut
!Mount and tighten unit nut
!Install the hose reel (item31) with the
provided Allen screws, washers and
nuts (4 of each). (Figure 5)
!Install the high-pressure hose at the
high-pressure connection of hose reel
and unit. (Figure 6b)
!Connect high-pressure hose of handgun
to hose reel
!Wind high-pressure hose onto hose reel
with the smallest possible bends
(direction of turns – clockwise -)
Mounting of spare high-pressure
hose

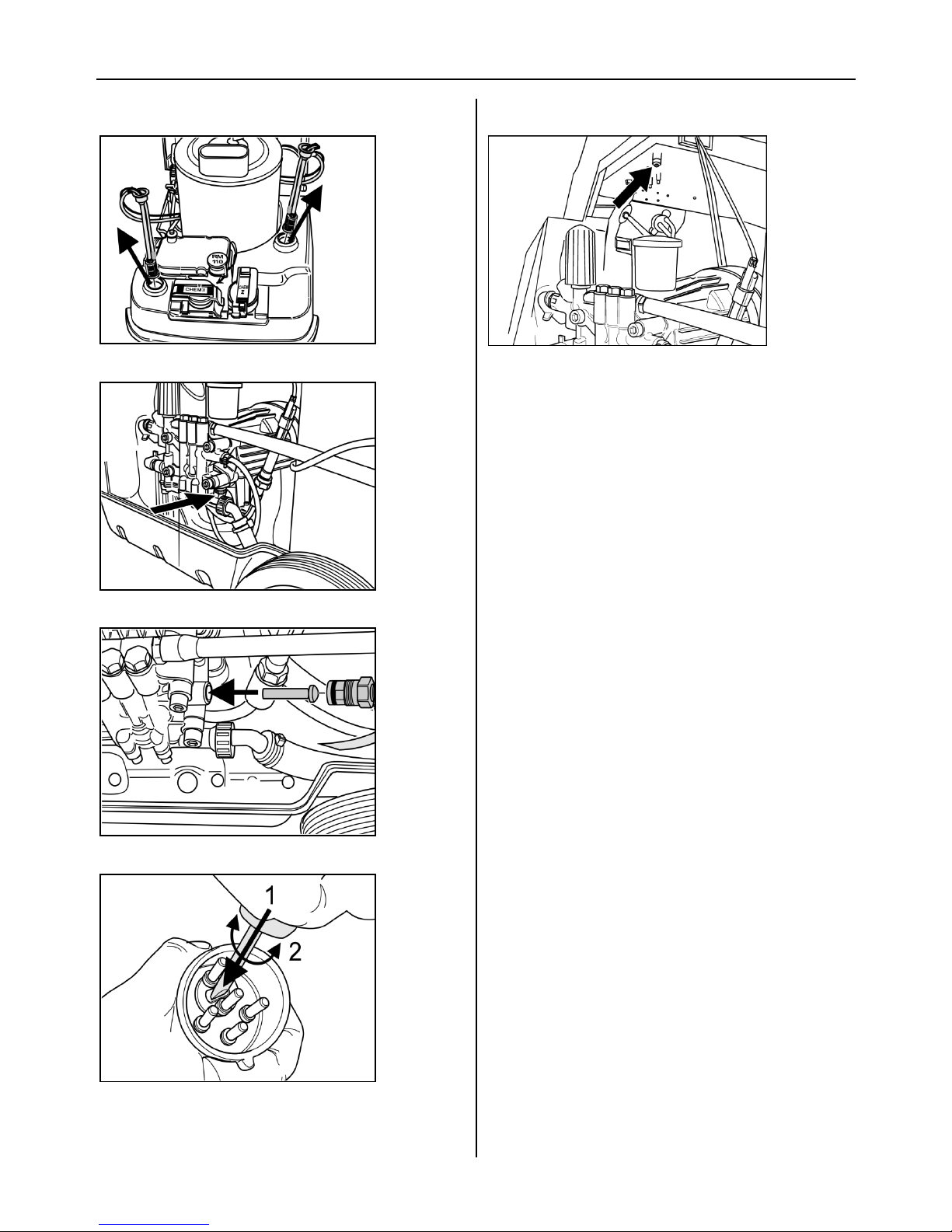

Fig. 7
Mounting handle
Fig. 8
Water connection
!See Technical Data for connected loads.
!Install supply hose at water connection
(item18) of unit.
(supply hose is not part of scope of
delivery)
Drawing in water from tank
When you suction water out of an open
container you should
!remove water connection at pump head.
!screw off the top supply hose with the
fine filter to the water tank and connect
to pump head.
!Use a water suction hose with a suction
filter and a diameter of at least 3/4".
Until the pump sucks up water you should:
!Turn the pressure and flow control to
"MAX".
!close the metering valve for the cleaning
agent.
Warning!
Never suction up water out of a potable
water tank.
Never suction up solvent-bearing liquids
such as paint thinner, benzine, oil or
unfiltered water. The seals in the unit are
not resistant to solvents. The mist of
solvents is highly inflammable, explosive
and poisonous!

English Operating Instructions
28
Mains connection
See technical data and rating plate for
connected load.
Warning!
It is not permissible to exceed the
maximum permissible mains impedance at
the electrical terminal (see Technical Data).
Warning!
Whenever socket is changed, check
direction of rotation of motor
—If direction of rotation is correct, powerful
jet of air will be felt at exhaust-gas
opening of burner.
—If the direction of rotation is
wrong: Change the poles at the unit
plug. See Fig. 18.
!When an extension cable is used it
should always be complety unwound
and have an adequate cross-section.
Operation
Warning!
(Applies only to HDS Super M / MX Eco)
Lengthy operation of the unit can lead to
vibration-related circulatory disturbances of
the hands.
A generally valid use duration cannot be
specified, since this is dependent upon
several influence factors:
—Personal predisposition to bad
circulation(frequent suffering from cold
fingers, pins and needles in fingers).
—In low ambient temperatures. Wear
warm gloves to keep hands warm.
—Gripping tightly impedes circulation.
—Continuous operation is more
detrimental than operation interrupted by
breaks.
We recommend a medical examination if
the unit is regularly used for extensive,
continuous operation and the
corresponding symptoms (such as, for
example, pins and needles in fingers or
cold fingers) are recurrentp.
Switch on the machine
!Set unit switch (item 23) to "I"
Ready for working indicator lamp (item28)
is lit
Warning!
The temperature regulator (item 24) must
be set to "0", since otherwise the burner
possibly switches on
Unit starts up briefly and is switched off as
soon as operating pressure is reached.
Stop the unit immediately when one of the
indicator lamps (items 25-27) light up
during operation. Eliminate fault, refer to
Faults.
Fig. 9
!Release the safety of the handgun (A)
Actuation of handgun switches unit back on
again.
Bleed pump if no water emerges from high-
pressure nozzle. See problems, "Unit does
not build up pressure"

Operating Instructions English
29
Setting cleaning temperature
!Set the remperature regulator (item 24)
to the required temperature
30°C to 90°C
Hot water cleaning
100°C to 150°C
Cleaning with steam
!Replace high-pressure nozzle by the
steam nozzle (see operation using
steam)
Setting operating pressure and
flow rate
Fig. 10
—Turning control spindle
clockwise: Increasing operating
pressure (MAX)
—Turning it counterclockwise: Reducing
operating pressure (MIN)
Servopress control
!Set the temperature regulator (item 24)
to max. 98°C.
!Set regulator to maximum operating
pressure.
Fig. 9
Adjust operating pressure and flow rate by
turning (infinitely variable) at the pressure
and flow control (B) (+/-)
Set pressure on unit if use is to be made of
reduced pressure for a lengthy period.
See Fig. 10
Measuring out cleaning agents
—Use cleaning agents sparingly to protect
the environment
—The cleaning agent must be appropriate
for the surface to be cleaned.
!Using the cleaning agent metering valve
(item30) set the concentration of the
cleaning agent as specified by the
manufacturer
Approximate values at maximum operating
pressure
Intended use
For cleaning: machines, vehicles, buildings,
tools, facades, patios, gardening
implements, etc.
Warning!
—Heed appropriate safety regulations for
use at petrol stations or in other
hazardous environments.
Please ensure waste water containing
mineral oil
does not contaminate soil, lakes and rivers
or the sewerage system. Therefore, please
wash engines and underbodies only in
appropriate washing installations provided
with oil traps.
Working with high-pressure nozzle
Spray angle is crucial to efficiency of high-
pressure jet.
Use is normally made of 25°fan jet nozzle
(included).

English Operating Instructions
30
Recommended nozzles, available as
accessories
—For stubborn dirt
0°full jet nozzle
—For sensitive surfaces and superficial
dirt
40°-fan jet nozzle
—For thick-film, stubborn dirt
Dirt blaster
—Nozzle with adjustable spray angle,
adaptable to many cleaning tasks
Variable-angle nozzle
Cleaning
!Set pressure/temperature and detergent
concentration appropriately to surface to
be cleaned
Always start by directing high-pressure jet
from a good distance at object to be
cleaned to avoid damage caused by
excessive pressure.
Recommended cleaning method
Loosen up dirt:
!Spray on cleaning agent sparingly and
allow to react for 1...5 min (do not allow
to dry on).
Remove dirt:
!Spray off loosened-up dirt with high-
pressure jet.
Operation with cold water
Removal of slight contamination and rinsing
e.g: gardening implements, patio, tools, etc.
!Set operating pressure as required
!Set temperature control (item 24) to "0"
Operation with hot water
Warning!
Danger of scalding
!Set the remperature regulator (item 24)
to the required temperature
We recommend the following cleaning
temperatures
—Slight contamination 30-50°C
—Protein soiling, e.g. in foodstuffs industry
max. 60°C
—Motor vehicle cleaning, machine
cleaning 60-90°C
Operation with steam
Danger: Steam!
At operating temperatures exceeding 98°C
it is not permissible for the operating
pressure to exceed 32 bar
(HDS 1195: 28 bar).
Therefore the following steps must be
taken without fail:
!Replace high-pressure nozzle by steam
nozzle
Manufacture no.:
4.766-023 HDS Super M Eco
HDS Super MX Eco
HDS 655 M Eco
HDS 695 M Eco
HDS 695 MX Eco
HDS 895 M Eco
HDS 895 MX Eco
4.766-024 HDS 1195 S Eco
HDS 1195 SX Eco

Operating Instructions English
31
!Fully open water delivery control at the
handgun, in the + direction to the stop.
See Figure 9 (B)
!Set operating pressure to minimum
value. See Fig. 10
!Set the temperature regulator (item 24)
to min. 100°C
Danger: Steam!
Danger of scalding!
We recommend the following cleaning
temperatures
—Preservative removal, extremely greasy
dirt 100-110°C
—Thawing of aggregates, certain facade
cleaning operations up to 140°C
After every operation
Warning!
Danger of scalding with hot water.
After operating it with hot water or steam
the unit must be cooled for at least two
minutes by operating it with cold water and
its open handgun.
Following operation with cleaning agent
!Set cleaning agent metering valve
(item 30) to "0"
!Set unit switch (item 23) to "I"
!Actuate handgun and flush unit for
approx. 1 min
Stopping machine
!Set unit switch (item 23) to "0"
!Shut off water supply
!Switch the pump briefly on with the unit
switch (item 23) (approx. 5 sec.)
!Remove mains plug from socket ONLY
with dry hands
!Remove water connection
!Actuate handgun to depressurise unit
!Put on safety of handgun Figure 9 (A)
!Engage spray lance in cover holder
!Reel up the high-pressure hose and
electric cables and attach them to
fastenings
Note!
Take care not to kink high-pressure hose
and cable!
Note!
Frost will destroy unit if water is not drained
off completely!
!Store unit in a frost-free location
Observe the following if the unit is
connected to a flue:
Danger of damage caused by cold air
entering through the flue. Disconnect unit
from flue at outside temperatures below
0°C.
Immobilise unit if frost-proof storage is not
possible.

English Operating Instructions
32
Decommissioning
In the event of lengthy periods of non-use
or if frost-free storage is not possible:
!Drain off water and flush out equipment
with antifreeze
!Drain cleaning fluid tank
Drain off water
!Unscrew water supply hose and high-
pressure hose
!Screw off supply line at boiler base and
completely drain heating coil
!Run unit for max. 1 min until pump and
lines are empty
Flushing unit with anti-freeze
!Fill the float tank with a commercially
available antifreezing compound
!Swith the unit on (without the burner)
until it is thoroughly purged
!Observe handling instructions of
antifreeze manufacturer
By this means, a certain degree of
corrosion protection is achieved
Maintenance
Warning!
Disconnect unit from mains before carrying
out any maintenance or repair work.
Always use genuine spare parts
Turn off unit prior to all work, see "After
every operation".
!Set unit switch (item 23) to "0"
!Pull power plug out of socket
!Shut off water supply
!Actuate handgun to depressurise unit.
!Remove water connection
!Allow unit to cool down
Your Kärcher dealer will be pleased to
inform you on the performance of
regular safety inspections
and conclusion of a maintenance
contract
Maintenance intervals
Once a week
—Clean strainer in water connection
—Clean the fine filter
—Check oil level
Immediately consult the Kärcher service
station when oil turns milky!
Once a month
—Clean strainer in low water protection
—Clean filter at cleaning-agent suction
hose
After 500 hours of operation, at least
once a year
—Change oil
Maintenance tasks
Clean strainer in water
connection
Fig. 11
!Remove strainer
!Clean in water and re-insert
Clean the fine filter
Fig. 12
!Cut pressure to unit
!Screw off cover with filter
!Clean filter with clean water or with
compressed air
!Assemble in the reverse order

Operating Instructions English
33
Clean strainer in low water
protection
Fig. 13
!Unfasten union nut and detach hose
Fig. 14
!Take out strainer
If necessary, screw in screw M8 by
approx. 5mm and pull strainer out with this
screw
!Clean strainer in water
!Slide in strainer
!Mount hose
!Tighten union nut
Clean filter at cleaning-agent
suction hose
Fig. 15
!Pull the cleaning agent suction inlet pipe
out
!Clean filter in water and re-insert
Change oil
Fig. 16
!Provide a collecting container for
approx. 1 litres of oil
!Unscrew drain plug
Dispose of used oil ecologically or hand it
in at a dump.
!Retighten drain plug
!Top up oil slowly up to the MAX mark
Air bubbles must be able to escape
Refer to technical data for oil grade and
quantity to be used.
Faults
Ready for working indicator lamp
(item 28) goes out
—Motor overloaded/overheated
!Set selector switch to "0" and allow
engine to cool off for at least 5 min.
!Have unit checked by After-Sales
Service if this does not remedy fault.
!No mains voltage (see – unit does not
run -)
!Check exhaust gas temperature limiter,
reset, if necessary (Figure 19) (applies
only to HDS Super M / MX Eco)
Fuel indicator lamp (item 25) lights up
—Fuel tank empty
!Fill up
Liquid softener indicator lamp (item 26)
lights up
—Scale inhibitor reservoir empty; for
technical reasons there is always a
residual quantity in the reservoir.
!Fill up
—Dirt on electrodes in reservoir
!Clean electrodes
Motor indicator lamp (item 27) lights up
!Set unit switch (item 23) to "0"
!Allow unit to cool down
!Check exhaust gas temperature limiter,
reset, if necessary (Figure 19)
!Set unit switch (item 23) to "I"
Unit does not run
—No mains voltage
!Check electric mains/power cord

English Operating Instructions
34
Unit does not build up pressure
—Air in system
Bleed pump:
!Set cleaning agent metering valve
(item 30) to "0"
!Switch the unit switch on and off several
times keeping the handgun open.
!With handgun open, open and close
regulator (Fig. 10).
Venting is accelerated by removing the
high-pressure hose from the high-pressure
connection.
!Fill up cleaning-agent tank if empty.
!Check connections and lines
—Pressure set to MIN
!Set pressure to MAX
—Strainer in water connection is dirty
!Clean strainer
!Clean fine filter, replace it if necessary
—Insufficient water supply
!Check water supply volume (refer to
technical data)
Unit leaking, water dripping out at
bottom
—Pump leaking
3 droplets/min are permitted.
!In the event of a major leak, have unit
checked by After-Sales Service.
Unit constantly switched on and off with
handgun closed
—Leak in high-pressure system
!Check high-pressure system and
connections for leaks
Unit does not draw in cleaning agent
!Run the unit with an opened cleaning
agent metering valve and a closed water
supply until the float tank is sucked dry
and the pressure drops to "0".
!Now reopen the water inlet.
If the pump still does not suction up
cleaning agent the reasons can be as
follows:
—Filter in cleaning-agent suction hose
dirty
!Clean filter
—Non-return valve gummed up
!Pull the cleaning agent hose off and
detach the non-return valve with a blunt
object, see Figure 17.
Burner not ignited
—Fuel tank empty
!Fill up
—Lack of water
!Check water connection, check supply,
clean low water protection.
—Fuel filter is dirty
!Replace fuel filter.
—Incorrect direction of rotation. If direction
of rotation is correct, powerful jet of air
will be felt at exhaust-gas opening of
burner.
!Check direction of rotation. If necessary,
change round poles of unit plug. See
Fig. 18.
—No ignition spark
!Have unit checked by After-Sales
Service if no ignition spark is visible
through inspection glass during
operation.

Operating Instructions English
35
Set temperature not attained when
working with hot water
—Excessive operating pressure/flow rate
!Reduce operating pressure/flow rate by
way of regulator (Fig. 10)
—Soot deposits on heating coil
!Have After-Sales Service remove soot
deposits from unit
The unit must be checked by after sales
service if the problem cannot be
remedied.
Warranty
The warranty terms and conditions issued
by our responsible sales company apply in
every country. Within the warranty period,
any faults in the unit will be rectified free of
charge provided that the problem was
caused by a material defect or
manufacturing error.
The warranty only applies if the dealer fills
in, stamps and signs the enclosed reply
card when the unit is sold and the
purchaser then returns it to the appropriate
local distributor.
In the event of a warranty claim, please
contact your dealer or the nearest
authorised After-Sales Service office and
produce both accessories and proof of
purchase.

English Operating Instructions
36
General notes
Safety features
Overflow valve with two pressure
switches
—When reducing water volume at pump
head or with the servopress control, the
overflow valve will open and part of the
water will flow back to the pump suction
side.
—If the handgun is closed off so that all
the water flows back to the pump suction
side, the pressure switch at the overflow
valve turns off the pump.
—Reopening the handgun causes the
pressure switch at the cylinder head to
switch the pump back on again.
The overflow valve is set at the factory and
lead-sealed. Adjustment can only be made
by After-Sales Service.
Safety valve
—The safety valve opens if the overflow
valve or pressure switch is defective.
The safety valve is set at the factory and
sealed. Adjustment can only be made by
After-Sales Service.
Low water protection
—The low water protection prevents the
burner switching on when water is
insufficient.
—A strainer prevents dirt accumulation on
the protection and must be regularly
cleaned.
Motor protection switch
—The motor protection switch interrupts
the circuit should overloading occur.
Switching on procedures
—Switching on procedures generate brief
voltage drops.
—Impairments of other appliances can
occur in cases of unfavourable mains
conditions.
—No problems are to be expected with a
mains impedance of less than 0,15 ohm.

Operating Instructions English
37
EC conformity declaration
We hereby declare that the machine
specified below as the marketed desigh,
the machine specified below complies with
the relevant fundamental safety and health
requirements of the EC directives listed
below.
Modification of the machine without our
approval invalidates this declaration.
Product: High-pressure cleaner
with a steam stage
Type: 1.025-xxx, 1.026-xxx, 1.027-xxx,
1.028-xxx
Relevant EC directives
EC machine directive (98/37/EC)
EC low voltage directive (73/23/EEC)
amended by 93/68/EEC
EC directive on electromagnetic
compatability (89/336/EEC) amended by
91/263/EEC, 92/31/EEC, 93/68/EEC
EC high-pressure equipment directive
(97/23/EG)
EC guideline on noise emissions
(2000/14/EU)
Applied harmonised standards
DIN EN 60335-1
DIN EN 60335-2-79
DIN EN 55014-1:2000 + A1:2001
DIN EN 55014-2:1997
DIN EN 61000-3-2:2000
DIN EN 61000-3-3:1995 + A1:2001
(HDS 695 / HDS 895)
DIN EN 61000-3-11:2000
(HDS 655 / HDS 1195 / HDS Super)
Applied national standards
--
Applied conformity valuation method
Appendix V
Measured sound power level:
HDS 655 85 dB(A)
HDS 695 88 dB(A)
HDS 895 89 dB(A)
HDS 1195 88 dB(A)
HDS Super 95 dB(A)
Guaranteed sound power level:
HDS 655 87 dB(A)
HDS 695 89 dB(A)
HDS 895 91 dB(A)
HDS 1195 89 dB(A)
HDS Super 96 dB(A)
Internal measures ensure that the in series
produced units always comply with the
requirements of current EC directives and
applied standards. The signatories act for
and in authority of management.
5.957-649 (02/04)
Alfred Kärcher Limited Partnership.
Registered office: Winnenden. Registration
court: Waiblingen, HRA 169.
Personally liable partner. Kärcher
Reinigungstechnik GmbH. Registered
office Winnenden, 2404 Waiblingen
Company Register, HRB
Managing directors:
Dr. Bernhard Graf, Hartmut Jenner,
Georg Metz
Alfred Kärcher GmbH & Co. KG
Cleaning Systems
Alfred-Kärcher-Strasse 28-40
P.O.Box 160
D-71349 Winnenden
Phone: ++49 7195 14-0
Fax :++49 7195 14-2212
