Kärcher Winner 11 User manual

Operating Instructions
5.961-947.0 (02/09)

2 English
Dear Customer,
Please read and comply with
these original operating instruc-
tions prior to the initial operation of your ap-
pliance and store them for later use or
subsequent owners.
Danger
Immediate danger that can cause severe
injury or even death.
몇Warning
Possible hazardous situation that could
lead to severe injury or even death.
Caution
Possible hazardous situation that could
lead to mild injury to persons or damage to
property.
This high-pressure cleaner is designed for
domestic use only:
– to clean machines, vehicles, buildings,
tools, facades, terraces, garden equip-
ment etc. using a high-pressure water
jet (and detergents if required).
The packaging material can be recy-
cled. Please do not place the packag-
ing into the ordinary refuse for
disposal, but arrange for the proper
recycling.
Old appliances contain valuable ma-
terials that can be recycled. Please
arrange for the proper recycling of old
appliances. Please dispose your old
appliances using appropriate collec-
tion systems.
The warranty terms published by our com-
petent sales company are applicable in
each country. We will repair potential fail-
ures of the appliance within the warranty
period free of charge, provided that such
failure is caused by faulty material or de-
fects in fabrication.
Caution
Safety devices protect the user and must
not be modified or bypassed.
The appliance switch prevents unintention-
al operation of the appliance.
This lock locks the lever of the trigger gun
and prevents the inadvertent start of the ap-
pliance.
If the lever on the trigger gun is released
the pressure switch turns off the pump, the
high-pressure jet ist stopped. If the lever is
pulled the pump is turned on again.
Contents
General information 2
Safety instructions 3
Operation 4
Maintenance and care 7
Troubleshooting 8
Technical specifications 9

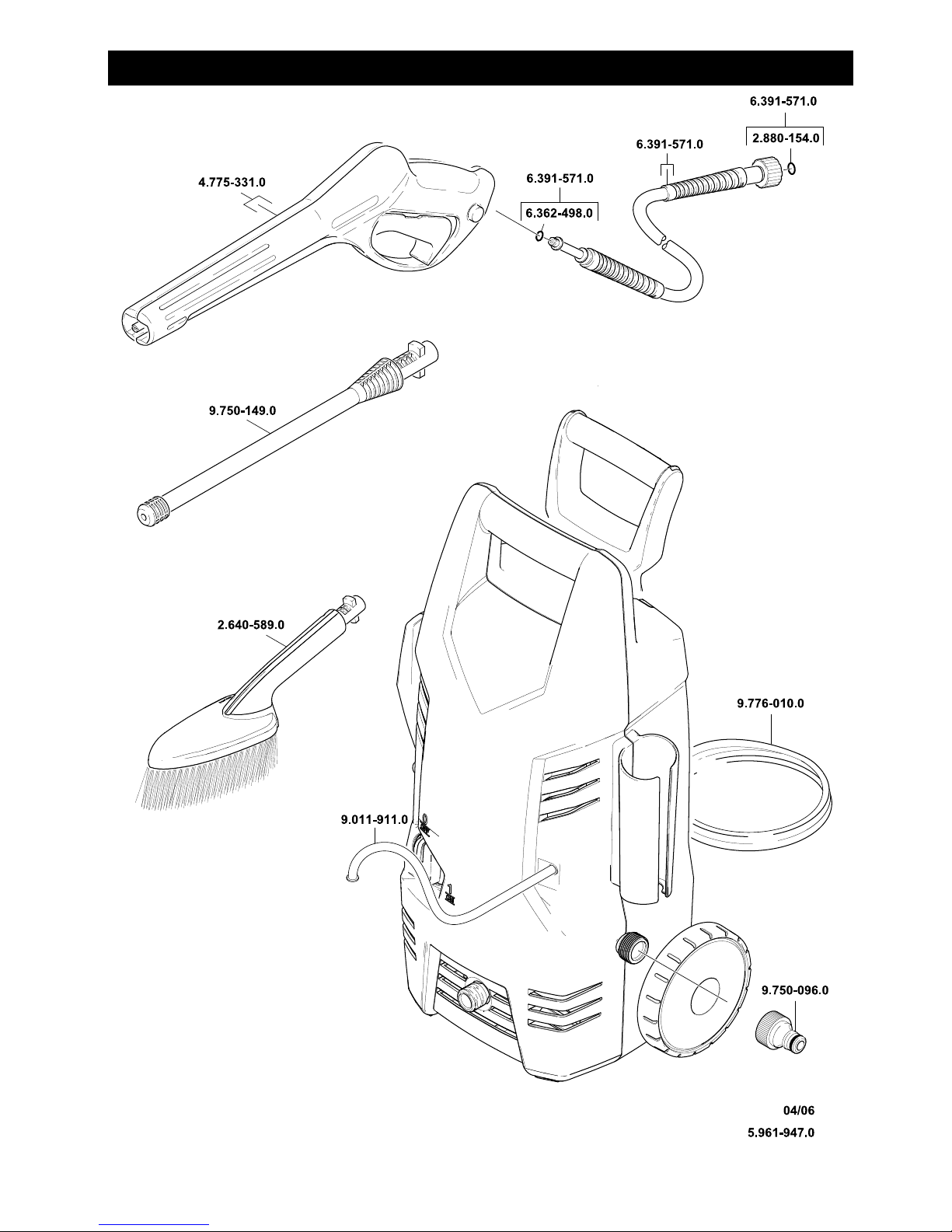

Spare Parts 11
General information
Hazard levels
Proper use
Environmental protection
Warranty
Safety Devices
Power switch
Lock trigger gun
Overflow valve with pressure switch

English 3
Danger
Never touch the mains plug and the
socket with wet hands.
The appliance must not be used if the
power cord or important parts of the ap-
pliance, e.g. high-pressure hoses, trig-
ger gun or safety devices are damaged.
Check the power cord and mains plug
for damage before every use. If the
power cord is damaged, please arrange
for it to be replaced immediately by an
authorised repair agent or a skilled
electrician
Check the high-pressure hose for dam-
age before every use. Please arrange
for the immediate replacement of a
damaged high-pressure hose.
The appliance may not be used in areas
where a risk of explosion is present.
If the appliance is used in hazardous ar-
eas (e.g. filling stations) the corre-
sponding safety provisions must be
observed.
High-pressure jets can be
dangerous if improperly
used. The jet must not be
directed at persons, animals, live elec-
trical equipment or at the appliance it-
self.
The high-pressure jet must not be di-
rected at other persons or directed by
the user at him/herself to clean clothing
or footwear.
Never use the appliance to clean ob-
jects containing hazardous substances
(e.g. asbestos).
Vehicle tyres or tyre valves are suscep-
tible to damage from the high-pressure
jet and may burst. The first indication of
this is a discolouration of the tyre. Dam-
aged vehicle tyres/tyre valves are high-
ly dangerous. Ensure that a distance of
at least 30 cm is observed when clean-
ing with the jet!
Never draw in fluids containing solvents
or undiluted acids and solvents! This in-
cludes petrol, paint thinner and heating
oil. The spray mist thus generated is
highly inflammable, explosive and poi-
sonous. Do not use acetone, undiluted
acids and solvents as they are damag-
ing to the materials from which the ap-
pliance is made.
몇Warning
The mains plug and the coupling of an
extension cable must be watertight and
must never lay in the water.
Unsuitable extension cables can be
hazardous. Only use extension cables
outdoors which have been approved for
this purpose and labelled with a suffi-
cient cable cross-section:
1 - 10 m: 1.5 mm2; 10 - 30 m: 2.5 mm2
Always fully unroll electrical cables from
the cable drum.
High-pressure hoses, fixtures and cou-
plings are important for the safety of the
appliance. Only use high-pressure hos-
es, fixtures and couplings recommend-
ed by the manufacturer.
This appliance is not intended for use
by persons with reduced physical, sen-
sory or mental capabilities.
The appliance must not be operated by
children or persons who have not been
instructed accordingly.
Children should be supervised to pre-
vent them from playing with the appli-
ance.
The operator must use the appliance
correctly. When working with the appli-
ance, he must consider the local condi-
tions and pay due care and attention to
other persons, in particular children,
who are nearby.
Do not use the appliance when there
are other persons around unless they
are also wearing safety equipment.
Wear protective clothing and safety
goggles to protect against splash back
containing water or dirt.
Safety instructions

4 English
Caution
Do not operate the appliance at temper-
atures below 0 °C.
Observe a distance of at least 30 cm
when using the jet to clean painted sur-
faces to avoid damaging paintwork.
Never leave the appliance unattended
when it is in operation.
Make sure that the power cable or ex-
tension cables are not damaged by run-
ning over, pinching, dragging or similar.
Protect the power cable from heat, oil,
and sharp edges.
All current-conducting parts in the work-
ing area must be protected against jet
water.
The appliance may only be connected
to an electrical supply which has been
installed in accordance with IEC 60364.
The appliance may only be connected
to alternating current. The voltage must
correspond with the type plate on the
appliance.
The maximum tolerable mains imped-
ance at the electrical contact point (see
Technical Data) must not be exceeded.
For safety reasons, we recommend that
you operate the appliance only via a
earth-leakage circuit breaker (max.
30 mA).
Cleaning operations which produce oily
waste water, e.g. engine washes, un-
derbody washes, may only be carried
out using washing stations equipped
with an oil separator.
This appliance was designed to be
used with detergents which are sup-
plied or recommended by the manufac-
turer. The use of other detergents or
chemicals may compromise the safety
of the appliance.
The scope of delivery of your appliance is il-
lustrated on the packaging. Check the con-
tents of the appliance for completeness
when unpacking.
In the event of missing accessories or any
transport damage, please contact your
dealer.
Illustrations on Page 5
1 High pressure connection
2 Detergent suction hose (with filter)
3 Appliance switch "0/OFF“/ „I/ON“
4 Storage for high-pressure hose
5 Carrying handle
6 Transport handle, detachable
7 Storage for trigger gun
8 Mains cable with mains plug
9 Connection for water supply with filter
10 Bearing wheel
11 Coupling element for water connection
12 Trigger gun
13 High pressure hose
14 Washing brush
15 Spray lance with high pressure nozzle
Mount loose parts delivered with appliance
prior to start-up.
Illustrations on Page 5
ÎInsert the transport wheels and lock
them.
Operation
Description of the Appliance
Before Startup

English 5

6 English
According to the applicable regula-
tions, the appliance must never be
used on the drinking water net with-
out a system separator. Use a suitable sys-
tem separator as per EN 12729 type BA.
Water flowing through a system separator
is considered non-drinkable.
Observe regulations of water supplier.
For connection values, see type plate/tech-
nical data.
ÎUse a fibre-reinforced water hose (not
included) with a standard coupling.
(Minimum diameter 1/2 inch (13 mm),
minimum length 7.5 m).
ÎScrew the coupling unit (supplied) to
the water connection on the appliance.
ÎPush the water supply hose onto the
coupling unit, then connect it to the wa-
ter supply.
Caution
Dry runs lasting longer than two minutes
lead to damages to the high pressure
pump. If the appliance does not build up
pressure within two minutes, switch it off
and proceed as instructed in the Chapter
"Help with faults".
In case of impurities in the supply water, a
3/4" fine water filter must be used.
ÎConnect the high pressure hose to the
high pressure connection of the appli-
ance.
ÎPush the spray lance into the trigger
gun and fasten it by turning it through
90°.
ÎCompletely open the water tap.
ÎInsert the mains plug into the socket.
ÎTurn on the appliance “I/ON”.
몇Danger
The trigger gun is subjected to a recoil force
when the water jet is discharged. Make
sure that you have a firm footing and are
also holding the trigger gun and spray lance
firmly.
ÎUnlock the lever on the trigger gun.
ÎPull on the lever of the trigger gun; the
device will switch on.
Note: Release the lever of the trigger gun;
the device will switch off again. High pres-
sure remains in the system.
For normal cleaning tasks.
Not suitable for use with detergents.
Suitable for use with detergents.
ÎPull detergent suction hose as far as is
required out of the housing.
ÎSuspend end of detergent suction hose
in a container filled with detergent.
ÎDetach spray lance from the trigger
gun. Work only with the trigger gun.
Note: This will mix the detergent with
the water stream.
ÎSpray the detergent sparingly on the
dry surface and allow it to react, but not
to dry.
ÎSpray off loosened dirt with the high-
pressure jet.
Water supply
Water supply from mains
Start up
Operation
Spray lance with high pressure nozzle
Washing brush
Working with detergent
Recommended cleaning method

English 7
ÎRelease the lever on the trigger gun.
ÎLock the lever on the trigger gun.
ÎDuring longer breaks (more than 5 min-
utes), also turn the appliance off using
the "0/OFF" switch.
ÎAfter working with detergent, suspend
detergent suction hose in a container
filled with clear water, switch the appli-
ance on for around 1 minute once the
spray lance has been removed and
rinse until water runs clear.
ÎRelease the lever on the trigger gun.
ÎTurn off the appliance "0/OFF".
ÎTurn off tap.
ÎDetach the appliance from the water
supply.
ÎPress the lever on the trigger gun to re-
lease any remaining pressure in the
system.
ÎLock the lever on the trigger gun.
ÎPull out the mains plug.
ÎStow away the mains cable, the high-
pressure hose and accessory at the ap-
pliance.
Danger
Turn off the appliance and remove the
mains plug prior to any care and mainte-
nance work.
The appliance is maintenance-free.
Prior to longer periods of storage, e.g. in
the winter:
ÎCompletely drain all water from the ap-
pliance: Switch the appliance on with
detached high-pressure hose and de-
tached water supply (max. 1 minute)
and wait, until no more water exits at the
high-pressure connection. Turn off the
appliance.
ÎRemove filter from suction hose for de-
tergent and clean under running water.
ÎPull out the sieve in the water connec-
tion using flat-nose pliers and clean un-
der running water.
Caution
Protect the appliance and its accessories
against frost.
The appliance and its accessories can get
destroyed through frost if there are any wa-
ter residues in them. To avoid damage to
them:
ÎStore the appliance and the entire ac-
cessories in a frost-safe room.
Use only original spare parts. You will find
a list of spare parts at the end of these op-
erating instructions.
Interrupting operation
Finish operation
Maintenance and care
Maintenance
Storage
Frost protection
Spare parts

8 English
You can rectify minor faults yourself with
the help of the following overview.
If in doubt, please consult the authorized
customer service.
Danger
Turn off the appliance and remove the
mains plug prior to any care and mainte-
nance work.
Repair works may only be performed by the
authorized customer service.
ÎPull on the lever of the trigger gun; the
device will switch on.
ÎCheck whether the voltage indicated on
the type plate corresponds to the volt-
age of the mains supply.
ÎCheck the mains connection cable for
damages.
ÎAppliance ventilation: Switch the appli-
ance on with the high-pressure hose
detached and operate (max. 2 minutes)
until the water exits the high-pressure
connection without bubbles. Switch off
appliance and reconnect high-pressure
hose.
ÎCheck the water supply.
ÎPull out the sieve in the water connec-
tion using flat-nose pliers and clean un-
der running water.
ÎClean high-pressure nozzle: Remove
dirt and debris from the nozzle bore, us-
ing a needle and rinse through with wa-
ter from the front.
ÎCheck water flow quantity.
ÎSlight leakage from the appliance pump
is normal. If the leakage increases con-
tact the authorized customer service.
ÎDetach spray lance from the trigger
gun. Work only with the trigger gun.
ÎClean the detergent suction hose filter.
ÎCheck the detergent suction hose for
kinks.
Troubleshooting Appliance is not running
Pressure does not build up in the
appliance
Strong pressure fluctuations
Appliance is leaking
No detergent infeed

English 9
Subject to technical modifications!
Technical specifications
Power connection
Voltage 220-240
1~50/60
V
Hz
Power consumption 6 A
Mains fuse (slow-blow) 10 A
Protective class II
Protection class IP X5
Water connection
Max. feed temperature 40 °C
Min. feed volume 8I/min
Feed pressure 0,2-1,2 MPa
Performance data
Working pressure 8 MPa
Max. permissible pressure 10 MPa
Water flow rate 5,5 I/min
Detergent flow rate 0,4 I/min
Recoil force of trigger gun 10 N
Hand-arm vibration
(ISO 5349)
0,8 m/s2
Sound pressure level
LpA (EN60704-1)
78 dB(A)
Sound power level
LWA (2000/14/EG)
92 dB(A)
Dimensions
Length 229 mm
Width 314 mm
Height 572 mm
Weight 5,0 kg

10 English
Notes

English 11
Spare Parts
