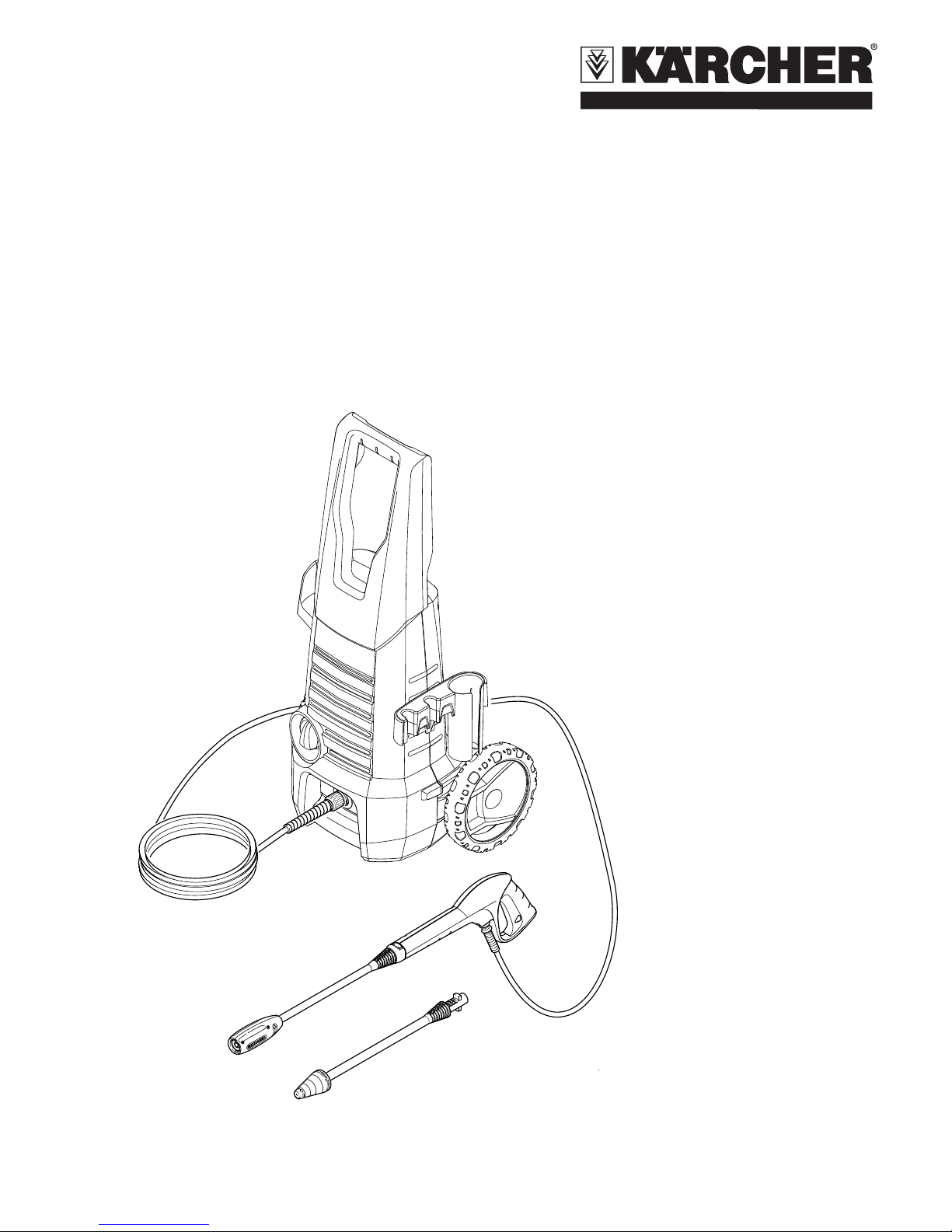

Kärcher K 2.360 User manual

English 2
Español 18
Français 37
K 2.360
59634120 11/09

2 English
DANGER
indicates “an imminently hazardous situ-
ation which, if not avoided, will result in
death or serious injury.”
WARNING
indicates “a potentially hazardous situa-
tion which, if not avoided, could result in
death or injury.”
CAUTION
indicates “a potentially hazardous situa-
tion which, if not avoided, may result in
minor or moderate injury or in property
damage incidents.”
For household use only!
The owner and/or user must have an un-
derstanding of the manufacturer’s oper-
ating instructions and warnings before
using this pressure washer.
Warning information should be empha-
sized and understood.
If the operator is not fluent in English,
the manufacturer’s instructions and
warnings shall be read to and discussed
with the operator in the operator’s native
language by the purchaser/owner, mak-
ing sure that the operator comprehends
its contents.
Owner and/or user must study and
maintain for future reference the manu-
facturers’ instructions.
In the U.S. or Canada, please call
1-800-537-4129 for warranty issues and
visit www.karcher-help.com for techni-
cal support and product assistance.
Please take a moment to register your
pressure washer online at
www.karcher-register.com. Be sure to
save your purchase receipt, it will be re-
quired for repairs covered by warranty.
Call: 01-800-024-13-13 for help or visit
our website: www.karcher.com.mx
HIGH PRESSURE WASHER OPERATOR MANUAL
Model Overview 3
Important Safety Instructions 4
Assembly Instructions 6
Operating Instructions 6
Using the Accessories 8
Working with Detergents 9
Taking a Break 11
Shutting Down & Clean-Up 11
Winterizing and Long-Term Storage 12
Maintenance Instructions 12
Cleaning Tips 13
Optional Cleaning Accessories 14
Troubleshooting 16
Safety Alert Symbols
Specifications
Max. Pressure 1600 PSI
Max. Water Flow 1.25 GPM
Amp draw 13 AMPS
Voltage 120 V
Part No. 1.601-681.0
Serial no.
Owner/User Responsibility
Customer Support
USA and Canada
Customer Support
Mexico

English 3
1 High pressure outlet
2 ON/OFF switch
3 Hose/Cord Hook
4 Handle
5 Spray Wand Storage
6 Water inlet with garden hose
connector
7 Detergent tank
8 Trigger Gun Holder
9 Power cord with Ground Fault Circuit
Interrupter (GFCI)
10 Wheels
11 Trigger gun
12 Trigger gun safety lock
13 Locking slide for high pressure hose
14 High pressure hose
15 Cleaning Kit
Sponge
Rim Brush
Bristle Brush
Detergent SoapPac
Accessory Bag
16 Dirtblaster®(Rotary spray wand)
17 Vario Power Spray wand
MODEL OVERVIEW

4 English
WARNING
When using this product basic precau-
tions should always be followed, includ-
ing the following:
Read all the instructions before using
the product.
To reduce the risk of injury, close su-
pervision is necessary when a prod-
uct is used near children.
Know how to stop the product and
bleed pressures quickly. Be thor-
oughly familiar with the controls.
Stay alert – watch what you are do-
ing.
Do not operate the product when fa-
tigued or under the influence of alco-
hol or drugs.
Keep operating area clear of all per-
sons.
Do not overreach or stand on unsta-
ble support. Keep good footing and
balance at all times.
Follow the maintenance instructions
specified in the manual.
This product is provided with a
Ground Fault Circuit Interrupter built
into the power cord plug. If replace-
ment of the plug or cord is needed,
use only identical replacement parts.
WARNING
Risk of Injection or Injury – Do Not
Direct Discharge Stream At Persons.
High pressure jets can be dangerous
if misused. The jet must not be di-
rected at persons, animals, electrical
devices, or the unit itself.
Wear safety goggles.
WARNING
Risk Of Explosion – Do not spray
flammable liquids.
Do not use acids, alkaline, solvents,
or any flammable material in this
product. These products can cause
physical injuries to the operator and
irreversible damage to the machine.
CAUTION
Gun Kicks Back – Hold with both
hands.
The Trigger Gun Safety Lock pre-
vents the trigger from accidentally
being engaged. This safety feature
DOES NOT lock trigger in the ON po-
sition.
WARNING – Risk of Electrocution
Inspect cord before using – Do not
use if cord is damaged.
Keep all connections dry and off the
ground.
Do not touch plug with wet hands.
Do not use extension cord with this
product.
Connect to individual branch circuit
only.
CAUTION
This unit has been designed for use with
cleaning detergents recommended by
the manufacturer. The use of other
cleaning detergents may affect the oper-
ation of the machine and void the war-
ranty.
WARNING
DO NOT SPRAY ELECTRICAL APPA-
RATUS AND WIRING.
DO NOT USE WITH FLAMMABLE
LIQUIDS AND TOXIC CHEMICALS.
HIGH PRESSURE. KEEP CLEAR OF
NOZZLE.
INJECTION HAZARD: EQUIPMENT
CAN CAUSE SERIOUS INJURY IF
THE SPRAY PENETRATES THE
SKIN. DO NOT POINT THE GUN AT
ANYONE OR ANY PART OF THE
BODY. IN CASE OF PENETRATION
SEEK MEDICAL AID IMMEDIATELY.
IMPORTANT SAFETY INSTRUCTIONS

English 5
THIS SYSTEM IS CAPABLE OF PRO-
DUCING 1600 PSI TO AVOID RUP-
TURE AND INJURY, DO NOT
OPERATE THIS PUMP WITH COM-
PONENTS RATED LESS THAN 1600
PSI WORKING PRESSURE (INCLUD-
ING BUT NOT LIMITED TO SPRAY
GUNS, HOSE AND HOSE CONNEC-
TIONS).
BEFORE SERVICING, CLEANING
OR REMOVING ANY PARTS, SHUT
OFF POWER AND RELIEVE PRES-
SURE.
IF CONNECTION IS MADE TO A PO-
TABLE WATER SYSTEM, THE SYS-
TEM SHALL BE PROTECTED
AGAINST BACKFLOW.
This pressure washer is provided with a
ground-fault circuit-interrupter (GFCI)
built into the plug of the power-supply
cord. This device provides additional
protection from the risk of electric shock.
Should replacement of the plug or cord
become necessary, use only identical
replacement parts that include GFCI
protection.
In a double-insulated product, two sys-
tems of insulation are provided instead
of grounding. No grounding means is
provided on a double-insulated product,
nor should a means for grounding be
added to the product. Servicing a dou-
ble-insulated product requires extreme
care and knowledge of the system, and
should be done only by qualified service
personnel. Replacement parts for a dou-
ble-insulated product must be identical
to the parts they replace. A doubleinsu-
lated product is marked with the words
“DOUBLE INSULATION” or “DOUBLE
INSULATED”. The symbol “ ” may also
be marked on the product.
CAUTION
When connecting the water inlet to the
water supply mains, local regulations of
your water company must be observed.
In some areas the unit must not be con-
nected directly to the public drinking wa-
ter supply. This is to ensure that there is
no feedback of chemicals into the water
supply. Direct connection via a receiver
tank or backflow preventer, for example,
is permitted.
Dirt in the feed water will damage the
unit. To avoid this risk, we recommend
fitting a water filter.
Garden hose must be at least 1/2
inch or 5/8 inch in diameter.
Flow rate of water supply must not
fall below 2 GPM (gallons per
minute).
Flow rate can be determined by run-
ning the water for one minute into an
empty 5-gallon container.
The water supply temperature must
not exceed 104°F/40°C.
Never use the pressure washer to
draw in water contaminated with sol-
vents, e.g. paint thinners, gasoline,
oil, etc.
Always prevent debris from being
drawn into the unit by using a clean
water source.
SAVE THESE INSTRUCTIONS!
GROUND FAULT CIRCUIT
INTERRUPTER PROTECTION
SERVICING OF A DOUBLE-
INSULATED PRODUCT
WATER SUPPLY
(Cold Water Only)

6 English

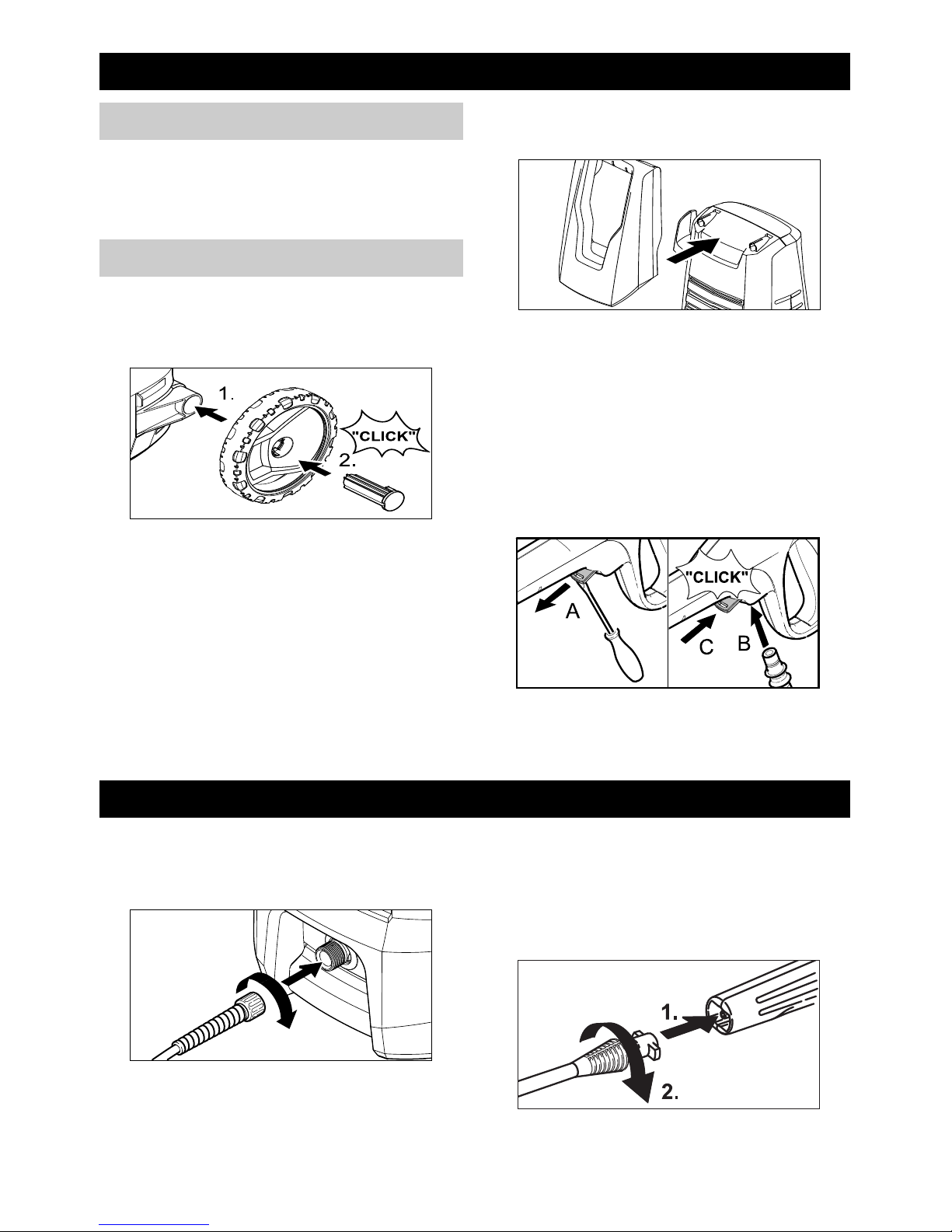

Screwdriver, small size (not supplied)
for connecting high pressure hose and
trigger gun.
ÎSTEP 1:
Insert wheels into the side holes of
the unit.
ÎSTEP 2:
Slide the transport handle into place.
ÎSTEP 3:
A Pull out the locking slide of the trigger
gun handle.
B Insert the small end of the high pres-
sure hose into place.
C Push the locking slide back into the
trigger gun to lock the hose in posi-
tion.
ÎSTEP 1:
Connect the high pressure hose to
the unit’s high pressure outlet.
ÎSTEP 2:
Insert the spray wand of your choice
into the trigger gun. Press in against
the spring tension and twist into
locked position.
ASSEMBLY INSTRUCTIONS
Required tools
Assembly
OPERATING INSTRUCTIONS

English 7
ÎSTEP 3:
Connect garden hose to unit’s water
inlet.
ÎSTEP 4:
Connect garden hose to the cold wa-
ter source and turn water on com-
pletely.
ÎSTEP 5:
Plug the Ground Fault Circuit Inter-
rupter (GFCI) into a receptacle.
Press RESET button, indicator
should be “ON”.
Press TEST button, indicator should
be “OFF”.
Press RESET button for use.
We recommend that you test the GFCI as
part of your startup procedure each time
you use your pressure washer. To learn
how to peform this test on your unit, visit
http://www.karcherresidential.com/
gfci_test.php for detailed instructions for
your type of GFCI.
WARNING
Do not use if above test fails.
ÎSTEP 6:
Unlock the trigger gun safety lock.
Trigger the gun to eliminate trapped
air, wait for a steady flow of water to
emerge from the spray nozzle.
ÎSTEP 7:
Turn on the high pressure washer (I/
ON).
The motor starts only if the trigger
of the gun is pulled and shuts off
when the trigger is released.

8 English
WARNING
To avoid serious injury never point
spray nozzle at yourself, other per-
sons or animals.
Always test an inconspicuous area
before cleaning with high pressure.
The Vario Power Spray Wand allows
you to adjust the cleaning pressure.
To clean at maximum pressure, the
wand must be positioned to the high
pressure setting (Max).
For reduced pressure turn the wand
collar in the „Min“ direction.
To apply detergent, the wand must
be positioned to the low pressure
setting (Mix).
This nozzle features a 0º pencil jet
which rotates 360º for maximum dirt
cutting action, effectively increasing
cleaning performance up to 50%.
This nozzle combines the cleaning
performance of a 0º pencil jet with
the surface coverage of a wide angle
nozzle.
Not recommended for soft materi-
als, siding, painted surfaces,
decks or autos.
Before cleaning any surface an in-
conspicuous area should be cleaned
to test spray pattern and distance for
maximum cleaning results.
WARNING
Do not use the rim and bristle brush
on the clear coat finish of a vehicle.
These brushes are intended for tires,
unfinished metal or chrome finishes.
USING THE ACCESSORIES
Vario Power Spray Wand
Dirtblaster®
Cleaning Kit

English 9

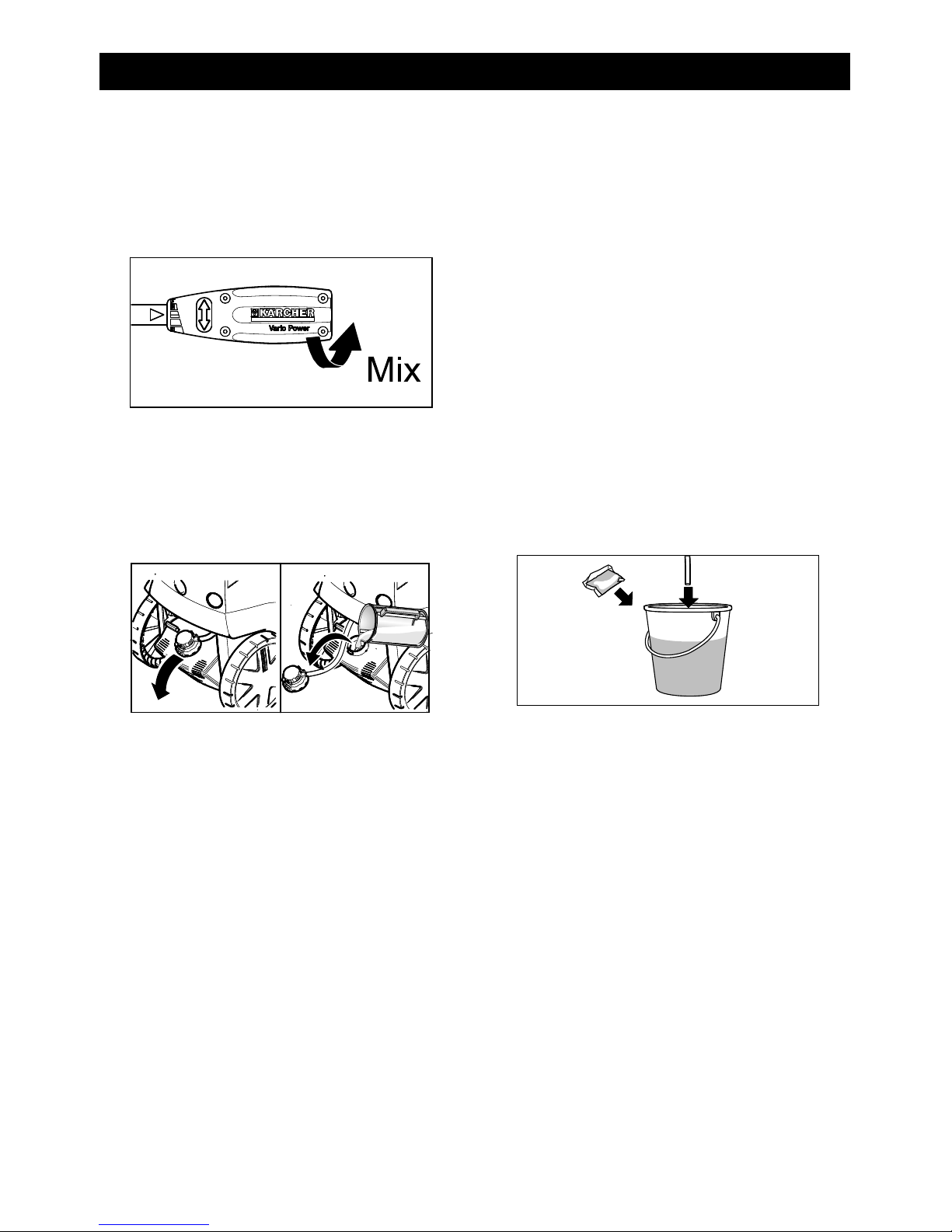

Detergents can only be applied at low
pressure setting (Mix).
ÎSTEP 1:
Install the Vario Power Spray Wand.
Set the spray wand to the low pres-
sure setting (Mix).
ÎSTEP 2:
One Gallon Ready to Use Instruc-
tions:
Fill the Detergent Tank with the se-
lected detergent.
Kärcher SoapPac Instructions:
Kärcher SoapPacs are designed to
completely dissolve in water. A Kärcher
SoapPac Sample of Concentrated Vehi-
cle Wash & Wax is included with your
pressure washer. This product is pack-
aged in self dissolving film that is formu-
lated to quickly remove dirt, grease and
grime, while leaving the surface film-
free. It provides a just-waxed look in one
simple product
Do not cut or tear open the Kärcher
SoapPac. Do not handle with wet
hands. Avoid contact with skin, eyes
and mucous membranes. May cause
irritation. Harmful if swallowed. Mix
only with water. DO NOT mix with
other chemicals or cleaning agents.
–Insert one SoapPac into a bucket.
–Fill the bucket with cool or warm wa-
ter (1/4 gal/1 qt /1 L).
–Agitate water in the bucket and wait
for product to completely dissolve.
–Fill the solution into the detergent
tank.
–Apply detergent on low pressure set-
ting.
For other Kärcher SoapPac Deter-
gents, check your retailer or visit our
website: www.soappac.com for more
information.
WORKING WITH DETERGENTS

10 English
ÎSTEP 3:
Turn on the pressure washer (I). Pull
trigger to operate unit. Liquid deter-
gent is drawn into the unit and mixed
with water. Apply detergent to work
area. Do not allow detergent to dry
on surface.
ÎSTEP 4:
Cleaning up: Always draw fresh wa-
ter through the detergent suction
tube when the cleaning job is done,
to flush any remaining detergents
from the injection system.
For best results see Cleaning Tips for
specific information on how to clean
different surfaces.
Always Use Kärcher®Detergent for
Best Results
Kärcher®biodegradable detergents are
specially formulated to protect the envi-
ronment and your pressure washer. The
special formula won’t clog the suction
tube filter and will protect the internal
parts of the pressure washer for a longer
life. For Kärcher®Detergents, check
your retailer or visit our website:
www.buykarcher.com
The following Kärcher SoapPac de-
tergents are available:
Vehicle Wash & Wax Cleaner
All Purpose Cleaner
Deck & Patio Cleaner
Degreaser
Exterior House Cleaner
CAUTION
Never use:
–Bleach, Chlorine products and other
corrosive chemicals
–Liquids containing solvents (i.e.,
paint thinners, gasoline, oils)
–Tri-sodium phosphate products
–Ammonia products
–Acid-based products
These chemicals will harm the unit and
will damage the surface being cleaned.
Use of these items will void the war-
ranty.

English 11
ÎSTEP 1:
Release trigger and engage gun
safety lock.
ÎSTEP 2:
Turn pressure washer to OFF (0) po-
sition.
ÎSTEP 1:
Turn the switch to OFF (0) position
and unplug cord from outlet.
ÎSTEP 2:
Turn off the water source.
ÎSTEP 3:
Press trigger to release water pres-
sure.
ÎSTEP 4:
Release trigger and engage gun
safety lock.
ÎSTEP 5:
Disconnect the garden hose from the
water inlet on the unit.
ÎSTEP 6:
Disconnect the high pressure hose
from the high pressure outlet.
TAKING A BREAK ..five minutes or more
SHUTTING DOWN & CLEAN-UP

12 English
Î1: Disconnect all water connections.
Î2: Turn on the machine for a few sec-
onds, until the water which had re-
mained in the pump exits, turn off
immediately.
Î3: Do not allow high pressure hose to
become kinked.
Î4: Store the machine and accesso-
ries in a room which does not reach
freezing temperatures. DO NOT
store near furnace or other sources
of heat as it may dry out the pump
seals.
CAUTION
Failure to follow the above directions will
result in damage to the pump assembly
and accessories and will void the war-
ranty.
Kärcher®also recommends the regular
practice of using a pump protector like
“Kärcher®Pump Guard” to prevent cold
weather damage during storage in the
winter months.
ÎSTEP 1:
Pull out washer from the water inlet.
ÎSTEP 2:
Pull out water inlet filter with flat-nose
pliers.
ÎSTEP 3:
Rinse out water inlet filter in warm
water.
ÎSTEP 4:
Reinsert water inlet filter and washer
into the water inlet.
The unit is maintenance-free.
WINTERIZING AND LONG-TERM STORAGE
CARE AND MAINTENANCE INSTRUCTIONS
Cleaning the water inlet filter Maintenance

English 13
CAUTION
Before cleaning any surface an in-
conspicuous area should be cleaned
to test spray pattern and distance for
maximum cleaning results.
If painted surfaces are peeling or
chipping, use extreme caution as
pressure washer may remove the
loose paint from the surface.
When using on surfaces which might
come in contact with food, flush sur-
faces with plenty of drinking water.
For additional cleaning tips and a
complete video library, visit our web-
site:
www.karcherresidential.com
(with or without detergent). Pre-rinse
deck and surrounding area with fresh
water. If using detergent, apply to sur-
face at low pressure. For best results,
limit your work area to smaller sections
of approximately 25 square feet. Allow
detergent to remain on surface 1-3 min-
utes. Do not allow detergent to dry on
surface. Rinse at high pressure in a long
sweeping motion keeping the spray noz-
zle approximately 3-6 inches from the
cleaning surface. Always clean from top
to bottom and from left to right. When
moving on to a new section of the clean-
ing surface, be sure to overlap the previ-
ous section to eliminate stop marks and
ensure a more even cleaning result.
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If us-
ing detergent, apply to surface at low
pressure (for best results, limit your
work area to sections of approximately
6 feet and always apply detergent from
bottom to top). Allow detergent to re-
main on surface 1-3 minutes. Do not al-
low detergent to dry on surface, if
surface appears to be drying, simply wet
down surface with fresh water. If need-
ed, use special wash brush attachment
(not included) to remove stubborn dirt.
Rinse at high pressure from top to bot-
tom in an even sweeping motion keep-
ing the spray nozzle approximately
6 inches from the cleaning surface.
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If us-
ing detergent or Degreaser, apply to
surface at low pressure. For best re-
sults, limit your work area to smaller sec-
tions of approximately 25 square feet.
Allow detergent or Degreaser to remain
on surface 1-3 minutes. Do not allow de-
tergent to dry on surface. Rinse at high
pressure in a sweeping motion keeping
the spray nozzle approximately 3-6
inches from the cleaning surface. Al-
ways clean from top to bottom and from
left to right. For removing extremely
stubborn stains, use the Dirtblaster®
Nozzle.
(with or without detergent). Pre-rinse
vehicle with fresh water. If using deter-
gent, apply to surface at low pressure.
For best results, clean one side of vehi-
cle at a time and always apply detergent
from bottom to top, do not allow deter-
gent to dry on surface. If needed, use
special wash brush attachment (not in-
cluded) to remove stubborn dirt. Rinse
at high pressure in a sweeping motion
CLEANING TIPS
Deck Cleaning
House Siding
Cement Patios, Brick and Stone
Cars, Boats & Motorcycles

14 English
keeping the spray nozzle approximately
6-8 inches from the cleaning surface
(distance should increase when rinsing
pin-striping or other sensitive surfaces).
Always clean from top to bottom and
from left to right. For best results, wipe
surface dry with a chamois or soft dry
cloth.
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If us-
ing detergent or Degreaser, apply deter-
gent at low pressure. Allow detergent to
remain on surface 1-3 minutes. Do not
allow detergent to dry on surface. Rinse
at high pressure keeping the spray noz-
zle approximately 3-6 inches from the
cleaning surface. For removing ex-
tremely stubborn dirt, it may be neces-
sary to move the spray nozzle even
closer to the surface for greater dirt cut-
ting action.
(with or without detergent). Pre-rinse
furniture and surrounding area with
fresh water. If using detergent, apply to
surface at low pressure. Allow detergent
to remain on surface 1-3 minutes. Do
not allow detergent to dry on surface. If
needed use special Wash Brush Attach-
ment (not included) to remove stubborn
dirt. Rinse at high pressure in a sweep-
ing motion keeping the spray nozzle ap-
proximately 3-6 inches from the
cleaning surface. For best results, clean
Optional accessories are available to
further enhance your cleaning capabili-
ties. These accessories are accurate as
of the printing date of this manual.
Please check our website for pricing and
up-to-date information.
Specially formulated to protect your
pressure washer from freezing, corro-
sion and premature wear. The Pump
Guard also adds lubrication to valves
and seals to prevent sticking. Highly rec-
ommended for all Kärcher®pressure
washers!
Part No. 9.558-998.0
Replacement hose fits Kärcher®pres-
sure washer with screw-on type gun
connections from 2400 PSI to 2500 PSI,
Extension Hose for all Kärcher®high
pressure washers between the original
equipment hose and machine up to
2500 PSI.
Part No. 2.640-850.0
Need to clean second story windows or
other high areas? Increase the reach of
your pressure washer by up to 66" with
this extension kit. Includes 4 aluminum
sections for variable length. 66" fully as-
sembled. Fits most Kärcher®pressure
washers up to 2300 PSI. (bayonet)
Part No. 2.640-746.0
For more effortless cleaning of all
smooth surfaces (painted, glass and
plastic) try the Kärcher®Rotating Wash
Barbecue Grills, Outdoor Power
Equipment & Gardening Tools
Patio & Lawn Furniture
OPTIONAL CLEANING ACCESSORIES
Pump Guard
25 Ft. Extension /Replacement
High-Pressure Hose
66" Extension Wand (Four piece)
Rotating Wash Brush (bayonet)

English 15
Brush. Use it on your automobile, house
siding or windows. The water pressure
from your pressure washer causes the
inner brushes to gently spin, making
your cleaning job much easier. The an-
gle of brush head is adjustable to help
you reach difficult areas. Excellent for
the application of detergent. A must-
have accessory designed for Kärcher®
pressure washers up to 2300 PSI. (bay-
onet)
Part No. 2.640-743.0
Made with soft bristles that will not harm
painted surfaces. Easily attaches direct-
ly to the trigger gun. Ideal for stubborn
dirt on cars, boats, patio furniture and
other surfaces. Great for applying deter-
gent. Fits most Kärcher®pressure wash-
ers up to 2300 PSI. (bayonet)
Part No. 2.640-740.0
Need to clean blocked pipes, drains or
downspouts? The Kärcher®pipe clean-
ing kit is the answer! The pipe cleaner
propels itself forward while simulta-
neously flushing out debris. For exam-
ple, insert the cleaning nozzle in the
base of a downspout, pull the trigger on
the pressure washer gun and watch as
the nozzle shoots out leaves and other
debris while climbing upward. Connects
directly to the trigger gun of most
Kärcher®pressure washers up to
2300 PSI. (bayonet)
Part No. 2.640-747.0
Why spend hours stripping old paint and
rust by hand using harsh chemicals? Let
the Kärcher®Wet Sandblasting Kit do
the work! Attach the kit to your pressure
washer, add abrasive material and at-
tack the rust and paint with our eco-
friendly alternative. Fits most Kärcher®
pressure washers up to 2300 PSI. (bay-
onet)
Part No. 2.638-792.0
Ideal for applications which require a
thick foam. Simply fill the resevoir cup
with liquid pressure washer detergent to
generate a foam spray. Connects direct-
ly to the trigger gun. Fits most Kärcher®
pressure washers up to 2300 PSI. (bay-
onet)
Part No. 6.964-507.0
For cleaning surfaces such as patios,
terraces and driveways without splash-
back, there is no better solution than the
Kärcher®T 100. It saves time by clean-
ing a one foot wide area gently as it hov-
ers, providing consistent, streak-free
cleaning. When you finish cleaning the
patio and driveway, remove the wand
and use the handle to clean garage
doors and other vertical surfaces. In-
cludes two nozzles which spin at high
speed for optimum results. Our top sell-
ing accessory for Kärcher®pressure
washers up to 2300 PSI. (bayonet)
Part No. 2.640-959.0
Soft Clean Washing Brush
25 ft. Pipe Cleaning Kit (bayonet)
Wet Sandblasting Kit (bayonet)
Detergent Foamer Attachment
T 100 Wide Area Surface Cleaner

16 English
CAUTION
Disconnect the machine from the power
source before making any repair.
TROUBLESHOOTING
Symptom Cause Solution
Motor will not start On/Off switch is in the “OFF”
(0) position.
Turn switch to the “ON” (I)
position
Power cord is not plugged in. Plug in power cord.
Electrical outlet does not
supply adequate power.
Try a different outlet.
Tripped GFCI plug. Press “RESET” button on GFCI
plug.
Unit does not
reach high
pressure.
Diameter of garden hose is
too small.
Replace with a 5/8 inch or
larger garden hose.
Water supply is restricted. Check garden hose for kinks,
leaks and blockage.
Not enough inlet water supply. Open water source full force.
Water inlet filter is clogged. Remove filter and rinse out in
warm water.
Spray wand is on low
pressure position.
Turn spray wand to high
pressure position.
Output pressure
varies high and
low.
Not enough inlet water supply. Turn water on full force. Check
garden hose for kinks, leaks or
blockage.
Pump is sucking air. Check that hoses and fittings
are air tight. Turn off machine
and purge pump by squeezing
trigger gun until a steady flow of
water emerges through the
nozzle.
Water inlet filter is clogged. Remove filter and rinse out in
warm water.
Discharge nozzle is
obstructed.
Blow out or remove debris with
a fine needle.
Calcified gun, hose or spray
wand.
Run distilled vinegar through
detergent suction tube.

English 17
If you encounter any additional difficul-
ties not listed, please visit our website.
USA / Canada:
www.karcher-help.com
México:
www.karcher.com.mx
No detergent. Detergent is too thick. Dilute detergent, for best re-
sults use Kärcher®detergent.
Filter on detergent suction
tube is clogged.
Run warm water through filter
to remove debris.
Damaged or clogged
detergent suction tube.
Remove obstruction or replace
detergent suction tube.
Spray wand is in high
pressure position.
Turn spray wand tip to low
pressure position.
Discharge nozzle is
obstructed.
Blow out or remove debris with
fine needle.
Garden hose
connection leaks.
Loose fittings. Tighten fittings.
Missing/worn rubber washer. Insert new washer.
Spray wand leaks. Spray wand not properly
attached.
Insert the spray wand into the
trigger gun. Carefully press in
against the spring tension and
twist into the locked position.
Broken o-ring or plastic insert. Call Customer Support
Pump is noisy. Pump is sucking air. Check that hoses and fittings
are air tight. Turn off machine
and purge pump by squeezing
trigger gun until a steady flow of
water emerges through the
nozzle.
Water leaks from
pump (up to 10
drops per minute
is permissible).
Loose fittings. Check that all fittings are tight.
Water seals are damaged or
worn.
Call Customer Support
Oil Drip. Oil seals are damaged or
worn.
Call Customer Support
Symptom Cause Solution

18 Español
PELIGRO
indica “una situación de peligro inminen-
te que, si no se evita, puede causar le-
siones graves e incluso la muerte”.
ADVERTENCIA
indica “una situación de peligro poten-
cial que, si no se evita, puede causar le-
siones e incluso la muerte”.
ATENCIÓN
indica “una situación de peligro poten-
cial que, si no se evita, puede causar le-
siones de poca importancia o leves", o
daños materiales.
Sólo para uso doméstico.
El propietario y/o el usuario deben com-
prender bien las instrucciones de servi-
cio y advertencias del fabricante antes
de empezar a utilizar este limpiador de
alta presión.
Debe prestarse especial atención y te-
ner muy claras las advertencias.
Si el operador no habla bien el español,
el propietario/comprador debe respon-
sabilizarse de leer y comentar las ins-
trucciones y las advertencias en su
lengua natal, y asegurarse de que en-
tienda a la perfección su contenido.
El propietario y/o el usuario deben leer y
guardar como referencia para el futuro
las instrucciones del fabricante.
En EE.UU: o Canadá, llame al
1-800-537-4129 para temas de garantía
y visite www.karcher-help.com para el
servicio técnico y asesoramiento sobre
productos.
Registre su limpiadora a alta presión on-
line en www.karcher-register.com.
Guarde bien el ticket de compra, será
necesario para reparaciones que cubra
la garantía.
Llame al: 01-800-024-13-13 si necesita
ayuda o visite nuestra página Web:
www.karcher.com.mx
MANUAL DE USUARIO DEL LIMPIADOR DE ALTA PRESIÓN
Vista general del modelo 19
Instrucciones de seguridad 20
Instrucciones de montaje 22
Instrucciones de funcionamiento 22
Utilicación de los accesorios 24
Trabajar con detergentes 25
Tomarse un descanso 27
Apagado y limpieza 27
Almacenamiento prolongado 28
Instrucciones de mantenimiento 28
Consejos de limpieza 29
Accesorios de limpieza opcionales 31
Localización y reparación de averías 33
Símbolos de aviso de seguridad
Especificaciones
Máx. presión 1600 PSI
Máx. caudal de agua 1.25 GPM
Corriente 13 AMPS
Tensión 120 V
Nº de pieza 1.601-681.0
Nº de serie
Responsabilidades del
propietario/usuario
Ayuda a clientes
EE.UU. y Canadá
Soporte México

Español 19
1 Salida de alta presión
2 Interruptor de encendido/apagado
3 Soporte para manguera/cable
4 Asa de transporte
5 Zona de recogida, pulverizador
6 Toma de agua con conector para
manguera de jardín
7 Depósito de detergente
8 Zona de recogida, pistola
9 Cable de potencia con interruptor de
circuito de avería por puesta a tierra
10 Ruedas
11 Pistola de disparo
12 Pestillo de seguridad de la pistola de
disparo
13 Grapa para manguera de alta pre-
sión
14 Manguera de alta presión
15 Juego para automóvil
Esponja
Cepillo para rines
Cepillo de cerdas suaves
Paquete detergente
Bolsa para accesorios
16 Dirtblaster®(Lanza rotativa de alta
presión)
17 Lanza de alta presión variable
VISTA GENERAL DEL MODELO

20 Español
ADVERTENCIA
Al utilizar este producto, tome siempre
las precauciones básicas, incluidas las
siguientes:
Lea todas las instrucciones antes de
usar el producto.
Para reducir el riesgo de lesiones, es
preciso vigilar atentamente si se usa
el producto cerca de niños.
Es necesario saber cómo parar rápi-
damente el producto y parar hemo-
rragias. Estar familiarizado con los
mandos.
Estar atento, prestar atención a lo
que se está haciendo.
No ponga en funcionamiento el pro-
ducto si está cansado o está bajo la
influencia de alcohol o drogas.
Mantenga la zona de trabajo libre de
personas.
No sobrecargar o colocar sobre un
soporte inestable. Mantener el equi-
librio en todo momento.
Seguir las instrucciones de manteni-
miento especificadas en el manual.
Este producto se suministra con un
interruptor de circuito de avería por
puesta a tierra, que está montado en
el enchufe del cable de potencia. Si
es necesario reemplazar el enchufe
o el cable, utilice sólo piezas de re-
puesto idénticas.
ADVERTENCIA
Riesgo de inyección o lesiones - no
dirigir el chorro directamente sobre
personas.
Los aparatos a alta presión pueden
resultar peligrosos si se usan de for-
ma incorrecta. No se debe dirigir el
aparato a personas, animales, dis-
positivos eléctricos o la equipo mis-
mo.
Utilizar gafas de seguridad.
ADVERTENCIA
Riesgo de explosión - no pulverizar
sobre líquidos inflamables.
No usar ácidos, alcalinos, disolven-
tes, o cualquier material inflamable
con este producto. Estos productos
pueden causar heridas físicas al
operario y daños irreparables a la
máquina.
ATENCIÓN
La pistola tiene efecto de retrocesco
- sujetar con las dos manos.
El seguro del gatillo de la pistola evi-
ta que el gatillo salte de forma invo-
luntaria. El dispositivo de seguridad
NO bloquea el gatillo en la posición
ON (encendido).
ADVERTENCIA – Riesgo de elec-
trocución
Examine el cable eléctrico antes del
uso – No utilice cable dañados.
Mantenga todas las conexiones se-
cas y alejadas del suelo.
No toque el enchufe con las manos
mojadas.
No se debe usar el cable de exten-
sión para esta máquina.
Conéctese solo a un circuito eléctri-
co individual.
ATENCIÓN
Este aparato ha sido diseñado para ser
utilizado con detergentes de limpieza
del fabricante. El uso de otros detergen-
tes de limpieza puede afectar al funcio-
namiento del aparato y hacer que deje
de tener validez la garantía.
INSTRUCCIONES DE SEGURIDAD IMPORTANTES
