Karma KM-AA20 Series User manual

User manual
KM-AA20Series

i
GENERAL WARNING
DO maintain your chair well, in particular check the tyre pressure since this
affects the efficiency of the brakes.
DO make sure both brakes are applied before getting in or out of the chair.
DO make sure both brakes are applied when the chair is not being pushed
or used.
DO take care when climbing kerb or turning on slopes.
DO avoid steep or uneven surfaces that may cause the chair to tip over.
DO avoid soft surfaces because the castors may become bogged down.
DO travel smoothly in all conditions.
DO look well ahead to anticipate hazards suchas furniture, doors, potholes,
slopes, kerbs, doorways etc.
DO make sure that both feet are safely on the footrests and that clothing is
safely tucked out of the way so that it cannot get caught in the wheels.
DO take care when travelling up or down or across inclines.
DO keep both hands on the push handles to control the chair,if you are the
attendant.
DO pay attention to keep the chair’s balance.
DO check the frame and components regularly and refer to this user guide
during and after the warranty period.
DO tie-up the upholstery or replace which with a new one when it becomes
loose.
DO equip with anti-tippers to avoid falling backwards.
DO equip with a seat belt designed for disabled people.
DO equip with "heel loops" for disabled people.
DON'T overload the chair under any circumstances.
DON'T hang anything heavy on the back of the chair that could cause the
chair to become unstable, particularly when negotiating inclines.
DON'T allow more than one user at a time.
DON'T use with an unconscious patient.
DON'T use other transport to pull the wheelchair.
DON'T do "wheelies", since you my fall or tip over backwards and suffer a
severe injury.
DON'T go too fast or turn too quickly.
DON’T travel across a slope greater than 7 degrees.
DON'T stand on the footplates when getting in or out of the chair.
DON'T go down steps forward.
DO NOT attempt to lift the wheelchair byany removable (detachable) parts.
Lifting by means of any removable (detachable) parts of the wheelchair may
result in injury to the user and/or assistant or damage to the wheelchair.
Do NOT use the wheelchair when the back is folded. This alters the centre
of gravity and may cause the wheelchair to tip backwards. The back should
only be folded for storage or transport of the wheelchair.
DO NOT hang anything on the back joint that could cause the backrest
folding suddenly and may cause injury.

ii
YOU AND YOUR KARMA SERVICE PROVIDER
No tools are required for assembly. Your wheelchair should be set up by
your authorized Karma dealer. Your authorized Karma dealer is also your
service provider. Unauthorized repairs, upgrades and add-ons will negate
your warranty and may lead to injury. Any adjustments to the rear wheel
position should be carried out by your authorized Karma service provider.
Your Karma service provider has the necessary service/maintenance
manual for your wheelchair.
If you have any defective parts or lose any parts, please contact your dealer
for repair and/or replacement. Please only use parts authorized by Karma.
Use of parts that are not authorized by Karma will negate your warranty.
Customers should order parts through their dealer as well as all repairs and
scheduled maintenance.
Customers should go to their dealership for all service needs to guarantee
their warranty is not nullified. Always go to an authorized service provider.
Unauthorized repairs will nullify your warranty. Procedures other than those
described in this manual must be performed by a qualified technician.
They also have the service manual with a complete list of maintenance
required to keep your Karma wheelchair in good working order. Check the
warranty sectionof this manual to find out what Karma guarantees and what
maintenance and parts you will have to pay for.
Karma does not have an official list of service providers at this time.
Please contact your dealer for service. If you cannot contact your dealer,
please contact another authorized Karma dealer for service. If this is not
possible please contact us and we will arrange for a service repair. Please
note that there will be a charge for collection and delivery of your
wheelchair.
CE MARKING
This wheelchair complies with the requirements of the Medical Devices Directive
93/42/EEC.
CAUTION:
Before purchasing and using Karma wheelchairs, please consult qualified
professionals so as to ensure that you choose suitable products and use them
correctly as well. For safety reasons, if there is any risk due to the user’s
movement in the wheelchair or other environmental factors that might cause the
wheelchair to tip or the person on the wheelchair to fall off (ex. Amputee…),
Karma recommends that you install anti-tippers, safety belt, or other additional
safety accessories.

TABLE OF CONTENTS
1. PREFACE....................................................................................................................... 1
2. SAFETY.......................................................................................................................... 2
2.1DOORWAYS................................................................................................................. 2
3. INTENDED USE & PARTS............................................................................................ 5
3.1 INTENDED USE ........................................................................................................... 5
3.2KM-AA20 PARTS DESCRIPTION.................................................................................. 5
4. OPERATION .................................................................................................................. 6
4.1PREPARING FOR USE ................................................................................................. 6
4.2TRANSFERRING IN AND OUT........................................................................................ 9
4.3 GENERAL USE ...........................................................................................................10
5. INSPECTION AND MAINTENANCE ...........................................................................14
5.1 GENERAL CHECK.......................................................................................................14
5.2REGULAR MAINTENANCE RECORD.............................................................................14
6. TROUBLESHOOTING..................................................................................................16
7. SPECIFICATIONS ........................................................................................................16
8. CLEANING & RECYCLING..........................................................................................17
8.1CLEANING..............................................................................................................17
8.2POST-CONSUMER RECYCLING..........................................................................17
9. WARRANTY..................................................................................................................18
9.1SERIAL NUMBER ........................................................................................................18
9.2WARRANTY POLICY....................................................................................................18

1
1. PREFACE
Please carefully read this owner's manual before using the wheelchair. Improper
use of the wheelchair could result in harm or injury. Therefore, for safe and
enjoyable use of the wheelchair, please read this owner's manual.
This owner's manual includes operation instructions for the aspects of the
wheelchair, unfolding/folding instructions and instructions on how to deal
with possible accidents.
This owner's manual is written for Karma wheelchair: KM-AA20 series.
The symbols used in this manual are explained below. Pay special
attention to the parts marked with these symbols.
WARNING:
Improper use could lead to serious injury or death.
CAUTION:
Improper use could lead to serious injury and/or damage
to your wheelchair.
SUGGESTION:
Follow these instructions to keep the wheelchair in good
condition.
This manual includes a repair and maintenance chart as well as details of
your warranty.
If someone else uses the wheelchair, make sure that you give them this
owner's manual for his or her reference.
As designs change, some illustrations and pictures in this manual may not
correspond to the wheelchair that you purchased. We reserve the right to
make design modifications without further notice. This manual will be
updated regularly please refer to the Karma website for the latest version.

2
2. SAFETY
2.1 Doorways
The safest way to operate the chair is on level floors that are free of obstacles.
Whenever possible use a ramp to enter or exit a facility. Keeping your hands
on the push rims will allow you to maintain maximum balance. Do not try to
force yourself over an obstruction by propulsion and never use the sides of a
doorway to pull yourself through a passageway.
2.2 Leaning
Do not lean over the side of your wheelchair since such an action may cause
your to lose balance and fall. (See Figure 2.2)
2.3 NavigatingInclines
Never turn on a hill due to the danger of tipping.
When pushing a wheelchair, go straight up a slope. If you need to go down,
walk backwards until user is on level ground. (See Figures 2.3 and 2.4)
Avoid stopping on an incline; it can potentially cause you to lose control of
the chair.
Do not use the parking brakes to slow down or stop the wheelchair; this
could cause it to seize up or pull to onside, causing you to lose control of the
wheelchair.
Whenever possible, navigate inclines with an attendant.
Operating limits: do not attempt to go or down slopes greater than 5 degree
without assistance.
2.4 Kerbs(Curbs)
Whenever possible get help from an assistant/attendant (if you have
assistance make sure that your chair is equipped with push handles).
Avoid hard impacts when descending a kerb(curb). A hard impact could
adversely affect the chair.
Never try to scale or descend kerb that exceed a normal height (30-50mm).
Always be careful when climbing kerb and never move up or down a curb in
reverse without an assistant.
2.5 Stairs
Always use two or more assistants. Tilt the wheelchair to its point of
equilibrium. One assistant (at the back) holds the wheelchair up against the
first step, gripping the handles firmly to lift. The second assistant, holding
firmly a fixed part of the front frame, lifts the wheelchair above the stairs and
holds it while the first attendant places one foot on the following step and
repeat the operation (See Figure 2.1)
Never go down steps forwards.
Never use an escalator for transport, use an elevator.
2.6 Streets
Always use extreme caution when crossing streets. Reflective tape on the
chair and/or your clothing will make you more visible to drivers.
Avoid potholes and rough terrain that might cause the castors to become
stuck. (See Figure 2.5)

3
2.7 General
Always make sure BOTH brakes are applied before getting in or out of the
chair.
Never stand on the footplates when getting in or out of the chair.
Never carry more than one passenger. Karma wheelchairs are designed
for one user.
Please make sure your clothing does not get caught in the rear wheels.
2.8 Upholstery
When cleaning the upholstery, use warm water and a mild soap.
Upholsterycleaner/foam canalso be used, but avoid other cleaning solvents.
2.9 MaximumUserWeightLimit
The KM-AA20 series is suitable for users weighing not more than100kg. Please
note loads exceeding maximum capacity can damage your wheelchair and
cause malfunctions creating a safety hazard. The warranty does not cover
damage caused by improper operation of the wheelchair.
2.10AvoidGeneralMisuse:
Please note any vehicle can cause injury if used incorrectly. This user guide
contains a number of cautions. Please follow these guidelines to increase
your safety. Please be aware that careless use endangers your own safety
as well as that of others. ALWAYS follow the Highway Code whenoutdoors
and the guidelines written in this manual. Your wheelchair will give years of
safe use if used sensibly and carefully.
Do not let children stand or play on the wheelchair. (See Figure 2.6)

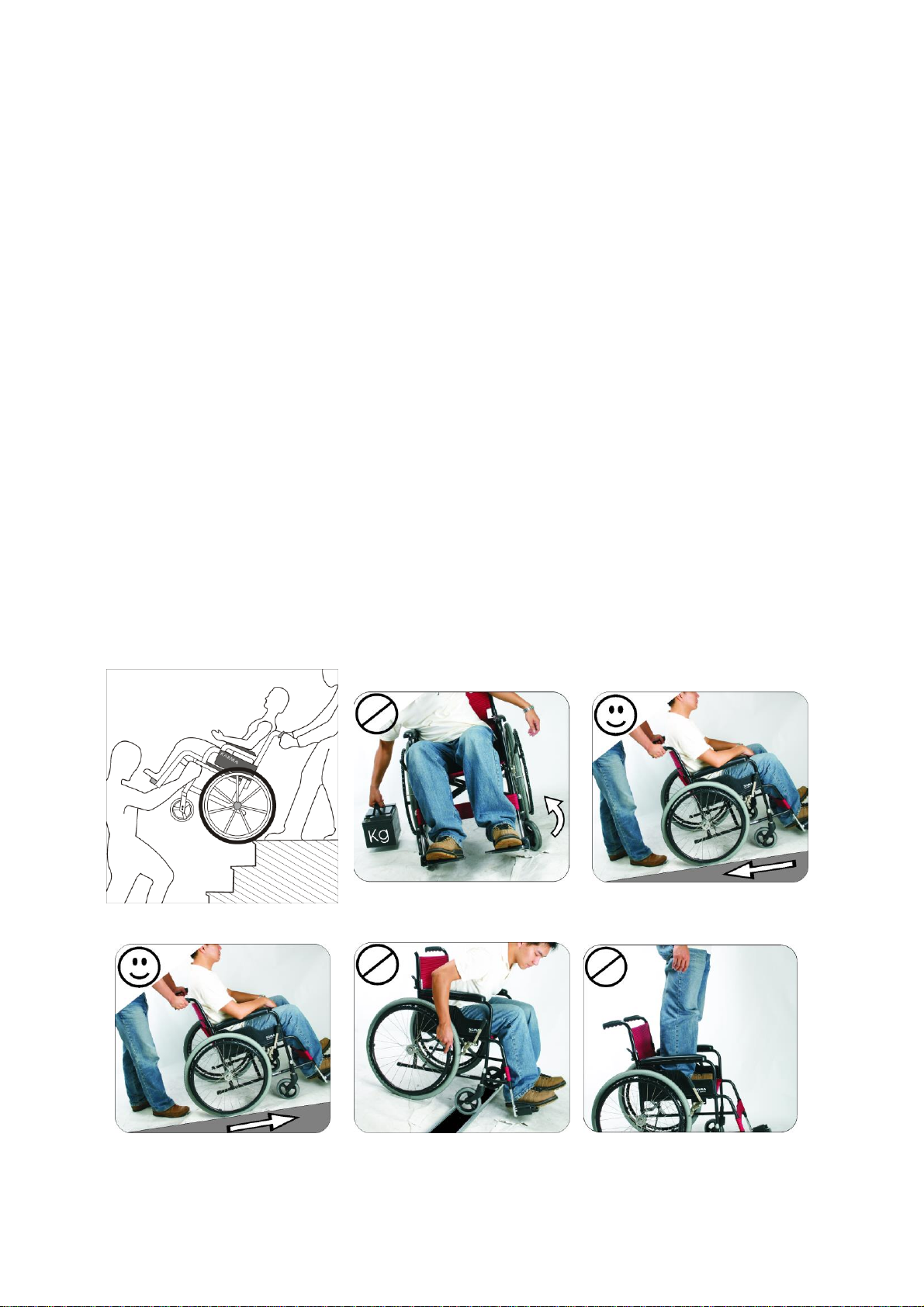

Figure 2.1
Figure 2.2
Figure 2.3
Figure 2.4
Figure 2.5
Figure 2.6

4

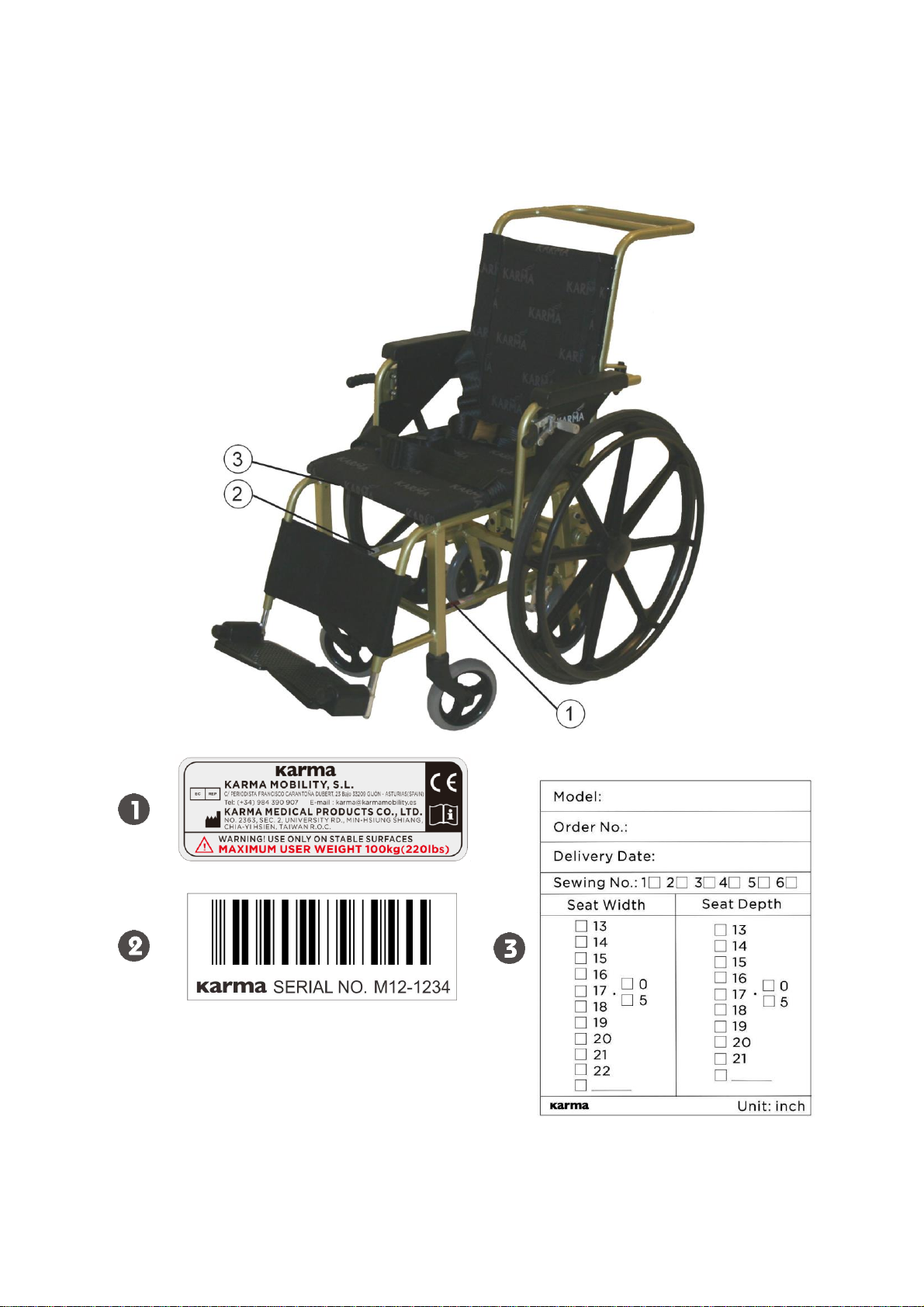

2.12 Labelling
Please carefully read all the labelling onthe wheelchair before using it. Pease
do not remove them and protect them for future reference.

5
3. INTENDED USE & PARTS
3.1 IntendedUse
The KM-AA20 series is a self-propelled or transit wheelchair. That is, it can
either be propelled by an attendant (transit) or by the user (self-propelled).
The KM-AA20seres is a specific use wheelchair at airport. The big rear
wheels can be detached for entering cabin. The flip-back armrest is
convenient for user to transfer.
The KM-AA20 series is suitable for users up to 100kg in weight.
The KM- AA20 series is an adjustable wheelchair. It is suitable for users
who require side transfer. The detachable parts are easy to operate.
It has solid tyres. It also has an extremely durable aluminium alloy frame
with tough accessories and does not suffer in dramatic extremes of
temperature (neither user nor attendant need touch metal parts in normal
use).
The casters have PU tyres for greater durability; pneumatic casters castors
are available on request.
3.2 KM-AA20PartsDescription
1. Backrest Upholstery
2. Armrest
3. Brake
4. Seat Upholstery
5. Calf strap
6. Push Handle
7. Side Panel
8. Rear Wheel
9. Castor
10. Footplate

6
4. OPERATION
4.1 PreparingForUse
4.1.1 SafetyBelt

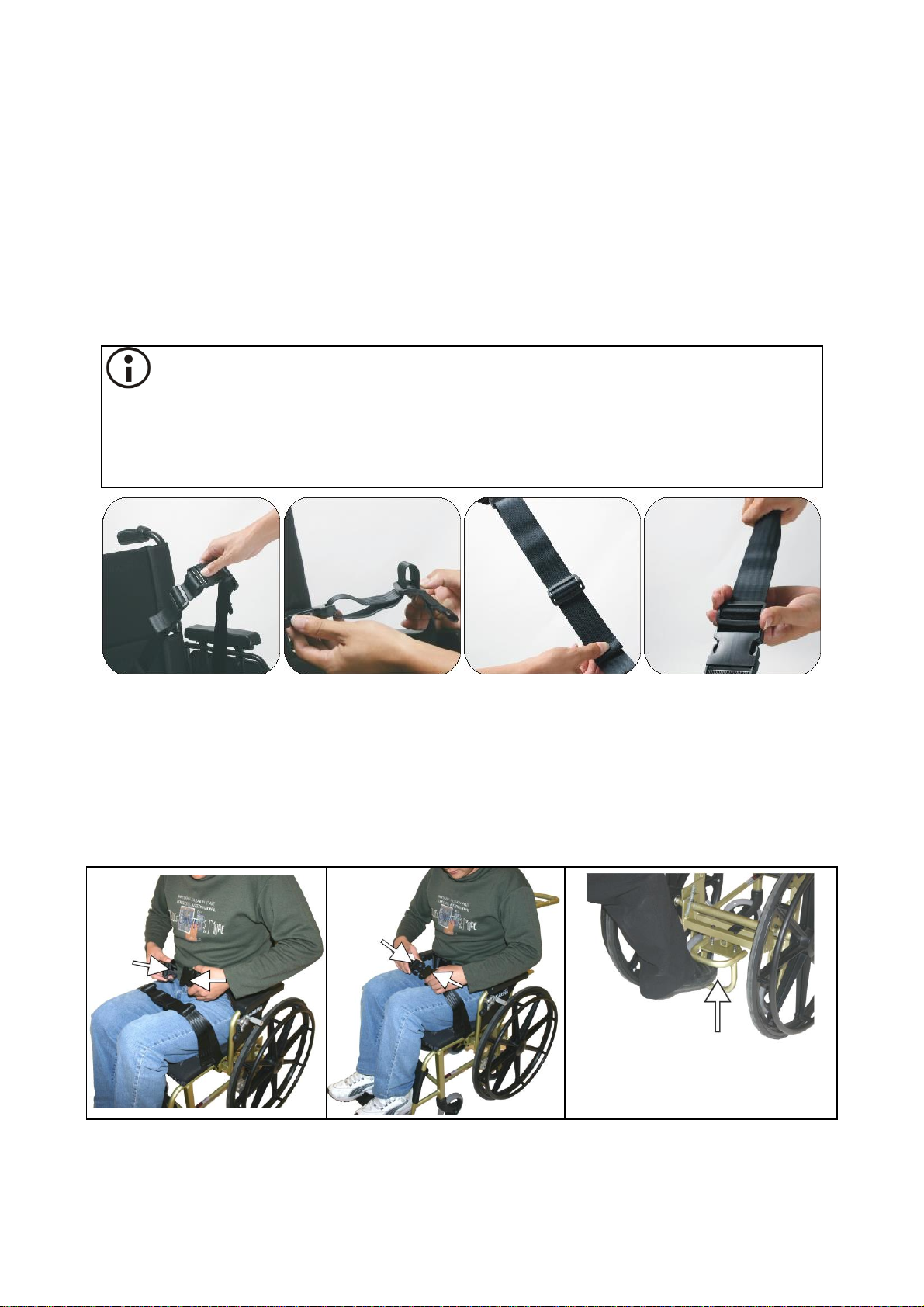

Adjusting length of seat belt
Identify the require length of the belt. (Figure 4.1)
Push the two part of belt through buckle to make the belt longer or shorter.
(Figure 4.2)
Pull the two part of belt tight. (Figure 4.3)
Push buckle up to the plastic clip so that the belt can not slip out of position.
Please check that there is no gap between the clip and buckle. (Figure 4.4)
SUGGESTION:
We recommend that the belt is fitted quite tightly around the pelvis. Please
tighten until you can just get your fingers between user and seat belt. Please
check that the belt is fastened correctly as recommended. If this is not possible
please consult your supplier.
Figure 4.1
Figure 4.2
Figure 4.3
Figure 4.4
How to operate it:
When you sit on the wheelchair, fasten the safety belt. (Figure 4.5, Figure
4.6)
Adjust the belt and make it fit your body for comfort and security.
When you don’t use it, please fasten the belt to avoid the belt dropping into
rear wheels during motion.
Figure 4.7

7

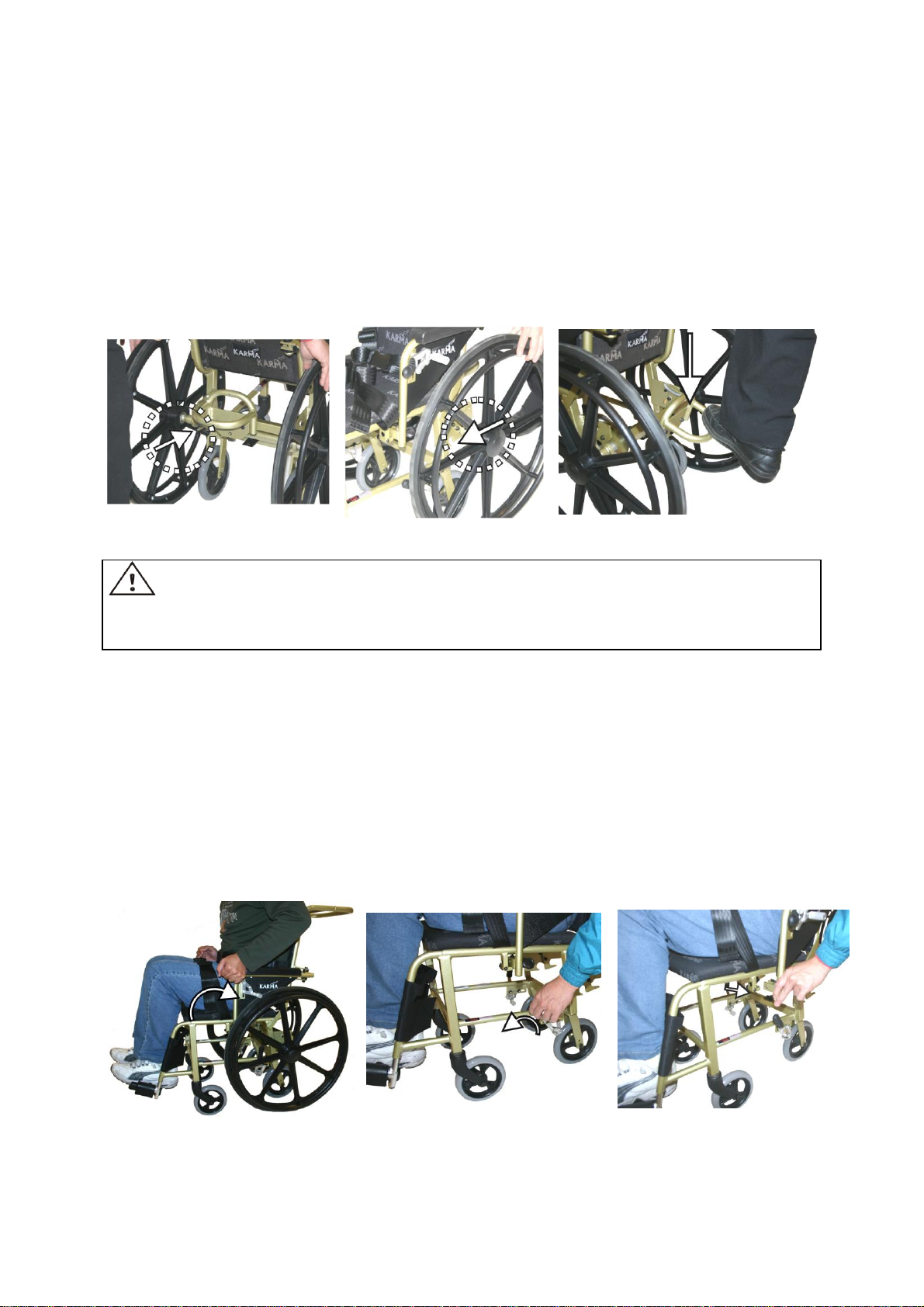

4.1.2 RearWheel
4.1.2.1How to DetachRearWheel
Pull up the release lever with foot, and the wheels remove to back. (Figure
4.7)
4.1.2.2How to AttachRearWheel
Align and put the rear wheel axle to rear wheel hold hook both side. (Figure
4.8,4.9)
Push down the release lever with foot, and the rear wheels axle will engage
to the rear wheel holder. (Figure 4.10)
Figure 4.8
Figure 4.9
Figure 4.10
CAUTION:
Except on the aisle in an airplane, please always use large rear wheels in all
occasions.
4.1.3 Brake
Brake of large rear wheels is pull-up to brake. (Figure 4.11)
Brake of small rear wheel is push-down to brake. (Figure 4.12)
4.1.4Armrest
4.1.4.1How to RemoveArmrest
1.Press the release lever and pull it to outward to remove the armrest to back.
(Figure 4.13,4.14)
4.1.4.2How to AttachArmrest
Swing the armrest to inward to attach. (Figure 4.15)
Figure 4.11
Figure 4.12
Figure 4.13

8
Figure 4.14
Figure 4.15
4.1.5 Footplate
1. Footplate can swing up, which makes transferring easier. (Figure 4.16)
2. To adjust footplate height use the Karma tool provided to loosen the bolt at
the end of the footrest arm. (Figure 4.17)
3.Adjust to required height and re-tighten. (Figure 4.18)
Figure 4.16
Figure 4.17
Figure 4.18
Figure 4.16
SUGGESTION:
Make sure that the footplate height is adjusted properly according to the user’s
calf length to reduce pressure on the body.
The footrest height must be more than 5cm. (Figure 4.19)

9
4.1.6 TransportationandStorage
Make sure the wheelchair is folded when stored.
SUGGESTION:
Please store the wheelchair in a location where it is out of direct sunlight, rain
and dew. For more details, consult your Karma dealer.
WARNING:
Don't put anything on the wheelchair while it is in storage.
Storing goods on a folded wheelchair will cause damage
and is not covered under warranty. (See Right Figure)
4.2 TransferringIn and Out
4.2.1 TransferringIn
Engage both hand brakes.
Turn the footplates up and swing them to the side.
Lower the user into the seat, allowing them to use the armrests for support.
Turn the footplates back down, so that the user can place his feet on them.
Ensure that the heels rest against the heel supports to prevent contact with
the castors.
Release both hand brakes.
CAUTION:
Always ensure that the front castors are in line with the rear wheels and pointing
forwards and that the back of the chair is secure either against a wall or firmly
held by an attendant.
4.2.2 TransferringOut
Make sure that the chair is near your final destination.
Move the wheelchair backwards so that the castors are pointing forwards
and are in line with the rear wheels. Ensure that, where possible, the rear
of the chair is against a wall or, if not, it must be firmly held by an attendant.
Engage both hand brakes.
Turn the footplates up and swing them to the side.
Slide forwards on the seat. Place one foot firmly on the ground with the
knee at a right angle and the other foot slightly apart and further back.
Place your hands on the front of the armrests and moving your weight
forward, bring your head and shoulders up over your knees as you push
yourself up.
Some people have to side transfer.
Flip back your armrest, and make sure that the chair is near your final
destination.
Prop up your body and move sideward slowly, using transfer board. Be
careful to hit the brake or other components of wheelchair.

10
CAUTION:
Never stand on the footplates when getting into (or out of) the chair. (See
Figure 4.20)
When getting in and out of the wheelchair please use the hand brakes. The
hand brake is the lever at the side of the wheelchair.
Please ensure that neither the tread on your tyres nor the brake block has
become too worn. If pneumatic tires are fitted, please maintain at the
recommended tyre pressure for the same reason.
Please ensure that occupant's fingers do not get caught in the brake.
When transferring in and out of the chair, make sure that the brakes are applied
to prevent the chair from sliding away. Also see that the footplates are flipped up
for ease of entering or exiting. (See Figure 4.21)
4.3 GeneralUse
4.3.1AttendantPushingandSelfPropelling
Ensure that the brakes are always locked whenthe chair is not being pushed.
(See Figure 4.22)
Always make sure that both feetare safelyon the footplates and that clothing
is safely tucked out of the way and cannot get caught in the wheels. (See
Figure 4.23)
Always use both hands on the push handles to control the chair. (See Figure
4.24)
Always avoid steep or unevensurfaces because the chair may tip over. (See
Figure 4.25)
Always avoid soft surfaces because the casters castors may get bogged
down. (See Figure 4.26)
Always be careful not to go too fast or turn too quickly and try to achieve a
smooth steady ride.
Before crossing the road, please stop completely and look both ways.
Cross tracks or ruts at right angles to avoid your castors getting stuck.
Do not drive at full speed over the railroad tracks.
Please keep your hands and arms inside the wheelchair when going through
doorways.
PLEASE keep in contact with the person in the chair. If you stop to look in shop
windows or talk to people, remember to turn the chair so that the person in the
chair does not have to turn.
WARNING:
Never lock the brakes too suddenly as this may tip the user out of the chair.

11
Figure 4.20
Figure 4.21
Figure 4.22
Figure 4.23
Figure 4.24
Figure 4.25
Figure 4.26
Figure 4.27
4.3.2 Tiltingby the Attendant
Make sure both the user's feet are on the footplates and will not slip off.
Make sure the handgrips are secure and cannot slip off.
Release both brakes.
Grasp both push handles firmly.
Put your stronger foot on the relevant tipping tube at the back of the chair.
Tell the person in the chair that you are about to tilt the chair backwards.
Pull back with both hands and push down and forwards with the foot. This
will bring the chair onto the back wheels. (See Figure 4.27)
CAUTION:
When a chair is tilted to about 25 degrees it will balance on its rear wheels
and be easy to hold. If it is tilted further back it will be difficult to hold and the
person in the chair will feel unsafe.
Lower with a straight back; keep your foot on the anti-tipper and lower the
chair slowly forwards softly to the ground.

12
4.3.3 Tiltingby the User
Make sure your feet are on the footplates and will not slip off.
Release both brakes.
Grasp both push rims and give a firm, sudden forward push immediately
before the obstacle, continue the momentum (be readyto keep pushing) until
the obstacle is mounted.
CAUTION:
This method should only be attempted by people experienced in wheelchair
use. Strong arms are also necessary. It is always better to have the help
of an attendant.
Leaning backwards causes the castors to rise higher BUT it is much safer to
lean forwards and stay balanced.
4.3.4 GoingDownKerbs(Curbs)
Please note: It is always better to avoid kerbs where possible by using ramped
curbs kerbs or slopes and this operation is best attempted with the aid of an
attendant.
4.3.4.1Going DownKerbs(Curbs)ForwardsWithanAttendant
CAUTION:
This is the more difficult method and can jar the user but allows a better view
of traffic.
Be careful that the anti-tipper does not get caught on the kerb(curb) causing
the user to fall.
NEVER ALLOW THE CHAIR TO TIP FORWARDS WHEN GOING DOWN
A KERB(CURB).
Positionthe chair so that the front castors are near the edge of the kerb(curb)
and make sure that the road is clear.
Move the chair slowlyand carefully forwards while tilting it back slightly. Be
ready to take the weight when the rear wheels cross the kerb (curb) edge.
Ensure that both rear wheels touch the ground at the same time to avoid
tipping the chair.
Gently lower the front castors (casters). AVOID JARRING THE USER.
4.3.4.2Going DownCurbsBackwardsWithanAttendant
CAUTION:
This is the easier and smoother method BUT it requires the attendant to step
backwards into the road.
Back the chair to the kerb edge and be careful that the back wheels are
equally near the edge.
Grasping the push handles, gently lower the rear wheels onto the road. Be
prepared to control the weight as it descends and ensure that the back
wheels touch ground at the same time.
Tilt the chair back slightly and pull the tilted chair far enough into the road so
that the castors and footrests can be lowered clear of the kerb (curb).

13
4.3.5 GoingUp Kerbs(Curbs)
Please note: This operation is best attempted with the aid of an attendant and
the best method is to go up kerbs forwards as this maintains the direction of
travel and is physically less demanding for the attendant.
4.3.5.1Going Up Kerbs(Curbs)ForwardsWithanAttendant
As the footrests nearly touch the kerb (curb) tilt the chair. The chair should
be tilted just high enough to allow the front casters to roll smoothly onto the
pavement.
Push the chair forward until the rear wheels are touching the curb. Then,
continuing the movement, lift at the push handles while moving the chair
forwards.
4.3.5.2Going Up KerbsBackwardsWithanAttendant
Please note: for safety's sake we do not recommend using this method.
4.3.6 Up and DownSteps/Stairs
Please note: avoid flights of steps particularly if no extra help is available. Use
ramps or lifts wherever possible.
Two attendants are necessary, each capable of carrying at least half of the
combined weight of the person and the wheelchair.
Each helper should bend at the knees and grip the main frame: with the front
attendants hands just under the front of the seat, with the back attendants’
hands holding the frame just under the push handles.
CAUTION:
Don’t attempt to lift the wheelchair byany removable (detachable) parts. Lifting
by means of any removable (detachable) parts of wheelchair may result ininjury
to the user and/or assistant or damage to the wheelchair.
CAUTION:
When transporting or lifting, never hold on to attachments or accessories
(front/rear wheels, handrims, castors, footrests, armrests, anti-tippers etc.).
All lifting should be done with a straight back. Straight legs to lift the chair.
Carefully carry it up or down steps; be aware of how you place your feet, do not
cross them and trip yourself up.

14
5. INSPECTION AND MAINTENANCE
5.1 GeneralCheck
Check the following items before travelling. If you find anything abnormal, visit
your Karma wheelchair dealer for further inspection before using it.
Examine brakes, checking for wear, damage and misalignment. Replacing or
adjusting the brakes should be carried out by your approved repairer.
Check that the hand grips are not damaged and are securely bonded to the
push handles.
Check anti-tippers are not damaged and are securely attached.
Check that the anti-tippers' wheels and frame are not damaged and are
securely mounted.
When the wheelchair used for a while, the user need to check the bolts and
nuts are tight. Check all parts for damage or wear and have a qualified
technician replace it if necessary. Check all parts for proper adjustment.
Inspect brakes for proper operation.
The wheels and tires tyres should be checked periodically for cracks and
wear, and should be replaced by a qualified technician.
Aqualified technician can be found with an authorized distributor/dealer.
CAUTION:
Visit a Karma wheelchair dealer for inspection and maintenance if you find
anything abnormal.
5.2 RegularMaintenanceRecord
To make sure your wheelchair is in good condition, visit your Karma wheelchair
dealer regularly for maintenance (and keep records accordingly) every six
months after purchasing.
Amaintenance/service fee may apply.
SUGGESTION:
Even if you don't use the vehicle for a long time, the wheelchair should still be
maintained annually.
Item
Weekly
Monthly
GENERAL
Wheelchair rolls straight (no excessive drag or pull to one
side)
Ⅴ
FRAME AND CROSS BARS
Inspect frame structure for small cracks/fissures
Ⅴ
Inspect for bent frame or cross bars
Ⅴ
BRAKES
Do not interfere with tyres when rolling
Ⅴ
Pivot points free of wear and looseness
Ⅴ
Easy to engage
Ⅴ

15
Prevent chair from moving when engaged
Ⅴ
SEAT & BACKREST
Inspect for rips or sagging
Ⅴ
Inspect for loose or broken hardware, such as the frame and
etc.
Ⅴ
CASTORS (CASTERS)
Inspect the castors for smooth rotation
Ⅴ
Inspect the caster castor for wear in the bearings/mountings
and for tire wear or damage
Ⅴ
REAR WHEELS
Quick-release axles lock properly; lubricate if necessary
Ⅴ
No excessive side movement or binding when lifted and spun
Ⅴ
Inspect for cracked, bent or broken spokes
Ⅴ
ARMRESTS
Inspect the detachable armrest button for effective locking
Ⅴ
Make sure the armrest detaches and flips back properly
Ⅴ
FOOTRESTS
Inspect the footplate height adjustment screws are securely
tightened
Ⅴ
Inspect the swing-away footrest release lever for effective
locking
Ⅴ
TYRES
Inspect for flat spots, cracks and wear
Ⅴ
If pneumatic tyres, check for proper inflation
Ⅴ
Check tyre tread depth is more than 1mm
Ⅴ
Check tire pressure; tyre pressures are located on the side of
the tyre
Ⅴ
CAUTION:
Never disassemble or modify the wheelchair frame structure. Otherwise, injury
or damage may occur. This will negate the warranty.

16
6. TROUBLESHOOTING
Trouble or Problems with Your Wheelchair
You can inspect the following before taking your wheelchair to a Karma
wheelchair dealer.
Problem
Checking Points and Corrective Action
Chair Veers
Right/Left
• Check tires tyres for correct and equal pressure
• Check caster bracket angle
• Check that rear wheels are equally spaced from the
seat frame
2. Sluggish Turn or
Performance
• Check tyres for correct and equal pressure
• Check for loose nuts and bolts
3. Caster Flutter/Wobble
• Check tyres for correct and equal pressure
• Check for loose nuts and bolts
• Check caster bracket angle
4. Squeaks and Rattles
• Check for loose nuts and bolts
5. Looseness in Chair
• Check for loose nuts and bolts
If you cannot solve the problem by yourself, contact your Karma wheelchair
dealer for help.
7. SPECIFICATIONS
Model
Overall Length (mm)
Overall Length (in)
990 with 24”wheel / 870 without 24”wheel
(39 with 24”wheel / 34.3 without 24”wheel)
Overall Width (mm)
Overall Width (in)
580 with 24”wheel / 540 without 24”wheel
(22.8 with 24”wheel / 21.3 without 24”wheel)
Overall Height (mm)
Overall Height (in)
905 with 24”wheel / 885 without 24”wheel
(35.6 with 24”wheel / 34.8 without 24”wheel)
Total Weight (kg)
Total Weight (lb)
16.2 with 24”wheel / 11.5 without 24”wheel
(35.7 with 24”wheel / 25.4 without 24”wheel)
Seat Width
390 mm(15.4 in)
Seat Depth
420 mm(16.5 in)
Seat Height
485 mm(19.1 in)
Backrest Height
415 mm(16.3 in)
Armrest Height
190 mm(7.5 in)
Calf Length
NA
Overall Collapsed Length
990 mm(39 in)
Overall Collapsed Width
580 mm(22.8 in)
Overall Collapsed Height
905 mm(35.6 in)
Maximum User Weight
100 kg(220.5 lb)
Caution:
Please don't travel across a slope (in any direction) greater than 7 degrees.
