Kathrein UFT 676sw User manual

Operating manual English
UFT 676sw
DVB-T receiver

2
PREFACE
Dear customer,
this operating manual is intended to help you make the fullest use of the extensive range of functions
offered by your new DVB-T receiver.
We have tried to make the operating instructions as easy as possible to understand, and to keep them
as concise as possible. To help you understand particular specialist terms that cannot be translated,
we have added a short glossary at the end of the manual.
The power switch is an environmentally friendly feature. If you will not be using your receiver for an
extended period, you should use the power switch to disconnect it from the power supply and save energy.
For shorter breaks, you can use the remote control to switch the receiver to standby, which uses only a
minimal amount of energy.
We wish you good reception and much pleasure using your new DVB-T receiver.
Your
KATHREIN team

3
IMPORTANT INFORMATION
The channels available are subject to continual change. Accordingly it is necessary to update the
channel presets when changes are made. The information for this update can be found on the Internet or
in relevant magazines.
Your receiver was equipped in the factory with the latest software version at that time. We are, however,
constantly working on adapting the software to the wishes of our customers and to developments in
technology. The “Service Menu” section provides more information on this.
The information in this operating manual was correct at the time of going to print. We reserve the right
however to make changes at any time and without prior notice. If new software is released for your
receiver, and this affects the information in the operating manual (e.g. changes to the menus and/or
functions), if we believe it necessary we will make available a new operating manual for download under
“www.kathrein.de”.
Please keep the original packaging in case you need to return the product at any time! If the
product is not properly packed, the warranty claim is invalidated.
Make a note of the receiver's basic settings (these are set during the first installation), so you can restore
them if necessary!
Before you switch off the receiver using the power switch, you must switch the remote control into
stand-by mode by pressing the stand-by button. In stand-by mode, any changed data that is broadcast
will be saved by the receiver. Once the receiver is in standby mode it can be fully switched off at any
time at the power switch at the front of the unit. Do not switch the receiver off at the power switch
when it is in operating mode! This can lead to a loss of data and corruption of the software.
The receiver satisfies the latest European Energy-using Products Directive (EUP) and, taken by itself, has
a power consumption in operation of just 5 W (when not supplying an active DVB-T antenna). On the
rear of the device the power consumption is stated as 6 W. Generally this will not be achieved, but it may
occur in the worst case.
INFORMATION ON AUDIO MPEG INC. AND S.I.SV.EL, S.P.A:
This unit makes use of legally protected technologies, which are protected by patents in the USA and
also by other intellectual property rights in other countries. KATHREIN-Werke KG has obtained licences
from Audio MPEG Inc. and Societa‘ Italiana per lo sviluppo dell‘elettronica, S.I.SV.EL, S.P.A to use
these technologies. These licences carry certain restrictions, which apply also to you as the customer.
Accordingly this unit may only be used by the end customer for private non-commercial purposes and
for the licensed content. It may not be used for commercial purposes. The use of products or processes
that are sold or used with this unit is not included in this statement. The use of reverse engineering
is not permitted in respect of the licensed technologies, nor is disassembly.
Manufactured under licence from Dolby Laboratories. “Dolby” and the
double-D symbol are registered trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing LLC.
®

4
CONTENTS
PREFACE ................................................................................................................................. 2
IMPORTANT INFORMATION...................................................................................................... 3
CONTENTS............................................................................................................................... 4
SAFETY INSTRUCTIONS - IMPORTANT INFORMATION ............................................................. 6
RECEIVER FEATURES/SCOPE OF SUPPLY............................................................................... 8
FEATURES ............................................................................................................................. 8

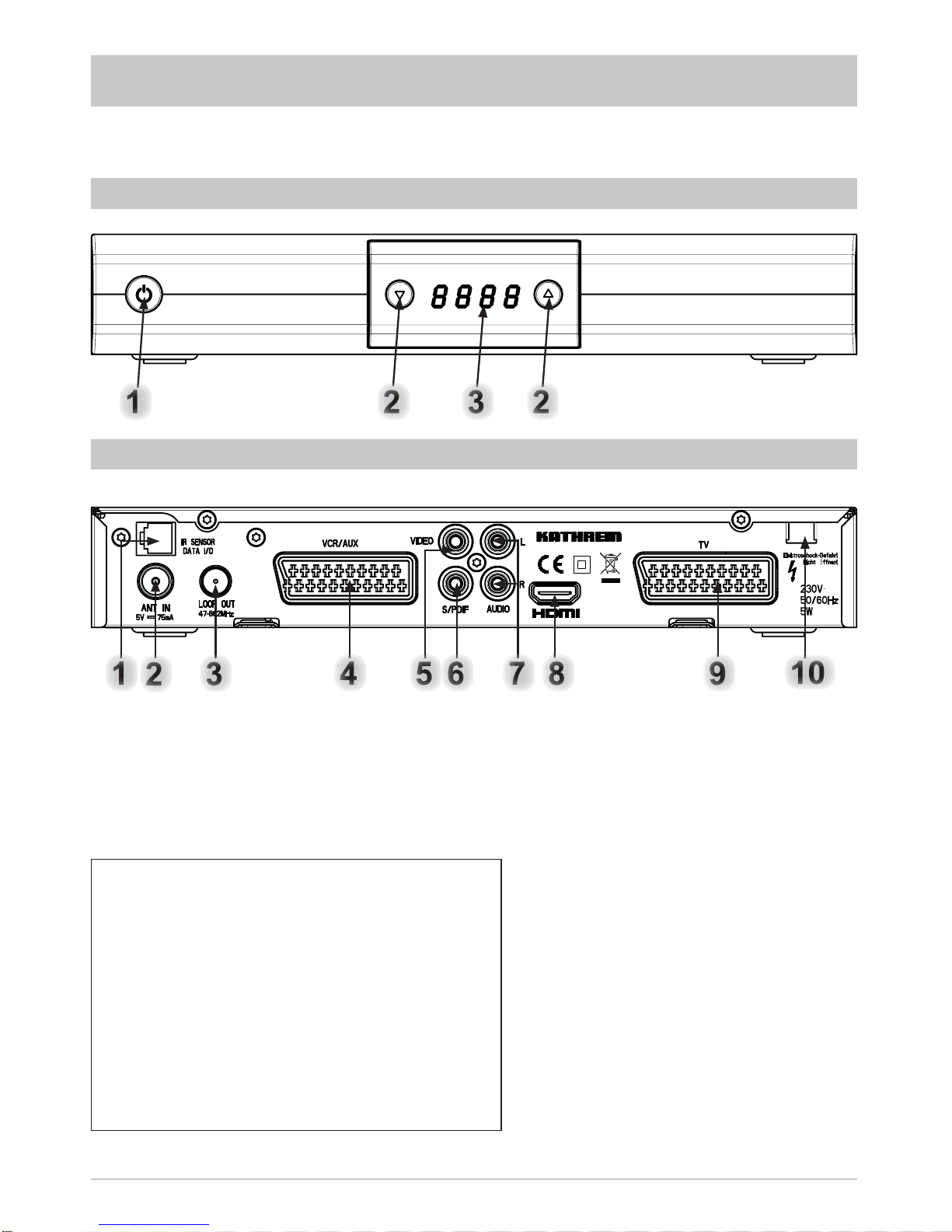

CONTROLS, DISPLAYS AND CONNECTIONS.......................................................................... 10
CONNECTION AND SETUP ...................................................................................................... 11

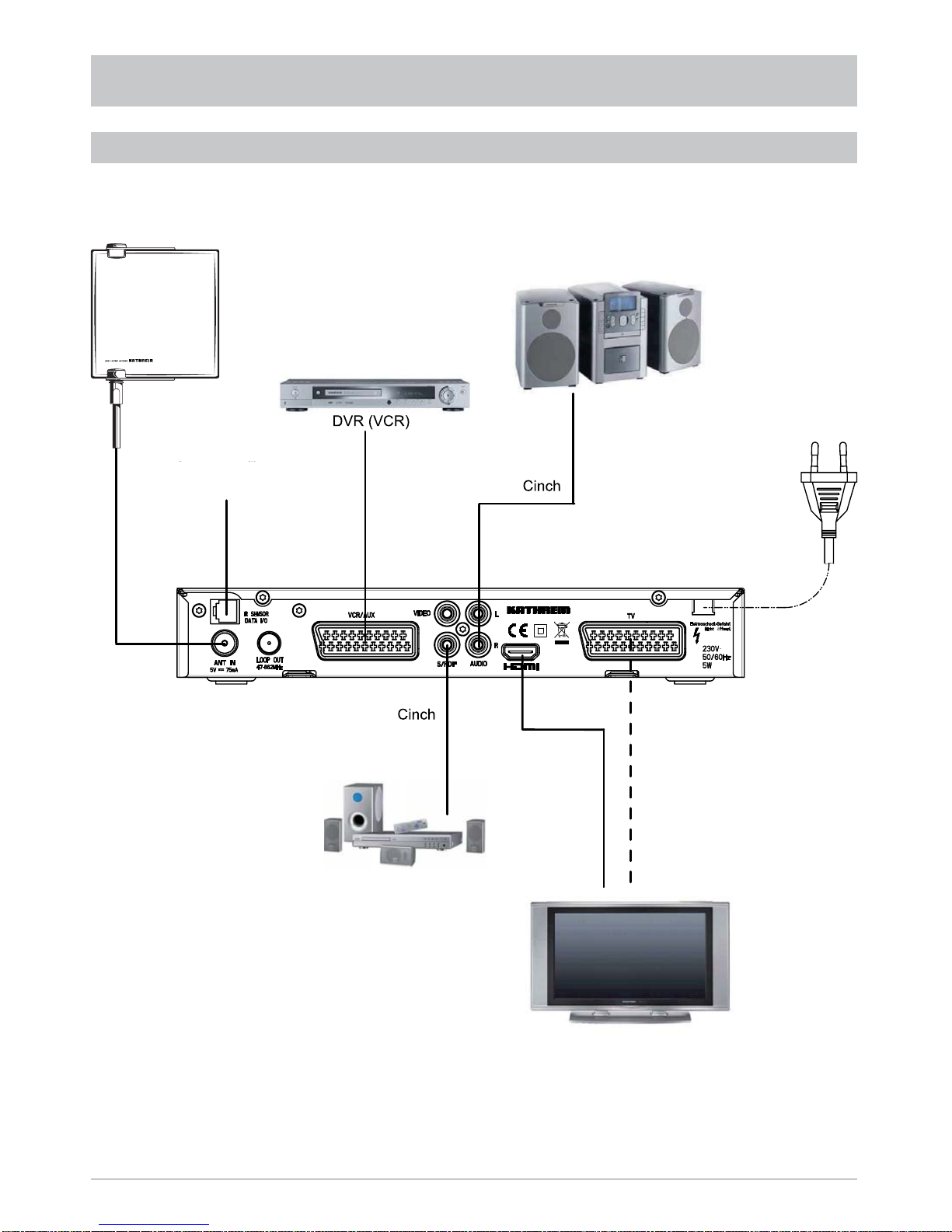

CONNECTION EXAMPLE....................................................................................................... 12
REMOTE CONTROL................................................................................................................ 14
FIRST INSTALLATION............................................................................................................. 15
OPERATING INSTRUCTIONS .................................................................................................. 20
MENU CONCEPT.................................................................................................................. 20
MENU OVERVIEW................................................................................................................. 21
ALPHANUMERIC INPUTS...................................................................................................... 22
LANGUAGE SETTING - OSD.................................................................................................. 22
ON-SCREEN DISPLAYS (OSD) ................................................................................................ 23
CHANNEL MESSAGES.......................................................................................................... 23
CHANNEL INFORMATION...................................................................................................... 23
CALLING UP THE OPTIONS CHANNEL.................................................................................. 23
OPTION SELECTION............................................................................................................. 24
ERROR REPORTING............................................................................................................. 24
CHANNEL LIST - TV/RADIO ................................................................................................... 24
EPG - ELECTRONIC PROGRAMME GUIDE.............................................................................. 26
CALLING UP THE EPG .......................................................................................................... 26
“CURRENT” VIEW ................................................................................................................. 27
“PREVIEW” VIEW (PROGRAMME LISTINGS).......................................................................... 28
ADDITIONAL INFORMATION (i BUTTON)................................................................................ 29
RECORDING (TIMER)............................................................................................................ 30
RECORDING ONCE.............................................................................................................. 31
RECORDING DAILY.............................................................................................................. 31
RECORDING WEEKLY .......................................................................................................... 32
PLAN RECORDING VIEW...................................................................................................... 33
VIDEOTEXT (TELETEXT)......................................................................................................... 34
EDIT CHANNEL LIST............................................................................................................... 35
SELECTION OF THE LIST/CHANNELS TO BE EDITED............................................................ 35
EDITING LISTS/CHANNELS................................................................................................... 36
“LAST FUNCTION” MEMORY.................................................................................................. 37
MOVE CHANNELS ............................................................................................................... 37
DELETE CHANNELS............................................................................................................. 37
SKIP CHANNELS ................................................................................................................. 37
LOCK CHANNELS................................................................................................................ 38
COPY CHANNELS TO THE FAVOURITES LIST........................................................................... 38

5
START BLOCKSELECTION (HIGHLIGHTING SEVERAL CHANNELS) .............................................. 38
EDIT FAVOURITES LISTS...................................................................................................... 39
REMOVE FROM FAVOURITES LIST......................................................................................... 39
LOCK CHANNELS................................................................................................................ 40
RENAME FAVOURITES LIST .................................................................................................. 40
START BLOCKSELECTION (HIGHLIGHTING SEVERAL CHANNELS) .............................................. 40
SEARCH CHANNELS (CHANNEL SEARCH)............................................................................. 41

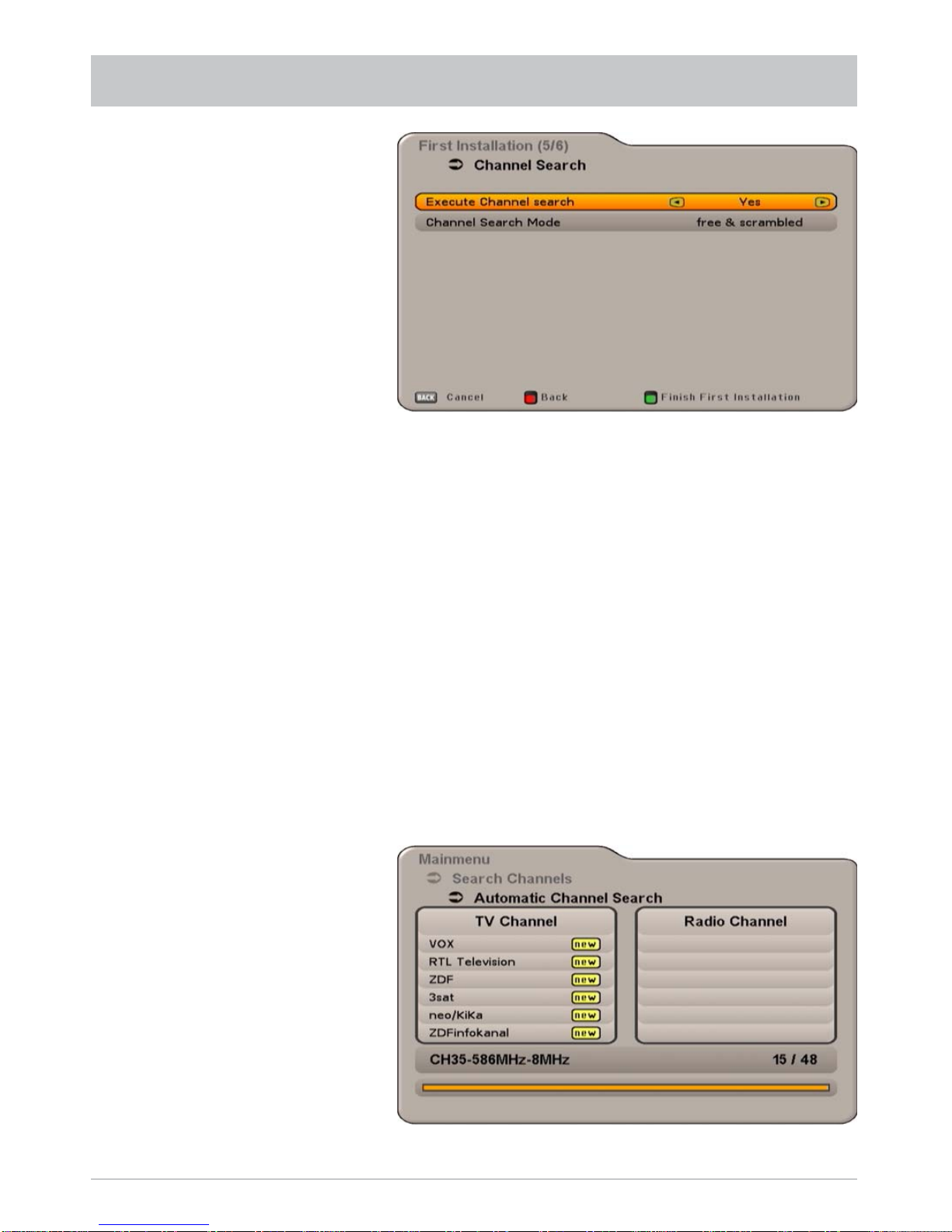

AUTOMATIC (CHANNEL) SEARCH......................................................................................... 41
MANUAL (CHANNEL) SEARCH.............................................................................................. 43
SEARCH WITH SERVICE ID................................................................................................... 45
PARENTAL CONTROL............................................................................................................. 47
LOCK MAINMENU................................................................................................................. 47
LOCK SET-TOP-BOX............................................................................................................. 47
DEFINE NEW PIN CODE........................................................................................................ 48
SETTINGS .............................................................................................................................. 49
FIRST INSTALLATION............................................................................................................ 49
REGION................................................................................................................................ 50
TV SETTINGS (TV, VIDEO AND AUDIO).................................................................................. 50
SUIT SCREEN MENU ............................................................................................................ 52
DATE AND TIME.................................................................................................................... 53

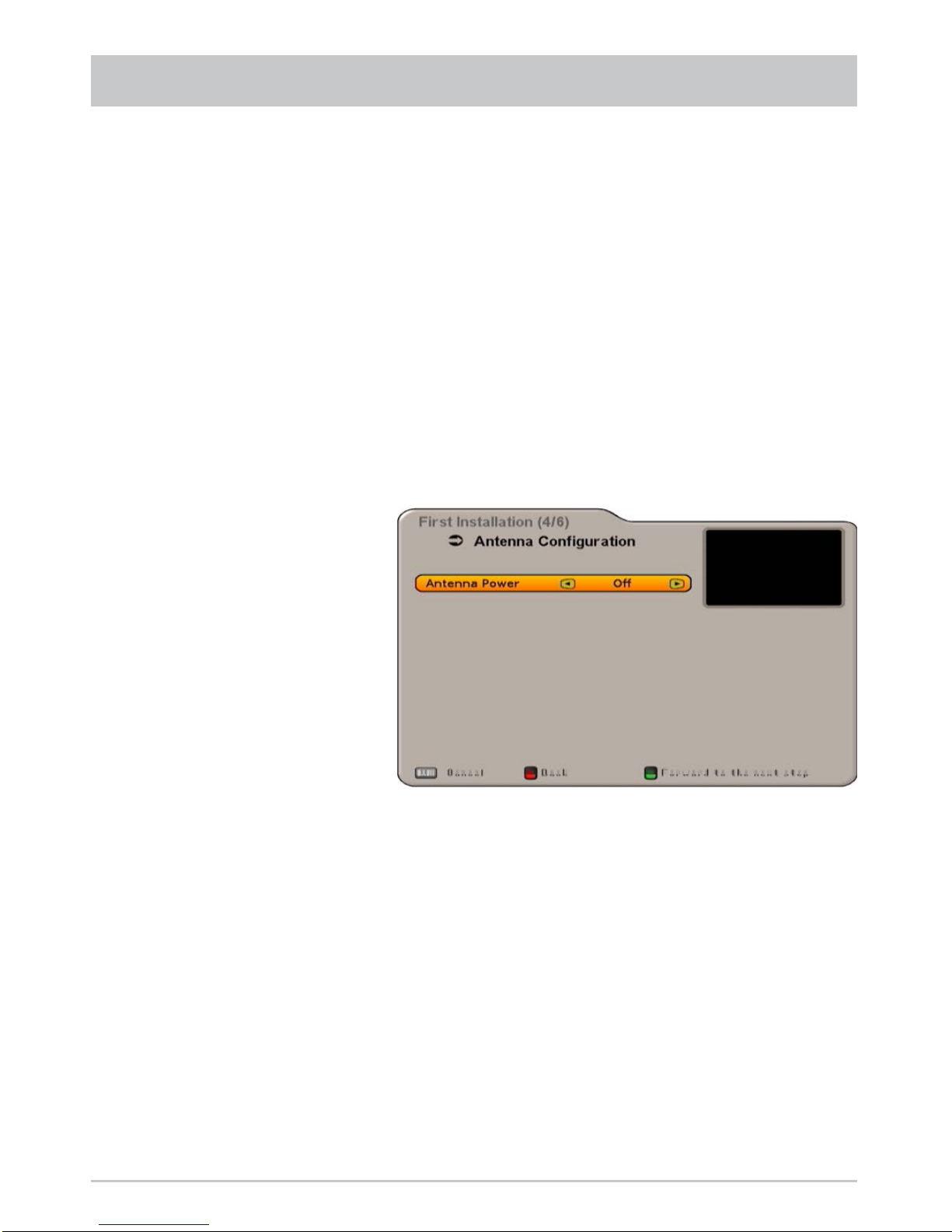

ANTENNA CONFIGURATION ................................................................................................. 53
SERVICE MENU...................................................................................................................... 54
FACTORY RESET.................................................................................................................. 54
CONNECTING UP THE VIDEO/DVR ......................................................................................... 55
RECORDING......................................................................................................................... 55
PLAYBACK............................................................................................................................ 55
USING THE FRONT PANEL ..................................................................................................... 56
TECHNICAL APPENDIX........................................................................................................... 57
SCART SOCKETASSIGNMENT ............................................................................................. 58
VHS/S-VHS SWITCHING........................................................................................................ 58
SHORT TECHNICAL GUIDE .................................................................................................... 59
GLOSSARY........................................................................................................................... 60
TROUBLESHOOTING.............................................................................................................. 61
SERVICE ................................................................................................................................ 62
FOR YOUR NOTES ................................................................................................................. 63
CONTENTS

6
SAFETY INSTRUCTIONS - IMPORTANT INFORMATION
Mains cable
Make sure that the mains cable
(power supply cable) is not
damaged. Units with a damaged
mains cable must be disconnected
from the mains (unplug it at the
socket) and repaired by an electrical
specialist before setup. Only use the
power pack supplied (if available)!
Risk of fatal injury due to electric
shock!
Danger!
Cleaning
Disconnect the mains plug before
cleaning the unit. Only use a dry
cloth for cleaning and only clean
the outer surface. Never open
the casing of the unit.
Touching the parts inside the
unit carries a risk of death due to
electric shock!
Playing children
Make sure that children do not push
any objects into the ventilation slots.
Risk of fatal injury due to electric
shock!
Earthing
The antenna system must
be earthed as specified or
equipotentially bonded.
EN 60728/11 and any national
regulations must be complied with.
Risk of voltage surges due to
lightning strikes!
Power supply voltage
Only operate the unit at the specified
mains voltage (indicated on the
rear of the unit or on the external
power pack). The unit may only be
connected to the mains and turned
on once it has been connected
to the antenna and to the TV set
or the cable network and PC.
If the mains voltage is too high, there
is a risk of fire!
Moisture, direct sunlight, heat,
naked flames
Protect the unit against moisture,
dripping and splashed water (do
not place any filled objects such
as vases on top of the unit). Do not
place the unit close to a heater or
expose it to direct sunlight and do
not operate it in damp locations.
Only use the unit in a moderate
climate, not in tropical conditions!
Place no naked flames such as
candles on top of the unit!
There is a risk of fire!
Ventilation
The heat generated in this unit is
adequately dissipated. However,
the unit should never be installed
in a cupboard or on shelves with
inadequate ventilation. Never cover
the cooling slots on the unit (e.g.
with other equipment, magazines,
tablecloths, clothing or curtains).

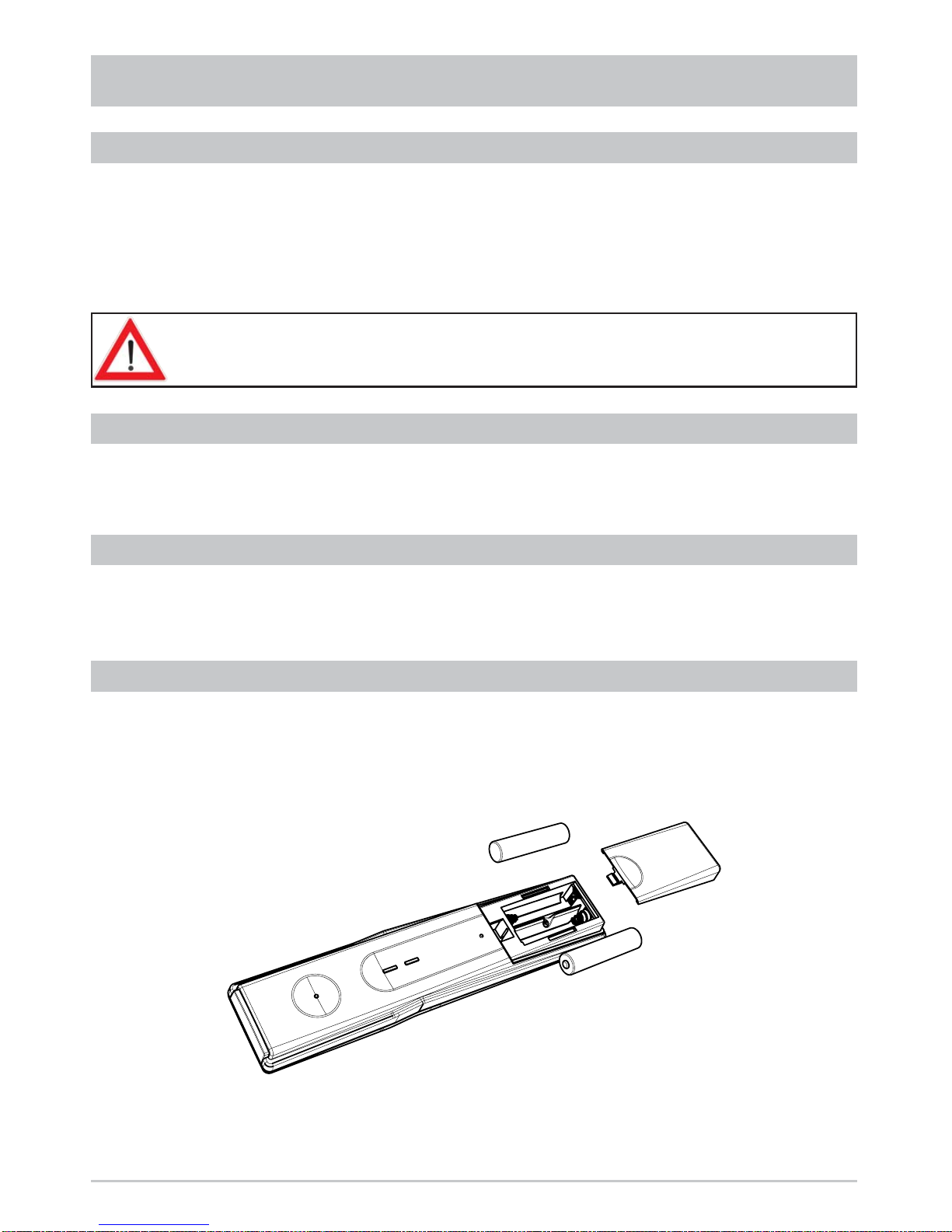

Batteries
If your unit was supplied with
batteries (e.g. for the remote control),
take care that the batteries are
not exposed to excessively high
temperatures, direct sunshine or
fire. Exchange the batteries only with
types that are identical or equivalent.
Otherwise the batteries and also the
remote control may be damaged.
Comply also with the safety
instructions stated on the batteries:
There is a risk of explosions!
Warning!
Warning!
Warning!
These two pages contain important information about operation, installation location and connection of
the unit. Read these instructions carefully before setting up the unit.
Do not
cover

7
SAFETY INSTRUCTIONS - IMPORTANT INFORMATION
Periods of extended absence,
thunderstorms, mains socket
accessibility
In order to disconnect the unit from
the mains completely, the mains
plug must be unplugged from the
wall socket! Therefore install the unit
close to a mains socket and make
sure that socket is accessible at all
times, so that you can disconnect
the unit from the mains if necessary.
If you are away for an extended
period, and during thunderstorms,
always switch the unit off at the
mains and unplug it from the socket.
This also applies to the other
equipment connected to the unit.
Isolation from the cable network is
also recommended. Note any timer
programming (receiver) and turn the
unit on again promptly before the
recording time.
Installation location
All electronic equipment generates
heat. However, the heating of this
unit lies within the permissible range.
Sensitive furniture surfaces and
veneers may become discoloured
by the effects of constant heat over
time. The feet of the unit can also
cause colour changes to treated
furniture surfaces. If necessary,
place the unit on a suitable stable
and flat base!
Repairs
Ensure that any repairs to your
unit are carried out by qualified
personnel. Opening the unit and
attempting to repair it yourself
voids all warranty claims!
Improper work on the unit may
jeopardise the electrical safety of the
unit.
The manufacturer accepts no liability
for accidents caused by the user
opening the casing of the unit!
Connections
Incorrect wiring of the connections
can lead to malfunctions or defects
on the unit!
Important!
Do not place any objects on top
of the unit. Unless stated to the
contrary in the “Connection and
Set-Up” and “Installation” sections
in the manual supplied, maintain a
clearance of at least 10 cm above
the unit, 2 cm to either side and 5 cm
behind the unit, to allow unobstructed
dissipation of the heat generated.
There is a risk of fire!
Electronic equipment is not domestic
waste - it must be disposed of
properly in accordance with directive
2002/96/EC OF THE EUROPEAN
PARLIAMENT AND THE COUNCIL
dated 27th January 2003 concerning
used electrical and electronic
appliances.
At the end of its service life, take this
unit for disposal to an appropriate
official collection point.
Spent batteries are special waste!
Do not throw spent batteries into
your domestic waste; take them to a
collection point for spent batteries!

8
RECEIVER FEATURES/SCOPE OF SUPPLY
The UFT 676sw receiver is suitable for the reception of FTA digital terrestrial TV and radio programmes.
The HDMI interface offers the optimum capability for connecting the receiver to a flat-screen TV set. The
built-in up-scaler processes the picture optimally for flat-screen TV sets.
Features are for instance: Kathrein EPG, guided first installation with country setting, electric audio output
for Dolby Digital (AC 3), a video cinch output and Teletext with an 800-page memory.
It can be used to power an active DVB-T antenna without any additional power supply unit.
The receiver is available in a black housing.
FEATURES
Reception of FTA digital terrestrial TV and radio programmes
Typical power consumption in operation 5 W (without active antenna)
Stand-by power consumption: < 0.5 Watt
HDMI output for good picture quality on your flat-screen TV set
Up-scaler for upscaling the Pal signal (576i) to 576p, 720p and 1080i
4-character display
Kathrein EPG with timer programming ¹)
Guided first installation with country setting
Sorting by the pre-programmed channel list
Logical Channel Number function
Software download via PC (RS 232/RJ 11)
A total of 8 favourite channel lists for TV and radio
On-screen display (OSD) in 8 languages (D, GB, F, I, E, CZ, NL, TR)
14 timers; conveniently programmable using the EPG
Language selection for multilingual broadcasts
Electrical audio output for Dolby Digital data stream (AC 3)
Scart socket with either FBAS or RGB signal output
Cinch sockets for AV signal
Videotext decoder with 800 page memory capacity and Videotext generation (only via Scart)
Automatic 4:3 and 16:9 format recognition (choice of viewing format)
Channel search
Automatic date and time generation via DVB data stream

9
- UFT 676sw
- Remote control RC 671
- Scart cable
- 2 batteries AAA 1.5 V
- Operating manual
- Safety Notes
SCOPE OF SUPPLY
¹) Displayed only if this information is broadcast by the channel provider
2) The unit is not fully disconnected from the mains (see the sections “Safety Instructions - Important Instructions” and “Periods of
extended absence, thunderstorms, mains socket accessibility”)
RECEIVER FEATURES/SCOPE OF SUPPLY
Programme position sort function
Tuner with loop-through output
Power switch 2)
1,000 channel memory positions
Remote feeding of an active DVB-T antenna (e.g. BZD 30, BZD 40) via the RF input
Infra-red remote control
An additional IR sensor can be connected

10
CONTROLS, DISPLAYS AND CONNECTIONS
This section provides a brief description of all the controls, displays and connections.
Front panel controls and displays
1. On/Off switch
1)
2. Channel select buttons (▼▲)
3. Display
Rear panel controls and displays
1. RJ 11 data interface/connection
port for an external IR sensor
2. VHF/UHF input socket
3. VHF/UHF loop-through output
4. Scart socket for VCR/AUX connection
5. Video output (composite colour)
6. Electrical digital data stream output
(SPDIF/Sony Philips Digital Interface
Format) for Dolby Digital AC 3 audio
7. Audio outputs (L/R) cinch sockets
8. HDMI Output
9. Scart socket for TV connection
10. Mains power cable
VIEW OF FRONT PANEL (FLAP REMOVED)
VIEW OF REAR PANEL
1) The unit is not fully disconnected from the mains (see the sections “Safety Instructions - Important Instructions” and “Periods of
extended absence, thunderstorms, mains socket accessibility”)
The serial number sticker for the UFT 676sw is located on
the underside of the unit.
The information printed on it includes the following:
- the exact designation (e.g. UFT 676sw)
- the part number and
- the serial number of the unit.
You do not need this information in order to operate the
unit. If however, contrary to expectations, you need to
make a claim under warranty and you do not have the
packaging for the receiver to hand, you can find the
above information about the unit on this sticker.

11
CONNECTION AND SETUP
The following section is intended specifically for specialist dealers. You need not refer to this section
unless you are carrying out the installation yourself.
The “Connection examples” section provides a sample configuration.
Do not connect the receiver to the power supply until all installation work has been properly carried out.
Refer to the information in the “Safety instructions” section.
If you are using (or have to use) an active antenna - that is, an antenna with a
pre-amplifier, you can power it from the receiver's antenna input. The default
setting in the receiver is “Off”, to prevent any damage from occurring. Be sure
to use an antenna designed for a 5 Volt supply (such as the Kathrein BZD 30).
CONNECTING THE UNIT (ANTENNA CONNECTION)
DVB-T TV was developed to enable you to receive a good quality TV picture anywhere, provided the signal
is strong enough. Connect the receiver either to your conventional stand-alone or community antenna
through which you receive all VHF/UHF signals, or use an antenna developed for DVB-T (such as the
Kathrein BZD 30 for direct reception indoors or the BZD 40 for outdoors). The receiver is connected to
the antenna via the VHF/UHF input socket
DVB-T TV cannot work miracles however; you must be receiving a good quality signal. You may
encounter problems in concrete buildings if you are using only an indoor antenna.

12
CONNECTION AND SETUP
HDMI
Scart
Digitalton AC 3
elektrisch
Infrarot-Empfänger
(optional)
Scart
CONNECTION EXAMPLE
Hi-fisystem
Infra-red receiver
(optional)
Digital sound AC 3
electrical
Dolby Digital system

13
CONNECTION AND SETUP
Connect the DVB-T receiver (HDMI or alternatively TV Scart socket) and the TV set using a HDMI or
Scart cable (see “Connection example”). If your TV is stereo, you can receive the sound in stereo via
the HDMI or Scart connection. For system reasons, the same video signals are present at both the
TV Scart socket and also the video cinch output.
Use a further Scart cable to connect the DVB-T receiver (VCR Scart socket) to the video recorder/DVR.
If you want to play the sound on your hi-fisystem, connect the audio cinch sockets to the input sockets
on the hi-fisystem, using an appropriate cable (see “Connection example”).
The electric digital output is intended for the connection of a Dolby Digital system (see “Connection
example”).
Remove the cover on the rear of the remote control.
Insert the two batteries supplied into the remote control. Ensure correct polarity of the batteries;
the + and – markings are indicated inside the battery compartment.
Slide the cover back into the housing until it locks in place.
TV AND VCR CONNECTION
AUDIO CONNECTION
ELECTRICAL DIGITAL OUTPUT
INSERTING BATTERIES INTO THE REMOTE CONTROL
If you are recording using an external video recorder, remember not to operate the
receiver during recording, otherwise all the on-screen displays will appear on your
recording.

14
REMOTE CONTROL
"
Sound on/off
... 
Numeric input for
channels, timers etc.

Open the main menu,
leave the menu and
return to the TV picture
#FAV (red)
Call up favourites selection
$PIP (green)
“Current” view in the EPG

Volume

Leave the menu
step by step

Change channel in the
programme preview (EPG)
A
Currently not used
(red)
Record in EPG, edit in
channel list
?
Power on/stand-by

Videotext (Teletext)
%OPT (yellow)
Open channel options
sound/subtitles selection
&TV/R (blue)
Switch between TV/radio
!
Access Channel
Notification/Info

AV mode
'
Channel selection
up/down

Confirm entry
open channel list
@
Cursor buttons

Open EPG
(Electronic Programme
Guide)

Change channel in the
programme preview (EPG)

Stop recording
The button symbols shown here can also be found
in the description of the operating steps.

15
FIRST INSTALLATION
Before using your receiver for the rst time, read the “Safety Instructions” and
“Connection and Setup” sections.
The “Connection examples” section provides a sample con guration.
Do not connect the receiver to the power supply until all installation work has been
properly carried out.
The guidance given in the “First Installation” section assumes that the receiver
has been properly connected as per the “Safety Instructions” and “Connection and
Set-Up” sections.
First switch your TV set on and select the AV channel slot. Switch on your receiver at the power switch at
the front of the unit. The following display appears:
Select the menu language you want using the  buttons. Available options: German, English,
French, Italian, Spanish, Czech, Dutch and Turkish.
Press the $(green) button to move to the next menu.
Also note the bars at the bottom
of the on-screen display! These
provide information on what to
do next.
Note: If you are unsure whether you chose the right option from a previous menu, you can go
back a step at any time during the first installation process by pressing the #(red) button.

16
Use the @buttons here to select the settings for your TV set.
When doing this, refer to the operating instructions for your TV set!
TV aspect ratio
Here you can select the TV picture format. Either
4:3 or
16:9
FIRST INSTALLATION
Use the  buttons here to select your country.
Press the  buttons to access the next line.
Use the  buttons here to select whether the channels that are found later during the channel
search at first installation should be sorted in accordance with the channel list saved for the country
selected earlier (selection “On”). In the setting “Off” is selected, the channels will be sorted in the order
they are found during the channel search. Press the $(green) button to move to the next menu.
The following display appears:
The following display appears:

17
FIRST INSTALLATION
Picture format
Here you can select the type of screen display, depending on the setting of your TV format:
- TV aspect ratio “4:3”: Pan & Scan or Letterbox
- TV aspect ratio “16:9”: automatically or always 16:9
TV-SCART-Output
Select the type of video signal at the TV Scart socket here. Select the signal that your TV set can process.
- FBAS - composite colour signal (colour/picture/blanking/synchronous signal) or
- RGB - Red/Green/Blue signal
HDMI Format
Here please select the format (resolution) that will be output at the HDMI socket. Select the resolution
appropriate to your TV set.
Available options:Auto (automatic format choice), 576p, 720p or 1080i
Press the $(green) button to move to the next menu. The following display appears:
Antenna Power
Using the  buttons, select whether the DVB-T antenna should be supplied with power from
the receiver (select “On”) or the DVB-T antenna has its own dedicated power supply (select “Off”).
Press the $(green) button to open the next menu:

18
Execute Channel search
Use the  buttons to select (Yes or No) whether you wish to start a channel search.
If you selected “No”, you can press the $(green) button to skip directly to the next item of the first
installation.
If you selected “Yes”, you can press the button to progress to the next selection item.
Channel Search Mode
Use the  buttons to select whether you wish to search “free & scrambled”, “only free” or “only
scrambled” channels.
The UFT 676 does not allow encrypted channels to be viewed, because no Common Interface is
fitted for insertion of the necessary CA modules and smart cards.
Press the $(green) button to start the channel search, or if you set channel search to “Off” you are
guided straight to the next item in the first installation process.
During the channel search you will see the following message (example):
FIRST INSTALLATION

19
Local time offset
Use the  buttons to set the local time offset from UTC (formerly GMT) (e.g. for Germany +1 hour).
Use the  buttons to switch to the “Automatic clock change” field. Use the  buttons
to select whether the receiver should automatically change over to and from summer and winter time.
If “On” is selected, the receiver automatically sets itself to the right time. If “Off” is selected, the
field for manual selection of summer and winter time is displayed below. The  buttons are also
used to perform the setting.
Press the $(green) button to close First Installation and return to the TV picture.
Use the button to move to the next step of the first installation. The following display appears:
FIRST INSTALLATION
When the search has been completed, you will see the following message (example):

20
OPERATING INSTRUCTIONS
The structure of the menu concept is based on logical operating sequences. The programme showing
on the current selected channel always appears in the top right-hand corner of the screen.
You will find detailed descriptions of the selected menu items in the relevant sections of the
operating manual!
Note: The selected menus, sub-menus and positions, as well as the parameters to be set,
are each highlighted in colour. The menus are self-explanatory.
Note the bar at the bottom of the
on-screen display! These provide
information on what to do next.
Press the button to open the main menu, and use the  buttons to select the sub-menus.
Press the button to access the sub-menus. Use the  buttons to select the sub-menu options.
The settings under the various options are made either by pressing the  buttons or using the
numeric pad. You can exit the main menu and sub-menus and the various options step-by-step by
pressing the button (the settings/changes you made are saved). Press to return directly from
one of the menus to the TV picture (the settings/changes you made are saved).
MENU CONCEPT
