Kathrein UFS 922 si User manual

Operating manual English
UFS 922 si/sw
Twin HDTV satellite receiver
with hard disk

2
Dear customer,
this Operating Manual is intended to help you make the fullest use of the extensive range of functions offered by your new
receiver.
We have tried to make the operating instructions as easy as possible to understand, and to keep them as concise as
possible. To help you understand particular specialist terms that cannot be translated, we have added a short glossary at
the end of the manual.
In the contents on the next page you will see the main headings of the respective chapters of this operating manual.At the
beginning of each chapter we have also provided a short list summarising the points that are covered in that chapter.
If you need to nd a particular sub-section within a chapter, you can look it up in the comprehensive index at the end of this
operating manual.
The power switch is an environmentally friendly feature. If you will not be using your receiver for an extended period, you
should use the power switch to disconnect it from the power supply and save energy. For shorter breaks, you can use the
remote control to switch the receiver to standby, which uses only a minimal amount of energy.
We want you a good reception and hope you will enjoy using your new HDTV receiver.
Your
KATHREIN team
Preface
Difference between PAL and HDTV
The difference between PAL and HDTV
“High denition television” is characterised by a signicantly
higher number of picture lines on the TV set. The usual
European standard PAL achieves a resolution of 576
lines vertically and 720 lines horizontally. High-resolution
TV sets have resolutions up to ve times higher and thus
provide more detail sharpness and plasticity than TV to the
usual PAL standard.
A HDTV picture can contain up to ve times as many picture
points, i.e. approximately 2 million pixels, compared to a
conventional PAL picture with only approximately 400,000
pixels.
Worldwide, there are currently two HDTV standards based on the two formats 1080i and 720p. The two standards differ in
the number of picture lines and in the transmission procedure. For the human eye, the difference between the two HDTV
standards is hardly perceptible, however; in comparison to the PAL system, moving pictures look much more dynamic.
Transmission technology and reception equipment will be able to handle both standards in the future.
Electronic equipment is not domestic waste - in accordance with directive 2002/96/EC OF THE
EUROPEAN PARLIAMENT AND THE COUNCIL dated 27th January 2003 concerning used electrical
and electronic appliances, it must be disposed of properly.
At the end of its service life, take this unit for disposal to an appropriate ofcial collection point.
Disposal Instructions
Spent batteries are special waste!
Do not throw spent batteries into your domestic waste; take them to a collection point for used
batteries!
PAL 720 x 576
720p 1280 x 720
1080i 1920 x 1080

3
Contents
Preface............................................................................................................................................................................. 2
Contents.......................................................................................................................................................................... 3
Safety Instructions - Important Information................................................................................................................. 4
Important Information.................................................................................................................................................... 5
Receiver features/scope of supply/features................................................................................................................ 7
Connection and setup.................................................................................................................................................... 9
General operating instructions................................................................................................................................... 45
Basic operation in TV or Radio mode (live operation).............................................................................................. 48
Premium EPG................................................................................................................................................. 56
Editing the channel list................................................................................................................................................ 74
Recording archive (play back/edit recordings) ......................................................................................................... 81
Main menu..................................................................................................................................................................... 98
Main menu - Channel search..................................................................................................................................... 100
Main menu - Service menu........................................................................................................................................ 105
Main menu - Settings .................................................................................................................................................. 110
Main menu - Interfaces (CI, hard disk and network) ............................................................................................... 128
Main menu - Applications.......................................................................................................................................... 134
Main menu - Language settings................................................................................................................................ 135
Tuner Configuration ................................................................................................................................................... 136
Multimedia................................................................................................................................................................... 159
Operation from the front panel (without remote control)....................................................................................... 164
Troubleshooting ......................................................................................................................................................... 166
Technical appendix .................................................................................................................................................... 167
Comprehensive index................................................................................................................................................ 175
Brief Technical Glossary............................................................................................................................................ 179
Service......................................................................................................................................................................... 182
For your notes ............................................................................................................................................................ 183

4
DANGER!
WARNING!
CAUTION!
GB Safety Instructions – Important Information
This page contains important information about the operation, installation location and connection of the unit.
Read these instructions carefully before starting to use the unit.
Mains cable
Make sure that the mains cable (power supply cable) is not damaged. Units with a damaged mains cable must be
disconnected from the mains (disconnect mains connector) and repaired by a qualied engineer before setup. Only
use the power pack supplied (if available)!
Risk of death due to electric shock!
Cleaning
Disconnect the mains connector before cleaning the unit. Only use a dry cloth for cleaning and only clean the outer
surface. Never open the unit.
Touching the parts inside the unit carries a risk of death due to electric shock!
Playing children
Make sure that children do not push any objects into the ventilation slots.
Risk of death due to electric shock!
Earth connection
The antenna system must be earthed as specied or equipotentially bonded. EN 60728/11 and any national
regulations must be complied with.
Danger due to surge voltages, lightning strikes!
Mains voltage
Only operate the unit with the specied mains voltage (marked on the rear of the-unit or on the external power pack)!
The unit may only be connected to the mains and turned on once it has been connected to the antenna and to the
TV set or the cable network and PC.
If the mains voltage is too high, there is a risk of re!
Repairs
Ensure that any repairs to your unit are carried out by qualied personnel. Opening the unit and attempting to repair
it yourself voids all warranty claims!
Improper work on the unit can jeopardise the electrical safety of the unit.
The manufacturer accepts no liability for accidents caused by the user opening the unit!
Connections
Incorrect wiring of the connections can lead to malfunctions or defects on the unit!
Long periods of absence/storms/accessibility of the mains connector
Always turn off the unit at the mains switch if you will be absent for a long time or there is a storm. Disconnect it
from the mains by unplugging the mains connector. This also applies to the other equipment connected to the unit.
Isolation from the cable network is also recommended. Note any timer programs (receiver) and turn the unit on
again promptly before the recording time. Ensure the mains connector is accessible at all times.
Installation location
Allelectronicequipmentgeneratesheat.However,the heating of thisunitlieswithinthepermissiblerange.Sensitive
furniture surfaces and veneers may become discoloured by the effects of constant heat over time. The feet of the
unit can also cause colour changes to treated furniture surfaces. If necessary, place the unit on a suitable stable
and at base!
Ventilation
The heat generated in this unit is adequately dissipated. However, the unit should never be installed in a cupboard
or on shelves with inadequate ventilation. Never cover the cooling slots on the unit (e.g. with other equipment,
magazines, tablecloths or curtains)!
Do not place any objects on top of the unit and maintain a clearance of at least 10 cm above the unit, so that the
heat generated can be dissipated with no obstructions.
Moisture, sunlight, heat, naked ames
Protect the unit against moisture, dripping and splashed water (do not place any lled objects such as vases on
top of the unit). Do not place the unit close to a heater or expose it to direct sunlight and do not operate it in damp
locations. Only use the unit in a moderate climate, not in tropical conditions! Do not expose the unit to any naked
ame, such as from a candle! This constitutes a re hazard!
Safety Instructions - Important Information

5
Make sure that the fan at the rear of the unit and the ventilation slots on the unit are not blocked
or covered in any way. Otherwise the unit may overheat. Adjust the fan speed to the temperature
conditions in the receiver.
There is a risk of re!
Important Information
Channel assignment
The channels available on the satellites and transponders are subject to continual change. If changes do occur, the new
channels have to be set on the receiver because the factory preset programming corresponds to the status on the date of
manufacture. The information for these settings can be found on the Internet or in relevant magazines.
Updating the receiver software
Your receiver was equipped in the factory with the latest software version at that time. We are however constantly working
on and adapting the software to the wishes of our customers and to developments in technology. Further information on this
can be found in the chapters “Main Menu - Service Menu”, “Service Menu”, “Software Update”.
Network function
To connect the PC/laptop and receiver to the network, you must have unrestricted rights (administrator rights) for your
PC/laptop and on your network. For this refer to the chapter “Mainmenu”, “Interfaces”, “Network Settings”.
Product return/original packaging
Please keep the original packaging in case you need to return the product at any time. Because of their design hard disks
are fragile, and are only adequately protected if the receiver is in its original packaging. If the receiver is not shipped
correctly the guarantee/warranty on the hard disk will be voided.
Software changes/use of applications
Any modications to the receiver software, or the use of applications not provided by Kathrein, will invalidate the warranty!
You will have to bear the costs yourself for shipping and repairing any receiver that requires attention due to modications
to the software and use of applications other than those provided by Kathrein!
Therefore exclusively use software and applications provided by Kathrein for your receiver. This is available by downloading
from the satellite or from the Internet (www.kathrein.de).
Fan/ventilation slots on the unit
Instructions on how to set the fan can be found in the chapter “Mainmenu”, “Settings”, “Basic Settings”, “Fan Settings”.

6
Information on Audio MPEG Inc. and S.I.SV.EL, S.P.A:
This unit makes use of legally protected technologies, which are protected by patents in the USA and also by other
intellectual property rights in other countries.
KATHREIN-Werke KG has obtained licences from Audio MPEG Inc. and Societa‘ Italiana per lo sviluppo dell‘elettronica,
S.I.SV.EL, S.P.A to use these technologies. These licences carry certain restrictions, which apply also to you as the
customer. Accordingly this unit may only be used by the end customer for private non-commercial purposes and for the
licensed content. It may not be used for commercial purposes. The use of products or processes that are sold or used
with this unit is not included in this statement. The use of reverse engineering is not permitted in respect of the licensed
technologies, nor is disassembly.
The information in this operating manual was correct at the time of going to print. However, we reserve the right to make
changes at any time and without prior notice. If new software is released for your receiver, and this affects the information
in the operating manual (e.g. changes to the menus and/or functions), if we believe it necessary we will provide a new
operating manual for download at “www.kathrein.de”.
Make a note of the receiver's basic settings (these are set during rst installation), so you can restore them if necessary!
Included in the software for this receiver is software that is licensed under the GNU (General Public Licence). The source
code of the program is obtainable under: http://www.kathrein.de/linux/receiver/ufs922
The term DiSEqCTM used in this operating manual is a registered trade mark of the European Telecommunication
Satellite Organisation (EUTELSAT).
Switching the receiver off
Before you switch off the receiver using the power switch, you must switch the remote control into standby mode by
pressing the standby button (). In standby mode, any changed or new data that is broadcast will be saved by the
receiver. Once the receiver is in standby mode it can be fully switched off at any time at the power switch on the rear of
the unit.
Do not switch the receiver off at the power switch directly from operating mode! This can lead to a
loss of data and corruption of the software.
Miscellaneous
Important Information
Power consumption in standby mode < 1 W
The standby power consumption of < 1 W printed on the receiver packaging is only achieved when the receiver is in
standby mode with the display switched off. You can make the setting in the following menu: “Mainmenu”, “Settings”,
“User-dened settings”, “Customize screen menu”, “Front display in standby mode”

7
 UFS 922si or UFS 922sw
Remote control RC 670
HDMI cable
 Scart cable
 Coaxial loop-through cable for loop-through operation
2 batteries AAA 1.5 V
Power supply cable
Operating Manual
 Safety instructions (multi-lingual)
Receiver features/scope of supply/features
Receiver features
Scope of supply
The UFS 922 HDTV twin receiver allows reception of digital satellite TV and radio channels. This receiver can receive
both HDTV (High Denition Television) and also conventional TV (Standard Denition Television).
The multi-function receiver has two independent reception and signal processing circuits as well as an integral hard disk
with a recording capacity of 500 GB.
Depending on the data content transmitted by the channel, the hard disk allows up to 300 hours of standard TV and radio
programmes or up to 100 hours of HDTV to be recorded and replayed either simultaneously or with a time shift, without
quality loss and as often as required.
The built-in Common Interface has capacity for two CA modules for pay TV channels. The receiver indicates the channel
name on the 16-character alphanumeric display. In addition, the display has 16 icons that provide information on specic
receiver conditions at a glance (e.g. Dolby Digital, HD, timer ...).
The HDMI interface allows the receiver to be connected to a at-screen TV set. In addition a YpbPr connection, a video
composite connection and two Scart connections are provided. Via the optical audio output, the receiver can output a Dolby
Digital data stream AC 3 to a Dolby Digital system.
The integrated premium tvtv EPG is not only a clearly laid out electronic TV guide, but also enables programme schedules
to be copied directly from the related EPG view to the timer. It also offers the facility of selectively sorting the programme
information by categories and the generation and management of your own programme tips. The premium tvtv EPG also
offers a comprehensive search function allowing searches by repeats, actors and key words amongst others.
The USB port at the front of the unit allows software updates to be loaded to the receiver.
The receiver’s operating system is based on LINUX.
The receiver is available in silver or black housings.

8
Receiver features/scope of supply/features
Features
Reception of digital satellite TV channels and
radio programmes using DVB-S and DVB-S2
transmission standards
Video decoding of MPEG 2 and MPEG 4/H.264
signals
Two independent HDTV satellite tuners with loop-
through output
Integral 500 GB hard disk for up to 300 hours
standard TV or up to 100 hours HDTV recordings ¹)
Recording of radio programmes on the integral
500 GB hard disk
Time shift TV
Permanent time shift
(continuous recording of the selected channel)
16-character alphanumeric display with status icons
for indication of channel names and transmission
information
Premium tvtv EPG (Electronic Programme Guide)
for up to 14 days detailed information on approx.
60 channels
Extended EPG functions: Selective sorting by
categories, comprehensive search function,
generation and management of programme tips
Recording archive with chapter menu and images
Multimedia archive for video and MP3 playback
Common Interface for two CA modules with
dual decryption ²)
HDMI output for optimum transmission of picture
and sound to a at-screen TV set
Upscaler for upscaling the PAL signal to 576p, 720p,
1080i and automatic
Cinch sockets for AV signal (composite CVBS,
stereo audio)
Two USB 2.0 ports on the rear of the unit for
connecting external USB storage media
One USB 2.0 port on the front of the unit for software
update with a USB stick
Ethernet port
Menu-based rst installation
Pre-programmed channel list
Display of transmitter logo in various screen displays
Unlimited number of timer recordings can be
programmed (one-off, daily, weekly, user-dened
and series timer)
8 favourite channel lists for TV and 8 for radio
YPbPr, TV and VCR Scart output
Composite colour, RGB and Y/C signal output
programmable via the Scart socket (TV)
Optical audio output for Dolby Digital
data stream (AC 3)
Soundtrack selection for multilingual broadcasts
Suitable for software updates via satellite, USB stick
and PC (the operating software and the programme
lists can be updated separately)
On-screen display (OSD) in 10 languages
(D, GB, F, I, E, CZ, NL, PL, TR, RUS)
DiSEqCTM1.0/-1.1/-1.2/-1.3 and SCR single cable
system control signals
Operating system based on LINUX
Multifunction control on the front of the unit for ease
of operation
Power switch
4,000 channel memory
¹)Depends on the data rate of the programme broadcast
²) CA modules and Smartcards are not included with this product

9
Connection and setup
View of rear panel
~
1
10
2
3
4
5
6
7
8
9
11
12
16
13
14
15
17
1. On/Off switch (disconnection from the mains)
2. Mains power cable
3. Fan
4. Optical data stream output (SPDIF/Sony Philips
Digital Interface Format) for Dolby Digital AC 3 audio
5. Data interface (for service only)
6. Audio outputs (L/R) - cinch sockets
7. Video output (composite colour)
8. 3 x Cinch connections for component outputs YUV
labelled = Y/Pb/Pr
9. Scart socket for TV connection
10. Scart socket for VCR/AUX connection
11. HDMI connection
12. Network connection (Ethernet)
13. 2 x USB 2.0 ports (USB-A connectors)
14. LNB 2 loop-through output
15. LNB 1 loop-through output
16. LNB 2 input
17. LNB 1 input
Topic Page
View of rear panel........................................................................................................................................................... 9
View of front panel (flap folded down).......................................................................................................................... 10
Connecting the unit (Sat-IF connections) ..................................................................................................................... 10
Information about antenna connection and loop-through mode.................................................................................... 11
Connection example..................................................................................................................................................... 12
TV and VCR connection............................................................................................................................................... 13
Audio connection.......................................................................................................................................................... 13
Optical digital output..................................................................................................................................................... 13
Inserting batteries into the remote control.................................................................................................................... 13
First installation ............................................................................................................................................................ 14

10
Connect the Sat-IF inputs on the receiver to the satellite reception system. Use coaxial cable with an
F standard connector.
If the F standard connectors are not yet tted on the cables, strip the insulation from the cables as
shown in the following illustration and carefully screw the F standard connectors on to the ends of
the cables until they are securely attached.
View of front panel (ap folded down)
1
2
3
4
5
6
7
8
1. Common Interface for two CA modules for
pay TV cards *)
2. Record button
3. Stop button
4. USB 2.0 port
5. 16-character alphanumeric display
6. AUX button
7. TV/R button
8. Multifunction control
Connecting the unit (Sat-IF connections)
Connection and setup
When tting the connector, make sure that no wires from the braid are touching the inner conductor,
otherwise a short circuit will occur.
The quality of the reception signal depends on a good connection at this point!
*) CA modules and Smartcards are not included with this product

11
Information about antenna connection and loop-through mode
To enable you to utilise all the reception and recording features of your UFS 922 twin-PVR HDTV Sat receiver, such as
1. Recording one programme and simultaneously viewing any other programme or zapping through the channels, and
2. Recording two different programmes at the same time,
the two tuner inputs on the satellite receiver must each be supplied with a dedicated satellite signal from the antenna
system/Sat outlet.
The receiver tuner inputs are factory preset in the installation menu to work with two separate Sat antenna connections.
If you only have one antenna connection available, we recommend you interconnect the output of tuner 1 and the input of
tuner 2 using the loop-through cable supplied.
For this, in “First Installation” for tuner input 2 select
“Loopthrough” (see “First Installation” chapter).
Press the c button to access the “Tuner Conguration”
menu option, then select “Settings” and “First Installation”.
Go through step-by-step until you get to the tuner
conguration. You can make the settings here, However,
Loop-through cable
~
one restriction on this is that with tuner 2 you can only receive the additional channels from the level currently set by
tuner 1 (e.g. Horizontal High).
Connection and setup
If you want to operate your UFS 922 on a one cable system, please refer to the connection example
for one cable systems (see “Technical appendix”, “Examples of one cable systems”).
This will only work when receiving one satellite, not with multi-feed reception!

12
Connection and setup

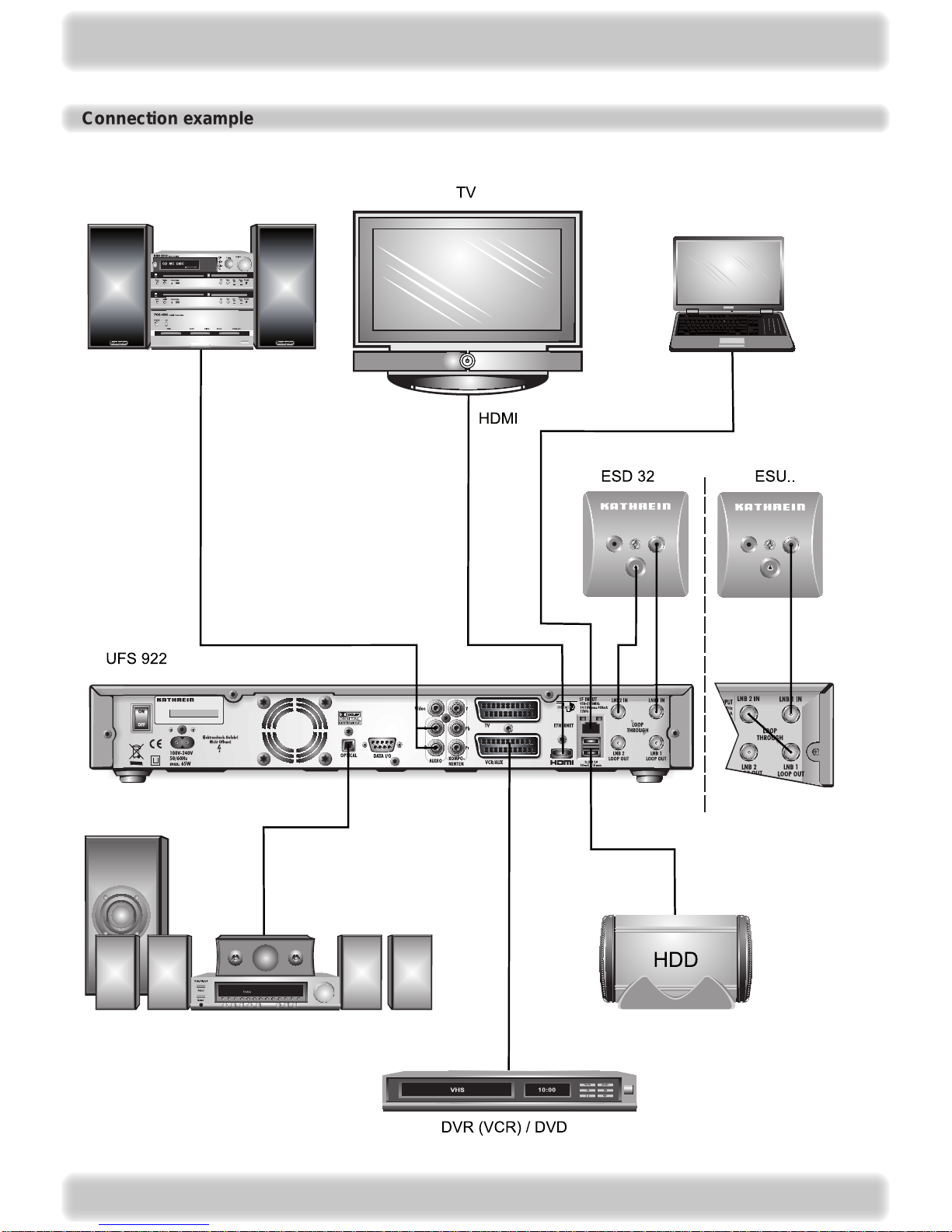

Connection example
Conventional DiSEqC™ system
~
Hi- system
Network
PC/laptop
Dolby Digital system External hard disk
Connection
sequence for
single-cable
matrices

13
Connection and setup
Connect the satellite receiver (HDMI or alternatively TV Scart socket) and the TV set using an HDMI or Scart cable
(see “Connection example”). If your TV is stereo, you can receive the sound in stereo via the HDMI or Scart connection.
For system reasons, the same video signals are to be found at the TV Scart socket as at the video cinch output.
Connect the satellite receiver (VCR/AUX Scart socket) to the video recorder/DVR using a Scart cable. To play back a
DVD, i.e. output the signal from the DVR through the receiver on the TV set, the TV set must also be connected to the
receiver with a Scart cable. This is necessary as there is no upscaling of the video signal from the VCR Scart socket to the
HDMI output.
If you want to play the sound on your hi- system, connect the audio cinch sockets to the input sockets on the
hi- system, using an appropriate cable (see “Connection example”).
The bre-optic output is intended for the connection of a Dolby Digital system (see “Connection example”).
TV and VCR connection
Audio connection
Optical digital output
Remove the cover on the rear of the remote control. Insert the two batteries supplied into the remote control.
Ensure correct polarity of the batteries; the + and – markings as indicated inside the battery compartment.
Slide the cover back on to the remote control until it locks in place.
Inserting batteries into the remote control
If you are recording using an external video recorder, remember not to operate the receiver during
recording, otherwise all the on-screen displays will appear on your recording.

14
Connection and setup
First Installation
Required buttons on remote control for rst installation:
... Numerical input (green) Proceed to next step in rst installation
(red) Go back one step in the rst installation Conrm the changed values/setting
Select/change individual menu
parameters, navigation
Cancel input, go back
Before you start to use the UFS 922, read the chapters “Safety instructions - Important information”,
“Important information” and “Connection and setup” through to the “First Installation” section.
Do not connect the unit to the mains until all installation work has been properly carried out.
The guidance provided in the “First Installation” section assumes that the receiver has been properly
connected as per the “Safety instructions - Important information”, “Important information” and
“Connection and setup” chapters through to the “First Installation” section.
First switch your TV set on and select the AV channel slot you have used to connect the UFS 922 to your TV set.
Start up the UFS 922 by switching on the power switch on the rear of the unit. The following display appears:
Use the  buttons to select the desired menu language for your UFS 922 and conrm your selection using the
 button. The selected language is indicated with a tick. The following languages are available: German, English,
French, Italian, Spanish, Czech, Dutch, Polish, Turkish and Russian.
Press the (green) button to move to the next menu.
Always pay attention to the bar at
the bottom of the on-screen display.
Messages here provide information on
what to do next.

15
Connection and setup
The following display appears:
Use the buttons here to select the basic settings for the video and audio output from the receiver to the TV set.
For this, refer to the operating manual for your TV set and take care to select only those settings that your TV set
can process.
Video Output via
Select the connection on the receiver to which you have connected your television. Either
HDMI/YUV format
Here you can select the picture resolution that will be sent
to your TV set. Either
- 1080i (resolution 1920 x 1080, half-screen images)
- 576p (resolution 720 x 576, full-screen images) or
- 720p (resolution 1280 x 720, full-screen images)
Show 4:3 Event
Here you can select the type of screen display mode for
4:3 broadcasts on a 16:9 TV set:
- Normal (Pillarbox)
- Stretched (Full Screen) or
- Zoomed in (Pan & Scan)
TV aspect ratio
Select the TV's picture format. Either
- 4:3 or
- 16:9
Picture format
Select the type of screen display, depending on your
setting for the TV format:
- TV format “4:3”: Pan & Scan or Letterbox
- TV format “16:9”: Always 16:9 or automatic
HDMI/YUV SCART
~
~
~
or

16
Audio format via HDMI
Here you can select the type of audio signal that is
transmitted by the HDMI interface. Select the signal that
your TV set can process:
- Decoded PCM or
- S/PDIF format
Auto Dolby Digital output
Here you can select whether the receiver should
automatically select the Dolby Digital soundtrack (if this is
transmitted).
TV Scart Output
Select the type of video signal at the TV Scart socket here.
Select the signal that your TV set can process.
- CVBS – Colour Video Baseband Signal
- RGB – Red/Green/Blue signal or
- Y/C – S-Video signal (luminance/chrominance)
VCR Scart signal output
Select the type of video signal at the VCR Scart socket
here. Select the signal that your external recorder can
process.
- CVBS – Colour Video Baseband Signal or
- Y/C – S-Video signal (luminance/chrominance)
Auto Dolby Digital output
Here you can select whether the receiver should
automatically output the Dolby Digital signal (if this is
transmitted).
Press the (green) button to move to the next menu.
The following display appears:
Tuner conguration should be
performed by a specialist engineer for
the respective reception system.
You should only perform the tuner
conguration yourself if you are fully
familiar with the particulars of your
reception system.
You can set up the tuner conguration for the following types of reception systems:
- DiSEqC™1.0
- DiSEqC™1.1
- Motorized antenna (DiSEqC™1.2/DiSEqC™1.3)
- Simple LNB or
- OneCable System
If your reception system is a one cable system, go to the “OneCable System” option and continue from there.
For all other types of reception systems, continue from the next page.
Connection and setup
Important instruction for picture output
using “YUV”:
The “YUV” output can be used only if
“RGB” is not selected as the output
signal for the TV Scart socket!
In this case, select “Y/C” or “CVBS” as
the output signal for the TV Scart
socket.

17
Separated:
The second tuner input of the receiver, identied at the
rear of the unit by “LNB2 in”, receives its own signal input
(i.e. there is a direct connection between the antenna
socket and tuner input 2). See example illustration
on the right.
Before you start conguring the tuner for your type of reception system you must rst make both the “Tuner 2
connection type” and “Tuner 2 Signal Conguration” settings. Once you have made these settings, continue to follow
the directions for your type of reception.
Tuner 2 Connection type
Select the type of connection for tuner 2 here. The currently selected setting is shown graphically in the connection
example at the top left of the screen. Either:
Different from Tuner 1:
The two tuners are connected to different signal sources
(separate cables from the LNB). See example illustration
on the right.
Tuner 2 Signal Conguration (only for “Separated” connection type)
Select the signal conguration for tuner 2 here. The currently selected setting is shown graphically in the connection
example at the top left of the screen. Either:
Loopthrough:
The second tuner input of the receiver, identied at
the rear of the unit by “LNB2 in”, receives the signal
currently looped through from the tuner 1 looped
through output, identied by “Loopthrough”. In this case,
the second tuner can only receive the channel level
currently being received by the rst tuner. See example
illustration on the right.
Same with Tuner 1:
Both tuners are connected to the same signal source.
See example illustration on the right.
Connection and setup

18
The following conguration options are available for:
Tuner 2 Connection type “Loopthrough”:
All settings are made on tuner 1. The second tuner is fed from the looped through output of the rst tuner.
Available settings for tuner 1 are: “DiSEqC™1.0”, “DiSEqC™1.1”, “Motorized Antenna” and “Simple LNB”
Tuner 2 Connection type “Separated”/Tuner 2 Signal Conguration “Same with Tuner 1”:
All settings are made on tuner 1. The settings for the second tuner are automatically taken from the rst tuner.
Available settings for tuner 1 are: “DiSEqC™1.0”, “DiSEqC™1.1”, “Motorized Antenna” and “Simple LNB”
Tuner 2 Connection type “Separated”/Tuner 2 Signal Conguration “Different from Tuner 1”:
All settings must be made separately for the two tuners.
Available settings for tuner 1 are: “DiSEqC™1.0”, “DiSEqC™1.1”, “Motorized Antenna” and “Simple LNB”
Availablesettingsfortuner2 are(irrespectiveof thesettingfor tuner1):“DiSEqC™1.0”,“DiSEqC™1.1”, “MotorizedAntenna”
and “Simple LNB”
Use the  buttons to set the “Tuner 2 Connection type” and “Tuner 2 Signal Conguration” parameters to the
appropriate setting for your reception system.
Continue as described in the rst installation for the type of reception you have
selected.
Connection and setup

19
Connection and setup
The individual items are selected using the  buttons. If you require to access submenus, they can be called up using
the button. Changes to the current settings can be made using the  buttons or the numeric keypad.
The following display appears:
Select Satellites - Tuner 1
Here, you can select up to four available satellites to be
included in the signal on tuner 1. Use the buttons to
select the satellite you want and conrm your selection
with the button.
DiSEqC™1.0
The selected satellites will be identied with a tick.
When you have completed all settings, press the
(green) button.
Press the (green) button.

20
Connection and setup
The following display appears:
Satellite Conguration - Tuner 1
Make the settings for the rst satellite for tuner 1 here.
LNB Type:
If your reception system does not have a Universal LNB, use the  buttons to select the LNB types that are used in
your reception system. You can choose from the following LNB types:
- Universal
- Simple or
- User-dened
LNB frequency (MHz):
You only need to specify this data if your LNB type is not “Universal LNB”. The data required differ for the settings
“Simple” and “User-dened”. Refer to the documentation supplied for your LNB.
- Selection “Simple” LNB: Use the numeric keypad to enter the LNB frequency
- Selection “User-defined”: Press the button to input the required low, high and limit frequencies as necessary.
The input is performed using the numeric keypad
DiSEqC™ Input:
- 1 of 4: For the rst satellite on the tuner (item A on the system)
- 2 of 4: For the second satellite on the tuner (item B on the system)
- 3 of 4: For the third satellite on the tuner (item C on the system)
- 4 of 4: For the fourth satellite on the tuner (item D on the system)
DiSEqC™ Repeat:
The setting for how often the DiSEqC™ command must be repeated depends on the conguration of your reception
system. Refer to the documentation for your reception system or seek assistance from a specialist engineer.
- Off DiSEqC™ command is not repeated
- 1 DiSEqC™ command is repeated once
- 2 DiSEqC™ command is repeated twice or
- 3 DiSEqC™ command is repeated three times
