INSTRUCTION MANUAL WARRANTY CERTIFICATE

U.S. Patents: D598,998; D599,001; D599,002

Additional U.S. Patent(s) Pending

DOWNTOWN LOFT

This product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws.

Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.

Minka-Aire warrants to the original owner that this fan will be free fromdefects in material and workmanship for one

year from the date of purchase, excluding the motor. Minka-Aire warrants to the original owner that the motor in this fan

shall be free from defects in material and workmanship for as long as the original purchaser owns the fan, and it remains in

the original installation.

This is a limited warranty. Minka-Aire's only obligation under this limited warranty is to replace or repair, or refund the purchase price, in

Minka-Aire's sole discretion without charge to the original owner, of the fan once Minka-Aire confirms that the fan has a defect covered by this

limited warranty.

Call our customer service department at 1-800-307-3267 to obtain the name of the Minka-Aire authorized dealer closest to your location, or

contact us through our web site, www.minkagroup.net and write to: Ask Mr. Minka if you have any questions or require further assistance.

To obtain warranty service, the owner should return the fan along with proof of purchase to a Minka-Aire authorized dealer. The Minka-Aire

authorized dealer shall then, at its sole discretion: repair the fan, replace the fan, refund the purchase price less the amount directly attributable to

the consumer's prior usage of the fan, or if necessary instruct the consumer to contact Minka-Aire directly for warranty service. Minka-Aire will be

responsible for the cost of any repair, or replacement for any warranty service provided by a Minka-Aire authorized dealer for product under

warranty.

You may also at your preference obtain warranty service by returning the fan directly to Minka-Aire along with proof of purchase, your name

and return address, and a description of the claimed product defect. Pack carefully; damage sustained in return transit to Minka-Aire will be the

original owner's responsibility. Original owner shall be responsible to pay all shipping charges. To obtain warranty service, you may return a fan that

proves to be defective during the warranty period to the following address:

Minka-Aire - Warranty Service, 1151 W. Bradford Court, Corona, CA 92882

F584

This warranty shall not apply to fans which have been damaged in any way, including improper installation, damage as a result of the removal

of the fan from the origial installation, or damage in shipping. This warranty shall not apply to fans which have been subjected to use for which the

fan was not designed. The purchaser of the fan shall be responsible for any cost of removing the old fan, installing a new fan, or any other costs.

This limited warranty is in lieu of all other express warranties. This limited warranty excludes all incidental and consequential damages, and

Minka-Aire shall not under any circumstances be liable for incidental or consequential damages. Some States do not allow the exclusion of or

limitation of incidental or consequential damages, so the foregoing limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from State to State. We encourage you to promptly

complete and return the enclosed warranty registration card. However, return of the warranty registration card is not a condition of this warranty.

Date Purchased Store Purchased Model Number Serial Number

CONTENTS

BLADE INSTALLATION.........................................................................

INSTALLING THE LIGHT PLATE.......................................................

INSTALLING THE LIGHT BULB & GLASS SHADE ....................

OPERATING THE REMOTE CONTROL/WALL CONTROL

......

CARE OF YOUR FAN..............................................................................

TROUBLESHOOTING............................................................................

SPECIFICATIONS.....................................................................................

SAFETY RULES....................................................................................

PACKAGE CONTENTS.....................................................................

INSTALLING THE FAN.....................................................................

HANGING THE FAN.........................................................................

ELECTRICAL CONNECTIONS.......................................................

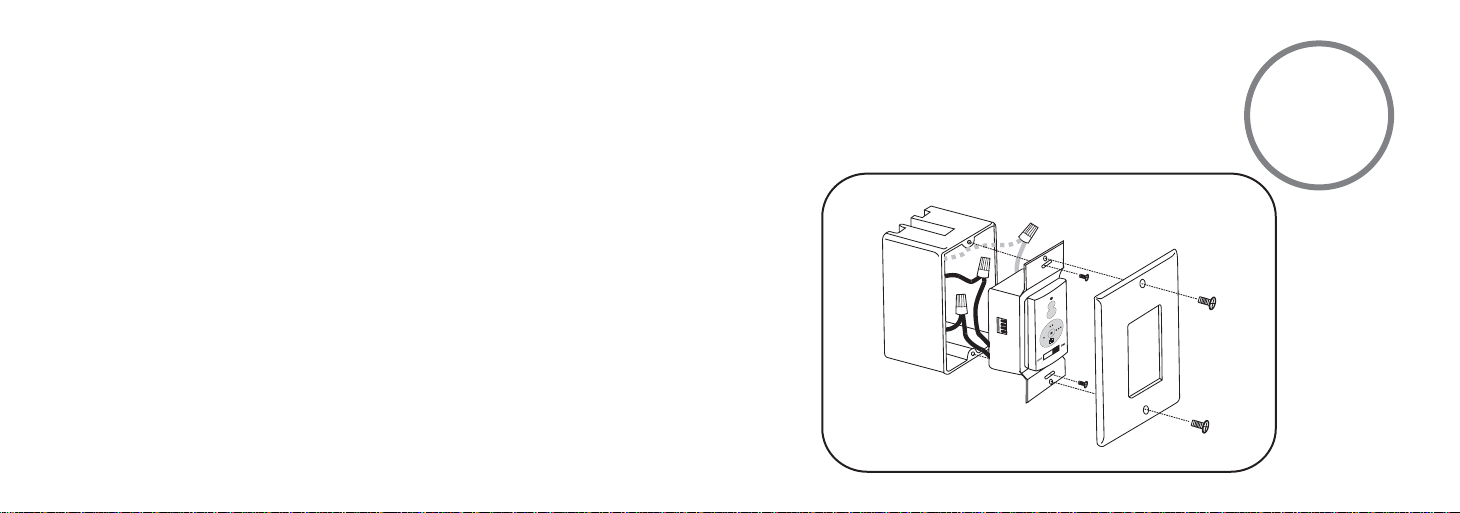

INSTALLING THE WALL TRANSMITTER................................

FINISHING THE INSTALLATION................................................

1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267

SAFETY RULES

1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.

2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.

3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a

do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.

4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the

floor and 18 inches from the tip of the blades to the wall.

5. If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal octagonal outlet box marked "Acceptable for Fan Support". Secure the

box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 50 pounds) Do

not use a plastic box.

6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.

7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).

8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.

9. Do not insert anything into the fan blades while the fan is operating.

10. To operate the reverse function on this fan, press the reverse button while the fan is running.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L. LISTED OUTLET BOX OR SUPPORTING SYSTEM MARKED

ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE LOCK WASHERS PROVIDED WITH THE

FAN. MOST OUTLET BOXES COMMONLY USED FOR FAN SUPPORT OF LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED.

CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT

INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS WITH ANY SOLID-STATE SPEED CONTROL DEVICE.

NOTE:

The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may

occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be

supplied by the person (s) installing, caring for and operating the unit.

ATTENTION:

The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the

ceiling fan's light kit will shut off automatically.

NOTE:READ AND SAVE ALL INSTRUCTIONS!

1. Fan blades (3)

2. Hanger bracket

3. Canopy

4. Canopy cover

5. Standard downrod ass'y

6. Minimum-length downrod

(for close to the ceiling installation only)

7. Coupling cover

8. Fan motor/housing ass'y

9. Blade holders (3)

10. Light plate

11. Glass Shade

12. 75W Mini-Can halogen bulb

13. Metal light cover (for optional use)

14. Receiver (includes 6 wire nuts)

15a.Wall transmitter Incl. 2 mounting

screws and 3 wire nuts

15b. Wall plate w/2 mounting screws

16. Extra Wall Plate w/2 Mounting

screws

17. Balancing kit

A. Mounting hardware:

#10 x 1.5" Wood screws (2 PCs.)

#8 x 3/4" Machine screws (2 PCs.)

Lock washers (2 PCs.)

4mm Star washers (2 PCs.)

Wire nuts (3 PCs. )

Washers (2 PCs.)

B. Blade attachment hardware:

3/16" x 7.5 mm screws (10 PCs.)

Rubber washers (10 PCs.)

C. Bracket holder hardware:

1/4" x 1/2" Screws with lock washers

(10 PCs.)

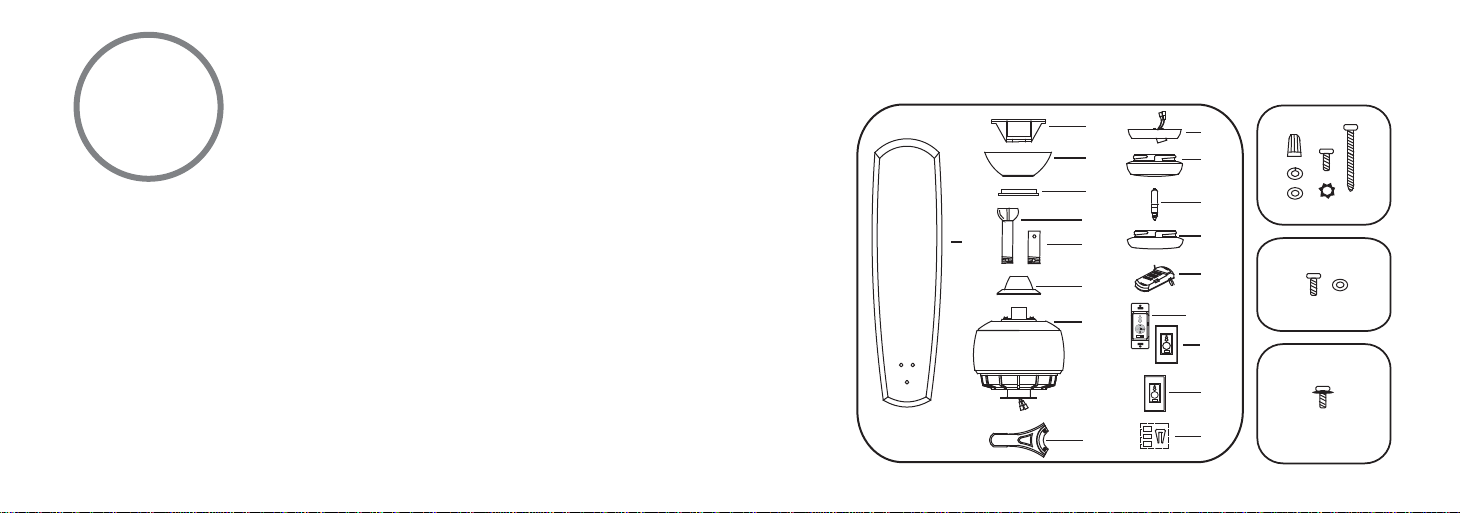

PACKAGE CONTENTS

Unpack your fan and check the contents. You should have the following items:

15a

15b

Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape.

INSTALLING THE FAN

MOUNTING OPTIONS

If there isn't an existing mounting box, then read the following instructions. Disconnect the

power by removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building structure. Use appropriate fasteners and building

materials. The outlet box and its support must be able to fully support the moving weight of

the fan (at least 50 lbs.). Use a UL Listed metal outlet box. Do not use a plastic outlet box.

Figure 1, 2 and 3 are examples of different ways to mount the outlet box.

Note:You may need a longer downrod to maintain proper blade clearance when installing on a

steep, sloped ceiling. Longer downrods are available from your Minka-Aire dealer.

To hang your fan where there is an existing fixture but no ceiling joist, you may need to install

a hanger bar as shown in Fig. 4. (available at your Minka Aire dealer or local hardware store)

FIG. 1

FIG. 3

FIG. 2

FIG. 4

CROSS BRACE

CEILING

JOIST

CEILING

jOIST

CEILING

JOIST

OUTLET BOX

PARALLEL WOOD BRACE

(MIN. 2" THICK)

OUTLET

BOX

OUTLET BOX

CEILING JOIST OR

CROSS BRACE

ANGLED CEILING

MAXIMUM 24°ANGLE PROVIDE

STRONG

SUPPORT

RECESSED

OUTLET BOX

HANGER

OPENING

must be

FACING

UPSIDE

HANGER BAR

(OPTIONAL)

HANGER

BRACKET

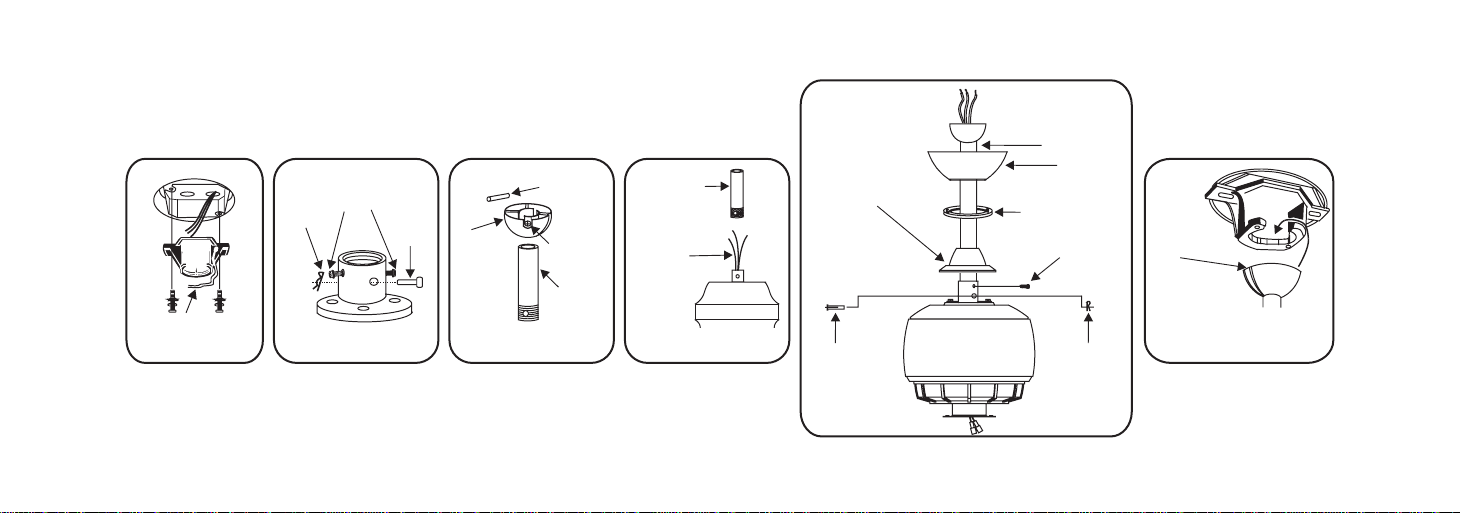

HANGING THE FAN

WARNING: All of the parts, hardware and components such as the

hanger bracket and hanger ball have been provided for your safety and

the proper installation of your new ceiling fan. The use of other parts,

hardware or components not supplied by Minka Aire®with the fan will

void the Minka Aire®Warranty.

REMEMBER to turn off the power. Follow the steps below to hang your

fan properly:

Step 1. Secure the hanger bracket to the ceiling outlet box using screws

included with your outlet box, lock washers included with the fan. (Fig. 5)

Step 2. Loosen the two set screws and remove the hitch pin and lock pin

in the top coupling of the motor assembly. (Fig. 6)

Step 3. Remove hanger ball from downrod assembly by loosening set

screw, removing the cross pin, and sliding ball off rod. (Fig. 7)

Step 4. Carefully feed fan wires up through the downrod. (Fig. 8)

Thread the rod into the coupling, next line up holes and replace lock

pin and hitch pin. Tighten set screws.

Step 5. Slip coupling cover, canopy cover and canopy onto downrod.

(Fig. 9) Carefully reinstall hanger ball onto rod being sure that cross

pin is in correct position, set screws are tighten and wires are not

twisted.

NOTE: DO NOT INSTALL THE COUPLING COVER IF YOU PLAN TO USE

THE MINIMUM LENGTH DOWNROD.

Step 6. Now lift motor assembly into position and place hanger ball

into hanger bracket. Rotate until the check groove has dropped into

the registration slot and seats firmly. (Fig. 10) Rod should not rotate if

this is done correctly.

Fig. 5

Fig. 7 Fig. 8Fig. 6 Fig. 10

Fig. 9

CANOPY COVER

OUTLET BOX

HANGER BRACKET

DOWNROD

SUPPLY

WIRES REGISTRATION

SLOT

CROSS PIN

HANGER

BALL

DOWNROD

HITCH

PIN LOCK

SET SCREWS

SET SCREW

DOWNROD

CANOPY

SET SCREWS

HITCH PIN LOCK PIN

COUPLING COVER

*OMIT COUPLING

COVER WHEN USING

THE MINIMUM-LENGTH

DOWNROD

WARNING: To avoid possible electrical shock be sure electricity is

turned off at the main fuse or breaker box before wiring.

NOTE: The Aire Control® System is equipped with a learning frequency

function which has 256 code combinations to prevent potential

interference from other remote units. The frequency on your Receiver

and Transmitter units have been preset at the factory. (Fig. 11) No

frequency change is necessary, should you desire to install another fan

within the same home or area with a seperate frequency code please

see the "frequency interference" troubleshooting section of this

instruction manual to learn how to change the frequency.

Step 1. Insert Receiver into Hanger Bracket with the flat side of the

Receiver facing the ceiling. (Fig. 12)

Step 2. Motor to Receiver Electrical Connections: Connect the WHITE

wire from the fan to the WHITE wire marked "TO MOTOR N" from the

Receiver. Connect the BLACK wire from the fan to the BLACK wire

marked "TO MOTOR L" from the Receiver. Connect the BLUE wire from

the fan to the BLUE wire marked "For Light" from the Receiver.

NOTE: If your ceiling fan features an UP Light: Connect the ORANGE wire

from the fan to the ORANGE wire marked "For Up Light" from the

Receiver. Otherwise disregard this step and proceed to secure all wire

connections with the plastic wire nuts provided. (Fig. 13 & 14)

Note: Fan must be installed at a maximum distance of 40 feet from the

transmitting unit for proper signal transmission between the

transmitting unit and the fan's receiving unit.

ELECTRICAL CONNECTIONS

Step 3. Receiver to House Supply Wires Electrical Connections:

Connect the WHITE wire (Neutral) from the outlet box to the WHITE

wire marked "AC in N" from the receiver. Connect the BLACK wire

(Hot) from the outlet box to the BLACK wire marked "AC in L" from

the receiver. Secure all wire connections with the plastic wire nuts

provided. (Fig. 13 & 14)

Step 4. If your outlet box has a GROUND wire (Green or Bare Copper)

connect this wire to the Hanger Ball and Hanger Bracket Ground

wires. If your outlet box does not have a Ground Wire, then connect

the Hanger Ball and Hanger Bracket Ground Wires together. Secure

wire connection with the plastic wire nut provided. (Fig. 13 & 14)

After all splices are made, check to make sure there are no loose

strands. As an additional precaution we suggest to secure the plastic

wire connectors to the wires with electrical tape.

Fig. 11

Fig. 12

RECEIVER

HANGER BRACKET

Fig. 13 Fig. 14

WALL

CONTROL

BLACK

WHITE

BLUE

GROUND

ORANGE

GREEN

INPUT

AC120V

AC SUPPLY

WHITE (NEUTRAL)

GREEN OR BARE

COPPER (GROUND)

WHITE ("AC IN N")

WHITE ("TO MOTOR N")

GROUND-

(GREEN) (CONNECT TO

GROUND WIRE ON

HANGER BRACKE

IF NO HOUSE

GROUND WIRE

EXISTS.)

OUTLET BOX

BLACK (HOT)

BLACK ("AC IN L")

BLACK ("TO MOTOR L")

RECEIVER

BLUE (FOR LIGHT)

ORANGE

(FOR UPPER LIGHT)

BLACK (MOTOR)

ORANGE

(FOR UPPER LIGHT)

BLACK

WHITE

ORANGE

WHITE

GREEN

Fig. 15

WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF

ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE

TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR.

Step 1. Remove the existing wall plate and switch from the wall outlet box.

Step 2. Make the electrical connections as shown in Fig.14. If your outlet box has a ground

wire (Green or Bare Copper) connect the Transmitter's ground wire directly to one of the

screws from the outlet box . Secure all wire connections with the plastic wire nuts

provided.

Step 3. Carefully tuck the wire connections inside the outlet box. Use the screws provided

to secure the wall transmitter and wall plate to the outlet box. (Fig. 15)

NOTE: Your Aire Control

System includes two sets of face and decorative plate color

options. The wall control comes with standard white faceplate attached. If you desire to

replace it with the Ivory color faceplate included, use a small flat screw driver and gently

pry it apart from the top or bottom of the plate.

INSTALLING THE WALL TRANSMITTER

FINISHING THE INSTALLATION

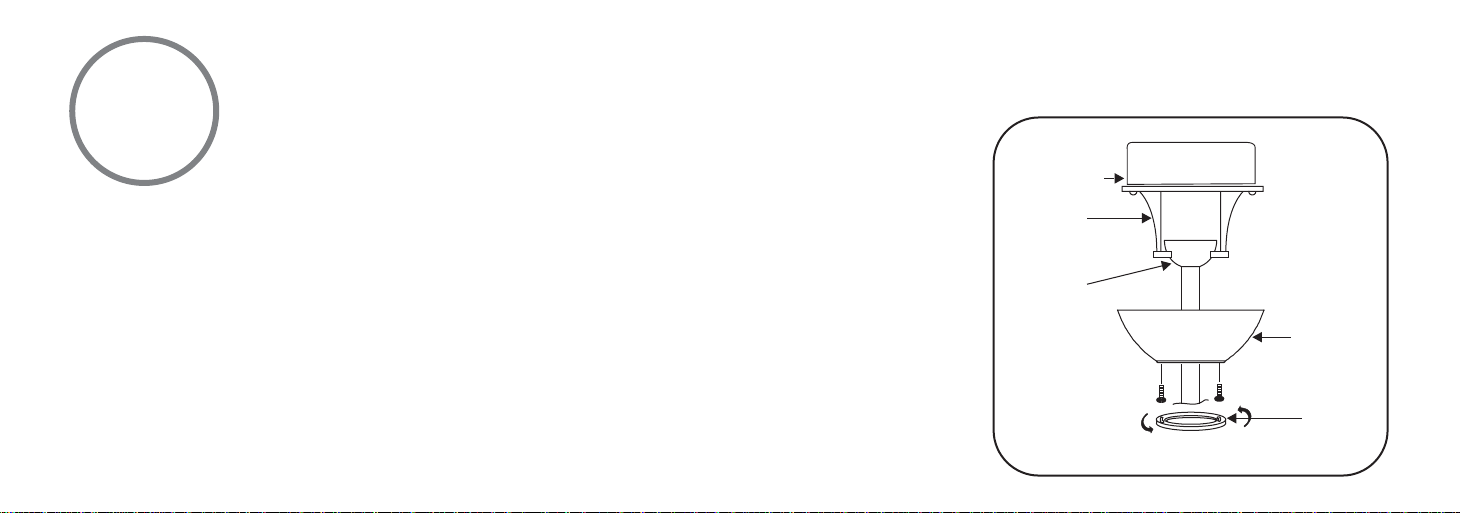

Step 1. Slide the canopy up to the ceiling and over the two screws on hanger bracket. Rotate

canopy clockwise, next, while holding the canopy with one hand, slide the canopy cover over the

screws and rotate clockwise until tight. (Fig. 16)

Note; adjust the canopy screws as necessary until the canopy and canopy cover are snug.

Fig. 16

OUTLET BOX

HANGER

BRACKET

HANGER

BALL

CANOPY

COVER

Fig 17

Fig 18

THE FOLLOWING OPERATION MUST BE ACCOMPLISHED

BEFORE INSTALLING THE GLASS SHADE.

Caution: Remove 5 rubber packing mounts and discard before

installation.

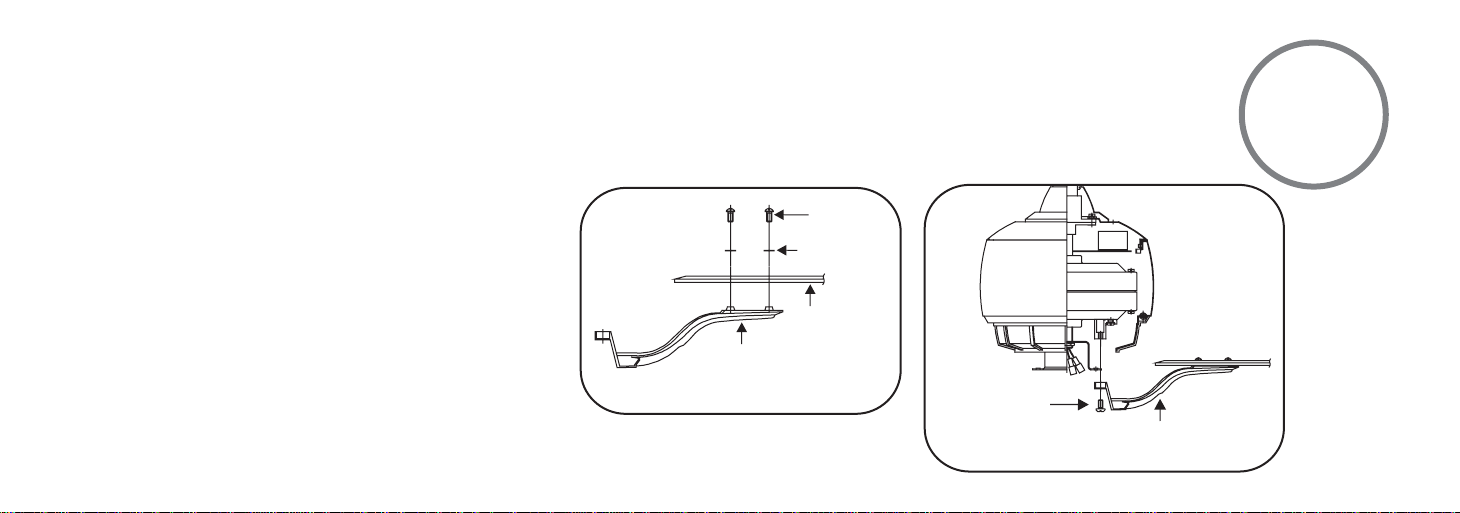

Step 1. Attach the fan blade to the blade holder using the

screws and rubber washers provided. Tighten screws securely.

Repeat process for remaining blades.(Fig. 17)

Step 2. Rotate the motor so that the screw holes in motor are

aligned with the holes in blade holder and secure with proper

screws. Repeat process for the other blade holders. (Fig. 18)

BLADE INSTALLATION

BLADE HOLDER

SCREWS

RUBBER

WASHERS

BLADE

BLADE HOLDER

BLADE

HOLDER

SCREWS

Fig. 19

NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or

removing the fuse at fuse box.

1. Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove)

2. Raise and hold the light plate close to the mounting ring and proceed to do the wire

connections. Connect the white wire connectors from the light plate and fan, follow the same

procedure with the black wire connector from the fan and the black wire connector from the

light kit. (Fig. 19)

3. Place the key holes from the light plate over the 2 screws previously loosened from the

mounting ring, turn light plate until it locks in place at the narrow section of the key holes.

Secure by tightening the 2 screws previously loosened and the one previously removed. (Fig. 19)

INSTALLING THE LIGHT PLATE

LIGHT

PLATE

CONNECTORS

SCREWS

MOUNTING RING

Fig. 20

WARNING: Shut of the power supply before removing or replacing lamp. In handling of halogen bulb,

care should be taken not to touch it with your bare hands. Oil residue will shorten the life of the

halogen bulb. If you accidentally come into contact, wipe thoroughly with a clean, lint-free, cotton

cloth. Allow the bulb to cool off for 10 minutes before changing the bulb. Use light bulb in accordance

with the fan's specification. TO REDUCE THE RISK OF FIRE DO NOT EXCEED MAXIMUM WATTAGE

RATING.

ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting

device. If lamping exceeds 190 watts, the ceiling fan's light kit will shut off automatically.

Step 1. Install 1x75W halogen bulb (included) into bulb socket.

Step 2. Raise glass shade up against bottom of fan housing and secure it to fan by turning it clockwise

until snug. DO NOT OVERTIGHTEN. (Fig. 20)

NOTE: The metal light cover included with your fan is an option to replace the glass for the light in the

event that you prefer not to use the light feature of your fan. The metal light cover is not necessary

for the light operation; it can be saved for later use if desired.

INSTALLING THE LIGHT BULB & GLASS SHADE

GLASS

SHADE

75 W HALOGEN

BULB

OPERATING THE REMOTE CONTROL/WALL CONTROL

Restore Power to Ceiling Fan.

A. Buttons:

These buttons are used to set the fan speeds as follows;

= Low Speed

= Medium Speed

= High Speed

B. Button:

This button turns the fan off.

C. Button:

These buttons turn the light ON or OFF and also control

the brightness settings of the light. The following

instructions apply to ceiling fans that feature a DOWN

light ( button) only or ceiling fans that feature an UP

light ( button) and a DOWN light ( button) that are

controlled independent of each other;

Press and release the button for the desired light to turn

the light ON or OFF. Press and hold the button to set the

desired light brightness. The light will cycle between

bright and dim settings as long as the button is pressed.

The light key has an automatic auto-resume feature that

allows the light to remain at the same brightness as the

last time it was turned off.

D. OFF-ON Slide Button (Wall Control Fans Only)

This button turns the power Off and On to the Fan and

Light(s).

E. Button: (Full Function Remote Control Units Only)

This button is used to change the direction of the

rotation of the blades; forward for warm weather or

reverse for warm weather.

NOTE: If your Remote Control or Wall Control does not

have a " " button, Please look for a slide reverse

switch on the motor housing.

Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time.

Table of contents
