Kathy Ireland PRO Series User manual

Part No. F40BP73120006 Form No. BP7312-6
Revision: 02152021 U.L. Model No.: 52-ANT
Net Weight: 14.4 Lbs.
BUILDER Series
52” Ceiling Fan Owner’s Manual
CF700BS09 - Brushed Steel
CF700ORB09 - Oil Rubbed Bronze
CF700WW09 - Appliance White
Model Numbers
• Español - página 25
• Français - page 49
READ AND SAVE THESE INSTRUCTIONS
PRO SERIES
1-800-777-4440
www.luminancebrands.com
Questions, problems, missing parts: Before returning to the store, Call Customer Service

Safety Instructions
2
TO REDUCE THE RISK OF FIRE, ELECTRICAL
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
a. Use this unit only in a manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
b. Before servicing or cleaning unit, switch power
off at service panel and lock service panel
disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a warning device, such as a tag, to the
service panel.
WARNING
!
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring, and do not operate fan without blades.
2. All wiring must be in accordance with the National
Electrical Code “ANSI/NFPA 70-2017” and Local
Electrical Codes. Use the National Electrical Code
if Local Codes do not exist. The ceiling fan must be
grounded as a precaution against possible electrical
shock. Electrical installation should be made or
approved by a licensed electrician.
3. The outlet box and joist must be securely mounted
and capable of reliably supporting at least 50 pounds.
Use only U.L. outlet boxes listed as “Acceptable for
Fan Support of 22.7 kg. (50 lbs.) or less”, and use
the mounting screws provided with the outlet box.
Most outlet boxes commonly used for support of light
fixtures are not acceptable for fan support and may
need to be replaced. Consult a qualified electrician if
in doubt.
4. The downrod furnished with the fan proves the
minimum recommended floor to fan blade clearance
for an 8 foot ceiling.
5. Follow the recommended instructions for the proper
method of wiring your ceiling fan. If you do not know
enough about electrical wiring, have your fan installed
by a licensed electrician.
NOTE: This fan is suitable for use with solid-state speed
controls.
NOTE: All set screws must be checked and re-tightened
where necessary before installation.
1. Read your owner’s manual carefully and keep it for
future reference.
2. Be careful with the fan and blades when cleaning,
painting, or working near the fan. Always turn off the
power to the ceiling fan before servicing.
3. Do not put anything into the fan blades while they are
turning.
4. Do not operate reversing switch until fan blades have
come to a complete stop.
U.L. Model No.: 52-ANT
READ AND SAVE THESE INSTRUCTIONS
Table of Contents
Section Page
Safety Instructions ........................... 2
1. Unpacking Instructions .....................3-4
2. Electrical Requirements . . . . . . . . . . . . . . . . . . . . . 4
3. Ceiling Fan Assembly ....................5-10
4. How to Hang Your Ceiling Fan .............11-12
5. How to Wire Your Ceiling Fan .............13-14
6. Final Assembly ........................... 15
7. Using Your Ceiling Fan . . . . . . . . . . . . . . . . . . . . . 16
Section Page
8. Maintenance ..............................17
9. Accessories ............................. 17

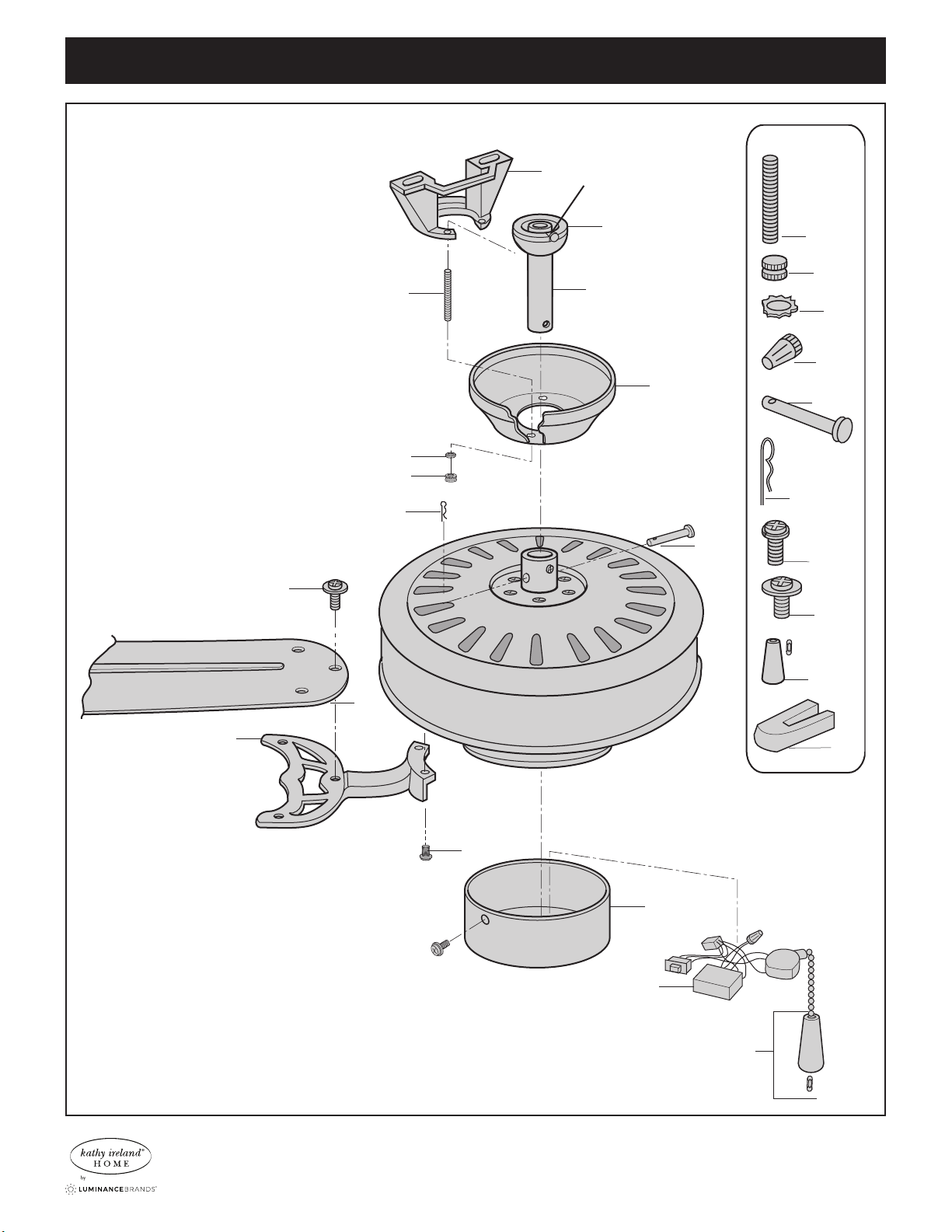

10. Repair Parts ..........................18-19
11. Troubleshooting ..........................20
12. Energy Efficient Use of Ceiling Fans ......... 21
Ceiling Fan Limited Warranty .................. 23
Spanish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
French ................................... 49
To reduce the risk of electrical shock, this fan must be
installed with an isolating wall control/ switch.
To avoid fire, shock or injury, do not use a Luminance
Brands or any other brand of control not specifically
approved for this fan.
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use this product
by Luminance Brands Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
To reduce the risk of personal injury, do not bend
the blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
WARNING
!
To reduce the risk of injury, install the fan so that the
blades are at least 7 ft. (2.1m) above the floor.
CAUTION
!

E
D
G
F
C
B
A
1. Unpacking Instructions
3
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: 52-ANT
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!
Do not install or use fan if any part is damaged or
missing. Call Toll-Free for replacement parts:
1-800-777-4440
WARNING
!
1.1
Check to see that you have received the following parts:
NOTE: If you are uncertain of part description, refer
to exploded view illustration below.
NOTE: Place the parts from the loose parts bags
in a small container to keep them from being lost.
If any parts are missing, call 1-800-777-4440
for replacement parts before proceeding.
1.2
Remove the Fan Motor Assembly from the protective
plastic bag. Place the Fan Motor Assembly into the
upper styrofoam with the top of the motor facing up.
The upper styrofoam serves as a holder for the Fan
during the first stages of assembly.

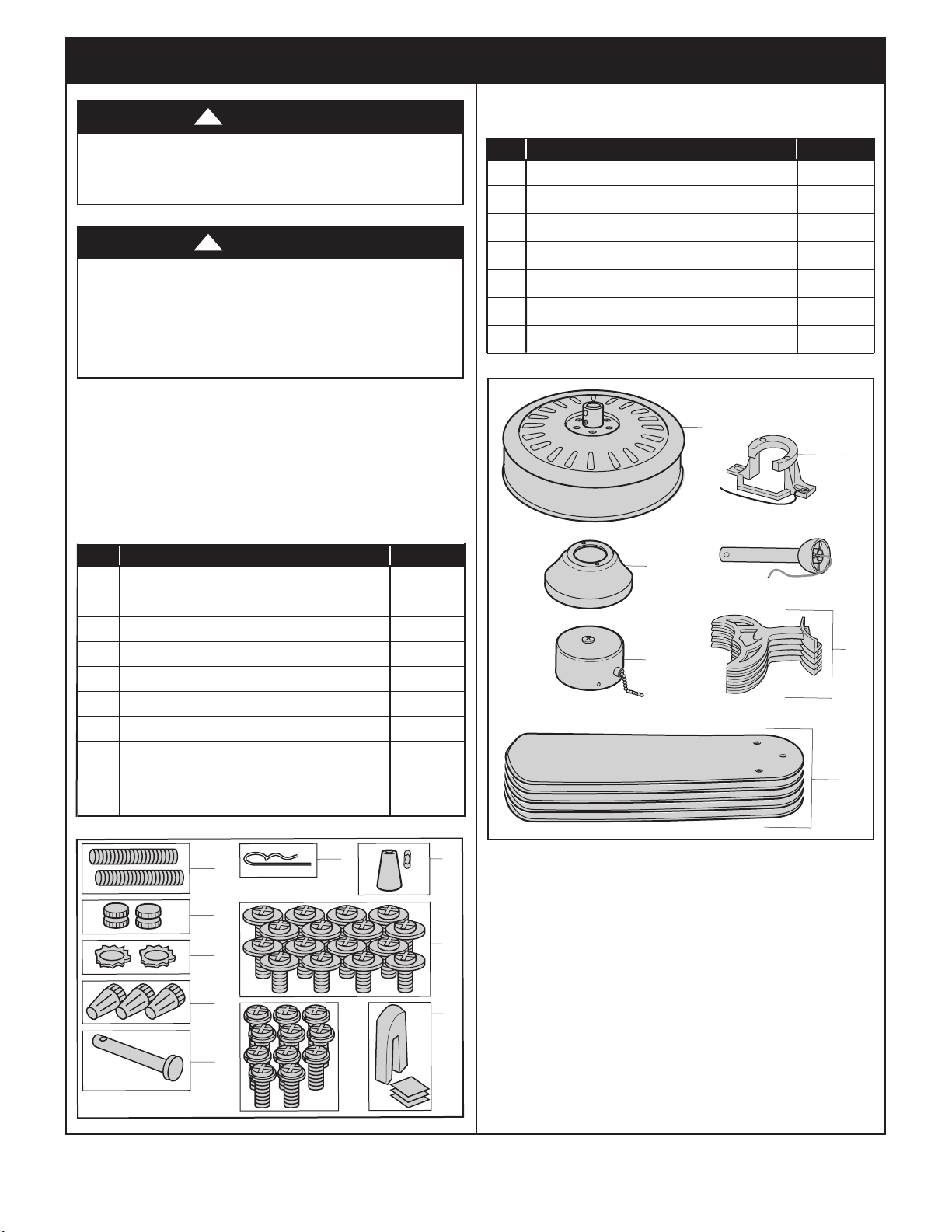

PACKAGE CONTENTS
6
1
2
7
3
4
5
9
810
Part Description Quantity
A Fan Motor Assembly 1
B Ceiling Cover 1
C Switch Housing Assembly 1
D Hanger Bracket 1
E Hanger Ball/4.5” Downrod Assembly 1
F Fan Blade Flanges 5
G Fan Blades 5
HARDWARE CONTENTS
Part Description Quantity
1 Threaded Studs, #8-32 x 1-1/4” 2
2 Knurled Knobs, #8-32 2
3 Lockwashers, External Tooth #8 2
4 Wire Connectors 3
5 Clevis Pin 1
6 Hairpin Clip 1
7 M5 x 6mm Washer Head Screws 16
8 M6 x 12mm Flange Screw with Lockwasher 11
9 Wood Ball Pendant & Coupler 1
10 Blade Balance Kit 1

Before assembling your ceiling fan, refer to section
on proper method of wiring your fan (page 13).
If you feel you do not have enough wiring knowledge
or experience, have your fan installed by a licensed
electrician.
WARNING
!
This Manual Is Designed to Make it as Easy as Possible for You to Assemble,
Install, Operate and Maintain Your Ceiling Fan
Tools Needed for Assembly
One Phillips head screwdriver One stepladder
One Standard screwdriver One wire stripper
Materials
Wiring outlet box and box connectors must be of type
required by the local code. The minimum wire would be
a 3-conductor (2-wire with ground) of following size:
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
4
U.L. Model No.: 52-ANT
1. Unpacking Instructions (Continued)
Controls (Sold Separately)
SW46 Wall Control and SW90 Wall Control (both sold
separately) may be used with this 52” BUILDER Ceiling
Fan. Controls are recommended for indoor use only.
2. Electrical Requirements
Your new Ceiling Fan will require a Grounded Electrical
Supply Line of 120 Volts AC, 60 Hz, 15 Amp Circuit.
The Outlet Box must be securely anchored and capable
of withstanding a load of at least 50 pounds.
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support of 22.7 kg. (50 lbs.) or less”, and
use screws supplied with outlet box. Most outlet
boxes commonly used for support of light fixtures
are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
WARNING
!
To avoid fire or shock, follow all wiring instructions
carefully.
Any electrical work not described in these
instructions should be done or approved by a licensed
electrician.
WARNING
!
Please call Customer Service at 1-800-777-4440
if you have any questions about installation and
operation of this Ceiling Fan.
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring. All wiring must be in accordance with National
and Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!
If your Fan is to replace an Existing Ceiling Light
Fixture, turn Electricity OFF at the Main Fuse Box
or Circuit Breaker Panel at this time and remove the
existing Light Fixture.

5
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: 52-ANT
3.1
Disconnect Electrical Power to the Branch Circuit at
the Circuit Breaker Panel or Main Fuse Box before
attempting to install the Ceiling Fan to the Outlet Box.
3. Ceiling Fan Assembly
CEILING
COVER
42" MOTOR
LEADS
3.2
Pass the Three 42” Motor Wires through the opening in
the Ceiling Cover.
Be sure the Ceiling Cover is oriented correctly
(Figure 1).
42" MOTOR WIRES
HANGER BALL /
4.5" DOWNROD
ASSEMBLY
Figure 2
3.3
Separate, untwist and unkink the Three 42” Motor
Wires.
Route the 42” Motor Wires through the Hanger Ball/
Downrod Assembly (Figure 2).
Figure 1
42” MOTOR
WIRES
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring. All wiring must be in accordance with National
and Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!

6
U.L. Model No.: 52-ANT
DOWNROD
CLEVIS
PIN HAIRPIN
CLIP
MOTOR
COUPLING
HAIRPIN
CLIP
CLEVIS
PIN
LOOSEN
SETSCREWS (2)
Figure 3
3. Ceiling Fan Assembly (Continued)
3.4
Loosen the Two Set Screws in the Motor Coupler.
Place the Hanger Ball/4.5” Downrod Assembly into
the Motor Coupler, aligning the Clevis Pin Holes in
the Downrod with the Holes in the Motor Coupler
(Figure 3).
The Clevis Pin MUST go through the Holes in the Motor
Coupler and the Holes in the Downrod.
Be sure to push the straight leg of the Hairpin Clip
through the Hole near the end of the Clevis Pin until
the curved portion of the Hairpin Clip snaps around the
Clevis Pin.
The Hairpin Clip must be properly installed to prevent
the Clevis Pin from working loose.
Pull on the Hanger Ball to make sure the Clevis Pin is
properly installed.
RETIGHTEN
SETSCREW
MOTOR COUPLING
RETIGHTEN
SETSCREW
DOWNROD
3.5
While pulling up on the Hanger Ball, retighten the Two
Set Screws (previously loosened) in the Motor Coupler
to secure the Hanger Ball/4.5” Downrod Assembly into
place (Figure 4).
NOTE: The set screws must be properly installed as
described above, or fan wobble could result.
Figure 4
It is critical that the set screws are securely tightened.
Failure to verify that the set screws are properly
installed could result in the fan falling.
WARNING
!
It is critical that the clevis pin in the motor coupler
is properly installed. Failure to verify that the pin is
properly installed could result in the fan falling.
WARNING
!
MOTOR
COUPLER
MOTOR COUPLER
LOOSEN
SET SCREWS (2)
RETIGHTEN
SET SCREW
RETIGHTEN
SET SCREW

7
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: 52-ANT
STYROFOAM
PARTIALLY ASSEMBLED
CEILING FAN
Figure 6
3.7
Carefully turn the partially assembled Ceiling Fan over
and place it on the styrofoam for final preparation
(Figure 6).
3.8
Remove the Shipping Spacers and the Spacer
Attachment Screws from the Motor before installation of
blade assemblies (Figure 7).
Discard the Spacers and Spacer Screws.
SPACER ATTACHMENT SCREW
SHIPPING SPACER
Figure 7
3. Ceiling Fan Assembly (Continued)
HANGER BALL/
DOWNROD
ASSEMBLY
6 to 9
INCHES
3.6
The Fan comes with Blue, Black and White Wires that
are 42” long.
Measure up approximately 6 to 9-inches above top of
Hanger Ball/4.5” Downrod Assembly (Figure 5).
Cut off excess Wires and strip back insulation 1/2-inch
from end of Wires.
Figure 7

8
U.L. Model No.: 52-ANT
3. Ceiling Fan Assembly (Continued)

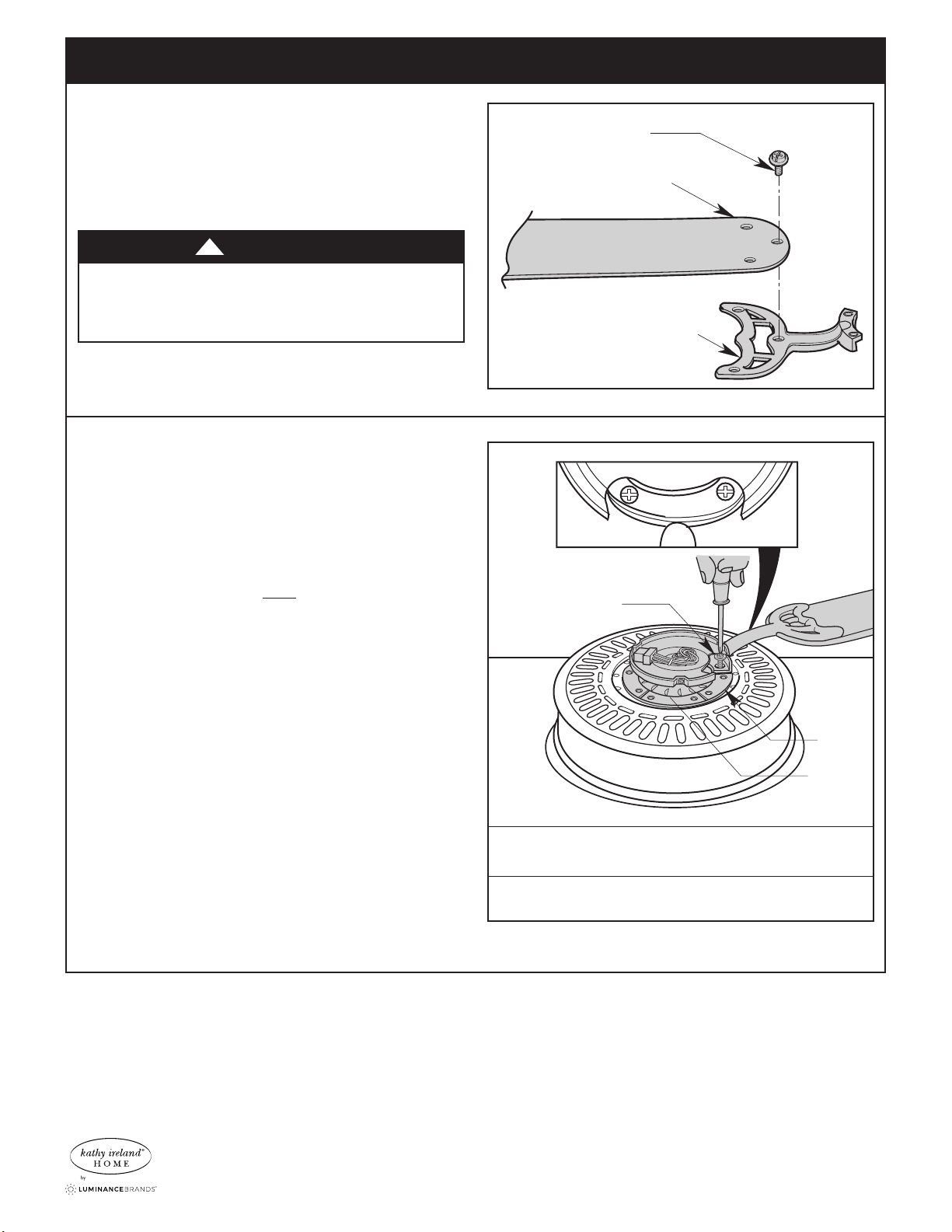

M6 x 12mm FLANGE SCREWS
WITH LOCKWASHERS
(2 per blade assembly)
MOTOR
HUB
SWITCH
HOUSING
PLATE
Figure 9
3.10
Rotate the Motor Hub until the Flange Screw Hole is
next to the cutout in the Switch Housing Plate.
Attach one Blade Assembly to the Motor Hub usingTwo
M6 x 12mm Flange Screws with Lockwashers in Flange
(Figure 9).
Make sure the Screws are NOT tightened.
Repeat this procedure for the other Four Blade
Assemblies.
NOTE: The blade flanges have an interlocking
feature that must be fully engaged before
tightening the screws. Make sure all the flanges
are properly engaged and then tighten the flange
screws. If one of the flanges does not seat properly
on the motor hub, loosen the adjacent flange
screws, re-engage and reseat the flanges, then
tighten the screws again.
3.9
Mount the Blade Flange to the Fan Blade using Three
M5 x 6mm Washer Head Screws (supplied) (Figure 8).
Repeat this procedure for other Four Fan Blades and
Blade Flanges.
FAN BLADE
BLADE FLANGE
M5 x 6 mm WASHER
HEAD SCREW (3)
Figure 8
To reduce the risk of personal injury, do not bend
the blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not insert
foreign objects in between rotating fan blades
WARNING
!

9
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: 52-ANT
3. Ceiling Fan Assembly (Continued)
3.11
Remove the Three Switch Housing Mounting Screws
(Figure 10) from the Switch Housing Plate.
Retain the Screws for future use in Step 3.13.
NOTE: If you are using an Luminance Brands light
fixture with your fan. Remove the screw plug from
the bottom of the switch housing cover and install
the light in accordance with the light kit Owner’s
Manual. Make light kit electrical connections to blue
and white wires marked “For Light” in the switch
housing. Follow light kit instructions for wiring
and installation. Then reinstall switch housing as
outlined above. SWITCH HOUSING
MOUNTING SCREWS (3)
SWITCH HOUSING
MOUNTING PLATE
Figure 10
3.12
Engage the connector of the Switch Housing Assembly
with the Motor Connector (Figure 11).
The Two Connectors are Keyed and Color-Coded and
must be mated correctly (color-to-color) before they can
be engaged.
Make sure the Connector Latch closes properly.
SWITCH HOUSING
ASSEMBLY
SWITCH HOUSING
CONNECTOR
MOTOR CONNECTOR
Figure 11

3. Ceiling Fan Assembly (Continued)
10
U.L. Model No.: 52-ANT
3.13
Position the Switch Housing Assembly on the Switch
Housing Plate and align the Holes in the Switch
Housing Assembly with the Holes in the Plate.
Secure the Switch Housing Assembly by reinstalling
the three Mounting Screws (previously removed)
(Figure 12).
NOTE: Do not pinch wires between the switch
housing assembly and the switch housing plate.
You have now completed the assembly of your new
Ceiling Fan. You can now proceed with hanging and
wiring your Fan.
SWITCH
HOUSING
ASSEMBLY
MOUNTING
SCREWS (3)
Figure 12

11
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: 52-ANT
The outlet box and joist must be securely mounted and
capable of supporting at least 50 lbs. Use only a U.L.
outlet box listed as “Acceptable for Fan Support of
22.7 kg. (50 lbs.) or less”.
WARNING
!
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support of 22.7 kg. (50 lbs.) or less”, and
use screws supplied with outlet box. Most outlet
boxes commonly used for support of light fixtures
are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
WARNING
!
Hanger bracket must seat firmly against outlet box.
If the outlet box is recessed, remove wall board until
bracket contacts box. If bracket and/or outlet box are
not securely attached, the fan could wobble or fall.
WARNING
!
4.1
Securely attach the Hanger Bracket to the Outlet Box
using the Two Screws supplied with the Outlet Box.
(Figure 14).
TWO SCREWS
SUPPLIED WITH
OUTLET BOX HANGER BRACKET
ANTI-ROTATION TAB
OUTLET BOX
Figure 14

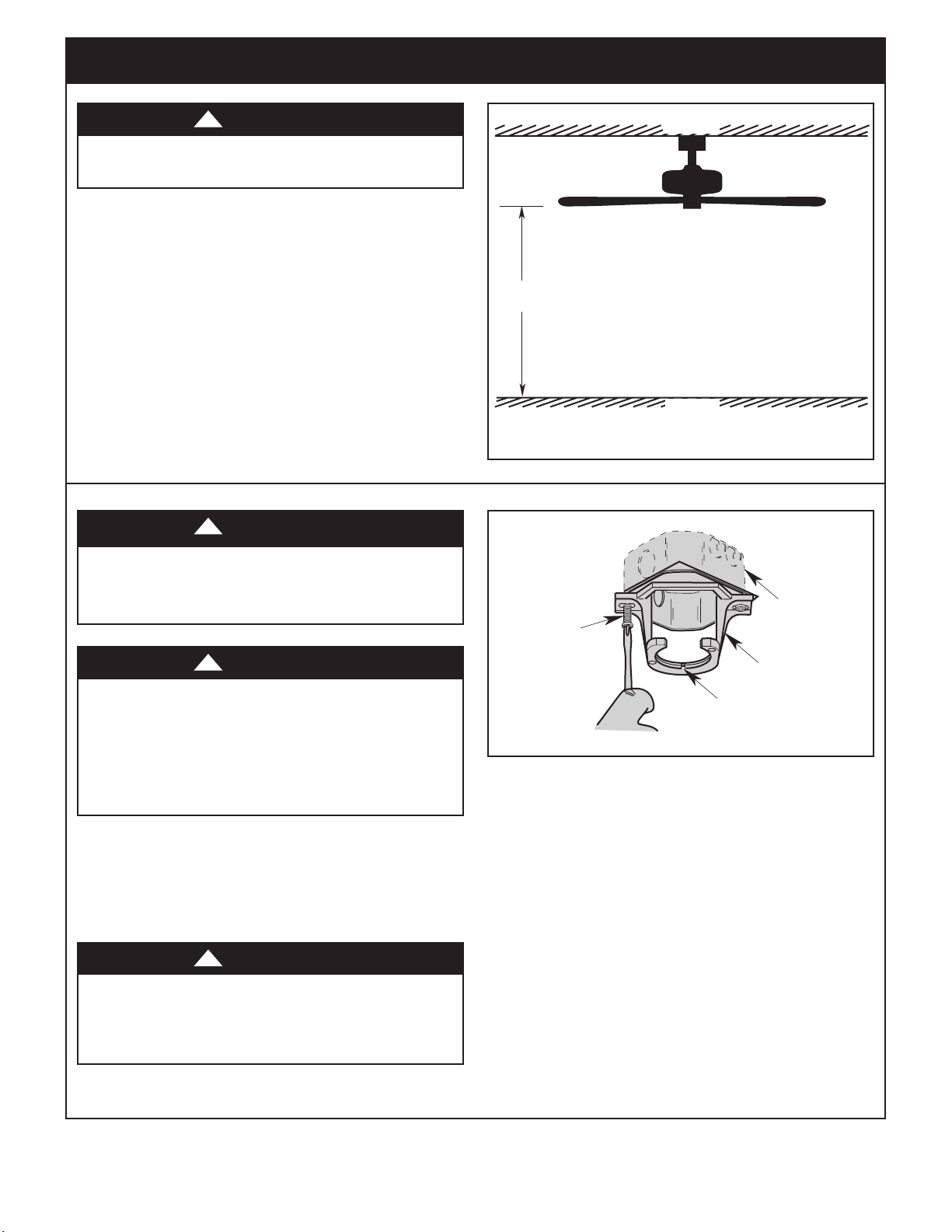

FLOOR
AT LEAST
7'
CEILING
Figure 13
4. How to Hang Your Ceiling Fan
To reduce the risk of injury, install the fan so that the
blades are at least 7 ft. (2.1m) above the floor (Figure 13).
CAUTION
!

12
U.L. Model No.: 52-ANT
4. How to Hang Your Ceiling Fan (Continued)
To avoid possible fire or shock, do not pinch wires
between the hanger ball/downrod assembly and
hanger bracket.
WARNING
!
Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
WARNING
!

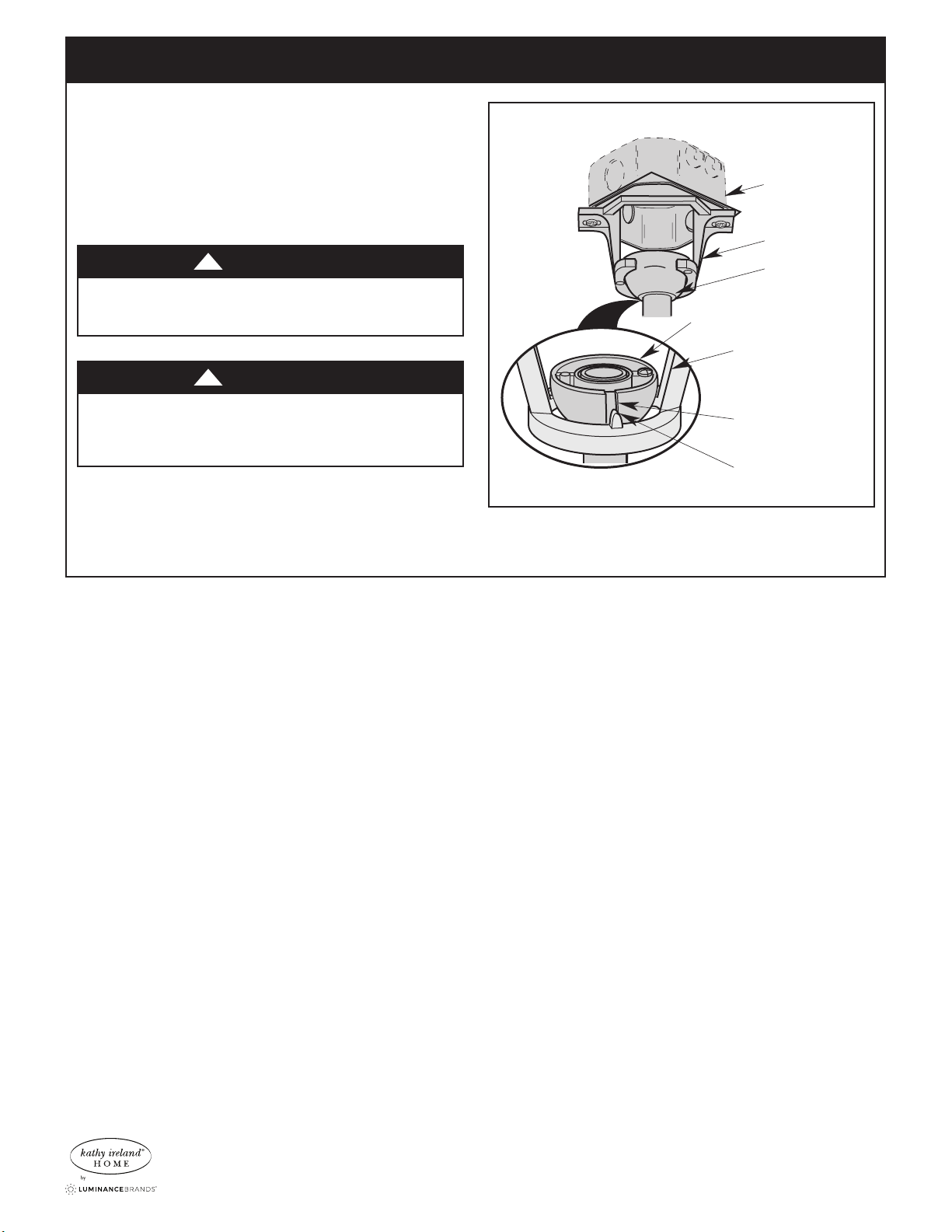

OUTLET
BOX
HANGER
BRACKET
HANGER BALL/
DOWNROD
ASSEMBLY
NOTE: SUPPLY WIRES AND FAN WIRES OMITTED FOR CLARITY.
HANGER BRACKET
HANGER BALL
HANGER BALL
GROOVE
ANTI-ROTATION
TAB
Figure 15
4.2
Carefully lift the Fan and seat the Hanger Ball/
Downrod Assembly on the Hanger Bracket that was
just attached to the Outlet Box (Figure 15). Be sure the
Groove in the Ball is engaged with the Anti-Rotation
Tab on the Hanger Bracket (Figure 15).

13
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: 52-ANT

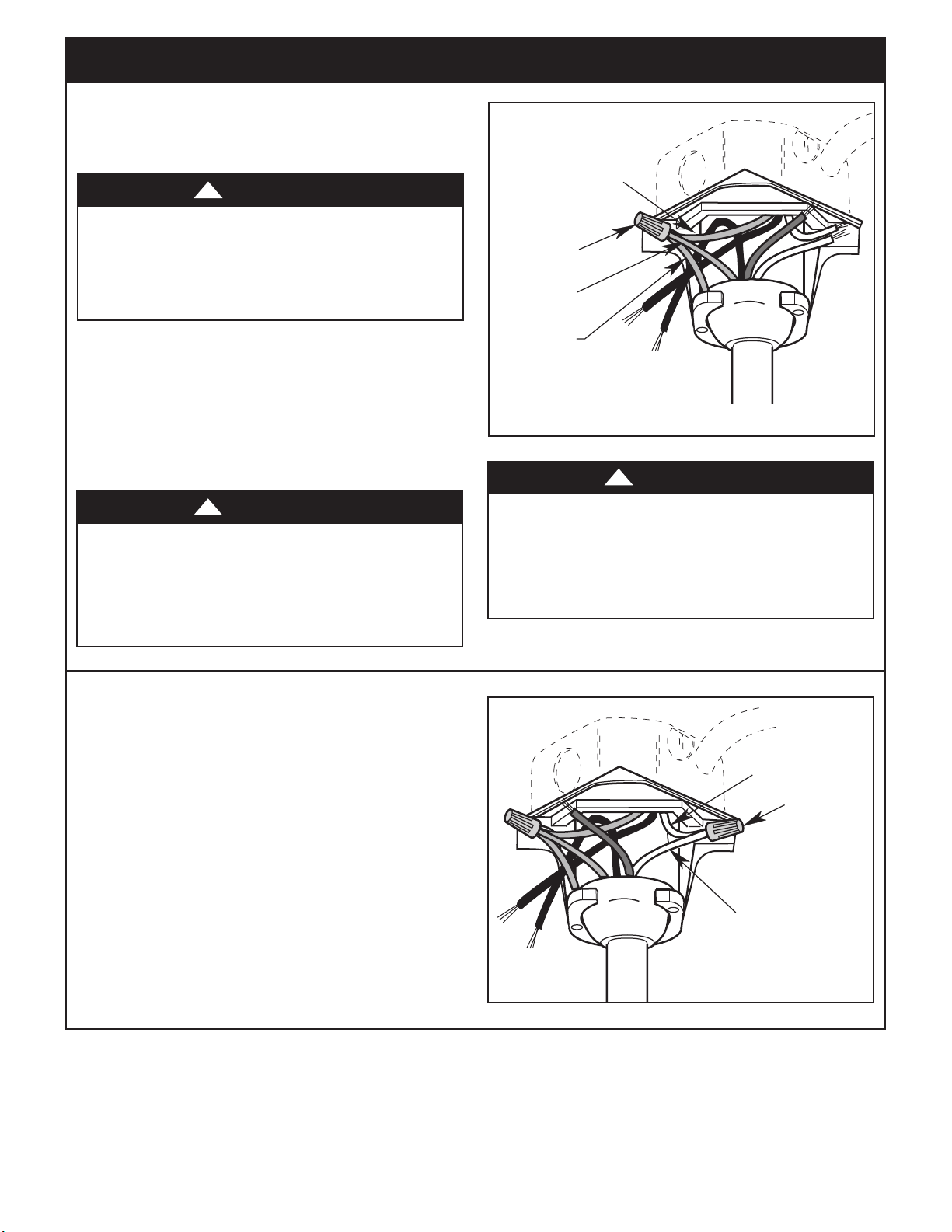

LISTED WIRE
CONNECTOR
SUPPLY WHITE
(NEUTRAL)
FAN MOTOR
WHITE WIRE
Figure 17
5.2
Securely connect the Fan Motor White Wire to the
Supply White (neutral) Wire using Wire Connector
(supplied) (Figure 17).
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
5.1
Connect the Green Ground Wire from the Hanger Ball
and the Green Ground Wire from the Hanger Bracket
to the Ground Conductor of Supply (this may be a bare
wire or wire with green colored insulation). Securely
connect Wires with Wire Connectors (supplied)
(Figure 16).
5. How to Wire Your Ceiling Fan
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box or circuit breaker
panel before wiring.
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
WARNING
!
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!
GROUND
CONDUCTOR SUPPLY
LISTED WIRE
CONNECTOR
GREEN WIRE
(GROUND) FROM
HANGER BRACKET
GREEN WIRE
(GROUND) FROM
HANGER BALL
Figure 16
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring. All wiring must be in accordance with National
and Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!

14
U.L. Model No.: 52-ANT
5. How to Wire Your Ceiling Fan (Continued)

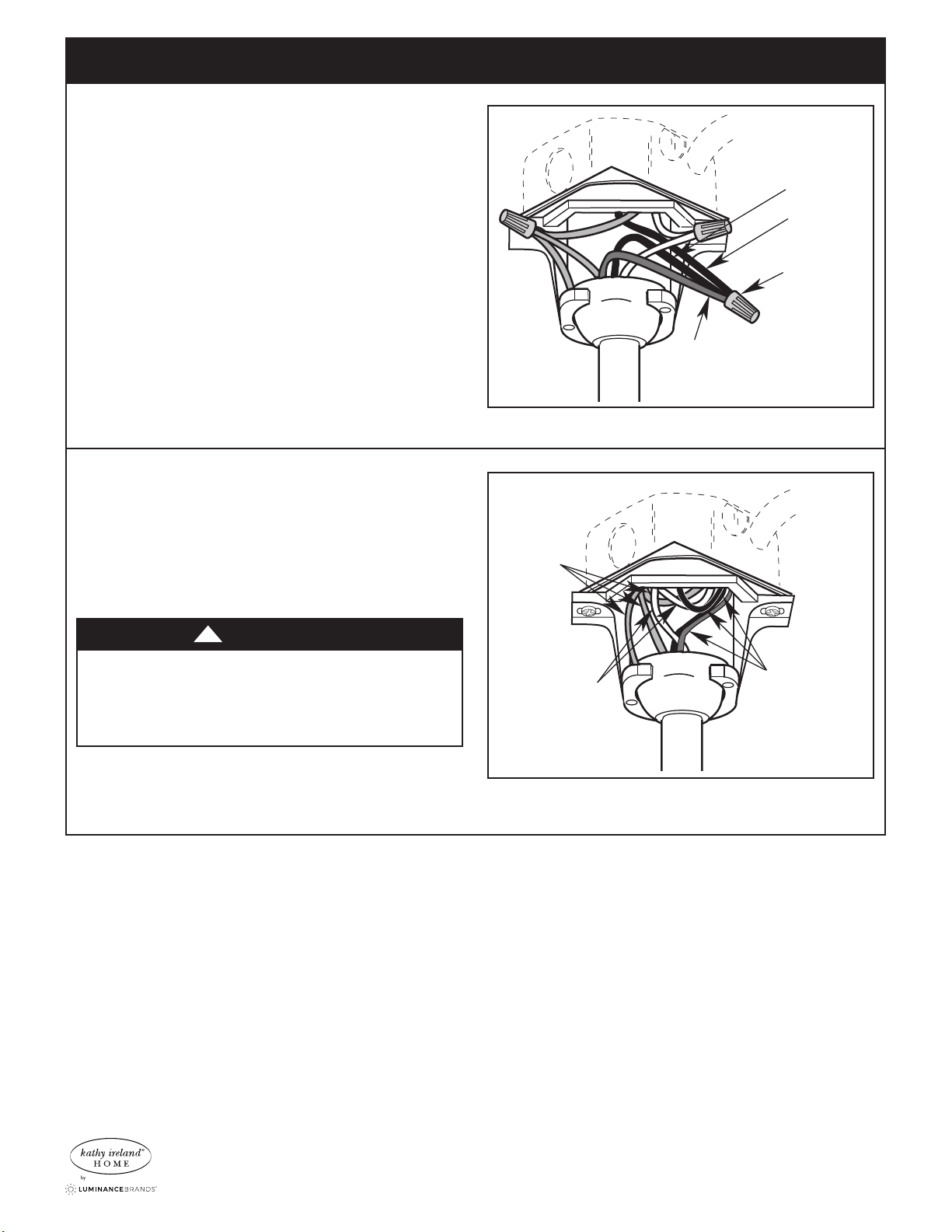

FAN MOTOR
BLACK WIRE
SUPPLY
BLACK
(HOT)
FAN MOTOR
BLUE WIRE
LISTED WIRE
CONNECTOR
Figure 18
5.3
Securely connect the Fan Motor Black Wire and
Blue Wire to the Supply Black (hot) Wire using Wire
Connector (supplied) (Figure 18).
BLACK &
BLUE WIRES
WHITE WIRES
GREEN
WIRES
Figure 19
5.4
After connections have been made, turn Wires upward
and carefully push Wires into the Outlet Box, with the
White and Green Wires on one side of the Outlet Box
and position the Black and Blue Wires on the other side
of the Outlet Box (Figure 19).
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not
operate fan until blades are in place. Noise and fan
damage could result.
WARNING
!

15
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: 52-ANT

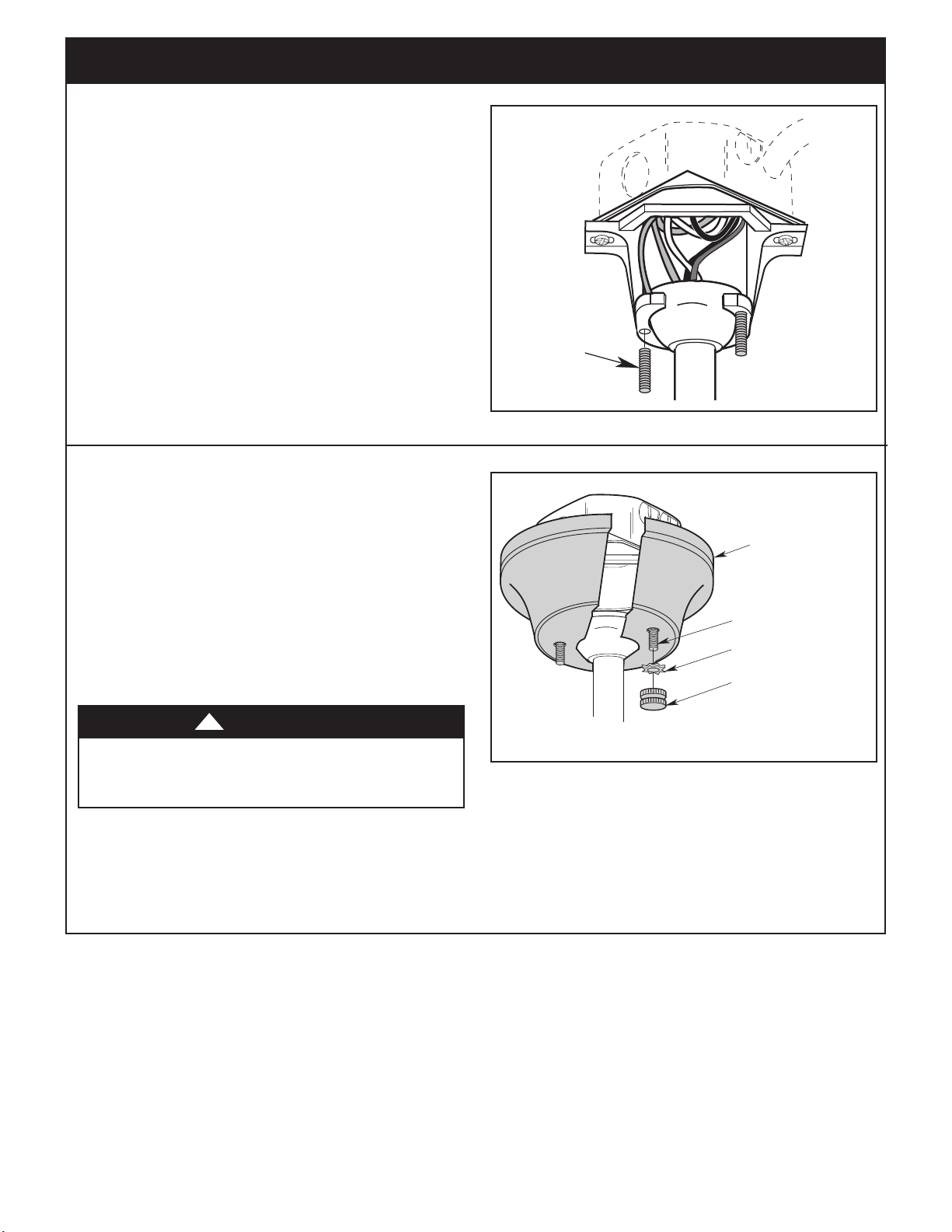

6. Final Assembly
CEILING COVER
LOCKWASHERS (2)
THREADED STUDS (2)
KNURLED KNOBS (2)
Figure 21
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box and
not pinched between the ceiling cover and the ceiling.
WARNING
!
6.2
Lift the Ceiling Cover up to the Threaded Studs and
turn until Studs protrude through the Holes in the
Ceiling Cover (Figure 21).
Secure the Ceiling Cover in place by sliding a
Lockwasher (supplied) and installing a Knurled Knob
(supplied) over each threaded stud (Figure 21).
Tighten the Knurled Knobs securely until the Ceiling
Cover fits snugly against the ceiling and the Hole in the
Ceiling Cover is clear of the Downrod.
6.1
Screw the Two Threaded Studs (supplied) into the
Tapped Holes in the Hanger Bracket (Figure 20).
THREADED
STUDS (2)
Figure 20
Please call Customer Service at 1-800-777-4440
if you have any questions about installation and
operation of this Ceiling Fan.

7.1
Restore Electrical Power to the Outlet Box by turning
the Electricity on at the Main Fuse Box or Circuit
Breaker Panel.
During Summer Months, run the Fan Counter-
Clockwise, as you look up at it, to direct airflow
downward.
During the Winter Months, run the Fan Clockwise, as
you look up at it, to direct airflow upward.
If airflow is desired in the opposite direction, turn the
Ceiling Fan OFF and wait for the Blades to stop turning.
Slide the Reverse Switch (located on the side of the
Switch Housing Assembly) to the opposite position, and
turn the Ceiling Fan on again (Figure 22).
The Fan Blades will turn in the opposite direction and
reverse the airflow.
Reverse Switch Information
Season Blade Rotation Direction
Summer Counter-Clockwise
Winter Clockwise
7.2
Cut the 3-Speed Switch Pull Chain to a desired length
(optional). Connect the Wood Pendant (supplied)
to the 3-Speed Switch Pull Chain by sliding the
Wooden Pendant (small hole first) onto the Pull Chain
(Figure 23). Attach the Chain Coupler to the end of the
Chain and allow the Wooden Pendant to fall down over
the Coupler.
Your Fan model is equipped with a 4-position,
3-speed Pull Chain Switch (Figure 23). The operating
sequence is as follows:
Three-Speed
1st Pull—HIGH
2nd Pull—Medium
3rd Pull—Low
4th Pull—OFF
7. Using Your Ceiling Fan
16
U.L. Model No.: 52-ANT
REVERSING
SWITCH SWITCH
HOUSING
ASSEMBLY
3-SPEED SWITCH
PULL CHAIN
WOODEN PENDANT
CHAIN COUPLER
Figure 23
Figure 22
To reduce the risk of fire or electrical shock, do not
use this fan with any solid-state speed control device.
WARNING
!

This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!
9. Accessories
The use of any other control not specifically approved
for this fan could result in fire, shock and personal
injury.
WARNING
!
Do not use water when cleaning your ceiling fan.
It could damage the motor or the blades and create the
possibility of an electrical shock.
WARNING
!
IMPORTANT CARE INSTRUCTIONS
for your Ceiling Fan
Periodic cleaning of your new ceiling fan is the only
maintenance that is needed.
When cleaning, use only a soft brush or lint free cloth to
avoid scratching the finish.
Abrasive cleaning agents are not required and should
be avoided to prevent damage to finish.
8. Maintenance
17
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: 52-ANT
See your local Luminance Brands dealer,
www.luminancebrands.com or our catalog for these
accessories:
• Ceiling Fan Light Kits
• Ceiling Fan/Light Controls
• Downrod Extension Kits

18
U.L. Model No.: 52-ANT
10. Repair Parts
1
93
4
13
11
10
7
8
14
2
PARTS BAG
12
13
14
11
10
9
17
17
15
16
5
6
16
15
18

19
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: 52-ANT
10. Repair Parts Listing
Before discarding packaging material, be certain all parts have been removed.
HOW TO ORDER REPAIR PARTS
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:
• PART NUMBER
• NAME OF ITEM
• PART DESCRIPTION
• MODEL NUMBER
The model number of your Fan will be found on a label attached to the top housing.
For repair parts, phone [phone].
Part Numbers
Key Model No. Model No. Model No.
No. Description CF700BS09 CF700ORB09 CF700WW09
* Hanger Ball Assembly, Consisting of: 760750-24 760750-48 760750-3
1 Hanger Bracket (1) — — —
2 Hanger Ball (1) — — —
3 4.5” Downrod (1) — — —
4 Ceiling Cover (1) 763103-BS 763103-ORB 763103-WW
5 Fan Blade Flanges (5) 763102-BS 763102-ORB 763102-WW
6 Fan Blades (5) 764623-DC/MH 764623-DC/MO 764623-WW/BO
7 Wiring Harness (1) 762569-3 762569-2 762569-4
8 Housing Switch Cup (1) 763098-BS 763098-ORB 763098-WW
* Parts Bag Containing: 763097-4 763097 763097-3
9 Threaded Studs, #8-32 x 1-1/4” (2) — — —
10 Knurled Knobs, #8-32 (2) — — —
11 Lockwashers, #8 External Tooth (2) — — —
12 Wire Connectors (3) — — —
13 Clevis Pin (1) — — —
14 Hairpin Clip (1) — — —
15 M6 x 12mm Flange Screw with Lockwasher (11) — — —
16 M5 x 6mm Washer Head Screws (16) — — —
17 Wood Ball Pendant & Coupler (1 set) — — —
18 Balancing Kit (1) — — —
—Owner’s Manual BP7312-6 BP7312-6 BP7312-6

20
U.L. Model No.: 52-ANT
11. Troubleshooting
FOR YOUR OWN SAFETY TURN OFF POWER AT MAIN FUSE BOX OR CIRCUIT BREAKER PANEL BEFORE
TROUBLESHOOTING YOUR FAN.
WARNING
!
Make sure main power is turned OFF.
WARNING
!
Make sure main power is turned OFF.
WARNING
!
TROUBLE PROBABLE CAUSE SUGGESTED REMEDY
1. Fan will not start. 1. Reversing switch in neutral position. 1. Make sure reversing switch position is all the
way to one side.
2. Fuse or circuit breaker blown. 2. Check main and branch circuit fuses or circuit
breakers.
3. Loose power line connections to the fan, 3. Check line wire connections to fan and switch
or loose switch wire connections in wire connections in switch housing.
the switch housing.
2. Fan sounds 1. Blades not attached to fan. 1. Attach blades to fan before operating.
noisy. 2. Screws securing fan blade flanges to 2. Check to make sure the screws which attach
motor are loose. the fan blade flanges to the motor are tight.
3. Wire connectors inside switch housing 3. Check to make sure wire connectors in switch
rattling. housing are not rattling against each other or
against the interior wall of the switch housing.
4. Screws holding flanges to blades are loose. 4. Tighten screws securely.
3. Fan wobbles 1. Set screws in motor coupler is loose. 1. Tighten the set screws securely in the motor
or shakes coupler.
excessively. 2. Set screw in hanger ball/downrod 2. Tighten the set screw in the hanger ball/downrod
assembly is loose. assembly.
3. Screws securing fan blade flanges to 3. Check to be sure screws which attach the fan
motor are loose. blade flanges to the motor are tight.
4. Fan blade flanges not seated properly. 4. Check to be sure the fan blade flanges seat firmly
and uniformly to the surface of the motor. If flanges
are seated incorrectly, loosen the flange screws
and retighten according to the procedure in the
section on to “Ceiling Fan Assembly”.
5. Hanger bracket and/or ceiling outlet box 5. Tighten the hanger bracket screws to the outlet
is not securely fastened. box, and/or secure outlet box.
6. Fan blades out of balance. 6. Interchanging an adjacent (side-by-side) blade
pair can redistribute the weight and result in
smoother operation.
