Kef Psw3500 User manual

SERVICE MANUAL

CONTENTS

SPECIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3

PARTS LIST:

LED INDICATORS PCB ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

SWITCHED MODE PSU CIRCUIT PCB ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7

PRE AMP & POWER AMP PCB ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-12

CASING SMPS ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13

SPEAKER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-16

PACKING ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

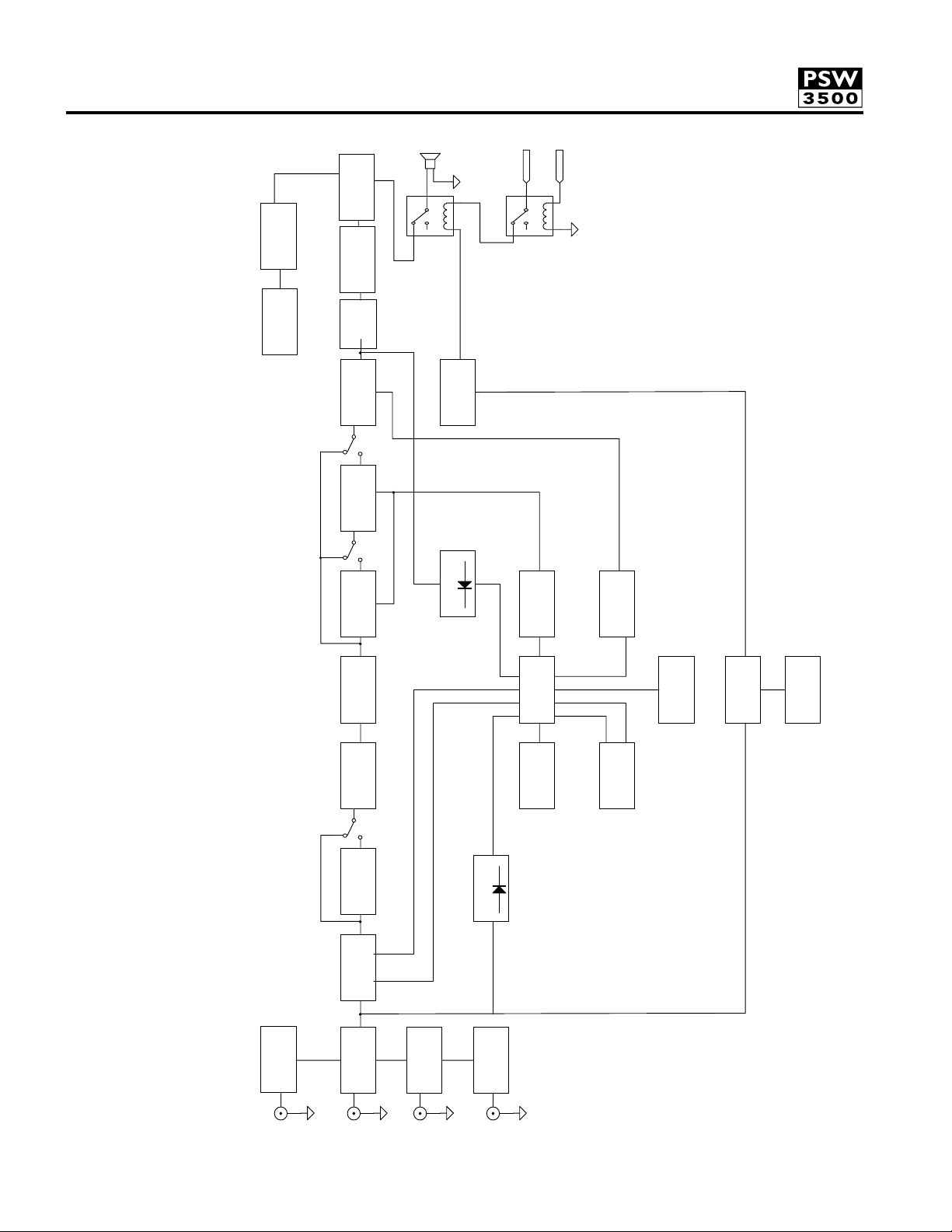

BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

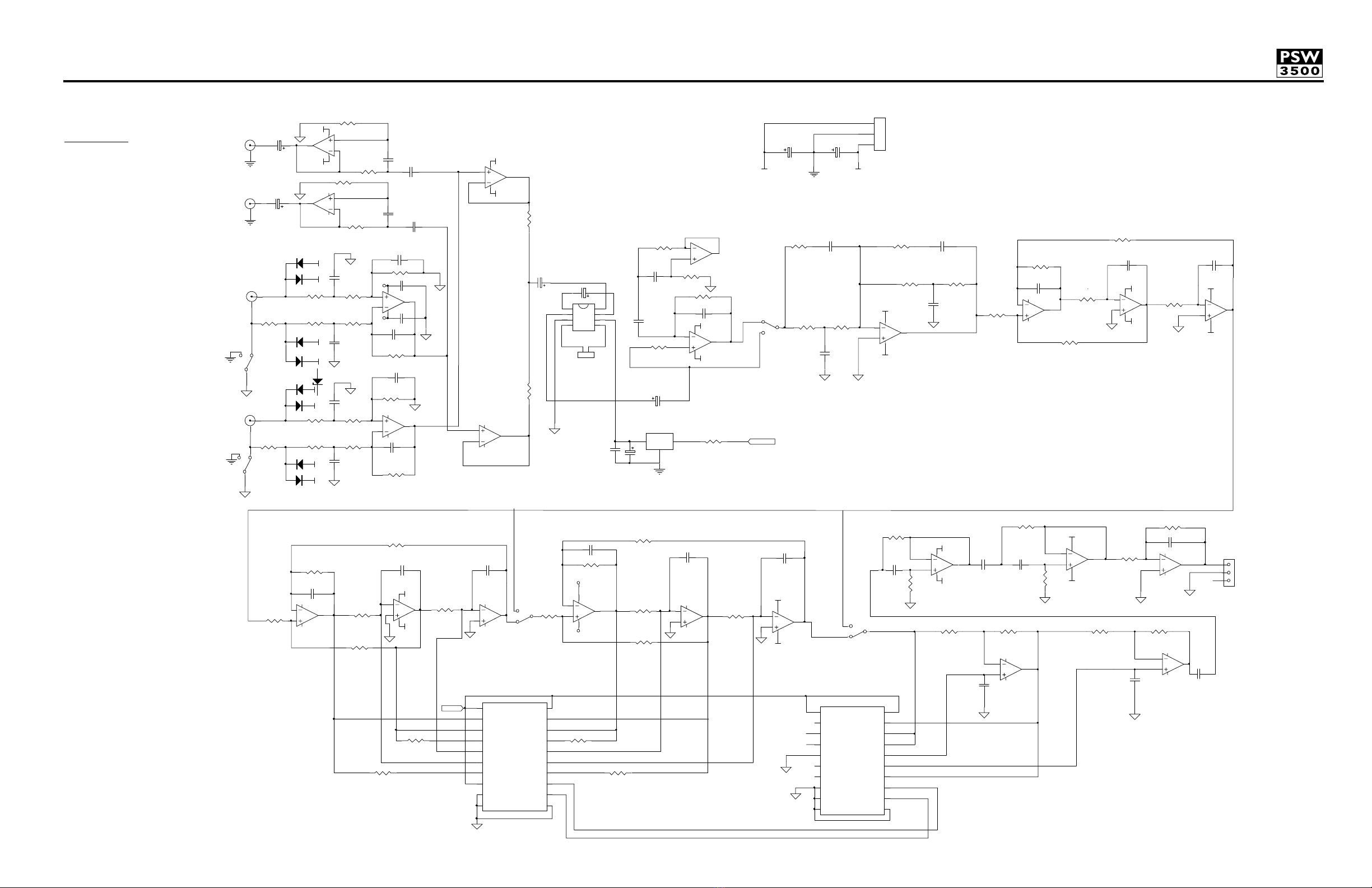

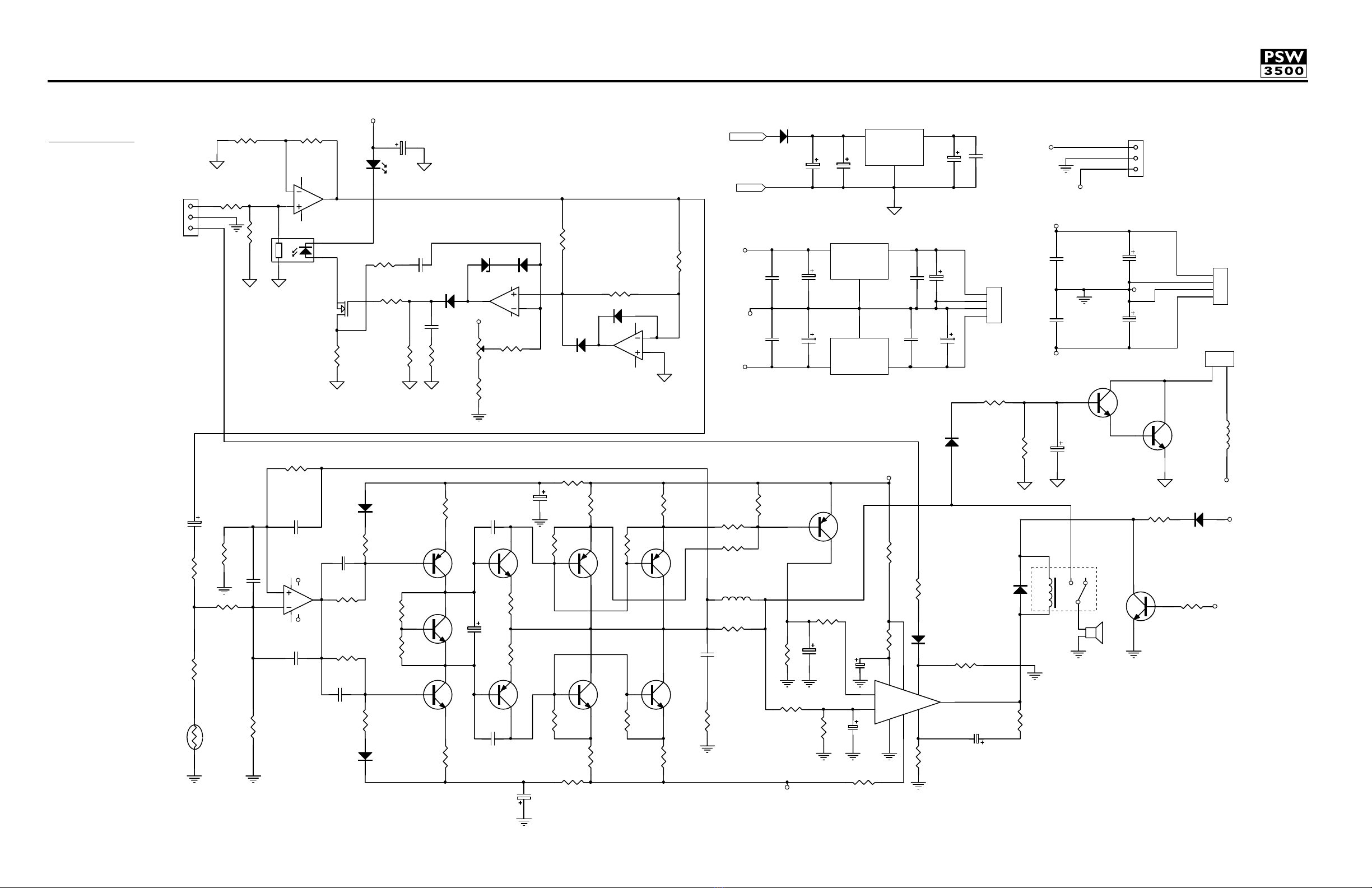

SCHEMATIC DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-22

PCB LAYOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23-25

EXPLODED VIEW DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26-28

POWERED SUBWOOFER

Date: Jan.17, 2005

POWERED SUBWOOFER

PSW3500 SPEAKER SPECIFICATIONS

Frequency Response 20 Hz - 500 Hz

Sensitivity 89±2 dB

Power Handing 200~400 W

Weight 8.5Kg

Fo 22±4 Hz

Impedance 4±20% Ohm

Voice Coil DCR 3.9±5% Ohm

Main Magnet ø145*ø75*17mm

Magnet Material Y30

Magnetic Shielding Yes

PSW3500 SYSTEM SPECIFICATIONS

Type Close box downward ﬁring

LF Drive Unit 300mm(12 ) long-throw

Crossover Frequency L+R variable 40 - 140 Hz

LFE ﬁxed 250Hz

Frequency Range(+/-3) 30Hz - 250Hz

Ampliﬁle 300 Watts

Sensitivity Active system

Maximum Output(PSL) 110dB

Impedance N/A Active System

Magnetic Shielding Yes

Weight 22.5Kg(49.6 lbs)

Dimensions(H*W*D) mm 450*600*395

Cabinet Finish Black Ash,Maple,Dark,Apple or Silver

SPECIFICATION

POWERED SUBWOOFER

SPECIFICATION

20 100 600

Freq(Hz)

Frequency Response

SPL(dB)

SPK

0.3mH/0.23Ohm

150µF

AMP

FREQUENCY RESPONSE CURVE

FILER FOR SPEAKER

spk-respond.FRQ

10 100 200

Freq(Hz)

Frequency Response

|Z|(ohms)

POWERED SUBWOOFER

PARTS LIST

1 3700-4536-RG L-115W EGW/209EGW RED/GR LED301

1 3700-9528-0 LED DISP LR2x5-10B-YYB LED302

1 4701-100J-2 RCF 1/8W 10R 5% AT R330

1 4701-102J-2 RCF 1/8W 1K 5% AT R320

7 4701-103J-2 RCF 1/8W 10K 5% AT R311,312,313,314,315,321,

322

2 4701-203J-2 RCF 1/8W 20K 5% AT R317,318

5 4701-271J-2 RCF 1/8W 270R 5% AT R301,302,302,304,305

5 4701-331J-2 RCF 1/8W 330R 5% AT R306,307,308,309,310

2 4701-472J-2 RCF 1/8W 4.7K 5% AT R316,319

1 4816-043T-3 IR SENSOR PIC-26043TM2 IR301

10 4840-8060-2 DIODE 1N4148 NS D301,302,303,304,305,306,

307,308,309,310

2 4860-2250-5 TR 9012H MICRO Q307,310

8 4860-8720-5 TR 9013H Q301,302,303,304,305,306,

308,309

1 1725-731A-0000 PCB LED FR4 D/S 1OZ

8 150F-104M-N-FD CC 50V 0.1U 20% RLF C18,19,20,22,28,32,33,34

1 150N-101K-5-MHA CC 1KV 100PF 10% RL C7

2 150N-471K-5-MHA CC 1KV 470PF 10% RL C9,10

2 150T-152M-5-XO CC 400V 1500P 20% RL C3,4

2 150T-471M-5-RO CC 400V 470P +-20% RL C35,36

1 153H-102K-5-INA CM 100V 0.001UF 10% RL C23

2 153H-103J-5-KNA CM 100V 0.01UF 5% RL C25,27

1 153H-222K-5-INA CM 100V 0.0022U 10% C26

SMPS PCB ASSY

QTY

PART NO DESCRIPTION LOCATION

LED PCB ASSY

QTY

PART NO DESCRIPTION LOCATION

POWERED SUBWOOFER

PARTS LIST

1 153H-472K-5-JNA CM 100V 0.0047UF 10% RL C24

2 153Z-334M-5-YUM CM 275V 0.33UF 20% RL C1,2

1 157F-107M-5-OW CE 50V 100uF 20% RL 8x12 C30

1 157F-107M-5-OWK CE 50V 100uF 20% RL 8x12 C31

1 157F-225M-5-IU CE 50V 2.2uF 20% RL 5x11 C29

2 157I-108M-5-5$K CE 63V 1000uF 20% RL 16X C11,12

2 157Q-477M-5-S9T CE 35V 470U 20% 10X20 C8,13

2 157R-567M-5-#$T CE 250V 560UF 20% RL 105 C5,6

11681-1000-A UL1007 AWG#20 BLACK GND

1 1806-2372-0 TT-9972 GATE DRIVER TRAN T1

11806-2380-0 CURRENT TRANSFORMER T4

1 1806-2437-0 TT-01001 EE-42 POWER T3

1 1806-2442-0 CHOKE O/P T131-26 L5

1 1806-2444-0 X-TRANSFORMER EI-28 T2

1 1806-3609-0 COMMON MODE EE-35B L1

1 1806-3707-0 CHOKE COMMON MODE PSW5K L3

8 1808-0670-0 FERRITE BEAD 26430000101 FB5,6,7,8,9,10,11,12

1 1808-9030-0 ARRESTER 230V DC 5KA M2P G1

6 1808-9080-0 FERR BEAD 43120203106 1- FB1 TO FB4, FB13,14

1 2101-1343-0 WAFER 2219S-03-E2 P=7.92 CN1

8 2950-3008-0020 SCREW B-TITE PH M3X 8 MM D8-D11, Q1-Q4

4 3100-8040-0 MICA T-400 8302 18X12.7M D8-D11

43100-8050-0 MICA T-400 T03P 25X20M T Q1-Q4

1 3131-5550-0 IC KA3842B SAMSUNG U3

8 4154-0841-0 INSULATION BUSHING D8-D11, Q1-Q4

5 4705-102J-2 RCF 1/4W 1K 5% AT R6,9,29,36,37

2 4705-103J-2 RCF 1/4W 10K 5% AT R24,26

2 4705-152J-2 RCF 1/4W 1.5K 5% AT R31,32

1 4705-204J-2 RCF 1/4W 200K 5% AT R23

SMPS PCB ASSY

CONTINUED

QTY

PART NO DESCRIPTION LOCATION

POWERED SUBWOOFER

1 4705-220J-2 RCF 1/4W 22R 5% AT R18

1 4705-241J-2 RCF 1/4W 240R 5% AT R19

1 4705-471J-2 RCF 1/4W 470R 5% AT R21

1 4705-821J-2 RCF 1/4W 820R 5% AT R22

2 4707-104J-2 RCF 1/2W 100K 5% AT R2,3

1 4707-474J-2 RCF 1/2W 470K 5% AT R1

1 4715-203A-1 RMF 1/4W 20K 1% AL R28

1 4715-243A-2 RMF 1/4W 24K 1% AT R30

3 4715-472A-1 RMF 1/4W 4.7K 1% AL R11,20,33

4 4715-51R1-2 RMF 1/4W 51.1R 1% AT R4,5,7,8

1 4719-101J-C-X RMF 2W 100R 5% ATS METAL R10

2 4719-470J-C-X RMF 2W 47R 5% ATS METAL R13,14

1 4756-1026-3-07 SVR B1K H3 VZ067TL7B TP1

4 4837-18V6-2 DZ 1/2W 18V TEMIC AT Z1,2,3,4

1 4837-30V6-2 DZ 1/2W 30V 5% TEMIC AT Z5

5 4840-0010-2 DIODE 1N4001 D13,14,15,16,17

5 4840-8060-2 DIODE 1N4148 NS D19,20,21,22,23

1 4840-8240-0 DIODE BR108 BRIDGE RECTI D1

4 4840-8520-2 RECTIFIER UF4003 GI AT D4,5,12,18

2 4840-8530-2 RECTIFIER UF4006 GI AT D2,3

4 4840-8860-1 DIODE 600V 15A T0220 D8,9,10,11

2 4853-9040-5 TR 2N3904 Q6,7

1 4860-2400-5 TR 2N3906 MICRO Q5

4 4860-8950-0 TR FET IRF840 (IR) Q1,2,3,4

15202-0001-0 NTC THERMISTER SCK057 NTC1

8 5400-9320-0 2617-4-B HEAT SINK Q1-Q4, D8-D11

1 7010-0150-0 CN ASSY UL1007 #20 L=120 JPW1

1 7010-0160-0 CN ASSY UL1007 #20 L=120 JPW2

1 7010-2352-0 WIRE CON ASSY 4P+2P+2P CN2

PARTS LIST

SMPS PCB ASSY

CONTINUED

QTY

PART NO DESCRIPTION LOCATION

POWERED SUBWOOFER

PARTS LIST

1 7010-2355-0 WIRE CON ASSY 4P L=500MM CN3

1 1725-542A-0003 SMPS PCB 94V0 REV: G

1 150D-224K-J-BD CC 16V 0.22UF 10% 0805 C18

7 150D-334K-J-BD CC 16V 0.33UF 10% 0805 C39,40,41,42,191,192,193

4 150E-823K-J-BD CC 25V 0.082UF 10% 0805 C3,4,5,6

19 150F-101J-J-BD CC 50V 100pF 5% 0805 1.2 C7,8,9,10,13,14,15,20,31,

46,100,101,128,218,221,

222,630,631,633,

1 150F-102K-J-BD CC 50V 1000pF 10% 0805 1 C217

15 150F-104K-J-BD CC 50V 0.1uF 10% 0805 C11,12,51,110,112,503,603,

604,605,606,608,609,610,

901,902

1 150F-154K-J-BD CC 50V 0.15UF 10% 0805 C34

1 150F-223K-J-BD CC 50V 0.022U 10% 0805 C36

2 150F-333K-J-BD CC 50V 0.033U 10% 0805 C129,194

1 150F-334K-J-BD CC 50V 0.33UF 10% 0805 C190

3 150F-470J-J-BD CC 50V 47pF 5% 0805 1.2x C281,330,331

1 150F-471J-J-BD CC 50V 470pF 5% 0805 1.2 C502

2 150F-681K-J-BD CC 50V 680pF 10% 0805 1. C235,236

7 150F-683K-J-BDS CC 50V 0.068UF 10% X7R C19,32,33,37,38,44,45

2 150F-822K-P-AC CC 50V 8200P 10% 0603 C21,22

7 153H-104K-5-PS CM 100V 0.1UF 10% RL C203,204,207,208,262,

263,267

1 153I-224K-9-NOA CM 63V 0.22UF 10% RB C239

4 157D-476M-H-IU CE 16V 47U 20% RLR 5x11 C113,266,613,614

2 157E-477M-5-SXE CE 25V 470UF 20% RL C260,261

SMPS PCB ASSY

CONTINUED

QTY

PART NO DESCRIPTION LOCATION

PRE AMP & POWER AMP PCB ASSY

QTY

PART NO DESCRIPTION LOCATION

POWERED SUBWOOFER

PARTS LIST

1 157F-105M-5-IU CE 50V 1uF 20% RL 5x11 C632

2 157F-106M-K-IUI CE 50V 10UF 20% RLT 5X11 C16,106

7 157F-107M-K-OW CE 50V 100U 20% RLT 8X12 C111,240,264,265,269,

501,504

7 157F-225M-K-IUI CE 50V 2.2U 20% RLT C1,2,25,109,234,280,601

1 157F-226M-5-IU CE 50V 22UF 20% RL 5X11 C634

1 157F-474M-5-IU CE 50V 0.47uF 20% RL C242

2 157F-476M-5-OWK CE 50V 47uF 20% RL 8x12 C205,206

2 157F-476M-K-LUI CE 50V 47UF 20% RLT C219,241

2 157I-107M-K-SX CE 63V 100U 20% RLT 10x1 C237,238

1 157Q-476M-5-LUA CE 35V 47U 20% RL 6.5X11 C49

71681-0000-A UL1007 AWG#18 BLACK C1-C2,C903,D1-D2,E1-E2

21681-3020-A UL1007 AWG#24 RED F1-F2

41681-4000-A UL1007 AWG#26 BLACK A1-A2,B1-B2

11806-2374-0 TT-9974 TOROIDAL CHOKE T L301

1 1806-2393-0 TT-9904 LE 1012A 1X12TX6 L201

1 2101-1380-0 HEADER 4P P=5MM VERTICAL CN201

1 2101-9120-0 JM24182-2P WAFER CN206

1 2101-9130-0 JM24182-4P WAFER CN202

1 2101-9320-0 WAFER JM24182-11P CN301

1 2101-9790-0 4RCA JACK HSP-204V-03 GP RCA1

12113-1997-0 JACK 3.5MM RI

4 2601-2608-0601 FIBRE WASHER M2.6 0.8T Q202,204,U205,U206

1 2703-0150-1 CR4.00MHE,CSTLS4M00G55-B XTAL201

4 2954-2606-0000 SCREWS BT 2.6X6 Q202,204,U205,U206

4 2954-3008-3000 T3X8MM SELF TAPPING Q202,204,U205,U206

2 3130-2020-2 IC 7805 REG 5V U207,505

1 3130-2520-2 IC 7812H 12V REG, T0220F U205

13130-3550-0 IC TA7317P U208

PRE AMP & POWER AMP PCB ASSY

CONTINUED

QTY

PART NO DESCRIPTION LOCATION

POWERED SUBWOOFER

PARTS LIST

1 3130-3800-0 IC UPC79M12HF REGULATOR U206

17 3130-8020-0 IC TL072 DUAL J-FET U1,2,3,5,6,7,8,9,10,11,12,

16,204,303,304,501,502

1 3131-6160-0 IC 7809 1A 3PIN POSITIVE U208

1 3131-6940-0 IC LM393M (SMD) U506

1 3131-7640-1 IC KS86P4208 SM SAMSUNG U301

13131-7740-0 EEPROM AT24C02-10PI U302

2 3132-1421-0 IC DS1844-100 SMD U13,14

1 3132-2671-0 IC PT2259S SMD SO-8 U503

1 3700-1530-R LED SC 3.1X3.8 L0.4RD LED501

4 4132-1551-0 TERMINAL OUT PUT GND1,2,3,SPK

1 4500-0500-0 RELAY DPDT 5V 40mA RL301

1 4500-8090-1 RELAY RUUH-SH-124D 15A PLY1

2 4701-101J-2 RCF 1/8W 100R 5% AT R110,111

1 4705-122J-2 RCF 1/4W 1.2K 5% AT R660

1 4711-122A-2 RMF 1/8W 1.2K 1% AT TP402

1 4711-183A-2 RMF 1/8W 18K 1% AT TP402

4 4718-100J-C-X RMF 1W 10R 5% ATS METAL R234,235,241,242

1 4718-392C-L RMF 1W 3.9K 2% AF R904

1 4719-222J-1-X RMF 2W 2.2K 5% AL METAL R255

6 4720-101J-J RMG 1/10W 100R 5% 0805 R236,237,238,251,256,260

7 4720-102J-J RMG 1/10W 1K 5% 0805 R104,105,226,511,603,

622,625

32 4720-103J-J RMG 1/10W 10K 5% 0805 R2,4,5,6,7,8,9,10,11,12,24,

57,61,223,224,245,253, 501,

502,503,504,505,507,508,

509,530,531,601,604,607,

626,629

14 4720-104J-J RMG 1/10W 100K 5% 0805 R60,63,65,69,71,74,83,86,

88,243,246,605,628,902

1 4720-105J-J RMG 1/10W 1M 5% 0805 R606

PRE AMP & POWER AMP PCB ASSY

CONTINUED

QTY

PART NO DESCRIPTION LOCATION

POWERED SUBWOOFER

PARTS LIST

2 4720-122J-J RMG 1/10W 1.2K 5% 0805 R612,901

5 4720-123J-J RMG 1/10W 12K 5% 0805 R67,77,79,109,233

1 4720-124J-J RMG 1/10W 120K 5% 0805 R107

2 4720-125J-J RMG 1/10W 1.2M 5% 0805 R621,624

5 4720-153J-J RMG 1/10W 15K 5% 0805 R56,64,78,229,230

1 4720-154J-J RMG 1/10W 150K 5% 0805 R101

2 4720-155J-J RMG 1/10W 1.5M 5% 0805 R330,510

4 4720-163J-J RMG 1/10W 16K 5% 0805 R73,82,87,130

2 4720-182J-J RMG 1/10W 1.8K 5% 0805 R402,406

3 4720-183J-J RMG 1/10W 18K 5% 0805 R248,250

1 4720-202J-J RMG 1/10W 2K 5% 0805 R225

5 4720-203J-J RMG 1/10W 20K 5% 0805 R1,3,403,405,506

3 4720-222J-J RMG 1/10W 2.2K 5% 0805 R19,20,514

7 4720-223J-J RMG 1/10W 22K 5% 0805 R13,14,15,16,55,81,108

2 4720-243J-J RMG 1/10W 24K 5% 0805 R76,80

1 4720-272J-J RMG 1/10W 2.7K 5% 0805 R232

2 4720-303J-J RMG 1/10W 30K 5% 0805 R17,18

1 4720-331J-J RMG 1/10W 330R 5% 0805 R512

1 4720-332J-J RMG 1/10W 3.3K 5% 0805 R21

5 4720-333J-J RMG 1/10W 33K 5% 0805 R249,252,280,620,623

2 4720-334J-J RMG 1/10W 330K 5% 0805 R22,222

1 4720-364J-J RMG 1/10W 360K 5% 0805 R102

2 4720-391J-J RMG 1/10W 390R 5% 0805 R228,231

5 4720-392J-J RMG 1/10W 3.9K 5% 0805 R23,400,401,404,407

2 4720-472J-J RMG 1/10W 4.7K 5% 0805 R288,602

2 4720-473J-J RMG 1/10W 47K 5% 0805 R90,91

1 4720-474J-J RMG 1/10W 470K 5% 0805 R513

1 4720-513J-J RMG 1/10W 51K 5% 0805 R106

6 4720-562J-J RMG 1/10W 5.6K 5% 0805 R126,239,240,263,627,903

PRE AMP & POWER AMP PCB ASSY

CONTINUED

QTY

PART NO DESCRIPTION LOCATION

Other manuals for PSW3500

Table of contents

Popular Subwoofer manuals by other brands

Extron electronics

Extron electronics SF 8CT SUB user guide

SVS

SVS PB-4000 quick start guide

Pioneer

Pioneer S-DVR9SW Service manual

Yamaha

Yamaha YST-SW515 Service manual

Velodyne

Velodyne SPL-800 ULTRA - REV B datasheet

Teufel

Teufel US 2110/1 SW operating instructions

Wet Sounds

Wet Sounds SS-65 user manual

Pyle

Pyle PLQB10 Specifications

Sony

Sony XS-L1536 Product guide

Sony

Sony XS-AW8 operating instructions

B&C Speakers

B&C Speakers 15 HPL 76W Specifications

Velodyne

Velodyne DD-18+ Specifications

Sonance

Sonance Cinema Series SUB 10-150 Specifications

Hifonics

Hifonics HW-12 Owners & installation manual

Yamaha

Yamaha 64263 owner's manual

Magnat Audio

Magnat Audio ADR 130 BP user manual

Technics

Technics SB-AS500 Operaing instructions

Lyngdorf

Lyngdorf BW-2 owner's manual

KEF PSW3500 User manual

Popular Subwoofer manuals by other brands
