Keith CleenSweep Hydraulic - CSH User manual

CleenSweep®Hydraulic - CSH
INSTALLATION / OWNER’S MANUAL
& PARTS CATALOG
Original Instructions
KEITH Manufacturing Co.KEITH Manufacturing Co.
www.KeithWalkingFloor.comwww.KeithWalkingFloor.com
World HeadquartersWorld Headquarters
Toll-Free: 800-547-6161Toll-Free: 800-547-6161
Phone: [phone]Phone: [phone]
©2022 KEITH Manufacturing Co. All Rights Reserved. KEITH, KEITH logo and WALKING FLOOR are registered trademarks of KEITH
Manufacturing Co. Equipment manufactured by KEITH Manufacturing Co. is protected by numerous patents both domestic and foreign.
Released: 2022-12-12 DOC03668 Rev. G
8570301

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
i DOC03668 Rev. G
Table of Contents
Introduction iii
CleenSweep®Tarp System Limited Warranty iv
Warranty Registration Card v
1.0 Safety 1
1.1 General Safety 1
1.1.1 Intended Function and Expected Use: 1
1.1.2 Improper Use 1
1.1.3 Training 1
1.1.4 Personal Protective Equipment 2
1.1.5 Hydraulic Oil Safety 2
1.2 Design / Installation Safety 2
1.2.1 Electric Components and Installation 2
1.2.2 Hydraulics 2
1.2.3 Controls 2
1.3 Marking of Machinery 3

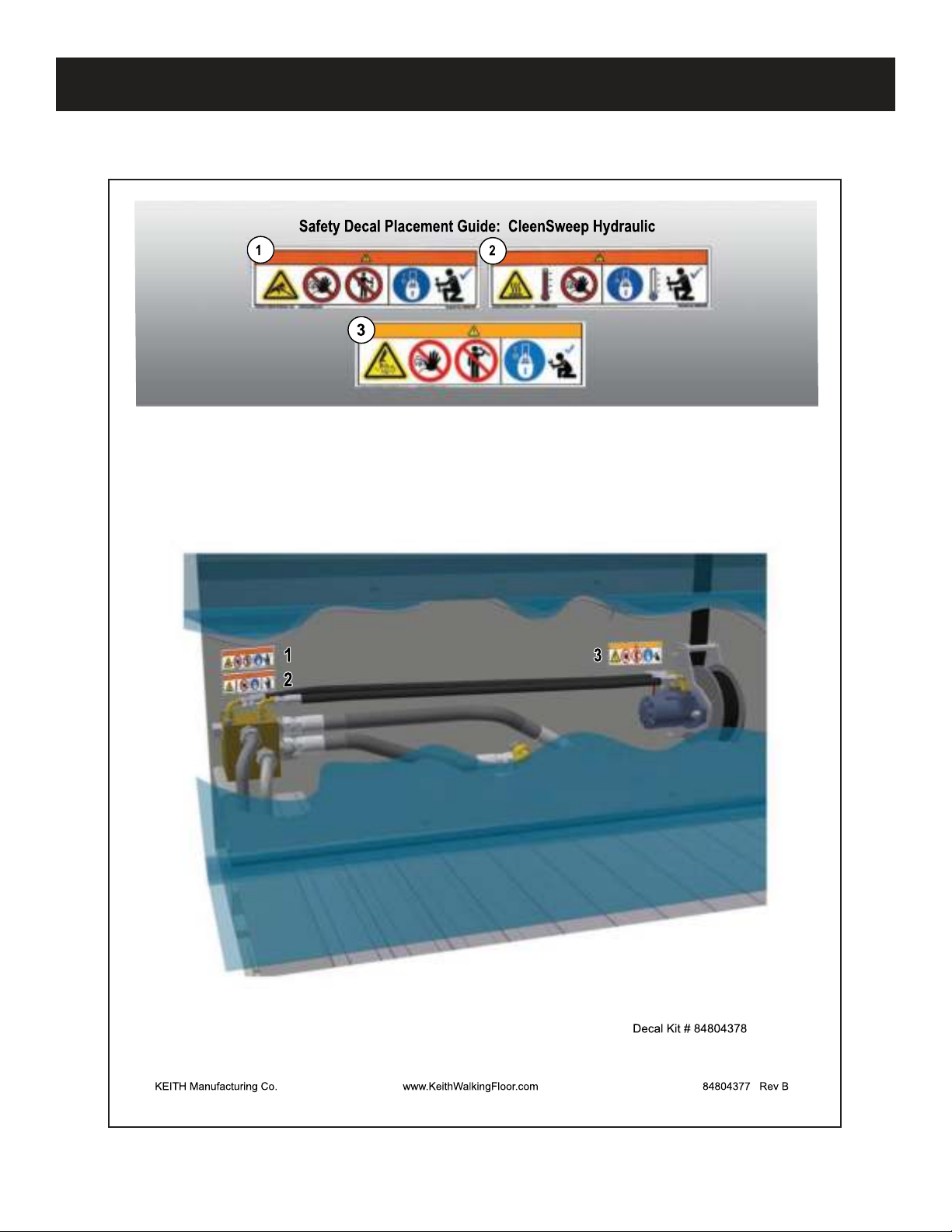

1.3.1 Safety Decals 3
2.0 Specications 4
2.1 System 4
2.2 Component Identication 5
3.0 Installation 6
3.1 Tools 6
3.2 Materials Needed 7

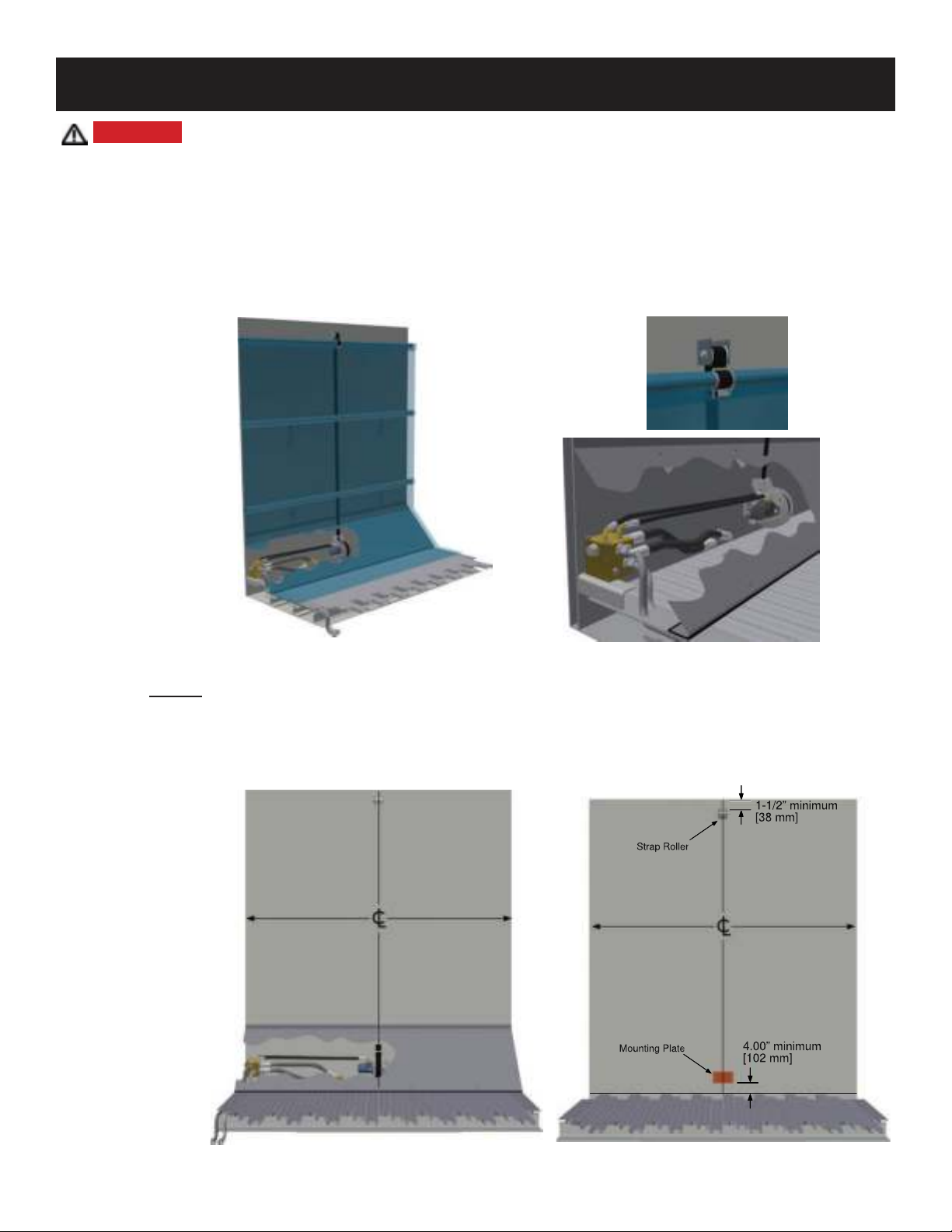

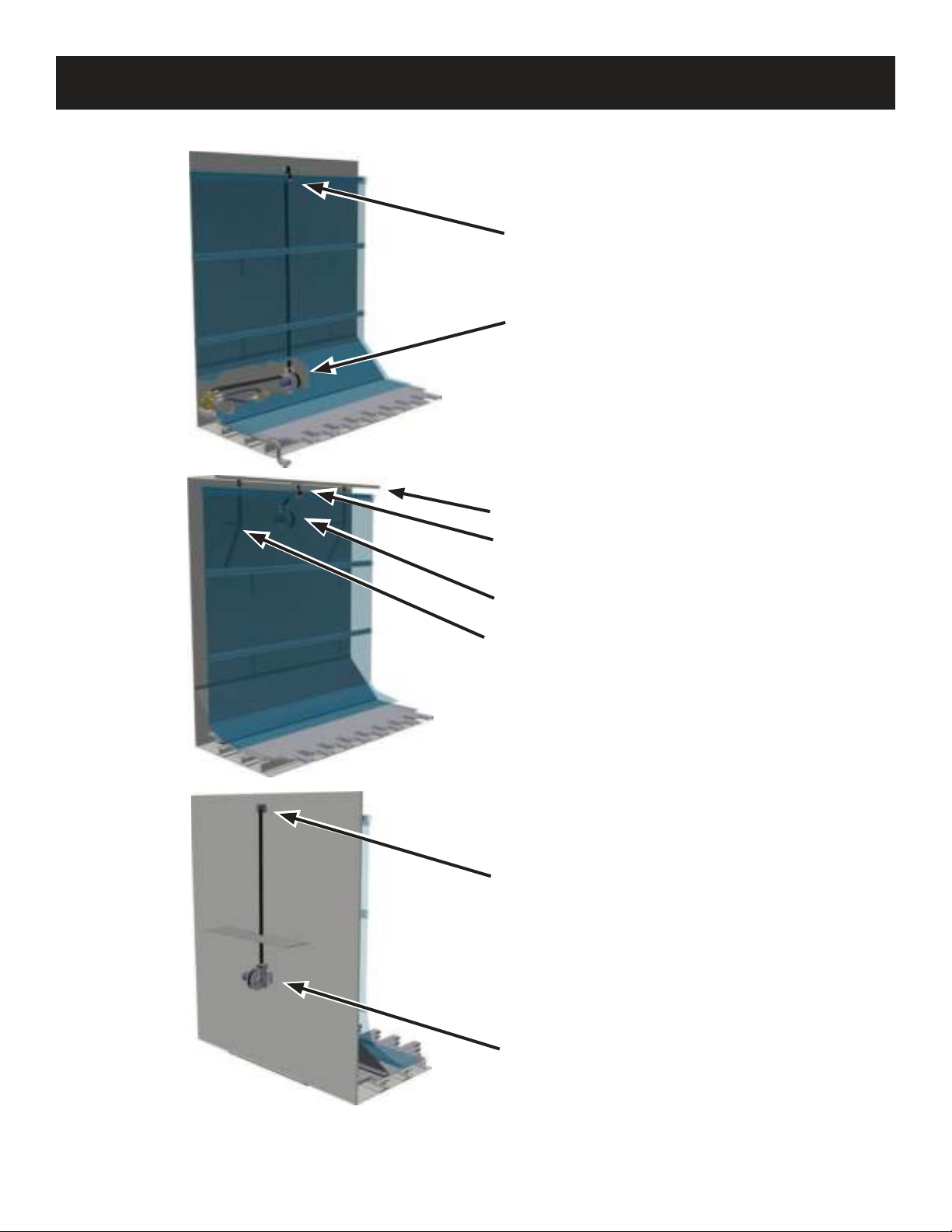

3.3 Winch & Strap Roller Mounting Position Options 8
3.4 Hydraulic Winch & Strap Roller Installation 9
3.4.1 Option 1: Low Mount - Winch below front slope shield, strap roller near top of wall 9

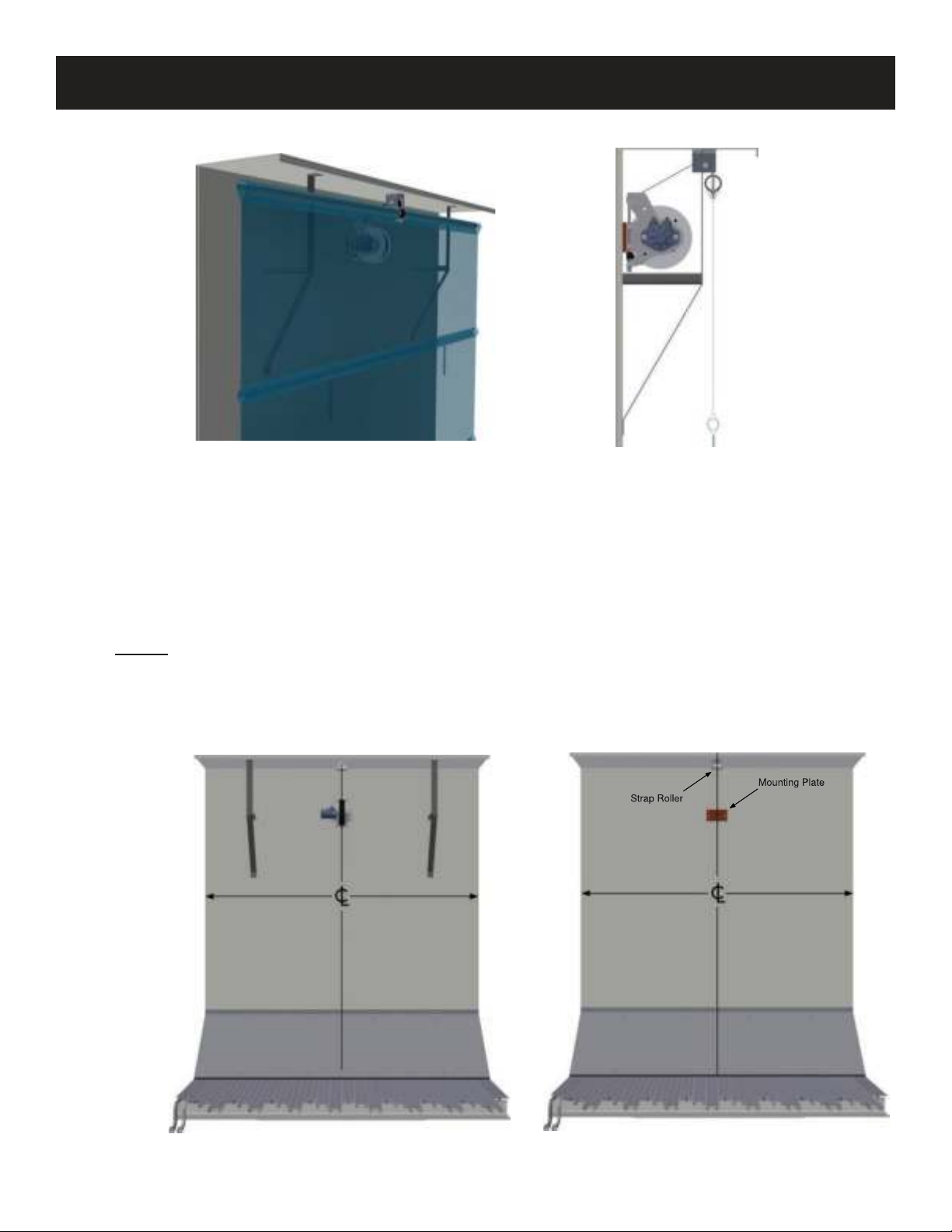

3.4.2 Option 2: High Mount - Winch near top inside of trailer, strap roller on cap plate 12
3.4.3 Option 3: Outside Mount - Winch on outside of trailer, strap roller through front wall 14
3.4.4 Option for High Density or High Flow Materials 17
3.5 Manifold Installation 18
3.6 Hydraulic Plumbing Installation 19
3.7 Hydraulic Torque Chart 20
3.8 Control Manifold Hydraulic Schematic 21
3.9 Wiring of Electrical Controls (Electric Controls Option) 22
3.10 Tarp Assembly, Installation & Adjustment 23
3.11 Tarp Modications for Bullnose Trailer 27
3.12 Tarp Modications for V-Floor Trailers 28
3.13 Optional - Tarp Catch Hooks 28

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
ii DOC03668 Rev. G
3.14 Winch Brake Adjustment - Wedge Brake 29
3.15 Winch Brake Adjustment - Spring Roller Brake 30
4.0 Operation 31
4.1 System Check - Initial Start-Up 31
4.2 Normal Operation 31
4.3 Electric System Manual Override 32
5.0 Troubleshooting 33
5.1 Check List 33
5.2 Problem / Solution - Troubleshooting 33
5.3 Adjustments & Replacements 34
5.3.1 Strap Replacement 34
6.0 Parts Catalog 35
Winch Assembly (2015 - 2022) 35
Winch Assembly (Pre 2015) 37
Hydraulic Manifold Assembly 39
Strap Roller Assembly 41
Tarp & Misc Components 43
7.0 Technical Support 44
8.0 Contact Information - KEITH Manufacturing Co. 44
Operating
Instructions

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
iii DOC03668 Rev. G
Introduction
This manual explains procedures for installing and operating the KEITH®Hydraulic CleenSweep®Tarp System.
Many variables a󰀨ect the installation, but the general process remains constant. Details of the installation vary,
according to trailer features and installer preferences.
An e󰀩cient installation requires appropriate tools and accessible materials that are not supplied with this kit.
(This kit does not include any hoses.) A list of needed tools and required materials is supplied.
It is strongly recommended that the installers and operators read this entire manual before beginning
the installation or operating of the system.
Please direct any questions to KEITH Manufacturing Co., one of our international o󰀩ces listed in the contact
information section of this manual, or on our website.
WARNING: Always disconnect hydraulic and electric power to the trailer and follow lock out/tag
out safety procedures before entering the trailer or working on the CleenSweep®Tarp System
components. Failure to do so may result in serious injury or death due to the large forces involved
with the CleenSweep®Tarp System.
IMPORTANT: Installing the CleenSweep®Tarp System requires some alterations to your trailer. Changes
made without the approval of the trailer manufacturer may void the trailer’s warranty.

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
iv DOC03668 Rev. G
CleenSweep®Tarp System Limited Warranty
This CleenSweep®Tarp System is warranted to the original purchaser to be free from defects in material and
workmanship under normal use for a period of one year from the date of purchase. During the warranty period,
and upon proof of purchase, the CleenSweep®Tarp System will be repaired or replaced with the same or similar
model.
IT IS EXPRESSLY AGREED THAT THIS SHALL BE THE SOLE AND EXCLUSIVE REMEDY OF
THE BUYER. UNDER NO CIRCUMSTANCES SHALL KEITH MANUFACTURING CO. BE LIABLE
FOR ANY COSTS, LOSS, EXPENSE, DAMAGE, SPECIAL DAMAGES, INCIDENTAL DAMAGES,
OR CONSEQUENTIAL DAMAGES ARISING DIRECTLY OR INDIRECTLY FROM THE USE OF THE
CLEENSWEEP TARP SYSTEM. WHETHER BASED UPON WARRANTY, CONTRACT NEGLIGENCE
OR STRICT LIABILITY.
THE WARRANTY AND LIMITS OF LIABILITY CONTAINED HEREIN ARE IN PLACE OF ALL OTHER
WARRANTIES AND LIABILITIES, EXPRESSED OR IMPLIED. ALL IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED
BY KEITH MANUFACTURING CO. AND EXCLUDED FROM THIS WARRANTY. FURTHER, KEITH
MANUFACTURING CO. DOES NOT WARRANT THAT THE CLEENSWEEP TARP SYSTEM COMPLIES
WITH LOCAL, MUNICIPAL, STATE OR FEDERAL CODES, IF ANY AND THE BUYER ALONE IS
RESPONSIBLE FOR ANY KNOWLEDGE OF ANY COMPLIANCE WITH ANY SUCH CODES.
This warranty shall not apply to any parts that; (a) have been repaired or altered outside of the CleenSweep®
Tarp System; (b) have been subjected to misuse, negligence or accident; or (c) have been used or installed in a
manner contrary to CleenSweep®Tarp System instructions.
In certain circumstances some states do not allow the exclusion or limitation of incidental damages, some or all
of the above limitations or exclusions may not apply to you. This warranty gives you specic legal rights and you
may have other rights that vary from state to state.
If this warranty violates law: To the extent any provision of this warranty contravenes the law of any jurisdiction,
that provision shall be inapplicable in such jurisdiction and the remainder of the warranty shall not be a󰀨ected
thereby.
Notice: To validate all warranties, a warranty registration card must be completed and returned to KEITH
Manufacturing Co. within ten days of purchase. If you did not receive a warranty registration card, contact
your dealer immediately.

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
v DOC03668 Rev. G
Warranty Registration Card
Note: To validate the warranty, the registration information must be lled out completely and returned to KEITH
within ten (10) days of purchase and/or installation.
Please ll out the Warranty Registration form on our website at www.KeithWalkingFloor.com or ll out the
Warranty Registration Card below and mail or email it to:
KEITH Manufacturing Co.
P.O. Box 1
Madras, OR 97741-0001
[e-mail]
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
This warranty registration card must be completed and on le at KEITH in order for the warranty period to
begin on the purchase date. If no purchase date is registered, the beginning of the warranty will automatically
revert to the manufacture date.
Name / Company Name: ___________________________________________________________________
Address: ________________________________________________________________________________
City, State / Prov.: _____________________________________________ Postal Code: ________________
Country:________________________________________________________________________________
Phone: _________________________________________________________________________________
E-Mail: _________________________________________________________________________________
SYSTEM DATA:
Date of Purchase: ________________________________________________________________________
Model / Serial Number: ____________________________________________________________________
Purchased From: ________________________________________________________________________
Type of Material Loaded/Unloaded: __________________________________________________________
I have fully read the KEITH Manufacturing Co. warranty information and fully understand and agree to the
terms of the warranty.
Name: _______________________________ Date: __________ Signature: __________________________

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
1 DOC03668 Rev. G
1.0 Safety
1.1 General Safety
1.1.1 Intended Function and Expected Use:
1.1.1.1. The KEITH®CleenSweep®system is a winch system primarily intended to restage clean
out systems used in live oor trailers. The system is supplied as a kit primarily intended
for installation into mobile trailers or truck bodies. It is powered by either a hydraulic
motor or an electric motor. The basic system is controlled by a mechanically-actuated pull
valve or an electric push button. The system is compatible with options and accessories
to improve performance. For example, it can be electrically controlled by hardwired or
wireless remote.
1.1.2 Improper Use
1.1.2.1. This equipment has been manufactured utilizing state-of-the-art technology in accordance
with acknowledged safety regulations. Nevertheless, dangerous situations could arise
from improper use, which could endanger life and limbs of personnel and cause damage
to the equipment and other assets. This equipment may only be used for its intended
purpose. It may only be operated in impeccable technical condition and in accordance
with the proper use and this user manual. Problems, which could a󰀨ect safety, must
be resolved immediately. The manufacturer is not liable for any damage caused by
improper use or arbitrary modications. The installation, commissioning, operation, and
maintenance instructions must be followed as outlined in this manual.
1.1.2.2. Personnel must not enter the danger zone(s) when the system is enabled. Specically,
nobody should be inside, under, or behind the trailer in the unloading zone during
operation. Additionally, no one should be in a full or lling trailer. Lock-out and tag-out
procedures must be followed before accessing the drive area.
1.1.2.3. The hydraulic power source must not exceed the pressure and ow ratings. A relief valve
is installed for the CleenSweep®system, but a relief valve should be installed for the
overall system to ensure the maximum pressure is not exceeded.
1.1.2.4. Control circuitry must not be altered or bypassed.
1.1.2.5. Safeguards must not be altered or bypassed.
1.1.2.6. The user and system designer must understand the characteristics and safe handling
requirements of the material that is being conveyed.
1.1.2.7. Bulk materials are by nature unstable and owable. Avoid burial by avoiding contact with
the material.
1.1.3 Training
1.1.3.1. Operators must read and understand this manual before operating or maintaining the
machine. Only qualied, trained personnel may execute commissioning, operation, and
maintenance of the system.

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
2 DOC03668 Rev. G
1.1.4 Personal Protective Equipment
1.1.4.1. Always wear protective equipment appropriate for risks associated with each phase of
the system’s life, including transportation, installation, assembly, operation, inspection,
maintenance, and dismantling, disabling, and scrapping. As a minimum, this includes the
following personal protective equipment:
• Safety Glasses • Protective/Traction Shoes
• Gloves • Welding/Grinding Protection
• Helmets • Thermal Protection (i.e. Coats)
• Hearing Protection
1.1.5 Hydraulic Oil Safety
1.1.5.1. See the Material Safety Data Sheet (MSDS) for the oil used in your system for further
information about hydraulic oil safety.
1.1.5.2. In an accident involving high pressure equipment, hydraulic oil may be injected under
the skin. Such an accident may result in a small, sometimes bloodless, puncture wound.
However, due to the system’s driving force, material injected into a  ngertip can be
deposited into the palm of the hand. Within 24 hours, there is usually a great deal of
swelling, discoloration, and intense throbbing pain. Immediate treatment at a surgical
emergency center is recommended.
1.1.5.3. Do not use high pressure systems in the vicinity of ames, sparks, and hot surfaces. Use
only in well ventilated areas.
1.1.5.4. Use only designated appropriate ll and drain ports for the oil.
1.2 Design / Installation Safety
1.2.1 Electric Components and Installation
1.2.1.1. KEITH recommends connecting to earth ground (whenever possible).
1.2.1.2. Wiring must be connected consistent with local codes and regulations, including
electromagnetic interference regulations.
1.2.1.3. Adequate electric overcurrent protection must be provided.
1.2.2 Hydraulics
1.2.2.1. Hydraulic piping and components must be constructed of materials that are rated for
system pressures, and must be installed with best industry practices. Follow all pipe,
tubing, tting, and hose manufacturer installation and routing guidelines.
1.2.2.2. Hydraulic piping should be supported and isolated from vibration. Contact KEITH for
recommendations on installation.
1.2.2.3. Place protective shrouds around the hydraulic tubing in any areas that may have
operators or people frequently nearby.
1.2.3 Controls
1.2.3.1. The control panel must be located such that it is easily accessible for all sizes and
capacities of people, and allows the operator to move freely (whenever applicable).
1.2.3.2. Control devices must be located outside of danger zones, such that any exposed persons
in danger zones are visible from the control station.
1.2.3.3. An acceptable means must be provided to monitor the status and movement of the load.

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
3 DOC03668 Rev. G
1.3 Marking of Machinery
1.3.1 Safety Decals

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
4 DOC03668 Rev. G
Worded
Old - 2019
Wordless
2020 - Future Description
Hydraulic pressure can cause serious injury. Stay
clear during operation. Lockout/tagout before
servicing.
Hot surface can cause severe burns. Do
not touch. Turn o󰀨 and lock out main power
disconnect and allow to cool before servicing.
Rotating parts and shaft can cut or entangle
causing serious injury. Stay clear when in
operation. Lockout/tagout before servicing.
* Some or all of these safety decals may apply and be adhered to this system.
2.0 Specications
2.1 System
CleenSweep®Hydraulic
Dimensions 12”W x 10.75”H x 9.75”D [305 mm x 273 mm x 248 mm]
Weight 25 lbs [11 kg]
Operating Temperature -10-…120 F [-23…50 C]
Hydraulic Pressure into Manifold 3000 psi [207 bar] Max
Flow Rate into the Manifold 60 gpm [227 lpm] Max
Recommended Hydraulic Pressure into Winch 1800 psi [124 bar]
Recommended Flow Rate into Winch 2.5 gpm [9.5 lpm] or 5.0 gpm [19 lpm]
* Operating pressure and ow rate are determined by the specications for the manifold valving.

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
5 DOC03668 Rev. G
2.2 Component Identication
Strap Roller
Tarp Pipe
Metal Cap Not shown
Front Bulkhead
Wall of Trailer
Winch Assembly
Front Slope Shield
Floor Slats
Tarp Assembly
Hydraulic
Manifold

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
6 DOC03668 Rev. G
3.0 Installation
3.1 Tools
Tools Needed Where Used
End wrenches: Metric
Ratcheting driver Metric
Hex (Allen) wrenches
Power Drill & Drills:
3/8” [9.5 mm] Tarp top pipe for U-bolt attachment
7/16” [11 mm] Mounting winch, strap roller, manifold bracket (opt. – may be welded on)
1-1/4” [32 mm] hole saw (optional) Manual valve clearance hole through trailer wall (if manifold is mounted
below front shield)
Welding equipment (optional) Mounting manifold bracket, winch mounting plate, strap roller bracket
(may be bolted on)
Cutting tools (optional) Cutting access panels in trailer wall or front shield (if necessary)

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
7 DOC03668 Rev. G
3.2 Materials Needed
Materials - Not Supplied by Keith
MATERIAL WHERE USED
Hoses/tubing:* *Hose/tube lengths will vary depending on installation
-6 (3/8”) [10 mm] hose/tube with Female
-6 (3/8”) 37º JIC (ISO 8434-2) each end
MANIFOLD – TO – WINCH MOTOR: PRESSURE
WINCH MOTOR – TO – MANIFOLD: RETURN
-16 (1”) [25 mm] hose/tube with female
-16 (1”) 37º JIC (ISO 8434-2) tting on manifold end
PUMP – TO – MANIFOLD
MANIFOLD – TO – DRIVE: PRESSURE
DRIVE – TO – MANIFOLD: RETURN
MANIFOLD – TO – TANK
Fittings:* *Required ttings will vary depending on installation
Hose/tube clamps:* *Required clamps will vary depending on installation
Fasteners:* *Fastener lengths and required quantities will vary
depending on installation
3/8” [M10] bolts, nuts, washers, locking nuts (or plain
nuts w/locking washers)
Mounting strap roller (3 each) and manifold bracket (2
each); use grade 5 (class 8.8) or stronger fasteners.
1/2” [M12] bolts, nuts, washers, locking nuts (or plain
nuts w/locking washers)
Mounting winch (2 each); use grade 8 (class 10.9) or
stronger fasteners.
Rivets Securing tarp to pipe/UHMW strips
Flanged button head or dome head bolts, at
washers and nylock nuts Securing tarp to UHMW strips
Recommended Tarp Sti󰀨eners:
2” [50 mm] diameter lightweight metal conduit pipe Top pipe (1); Length: 2” [50 mm] shorter than trailer
interior width
1-1/2” [40 mm] diameter lightweight metal conduit
pipes
-or-
1/4” x 3” [6 mm x 76 mm] UHMW plastic strips
Middle pipes or strips (2); Length: 2” [50 mm] shorter
than trailer interior width
Wiring:* Wiring length will vary depending on installation
14 AWG 2-conductor Electric-controlled systems
* Hose lengths and tubing bends and lengths will vary depending on the manifold and winch mounting
locations and therefore should not be fabricated until the winch and manifold are mounted and measurements
can be taken. Additional ttings (elbows, reducers, adapters, etc…) may be required depending on the
particular installation.

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
8 DOC03668 Rev. G
3.3 Winch & Strap Roller Mounting Position Options
Guide Rails - short
Winch
Metal Cap
Strap Roller - attached
to metal cap
Winch
Strap Roller - attached to top
of front wall or on metal cap
Winch - under slope shield
Strap Roller - through
top of front wall
Low Mount
Outside Mount
High Mount

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
9 DOC03668 Rev. G
WARNING: Always disconnect hydraulic and electric power to the trailer and follow lock out/tag
out safety procedures before entering the trailer or working on the CleenSweep®Tarp System
components. Failure to do so may result in serious injury or death due to the large forces involved
with the CleenSweep®Tarp System.
3.4 Hydraulic Winch & Strap Roller Installation
3.4.1 Option 1: Low Mount - Winch below front slope shield, strap roller near top of wall
Low Mount - (Winch and manifold mounted below the front shield) Requires the use of the strap roller
assembly mounted near the top center of the front wall.
3.4.1.1. Winch Installation Below Slope Shield
NOTE: Front wall of trailer may need to be reinforced to withstand the forces created by the winch.
1. Locate and mark a centerline up the front wall of the trailer. NOTE: It is crucial that strap
roller and the roll of strap on the winch is mounted in the absolute center of the trailer. If the
winch is not mounted square, it will put uneven pressure on the tarp strap and the system
will not function properly.

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
10 DOC03668 Rev. G

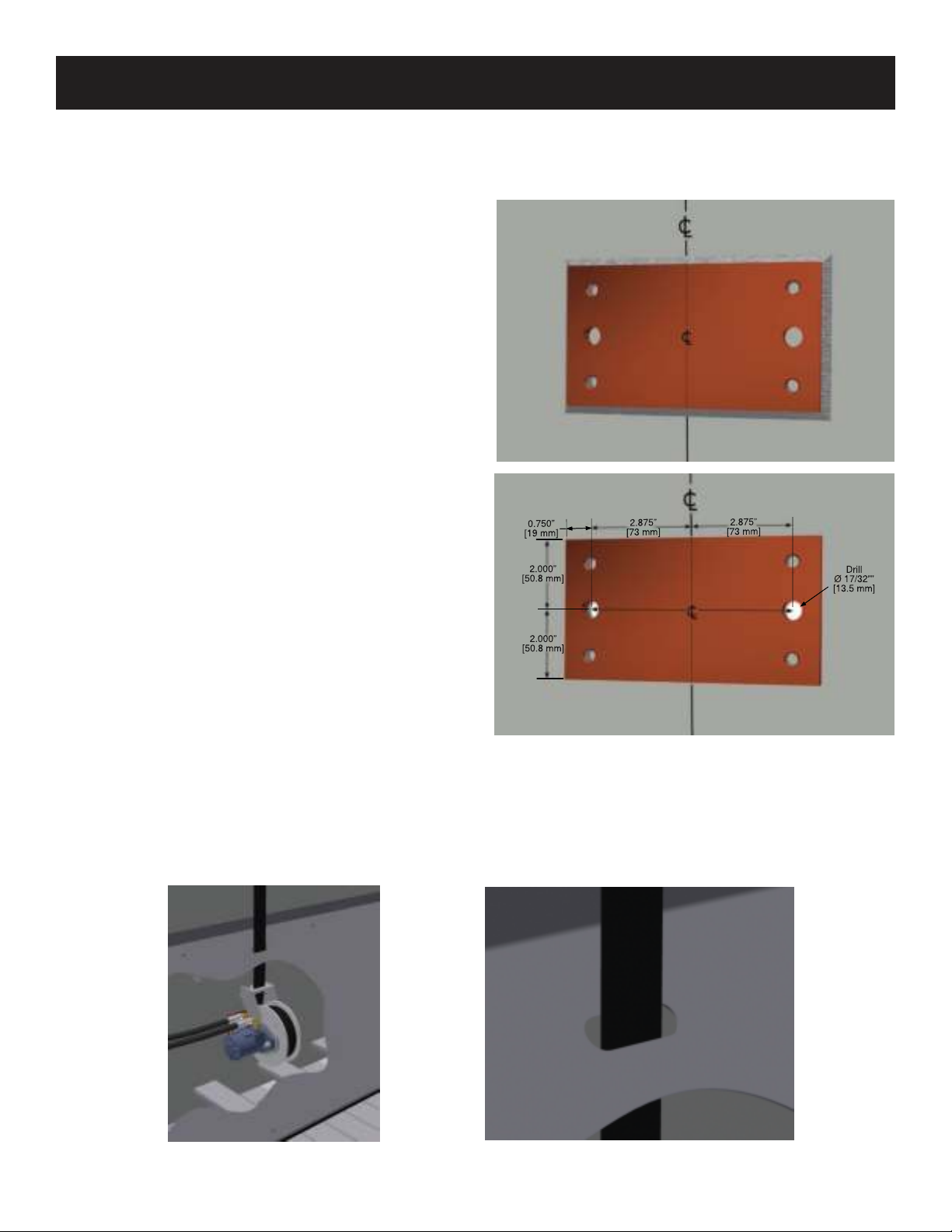

2. The winch must not interfere with the operation of the oor slats, and there should be a 1” [25mm]
minimum clearance between the winch and slats. Ensure all moving parts of the winch and oor have
adequate clearance. Measure 4” [102 mm] up from the top of the oor slats to locate the bottom of the
mounting plate.
A. WELD ATTACHMENT: Remove the
winch mounting plate from the winch
assembly, center on the front wall and
weld. Then re-attach winch assembly to
mounting plate using the (4) M10 bolts.
B. BOLT ATTACHMENT: Transfer the
winch mounting plate mounting bolt hole
pattern to the wall and drill (2) 17/32” [13
mm] bolt clearance holes. Then attach
the entire winch assembly to the trailer
wall using (2) 1/2” grade 8+ [M12 class
10.9+] locking fasteners (not included).
3. Front shield modication: It is recommended that the front shield be hinged or tted with a door/panel
to gain access to the winch after it is installed to facilitate adjustment, inspection and maintenance.
4. A slot must be cut through the front shield for the strap to pass through. The slot must be centered
along the path of the strap from the winch to the strap roller assembly and all sharp edges removed or
covered to prevent damage to the strap. Maintain at least 1/2” [13 mm] clearance all around the strap.

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
11 DOC03668 Rev. G

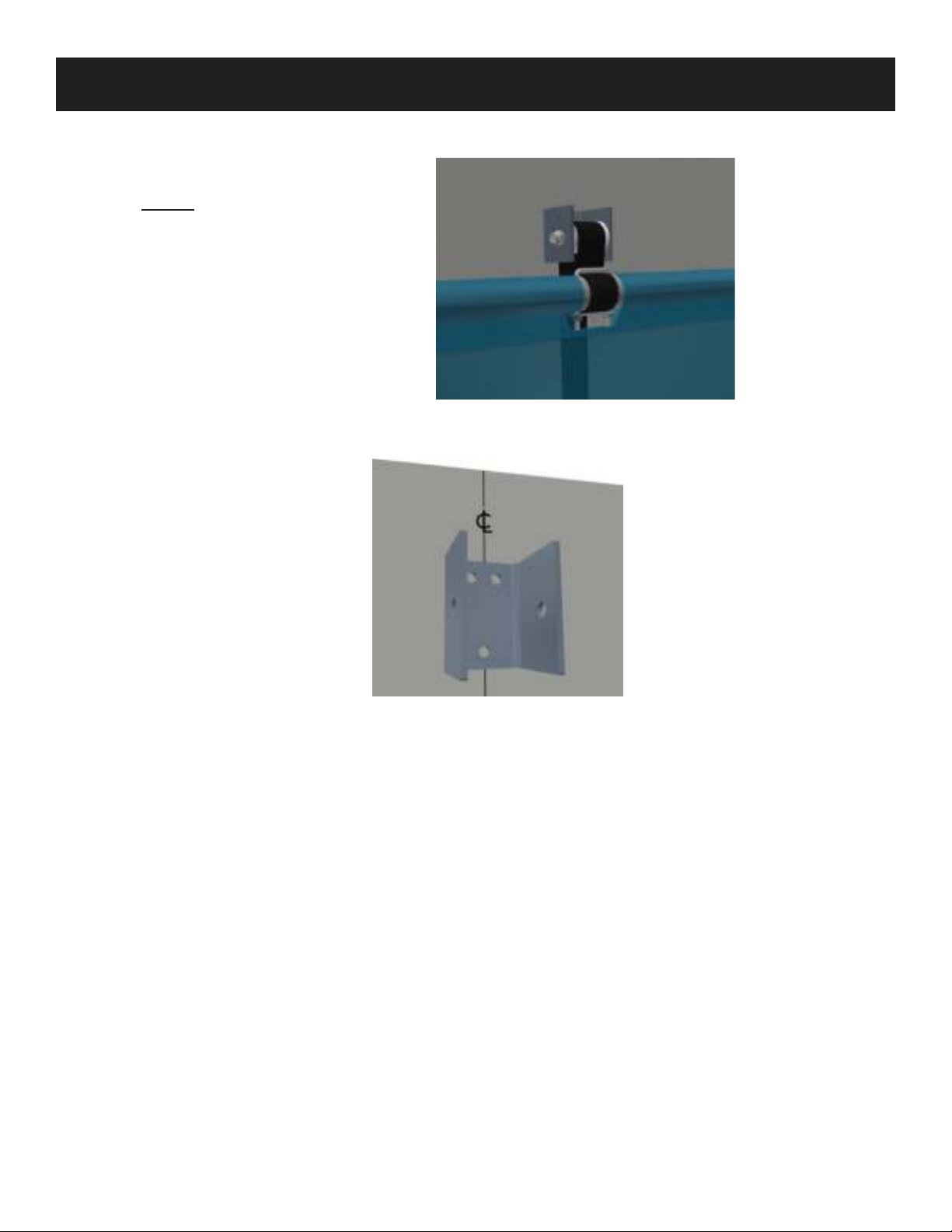

3.4.1.2. Strap Roller Assembly Installation Inside Trailer Near Top of Front Wall
NOTE: Front wall of the trailer may
need to be reinforced to withstand
the forces created by the winch.
1. Locate the centerline at the top of the front wall of the trailer.
2. Measure down a minimum of 1-1/2” [38 mm] from the top to locate the strap roller mounting bracket.
3. Center the strap roller bracket with the two mounting holes toward the top of the wall and weld
in place or transfer the strap roller bracket bolt pattern to the wall and drill (3) 7/16” [11 mm] bolt
clearance holes.
4. Attach the strap roller to the front wall using (3) 3/8” grade 5+ [M10 class 8.8+] locking fasteners.

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
12 DOC03668 Rev. G
3.4.2 Option 2: High Mount - Winch near top inside of trailer, strap roller on cap plate
High Mount - Guide rails and a metal cap plate (not supplied by KEITH Manufacturing Co.) can be installed
to allow the tarp to be pulled up higher in the front of the trailer. Doing so will reduce the possibility of
material getting behind the tarp. A strap roller assembly is required, because the angle of the strap needs
to change direction from vertical to horizontal when the tarp is fully extended. Mount the winch near the
top center of the front wall of the trailer. The winch should be mounted with the strap up. Ensure all moving
parts of the winch have adequate clearance.
3.4.2.1. Winch Installation Inside Trailer Near Top of Front Wall
NOTE: Front wall of trailer may need to be reinforced to withstand the forces created by the winch.
1. Locate and mark a centerline up the front wall of the trailer. NOTE: It is crucial that strap roller
and the roll of strap on the winch is mounted in the absolute center of the trailer. If the winch is
not mounted square, it will put uneven pressure on the tarp strap and the system will not function
properly.
Bulkhead Wall

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
13 DOC03668 Rev. G
A. WELD ATTACHMENT: Remove the winch
mounting plate from the winch assembly, center
on the front wall and weld. Then re-attach winch
assembly to mounting plate using the (4) M10
bolts.
B. BOLT ATTACHMENT: Transfer the winch
mounting plate mounting bolt hole pattern to the
wall and drill (2) 17/32” [13 mm] bolt clearance
holes. Then attach the entire winch assembly to
the trailer wall using (2) 1/2” grade 8+ [M12 class
10.9+] locking fasteners (not included).
3.4.2.2. Strap Roller Assembly Installation on Metal Cap Plate
NOTE: Front wall of the trailer
and cap plate may need to be
reinforced to withstand the forces
created by the winch.
1. Locate and mark the centerline of the cap plate.
2. Locate the strap roller bracket far enough out from the front wall so that the tarp will hang straight
down along the outside of the tarp guide rails when it is fully retracted. (See image)
3. Center the strap roller bracket with the two mounting holes toward the rear of the trailer and weld
in place or transfer the strap roller bracket bolt pattern to the wall and drill (3) 7/16” [11 mm] bolt
clearance holes.
4. Attach the strap roller to the cap plate using (3) 3/8” grade 5+ [M10 class 8.8+] locking fasteners.
Metal Cap
Front Trailer
Bulkhead Wall

INSTALLATION / OPERATION & PARTS CATALOG CleenSweep®Hydraulic - CSH
14 DOC03668 Rev. G
Ensure all moving parts of the winch and oor have adequate clearance.
3.4.3 Option 3: Outside Mount - Winch on outside of trailer, strap roller through front wall
Outside Mount - (Winch mounted on the outside of the front trailer wall) Requires the use of the strap roller
assembly mounted in a hole cut through the front wall near the top center.
3.4.3.1. Winch Installation Outside of Front Trailer Wall
NOTE: Front wall of trailer may need to be reinforced to withstand the forces created by the winch.
1. Locate and mark a centerline up the front wall of the trailer. NOTE: It is crucial that strap roller
and the roll of strap on the winch is mounted in the absolute center of the trailer. If the winch is
not mounted square, it will put uneven pressure on the tarp strap and the system will not function
properly.
