woodmizer BMT 150-1 Guide

Wood-Mizer®Toothsetter
Safety, Operation, Maintenance
& Parts Manual
BMT 150-1 Rev. A1.00
Safety is our #1 concern! Read and understand
all safety information and instructions before
operating, setting up or maintaining this machine.
Form # 150
!

2 doc061818 Table of Contents
Table of Contents Section - Page
General Contact Information
Branches & Authorized Sales CentersWood-Mizer Locations (North and South America)
SECTION 1 INTRODUCTION 1-1
1.1 About This Manual.................................................................................................... 1-1
SECTION 2 GENERAL INFORMATION 2-1
2.1 Safety......................................................................................................................... 2-1
2.2 Component ID ........................................................................................................... 2-5
2.3 Dimensions and Specifications..................................................................................2-6
SECTION 3 OVERVIEW 3-1
3.1 Toothsetter Introduction............................................................................................3-1
3.2 Deburring The Blade................................................................................................. 3-2
SECTION 4 SETUP 4-1
4.1 Toothsetter Mount.....................................................................................................4-1
4.2 Blade Support Installation......................................................................................... 4-1
4.3 Gauge Calibration...................................................................................................... 4-3
SECTION 5 OPERATION 5-1
5.1 Blade Installation....................................................................................................... 5-1
5.2 Toothsetter Adjustment and Operation .....................................................................5-2
SECTION 6 MAINTENANCE 6-1
6.1 Toothsetter Maintenance...........................................................................................6-1

Table of Contents Section - Page
Table of Contents doc061818 3
SECTION 7 REPLACEMENT PARTS 7-1
7.1 How To Use The Parts List....................................................................................... 7-1
7.2 Sample Assembly...................................................................................................... 7-1
7.3 Toothsetter ............................................................................................................. 7-2
7.4 Blade Support Arm ................................................................................................7-3
7.5 Toothsetter Without Base & Blade Support Arms ................................................ 7-4
7.6 Front Clamp Assembly ...........................................................................................7-6
7.7 Rear Clamp Assembly ........................................................................................... 7-7
7.8 Right Front Clamp Assembly ................................................................................ 7-9
7.9 Rear Clamp Assembly ...........................................................................................7-10
7.10 Infeed Blade Guide ..............................................................................................7-11
7.11 Outfeed Blade Guide ...........................................................................................7-12
7.12 Blade Adjuster Assembly ..................................................................................7-13
7.13 Decals......................................................................................................................7-14

General Contact Information
-4 doc061818
Getting Service
Wood-Mizer is committed to providing you with the latest technology, best quality and strongest
customer service available on the market today. We continually evaluate our customers’ needs to
ensure we’re meeting current wood-processing demands. Your comments and suggestions are
welcome.
General Contact Information
From Europe call your local distributor or our European Headquarters and Manufacturing Facility in
Koło, Nagórna 114 St, Poland at [phone]. From the continental U.S., call our U.S.
Headquarter 8180 West 10th St.Indianapolis, IN 46214, toll-free at 1-800-525-8100. Ask to speak
with a Customer Service Representative. Please have your machine identification number and your
customer number ready when you call. The Service Representative can help you with questions
about the operation and maintenance of your machine. He also can schedule you for a service call.
Office Hours:
Please have your vehicle identification number and your customer number ready when you call.
Wood-Mizer will accept these methods of payment:
Visa, Mastercard, or Discover
COD
Prepayment
Net 15 (with approved credit)
Be aware that shipping and handling charges may apply. Handling charges are based on size and
quantity of order.
Technical data are subject to change without prior notice.
Actual product may differ from product images. Some illustrations show machines with optional
equipment.
Country Monday - Friday Saturday Sunday
Poland 7 a.m.- 3 p.m. Closed Closed
US 8 a.m.- 5 p.m. 8 a.m.- 12 p.m Closed

Branches & Authorized Sales CentersWood-Mizer Locations (North and South America)
doc061818 -5
Branches & Authorized Sales CentersWood-Mizer Locations (North and South America)
EUROPE UNITED STATES
European Headquarters
Wood-Mizer Industries Sp. z o.o.
Nagórna 114, 62-600 Koło, Poland
Tel.: [phone]
Fax: [phone]
www.woodmizer.eu
World Headquarters
Wood-Mizer LLC
8180 West 10th Street
Indianapolis,Indiana 46214-2400,
USA
Tel.: [phone]
Fax: [phone]
www.woodmizer.com
BELARUS
MOST-GRUPP
Siemashko 15, k.3
Minsk 2200116
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
SWITZERLAND Stefan Wespi
Maschinen u. Geräte
Spezialarbeiten GmbH
Eichistraße 4
6353 Weggis
Tel.: +41-(0)41 - 3900312
GSM: +41-(0)79 - 9643594
[email protected]
RUSSIA Dariusz Mikołajewski
OOO WOOD-MIZER INDUSTRIES
141031, Moscow
Reg., Mytishenski raj., pos. Veshki,
Zavodskaja str., 3B
Tel.Fax: [phone]
Tel.Fax: [phone]
e-mail: [email protected]
BULGARIA Kalin Simeonov
Ecotechproduct
38 Star Lozenski pat str.
Sofia 1186
Tel.: [phone]
Tel.: [phone]
Tel:/Fax
: [phone]
Kalin Simeonov
GSM: [phone]
e-mail: [email protected]
HUNGARY Wiktor Turoczy
Wood-Mizer Hungary K.F.T.
Szonyi Ut 67., 2921 Komárom
Tel.:/Fax: [phone]
e-mail: [email protected]
RUSSIA Far East Wladimir Głazaczew
“WM Service”
Krasnoretchenskaya Str.111
680006 Khabarovsk
Tel.:/Fax: [phone]
e-mail: [email protected]

Branches & Authorized Sales CentersWood-Mizer Locations (North and South America)
-6 doc061818
CROATIA Krešimir Pregernik
Pregimex d.o.o.
S. Batušiæa 31, 10090 Zagreb
Tel.:/Fax: [phone]
Krešimir Pregernik
GSM: [phone]
e-mail: [email protected]
ITALY Pasquale Felice
Wood-Mizer Italia Srl
Cda. Capoiaccio SN
86012 Cercemaggiore
Campobasso
Tel.:/Fax: [phone]
GSM: [phone]
e-mail: [email protected]
SERBIA Dragan Markov
Wood-Mizer Balkan d.o.o.
Svetosavska GA 3/3; P. Fah 25
23 300 Kikinda
Tel.:/Fax: [phone]
Tel.:/Fax: [phone]
GSM: [phone]
e-mail: [email protected]
CZECH REPUBLIC Miroslaw Greill
Wood-Mizer CZ s.r.o.
Osvaldova 91
339 01 Klatovy-Luby
Tel.:/Fax: [phone]
Fax: [phone]
Miroslaw Greill
GSM: [phone]
e-mail: [email protected]
SLOVAKIA Wiktor Turoczy
Wood-Mizer Danubia s.r.o.
Hadovce 5, 94501 Komárno
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
CZECH REPUBLIC Lubomir Kudlik
Wood-Mizer Moravia
Sovadinova 6
69002 Breclav
Tel.:/Fax: [phone]
Lubomir Kudlik
GSM: [phone]
e-mail: [email protected]
LATVIA Vilmars Jansons
OBERTS Ltd
Gaujas str. 32/2
LV-2167 Marupe, Rigas Raj.
Tel.: [phone]
Fax: [phone]
Vilmars Jansons
GSM: [phone]
Andris Orols
GSM: [phone]
e-mail: [email protected]
TURKEY
Er-Ka Ahsap Profil Kerestecilik San.
ve Tic. Ltd. Sti.
Adana Keresteciler Sitesi 191 sk No.41
ADANA
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
FINLAND Howard Blackbourn
Oy Falkberg Jordbruk Ab
Falkintie 220
25610 Ylonkyla
Tel.: [phone]
Fax: [phone]
Howard Blackbourn
GSM: [phone]
e-mail: [email protected]
LITHUANIA Andrius Zuzevicius
UAB Singlis
Savanoriu pr. 187, 2053 Vilnius
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
Dmitrij Gaiduk
GSM: [phone]
e-mail: [email protected]
UKRAINE Ivan Vinnicki
MOST UKRAINA
bul. Myru 3, Bajkivtsi Ternoplskyj r-j
Ternopolska oblast
47711 Ukraine
Tel/Fax: [phone]
GSM: [phone]
GSM: [phone]
E-mail: [email protected]
FRANCE Tizoc Chavez
Wood-Mizer France
556 chemin des Embouffus,
ZAC des Basses Echarrieres
38440 SAINT JEAN DE BOURNAY
Tel: [phone]
GSM: [phone]
Mail: [email protected]
NORWAY Odd Edvoll
Wood-Mizer Nordic AS
Vardelia 17, 2020 Skedsmokorset
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
e-mail: [email protected]
UNITED KINGDOM & IRELAND
Wood-Mizer UK
Hopfield Barn
Kenward Road, Yalding
Kent ME18 6JP, UK
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
SLOVENIA Jan Fale
FAMTEH d.o.o.
Gacnikova pot 2,
2390 Ravne na Koroskem
Tel.: [phone]
Fax: [phone]
Jan Fale
GSM: [phone]
e-mail: [email protected]
Matjaz Kolar
Tel.: [phone]
GSM: [phone]
e-mail: [email protected]

Branches & Authorized Sales CentersWood-Mizer Locations (North and South America)
doc061818 -7
GERMANY Klaus Longmuss
Wood-Mizer Sägewerke GmbH
Dorfstraße 5, 29485 Schletau
Tel.: [phone]
Fax: [phone]
e-mail: [email protected]
Klaus Longmuss
Tel.: [phone]
GSM: [phone]
e-mail: [email protected]
Subagent:
SWEDEN Kjell Larsson
Mekwood AB
Slingan 14, 812 41 Gästrike-Hammarby
Tel.: [phone]
Kjell Larsson
GSM: [phone]
e-mail: [email protected]
IRELAND
Wood-Mizer Ireland
Stephen Brennan
Cum Lahardane Ballina County Mayo
Tel:[phone]
E-mail: [email protected]
Subagents:
DENMARK Brian Jensen
Arnborgvej 9, 7330 Brande- Fasterholt
Tel.: [phone]
Fax: [phone]
Brian Jensen
GSM: [phone]
e-mail: [e-mail]
ROMANIA Adrian Echert
SC WOOD-MIZER RO SRL
TRANSILVANIEI Nr. 5
Sibiu, Cisnadie 555300
Tel.:/Fax: : [phone]
GSM: [phone]
e-mail: [email protected]
Regional Manager - Asia
Wood-Mizer Asia Pte Ltd.
James Wong
Tel: [phone]
Fax: [phone]
WWW: www.woodmizerasia.com
E-mail: [email protected]
Netherlands Chris Dragt
Lange Brink 77d,
7317 BD Apeldoorn
Tel.: [phone]
Fax: [phone]
e-mail: [email protected]
Subagent:
ROMANIA M. Echert
S.C. Echert Comprod s.r.l
Str. Schitului Nr. 6, Apt.7 etajul-1
725 70 Vatra Dornei, Romania
Tel.:/Fax: [phone]
Tel. : [phone]
Regional Manager - Africa
Wood-Mizer Africa
Jean-Jacques Oelofse
UNIT 3, LEADER PARK, NO: 20 CHARIOT
ROAD
STORMILL, EXT 5, Roodepoort,
Johannesburg
Tel: [phone]
Fax: [phone]
Jean-Jacques Oelofse E-mail:
[email protected]
Jean-Jacques Oelofse
Skype:jean.jacques.pierre.oelofse
USA World Headquarters Canadian Headquarters
Serving North & South America, Oceania, East Asia
Wood-Mizer LLC
8180 West 10th Street
Indianapolis, IN 46214
Phone: [phone] or 800.553.0182
Customer Service: 800.525.8100
Fax: [phone]
Email: [email protected]
Serving Canada
Wood-Mizer Canada
396 County Road 36, Unit B
Lindsay, ON K9V 4R3
Phone: [phone] or 877.357.3373
Fax: [phone]
Email: [e-mail]
Brazil Headquarters Europe Headquarters
Serving Brazil
Wood-Mizer do Brasil
Rua Dom Pedro 1, No: 205 Bairro: Sao Jose
Ivoti/RS CEP:93.900-000
Tel: [phone]/ +55 51
3563-4784
Email: [e-mail]
Serving Europe, Africa, West Asia
Wood-Mizer Industries Sp z o.o.
Nagorna 114
62-600 Kolo, Poland
Phone: [phone]
Fax: [phone]
Branches & Authorized Sales Centers
For a complete list of dealers, visit www.woodmizer.com

Introduction
About This Manual
1-1 BMT150doc061818 Introduction
1
SECTION 1 INTRODUCTION
1.1 About This Manual
This manual is to replace or to be used with all previous information received on the
Wood-Mizer®1equipment. All future mailings will be an addition to or a revision
of individual sections of this manual as we obtain new information.
The information and instructions given in this manual do not amend or extend the limited
warranties for the equipment given at the time of purchase.
This equipment is designed to work with Wood-Mizer blades only.
IMPORTANT! Read the entire Operator's Manual before operating
the equipment. Take notice of all safety warnings throughout this
manual and those posted on the equipment. Keep this manual with
this equipment at all times, regardless of ownership.
1.Wood-Mizer®is a registered trademark of Wood-Mizer Products, Inc.
!

General Information
Safety
General Information BMT150doc061818 2-1
2
SECTION 2 GENERAL INFORMATION
2.1 Safety
This symbol calls your attention to instructions concerning your personal safety. Be sure
to observe and follow these instructions. This symbol accompanies a signal word.
The word DANGER indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury. WARNING suggests a potentially hazardous situation
which, if not avoided, could result in death or serious injury. CAUTION refers to potentially
hazardous situations which, if not avoided, may result in minor or moderate injury to
persons or equipment. Read all safety instructions before operating this equipment and
observe all safety warnings!
Read and observe all safety instructions before operating this equipment! Also read any
additional manufacturer’s manuals and observe any applicable safety instructions
including dangers, warnings, and cautions.
Always be sure that all safety decals are clean and readable. Replace all damaged safety
decals to prevent personal injury or damage to the equipment. Contact your local
distributor, or call your Customer Service Representative to order more decals.
Safety instructions are listed in this section by the following operations:
Blade Handling
Machine Operation
Blade Handling
WARNING! Always wear gloves and eye protection when
handling bandsaw blades. Keep all persons away from
area when coiling or carrying a blade.
WARNING! Before installing the blade, inspect it for
damage and cracks. Always handle the blade with extreme
care. Use suitable carrier equipment for transporting the
blades.
Machine Operation
DANGER! Make sure all guards and covers are in place
and secured before operating the toothsetter. Failure to do
so may result in serious injury.

General Information
Safety
2-2 BMT150doc061818 General Information
2
DANGER! Keep all persons away from moving parts when
operating this machine. Failure to do so will result in serious
injury.
DANGER! Always keep hands away from moving bandsaw
blade. Failure to do so will result in serious injury.
WARNING! Always wear eye protection when operating
this machine. Failure to do so may result in serious injury.
WARNING! Secure all loose clothing and jewelry before
operating this machine. Failure to do so may result in
serious injury or death.
WARNING! The toothsetter should be operated only by
adults who have read and understood the entire operator’s
manuals.
WARNING! The illumination at the operator’s position
should be at least 300 lux. The light source can not cause
stroboscopic effect.

General Information
Safety
General Information BMT150doc061818 2-3
2

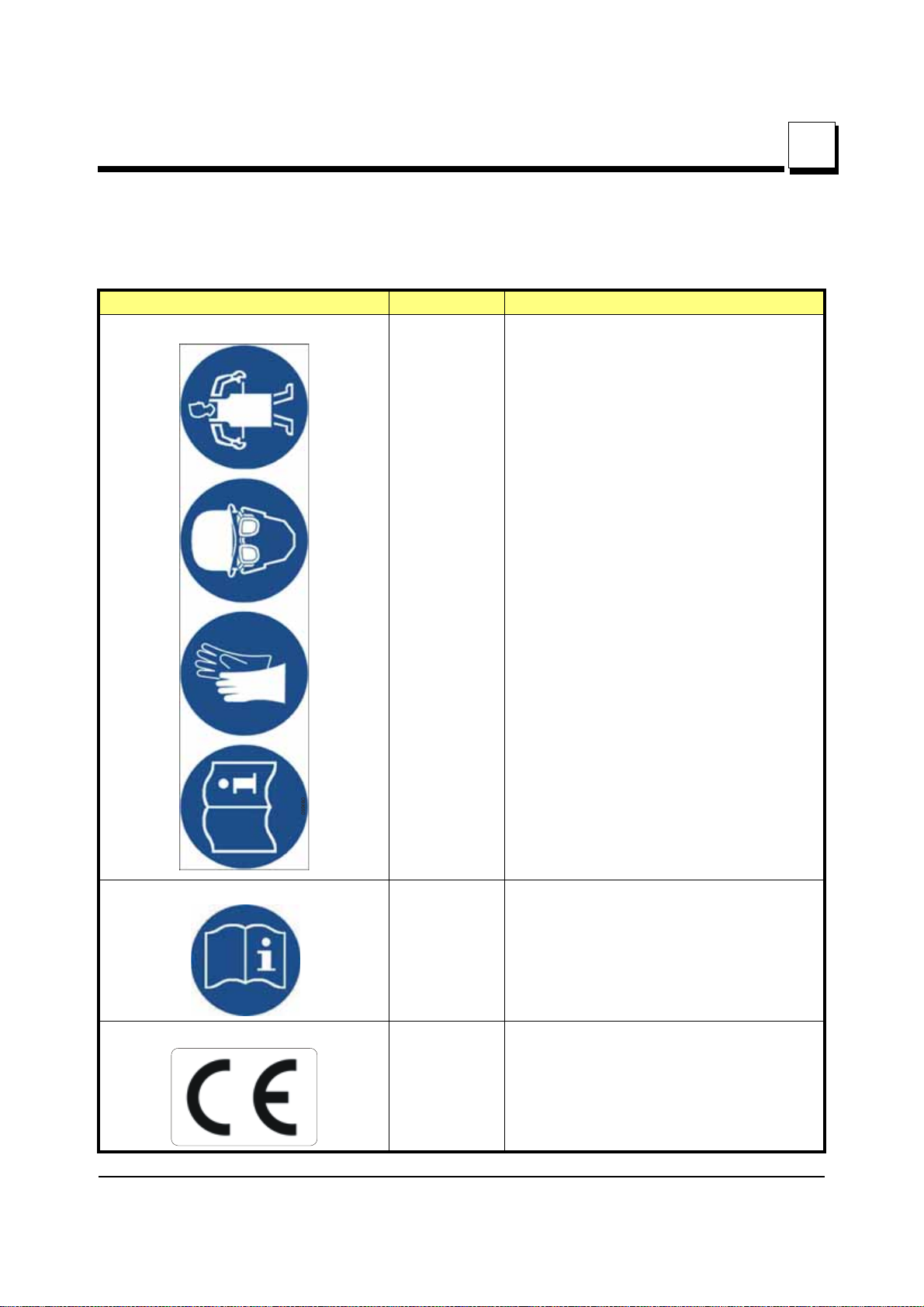

Toothsetter Decals
See Table 2-1. The Toothsetter decals are shown below.
Decal Part Number Description
069680 WARNING! Secure all loose clothing and
jewelry before operating this machine.
Failure to do so may result in serious injury
or death.
WARNING! Always wear gloves and eye
protection when handling bandsaw blades.
WARNING! Read the entire Operator's
Manual before operating the equipment.
Take notice of all safety warnings
throughout this manual and those posted on
the equipment. Keep this manual with this
equipment at all times, regardless of
ownership.
069685 WARNING! Read the entire Operator's
Manual before operating the equipment.
Take notice of all safety warnings
throughout this manual and those posted on
the equipment. Keep this manual with this
equipment at all times, regardless of
ownership.
P85070 CE Safety Certification
069685

General Information
Safety
2-4 BMT150doc061818 General Information
2
069693 DANGER! Always be aware of and take
proper protective measures against rotating
shafts, pulleys, fans, etc. Always stay a safe
distance from rotating members and make
sure that loose clothing or long hair does
not engage rotating members resulting in
possible injury.

General Information
Component ID
General Information BMT150doc061818 2-5
2
2.2 Component ID
See Figure 2-1. Major components of the toothsetter are shown below:
1. Feed/Setter Handle,
2. Index Slide,
3. Blade Rest Pins,
4. Blade Support Arms,
5. Toothset Gauge,
6. Front Clamp,
7. Blade Height Adjustment Knob,
8. Toothset Adjusters.
FIG. 2-1
BMT004-1
1
2
6
7
8
8
5
3
4

General Information
Dimensions and Specifications
2-6 BMT150doc061818 General Information
2
2.3 Dimensions and Specifications
See Figure 2-2. Dimensions of the Dual Setter are shown below.
See Table 2-2. The overall dimensions and weight are listed below.
FIG. 2-2
Length Width Height Weight
BMT150-1 42 7/8" (1089 mm) 77 3/4" (1974 mm) 20 3/4" (527 mm) lbs. ( kg)
BMT005
20 3/4”
(527 mm)
77 3/4”
(1974 mm)
3 5/8” (92 mm)
18 1/2”
(470 mm)
6 3/4” (171 mm)
17 3/4”
(450 mm)
5” (127 mm)
42 7/8”
(1089 mm)

Overview
Toothsetter Introduction
Overview BMT150doc061818 3-1
3
SECTION 3 OVERVIEW
3.1 Toothsetter Introduction
There are four steps to maintaining blades used on the Wood-Mizer sawmill. They should
ALWAYS be followed in this order:
1. Blade Cleaning
2. Sharpening
3. Deburring
4. Toothsetting
See Figure 3-1. The blades supplied by Wood-Mizer have a raker-style set in the teeth.
If you look at a blade from the top, you will see that the teeth are set (or bent out) in
a repeating sequence; straight, left and right. The teeth that are set left and right do the
cutting. The straight teeth (rakers) clear the cut of sawdust.
See Figure 3-2. As the blade is sharpened, the tip of the tooth recedes and the set
becomes smaller. Correct setting is one of the most important factors in the cutting ability
of a blade. Check used blades regularly to see if they need resetting.
FIG. 3-1
FIG. 3-2
Set Left Raker
Set Right
Set After
Sharpening Original
Set

Overview
Deburring The Blade
3
3-2 BMT150doc061818 Overview
3.2 Deburring The Blade
Sharpening leaves tiny metal burrs on the back side of the teeth. New blades also have
burrs. These burrs MUST be removed before the set is checked. If they are not removed,
they may cause the toothsetter to give false readings.
To remove burrs, take the blade from the Sharpener. Invert it, so that the inside of the
blade is facing out. Drag a stick of hardwood across the blade in the opposite direction
that the teeth cut. (Use the weld in the blade as a reference point for starting and
stopping.)
Cutting with the blade also removes burrs. If the blade you are about to set has been
used after sharpening, you will not need to deburr it. Clean the blade before removing
from the mill by running the Water Lube Option for 15 seconds. Remove the blade and
wipe dry with a rag to prevent rusting.

Setup
Toothsetter Mount
Setup BMT150doc061818 4-1
4
SECTION 4 SETUP
4.1 Toothsetter Mount
Place the setter on a table or workbench sturdy enough to support the weight of the
machine. Be sure there is enough room on either side of the setter to allow for the blade
to travel. If desired, the unit can be bolted to the table through the holes provided in the
bottom of the base frame.
4.2 Blade Support Installation

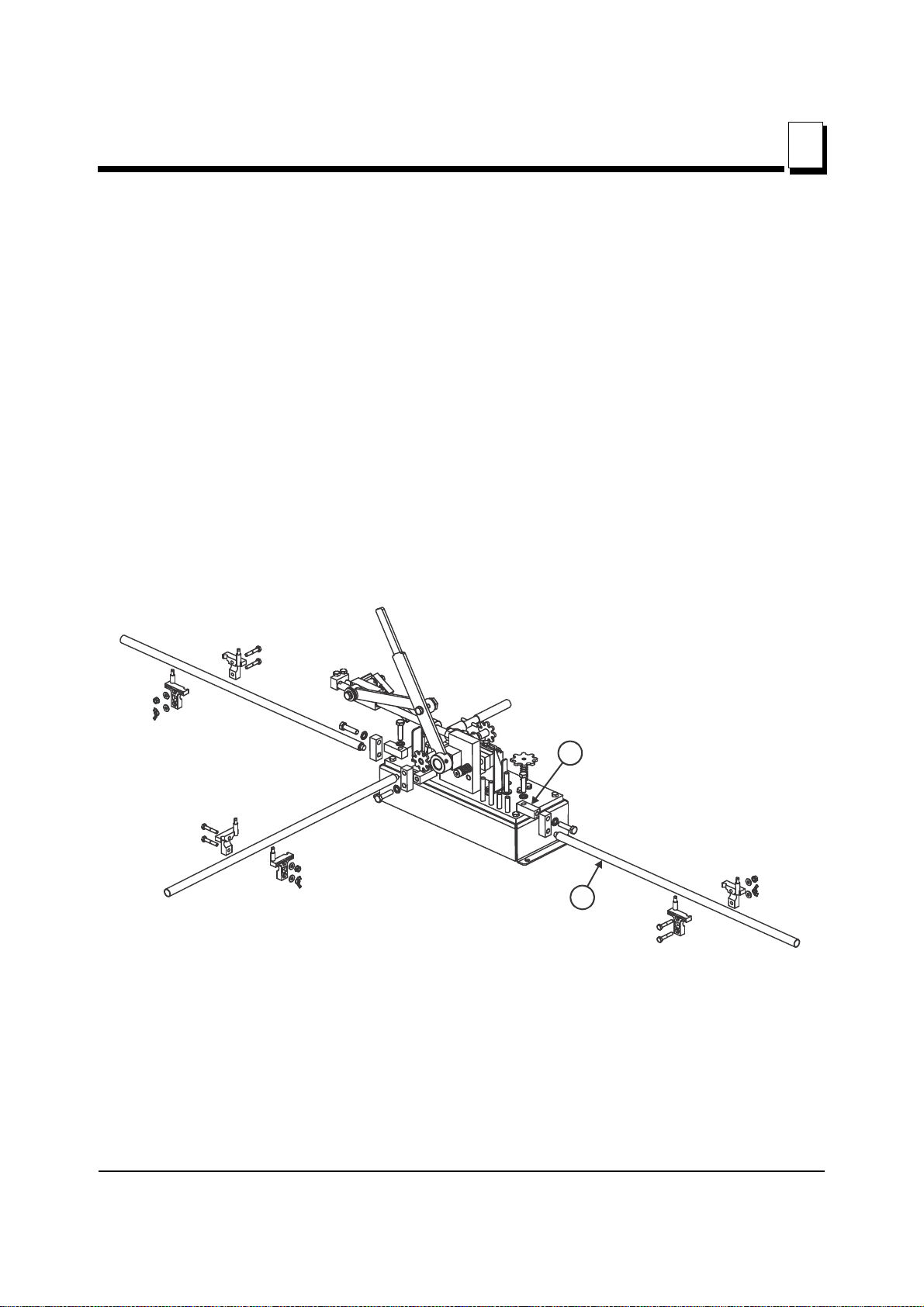

Install the threaded blade arm mounting blocks (1) to the toothsetter. Attach the three
blade support arms (2) to the mounting blocks.
See Figure 4-1.
FIG. 4-1 BMT150-1
BMT004-2
1
2

Setup
Blade Support Installation
4
4-2 BMT150doc061818 Setup

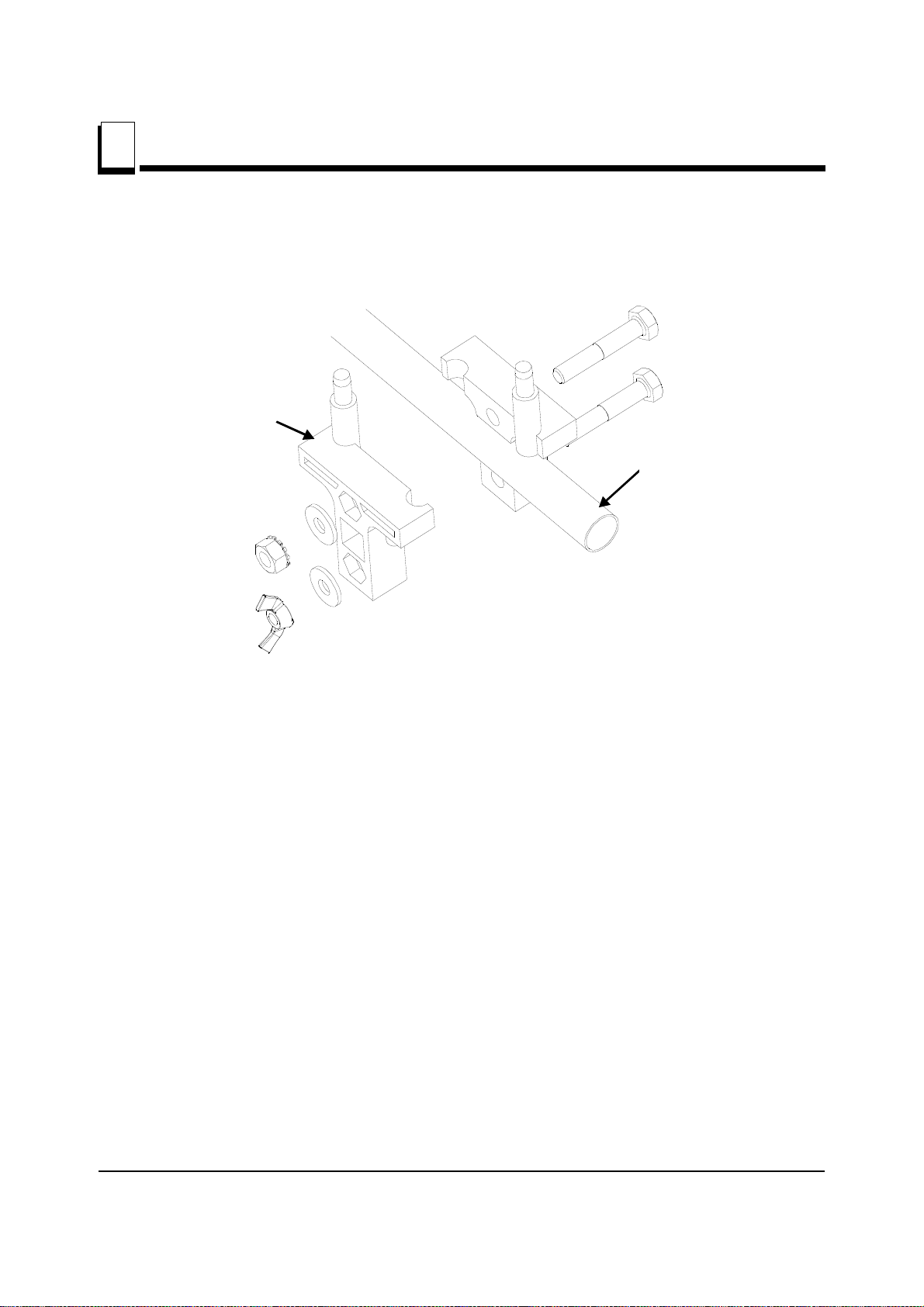

See Figure 4-2. Assemble a blade support guide onto the end of each blade support arm.
Bolt from the hexed side of the guide assembly. Tighten the top bolts with the self-locking
nuts. Tighten the bottom bolts with the wing nuts.
The guides should be about 1" (2.5 cm) from the ends of the right and rear tubes and
about 2.5" (6.0 cm) from the end of the left tube. Final adjustments will be made later.
FIG. 4-2
Guide
assembly
Blade
support arm
SM0039
Blade
support arm
Guide
assembly

Setup
Gauge Calibration
Setup BMT150doc061818 4-3
4
4.3 Gauge Calibration
The tooth set gauge accurately measures the set of any blade tooth. The gauge needs to
be assembled and calibrated before use.
See Figure 4-3. Insert the dial gauge assembly into the hole in the block housing. Clamp
the calibrating pin in position at the center of the dial gauge foot. Push the gauge
assembly forward until the foot just touches the pin and dial needle moves .005 to .010.
Tighten the locking screw with the provided hex wrench (do not over-tighten). Loosen the
dial lock on the gauge and rotate the dial face until the needle reads zero. Tighten the dial
lock.
Unclamp the calibrating pin from the set master gauge clamp by turning the clamp knob
counterclockwise. With the pin not clamped, the set master gauge needle should read
between -.005 and -.010. If not, reclamp the pin, loosen the locking screw and move the
set master gauge assembly back so the foot does not contact the pin. Repeat the steps
above until the dial needle reads zero with the calibrating pin clamped and between -.005
and -.010 without the pin clamped. This ensures the dial foot extends beyond the clamp
plate a slight amount and will read zero when the foot is aligned with the clamp plate.
FIG. 4-3
Calibrating Pin
(See Side View)
Locking Screw
Dial Gauge
Assembly
Dial Lock
SS0006-3
Clamp Plate
Clamp Knob
Gauge
Foot
Pin
SIDE VIEW
Calibrating Pin
(See Side View)
Clamp knob SIDE VIEW
Dial gauge
assembly
Dial lock
Locking screw
Clamp Plate
Pin
Gauge
foot

Operation
Blade Installation
5
5-1 BMT150doc061818 Operation
SECTION 5 OPERATION
WARNING! Always wear gloves and eye protection when
handling bandsaw blades. Changing blades is safest when
done by one person! Keep all other persons away from
area when coiling, carrying or changing a blade. Failure to
do so may result in serious injury.
Once the toothsetter alignments have been checked and adjustments have been made,
you are ready to measure and set blades.
Sharpening removes metal from the face of the tooth. This eventually reduces the set to a
point where the blade will not cut very well. Set should not vary more than (±)0.002 from
one tooth to the next and (±)0.002 from one side of the blade to the other side.
The following steps will take you through operation of the toothsetter.
Note: Refer to theWood-Mizer®Blade Handbook for recommended set specifications for
your sawing application.
5.1 Blade Installation
1. Clean the blade and deburr before putting it in the toothsetter. Otherwise, sap
buildup on the blade or tooth will give false set readings. Metal burrs created by
sharpening also will cause false readings.
Mount the blade in the toothsetter. Place blade between the clamping plates and on
the three guide assemblies.
