PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200
Preamble
Thank you for the confidence in the product of STRACK NORMA GmbH & Co. KG
We are pleased about your decision to buy a product of STRACK. To facilitate the handling with the product,
we established these operating instructions.
The operating instructions are an important element to the side cam unit SN5650-PMO and provide the
secure and efficient operating. It is intended for all persons which are working with these cam units and
which are responsible for the secure operating.
For reasons of the operating safety a copy of these operating instructions has to be left at the side cam unit
to guarantee the direct access for the operating personnel.
The security advices in the operating instructions have particularly been respected to recognize and to avoid
possible dangers. Please read the operating instructions carefully and completely before mounting and initial
operation of the side cam unit SN5650.
A regular maintenance is necessary to guarantee a secure and economic application.
If the instructions and advices of these operating instructions are not observed, any liability on our part for
resulting damages and performance losses will be excluded.

4STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
08.2018
IOperating instructions -- PowerMax cam unit PMO
PowerMax
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200
1. Security advices. Please absolutely consider!
Before mounting and initial operation and all further works at the STRACK PowerMax cam please
absolutely read the following safety instructions.
The cam has to be used according to these operating instructions. If new operating instructions will be
established, this version loses its validity.
Service and maintenance works at the mounted STRACK nitrogen-gas springs may only be effected by
persons trained and instructed by STRACK NORMA with good professional knowledge.
If the mounted STRACK nitrogen-gas spring is used incorrectly or not for the intended application, menace:
Dangers for the health
Dangers for the STRACK nitrogen-gas springs
and other property holdings of the operator,
Dangers for the efficiency of the STRACK nitrogen-gas springs.
For all operations at the STRACK side cam, the valid Ordinance on Industrial Safety and Health paragraph 3
has to be considered.
Press, tool and peripheral devices have to be suited, prepared and adjusted for the application of the
STRACK side cams.
Attention:
Before and during the service- and maintenance operations at the tool respectively
at the STRACK cam there is an increased risk of accident. Therefore these operations
may only be effected at cam units which are driven back.
Seized cam units at faultless gas springs can cause an abrupt decompression.
Thus they can be an injury risk.
Damaged gas spring may not be used again. The exchange of individual parts has to be agreed with STRACK
NORMA.

5
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
08.2018
IOperating instructions -- PowerMax cam unit PMO
PowerMax
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200
2. After receipt of delivery
Before opening, please check the delivery concerning damages. Please reclaim damages directly at the
transport company, which has delivered the consignment.
Please compare the content of the consignment with the delivery note respectively the enclosed list of items
(see appendix). Please also ascertain that all parts are present and unpacked.
Not till then dispose of the transport- and packing material.
If the content is damaged without visible damage of the packing material, please do not return it for repair
or exchange.
Please contact STRACK NORMA GmbH & Co. KG, Lüdenscheid, to get further information.
Phone: 02351 / 8701 – 0 reception
– 252 Mr. Müller

6STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
08.2018
IOperating instructions -- PowerMax cam unit PMO
PowerMax
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200
3. Characteristics
The execution of this STRACK cam unit is a “side cam unit type SN5650”.
These cams can be mounted: - without mounting plate as “Basis” and “Medium” version
- with mounting plate as “Premium version”
These PowerMax cam units consists of:
- cam retainer
- cam body
- driver
with the corresponding accessories
All PowerMax cam units are equipped with gas springs.
In this system, nitrogen with a purity grade of ≥99.8 vol.-% is used as active fluid medium for the
gas springs.
The cylinder dimension, cylinder number and filling pressure (different at the diverse cam types)
determine the reset force which is available.
Please consider that all PowerMax cam units are the successful result of a long development work.
The resulting advantages optimally develop at the full exploitation of the respective cam stroke
during the work process; that means, the stamping- and benching operation of the cam unit should
be carried out in the front end position.
The complete exploitation of the cam stroke allows the maximal intervention of the active return and
the therewith connected highest possible supply of retracting- and stripper forces (about 10 % of the
pressing force).
In the front endpoint of the cam stroke there is the maximal retraction of the gas spring. Generally
applies: The construction and the resulting values, like assembly height and restoring forces, require
that the cam unit is mounted in the front end position.

7
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
08.2018
IOperating instructions -- PowerMax cam unit PMO
PowerMax
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200
Attention:
The mounted gas springs serve for the additional reset of the cam slide.
The working powers which are necessary for the operation are absorbed by the
active return (only Medium- and Premium version).
4. Scope of delivery
The PowerMax cam units are delivered preassembled and with a precise guide clearance.
The mounted gas springs, unless otherwise desired, are delivered with maximal filling pressure.
The working surface can already contain client-specific insertions. Also Premium special mounting
plates belong to these.
All cams can also be produced for the machining of high strength sheets, contrary to the angles in five
steps described in the catalogue, in all intermediate angles according to customers’ requirements.
Please contact us.
3.1 Description of the construction types
Unique in the world is the differentiation of a cam program in 3 types:
BASIS, MEDIUM, PREMIUM.
These types which are totally similar in the dimensions differ exclusively in their performance values and
the equipment details.
The BASIS cam is equipped with guide elements out of bronze-graphite. The working surface is out of
cast iron.
The MEDIUM cam is equipped with guide elements out of sintermetal, the working surface is out of cast
iron and the active return can be adjusted.
The PREMIUM cam is equipped with guide elements out of sintermetal, the working surface is a remo-
vable mounting plate and the active return can be adjusted.

8STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
08.2018
IOperating instructions -- PowerMax cam unit PMO
PowerMax
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200

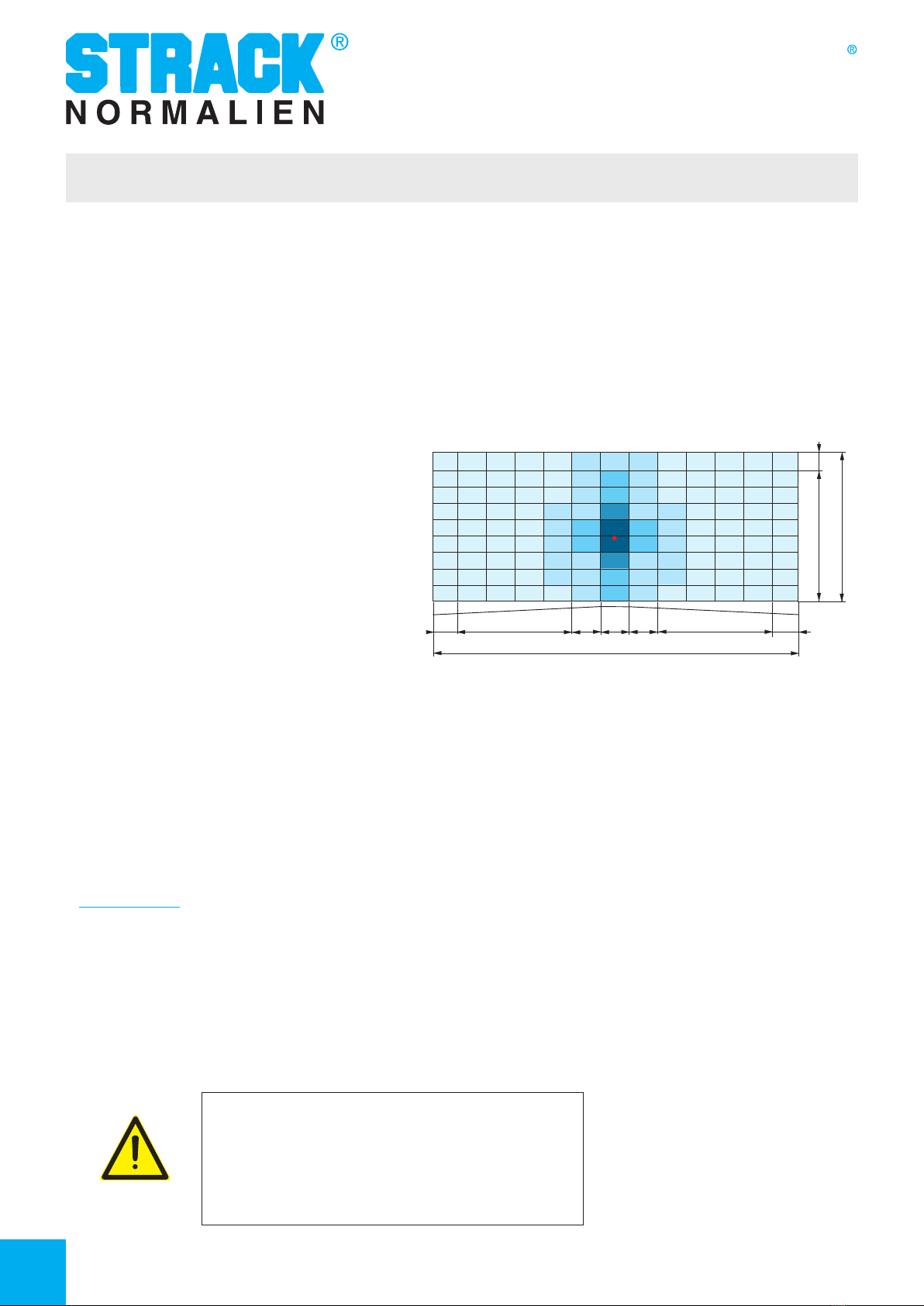

5. Design of the PowerMax cams
STRACK NORMA Power Max cams are produced in a high-precision manner.
The guidances which are grinded to a tight guide clearance allow highest loads. The cam units can be
equipped with the tool on the working surface. In doing so you have to consider that the force affects
in the centre of the working surface.
If you have an off-center load irregular
forces arise on the guidances and produce
an increased wear.
(See 3.1. description of the construction types)
Herefrom you can clearly read the maximal force outside the centre of activity for the x respectively the y
axis. Modifications of position which will be possible in future should be considered previously to choose a
cam size which corresponds to the force.
To be able to guarantee an equal running life, the load forces reduce, according to the position, on the
working face.
You will find detailed information in the catalogue indications concerning to your cam in the internet
under:
www.strack.de
Basis <750,000 strokes
Medium >1,000,000 strokes
Premium >1,000,000 strokes
Attention:
If the cam should be superstructed with accessories
a new calculation is necessary.
Please contact us.
SN5650-PMO-0580-20°-B-N/Z
8 x 20
177
65 4 x 50 65
580
20 10 20 4 x 50
17
59 74 95 133 169 205 225 205 169 133 95 74 59
66 83 107 133 168 204 225 204 168 133 107 83 66
67 85 107 133 168 204 225 204 168 133 107 85 67
68 87 107 133 168 204 225 204 168 133 107 87 68
69 89 107 133 168 204 225 204 168 133 107 89 69
71 89 107 133 168 204 225 204 168 133 107 89 71
70 89 107 133 168 204 225 204 168 133 107 89 70
69 88 107 133 168 204 225 204 168 133 107 88 69
68 86 107 133 168 204 225 204 168 133 107 86 68
59 74 95 135 212 285 460 285 212 135 95 74 59
66 83 108 155 233 306 586 306 233 155 108 83 66
67 85 111 160 259 449 654 449 259 160 111 85 67
68 87 114 168 281 509 813 509 281 168 114 87 68
69 89 118 176 307 568 1065 568 307 176 118 89 69
71 91 122 182 320 587 1065 587 320 182 122 91 71
70 90 118 174 296 525 901 525 296 174 118 90 70
69 88 115 167 275 475 733 475 275 167 115 88 69
68 86 113 164 243 311 662 311 243 164 113 86 68
F max. = 1065 kN

9
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
08.2018
IOperating instructions -- PowerMax cam unit PMO
PowerMax
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200
6. Preparation of tool and press
Tool, press and peripheral devices have to be suited, prepared and adapted according to the indications
of STRACK NORMA for the utilisation of the PowerMax cam unit.
Drain off fluid (for example water or drawing compounds) well-directed by drainage.
You have to take care that punching wastes don’t fall in or on the cam guidance.
Cam slide and guidances can seize. Parts falling down can damage the guidances, hereby possibly the
running life of the cam reduces. If there is a failure, the cam slide can’t be placed back in the initial
position.
7. Shouldering
The force distribution of the individual forces in the cams depends on the right shouldering in the tool
and the cam angle.
If the heights h1 and h2 (see the picture below) reduce in the tool, the forces of the shouldering can’t
be completely absorbed.
You will find detailed information in the catalogue indications concerning your cam in the internet under
www.strack.de
FP
FS
FW
FA
h1
h2
Fh1
Fh2 α
F max. = 1065 kN

10 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
IOperating instructions -- PowerMax cam unit PMO
PowerMax
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200
11.2020
8. Production
During the production no particular precautionary measures have to be taken, which exceed the valid
operating safety regulations paragraph 3.
Attention:
If attachments are removed during the assembly process, they must be secured again with
Loctite 242.
Notes on tightening torques:
Advice:
Please secure that the STRACK cams especially the gas springs are not dipped in fluid.
If you are using for example aggressive drawing oils during the production, make a controlled
drain for them (drainage borings, cutouts and so on), so that the fluids are directed away from
the gas springs.
Thereby seal damages are avoided.
Tip:
Control the nitrogen pressure of the gas springs in regular intervals, to detect changes in the
pressure level in time. During maintenance works you have to consider a correct return of the
cam slide.
Advice:
The cam units are equipped with low-maintenance slide elements out of bronze with solid
lubricant. In normal case lubrication is not necessary.
A lubrication may only be effected in case of need with the following lubricants:

Company Oils Greases
AGIP Potra ATF Agip GR MU 2
BP Autran DX II Energrease
ESSO ATF Suffix A Nebula EP 2
ESSO ATF - D Beacon EP 2
OMV ATF Serie OMV signum CX 2
SHELL Donax TM Retinax LX
SHELL Donax TF
Screws
DIN EN ISO 4762-10.9 M6 M8 M10 M12 M16 M20
Tightening torque [Nm] 14 33 65 121 302 590
All data
without guarantee.

11
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
08.2018
IOperating instructions -- PowerMax cam unit PMO
PowerMax
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200
8.1 Handling with safety ring bolt (SN1594)
Beginning from the cam units 330, cam retainers and
slides can simplified be mounted together by means
of the safety ring bolt SN1594, because of the fact
that the different positions of the handling screwing
thread facilitates the mounting of the cam slide in the
slide retainer.
By changing the position of the safety ring bolt,
the cam retainer and the cam slide can be simpler
mounted together into the tool.
Mounting of the cam retainer with the cam slide
in the tool with lateral thread for the flexible
mounting and turning of the cam.

12 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
08.2018
IOperating instructions -- PowerMax cam unit PMO
PowerMax
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200
8.2 Marking of the cams
All PowerMax cams are equipped with a type plate.
On this type plate the name and the serial number of the cam are lasered.
Name of the cam
6-digit serial number
For additional information
for customers
The serial number refers to all cams of an order and is different concerning order to order. The Power Max
cams were adjusted in the company STRACK. For this the hardened steel gide strips were ground to the
corresponding dimension. The appropriate screws were additionally secured by the screw locking adhesive
Z9093.
Attention: Don’t remove the rails. If this should be inevitable in a case of a crash, the replacement strips
have to be adjusted again.
To avoid confusions within a series the assembly groups of the individual cams are marked within the series
with numbers of 1 to ... (see picture below). During the mounting please absolutely consider the right
coordination of the components to avoid problems.
(GGG60)
SN5650-PMO-0065-25-B-N-V01
Sn.-Nr.: 1 2 3 4 5 6
1
1
1
Additional markings on slide retainer and slide body
make it possible to control the position of the cam in
the tool.
If the cam is moved together, the upper markings
correspond; if the cam is extended the lower markings
correspond.
If the marking on the slide body is between the markings
of the slide retainer, the whole cam is not driven back in
the correct initial position.

13
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
08.2018
IOperating instructions -- PowerMax cam unit PMO
PowerMax
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200
9. Dismounting of the mounting plate at cam widths 0330-1200 (only Premium)
The PREMIUM version of the PowerMax® is equipped with a demountable mounting plate, which makes
a simpler handling possible.
The high-precision plate can be dismounted easily to be able to carry out further machining.
The mounting plate is not screwed with the cam
slide to keep the complete working surface free
of screw holes. The plate is fixed in a form-closed
manner by a fitting groove (picture 2) and one
respectively two clamps over a clamping cone (picture 1).
The mounting plate is centered by a fitting key on the rear
side. It absorbs additionally arising lateral forces in the
production.
Step 1
Loose the fixing screws of the guide strips.
Remove the guide strips and put them
aside (picture 3). Please take care that
the sinter sliding surface is not damaged.
picture 3
picture 1
picture 2

14 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
08.2018
IOperating instructions -- PowerMax cam unit PMO
PowerMax
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200
Step 2
For dismounting the mounting plate please
remove at first the screws with the washers
(picture 4).
Step 3
To loose the locking push the clamp respectively
the clamps in direction OPEN.
Then the clamps can be removed (picture 5).
Step 4
Screw the safety ring bolt (SN1594) in the plate
to be able to lift it with a crane.
Lift the mounting plate at first out of the groove
nut (picture 2). The fit was produced with high
precision and a close tolerance. If necessary beat
with a plastic hammer in the front of the plate
and avoid a cant of the mounting plate. As soon
as the mounting plate left the groove, push the
plate in front (picture 6).
picture 4
1
2
1
2
picture 5
1
2
picture 6

15
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
08.2018
IOperating instructions -- PowerMax cam unit PMO
PowerMax
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200
9.1 Mounting of the mounting plate at cam widths 0330-1200
(only Premium)
Step 1
Before pushing the mounting plate back in the groove guidance it is absolutely necessary to clean the stop
lug (AN) and the t-nut guidance of both components, in order that the bearing surface for the guide strips
builds a level during the assembly. The mounting plate is constructed in such a manner that the surface
stands about 0.01 till 0.02 back behind the guide strip bearings.
Step 2
Only mount the guide strips at the provided assembly site.
Please that care the screws are secured with the screw locking adhesive Z9093.
picture 1

16 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
08.2018
IOperating instructions -- PowerMax cam unit PMO
PowerMax
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200
10. The Lock-Out-Systems
10.1 Lock-Out-System SN5651-LOS
This lock-out system can be used at
mounted and dismounted standard cams.
10.2 Lock-Out-System SN5654-LOS
This lock-out system can only be used at
dismounted standard cams.

17
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
08.2018
IOperating instructions -- PowerMax cam unit PMO
PowerMax
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200
10.1 Lock-Out-System SN5651-LOS
SN5651-LOS
SN5651-LOS-Type
Mat.: ST
Type for cam SN5651-PMO-LOS-
SPB SN5651-LOS-SPS SN5651-LOS-DS
SN5651-PMO-LOS-0330 SN5650-PMO-0330 SN5651-PMO-LOS-
SPB-0330 1SN5651-LOS-SPS- M16 x 160 1SN5651-LOS-DS- 50 x 20 1
SN5651-PMO-LOS-0330 SN5650-PMO-0400 SN5651-PMO-LOS-
SPB-0330 1SN5651-LOS-SPS- M16 x 160 1SN5651-LOS-DS- 50 x 20 1
SN5651-PMO-LOS-0460 SN5650-PMO-0460 SN5651-PMO-LOS-
SPB-0460 1SN5651-LOS-SPS- M16 x 160 2SN5651-LOS-DS- 50 x 20 1
SN5651-PMO-LOS-0580 SN5650-PMO-0580 SN5651-PMO-LOS-
SPB-0330 2SN5651-LOS-SPS- M16 x 160 2SN5651-LOS-DS- 50 x 20 2
SN5651-PMO-LOS-0700 SN5650-PMO-0700 SN5651-PMO-LOS-
SPB-0330 2SN5651-LOS-SPS- M16 x 160 2SN5651-LOS-DS- 50 x 20 2
SN5651-PMO-LOS-0850 SN5650-PMO-0850 SN5651-PMO-LOS-
SPB-0330 2SN5651-LOS-SPS- M16 x 160 2SN5651-LOS-DS- 50 x 20 2
SN5651-PMO-LOS-1000 SN5650-PMO-1000 SN5651-PMO-LOS-
SPB-0330 2SN5651-LOS-SPS- M16 x 160 2SN5651-LOS-DS- 50 x 20 2
SN5651-PMO-LOS-1000 SN5650-PMO-1200 SN5651-PMO-LOS-
SPB-0330 2SN5651-LOS-SPS- M16 x 160 2SN5651-LOS-DS- 50 x 20 2
SN5651-LOS-DS
SN5651-LOS-SPS
SN5651-LOS-SPB
further details under: www.strack.de

18 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
IOperating instructions -- PowerMax cam unit PMO
PowerMax
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200
09.2020
10.1.1 Mounting of the Lock-Out-System SN5651-LOS
To fasten the cam for the insertion of borings, the fixation of the cam slide by means of a lock-out system
is necessary. For this purpose please act as following.
1. Dismounting of the gas spring
2. Dismounting of the slide stop with the
damper
picture 1
picture 2
1
2

19
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
IOperating instructions -- PowerMax cam unit PMO
PowerMax
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200
09.2020
SN5651-LOS-DS
SN5651-LOS-SPB / SPS
picture 3
picture 4
3. Mounting of the clamping block
SN5651-LOS-DS
Attention:
Moving the body without the
clamping block can cause damage to
the sliding elements
4. Clamping of the cam slide with the
fixing screw SN5651-LOS-SP
5. Clamping of the cam slide with the
fixing screw SN5651-LOS-SPB

20 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
08.2018
IOperating instructions -- PowerMax cam unit PMO
PowerMax
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200
10.2 Lock-Out-System SN5654-LOS
SN5654-LOS
SN5654-LOS-Type
Mat.: ST further details under: www.strack.de
W8158
SN5651-LOS-DS
SN3500
Type Screw Number Screw Number Locking heel Number
PMO 0330
SN5654-PMO-LOS-0330-00 00° SN3500-M12-110 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-05 05° SN3500-M12-110 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-10 10° SN3500-M12-100 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-15 15° SN3500-M12-80 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-20 20° SN3500-M12-80 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-25 25° SN3500-M12-70 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-30 30° SN3500-M12-70 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-35 35° SN3500-M12-60 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-40 40° SN3500-M12-65 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-45 45° SN3500-M12-60 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-50 50° SN3500-M12-60 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-55 55° SN3500-M12-60 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-60 60° SN3500-M12-65 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-65 65° SN3500-M12-65 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-70 70° SN3500-M12-65 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
