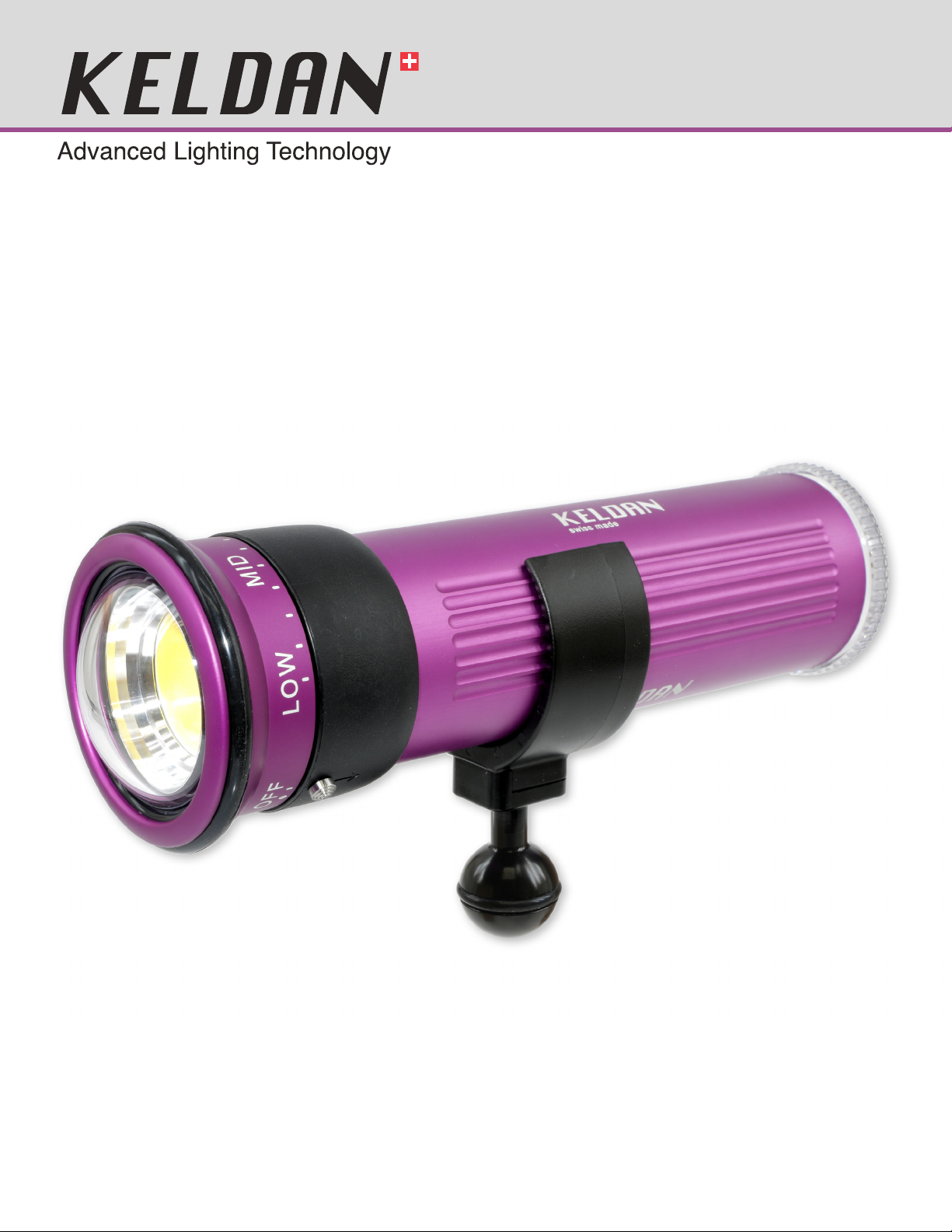

Keldan VIDEO 8X 15000lm CRI82 User manual

For Professionals Who Know The Difference.
Operating Instructions
Underwater Video Light
VIDEO 8X 15000lm CRI82

VIDEO 8X 15000lm CRI82 Operating Instructions 2
BEFORE STARTING
• Read operating instructions.
• Keep O-ring clean and grease regularly.
• For storage charge the battery to 30-60%. Storing a fully charged or empty battery is
detrimental to the battery’s life in the long run.
• Discharge/charge battery at least every 6 months.
• Remove the battery from casing when storing the light.
• Charge the battery before every dive.
TABLE OF CONTENTS
Instructions....................................3
Magnetic Switch............................3
Battery Charging ...........................3
Battery Maintenance.....................3
Battery Protection Circuit ..............3
Charge Level Indicator..................3
Use in Air.......................................3
How to Open the Casing...............4
Maintenance .................................4
Storage and Transportation ..........4
Warranty .......................................4
Liability ..........................................4
Safety Instructions ........................5
Spectral Power Distribution .........5
Beam Angle....................................5
Technical Data ...............................6

VIDEO 8X 15000lm CRI82 Operating Instructions 3
1. MAGNETIC SWITCH
Attention: the light uses a magnetic switch, so your compass reading may be off when you hold it close
(within 5cm or 2”) to the black on/off switch.
2. CHARGE OF THE BATTERY
Only use the supplied Li-Ion charger to charge the battery. For best results, the battery should be
charged at room temperature.
3. MAINTENANCE OF BATTERY
It is not recommended to discharge the battery after each dive. Complete discharge after every use
may reduce life time of battery. We recommend the following service procedures:
• For storage remove battery from casing.
• Discharge and recharge the battery at least once every 6 months.
• Avoid deep discharge of the battery pack.
• Store battery with approximately a 30-60% partial charge in a dry and cool place.
• Charge fully before each dive.
• The storage of a fully discharged battery may cause permanent damage to the battery.
4. BATTERY PROTECTION CIRCUIT
The integrated protection circuit protects the battery from overload, overcharge and deep discharge.
5. CHARGE LEVEL INDICATOR
The green charge level indicator displays the available relative charge and the two
digit display shows the remaining run time at the actual power setting. The display
unit is 1 minute. While charging the 2 digit display shows the remaining charge time.
The unit is 10 minutes. The display is turned off when the battery is fully charged.
6. USE IN AIR
The video light can also be used outside water but at low power level only. If the light gets too hot, it
slowly and automatically reduces the power to avoid overheating.
INSTRUCTIONS

VIDEO 8X 15000lm CRI82 Operating Instructions 4
7. HOW TO OPEN THE CASING
Remove excess water from the outside before opening. Point the light slightly upward while opening to
avoid water from entering the housing.
Friction of the O-ring seal (and therefore force needed to open the cap) increases over storage time.
After long and deep dives the friction might increase too. To avoid high friction, regularly grease the O-ring.
8. MAINTENANCE
After each use rinse well with fresh water.
CareshouldbetakentoavoidscratchingoftheO-ringseals.Keepsealscleanofsand,hair,clothbers
or similar materials at all times. O-rings of the battery screw cap should be regularly inspected and
cleaned. Occasionally apply small amounts of silicone grease for lubrication. If not treated, the O-ring
will fail to provide proper sealing causing the light to malfunction.
• Do not use sharp tools to remove the O-ring.
• Never use a battery which appears damaged.
• In case of a damaged lamp, contact your nearest KELDAN®dealer.
• Do not remove front glass cover (high operating voltage).
• O-rings need to be replaced by KELDAN®or an authorized dealer every 5 years.
9. STORAGE AND TRANSPORTATION
Battery and casing must be stored apart in a cool and dry place. Maintain battery pack according to our
recommendations. Separate battery pack from casing if traveling by air.
12. WARRANTY
The light carries a two-year warranty after purchase (proove of purchase date required). The warranty is
limited to material defects which occur when correctly handling the product. The warranty does not cover
the battery packs.
KELDAN®warranty coverage is void for defects as a result of improper use.
11. LIABILITY
KELDAN®declines all responsibility for damages arising from any improper use of the VIDEO 8X
15000lm CRI82 light or as incurred by a third person.

VIDEO 8X 15000lm CRI82 Operating Instructions 5
The VIDEO 8X 15000lm CRI82 light produces an extremely
powerful and intense light.
• Never point directly at a person at close distance.
• Never stare directly into the light.
SAFETY INSTRUCTIONS
SPECTRAL POWER DISTRIBUTION
CAUTION. Possibly hazardous
optical radiaton emitted from
this product. Do not stare
at operating lamp. May be
harmful to the eye.
RISK GROUP 2
400 450 500 550
nm
Spectral Power Distribution
600 650 700
BEAM ANGLE
-60 -40 -20 0 20 40 60
degrees
air
water
Beam Angle

VIDEO 8X 15000lm CRI82 Operating Instructions 6
Battery (Li-Ion) 14.4V / 99Wh
Charging time 3-4 hours
Diameter / Length 7 / 23,5 cm
Weight (in water) 0,88 (0,30) kg
Maximum depth 200 m
Color temperature 5600 K
Color rendering index 82 CRI (Ra)
Beam angle in water at 50% intensity 90°
Beam angle in water at 25% intensity 110°
TECHNICAL DATA
Luminus Flux Candlepower Burn Time Electrical Power
15’000 lumen 6500 candela 40 min 128 watts
9000 lumen 3900 candela 80 min 65 watts
5500 lumen 2400 candela 140 min 38 watts
3200 lumen 1400 candela 240 min 24 watts
1900 lumen 820 candela 380 min 15 watts
1100 lumen 480 candela 570 min 10 watts
680 lumen 300 candela 950 min 6 watts
400 lumen 170 candela 1200 min 4,5 watts
240 lumen 100 candela 1400 min 4 watts
POWER SETTINGS

VIDEO 8X 15000lm CRI82 Operating Instructions 7
KELDAN GmbH
Bernstrasse 10
2555 Brügg
Switzerland
Tel: ++41 32 333 16 28
Fax: ++41 32 333 16 26
Expedition Gombessa:
Laurent Ballesta meets the coelacanth at 120m depth.
KELDAN®is a registered trademark of KELDAN GmbH.
Subject to change without notice, December 2017.
