Keldan VIDEO 18XR 30000lm CRI82 User manual

For Professionals Who Know The Difference.
Operating Instructions
Underwater Video Light
VIDEO 18XR 30000lm CRI82
READY FOR
WIRELESS
REMOTE CONTROL

VIDEO 18XR 30000lm CRI82 Operating Instructions 2
BEFORE STARTING
• Read operating instructions.
• Keep O-ring clean and grease regularly.
• For storage charge the battery to 30-60%. Storing a fully charged or empty battery is
detrimental to the battery’s life in the long run.
• Discharge/charge battery at least every 6 months.
• Remove the battery from casing when storing the light.
• Charge the battery before every dive.
TABLE OF CONTENTS
Instructions..........................................................3
1. Magnetic Control Ring ..................................3
2. Operating Modes .........................................3
3. Charge of the battery ....................................3
4. Maintenance of battery .................................3
5. Battery protection circuit ...............................3
6. Charge level indicator ...................................4
7. Use in air.......................................................4
8. How to open the casing ................................4
9. Maintenance .................................................4
10. Transport ....................................................5
11. Storage........................................................5
12. Warranty .....................................................5
13. Liability........................................................5
Safety Instructions ..............................................5
Spectral Power Distribution ...............................6
Beam angle ..........................................................6
Technical Data .....................................................7

VIDEO 18XR 30000lm CRI82 Operating Instructions 3
1. MAGNETIC CONTROL RING
Attention,theblackringcontrolstheoperatingmodeofthelightwithamagneticeld.Donotplace
your compass close to the black control ring (keep a minimum distance of 10cm or 4”).
2. OPERATING MODES
Normal Mode : LOW …. HIGH
- 9 logarithmic Power Levels
Remote Control Mode: “R”
- This is the Mode to control the XR light with the RC1 Remote Control
BasicWorkowtoconnectXRLight(s)totheRC1RemoteControl:
1. Switch the RC1 remote control to PAIR mode.
2. Switch the Video 18XR light to remote mode “R”, now pairing
is possible during the next 10 seconds.
3. Turn the brightness knob on the RC1 remote control. (Use
the channel you want the light to be paired to).
4. Thelightconrmsasuccessfulpairingwithshortashes.
3. CHARGE OF THE BATTERY
Only use the supplied Li-Ion charger to charge the battery. For best results, the battery should be
charged at room temperature. Avoid charging when batteries are still hot after use. Let them cool down
before charging.
4. MAINTENANCE OF BATTERY
It is not recommended to discharge the battery after each dive. Complete discharge after every use
mayreducelifetimeofbattery.Werecommendthefollowingserviceprocedures:
• For storage remove battery from casing.
• Discharge and recharge the battery at least once every 6 months.
• Avoid deep discharge of the battery pack.
• Store battery with approximately a 30-60% partial charge in a dry and cool place.
• Charge fully before each dive.
• The storage of a fully discharged battery may cause permanent damage to the battery.
5. BATTERY PROTECTION CIRCUIT
The integrated protection circuit protects the battery from overload, overcharge and deep discharge.
INSTRUCTIONS

VIDEO 18XR 30000lm CRI82 Operating Instructions 4
6. CHARGE LEVEL INDICATOR
The charge level monitor circuit shows the available energy by taking into
account charge and discharge currents. The three digit numerical display
shows the remaining run time in minutes at the actual power setting or the
remaining charge time in minutes. The LED bar with the green LED is a
relative display which tells you the actual charge level like a fuel gauge.
7. USE IN AIR
The video light can also be used outside water but at low power level only. If the light gets too hot,
the over temperature protection will be activated and the power will be reduced automatically to avoid
overheating.
8. HOW TO OPEN THE CASING
Remove excess water from the outside before opening. Point the light slightly upward while opening to
avoid water from entering the housing.
Friction of the O-ring seal (and therefore force needed to open the cap) increases over storage time.
After long and deep dives the friction might increase too. To avoid high friction, regularly grease the O-ring.
9. MAINTENANCE
After each use rinse well with fresh water. Do not allow water to dry on glass to avoid water marks
especially when diving in high mineral content brackish water. Rinse the black magnetic switch ring by
rotating 3-5 times to dislodge salt or sand on inner portion.
CareshouldbetakentoavoidscratchingoftheO-ringseals.Keepsealscleanofsand,hair,clothbers
or similar materials at all times. O-rings of the battery screw cap should be regularly inspected and
cleaned. Occasionally apply small amounts of silicone grease for lubrication. If not treated, the O-ring
will fail to provide proper sealing causing the light to malfunction.
• Do not use sharp tools to remove the O-ring.
• Never use a battery which appears damaged.
• In case of a damaged lamp, contact your nearest KELDAN®dealer.
• Do not remove front glass cover (high operating voltage).
• O-rings need to be replaced by KELDAN®or an authorized dealer every 5 years.

VIDEO 18XR 30000lm CRI82 Operating Instructions 5
10. TRANSPORT
IMPORTANT: The total capacity of the battery pack exceeds
the maximum capacity for Li-Ion battery allowed on airplanes!
Therefore the battery need to be disassembled for safe transport
on airplanes. After disassembling you can carry safely three single
batterypacks, each one will be below the maximum capacity limit.
The three batteries of a battery tray should always kept together
as a set and should not be mixed with batteries from another
battery tray. This will ensure maximum lifetime of the batteries. If
batteries show degraded capacity and need to be replaced they
should be replaced all three together at once.
11. STORAGE
Store the battery tray outside of the housing of the light in a cool and dry place. Maintain battery pack
according to our recommendations.
12. WARRANTY
The light carries a two-year warranty after purchase (proove of purchase date required). The warranty is
limited to material defects which occur when correctly handling the product. The warranty does not cover
the battery.
KELDAN®warranty coverage is void for defects as a result of improper use.
13. LIABILITY
KELDAN®declines all responsibility for damages arising from any improper use of the VIDEO 18XR
30000lm CRI82 light or as incurred by a third person.
The VIDEO 18XR 30000lm CRI82 light produces an extremely
powerful and intense light.
• Never point directly at a person at close distance.
• Never stare directly into the light.
SAFETY INSTRUCTIONS
CAUTION. Possibly hazardous
optical radiaton emitted from
this product. Do not stare
at operating lamp. May be
harmful to the eye.
RISK GROUP 2

VIDEO 18XR 30000lm CRI82 Operating Instructions 6
BEAM ANGLE
-60 -40 -20 0 20 40 60
degrees
air
water
Beam Angle

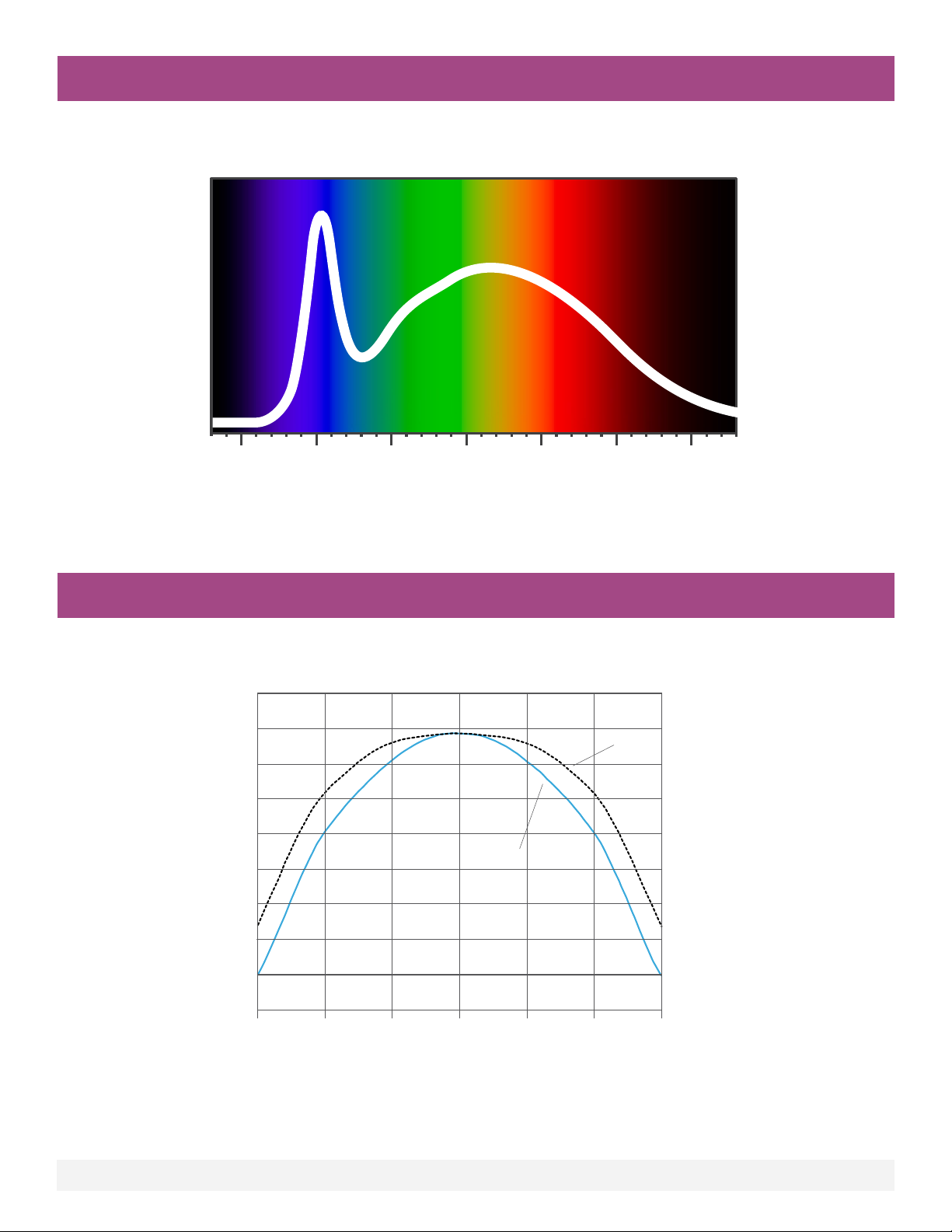

SPECTRAL POWER DISTRIBUTION
400 450 500 550
nm
Spectral Power Distribution
600 650 700

VIDEO 18XR 30000lm CRI82 Operating Instructions 7
Article # 1639
Battery (Li-Ion) 10,8V / 222Wh (3x74Wh)
Charging time 3-4 hours
Diameter / Length 11,5 / 36 cm
Weight (in water) 2,5 (0,5) kg
Maximum depth 200 m
Color temperature 5600 K
Color rendering index 82 CRI (Ra)
Beam angle in water at 50% intensity 90°
Beam angle in water at 25% intensity 110°
TECHNICAL DATA
Luminus Flux Candlepower Burn Time Electrical Power
30’000 lumen 14’000 candela 40 min 270 watts
17’000 lumen 7900 candela 75 min 150 watts
10’000 lumen 4500 candela 150 min 82 watts
5800 lumen 2700 candela 250 min 45 watts
3300 lumen 1500 candela 500 min 26 watts
2000 lumen 900 candela 800 min 15 watts
1100 lumen 500 candela 1200 min 10 watts
600 lumen 300 candela 1900 min 8 watts
400 lumen 170 candela 2500 min 6 watts
POWER SETTINGS

www.keldanlights.com
[email protected]
Visit us on Facebook
KELDAN GmbH
Industriestrasse 37a
2555 Brügg
Switzerland
Tel:++41323331628
Fax:++41323331626
KELDAN®is a registered trademark of KELDAN GmbH.
Subject to change without notice, March 2021.
Photo:GregLecoeur
