Kelly 12X User manual

2
Contents
Safety Information 3
General operation 5
Transport 5
Hydraulics 5
Maintenance and inspection 5
Section 1 Warranty 7
Thank you for choosing a Kelly Tillage product 7
Warranty policy 8
Product registration form 9
Section 2 Machine Operation 11
Before operation 11
Pre-operation checklist 11
Section 3 Chain Operation & Correct Setup 13
Importance of chain tension 13
Chain tension 13
Chain curve 15
Chain mount arm height adjustment 16
Frame height adjustment 17
Section 4 Maintenance & Inspection 19
Maintenance and inspection 19
Recommended maintenance checklist 20
Chain inspection 21
Trouble shooting 21
Section 5 Specifications 23
Operating speeds 23
Tire pressure 23
12X specifications 23
Bolt torque settings 24
Disc chain lengths and quantities 25
Section 6 Pre-Delivery Checklist 28
Pre-delivery checklist 28
Notes 29

3
SAFETY INFORMATION
Read all operating instructions and study all
photographs thoroughly before operating the unit.
Please note:
Left and right is determined by standing behind the machine and looking to the front.

4
Signal words
When you see these symbols on your machine or in this manual, be alert to instructions involving your
personal safety and the safety of others. Failure to follow these instructions can result in injury or death.
Carefully read all safety points in this manual and on your machine. Keep all safety decals in good condition
and replace ones that have been worn or lost. Replacement decals are available by contacting your local
dealer.
Safety Guidelines
• This equipment is dangerous to persons unfamiliar with its operation.
• Do not attempt to operate or assemble this unit without reading this manual and
• developing a thorough understanding of the safety precautions.
• Do not attempt to operate this equipment under the influence of drugs or
• alcohol.
• Review the safety instructions with all users annually.
DANGER – Indicates a hazardous situation which, if not
avoided, will result in DEATH OR SERIOUS INJURY
WARNING – Indicates a hazardous situation which, if not
avoided, could result in DEATH OR SERIOUS INJURY
CAUTION – Indicates a hazardous situation which, if not
avoided, could result in MINOR OR MODERATE INJURY
NOTICE – Is used to address practices not related to
PHYSICAL INJURY
SAFETY INSTRUCTION – (or equivalent) signs indicate
specific safety-related instructions or procedures

5
General operation
• Proceed cautiously under overhead powerlines and around power poles - contact may result in the
operator suffering a severe electrical shock.
• Never allow anyone within the immediate area when operating machinery.
• Stand clear of frame when it is being raised or lowered.
Transport
• Always travel at a safe speed. NEVER EXCEED 25kph/16 mph.
• Ensure your speed is low enough for an emergency stop to be safe and secure and reduce speed
prior to turns.
• Ensure safety chain is attached correctly to the towing vehicle.
• Please refer to your own country, state, provincial, county or municipality laws on the rules of
transporting farm machinery on roads.
• Chains should be clear of the ground.
• Beware of obstacles and overhead powerlines.
• Use approved accessories and necessary warning devices at all times when transporting on the
road.
Hydraulics
• NEVER remove hydraulic hoses or ends unless the machine is in either transport position or fully
extended in working position. Relieve all hydraulic pressure before disconnecting hydraulic hoses
and fittings.
• Ensure all fittings and hoses are in good condition.
• Wear appropriate face and hand protection or PPE when checking hydraulics under pressure to
avoid injury.
• Double check that all is clear before operating hydraulics.
• Maintain proper hydraulic fluid levels and pressure.
Maintenance and Inspection
• Good maintenance is your responsibility.
• Regular maintenance and inspection are imperative.
Maintenance guidelines can be found in Section 4
If any safety decals are missing, please contact your local
dealer immediately and do not use the machine

WARRANTY
SECTION 1

7
SECTION 1 WARRANTY
Thank you for choosing a Kelly Tillage product
We trust that you find the following manual clear and easy to follow. If you should require additional
customer support or assistance, please do not hesitate to contact us.
Spare parts can be purchased, as required, through your local dealer or by contacting the Kelly team
directly.
Kelly welcomes feedback. Should you have any difficulties that you wish to raise, suggestions for
improvement or modifications that you feel would enhance our products we look forward to hearing
from you.
Contact Information
Australia
Kelly Engineering
PO Box 100
Booleroo Centre SA 5482
Phone: + 61 8 8667 2253
Email: [e-mail]
Spare Parts: [e-mail]
Website: www.kellytillage.com
United States – Spare parts
Hood & Company Inc
Springfield MO
Phone: [phone]
Email: [e-mail]
Canada – Spare parts
Adair Sales & Marketing Company Inc
Swift Current SK
Phone: [phone]
Email: [e-mail]

8
Warranty Policy
Kelly guarantees its products against faulty workmanship and materials for twelve (12) months from date
of purchase. Disc Chain, Prickle Chain and Swivel Bearing units are considered to be wear items and it’s
reasonable to expect that these parts may need to be replaced over time. We do however guarantee the
Swivel Bearing units for a period of twelve (12) months or 10,000 acres, whichever occurs first.
Ground engaging tools are warranted against faulty material and workmanship for 50 000 acres.
Replaceable cutting disc blades are warranted against faulty materials and workmanship only. All other
ground tools carry a 50 000 acre wear warranty.
Kelly is offering an additional 12 month warranty if the machine is registered within 2 months of
purchasing the machine. Machine registrations can be completed by the customer or dealer on the Kelly
website or by the warranty registration form in the operator manual.
Kelly’s warranty policy does not cover misuse, modifications, damage during transit or product that has
not been maintained per the Kelly maintenance procedures outlined in the relevant product manual.
Failure to properly maintain the machine or blatant misuse shall result in the warranty being null and void.
The warranty for the machine will be voided immediately if any non-Kelly OEM (Kelly original equipment
manufacturer) part is used on the machine.
Kelly reserves the right to request written, photographic, or video documentation prior to any warranty
authorisation. All warranty queries and requests for authorisation can be directed to
[e-mail].
Any warranty repair, service or modification to products must be pre-approved by Kelly in writing and
performed by an authorised Kelly dealer. If there are service parts needed this must be ordered through
Kelly parts distribution and Kelly will issue a Returned Goods Authorization (RGA) for any faulty parts that
are to be returned.
To ensure the continuity of warranty, related to any approved claims, it is expected that all warranty repair
works are completed in a timely fashion, as specified by Kelly.
Any claim for warranty, labour or parts must be completed on the Kelly website.
Warranty claims are to be lodged within 30 days of completion of work. If further information is requested
on the claim from the Market Liaison Officer, you have 30 days to provide the information. If you fail to
apply with the above instructions the warranty claim will be declined and closed.
Upon completion and approval of this claim the dealer will receive a credit to their account.

9
Product
registration
form
On a scale of 1 to 10 (10 being highest) how likely are you to recommend us to friends and family ?
1 2 3 4 5 6 7 8 9 10
If you scored 8 or below then what must we do to become a 10 in your opinion?
If you scored 9 or above then please tell us why you gave us this score?
Satisfaction with dealer/ agent
•Was the machine delivered satisfactorily?
•Were dealers well informed about the product?
•Would you recommend the dealer to other
farmers?
Yes
Yes
Yes
No, why not?______________
No, why not?______________
No, why not?______________
Occupation
Farmer
Customer Operator _______________
Other ________________________________
What brought Kelly Tillage products to your attention?
Dealer
Field day
Demostration
Radio
Local Dealer
Family
Friends/neighbour
Website
Other_______________________
Magazine/newspaper ________________
Purchasing Details
Purchaser/ owner
If your machine
is REGISTERED
within 2 months of purchasing the machine will
receive an additional 12 months warranty.
COMPLETE
and
RETURN
your form online,by email or post to Kelly in order to
receive the additional 12 months warranty.
Complete online
Mail to
Email
http:/www.kellytillage.com/machine-registration
Kelly Engineering
PO Box 100
Booleroo Centre SA 5482 Australia
s[email protected]om
Name___________________________________
Address_________________________________
Email Address____________________________
Contact number__________________________
Place of Purchase___________________________
Date of Purchase___________________________
Model Purchase____________________________
Serial number______________________________
________________________________________________________________________________________
________________________________________________________________________________________
_____
________________________________________________________________________________________
________________________________________________________________________________________
_____

6
MACHINE OPERATION
SECTION 2

11
SECTION 2 MACHINE OPERATION
Before operation
• Carefully study and understand this manual.
• Do not wear loose fitting clothing that may catch in moving parts.
• Always wear protective clothing and footwear.
• Be sure that there are no tools lying in or on the equipment.
• Do not use the machine until you are sure that the area is clear, particularly of children or animals.
• If this machine is being used in a dry area, or in the presence of combustibles, care should be taken
to prevent fires and firefighting equipment should be readily available.
• Familiarise yourself and other operators with the machine’s operation before using.
Pre-operation Checklist
Check Item:
Done
1. All wheel nuts, bolts and nuts are tightened to the correct torque setting
2. Split pins are in place
3. Stickers and warning signs are in place
4. Hydraulic fittings are tight and have no leaks
5. Chains are adjusted so that all springs are compressed to 330mm/ 1’ 1”
6. Check swivel bearings are not seized and still turning freely

CHAIN OPERATION
SECTION 3

13
SECTION 3 CHAIN OPERATION & CORRECT SETUP
Importance of Chain Tension
Operational
It is imperative that the correct adjustment be maintained. Only through correct adjustment can a
smooth and level finish be achieved in field working.
Loose chains lead to:
• Uneven performance across the width of the machine
• Uneven weed control
• Unsatisfactory incorporation
• Ineffective levelling
• Accelerated or premature chain wear
• Uneven field surface with ridges and furrows being created.
The leading 1/3rd of a loose chain is much more aggressive than the trailing 1/3rd and the centre.
This will mean that the middle of the machine’s front pair of chains will aggressively move soil
outwards. The machine’s rear pair of chains, if loose, have their aggressive 1/3rd near the wing
extremity. It follows then that as the front discs push soil outwards, the least aggressive portion of
the rear chain follows them and does not balance the soil movement. This is exacerbated at the
wings, effectively creating a broad ridge about halfway out each wing. It will not be evident in one
pass but is possible if care is not taken over time.
A correctly adjusted machine will not have this problem.
Chain Tension
1. Loosen the lock nut on the draw bolt.
2. Tighten the adjusting nut clockwise until the outer face of the spring retaining washer is pushed
with the body of the module tensioning unit.
3. When 7-7/8" / 200mm or more of tensioner thread is visible then one link must be removed from
the chain set to maintain correct tension adjustment. Spring length of 330mm / 1’ 1”
4. Retighten the lock nut.

14
12
34

15
Chain Curve
Correct chain tension will ensure that the entire length of discs will roll as one. This minimises the
movement between each link. If a chain is not adjusted and runs loose, each link acts as a
universal joint as the curved chain rolls along. The wear rate between each link is greatly
accelerated and can lead to premature failure. The chain should not wear out before the discs are worn
down.
ONLY POOR ADJUSTMENT CAUSES PREMATURE WEAR
Indicator line shows acceptable curvature when operating.

16
Chain Mount Arm Height Adjustment
1. Use tractor hydraulics to raise the module chain or chain mount plate that requires adjustment. Position
a suitable block or stand to support the arm. Using the tractor hydraulics, lower the machine until the
height adjusting chains are loose.
2. Remove spring retaining clip. Slide chain up to the top of the slot in lifting arm to pass the chain through
the cross at top of plate.
3. Slide chain back down to the bottom when the desired position is reached. To achieve “one link” of
adjustment, lift chain to the top of the slot, pass one link through the slot and rotate 90 degrees to allow
the next link in the adjusting chain to lower into the same slot.
To achieve “half link” of adjustment lift the chain to the top of the slot and slide chain horizontally and
lower the same link into the second slot. This will raise or lower the chain mount plate by half a link
depending on which slot the chain started in. Any excess chain can be fed back through the second slot.
4. Install retaining clip. Remove stand.
Step 1 Step 2
Step 3 Step 4

17

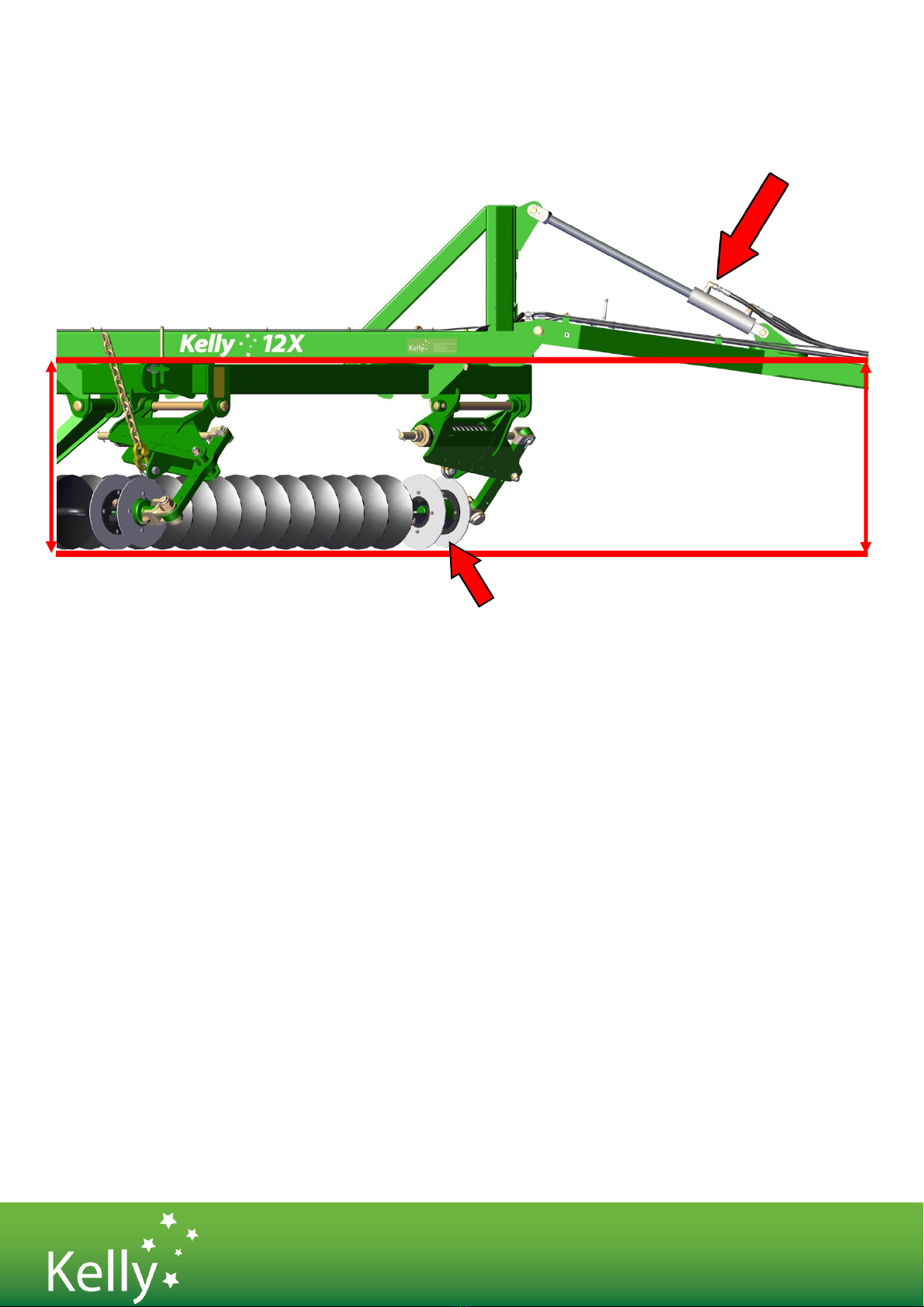

Frame height adjustment
Check the length of the height adjusting chains on the two front chain mount plates. There should be no
slack in the chain and about 25-51mm /
112
#‘ -
16
#‘ of gap between the ground and the bottom of the
first disc machine near the centre line.
Ground level
Set drawbar
height using the
front lift cylinder
Leading disc is 25mm / 𝟏𝟏𝟐 #‘
from ground on all chains
Machine body must be
parallel with the ground

MAINTENANCE &
INSPECTION
SECTION 4

19
SECTION 4MAINTENANCE & INSPECTION
Maintenance and Inspection
Good maintenance is your responsibility
• Before working on your machine, ensure all moving parts have stopped
• Always use a safety support and block the wheels
• Use extreme caution when making adjustments
• Replace shields and guards after servicing and before moving
• After servicing, make sure all tools, parts and service equipment are removed
• Where replacement parts are necessary for periodic maintenance and servicing, genuine factory
parts must be used. Kelly will not guarantee the use of unapproved parts and other damages as a
result of their use and will not be liable for injury or warranty if equipment has been altered in any
way
• An appropriate fire extinguisher and first aid kit should be kept readily available while performing
maintenance.
