Kenmore 79045119410 User manual

iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A
QUALiFiED iNSTALLER.
iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this or any other appliance.
c .s
LISTED
Cooktop Dimensions
30" Min. *
(76.2 cm)
IMPORTANT INSTALLATION-IN FORMATION
o All electric cooktops run off a single phase, three-wire
or four-wire cable, 240/208 volt, 60 hertz, AC only
electrical supply with ground.
Pleasenote minimum distances between cooktop and
adjacent and overhead cabinetry is30" (76.2 cm).
* 30" (76.2 cm) min. for unprotected cabinet
24" (61 cm) min. for protected surface
C
Cooktop Cutout Dimensions
N .....
Figure I - 30" Model shown only
PRODUCTD,IMENSIONS
MODEL A:WIDTH BIDEPTH C: HEIGHT D BOXWiDTH EBOX DEPTH
30" CeramicModel 30% (77.8) 21Vs(54.4) 43/4(12.1) 281/s(71.4) 19 (48.3)
36" CeramicModel 36% (93) 211/2(54.6) 4% (12.1) 331/2(85.1) 18% (47.6)
CUT0UTDIMENSIONS
EWlDTH G: HIHEIGHTBEI.OW
30" CeramicModel 281/2(72.4) 30 (76.2) 19% (49.8) 20I/2(52.1) 61/2(16.5)
36" CeramicModel 337/8(86.1) 36 (91.4) 191/8(48.6) 201/2(52.1) 61/2(16.5)
All dimensions are in inches (cm).
**Allow 2" (5 cm) space below cooktop to clear the electric cable and allow for
installation of the junction box on the wall at the back of the cooktop.
Printedin China
P/N 318205428 (1311) Rev. B
English - pages 1-6
Espahol- pages 7-12
Fran_ais - pages 13-18

Overhead Cabinet
Should Not Exceeda
Maximum Depth of
13" (33cm)
30" (76.2cm) Min.
Clearance Between
the Top of the
Cooking Platform
and the Bottom of an
Unprotected Wood
or Metal Cabinet
24" (61cm) Min. when
Bottom of Wood
or Metal Cabinet
is Protected by Not
LessThan 1/8" Flame
Retardant Millboard
Covered With Not Less
Than No. 28 MGS Sheet
Steel, 0.015" (0.4mm)
Stainless Steel, 0.024"
(0.6mm) Aluminum or
0.020" (0.5mm) Copper
18"
(45.7cm)
G
2 1/2" (6.4cm) Min. om
Edge of Cutout to Front Edge
of Countertop
L
K Min.
Recommended
Distance Between _
RearEdge of
Cutout and Nearest
Combustible 10"
Surface Above (25.4cm)
Countertop
F
Approximate Location
of Junction Box
Letterson this figure refer to chart on front page exceptfor J, K & L.
12"
(30.5cm)
J Min. From
Edge of
Cooktop
to Nearest
Combustible
Wall (Either
Side of Unit).
For a drawer installation
below the cooktop, allow
8" (20.4cm) of clearance
underneath the countertop.
The drawer must not interfere
with the electrical installation
of the cooktop or contain
flammable materials.
Toeliminate the risk of burns
or fire resulting from reaching over heated
surfaces, cabinet storage space located
above the cooktop should be avoided. If
cabinet storage is provided, risk can be
reduced by installing a range hood that
projects horizontally a minimum of 5" (12.7
cm) beyond the bottom of the cabinets.
30"CeramicGlass
36"CeramicGlass 7 ½"(19.1cm)
7 ½"(19.1cm)
l i i! ! ! ! ii iiii ii ii ii ii iiiiiiii ii iiiiiiiiiii ii ii ii ii iiii ii ii ii ii iiii ii i iiiiii!i ! i ii!i!! ! ! !!! !i i!i!!!!i !!!!i!!ili!i!ii!!i!!i ii !iiii i!il
2"(5.1cm)
2"(5.1cm)
i
30"(76.2cm)
36"(91.4cm)
Figure 2 - COUNTERTOP CUTOUT OPENING
2

Important Notes to the Installer
1. Read all instructions contained in these installation
instructions before installing the appliance.
2. Remove all packing material before connecting the
electrical supply to the appliance.
3. Observe all governing codes and ordinances.
4. Be sure to leave these instructions with the consumer.
Important Note to the Consumer
Keep these instructions with your Owner's Guide for the
local electrical inspector's use and future reference.
IMPORTANT SAFETY
INSTRUCTIONS
•Be sure your cooktop is installed and grounded
properly by a qualified installer or service
technician.
•These cooktops must be electrically grounded in
accordance with local codes or, in their absence,
with the National Electrical Code ANSI/NFPA No.
70--latest edition in the United States, or with
CSA Standard C22.1, Canadian Electrical Code,
Part 1, in Canada.
The electrical power to the cooktop
must be shut off while line connections are being
made. Failure to do so could result in serious injury
or death.
Provide Electrical Connection
Install the junction box under the cabinet and run
120/240 or 120/208 Volt, AC wire from the main
circuit panel. NOTE: DO NOT connect the wire to the
circuit panel at this time. Wait until all wires have been
connected in the junction box.
Electrical Requirements
Observe all governing codes and local ordinances.
1. A 3-wire or 4-wire single phase 120/240 or 120/208
Volt, 60 Hz AC only electrical supply is required on a
separate circuit fused on both sides of the line (a 40A
time-delay fuse or circuit breaker is recommended).
DO NOT fuse neutral.
NOTE: Wire sizes and connections must conform with
the fuse size and rating of the appliance in accordance
with the National Electrical Code ANSI/NFPA No. 70-
latest edition, or with CSA standard C22.1, Canadian
Electrical Code, Part 1, and local codes and ordinances.
An extension cord must not be used
with this appliance. Such use may result in a fire,
electrical shock, or other personal injury.
2. The appliance should be connected to the fused
disconnect (or circuit breaker) box through flexible
armored or nonmetallic sheathed cable. The flexible
armored cable extending from this appliance should
be connected directly to the grounded junction box.
The junction box should be located as shown in
Figure 2 with as much slack as possible remaining in
the cable between the box and the appliance, so it
can be moved if servicing is ever necessary.
3. A suitable strain relief must be provided to attach
the flexible armored cable to the junction box.
Unpacking Instructions
1
2.
\
Leave corner supports on cooktop until completion
of Electrical Connection.
Be sure the bottle of cleaner conditioner packed
in the literature bag is left where the user can
find it easily. It is important that the ceramic-glass
smoothtop be pretreated before use. See Cooktop
Cleaning and Maintenance section in the Use and
Care Guide.
Model and Serial Number Location
The serial plate is located under the cooktop.
When ordering parts for or making inquires about your
cooktop, always be sure to include the model and serial
numbers and a lot number or letter from the serial plate
on your cooktop.
3

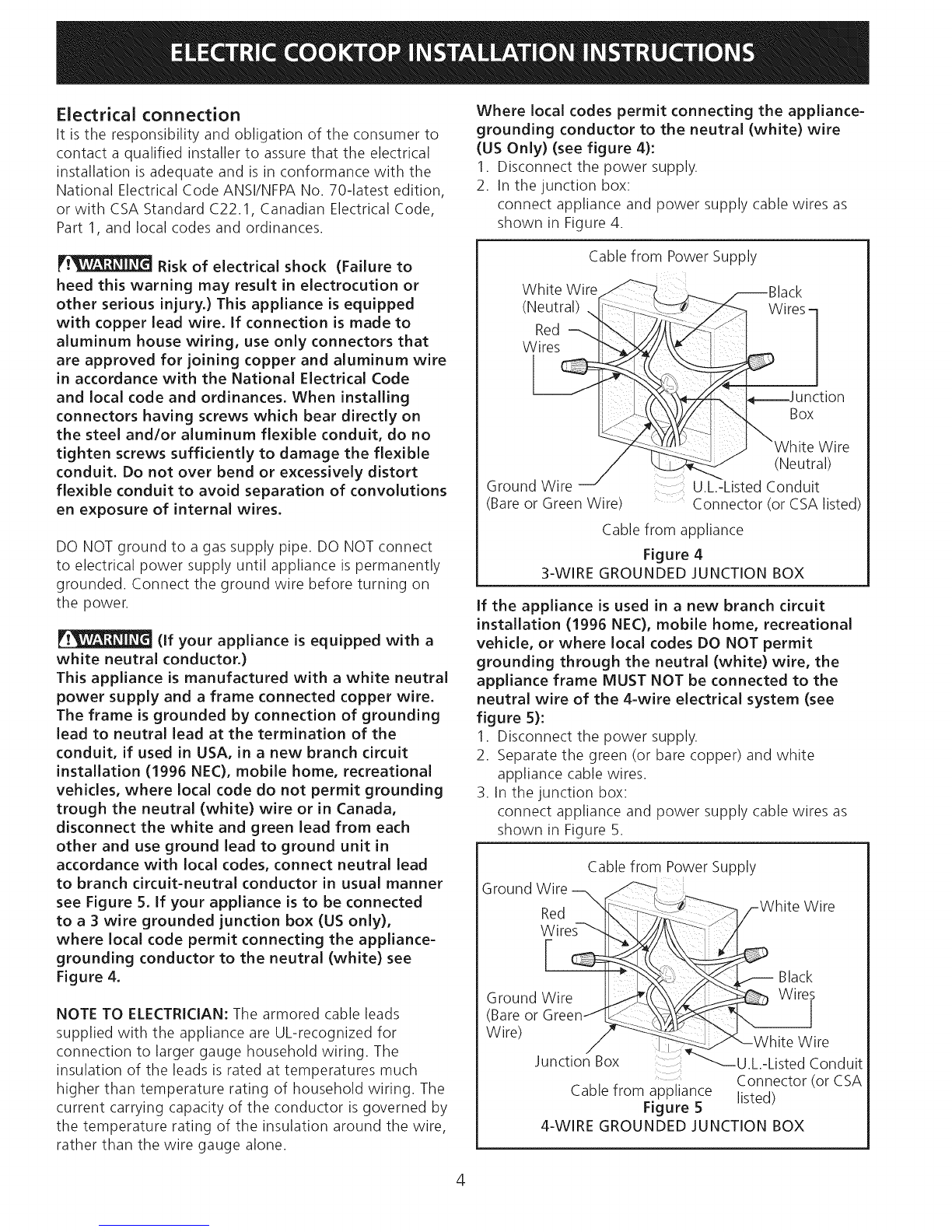

Electrical connection
It is the responsibility and obligation of the consumer to
contact a qualified installer to assure that the electrical
installation is adequate and is in conformance with the
National Electrical Code ANSI/NFPA No. 70-latest edition,
or with CSA Standard C22.1, Canadian Electrical Code,
Part 1, and local codes and ordinances.
Risk of electrical shock (Failure to
heed this warning may result in electrocution or
other serious injury.) This appliance is equipped
with copper lead wire. If connection is made to
aluminum house wiring, use only connectors that
are approved for joining copper and aluminum wire
in accordance with the National Electrical Code
and local code and ordinances. When installing
connectors having screws which bear directly on
the steel and/or aluminum flexible conduit, do no
tighten screws sufficiently to damage the flexible
conduit. Do not over bend or excessively distort
flexible conduit to avoid separation of convolutions
en exposure of internal wires.
DO NOT ground to a gas supply pipe. DO NOT connect
to electrical power supply until appliance is permanently
grounded. Connect the ground wire before turning on
the power.
(If your appliance is equipped with a
white neutral conductor,)
This appliance is manufactured with a white neutral
power supply and a frame connected copper wire,
The frame is grounded by connection of grounding
lead to neutral lead at the termination of the
conduit, if used in USA, in a new branch circuit
installation (1996 NEC), mobile home, recreational
vehicles, where local code do not permit grounding
trough the neutral (white) wire or in Canada,
disconnect the white and green lead from each
other and use ground lead to ground unit in
accordance with local codes, connect neutral lead
to branch circuit=neutral conductor in usual manner
see Figure 5. If your appliance is to be connected
to a 3 wire grounded junction box (US only),
where local code permit connecting the appliance=
grounding conductor to the neutral (white) see
Figure 4.
NOTE TO ELECTRICIAN: The armored cable leads
supplied with the appliance are UL-recognized for
connection to larger gauge household wiring. The
insulation of the leads is rated at temperatures much
higher than temperature rating of household wiring. The
current carrying capacity of the conductor is governed by
the temperature rating of the insulation around the wire,
rather than the wire gauge alone.
Where local codes permit connecting the appliance=
grounding conductor to the neutral (white) wire
(US Only) (see figure 4):
1. Disconnect the power supply.
2. In the junction box:
connect appliance and power supply cable wires as
shown in Figure 4.
Cable from Power Supply
White Wire
(Neutral)
Red
Wires
Wires-
Box
Ground Wire
(Bare or Green Wire)
(Neutral)
U.L.-Listed Conduit
Connector (or CSA listed)
Cable from appliance
Figure 4
3-WIRE GROUNDED JUNCTION BOX
If the appliance is used in a new branch circuit
installation (1996 NEC), mobile home, recreational
vehicle, or where local codes DO NOT permit
grounding through the neutral (white) wire, the
appliance frame MUST NOT be connected to the
neutral wire of the 4=wire electrical system (see
figure 5):
1. Disconnect the power supply.
2. Separate the green (or bare copper) and white
appliance cable wires.
3. In the junction box:
connect appliance and power supply cable wires as
shown in Figure 5.
Cable from Power Supply
Ground Wire _,, /_-_
Ground Wire
(Bare or Green--_. ):
Wire) Junction Box
_hite Wire
___Sir e
:: _--U.L.-Listed Conduit
Connector (or CSA
Cable from appliance listed)
Figure 5
4-WIRE GROUNDED JUNCTION BOX
4

Cooktop Installation
1.Visuallyinspectthecooktopfordamage.Alsomake
sureallcooktopscrewsaretight(seeFigure6).
Screws Figure 6
2. Install the retainer brackets (See Figure 7).
The retainer brackets MUST be installed, to meet
local codes or, in their absence, with the National
Electrical Code ANSI/NFPA No, 70--latest edition, or
with CSA Standard C22,1, Canadian Electrical Code,
Part I (see Figure 7 & 8),
Built-in
spring
Retainer
bracket
Figure 7
Countertop
Retainer Brackets Must
t Be Installed At Least
1/16" (0.16 cm) BELOW
Countertop
3. Install optional plastic spacers, if needed.
For 30" Cooktop:
If your cutout is 29 5/8" - 30", you must install spacer.
For 36" Cooktop:
If your cutout is 35"- 36", you must install spacer.
The spacers and screws can be found in a plastic bag
packaged with the unit. Install those spacers using the
screws at the positions illustrated on figure 9.
Spacer
Installspacers
Figure 9
4. Set the cooktop into the countertop cutout.
NOTE: Do not use caulking compound; cooktop should
be removable for service when needed.
Granite countertop Installation Kit
A Granite Countertop Installation kit # 903061-9010 can
be ordered through a Service Center,
Checking Operation
Refer to the Use and Care Guide for operation.
Do not touch cooktop glass or elements.
They may be hot enough to burn you.
Position brackets
on unit cutout
center line.
Figure 8
Before You Call for Service
Read the Before You Call for Service Checklist and
operating instructions in your Use and Care Guide.
It may save you time and expense. The list includes
common occurrences that are not the result of defective
workmanship or materials in this appliance.

Fortypicalundercounterinstallationofanelectricbuilt-inovenseeFigurebelow.
Onlycertaincooktopmodelsmaybeinstalled
overcertainbuilt-inelectricovenmodels.
Approvedcooktopsandbuilt-inovensarelisted
bytheMFGIDnumberandproductcode(seethe
insertsheetincludedintheliteraturepackagea[
cooktopinstallationinstructionsfordimensions).
Toreducetheriskof
personalinjuryand
tippingof thewall
oven,thewalloven
mustbesecuredto
thecabinet(s)by
mountingbrackets,
208/240Voltjunctionbox
forbuilt-inoven.
Models790-4511"
and790-4521"are
NOTapprovedto be
combinedwith awall
ovenin CANADA,
Approx. 3"
(7.5cm)
Cut an opening in wood base minimum 4" x 4"
(10.2 X 10.2cm), 2" (5cm) from left side filler
panel, to route armored cable to junction box.
Note 1 4" x 4" (10.2cm X 10.2cm) opening to
route armored cable from cooktop to junction
box.
Approx. 3" 208/240Volt
(7.5cm) junction box
for cooktop
Cabinet side filler
panels are necessary to
isolate the unit from
adjoining cabinets.
Cabinet side filler
height should allow for
of approved
cooktop models
36" Min.
(91.4cm) Min.
Unit will
overlap
(minimum)
edges by 1"
(2.5cm) 41/2" (11.5cm)
Max.*
Use 3/4" (1.gcm) plywood,
installed on two runners,
flush with toe plate.
Base must be capable of
supporting 150 pounds
(68kg) for 27" models and
200 pounds (90kg) for 30"
models.
* If no cooktop is installed directly
over the oven unit, 5" (12.7cm)
maximum is allowed above the
floor. 27" (68.6cm) 247/8'' (63.2cm) Min. 23Y2" (59.7cm) Min. 27¼" (69.2cm) Min.
Wall Oven 25¼" (64.1cm) Max. 28¼" (71.8cm) Max.
30" (76.2cm) 281/2'' (72.4cm) Min. 23Y2" (59.7cm) Min. 27¼" (69.2cm) Min.
Wall Oven 29" (73.7cm) Max. 28¼" (71.8cm) Max.

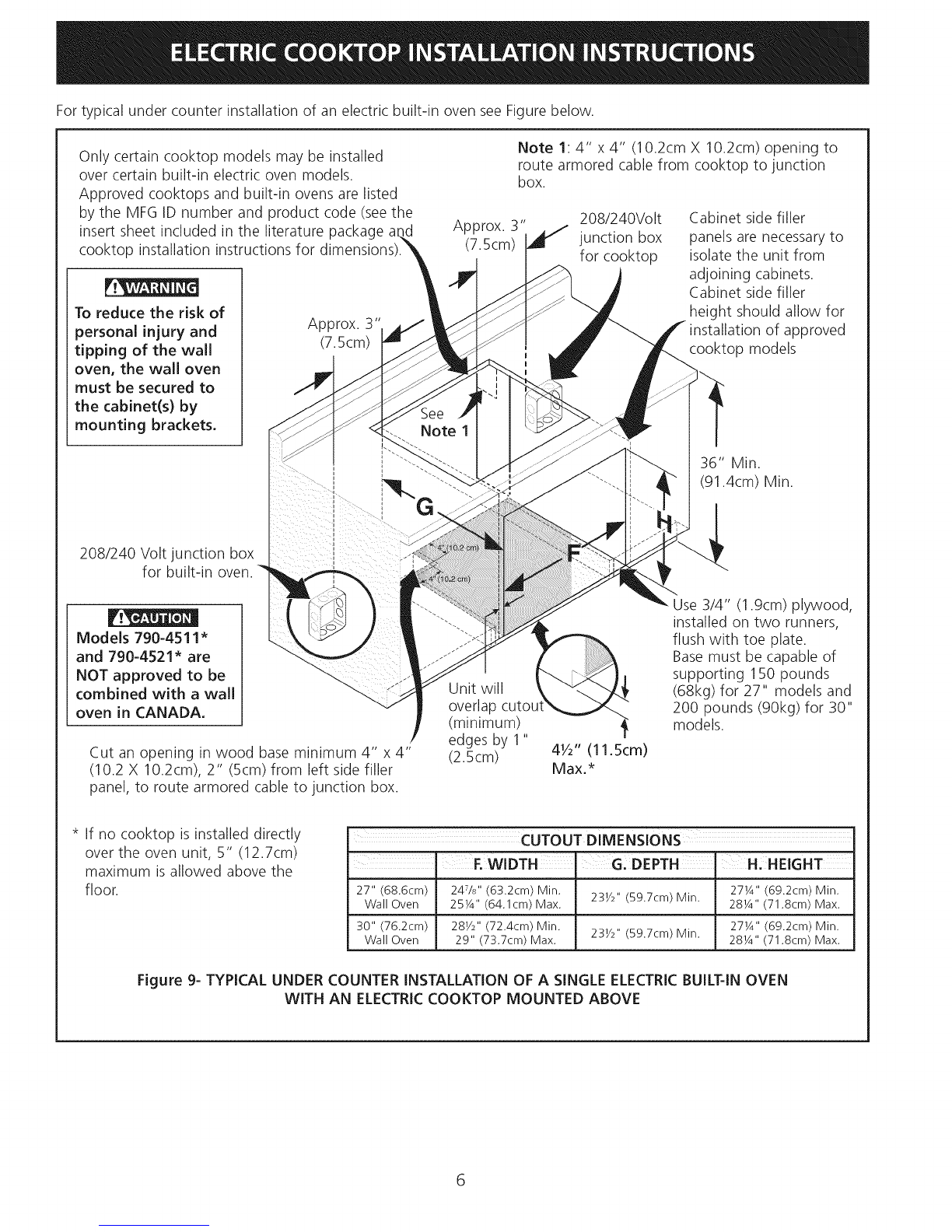

Figure 9- TYPICAL UNDER COUNTER INSTALLATION OF A SINGLE ELECTRICBUILT-IN OVEN
WITH AN ELECTRICCOOKTOP MOUNTED ABOVE
6
