ONE YEAR FULL WARRANTY ON THE
DELUXE MULTI-PURPOSE WATER FILTER
When installed, operated and maintained according to all instructions supplied with the product, if this
Deluxe Multi-Purpose Water Filter fails due to a defect in material or workmanship within one year from the
date of purchase, Sears will replace this Deluxe Multi-Purpose Water Filter free of charge.
This warranty does not include filter cartridges, which are expendable items.
This warranty is available by simply returning the Deluxe Multi-Purpose Water Filter to the nearest Sears
store throughout the United States.
This warranty applies only while this product is in use in the United States or Canada.
This warranty gives you specific legal rights, and you may have other rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
14-1/4"
5-1/4" 5-1/4"
Questions? Call The I<enmore Water Line 1-800-426-9345 or visit I<enmoreWater.com

Unpack and Check Shipment ...................................................................... 4
Plan Your Installation ............................................................................. 5
Typical Installations .............................................................................. 6
Installation ................................................................................... 7-9
Water Treatment Filter Cartridges .................................................................. 10
Filter Cartridge Life ............................................................................. 10
Filter Cartridge Replacement ...................................................................... 11
Adjustable Filter Wrench ......................................................................... 12
Specifications .................................................................................. 13
Exploded View & Parts List ....................................................................... 14
•Read this entire manual carefully before installing and
using your Deluxe Multi-Purpose Water Filter. Follow
all steps exactly to correctly install.
• Check with your local public works department for
plumbing and sanitation codes. You must follow their
guides as you install the system. Follow your local
codes if they differ with guides in this manual. In
Massachusetts, plumbing codes of Massachusetts shall
be adhered to. Consult with a licensed plumber.
• Maximum operating pressure: 100 psi.
• Maximum temperature: IO0°F.
• For cold water use only. Do not install on a hot water
line.
• Not to be used on water that is microbiologically
unsafe or of unknown quality without adequate disin-
fection before or after the system.
• Keep solvents and sprays away from the clear sump
housing material. Surface cracking and failure can
result.
• Do not install where pressure surges exceed 100 psi.
Install a pressure regulator before the filter if needed.
• Do not install outdoors in direct sunlight.
• Do not install where freezing may occur.
• Misapplication of clear housing voids your warranty.
• It is important to properly seat the o-ring in the groove
of the sump housing, or a water leak could occur.
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
3

INSPECT SHIPMENT
Your Deluxe Multi-Purpose Water Filter is shipped com-
plete in one carton. Remove all items from your shipping
carton.
Check all items against the packing list below. Note any
items lost or damaged in shipment. Note any damage to
the shipping carton. Refer to the exploded view and
parts list in the back of the manual for the part names
and numbers of missing or damaged items. If problems
exist, refer to the website or the toll free number listed
throughout this manual.
NOTE: Codes in the state of Massachusetts require instal-
lation by a licensed plumber.
If you live in the state of Massachusetts, review plumbing
code 248-CMR of the Commonwealth of Massachusetts
before proceeding with the installation.
Deluxe Multi-Purpose Water Filter,
including 25 micron Sediment Cartridge Adjustable Filter Wrench
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
4

INSTALLATION LOCATION
To filter sediments from all house water, locate the Deluxe
Multi-Purpose Water Filter on the main water supply pipe
(See Figure 1). Please ask your Sears associate about
products that will remove taste and odor from your water
throughout your home. You can also filter water to one
faucet. For example, install the filter under the kitchen
sink to filter the cold drinking water (See Figure 2).
PLANNING YOUR INSTALLATION
When planning the installation, first read the "Water
Treatment Filter Cartridges" section on Page 10 to deter-
mine where to locate the water filter housing. Then, use
the drawings on Page 6as a guide. There are many vari-
ables to consider as you plan. Some of these are:
• The Deluxe Multi-Purpose Water Filter inlet and outlet
internal threads are 3/4" NPT
• Existing plumbing type (copper, threaded, etc.) and
nominal size (1/2", 3/4", etc.)
• Tools you have, and your plumbing skills
• Space available for installing the Deluxe Multi-Purpose
Water Filter
Make a simple sketch of your proposed installation, and a
list of plumbing materials you will need. Obtain every-
thing you need before starting the installation.
Filtering All House Water
To Outside Faucets
Cold Water
to House
Faucets &
Water Heater Multi-Purpose
Water Filter
City Water Supply
Pressure
Tank
__ ell Water Supply
Well _
Pump t
Figure 1
Filtering Water to One Faucet
Kitchen Sink
/
Multi-Purpose
HOT COLD lil Ill Water Filter
LUJ Figure 2
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
5

A. INSTALLATION ON COPPER PLUMBING USING COMPRESSION FITTINGS
MATERIALS & TOOLS NEEDED
• 2 compression adaptors, 3/4" NPT x com-
pression end to fit existing copper pipe
• Teflon tape Optional
• Tubing cutter Shutoff
• Sandpaper or emery cloth Valve
• 2 wrenches, either open end or adjustable /
jaw, sized to fit compression adaptors f
Apply 4 wraps of Optional
Teflon Tape Shutoff Valve
INLET
WATER 3/4" NPT
IN
NOTE: Be sure to allow a minimum space of 2" under the
filter for removing the sump (to change the cartridge).
Nut
Brass
Ferrule
Compression
Adaptor
WATER
OUT
Figure 3
B. SOLDERED COPPER INSTALLATION
WATER _ IN _ OUT _ WATER
IN "_ _ "_ OUT
Shutoff 3/4'Copper I H II_ ×Sweat(Apply
Valve (2) Pipe: as, I II I I 4 wraps of
requlrea _,___ Teflon Tape)
See Note in Figure 3 $ Figure 4
C. THREADED INSTALLATION
WATER _ IN.OUT c_ WATER
,N _@___i_[]i_ OUT
Optional 3/4" 3/4" Hex Union
• Jl II _ Nipple Fitting
Shutoff Nipple
Valve (2) (2) _ (2) (2)
See Note in Figure 3 , Figure 5
D. UNDERSINK INSTALLATION
(Filtering Water to One Faucet)
\
t ii ii
hut ve
NOTE: To change the filter
cartridge, refer to
the instructions on
Pages 11& 12 in this
manual• NOTE: Be sure to allow a
minimum space of
2" under the filter
for removing the
sump (to change
the cartridge).
Figure 6
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
6

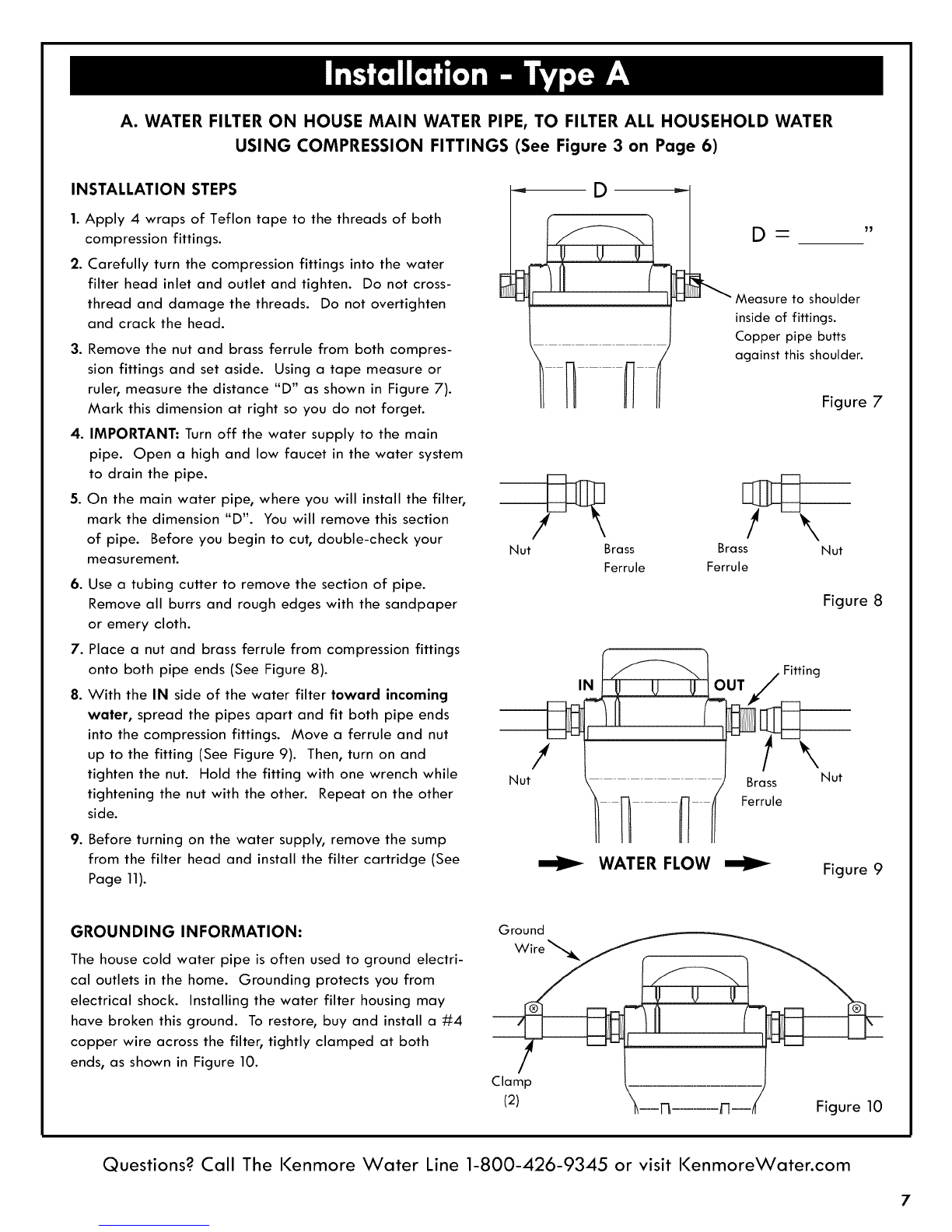

A. WATER FILTER ON HOUSE MAIN WATER PIPE, TO FILTER ALL HOUSEHOLD WATER
USING COMPRESSION FITTINGS (See Figure 3 on Page 6)
INSTALLATION STEPS
1. Apply 4wraps of Teflon tape to the threads of both
compression fittings.
2. Carefully turn the compression fittings into the water
filter head inlet and outlet and tighten. Do not cross-
thread and damage the threads. Do not overtighten
and crack the head.
3. Remove the nut and brass ferrule from both compres-
sion fittings and set aside. Using a tape measure or
ruler, measure the distance "D" as shown in Figure 7).
Mark this dimension at right so you do not forget.
4. IMPORTANT: Turn off the water supply to the main
pipe. Open a high and low faucet in the water system
to drain the pipe.
5. On the main water pipe, where you will install the filter,
mark the dimension "D". You will remove this section
of pipe. Before you begin to cut, double-check your
measurement.
6. Use a tubing cutter to remove the section of pipe.
Remove all burrs and rough edges with the sandpaper
or emery cloth.
7. Place a nut and brass ferrule from compression fittings
onto both pipe ends (See Figure 8).
8. With the IN side of the water filter toward incoming
water, spread the pipes apart and fit both pipe ends
into the compression fittings. Move a ferrule and nut
up to the fitting (See Figure 9). Then, turn on and
tighten the nut. Hold the fitting with one wrench while
tightening the nut with the other. Repeat on the other
side.
9. Before turning on the water supply, remove the sump
from the filter head and install the filter cartridge (See
Page 11).
7D "1
a--- II
Measure to shoulder
inside of fittings.
Copper pipe butts
against this shoulder.
Figure 7
Nut Brass Brass Nut
Ferrule Ferrule
Figure 8
IN
!
Nut
tJ V c
WATER FLOW
Brass
Ferrule
Nut
Figure 9
GROUNDING INFORMATION:
The house cold water pipe is often used to ground electri-
cal outlets in the home. Grounding protects you from
electrical shock. Installing the water filter housing may
have broken this ground. To restore, buy and install a #4
copper wire across the filter, tightly clamped at both
ends, as shown in Figure 10.
Ground
Wire "_
Clamp
(2) Figure 10
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
7

B. WATERFILTERON HOUSEMAIN WATERPIPE,TO FILTERALL HOUSEHOLDWATER
USINGSOLDEREDCOPPERFITTINGS(SeeFigure4on Page 6)
MATERIALS AND TOOLS NEEDED:
You will need 2 sweat adaptors, 3/4" NPT x sweat (sweat
end to fit your main water pipe), lead-free solder and
flux, soldering torch, Teflon tape, sandpaper or emery
cloth, open end (to fit sweat adaptor) or adjustable jaw
wrench.
INSTALLATION STEPS
CAUTION: Heat created when soldering can damage the
water filter's plastic parts. Be sure to use the following
procedure to protect the water filter.
1. IMPORTANT: Turn off the water supply to the main
pipe. Open a high and low faucet in the water system
to drain the pipe.
2. On the main water pipe, where you will install the filter,
use a tubing cutter to remove a section of pipe about
12" long. Use sandpaper or emery cloth to thoroughly
clean and remove all burrs and rough edges, from both
pipe ends.
NOTE: When soldering, use lead-free solder and flux
only. Be sure pipe and fittings are properly
cleaned.
3. Solder a sweat adaptor onto one of the pipe ends (See
Figure 11).
4. Place, but do not solder, a straight connector onto the
other pipe end (See Figure 11).
5. Remove the sump from the filter head and set the sump
aside.
6. After it cools, apply 4 wraps of Teflon tape to the
threads on the sweat adaptor fitting (See Figure 12).
7. With the IN side of the water filter toward incoming
water, carefully, turn the filter head onto the sweat
adaptor fitting (See Figure 12). Do not cross-thread, or
over-tighten and crack the filter head.

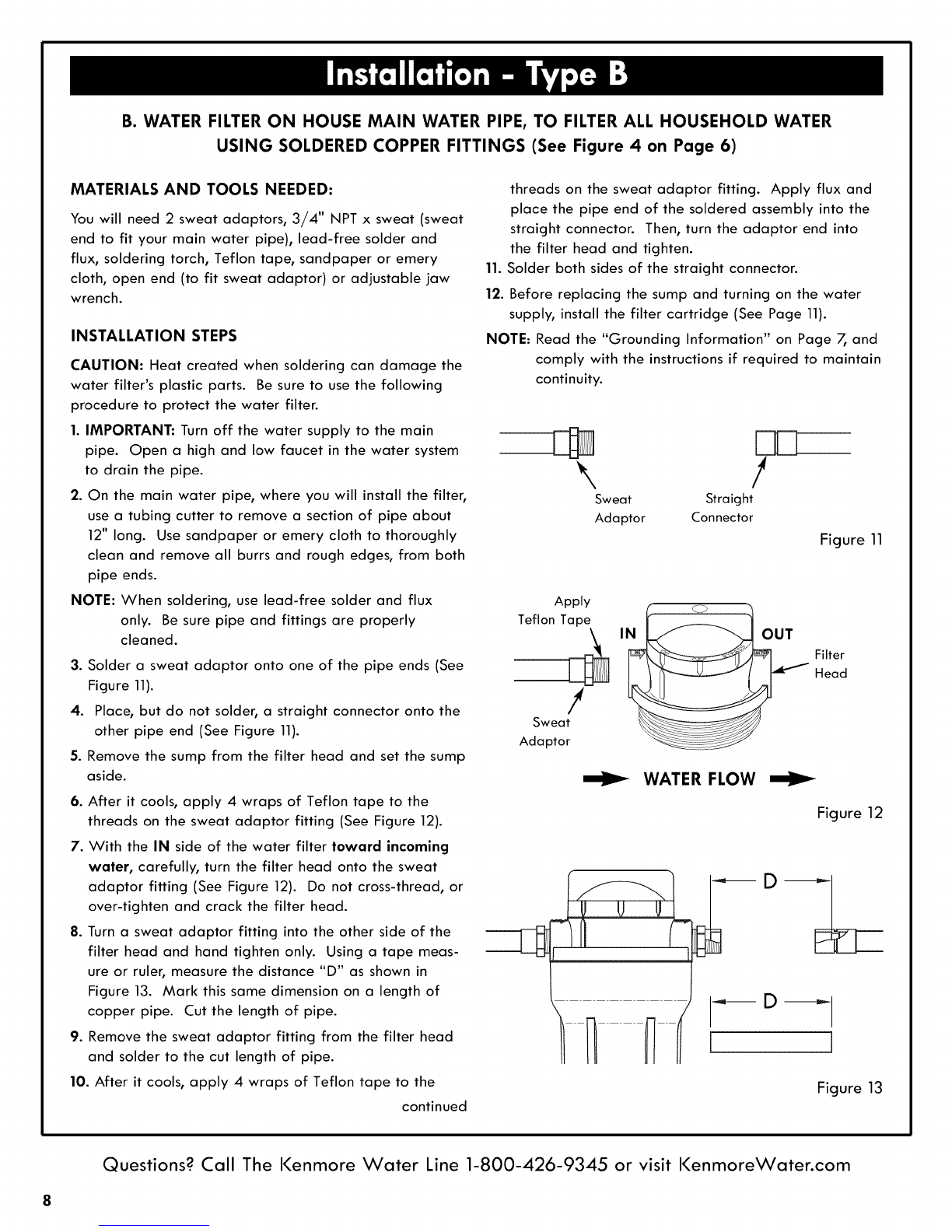

8. Turn a sweat adaptor fitting into the other side of the
filter head and hand tighten only. Using a tape meas-
ure or ruler, measure the distance "D" as shown in
Figure 13. Mark this same dimension on a length of
copper pipe. Cut the length of pipe.
9. Remove the sweat adaptor fitting from the filter head
and solder to the cut length of pipe.
10. After it cools, apply 4 wraps of Teflon tape to the
continued
threads on the sweat adaptor fitting. Apply flux and
place the pipe end of the soldered assembly into the
straight connector. Then, turn the adaptor end into
the filter head and tighten.
11. Solder both sides of the straight connector.
12. Before replacing the sump and turning on the water
supply, install the filter cartridge (See Page 11).
NOTE: Read the "Grounding Information" on Page 7, and
comply with the instructions if required to maintain
continuity.
\Sweat
Adaptor
/
Straight
Connector
Figure 11
Apply ¢_
Teflon Tape J
[_ I Filter
__ Head
!
Sweat
Adaptor
WATER FLOW
Figure 12
Figure 13
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com

C. WATER FILTER ON HOUSE MAIN WATER PIPE, TO FILTER ALL HOUSEHOLD WATER
USING THREADED PIPE & FITTINGS (See Figure 5 on Page 6)
MATERIALS AND TOOLS NEEDED:
For threaded pipe installation, you will need a pipe
threading tool, pipe wrenches, pipe joint compound, union
fittings and pipe nipples. Connect the filter housing as
typically shown in Figure 5on Page 6.
INSTALLATION NOTES
• Use pipe joint compound on all external threads.
• Do not turn pipe or fittings too tightly into the filter
head or you may break it.
• It is important to have some linear movement in the
house main water pipe. This will allow you to tighten
union fittings without damaging the filter head, if pipe
lengths are not exact.
NOTE: Read the "Grounding Information" on Page 7, and
comply with the instructions if required to maintain
continuity.
D. WATER FILTER UNDERSINI(, TO FILTER WATER TO ONE FAUCET
(See Figure 6 on Page 6)
INSTALLATION STEPS
1. Close the cold water side shutoff valve. Usually, there
already is a shutoff under the sink. If not, close the
main water shutoff valve near the water meter or pres-
sure tank.
2. Cut and remove a section of the cold water pipe.
3. If you are plumbing with flexible tubing, hang or sup-
port the filter housing in some manner. If using rigid
pipe, be sure to allow a minimum of 2" clearance
under the filter for sump removal when changing the
filter cartridge.
4. Use the plumbing procedures on Page 7 if using com-
pression fittings. Follow procedures on Page 8 for
sweat copper and threaded pipe installation. Be sure
water flow is to the filter IN side, and from the OUT
side to the faucet.
NOTE: A grounding jumper wire is not required.
5. Before turning on the water supply, remove the sump
from the filter head and install the filter cartridge (See
Page 11).
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
9

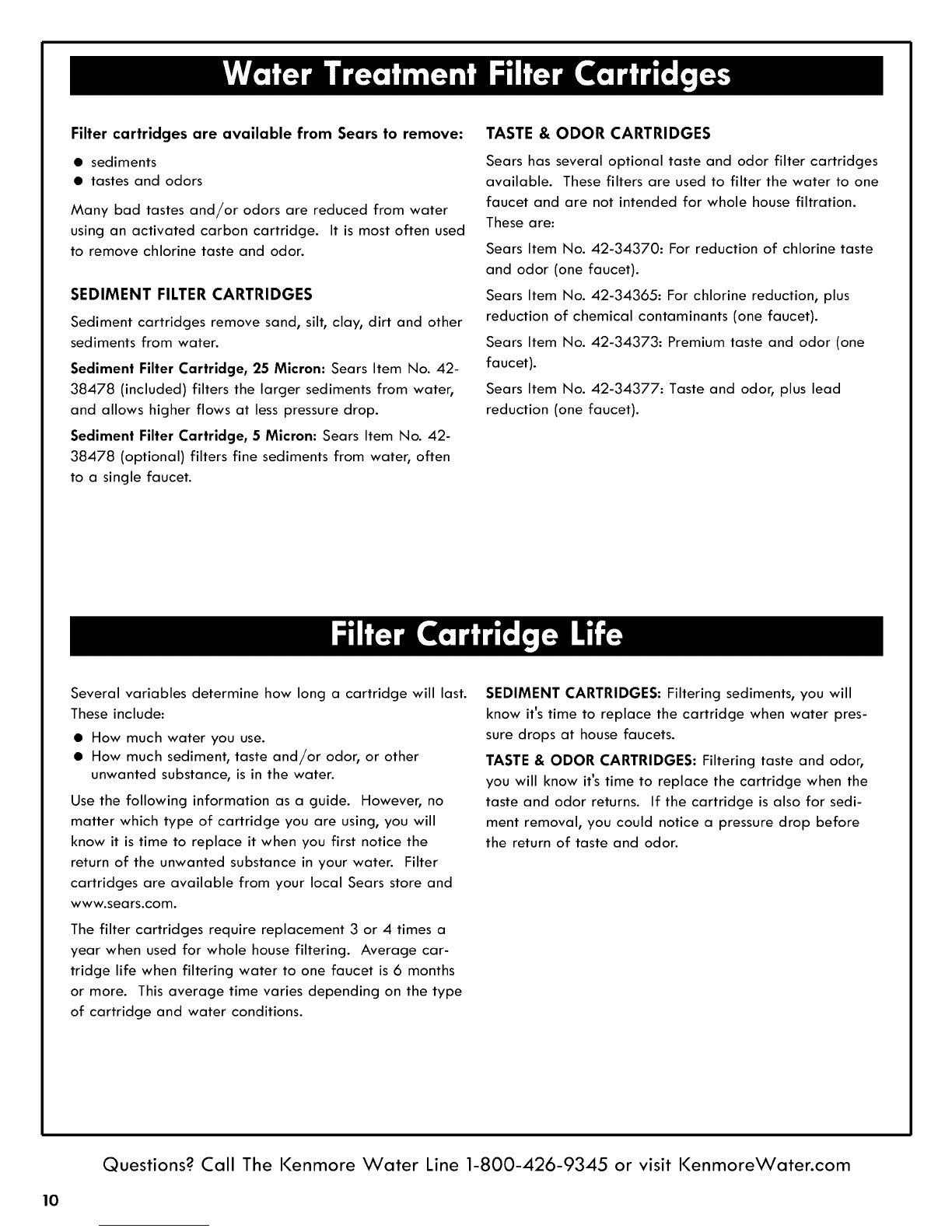

Filter cartridges are available from Sears to remove:
• sediments
• tastes and odors
Many bad tastes and/or odors are reduced from water
using an activated carbon cartridge. It is most often used
to remove chlorine taste and odor.
SEDIMENT FILTER CARTRIDGES
Sediment cartridges remove sand, silt, clay, dirt and other
sediments from water.
Sediment Filter Cartridge, 25 Micron: Sears Item No. 42-
38478 (included) filters the larger sediments from water,
and allows higher flows at less pressure drop.
Sediment Filter Cartridge, 5 Micron: Sears Item No. 42-
38478 (optional) filters fine sediments from water, often
to a single faucet.
TASTE & ODOR CARTRIDGES
Sears has several optional taste and odor filter cartridges
available. These filters are used to filter the water to one
faucet and are not intended for whole house filtration.
These are:
Sears Item No. 42-34370: For reduction of chlorine taste
and odor (one faucet).
Sears Item No. 42-34365: For chlorine reduction, plus
reduction of chemical contaminants (one faucet).
Sears Item No. 42-34373: Premium taste and odor (one
faucet).
Sears Item No. 42-34377: Taste and odor, plus lead
reduction (one faucet).
Several variables determine how long a cartridge will last.
These include:
• How much water you use.
• How much sediment, taste and/or odor, or other
unwanted substance, is in the water.
Use the following information as a guide. However, no
matter which type of cartridge you are using, you will
know it is time to replace it when you first notice the
return of the unwanted substance in your water. Filter
cartridges are available from your local Sears store and
www.sears.com.
The filter cartridges require replacement 3 or 4 times a
year when used for whole house filtering. Average car-
tridge life when filtering water to one faucet is 6months
or more. This average time varies depending on the type
of cartridge and water conditions.
SEDIMENT CARTRIDGES: Filtering sediments, you will
know it's time to replace the cartridge when water pres-
sure drops at house faucets.
TASTE & ODOR CARTRIDGES: Filtering taste and odor,
you will know it's time to replace the cartridge when the
taste and odor returns. If the cartridge is also for sedi-
ment removal, you could notice a pressure drop before
the return of taste and odor.
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
10

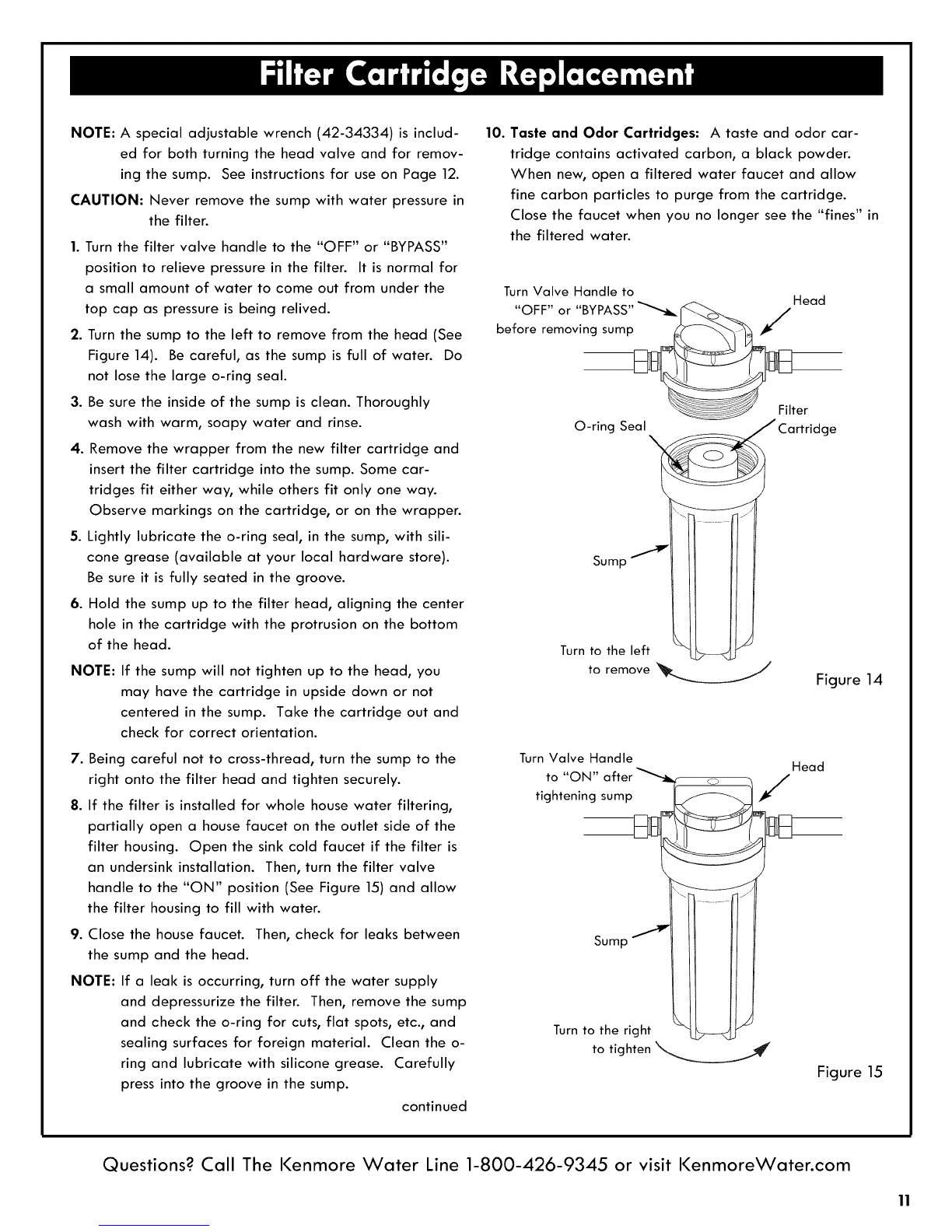

NOTE: A special adjustable wrench (42-34334) is includ-
ed for both turning the head valve and for remov-
ing the sump. See instructions for use on Page 12.
CAUTION: Never remove the sump with water pressure in
the filter.
1. Turn the filter valve handle to the "OFF" or "BYPASS"
position to relieve pressure in the filter. It is normal for
a small amount of water to come out from under the
top cap as pressure is being relived.
2. Turn the sump to the left to remove from the head (See
Figure 14). Be careful, as the sump is full of water. Do
not lose the large o-ring seal.
3. Be sure the inside of the sump is clean. Thoroughly
wash with warm, soapy water and rinse.
4. Remove the wrapper from the new filter cartridge and
insert the filter cartridge into the sump. Some car-
tridges fit either way, while others fit only one way.
Observe markings on the cartridge, or on the wrapper.
5. Lightly lubricate the o-ring seal, in the sump, with sili-
cone grease (available at your local hardware store).
Be sure it is fully seated in the groove.
6. Hold the sump up to the filter head, aligning the center
hole in the cartridge with the protrusion on the bottom
of the head.
NOTE: If the sump will not tighten up to the head, you
may have the cartridge in upside clown or not
centered in the sump. Take the cartridge out and
check for correct orientation.
7. Being careful not to cross-thread, turn the sump to the
right onto the filter head and tighten securely.
8. If the filter is installed for whole house water filtering,
partially open a house faucet on the outlet side of the
filter housing. Open the sink cold faucet if the filter is
an undersink installation. Then, turn the filter valve
handle to the "ON" position (See Figure 15) and allow
the filter housing to fill with water.
9. Close the house faucet. Then, check for leaks between
the sump and the head.
NOTE: If a leak is occurring, turn off the water supply
and depressurize the filter. Then, remove the sump
and check the o-ring for cuts, flat spots, etc., and
sealing surfaces for foreign material. Clean the o-
ring and lubricate with silicone grease. Carefully
press into the groove in the sump. continued
10. Taste and Odor Cartridges: A taste and odor car-
tridge contains activated carbon, a black powder.
When new, open a filtered water faucet and allow
fine carbon particles to purge from the cartridge.
Close the faucet when you no longer see the "fines" in
the filtered water.
Turn Valve Handle to Head
"OFF" or "BYPASS""'"--__ J
before removing sump_
er
O-ring Seal _ Cartridge
to remove ___ Figure 14
Turn Valve Handle
to "ON" after'_ o _ ,jHead
tightening sump J_--__
Sump
to tighten __
Turn to the right
Figure 15
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
11

The adjustable filter wrench provided is intended to:
•Help turn the valve handle to the "ON", "OFF" or
"BYPASS" positions.
• Remove the sump for easy filter changes.
TURNING THE VALVE HANDLE
The "Push/Slide" button on the wrench will need to be
pushed in and the slide moved up into the wrench ring
(See Figure 17) to fit on the valve handle.
The valve handle turns clockwise from the "ON" position
toward the "OFF" and "BYPASS" positions and, counter-
clockwise from the "BYPASS" position toward the "OFF"
and "ON" positions (See Figure 18).
CAUTION: Forcing the valve handle beyond the "ON" or
"BYPASS" positions will damage the valve
(See Figure 16).
The valve has a pressure relief valve built in, so there will
be a small amount of water coming out from under the
top cap when the valve is being turned from position to
position.
REMOVING THE SUMP
The slide will need to be pushed back into the wrench
handle to clear the wrench ring (See Figure 19). Push in
the "Push/Slide" button on the wrench, and push the slide
back into the wrench handle.
IMPORTANT: Remember to turn the valve to "BYPASS" or
"OFF" before removing the sump.
To remove the sump, turn it to the left (See Figure 14 on
Page 11).
/
U °utt°nJFigure 17
I Turn Clockwise
toward '*OFF"
and '*BYPASS"
eYpAs
Turn Counterclockwise
toward '*OFF" and '*ON"
Figure 18
Valve Turning
Range
Move
tide Down
!Slide
utton
Figure 16 Figure 19
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
12

Supply water maximum pressure .................................. 40-100 psi (276-689 kPa)
Supply water temperature limits ....................................... 40-100 °F (5-40 °C)
Inlet - Outlet .............................................................. 3/4" NPT
Installations In The Commonwealth Of Massachusetts: The Commonwealth of Massachusetts requires installation
be performed by a licensed plumber. Plumbing code 248-CMR of the Commonwealth of Massachusetts must be
followed in these cases.
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
13

2\ 5
4
i
Key No. Part No. Description
1 7164944 Head Assembly
2 42-34345 O-ring, 3-7/8" I.D. x 4.1/8" O.D.
3 7156543 Sump
4 42-34334 Wrench, Adjustable
•7293890 Owner's Manual
5 42-38478 Sediment Cartridge, 25 micron
42-38480 Sediment Cartridge, 5 micron
42-34370 Taste & Odor Cartridge •
•/€ 42-34373 Taste & Odor Cartridge, Premium •
42-34365 Taste & Odor /Chemical Contaminant Cartridge •
42-34377 Taste & Odor /Lead Reduction Cartridge •
• Not illustrated.
Optional replacement cartridges available from your local Sears store, online at
www.sears.com or from Sears Parts at 1-800-469-4663. Not included.
• Not to be used for whole house applications.
14
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com

Questions?Call The I<enmoreWater Line1-800-426-9345 or visit I<enmoreWater.com
15

Your Home
For expert troubleshooting and home solutions advice:

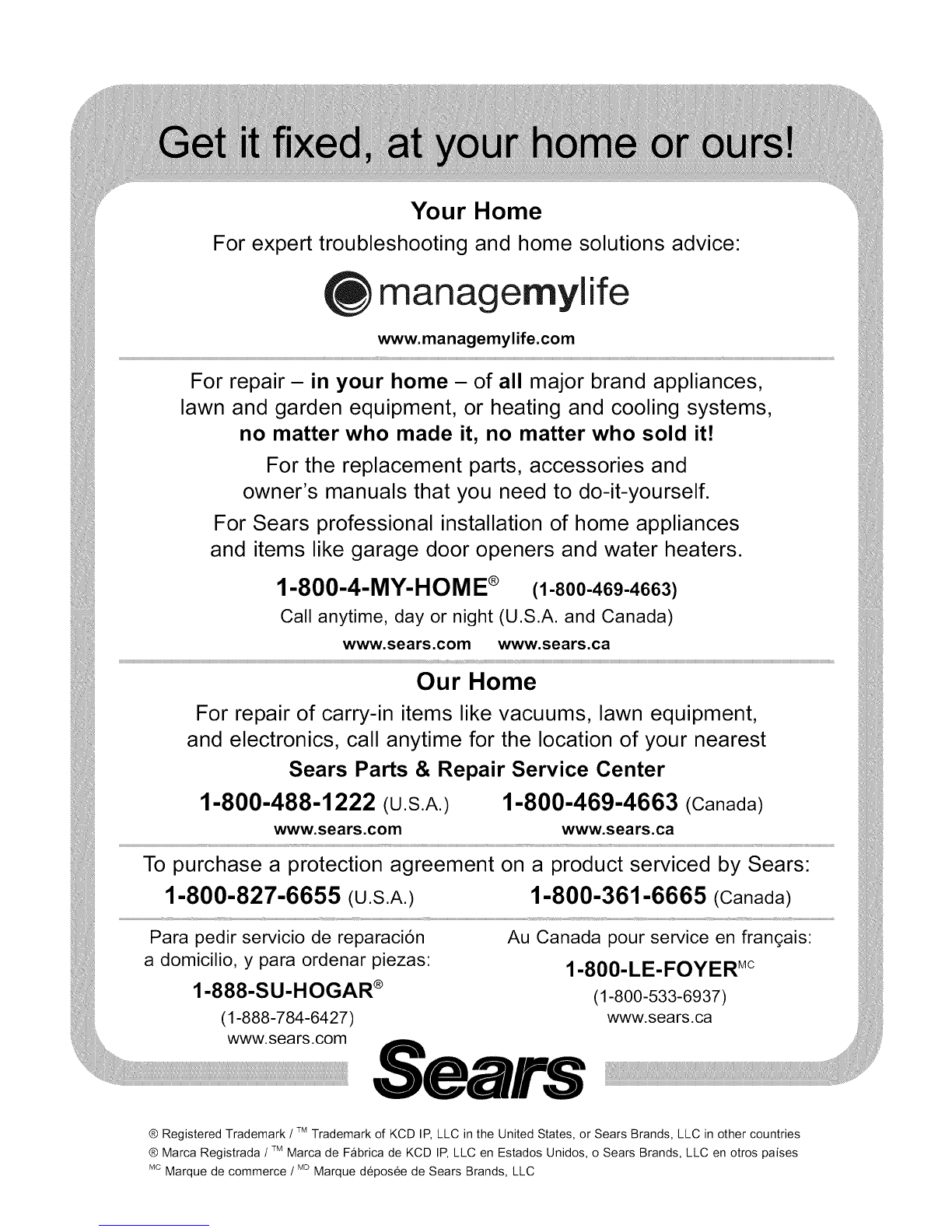

managernylife
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
www.sears.com www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparaci6n
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR ®
(1-888-784-6427)
www.sears.com
Au Canada pour service en frangais:
1-800-LE-FOYER Mc
(1-800-533-6937)
www.sears.ca
® Registered Trademark /TNTrademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries
® Marca Registrada /TNMarca de Fabrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC en otros parses
NCMarque de commerce /NDMarque depos6e de Sears Brands, LLC

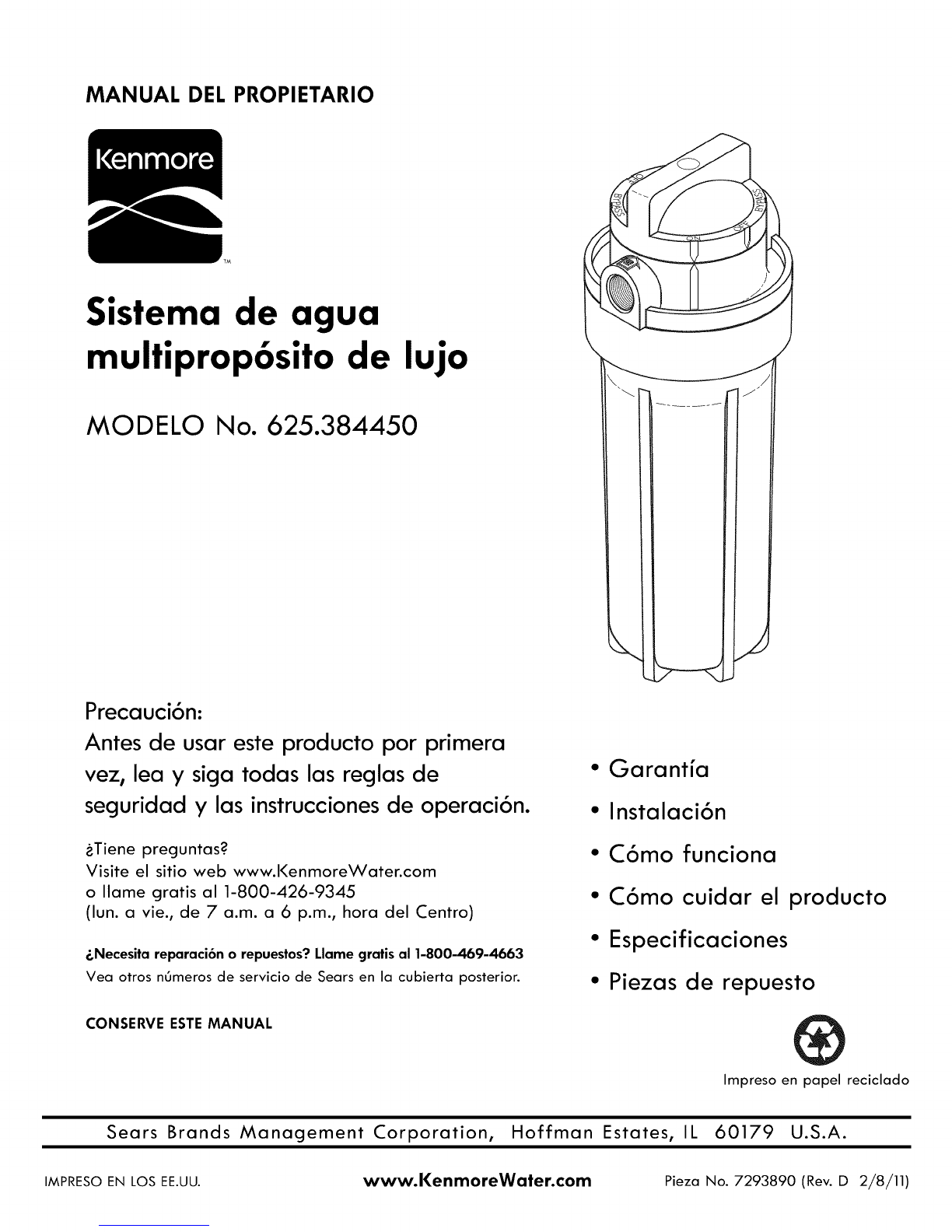

MANUAL DEL PROPIETARIO
Sistema de agua
multiprop6sito de lujo
MODELO No. 625.384450
Precauci6n:
Antes de usar este producto por primera
vez, lea y siga toclas las reglas de
seguridad y las instrucciones de operaci6n.
_Tiene preguntas?
Visite el sitio web www.KenmoreWater.com
o Ilame gratis al 1-800-426-9345
(lun. a vie., de 7 a.m. a 6 p.m., hora del Centro)
i.Necesita reparaci6n o repuestos? Llame gratis al 1-800-469-4663
Vea otros n0meros de servicio de Sears en la cubierta posterior.
CONSERVE ESTE MANUAL
•Garantia
• Instalaci6n
• C6mo funciona
• C6mo cuidar el producto
• Especificaciones
• Piezas de repuesto
®
Impreso en papel reciclado
Sears Brands Management Corporation, Hoffman
IMPRESO EN LOS EE.UU. www.l(enmoreWater.com
Estates, IL 60179 U.S.A.
Pieza No. 7293890 (Rev. D 2/8/11)

EL FILTRO DE AGUA MULTIPROPOSITO
DE LUJO VIENE CON UN AI_IO DE GARANTJA TOTAL
Cuando se haya instalado, operado y mantenido conforme a todas las instrucciones suministradas con el
producto, si el filtro de agua mulfiprop6sito de lujo fallara debido a defectos en materiales o mano de obra
dentro de un afio a partir de la fecha de compra, Sears Io reemplazar_ sin cargo.
La presente garantia no incluye los cartuchos filtrantes, los cuales son articulos consumibles.
Para obtener el reemplazo cubierto por esta garantia, sencillamente hay que devolver el filtro de agua
mulfiprop6sito de lujo en la tienda Sears m_s cercana en todo el territorio de los Estados Unidos.
Esta garantia se aplicar_ solamente mientras el producto se use en los Estados Unidos o Canada.
Esta garantia le otorga derechos legales especificos, yes posible que usted tenga otros derechos, los cuales
varian de una jurisdicci6n a otra.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
14-1/4"
5-1/4" 5-1/4"
_.Tiene preguntas? Llame a la Ifnea de ayuda de Kenmore Water al 1-800-426-9345
o visite el sitio web I<enmoreWater.com.

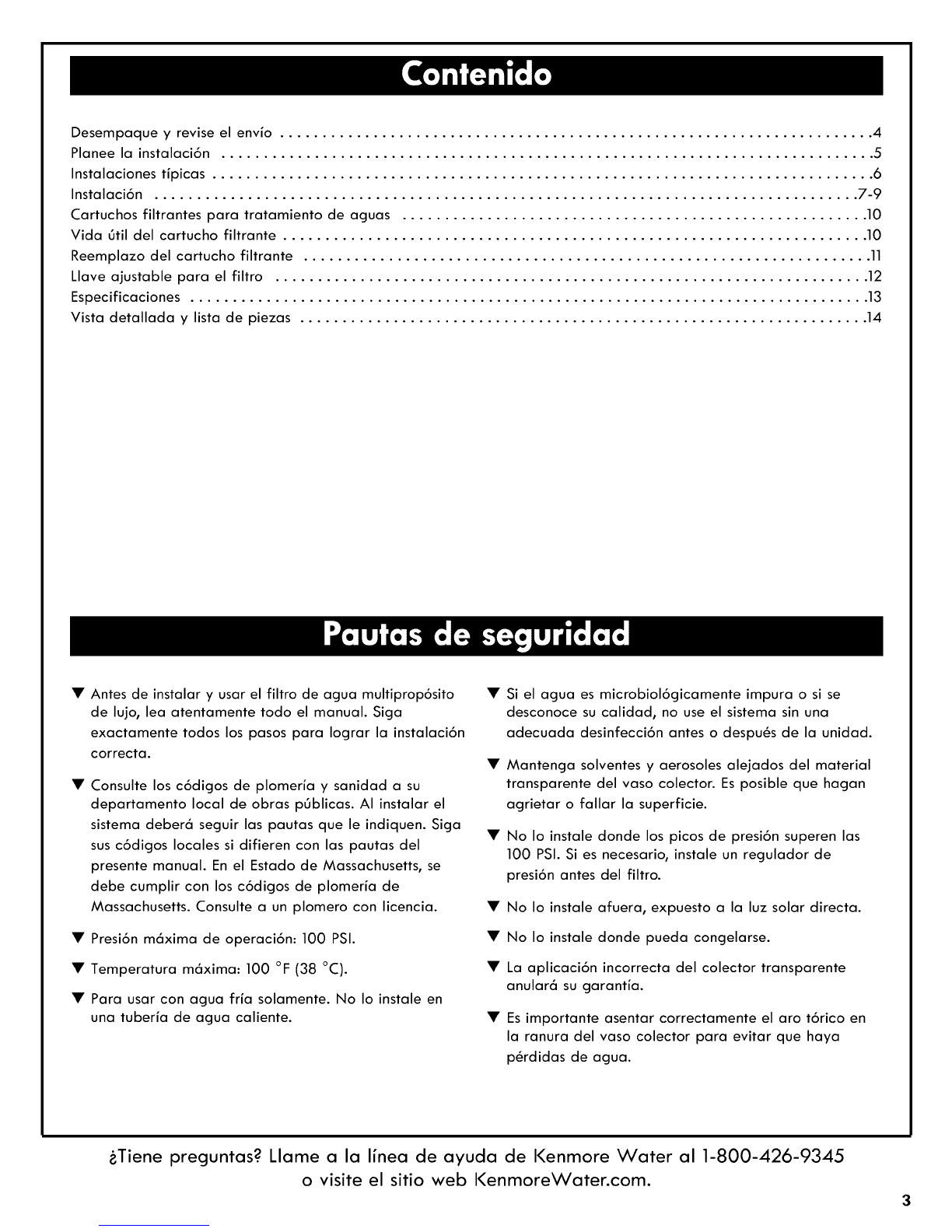

Desempaque y revise el envJo ...................................................................... 4
Planee la instalaci6n ............................................................................. 5
Instalaciones tipicas .............................................................................. 6
Instalaci6n ................................................................................... 7-9
Cartuchos filtrantes para tratamiento de aguas ....................................................... 10
Vida Otil del cartucho filtrante ..................................................................... 10
Reemplazo del cartucho filtrante ................................................................... 11
Llave ajustable para el filtro ...................................................................... 12
Especificaciones ................................................................................ 13
Vista detallada y lista de piezas ................................................................... 14
•Antes de instalar y usar el filtro de agua multiprop6sito
de lu]o, lea atentamente todo el manual. Siga
exactamente todos los pasos para Iograr la instalaci6n
correcta.
• Consulte los c6digos de plomeria y sanidad a su
departamento local de obras pOblicas. AI instalar el
sistema deber6 seguir las pautas que le indiquen. Siga
sus c6digos locales si difieren con las pautas del
presente manual. En el Estado de Massachusetts, se
debe cumplir con los c6digos de plomeria de
Massachusetts. Consulte a un plomero con licencia.
• Presi6n m6xima de operaci6n: 100 PSI.
• Temperatura m6xima: 100 °F (38 °C).
• Para usar con agua fria solamente. No Io instale en
una tuberia de agua caliente.
Si el agua es microbiol6gicamente impura o si se
desconoce su calidad, no use el sistema sin una
adecuada desinfecci6n antes o despu_s de la unidad.
Mantenga solventes y aerosoles ale]ados del material
transparente del vaso colector. Es posible que hagan
agrietar o fallar la superficie.
No Io instale donde los picos de presi6n superen las
100 PSI. Si es necesario, instale un regulador de
presi6n antes del filtro.
• No Io instale afuera, expuesto a la luz solar directa.
• No Io instale donde pueda congelarse.
• La aplicaci6n incorrecta del colector transparente
anular6 su garantia.
Es importante asentar correctamente el aro t6rico en
la ranura del vaso colector para evitar que haya
p_rdidas de agua.
_Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345
o visite el sitio web KenmoreWater.com. 3

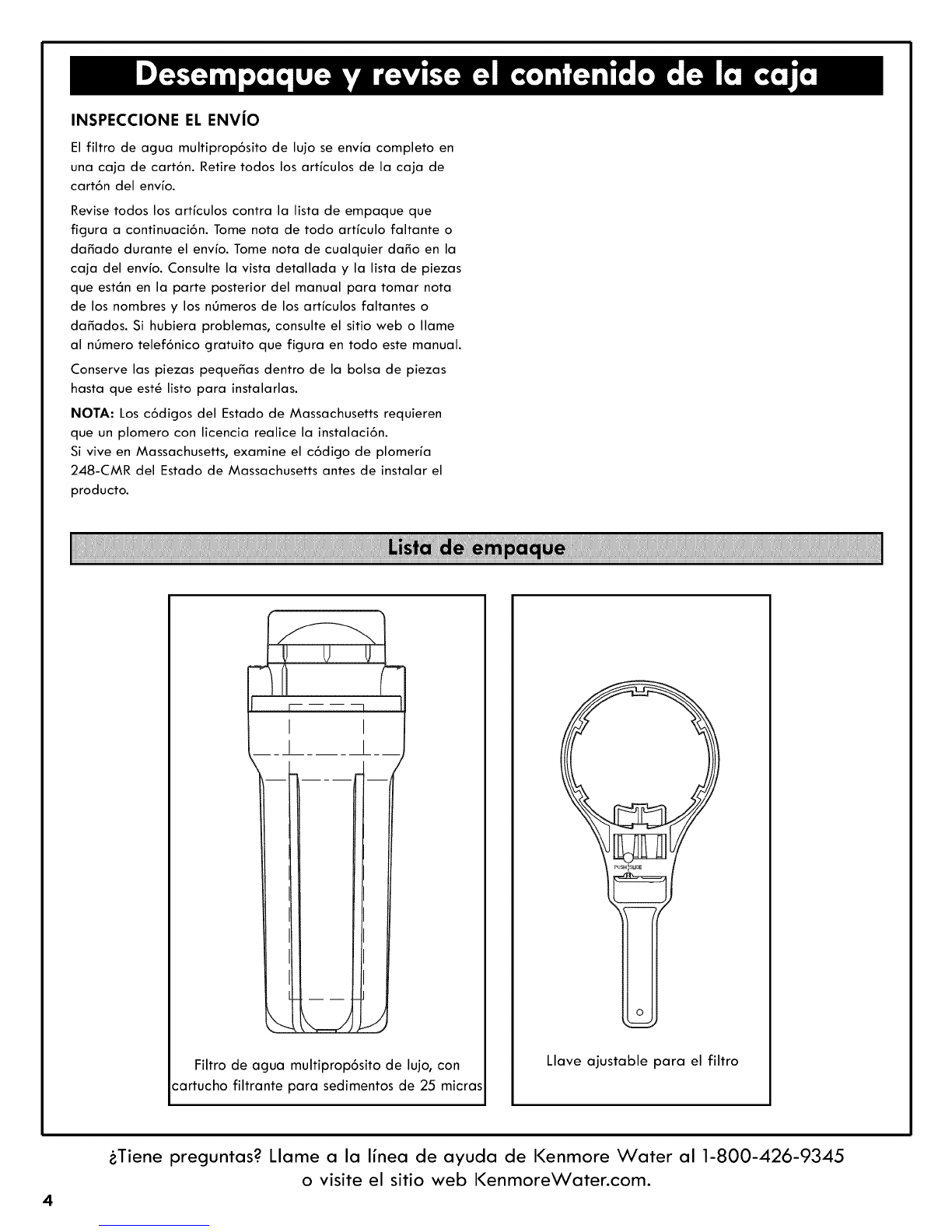

INSPECCIONE EL ENVIO
El filtro de agua multiprop6sito de lujo se envM completo en
una caja de cart6n. Retire todos los articulos de la caja de
cart6n del envfo.
Revise todos los articulos contra la lista de empaque que
figura a continuaci6n. Tome nota de todo articulo faltante o
dafiado durante el envfo. Tome nota de cualquier dafio en la
caja del envfo. Consulte la vista detallada y la lista de piezas
que est6n en la parte posterior del manual para tomar nota
de los nombres y los nOmeros de los articulos faltantes o
dafiados. Si hubiera problemas, consulte el sitio web o Ilame
al nOmero telef6nico gratuito que figura en todo este manual.
Conserve las piezas pequefias dentro de la bolsa de piezas
hasta que est6 listo para instalarlas.
NOTA: Los c6digos del Estado de Massachusetts requieren
que un plomero con licencia realice la instalaci6n.
Si vive en Massachusetts, examine el c6digo de plomerM
248-CMR del Estado de Massachusetts antes de instalar el
producto.
Filtro de agua multiprop6sito de lu]o, con
cartucho filtrante para sedimentos de 25 micras
Llave ajustable para el filtro
4
_.Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345
o visite el sitio web KenmoreWater.com.
