Kennedy BSK075 User manual

GAS FILLING
Fill only in a well ventilated area.
The soldering iron runs on butane gas
such as used with ordinary cigarette
lighters. A small amount of liquid gas
should be visible through the gas
inspection window, gas vapour alone
will not generate sufficient pressure.
Do not overfill.
lMake sure the on/off switch is
in the “O” (off) position before filling.
lHold unit vertically with the
filling valve upwards. Push the gas
re-fill cylinder down onto the filling
valve. The flow of gas from the re-fill
cylinder to the soldering iron
depends on gravity (See fig. 2).
CHANGING THE TIPS
CAUTION: Allow the tip to cool completely before removing.
Tips are easily removed or installed, by unscrewing the tip retaining
collar and sliding the tip retainer tube off the front end burner.
Replace the tip and reassemble in the reverse order. (See fig. 3)
IGNITION SEQ ENCE
The unit is ignited by a piezo-electronic system. The gas “on/off”
switch is marked “I-0”. The ignition switch is marked with a " ".
lSoldering, hot air, hot knife: Fit tip of choice and secure with
retention sleeve/collar. Turn temperature regulator button to Max.
setting. Hold away from face and body and push the gas switch
toward the tip, this will release the gas. 'Click back' on piezo
ignition switch and allow to return while still maintaining light
thumb pressure on the switch, this enables the gas flow interrupt
mechanism to extinguish the ignition flame, and allows the
catalyst to assume combustion control. A glowing catalyst, in the
exhaust port, will confirm correct operating mode.
lBlow torch:
N.B. The flame is difficult to see under certain lighting situations.
Remove only the tip. Turn temperature regulator to mid setting.
Turn gas on as above. ‘Click back’ on piezo ignition switch and
quickly release (the internal spring will provide sufficient speed).
If the speed of return of the piezo switch is slowed slightly by
finger pressure, the gas flow interrupt mechanism may extinguish
the flame. Experience will dictate. Set low to medium settings as
the flame may "blow itself out' at high gas flow.
lTo Switch off: Push the gas switch away from the tip “O” (OFF).
B TANE SOLDERING TOOL KIT
MODEL BSK075
ORDER CODE KEN-516-9120K
lCordless and refillable
lUses standard butane
lighter fuel
l25 -75W rating
lComplete with blow torch,
hot air tool, hot knife and tips
SAFETY G IDELINES
lAlways use with care. Your soldering iron contains flammable
gas under pressure.
lAlways keep out of the reach of children.
lAlways refill with a high quality butane cigarette lighter fuel.
No other fuel type should be used.
lAlways ensure the flame is extinguished before putting down.
Caution: Hot gases 580°C are emitted from the exhaust port.
lAlways ignite the soldering iron with the tip pointing away from face
and body. Excessive gas flow, flaming or the catalyst pulsing red
to black may occur when igniting or when the regulator is set
too high.
lAlways allow the tip to cool sufficiently before touching.
lAlways ensure that you are in a well ventilated area. This
product, when used for soldering and similar applications,
produces chemicals. Never inhale vapours from fluxes,
plastics, foams etc.
lAlways dispose of in accordance with local regulations.
lNever leave unattended.
lNever drop.
lNever use if the soldering iron is damaged.
lNever expose to heat above 50°C and avoid prolonged exposure
to the sun.
lNever puncture or incinerate.
lNever refill, ignite or use near flame or combustible materials.
lNever replace cap without first switching off and ensuring the tip
has cooled.
lNever attempt to dismantle, readjust or repair. The soldering iron
is not user serviceable.
lNever “carry on” or “check in” baggage containing this item
without confirming with the airline first that this is acceptable.
Ignition switch ( )
Gas inspection
window
Filling valve
Temperature
regulating dial
Fig. 2
I(ON) o (OFF)
Gas ON-OFF switch
Soldering tip
Fig. 1
INSTRUCTION MANUAL www.kennedy-tools.co.uk
Exhaust ports
TIP TEMPERAT RE RANGES
Soldering: 580°C
Blow torch: 1,300°C
Hot air: 625°C
Hot knife: 580°C
Tip retaining collar
Front end
burner
Tip
Tip retaining
collar
Soldering iron Tip retaining
tube
Fig. 3

AVAILABLE FROM YO R DISTRIB TOR
OTHER Q ALITY KENNEDY PROD CTS
AVAILABLE FROM YO R DISTRIB TOR

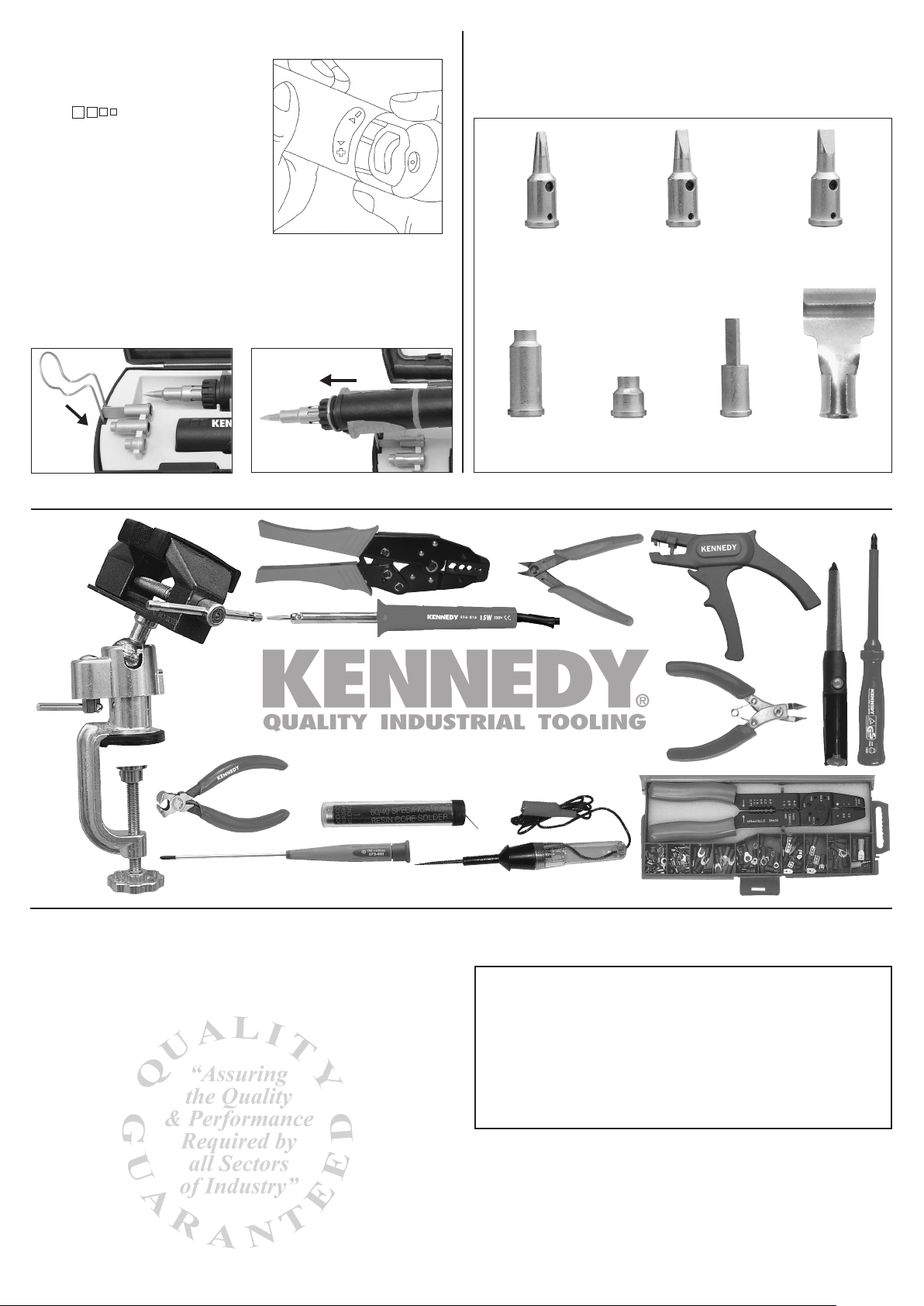

TEMPERAT RE ADJ STMENT
lThe tip temperature can be set as
required by turning the temperature
regulator dial. The housing is marked
with for orientation purposes
(See fig. 4). You can determine the
ideal setting by trial soldering a joint,
as components have varying
properties. It is not necessary for the
tip to glow bright red to achieve
satisfactory soldering temperatures.
SAFETY STAND
lAlways use the wire stand provided to rest the iron on.
Simply place the wire stand into the slot provided
(See fig. 5) and rest the iron in the stand (See fig. 6).
ACCESSORIES
Tips are available as accessories from your local distributor.
The tips marked with an asterisk are included with your soldering
iron. (See fig. 7).
Fig. 4
Fig. 5 Fig. 6
*TDF324
2.4mm Double Flat
KEN-516-9140K
TDF332
3.2mm Double Flat
KEN-516-9150K
TDF348
4.8mm Double Flat
KEN-516-9160K
*THA300
Hot Air Tip
KEN-516-9170K
*THK300
Hot knife
KEN-516-9190K
*TFN300
Flame Tip
KEN-516-9180K
*TAD300
Hot air deflector
KEN-516-9200K
Q ALITY G ARANTEE
& WARRANTY
KENNEDY TOOLS carry a one year manufacturer’s warranty.
KENNEDY TOOLS are designed & manufactured
to the highest standards & specifications.
Assuring the quality and performance required by all
sectors of industry.
KENNEDY TOOLS are fully guaranteed against
faulty materials & workmanship.
Should they be found to be defective, they will either be
repaired or replaced free of charge
(fair wear and tear and/or misuse excepted).
This does not affect your legal rights.
Please retain supplier invoice as proof of purchase.
Fig. 7
KENNEDY TOOLS
igston, Leicester, England, LE18 2FS.
www.kennedy-tools.co.uk
Kennedy is a registered trade mark of The Kennedy Group td.
