Table of contents:
FrontPage Page 1
Declaration of Conformity for High pressure cleaner - CWP EN Page 2
1. Machine description Page 3
1.1 Application Page 3
1.2 Functionality Page 4
2. User guide Page 5
2.1 Preparation Page 5
2.2 Start up Page 6
2.3 Safety rules Page 11
3. Maintenance instructions Page 13
3.1 General maintenance Page 13
3.2 Fault finding Page 15

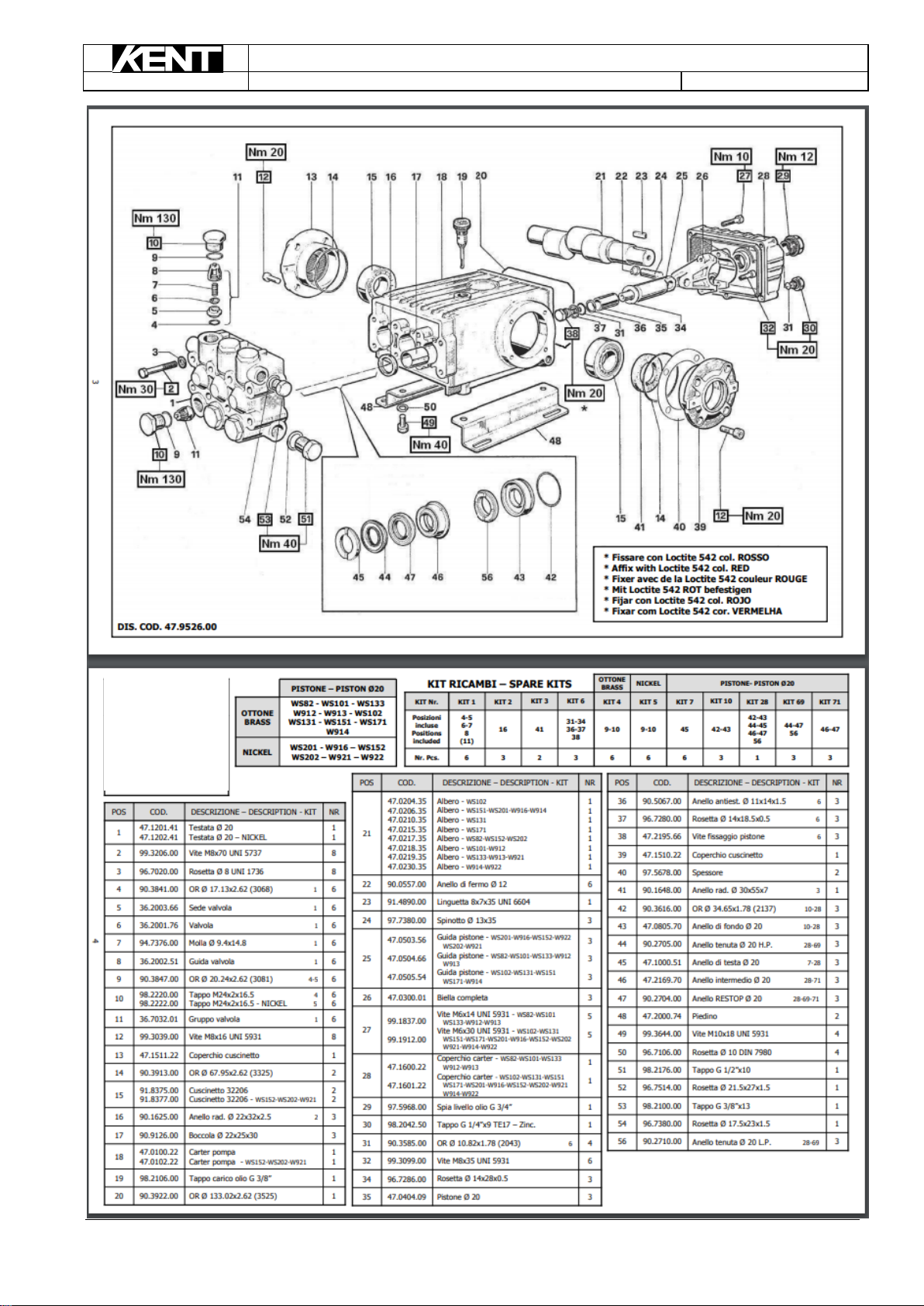

3.3 Spare parts Page 16
4. Installation and assembly Page 23
4.1 Unpacking Page 23
4.2 Removal Page 23
4.3 Technical specifications Page 24
5. Note Page 26
Original instruction manual
Rev. F1- June. 2019
Petrol high pressure cleaner
CWP 1525 –1721 –2018 –2415 (14HP)
CWP 2042 –2530 –3025 –3521 –4018 –5015 (23,5HP)
Caution: Read this manual before operating the product
KENT HØJTRYK A/S
SKOVBRYNET 10
DK-6752 GLEJBJERG
TLF. [phone] E-mail: [e-mail] www.kent-as.dk

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 2 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
EC-DECLARATION OF CONFORMITY FOR MACHINERY
Manufacturer: KENT HØJTRYK A/S
Skovbrynet 10
DK - 6752 Glejbjerg
Tel: [phone]
Hereby declare that:
Petrol Cold Water High Pressure Cleaners (CWP)
Model: CWP2042: CWP2530: CWP3025: CWP3521: CWP4018:
CWP5015: CWP1525: CWP1721: CWP2018: CWP2415:
Manufacturing no.: Year:
Is manufactured in conformity with:
Provision in the Council Directive of 17. May 2006 on mutual approximation of the laws of the
Member States on the safety of machines (2006/42/EC) with special reference to Annex II, A and
Annex I, of the Directive on essential safety and health requirements in relation to construction and
manufacture of machines.
Provision in the Council Directive of 12. December 2006 on mutual approximation of the laws of the
Member States on electrical equipment intended for apply to some tension limits (2006/95/EC).
Provision in the Council Directive of 15. December 2004 on mutual approximation of the laws of the
Member States on electromagnetic compatibility (2004/108/EC).
Is manufactured in conformity with following national / international standards and technical
specifications:
DS/EN 60335-2-79 Safety - Particular requirements for high pressure cleaners and stem cleaners. 2009-11-17
EN ISO 12100:2010 Safety of machinery - General principles for design - Risk assessment and risk reduction
DS/EN 60204-1:2006 Safety of machinery - Electrical equipment of machines - Part 1: General requirements
Ove Jørgensen Date: 18/4-2017
(Sign)
(Sign)

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 3 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
1. Machine description
1.1 Application:
Utilization:
This machine is designed exclusively for washing by means of pressurized water jet, objects, things or
surfaces eligible to be treated by the mechanical action of pressurized water jet and by the possible
chemical action of liquid detergent additives. The liquid detergent additives must be chosen in
accordance with the chemical compatibility of the surfaces to be washed.
High-pressure cleaners can clean with either cold or hot water, but for technical reasons the pumps in
the high-pressure cleaners must not run with water temperatures above 60 °C. Higher temperatures
require equipment which heats up the water on the outlet side of the high-pressure cleaner. In most
cases the water temperature will improve the cleaning process, in particular on greasy surfaces.
The high-pressure cleaner requires Petrol. Please see the nameplate.
The high-pressure cleaner must only be used with process water or collected rain water with a purity
equal to tap water. The inlet side requires a 3/4 inch. pipe diameter with a flow of at least 10 L / min.
The high-pressure cleaner is relatively noiseless with a noise level below 97 dB. Make sure the
operator wears hearing protection if the work is considered damaging to hearing. This means
that noise exposure even below 85 dB(A) may require the use of hearing protection (4).
Examples of possible use:
Farming: Intensive keeping- and breeding firms, farms, slaughterhouses.
Workshops: Maintenance of tractors and agricultural machinery.
Congratulations with your choice of a Kent high-pressure cleaner. You have purchased a unit
with high technological value. It is a professional and reliable machine which you can use for
many years. Thus, we ask you to read and follow the instruction manual carefully.
This instruction manual is an integral part of
the machine and must be read carefully
before the unit is installed, turned on and
used. The manual contains important
information and instructions for the sage
usage and maintenance of the machine.
Therefore, it must be kept with care.

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 4 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
1.2 Functionality:
Section of 3 cyl. pump piston cycle.
models are manufactured with each suitable for a pressure between 150 and 500bar. Can also be
delivered as stationary model. And a water flow with between 14 and 42L per minute.
Product range:
Pump:
3-cylinder, vibrationless and noiseless, oil bath lubricated high-pressure plunger pump made of rust-
and acidproof materials. The plungers are made of non-wearing ceramic material. Suitable for
temperatures up to 60° C.
Safety valve:
Built-in adjustable by-pass –continuous variable regulation of water volume.
Pressure regulation:
Working pressure adjustable from 30 bar to max. pressure at the lance. The low-pressure injector
with dosage regulation for detergents is also controlled from the lance.
Mics:
Epoxy-treated steel frame and cover. 10” wheel, 8 m high-pressure hose, spraygun, double-lance
incl. nozzles.
Optional:
- Auto start/stop.
- Detergent container.

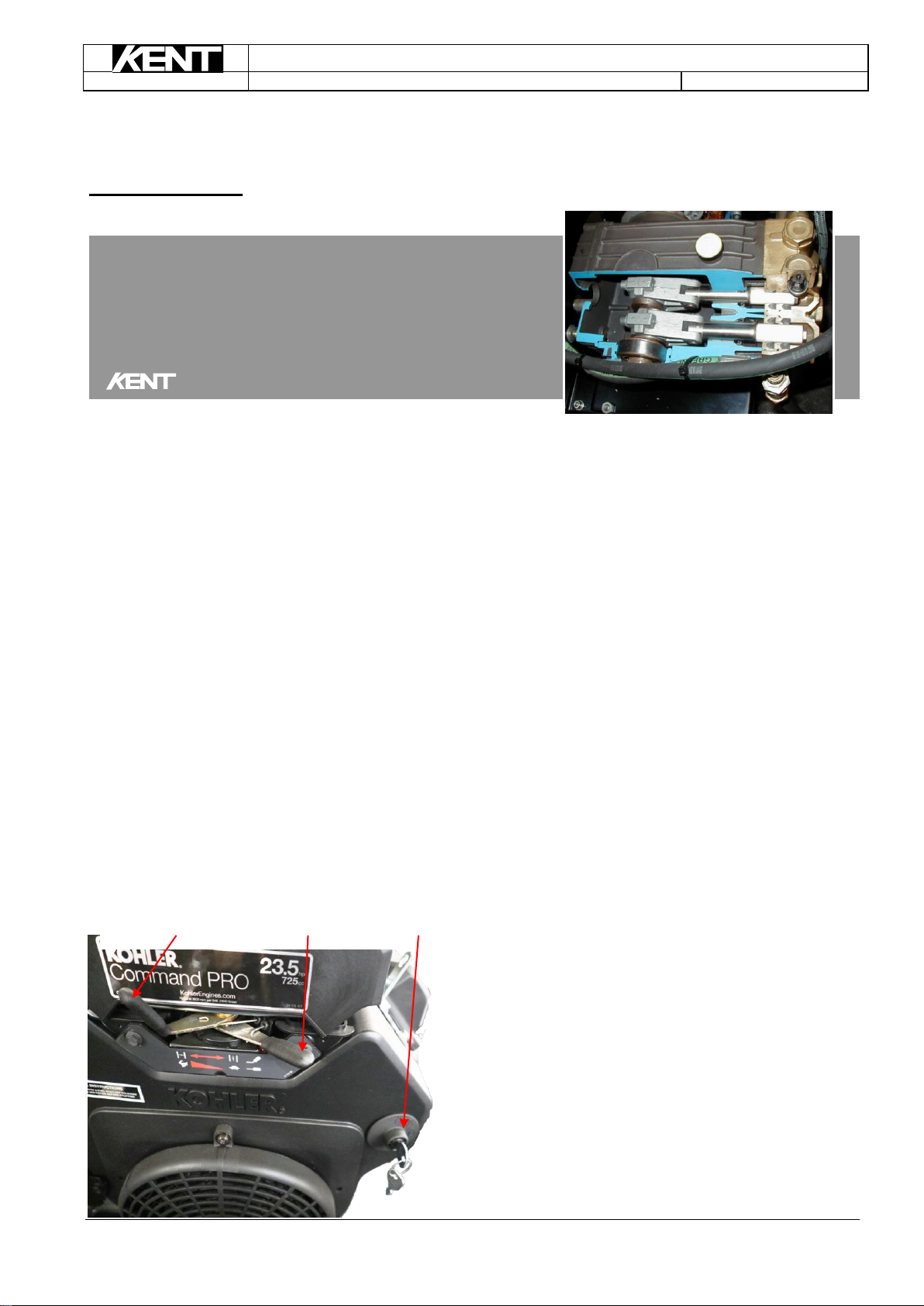

Choke handle | Speed handle | Ignition
Use the Choke handle before start if the
machine is cold.
(The choke handle needs to be drawn to the
left, as showed in the picture).
(The Speed handle underneath the choke
handle wont work, as the engine will control the
speed as a result of the Speedmatic installed).
When the choke handle is in position, turn the
ignition right and the engine will start.
When the engine has started, move the choke
handle slowly to the right and the device is now
ready for use.
How To Use:

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 5 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
2. User guide
2.1 Preparation
Make sure that personal protective equipment is
within reach. We recommend that operators
wear protective clothing, protective goggles,
gloves and safety footwear during operation of
the high-pressure cleaner.
This unit has been tested and test-run in the factory, but after transportation it may require a fine
adjustment and visual check of all operations. Always check for loose wires, screws and defect joints.
Pay particularly attention to thread connections and the equipment fittings at the outlet and inlet
connections on the high-pressure cleaner.
Connect the water supply to the cold-water cleaner by a 3/4 inch. fabric-reinforced hose. Use tap
water or “reject water” (treated waste water), if available.
Inlet connection
Outlet connection
Weight: 75-150 kg.
Never lift higher than 0,5 m and never lift above persons. Connect power and water only when the unit
is placed on a stable and level surface.

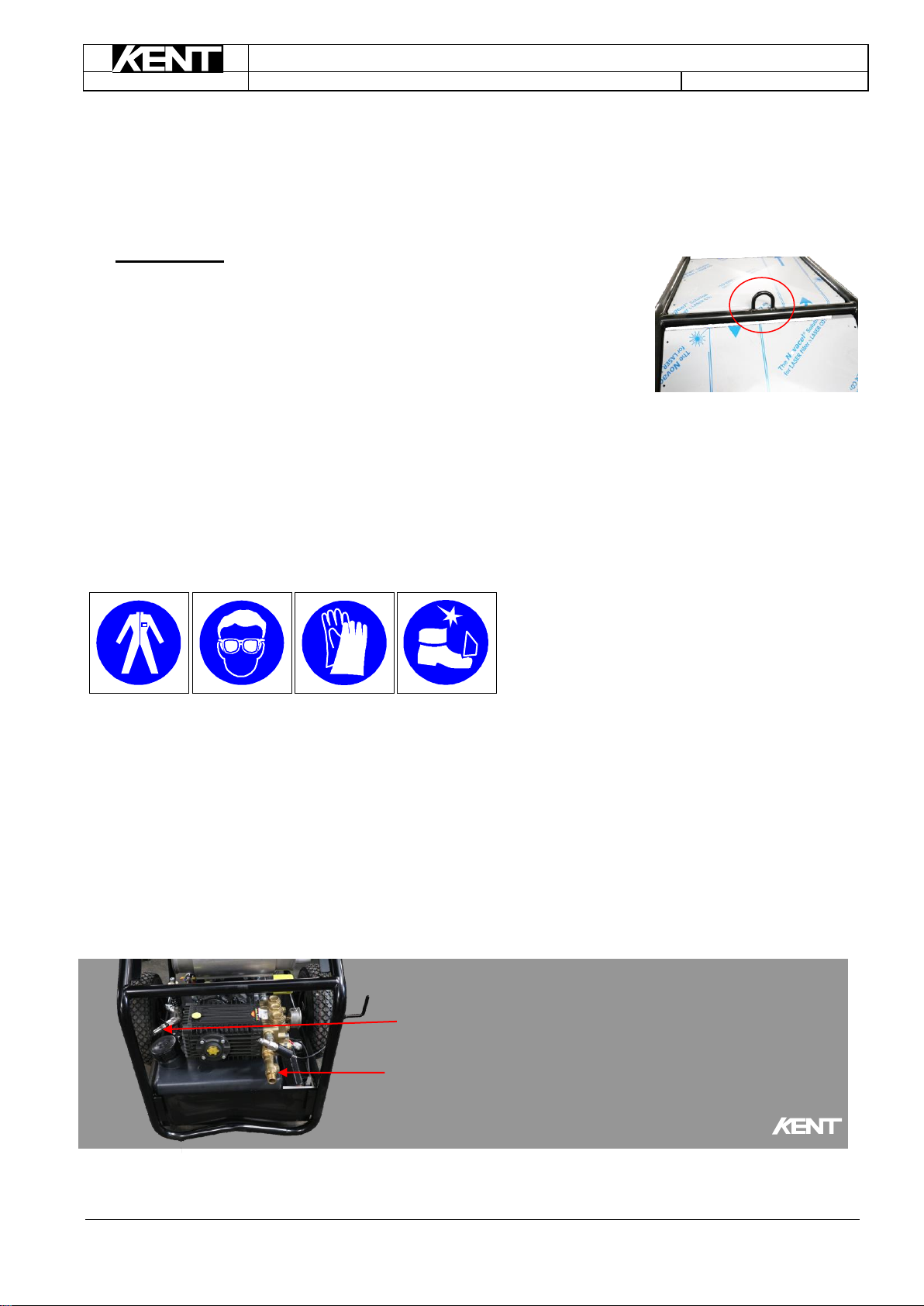

The high-pressure cleaner must be moved by use of either a forklift
truck, by rigging it directly onto a pallet with the high-pressure cleaner
securely fixed or lifting by crane with the shown hook which is mounted
on the top of the device, as mentioned in section 4.1.
The high-pressure cleaner must be switched off and, if possible, cooled
down during handling.
The work must always be planned in compliance with good ergonomic principles, and breaks must be
organized during large and continuous tasks. Avoid straining of back and arms and plan the work day
after consulting management and avoid stress. Vary your work or take appropriate breaks in order to
avoid monotonous strain.
Check oil level through pump indicator glass. Change oil after 25 hours of operation. Then after each 200
hours of operation. Use a good motor oil, SAE 20/30.

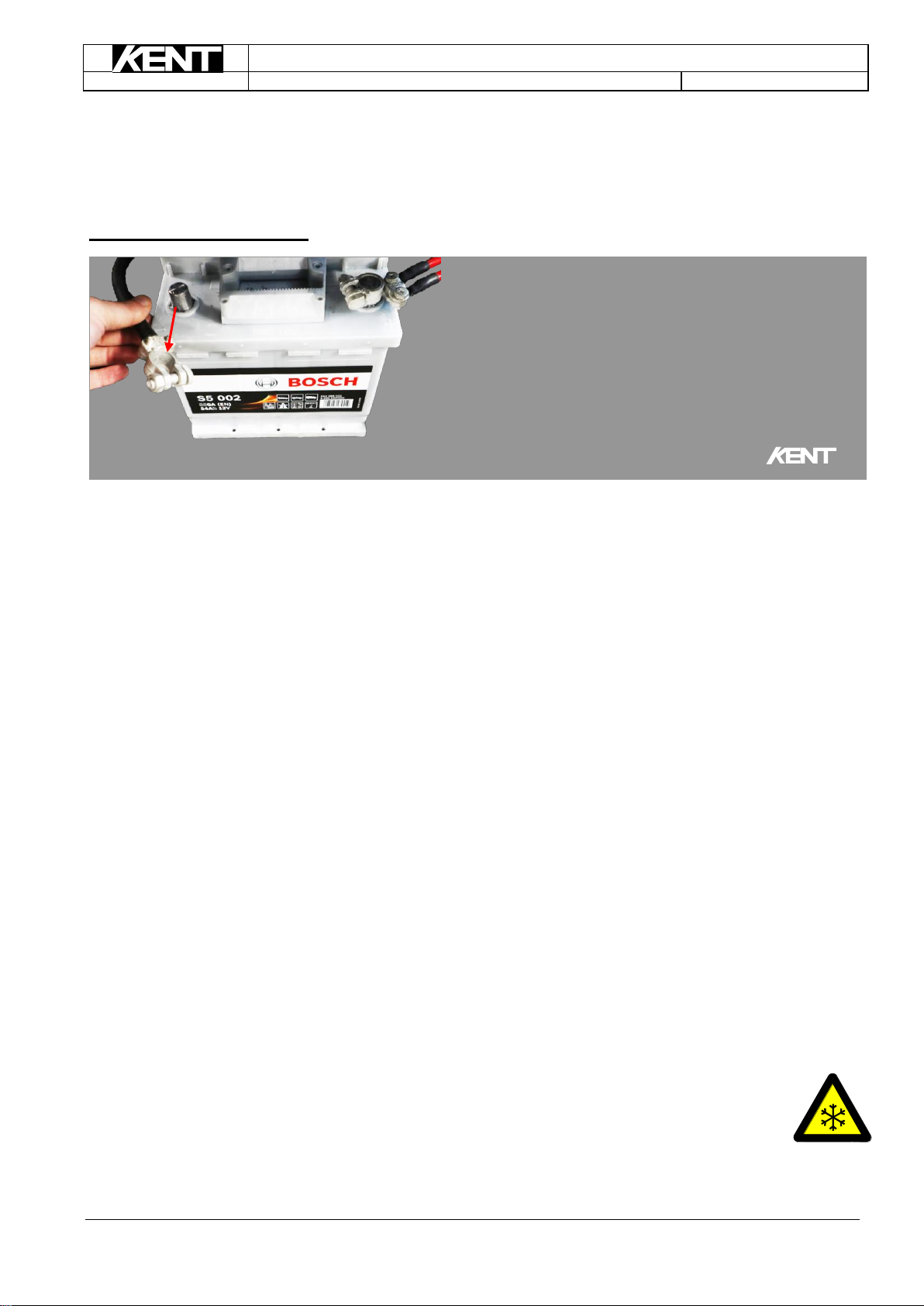

Check that the machine is correctly plugged to the battery, - for –and + for +.
Check water filter: MUST be free of dirt.
See Electrical data: (annex 4.4)

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 6 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
2.2 Start up
1. Now you can turn on the water.
2. Hold the gun in open position for venting.
3. Switch the machine on.
4. The pressure can be adjusted on the double nozzle pipe.
This machine must only be operated by persons over 18 years.
(Danish At-instruction (At = Danish Working Environment Authority) D. 2.20 November 2006):
Young persons covered by compulsory education must not operate pressure equipment.
Young persons over 15 years not covered by compulsory education must, as a main rule, not operate pressure
equipment with a pressure over 7 MPa (70 bar).
However, young persons over 16 years not covered by compulsory education and working within agriculture and
horticulture are allowed to work with pressure equipment over 7 MPa (70 bar). The pressure equipment must only
be used for cleaning, painting, rust inhibiting or the like.
Young persons under 18 years must only be engaged with work 4 hours daily if wearing self-contained respiratory
protective equipment.
For prolonged use of high pressure equipment uses vibration dampening gloves like type TEGERA 9185
Before start:
Remove items or goods that may be damaged during high-pressure cleaning.
Use wheel chocks if the high-pressure cleaner is placed on a sloping surface.
The high-pressure cleaner must only be used on a ladder if it is a platform ladder with barriers. The
height to the platform must not be more than 3 m. The platform ladder must be designed in compliance
with the principles of EN 131 or with a similar safety level.
Connection of the high pressure hose and lance:
1. Connect one end of the high-pressure hose to the gun, the other end has to be connected to the
outlet of the pump. After that mount the lance to the gun.
2. Before use of the machine, inspect high pressure hose to make sure it is not damaged. In case of
replacement make sure that the new hose has at least the same specifications as the original one.
Technical specifications (max. working pressure, date of manufacturing, name of manufacturer) must
be marked on the outer sleeve of the hose.
Connection to the water supply
1. The maximum temperature of the inlet water must not exceed 60° C (140° F).
2. Connect the water supply to the INLET port by means of a reinforced hose (min. 15 bar/200
psi) with the internal diameter of not less than 19 mm (3/4”)
3. Considering that the water flow decreases in accordance with the length of the hose,
make sure that the quantity of the water reaching the machine is at least 10 l/min.
Important:
Make sure that the machine is fed with clean water during use. Running the machine without water, or
with dirty, sandy water, or containing corrosive chemicals, causes serious damage to the machine itself.
Connection before start-up:

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 7 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
Chemicals dosage:
Fill plastic can with desired chemical. Mount injector suction hose in can. Open double nozzle pipe
valve, and approx. 10 % chemical will be added to water.
Indoor high-pressure cleaning is only permitted in halls and together with good ventilation. If you feel
unwell during cleaning, stop working immediately and go outside. The reason may be the cleaning
detergent which you may have used during cleaning. Thus, check carefully if these materials are being
used in a safe and environmentally correct way. Information can often be found on the containers of the
detergent. Never experiment with additives which can influence the health of the persons present and
domestic animals, if any. In case of contact with eyes, rinse immediately with plenty of water and seek
medical advice. Show the label of the cleaning detergent where possible, e.g. bring the container in
order to obtain the best medical treatment.
The quality of cleaning detergents may vary, and you must make sure they are suitable for high opera-
ting temperatures under high pressure. Consider the environment in particular where there is run-off to
unprotected drainage. Obtain data sheets, if necessary, with definition of class of danger of the substan-
ce and personal protection on a scale of 1 to 6 where 6 is the most hazardous! Never use aggressive
substances such as acids, solvents or explosive substances together with this unit. Use a less corrosive
cleaning detergent, if possible.

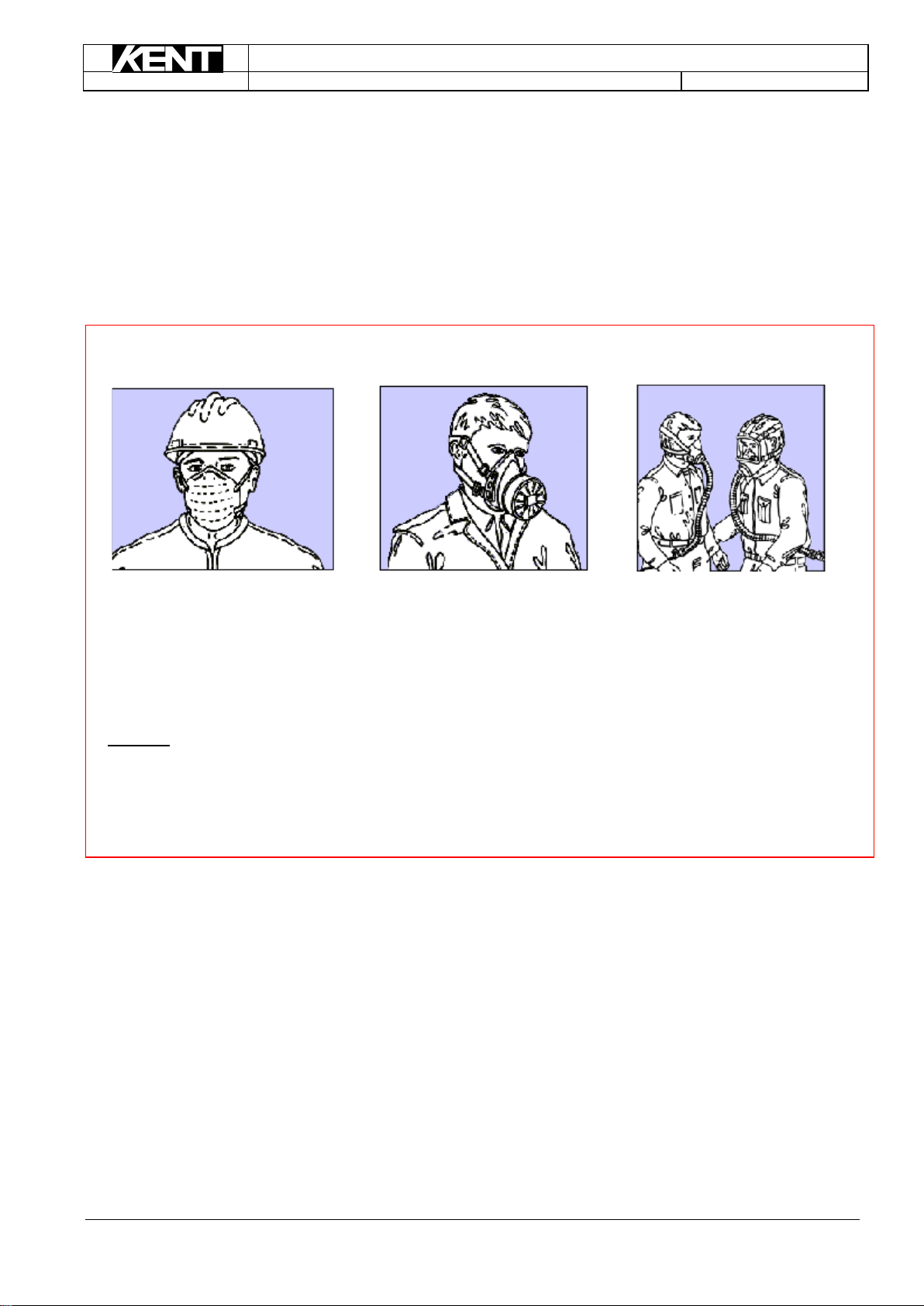

Respiratory protection equipment / hearing protection (Danish At-instruction (At = Danish Working
Environment Authority) D. 2.20 November 2006): Employees must wear suitable respiratory protection
equipment during work under 2.5 MPa (25 bar) if aggravating factors such as chemicals harmful to health by
inhalation, micro-organisms or organic origin residue are present.
Always wear suitable respiratory protection equipment during work over 2.5 MPa (25 bar).
The respiratory protection equipment must contain at least a P2 filter protecting against both solid particles and
liquid aerosols. The safest method is to use self-contained respiratory protection equipment. There can often be
doubt about the nature and concentration of the air pollution as it is difficult to determine what will detach from the
sprayed surfaces. If work is carried out for more than three hours on a daily basis the respiratory protection
equipment must be self-contained or filtering by turbo-unit (blower).
Inhalation of aerosols with surfactants (e.g. soap) and fat and protein residue constitutes a risk of developing
respiratory disease and is also mucous membrane irritant (3).

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 8 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
Inspection of water filter
It is important to inspect the water filter prior to machine start-up. Please keep in mind that a clean
water filter means longer service life and operation of the machine.
Important:
Use only biodegradable detergents with pH value between 7 and 12. These detergents must comply
with the laws and regulations applicable in the country in which they are used. The utilization of this
machine must be strictly respected. Any other use must be considered as incorrect. The manufacturer
cannot be held responsible for damage caused by incorrect use of the machine. The machine must
not be tampered with for any reason. In case of tampering the manufacturer declines any responsibili-
ty on the functioning and safety of the machine.
During work planning it must be taken into account that aerosols, especially small aerosols, stay in the
air for a long time, even after the pressure work has stopped. Thus, it will often be necessary to wear
personal protection equipment, even after the actual pressure work has stopped. Very small aerosols
may stay in the air for up to 1.5 hours.
Class P2
has a better elimination degree and therefore better protection. It can be used against harmful and toxic
dust, but not against radioactive dust, bacteria and virus. These filters can protect solely against solids and
against both solids and liquid aerosols. If the filter is tested according to EN149:2001 the filter protects
against both solids and liquid aerosols. For further information, please see At-instruction (At = Danish Working Environment
Authority) D.5.4 January 2008.
Filter respiratory protection
equipment.
Particulate filters are divided into
three classes:
•P1 low-efficiency filter
•P2 medium-efficiency filter
•P3 high-efficiency filter
Self-contained respiratory
protection equipment
At-instruction (At = Danish Working Environment Authority) D.5.4 January 2008:
The employer must make sure that the employees wear hearing protection as soon as they start work which is
considered to be damaging to hearing. This means that noise exposure even below 85 dB(A) may require the
use of hearing protection.
Respiratory protection equipment and hearing protection must fit together and should preferably be tested
together.
Filter face mask.

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 9 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
General precautions for use:
1. Keep the machine out of the reach of children.
2. High-pressure water jets must not be directed against persons or animals, electrical equipment or
the machine itself. Do not use the machine when persons and/or animals are within the reach of
the jet.
3. The user must operate the machine in safe conditions and situations avoiding any situations of
potential danger to himself or other persons, in particular the user will have to:
-Avoid operating in unstable balance conditions.
-Remember that the high pressure generates a recoil when the gun is operated. The force of this
recoil is less than 20 N (approx. 2 kg).
-Use adequate protection clothing.
-Wear protection goggles and anti-slip rubber shoes.
- Avoid contaminating the environment with pollution, toxic or harmful substances.
4. This machine is built in compliance with the requirements of the current safety regulations. In any
case the use of electrical appliances involves the respect of some basic rules, namely:
- Do not touch electrical parts or components.
-All inspection, maintenance or repair operations must be made by qualified personal only. In
any case always disconnect the plug from mains before proceeding on any of the above
mentioned operations.
-In case you need to use an extension cord, check that the connection is water tight. Keep all
connections off the ground to avoid possible contacts with water.
5. Do not force-stop the engine by blocking the exhaust.
6. While the machine is running, do not cover it and do not place it in a closed space with insufficient
ventilation.
7. Do not leave the machine running for more than 5 minutes with the gun closed. Should it run for a
longer period, the temperature of the recirculating water will increase rapidly and could risk
damaging the pump seals.
8. When the machine is not in use, lock gun trigger in safe position to prevent it form being opened by
accident.
9. For sake of safety use only original spare parts and accessories
- Should you need to remove or change the nozzle, turn off the machine and bleed pressure from
the hose.
The manufacturer declines any responsibility for damages caused by non-
compliance with the destination of use, with the instructions and warnings contained
in this instruction manual.
Precautions for storage/frost:
We recommend filling the pump with anti-freeze equal to anti-freeze for cars if the machine will be stored
in a place with a risk of being exposed to frost, or will not be used for more than 3 months. In case of low
temperatures some parts may freeze or settle if the machine has been stored for a long time. Thus, we
recommend that you turn the shaft by the key supplied with the machine prior to start-up. This procedure
allows you to check if the machine is frozen or blocked by other reasons. By taking these precautions
prior to start-up you can avoid destroying the machine. Please remember to remove the key from the
shaft prior to start-up.

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 10 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
Although the high-pressure cleaner has only been operating on “clean” tap water you should never
drink the water due to a possible high bacteria content.
Hot water that has been through the high-pressure cleaner must not be used in connection with
production or preparation of food as there exists extraordinary requirements for machines being used in
connection with food processing.
Frost proofing:
The cleaner must be stored frost free; if this is impossible, the pump and pump components must be frost
proofed as follows: Mount short ¾” hose on water inlet, place other end in a 5-litre can of anti-freeze.
Start cleaner, open the gun, close again when anti-freeze comes out at nozzles. Switch off power at
motor protection, and the cleaner is frost proofed.
Important:
When application of chemicals/soap has been terminated the suction hose and injector non-return valve
MUST be cleaned with pure water. Place injector suction hose in a bucket or similar container with pure
water and allow injector to suck water for a few minutes.
Never aim flush jet at electrical installations or live targets.
Never pull machine by high-pressure hose as this may cause damage to
machine components and entail forfeit of the warranty.
Beware of the water jet which has a cutting effect on sensitive surfaces under high pressure.
Never point the water jet towards yourself or other persons or animals. It is prohibited to “bath” animals
even with a low water temperature as the water jet can cause serious injury to the affected area.
Sensitive areas such as eyes and ears can be seriously and painfully injured.
Do not use high-pressure cleaning on electrical installations and live cables and avoid also sensitive
parts such as signs and delicate items.
Stop machine:
Turn off water, open gun, and let machine run for 15 –30 sec.
Turn of the Engine off by turning the key in the Ignition to the left.
Release hose pressure.
If the machine has been exposed to frost, never start it again until it has thawed out
completely. Let your supplier check it for any damage that might have occurred.

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 11 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc

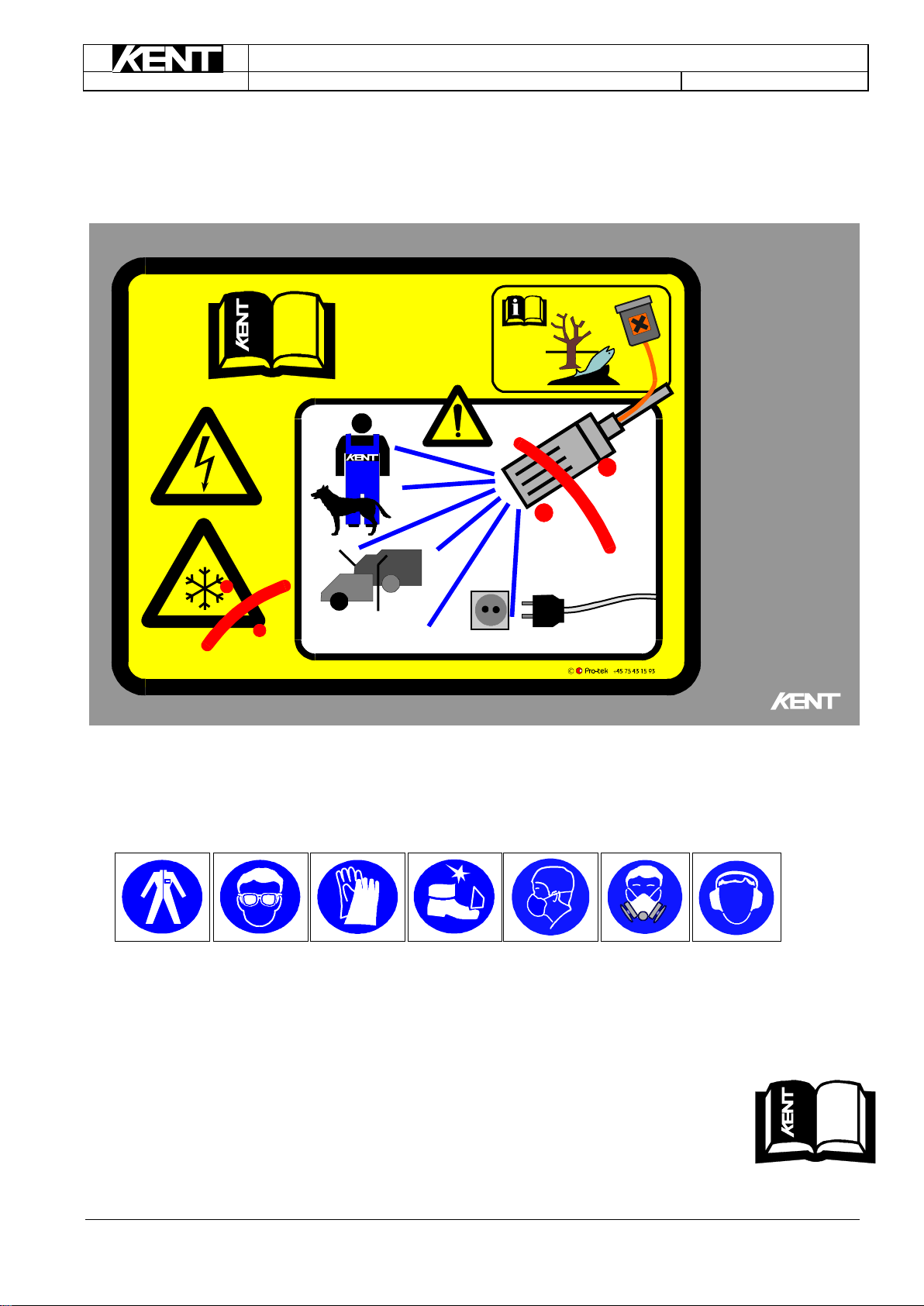

2. Accidents are significantly reduced if proper work lighting is established around the work
area.
3. Only instructed personnel is allowed to stay near the high pressure cleaner when
it is running.
4. This instruction manual must be available for all persons using the device.
5. The high-pressure cleaner must not be used if the safety devices are defective.
All electrical connections must be waterproof.
6. High-pressure hoses and lance must be approved types without defects.
2.3 Safety rules
1. Always wear protective equipment as described in the work instructions. This applies in particular
for the use of suitable working clothes, safety goggles, gloves, safety footwear, respiratory
protection equipment and hearing protection. Remember your assistants. Never splash on boots
and protective clothing for the purpose of cleaning.

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 12 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc

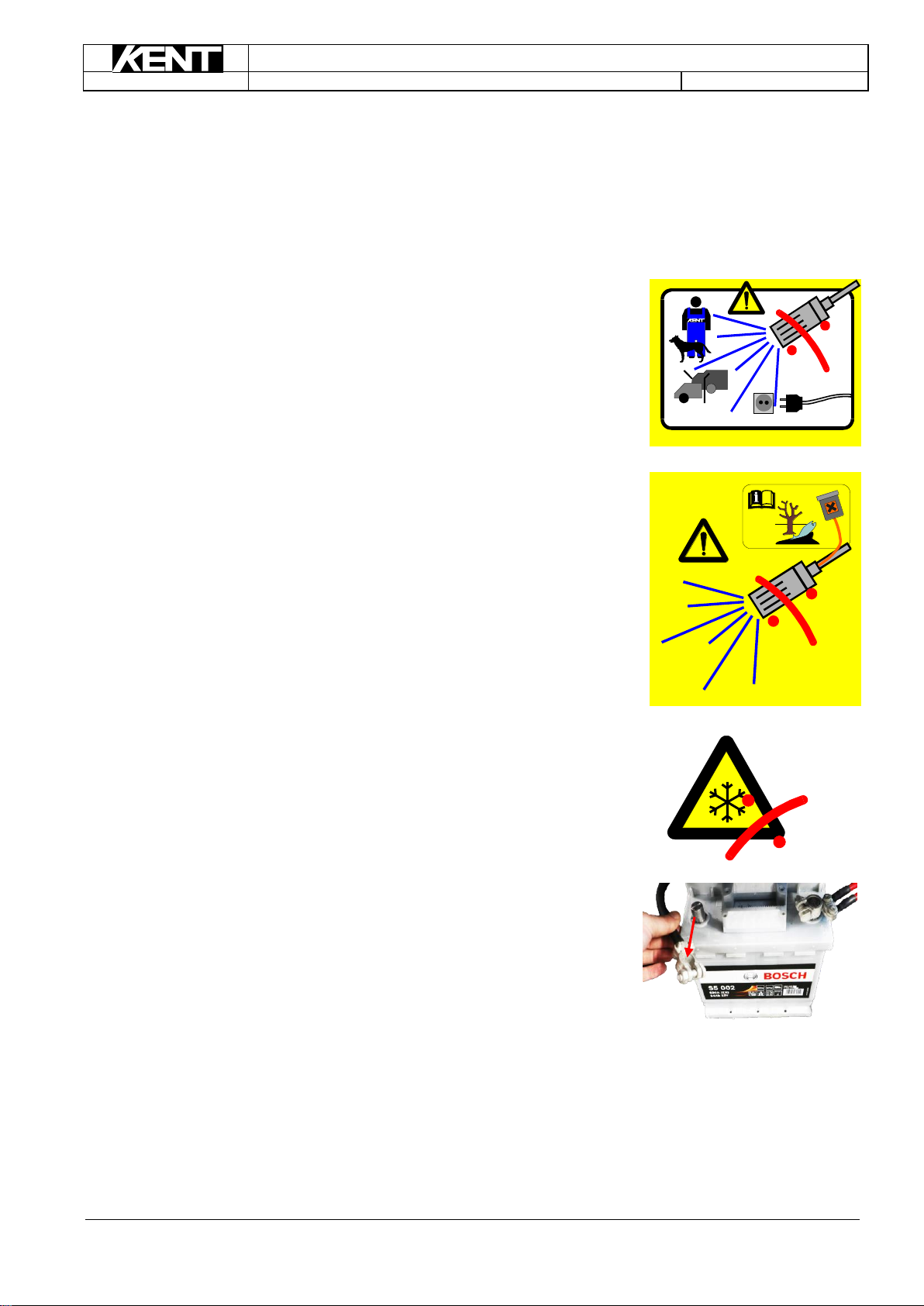

7. Never point the water jet towards yourself, other persons or animals.
Cleaning of clothes on persons is not allowed.
8. Avoid splashes on electrical wires and installations.
9. Be careful with sensitive and expensive installations.
10. Avoid cleaning of parts in contact with food.
11. Use only approved detergents suitable for hot-water or cold-water
cleaning.
12. Choose according to eco-friendly considerations and dispose of
empty containers by delivering them to approved local receiving
stations.
13. Wear respiratory protective device, if necessary, if there is a risk of
inhaling vapours. Please read about the hazard class on the label on
the detergent.
14. Frost may cause burst pipes and will immediately destroy the high-
pressure cleaner. Always keep the machine on a frost-free location.
If this is not possible, you must frost-proof the machine as described
in the following section.
15. High-pressure cleaning in freezing weather requires immediate start-
up after which the hot water must be used immediately. Please note
that cleaning may cause ice accumulation.
16. Never leave the high-pressure cleaner running.
17. You can brake the wheels of the high-pressure cleaner by placing
wheel chocks, if necessary.
18. No persons must stay under the high-pressure cleaner when it is
being lifted.
19. Any repair or adjustment must take place only when the main power
has been secured against accidental start-up of the machine. E.g. by
disconnecting a power plug from the battery pole.
20. Assembly and handling by non-skilled persons can cause serious
accidents.
Design changes of the machine's devices is at one's own risk. Impairment of the safety and health func-
tions may put the owner in a judicial unfavourable position especially where the changes or the changes
carried out by the owner himself have caused accidents. Significant changes usually require a new CE
marking of the hot-water cleaner.

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 13 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
Any repairs or adjustments may only be carried out when the high pressure cleaner is secured against
accidental start-up. Furthermore, remove battery cable from battery pole to provide an extra layer of
safety for the person conducting repairs.
Make sure that all pressure is equalised before disconnecting high pressure pipes and hoses.
3. Maintenance instructions
3.1 General maintenance
During each start-up:
Conduct a visual check of the hoses for wear and tear.
Conduct a visual check for petrol leaks.
Conduct a visual check for a blocked exhaust.
Conduct a visual check for water leaks.
Monitor for thermostat stop.
Check for any noise from blow motor/motor bearings.
Every year:
Inspection of frame and lifting brackets, visual inspection for cracks and loose bolts.
Test of flow meter.
Thread connection at input stud.
Seals at all electrical installations.
Overall check of frame for rust and impact damages.
A light oil lubrication of wheel hub, if necessary.
Frost proofing:
The cleaner must be stored frost free; if this is impossible, the pump and pump components must be
frost proofed as follows: Mount short ¾” hose on water inlet, place other end in a 5-litre can of alcohol.
Start cleaner, open the gun, close again when alcohol comes out at nozzles. Switch off power at motor
protection, and the cleaner is frost proofed.
If the machine has been exposed to frost, never start it again until it has thawed out
completely. Let your supplier check it for any damage that might have occurred.

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 14 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
The machine itself can be washed with e.g. standard auto shampoo, but the electrical parts must only
be cleaned by high-pressure air and wiped off with a clean cloth. Only when cold.
Damages on the varnish on the frame must be polished, thereafter primer plus finishing paint (single
component finishing paint).
General:
Maintenance must only be carried out by an authorized technician who can detect the fault and carry
out a correct repair prior to using the high-pressure cleaner again.
Disposal of machine:
- If you decide not to use the machine any longer, we recommend that you make
the machine unusable by removing the electrical wire.
- It must always be kept out of reach of children.
- The machine cannot be disposed of as is, therefore the most uniform parts
must be dismantled and collected for disposal at a public collection station.
- Dismantled parts must not be used as spare parts.
Decalcification:
Carried out when needed and is important to prevent clogging of the tube coil in the boiler. Fill with
water and acetic acid in the mixture proportion 1 portion of acetic acid and 10 portions of water, leave
the mixture for a couple of hours followed by flushing of loose pieces of chalk and dirt. An extra
treatment may be required if the water contains much chalk in order to avoid a later clogging of the
nozzle on the pistol.

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 15 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
3.2 Fault finding
Fault finding on the high pressure cleaners
Fault finding:
Cause
Remedy
Cleaner does not start
Fuse defective.
Replace fuse.
Electric plug dirty.
Clean plug.
Motor protection has been
released.
Turn the red stop knob until it jumps
out.
Does no supply pressure
Insufficient water supply.
Wrong hose diameter.
Hose pinched.
See section: Before start.
Water filter choked.
Dismount and clean.
Leaks at couplings
Retighten / replace gaskets.
V-belt slips
Tighten / replace.
Nozzles worn
Replace
Pump valves dirty or worn.
(pulsate)
Clean / replace, see spare parts
drawing.
Flow valve dirty or worn.
Take apart and clean valve, replace
defective parts. X) see spare parts
drawing.
Engine Noisy
1 Phase absent.
Engine failure
Secure Phase
Check Kohler Command PRO
manual
Check flow through hose, gun and nozzle pipes.
Injector cannot suck chemicals
Non-return valve gone slack sucks
dead air.
Retighten, replaces nylon gasket.
Ball hangs (old soap residue)
Dismount chemical hose, loosen ball
from top with match or similar object.
Low pressure nozzle on double
nozzle pipe choked
Clean / replace.
Injector nozzle worn.
Replace.
Flow valve shuts off during
operation (pressure increase)
Valve or double nozzle pipe
pinched or dirty.
Clean / replace.
Wrong nozzle mounted.
Change to right size.
Spring in flow valve gone slack.
Replace *)
Dirt in flow valve.
Take apart / clean *)
Dirt in injector.
Take apart / clean
Let your dealer make repairs and adjustments.

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 16 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
This example is of a CWP2042 (23,5Hp)
Type
Number
Description
Pieces
Unit
Ware
058102
Engine Kohler ch730S 23,5 KH
1,
Pcs
Ware
161018
Gearbox RS 500 28.6
1,
Pcs
Ware
163046
IP Pump 42/150 42/200
1,
Pcs
Ware
159550
Valve PA VB 85Rv/310 ½"
1,
Pcs
Ware
192017
Hose HP 1/2" x 500mm 2Ls
1,
Pcs
Ware
125008
Screw coupling 250Bar 3/8" She
1,
Pcs
Ware
065119
Nipple 1/2" x 3/8"
2,
Pcs
Ware
065124
Nipple w/union nut 1/2" x 1/2"
1,
Pcs
Ware
065093
Nipple 3/4" x 3/4"
1,
Pcs
Ware
091053
Manometer 400Bar
1,
Pcs
Ware
197200
Battery 24A
1,
Pcs
Ware
197202
Cable for battery
1,
Pcs
Ware
197210
Gas tank
1,
Pcs
Ware
089027
Wheel D.350 T.20x80
2,
Pcs
Ware
089007
Nav cap Steel
2,
Pcs
Ware
196516
Frame KB
1,
Pcs
Ware
196517
Top
1,
Pcs
Ware
196518
Front panel
1,
Pcs
Ware
196519
Tank panel
1,
Pcs
Ware
161022
Speedmatic 250B Tecmic
1,
Pcs
Ware
167113
Pistol Std. 2620
1,
Pcs
Ware
061020
Water filter 3/4”
1,
Pcs
Ware
065208
Angle A10 1/2” –1/2” i/u
1,
Pcs
Ware
192119
Hose 1/2" 2Layer 20m
1,
Pcs
Ware
125015
Screw coupling 3/8" Han.
1,
Pcs
Ware
046054
Lance complete db. w/side grip. std. wo/hp nozzle
1,
Pcs
Ware
045030
Nozzle 1518
1,
Pcs
3.3 Spare parts
Note model number and name-plate on the high-pressure cleaner so that we can deliver the ordered
spare parts to your machine. Always use original spare parts.

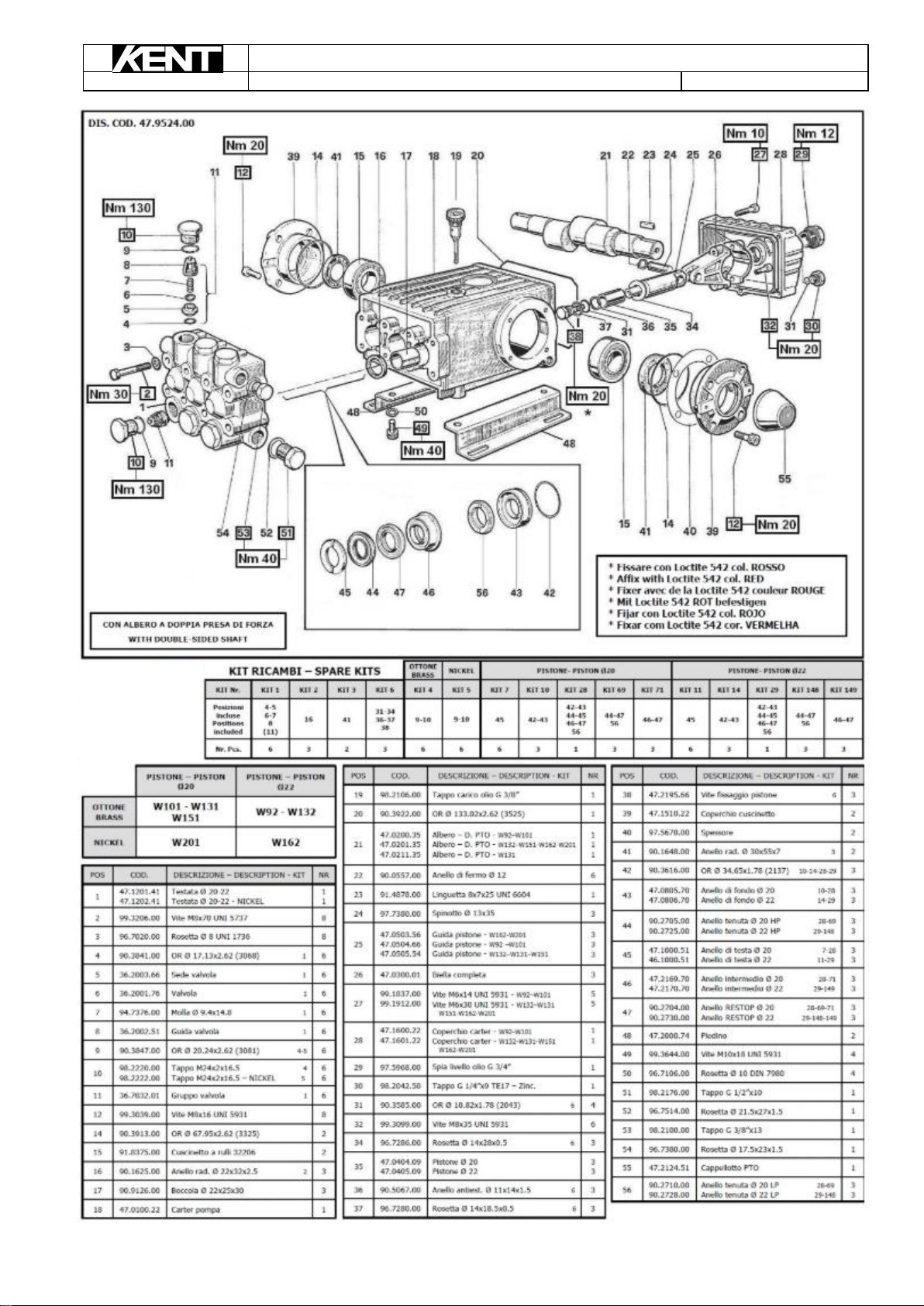

Overleaf the high-pressure cleaner is shown with part numbers on all spare parts.
Example of identification label:

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 17 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
CWP1525

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 18 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
CWP2415

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 19 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
CWP2018

High-pressure cleaners. Batch –CWP 2042 - 5015
Date: 18/4-2017
Instruction manual
Page: 20 of 28
©Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
CWP1721
