KENT 9015 User manual

High-pressure cleaners. Batch –9000 -1500 + 3016
Date: 18/4-2017
Instruction manual
Page: 1 of 32
Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
Table of contents:
FrontPage Page 1
Overensstemmelseserklæring på Højtryksrenser - Serie 9000 DK Page 2
Declaration of Conformity for High pressure cleaner - Model 9000 EN Page 3
1. Machine description Page 4
1.1 Application Page 4
1.2 Functionality Page 5
2. User guide Page 6
2.1 Preparation Page 6
2.2 Start up Page 7
2.3 Safety rules Page 12
3. Maintenance instructions Page 14
3.1 General maintenance Page 14
3.2 Fault finding Page 16
3.3 Spare parts Page 17
4. Installation and assembly Page 25
4.1 Unpacking Page 25
4.2 Removal Page 25
4.3 Technical specifications Page 26
4.4 El-diagram Page 27
5. Note Page 29
Original instruction manual
Rev. E1- Feb. 2019
High pressure cleaner Batch 9015 - 9020S
Batch 9015ST - 9020S-ST
Batch 2008 - 3016
150 –240 bar
Warning: Read this manual before operating the product
KENT HØJTRYK A/S
SKOVBRYNET 10
DK-6752 GLEJBJERG
TLF. [phone] E-mail: inf[email protected] www.kent-as.dk

High-pressure cleaners. Batch –9000 -1500 + 3016
Date: 18/4-2017
Instruction manual
Page: 2 of 32
Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
EU-OVERENSSTEMMELSESERKLÆRING
Fabrikant: KENT HØJTRYK A/S
Skovbrynet 10
DK - 6752 Glejbjerg
Tlf: [phone]
Erklærer hermed, at Maskine:
Højtryksrenser
Model: 9015: 9018: 9018S: 9019: 9019S: 9020: 9020S:
Model: 9015ST: 9018ST: 9018S-ST: 9019ST: 9019S-ST: 9020ST: 1520S-ST:
Model: 2008: 3010BB: 3010: 3010S: 3011: 3012: 3014: 3016:
Fabr. nr.: Årgang:
Er fremstillet i overensstemmelse med:
Bestemmelserne i Rådets direktiv af 17. maj 2006 om indbyrdes tilnærmelse af medlemstaternes
lovgivning om maskiner (2006/42/EF) under særlig henvisning til direktivets bilag II, A og bilag I,
om væsentlige sikkerheds- og sundhedskrav i forbindelse med konstruktion og fremstilling af
maskiner.
Bestemmelserne i Rådets direktiv af 12. december 2006 om indbyrdes tilnærmelse af medlemstat-
ernes lovgivning om elektrisk materiel bestemt til anvendelse inden for visse spændingsgrænser
(2006/95/EF).
Bestemmelserne i Rådets direktiv af 15. december 2004 om indbyrdes tilnærmelse af medlemstat-
ernes lovgivning om elektromagnetisk kompatibilitet (2004/108/E).
Er fremstillet i overensstemmelse med følgende nationale/internationale standarder og tekniske
specifikationer:
DS/EN 60335-2-79 Sikkerhed - Særlige krav ti højtryksrensere og damprensere. 2009-11-17
DS/EN ISO 12100:2010 Maskinsikkerhed - Generelle principper for konstruktion - Risikovurdering og risikonedsættelse.
DS/EN 60204-1:2006 Maskinsikkerhed - Elektrisk udstyr på maskiner - Del 1: Generelle krav
Ove Jørgensen
Dato: 18/4-2017
(Underskrift)

High-pressure cleaners. Batch –9000 -1500 + 3016
Date: 18/4-2017
Instruction manual
Page: 3 of 32
Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
EC-DECLARATION OF CONFORMITY FOR MACHINERY
Manufacturer: KENT HØJTRYK A/S
Skovbrynet 10
DK - 6752 Glejbjerg
Tel: [phone]
Hereby declare that:
High pressure cleaners
Model: 9015: 9018: 9018S: 9019: 9019S: 9020: 9020S:
Model: 9015ST: 9018ST: 9018S-ST: 9019ST: 9019S-ST: 9020ST: 1520S-ST:
Model: 2008: 3010BB: 3010: 3010S: 3011: 3012: 3014: 3016:
Manufacturing no.: Year:
Is manufactured in conformity with:
Provision in the Council Directive of 17. May 2006 on mutual approximation of the laws of the
Member States on the safety of machines (2006/42/EC) with special reference to Annex II, A and
Annex I, of the Directive on essential safety and health requirements in relation to construction and
manufacture of machines.
Provision in the Council Directive of 12. December 2006 on mutual approximation of the laws of the
Member States on electrical equipment intended for apply to some tension limits (2006/95/EC).
Provision in the Council Directive of 15. December 2004 on mutual approximation of the laws of the
Member States on electromagnetic compatibility (2004/108/EC).
Is manufactured in conformity with following national / international standards and technical
specifications:
DS/EN 60335-2-79 Safety - Particular requirements for high pressure cleaneres and stem cleaners. 2009-11-17
EN ISO 12100:2010 Safety of machinery - General principles for design - Risk assessment and risk reduction
DS/EN 60204-1:2006 Safety of machinery - Electrical equipment of machines - Part 1: General requirements
Ove Jørgensen Date: 18/4-2017
(Sign)
(Sign)

High-pressure cleaners. Batch –9000 -1500 + 3016
Date: 18/4-2017
Instruction manual
Page: 4 of 32
Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc

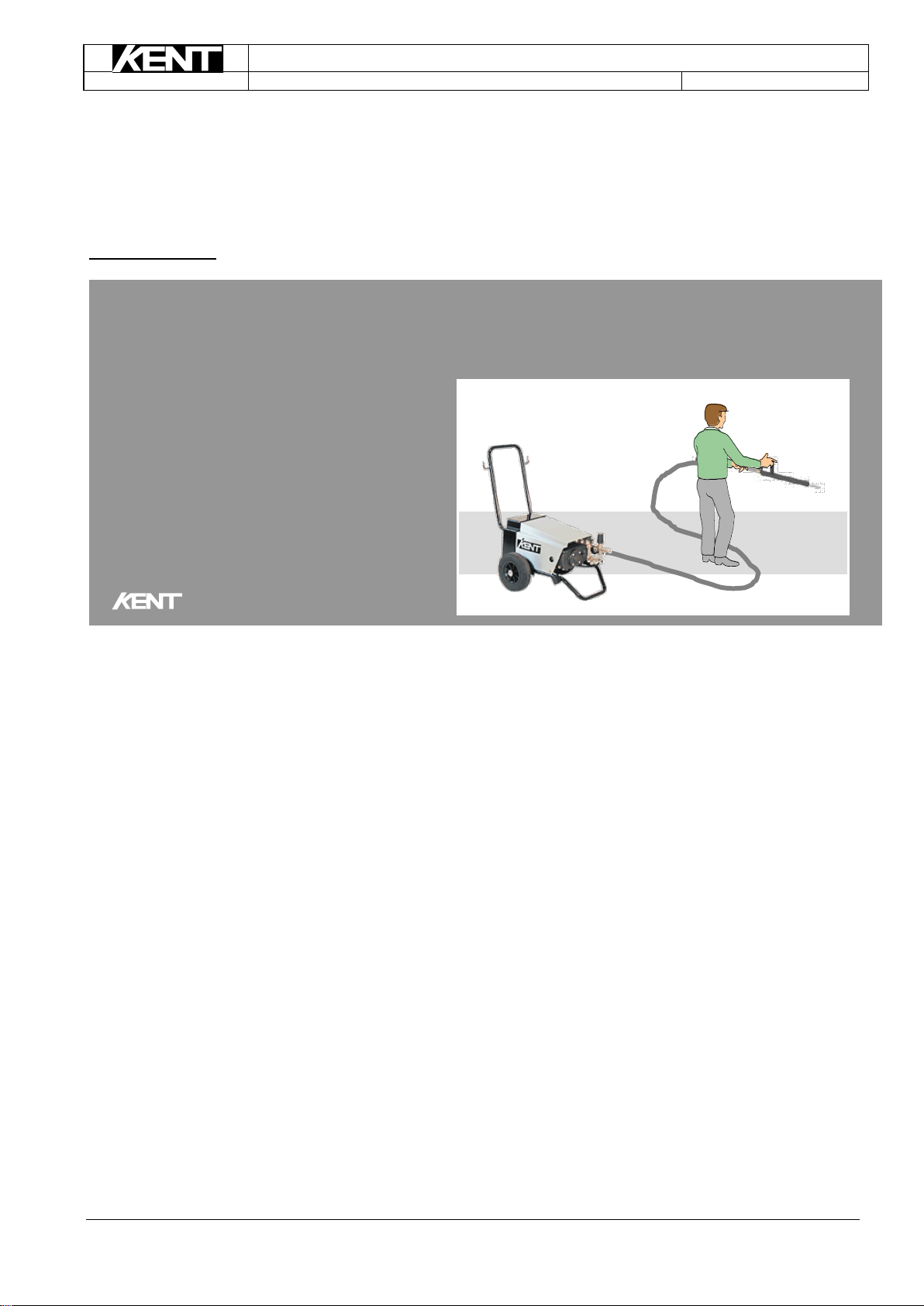

1. Machine description
1.1 Application:
Utilization:
This machine is designed exclusively for washing by means of pressurized water jet, objects, things or
surfaces eligible to be treated by the mechanical action of pressurized water jet and by the possible
chemical action of liquid detergent additives. The liquid detergent additives must be chosen in
accordance with the chemical compatibility of the surfaces to be washed.
High-pressure cleaners can clean with either cold or hot water, but for technical reasons the pumps in
the high-pressure cleaners must not run with water temperatures above 60 °C. Higher temperatures
require equipment which heats up the water on the outlet side of the high-pressure cleaner. In most
cases the water temperature will improve the cleaning process, in particular on greasy surfaces.

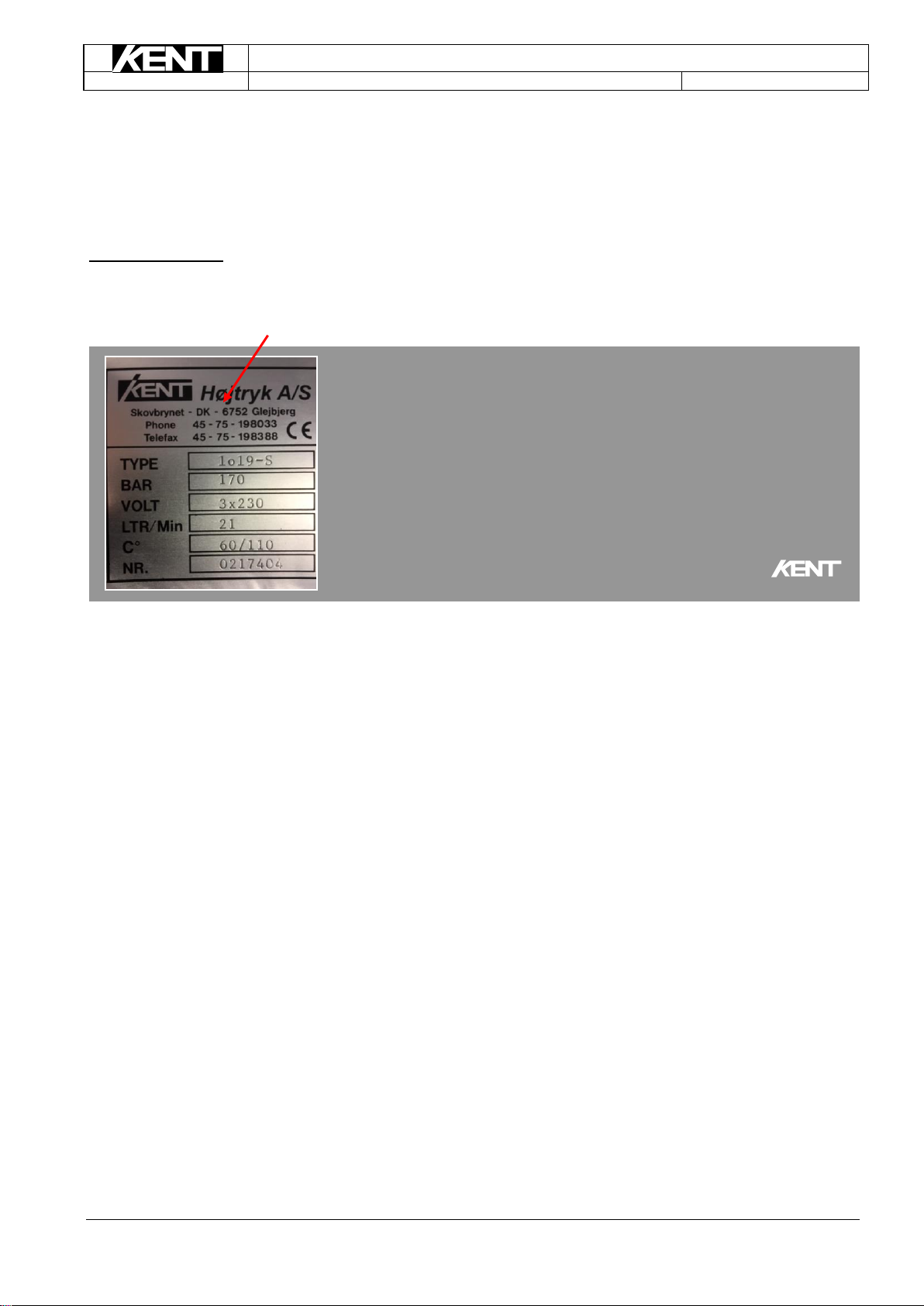

The high-pressure cleaner requires either 3 x 230 volt or 3 x 400 volt. Please see the nameplate.
The high-pressure cleaner must only be used with process water or collected rain water with a purity
equal to tap water. The inlet side requires a 3/4 inch. pipe diameter with a flow of at least 10 L / min.
The high-pressure cleaner is relatively noiseless with a noise level below 70 dB. Make sure the
operator wears hearing protection if the work is considered damaging to hearing. This means
that noise exposure even below 85 dB(A) may require the use of hearing protection (4).
Examples of possible use:
Farming: Intensive keeping- and breeding firms, farms, slaughterhouses.
Workshops: Maintenance of tractors and agricultural machinery.
.
Congratulations with your choice of a Kent high-pressure cleaner. You have purchased a unit
with high technological value. It is a professional and reliable machine which you can use for
many years. Thus, we ask you to read and follow the instruction manual carefully.
This instruction manual is an integral part of
the machine and must be read carefully
before the unit is installed, turned on and
used. The manual contains important
information and instructions for the sage
usage and maintenance of the machine.
Therefore it must be kept with care.

High-pressure cleaners. Batch –9000 -1500 + 3016
Date: 18/4-2017
Instruction manual
Page: 5 of 32
Kent hojtryk\Clean-9000\Brugs-9000-EN-d.307.doc
1.2 Functionality:

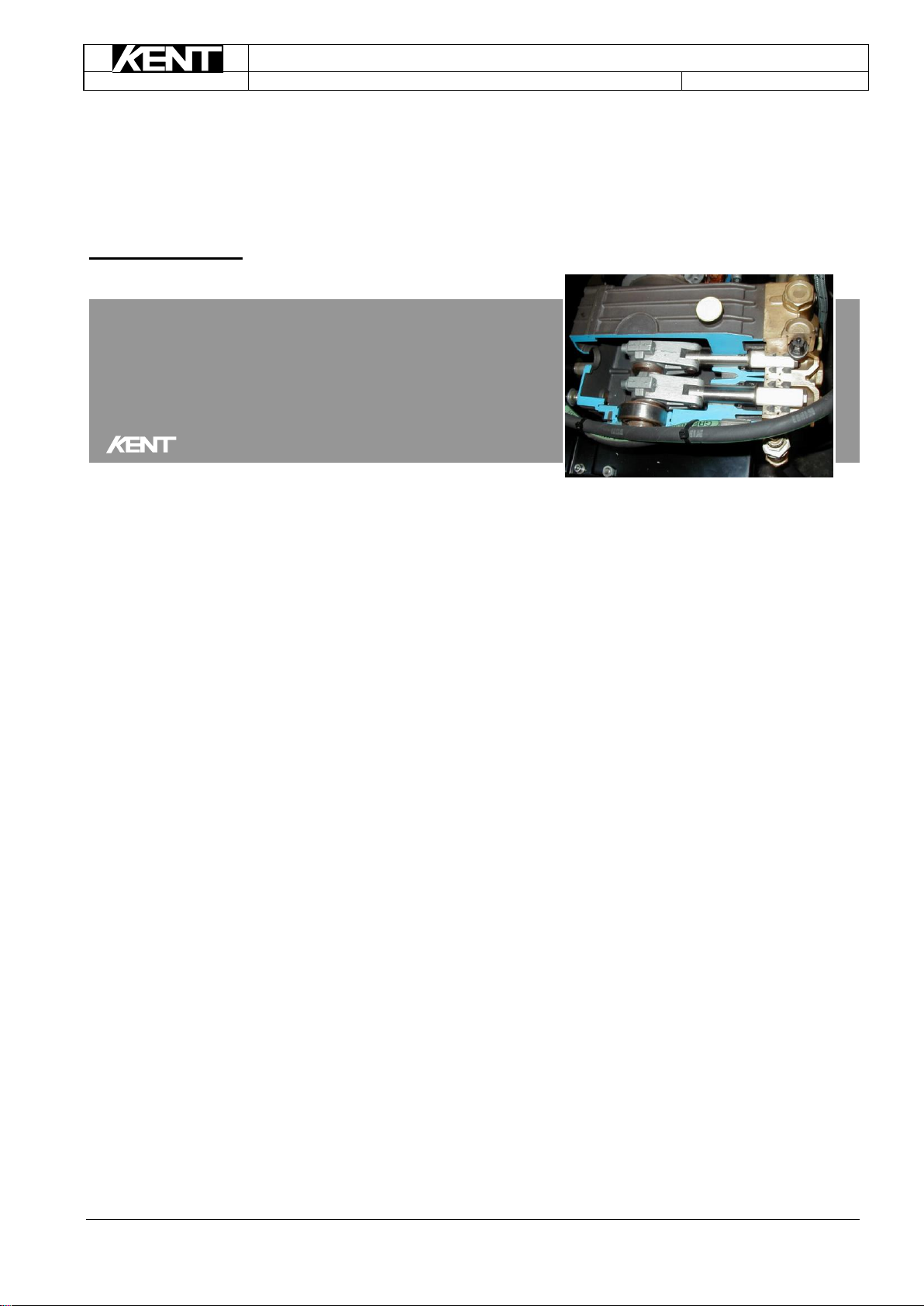

Section of 3 cyl. pump piston cycle.
4 models are manufactured with each suitable for a pressure between 150 and 200 bar. A further 3
variations of model “S” which can build up an additional pressure. Can also be delivered as stationary
model. In addition, and a smaller model 3016 high pressure cleaner. All models have identical designs,
and only pump and electric motor may vary depending on the model. See Technical specifications.
Product range:
Pump:
3-cylinder, vibrationless and noiseless, oil bath lubricated high-pressure plunger pump made of rust-
and acidproof materials. The plungers are made of non-wearing ceramic material. Suitable for
temperatures up to 60° C.
Safety valve:
Built-in adjustable by-pass –continuous variable regulation of water volume.
Pressure regulation:
Working pressure adjustable from 30 bar to max. pressure at the lance. The low-pressure injector
with dosage regulation for detergents is also controlled from the lance.
Mics:
Epoxy-treated steel frame and cover. 10” wheel, 8 m high-pressure hose, spraygun, double-lance
incl. nozzles, 10 m electric cable.
Optional:
- Auto start/stop.
- Detergent container.
