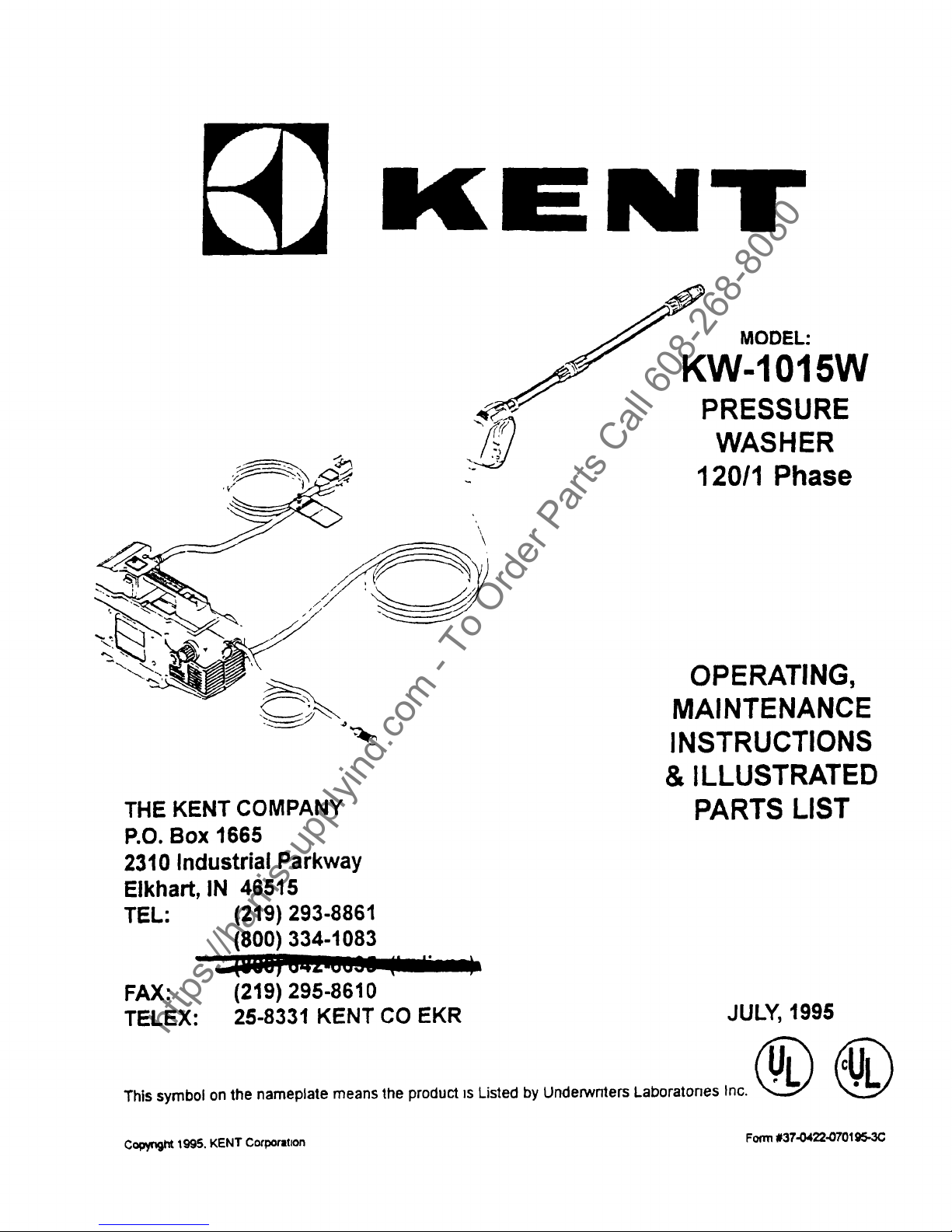

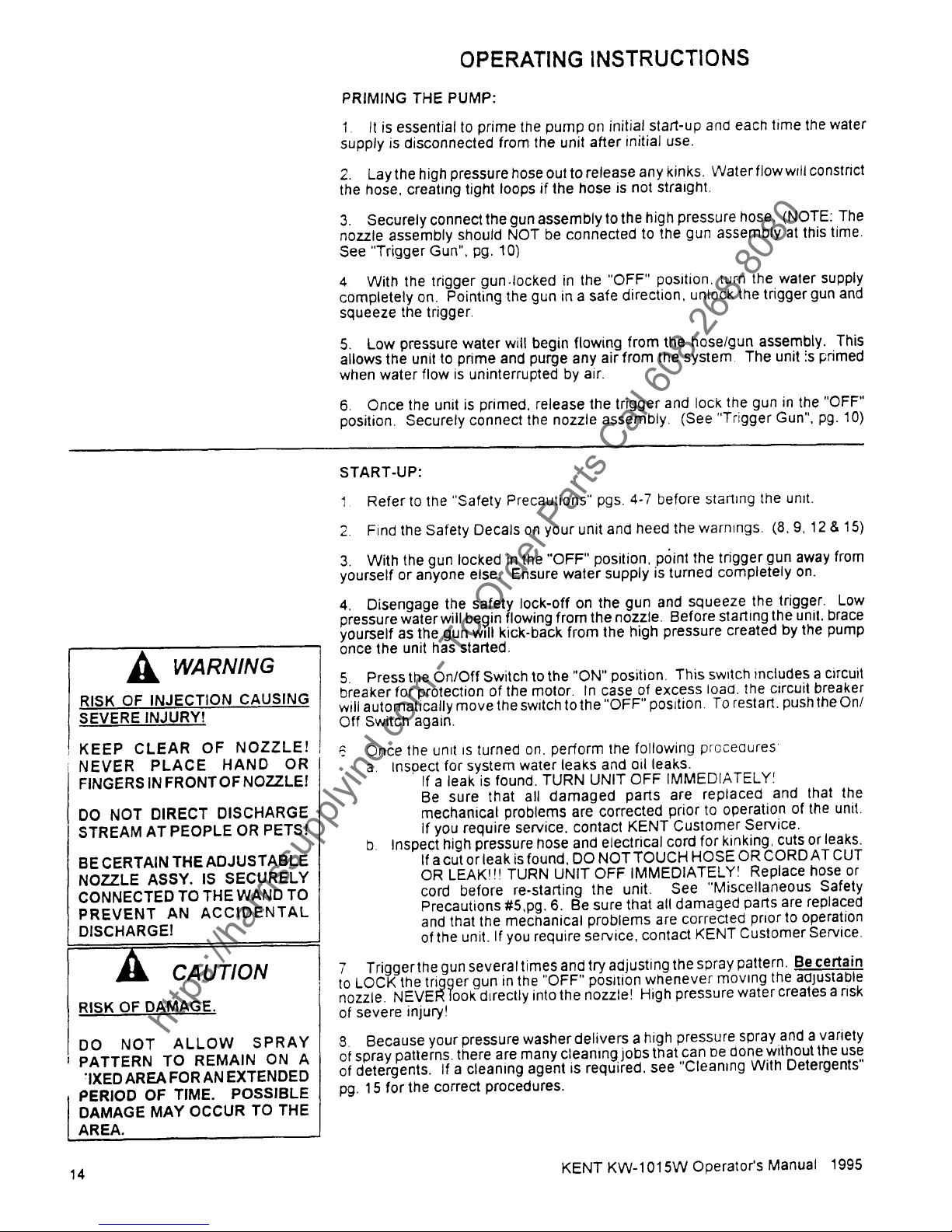

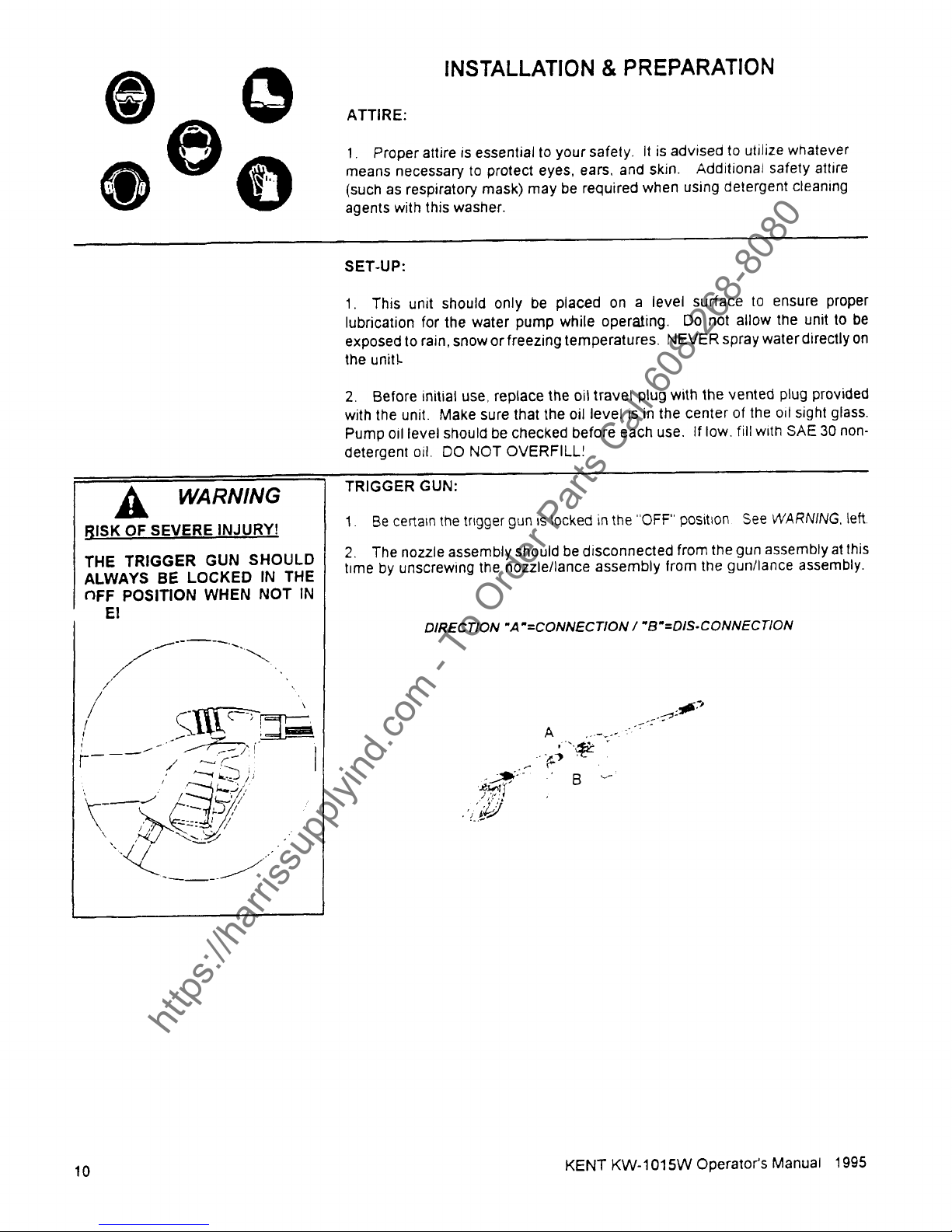

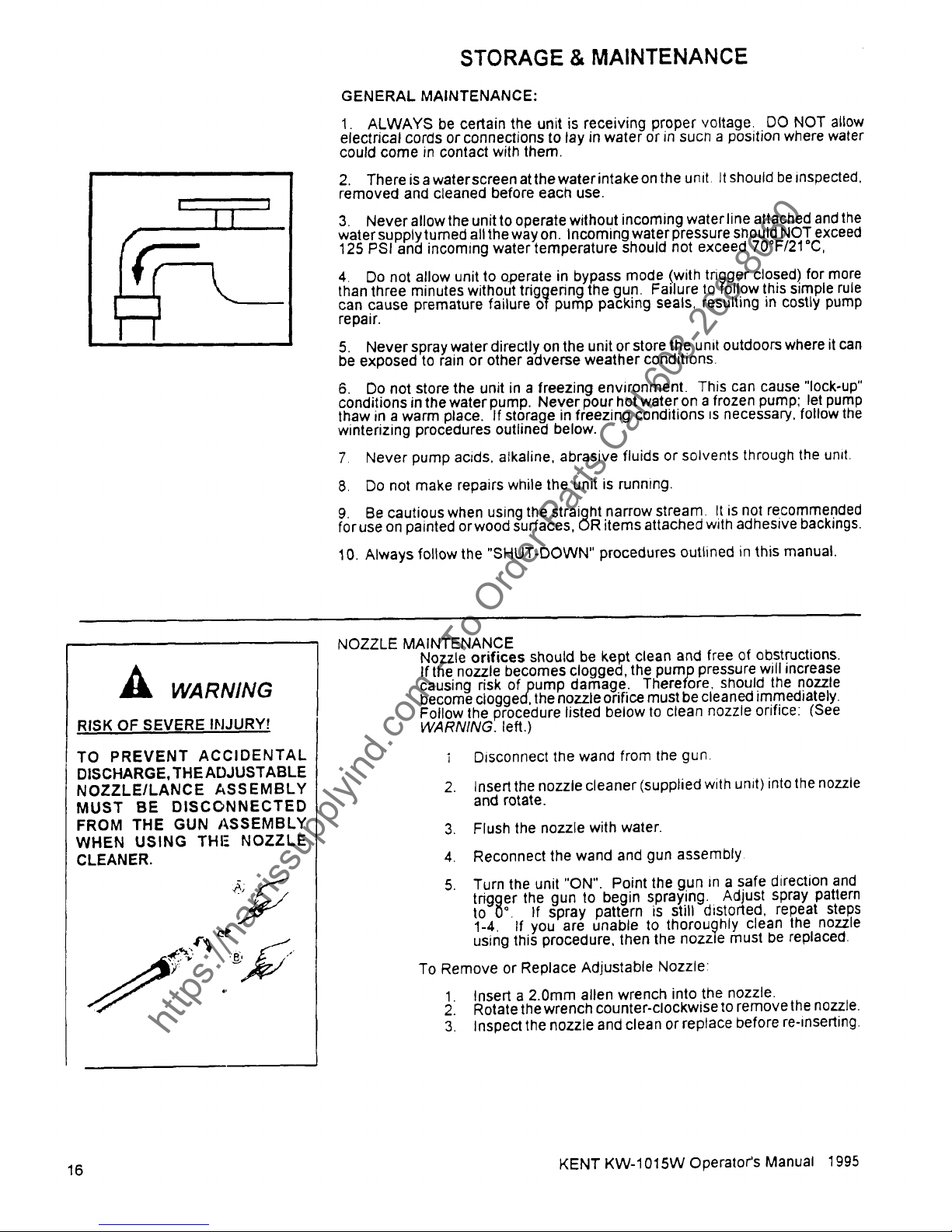

KENT KW-1015W Setup guide

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

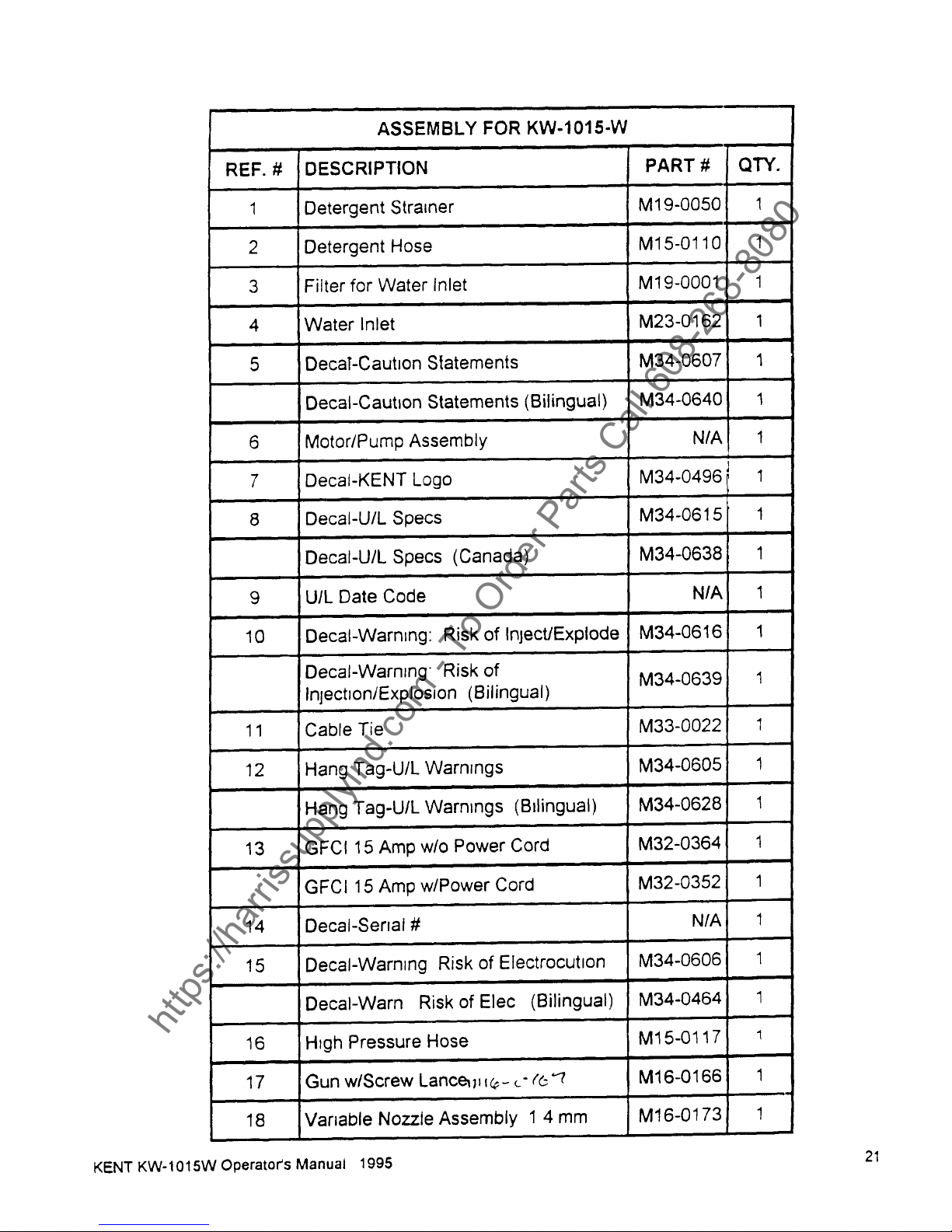

Ref # Part Number Qty Description
1M32-0352 1 15 Amp GFCI wlPower Cord
M32-0364 1 15 Amp GFCI wlo Power Cord
2M9-0051 1 Strain Relief
3M62-0060 1 Handle Assemble
4M27-8196 4 Screw
5M22-0184 1 Switch 16 Amp
6~NIA Sep. 1 Switch Protector (See PIN M70-0067)
7~NIA Sep. 1 Switch Protector Frame (See PIN M70-0067)
8~NIA Sep. 2 Screw (See PIN M70-0067)
9~NIA Sep. 2 Electric Connector-Male (See PIN M70-0105)
10 ~NIA Sep. 2 Electric Connector Protector Female (See PIN M70-0105)
11 NIA 4 Electric Connection Protector-Male
12 NIA 4 Elec. Connector-Female
13 ~NIA Sep. 1 Plastic Wire Tie (See PIN M70-0105)
14 ~NIA Sep. 1 Clip (See PIN M70-0105)
15 ~NIA Sep. 1 Screw (See PIN M70-0105)
16 M46-0345 1 Capacitor
17 ~NIA Sep. 1 Grommet (See PIN M70-0105)
18 M26-0165 1 Gasket
19 M27-8187 1 Screw
20 M28-0061 1 Washer
21 M27-8864 1 Screw
22 M28-1022 2 Washer
23 M52-0043 1 Motor Fan
24 M30-3003 4 Nut
25 M52-0020 1 Motor Flange-Rear
26 M30-3024 4 Nut
27 M28-0132 4 Washer
28 M28-8190 4 Screw
29 M14-0055 4 Rubber Foot
30 M20-0318 2 Angle Support for Motor
31 M48-0029 1 Ball Bearing
32 M52-0022 1 Stator
33 M52-0044 1 Rotor
34 M52-0025 1 Motor Flange-Front
35 M27-8188 4 Screw For Motor
36 M25-0244 1 Oil Seal for Motor
37 M25-0243 1 O-ring
38 M48-0033 1 Bell Bearing
39 M52-0026 1 Wobble Plate for Motor
40 M28-0133 1 Washer for Motor
41 M27-8195 1 Screw for Motor
42 M48-0035 1 Bearing Disk-Rear
43 M48-0030 1 Bearing
44 M48-0032 1 Bearing Disk-Front
45 M46-0362 3 Piston Spring Retainer
46 M46-0363 3 Piston
47 M49-0081 3 Piston Spring
48 M48-0031 1 Pump Housing
49 ~NIA Sep. 1 Oil Sight Glass (See PIN M70-0082)
50 ~NIA Sep. 1 Oil Sight Glass Support (See PIN M70-0082)
51 M26-0168 4 Gasket
52 M29-0154 8 Lockwasher
53 M27-8194 4 Lockwasher
54 ~NIA Sep. 1 Oil Drain Plug (See PIN M70-0083)
55 M46-0351 8 Oil Tube Extension
56 M39-0066 1 Oil Fill Cap
57 ~NIA Sep. 3 Oil Seal (See PIN 70-0001 )
58 ~NIA Sep. 3 O-ring (See PIN M70-0118 or PIN M70-0084)
59 ~NIA Sep. 3 Packing Retainer (See PIN M70-0084)
60 ~NIA Sep. 3 O-ring (See PIN M70-0118 or PIN M70-0084)
61 ~NIA Sep. 3 Pressure Seal (See PIN M70-0118 or PIN M70-0084)
62 M27 -8821 2 Screw
63 ~NIA Sep. 7 O-ring (See PIN M70-0086
64 ~NIA Sep. 6 Valve Complete (Includes 65-68) (See PIN M70-0086)
65 ~NIA Sep. 6 Valve Cage (See PIN M70-0086)
66 ~NIA Sep. 6 Valve Spring (See PIN M70-0086)
67 ~NIA Sep. 6 Valve (See PIN M70-0086)
68 ~NIA Sep. 6 Valve Seat (See PIN M70-0086)
69 ~NIA Sep. 6 O-ring (See PIN M70-0145)
70 ~NIA Sep. 6 Valve Plug (See PIN M70-0145)
71 ~NIA Sep. 1 O-ring (See PIN M70-0108)
72 ~NIA Sep. 1 Check Valve (See PIN M70-0108)
73 ~NIA Sep. 1 Check Valve Spring (See PIN M70-0108)
74 ~NIA Sep. 1 Injector Nozzle (See PIN M70-0108)
75 ~NIA Sep. 2 O-ring (See PIN M70-0108)
76 ~NIA Sep. 1 O-ring (See PIN M70-0108)
77 ~NIA Sep. 1 Injector Bushing (See PIN M70-0108)
78 M25-0241 1 O-ring
79 M23-0163 1 Outlet Connector
80 M19-0001 1 Garden Hose Filter (See PIN M70-0068)
81 ~NIA Sep. 1 Garden Hose Conn (See PIN M70-0068)
82 ~NIA Sep. 1 Garden Hose Gasket See
83 M19-00611 1 Filter Inlet
84 ~NIA Sep. 1 Inlet Connector (See PIN M70-0087)
85 M27 -8197 4 Screw
86 ~NIA Sep. 1 Detergent Spring (See PIN M70-0102)
87 ~NIA Sep. 1 Detergent Ball SS (See PIN M70-0102)
88 ~NIA Sep. 1 O-ring (See PIN M70-0102)
89 ~NIA Sep. 1 O-ring (See PIN M70-0102)
90 M33-0151 1 HoseBarb
91 M15-0110 1 Detergent Hose
92 M22-0181 1 Pressure Gauge Complete (Includes 85, 93-102)
93 ~NIA Sep. 1 Pressure Gauge Cover (See PIN M22-0181)
94 ~NIA Sep. 1 Pressure Gauge Indicator (See PIN M22-0181)
95 ~NIA Sep. 1 Pressure Gauge Dialplate (See PIN M22-0181)
96 ~NIA Sep. 1 Locknut (See PIN M22-0181 )
97 ~NIA Sep. 1 Adjusting Screw (See PIN M22-0181)
98 ~NIA Sep. 1 Spring (See PIN M22-0181)
99 ~NIA Sep. 1 Piston (See PIN M22-0181 )
100 ~NIA Sep. 1 Back-up Ring (See PIN M22-0181 )
101 ~NIA Sep. 1 O-ring (See PIN M22-0181 )
102 ~NIA Sep. 1 Body (See PIN M22-0181)
103 M852-0141 1 Pump Manifold
104 M27-8198 1 Screw
105 ~NIA Sep. 4 Screw (See PIN M70-0088)
106 ~NIA Sep. 1 Spring (See PIN M70-0047 or PIN M70-0089)
107 ~NIA Sep. 1 Ball (See PIN M70-0047 or PIN M70-0089)
108 ~NIA Sep. 1 O-ring (See PIN M70-0047 or PIN M70-0089)
109 ~NIA Sep. 1 Valve Seat (See PIN M70-0047 or PIN M70-0089)
110 ~NIA Sep. 1 Back-up Ring (See PIN M70-0047 or PIN M70-0089)
111 ~NIA Sep. 1 Roll Pin (See PIN M70-0047 or PIN M70-0089)
112 ~NIA Sep. 1 Piston Bypass Valve (See PIN M70-0047 or PIN M70-0089)
113 ~NIA Sep. 1 O-ring (See PIN M70-0047 or PIN M70-0089)
114 ~NIA Sep. 1 Back-up Ring (See PIN M70-0047 or PIN M70-0089)
115 ~NIA Sep. 1 O-ring (See PIN M70-0047 or PIN M70-0089)
116 ~NIA Sep. 1 Body By-pass Valvet (See PIN M70-0047 or PIN M70-0089)
117 ~NIA Sep. 1 Pressure Regulator Spring (See PIN M70-0047 or PIN M70-0089)
118 ~NIA Sep. 1 Pressure Regulator Screw (See PIN M70-0047 or PIN M70-0089)
119 ~NIA Sep. 1 Snap Ring (See PIN M70-0047 or PIN M70-0089)
120 ~NIA Sep. 1 Knob (See PIN M70-0047 or PIN M70-0089)
121 ~NIA Sep. 1 Screw (See PIN M70-0047 or PIN M70-0089)
122 ~NIA Sep. 1 Set Screw (See PIN M70-0047)
123 M7-0088 1 Cap
124 M62-0062 1 Right Cover
125 M27 -8863 8 Screw
126 M62-0061 1 Left Cover
127 M27-8193 4 Screw
M70-0001 Oil Seal Kit (Includes 3 each 57)
M70-0047 Unloader Assy (Includes 63, 71, 73)
M70-0067 Switch Cover (Inc 6-8)
M70-0068 Garden Hose Swivel (Inc 80-82)
M70-0081 Oil Tube Assy (Inc 51 & 55)
M70-0082 Oil Sight Glass (Inc 46-51 )
M70-0083 Oil Drain Plug (Inc 51 & 54)
M70-0084 Pump Packings (Inc 1 ea 58-61)
M70-0086 Valve Assy (Inc 6 each 63 & 64)
M70-0087 Pump Inlet Assy (Inc 51 & 84)
M70-0088 Manifold Bolts (Inc 4 ea. 52 & 105)
M70-0089 Manifold Assy (Inc 51, 58-64, 69-90, 103, 104, 106-123)
M70-0102 Injector Repair Kit (Inc 86-89)
M70-0105 CapacitorAssy (Inc 9, 10,13-17)
M70-0108 Unloader Check Check Valve (Inc 71-77)
M70-0118 Pump Packing (Inc 3 ea. 58,60,61)
M70-0145 Valve Cap Assy (Inc 69-70)
