TK-7100(H)/8100(H)
Compact Synthesized FM Mobi e Radios
construction of the chassis assures excellent heat
dissi-pation characteristics, and installation is
simplified thanks to
the compact external
dimensions — 160mm
(W) x 43mm (H) x
107mm (D). 137mm
(D) for (H) version.
HIGH-QUALITY SPEAKER
The large-diameter oval (58mm x 35mm) speaker
mounted in the front panel assures excellent
clarity.
DTMF / MSK PTT ID
The TK-7100(H)/8100(H) features two PTT ID
formats —DTMF (max. 16-digit DTMF code) and
MSK (FleetSync®format ID). PTT ID is a digital
ANI (Automatic Number Identifier) that can be
sent on each PTT, allowing clear identification of
the person using the transceiver.
VERSATILE DTMF MODES
The TK-7100(H)/8100(H) can be set for the
following DTMF encode and decode modes:
■Code Squelch: DTMF code squelch pro-vides
a 3- to 10-digit ID for DTMF paging operations.
■Selective Call: DTMF selective calling is a
signalling function comprised of DTMF codes
(ID code + Intermediate code + Status code)
that allows reception even if the radio is left
unattended. SQ opens when the set ID and
intermediate code matches the maximum
display of the 5-digit numeric status code.
■Number display*: When the DTMF code is
received —such as the PTT ID number —it is
displayed on the LCD for instant recognition.
* Does not operate while Code Squelch or Selective Call is activated.
OPERATOR SELECTABLE TONE
Users can freely change the 16 QT/DQT signalling
tones that were set with the FPU; each signalling
tone can also have an 8-digit name.
OTHER FEATURES
•Built-in QT/DQT Signalling
•SmarTrunk II™OMNI capability (requires
SmarTrunk board*)
•Data Ready (KDS-100, KGP-2A/2B, and 8
Programmable Function Port)
•Encryption Control Capability
•PC**/Self Programming
•AVL capability (with KGP-2A/2B)
•Backlit keys for all buttons
•Ignition sense input
•4-Pro-grammable Keys
•Busy Channel Lockout
•Embedded Message
•Security features including Radio stun, Radio
password, Data password, Embedded message,
and Kenwood ESN
•Channel direct
•Time out Timer (TOT)
•Wide/narrow selection per channel
* SmarTrunk board is available from SmarTrunk Systems, Inc.
** Compatible with Windows 98/ME/2000/XP, English or Spanish version.
Compact yet offering many powerful
features, Kenwood's TK-7100(H)/8100(H)
mobiles are designed to play the
leading role in your communications.
These radios are also built tough
enough to withstand all the rigors of
today's demanding applications.
ALPHANUMERIC LCD DISPLAY
The luminous LCD found
on the TK-7100(H)/8100(H)
offers user-friendly
operation thanks to its
13-segment, 8-digit
alpha-numeric display with
multiple capabilities.
64 CHANNELS
Providing you with more versatility and
convenience, the memory allocation of the
TK-7100(H)/8100(H) allows programming of up
to 8 groups within 64 channels.
SCAN FUNCTIONS
Priority Scan and Group Scan (single/multi) can
be set; add and delete channel(s) function can
also be performed.
TOUGH, COMPACT CONSTRUCTION
Built to take rough
treatment in stride, the
TK-7100(H)/8100(H)
meets ten stringent
MIL-STD 810 C/D/E/F
standards. The “bathtub”
* Picture shown standard version.
tk7100_8100h_sin.qxd 07.3.15 17:24 Page 1

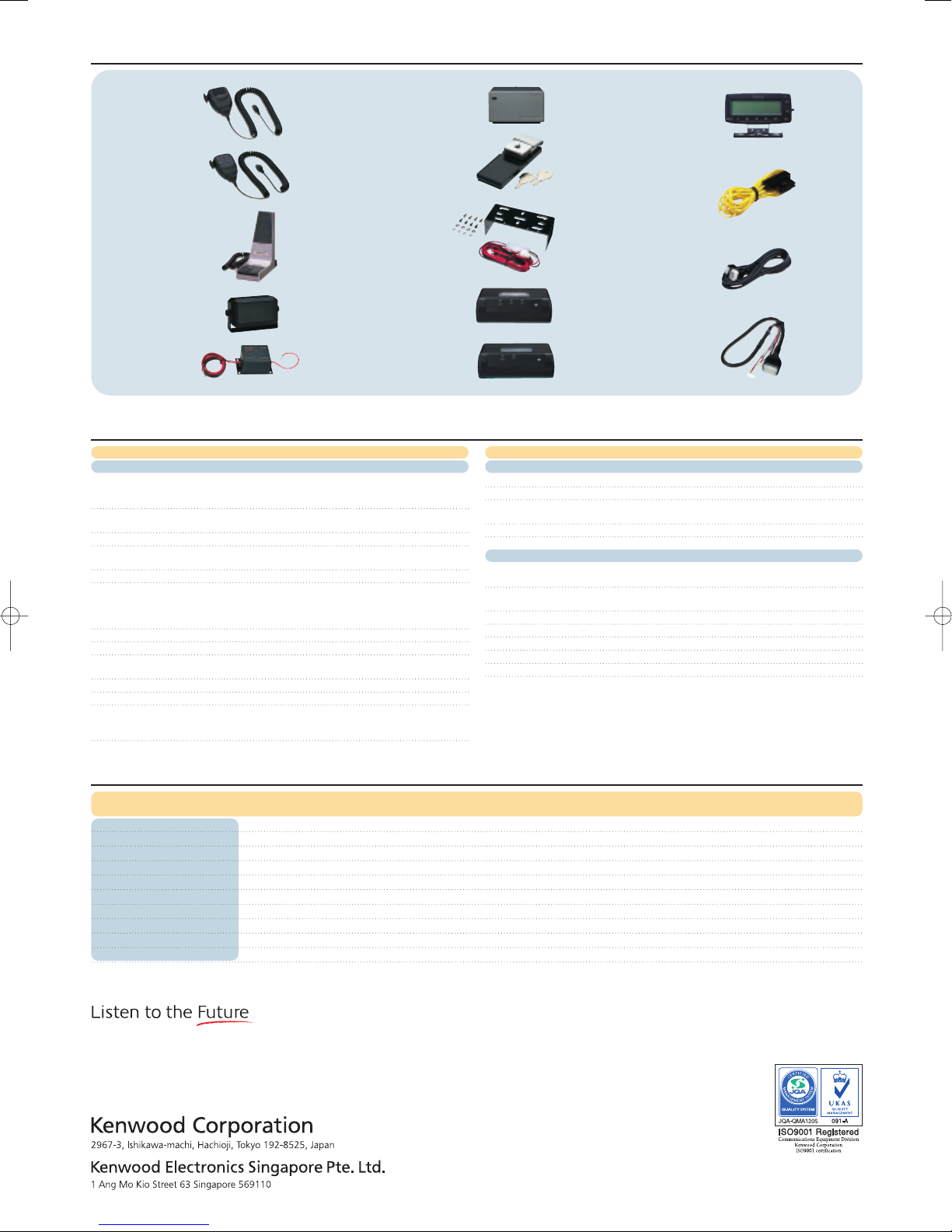

Specifications
Options
CL564M-E-2
All accessories and options may not be available in all markets. Contact an authorized
Kenwood dealer for details and complete list of all accessories and options.
Applicable MIL-STD
TK-7100(H) TK-8100(H)
GENERAL
Frequency Range
Type 1 146-174 MHz 440-480 MHz
Type 2 136-162 MHz 400-430 MHz
Channels / Groups 64 CH / 8 GRP
(Up to 64 channels can be allocated into 8 groups)
Channel Spacing (Wide / Narrow) 25 kHz / 12.5 kHz
PLL Channel Stepping 2.5 kHz, 5 kHz, 5 kHz, 6.25 kHz
6.25 kHz, 7.5 kHz
Operating Voltage 13.6 V, DC ±15%
Current drain
Standby 0.4 A
Receive 1.0 A
Transmit* / (H) 8.0 A / 14.0 A
Operating Temperature Range -30°C ~ +60°C
Frequency Stability (-30°C ~ +60°C) ±2.5 ppm
Dimensions
(W x H x D, without projections) 160 mm x 43 mm x 107 mm (137 mm for H)
Weight (Body only, approximate) 1.0 kg / 1.18kg for H
Antenna Impedance 50 Ω
Channel Frequency Spread
Type 1 28 MHz 40 MHz
Type 2 26 MHz 30 MHz
TK-7100(H) TK-8100(H)
RECEIVER (Measurements made per EIA/TIA-603)
Sensitivity (Wide / Narrow) 0.28µV / 0.35µV (12dB SINAD)
Selectivity (Wide / Narrow) 75 dB / 65 dB
Intermodulation Distortion
(Wide / Narrow) 70 dB / 60 dB
Spurious Response 75 dB
Audio Output (4Ω, 5% Distortion) 4.0 W
TRANSMITTER (Measurements made per EIA/TIA-603)
RF Power Output
Standard Version (High / Low) 25W / 5W
RF Power Output
High Power Version (High / Low) 50W / 25W 45W / 25W
Spurious & Harmonics 70 dB
Modulation (Wide / Narrow) 16K0F3E / 11K0F3E
FM Noise (Wide / Narrow) 45 dB / 40 dB
Audio Distortion Less than 3%
Microphone Impedance 600Ω
Kenwood reserves the right to change specifications and features without prior notice.
SmarTrunk IITM is a trademark of SmarTrunk Systems, Inc.
FleetSync®is a registered trademark of Kenwood Corporation.
Standard MIL 810C MIL 810D MIL 810E MIL 810F
Methods/Procedures Methods/Procedures Methods/Procedures Methods/Procedures
Low Pressure 500.1 /Procedure I 500.2 /Procedure I, II 500.3 /Procedure I, II 500.4 /Procedure I, II
High Temperature 501.1 /Procedure I, II 501.2 /Procedure I, II 501.3 /Procedure I, II 501.4 /Procedure I, II
Low Temperature 502.1 /Procedure I 502.2 /Procedure I, II 502.3 /Procedure I, II 502.4 /Procedure I, II
Temperature Shock 503.1 /Procedure I 503.2 /Procedure I 503.3 /Procedure I 503.4 /Procedure I, II
Solar Radiation 505.1 /Procedure I 505.2 /Procedure I 505.3 /Procedure I 505.4 /Procedure I
Humidity 507.1 /Procedure I, II 507.2 /Procedure II, III 507.3 /Procedure II, III 507.4
Salt Fog 509.1 /Procedure I 509.2 /Procedure I 509.3 /Procedure I 509.4
Sand & Dust 510.1 /Procedure I 510.2 / Procedure I 510.3 / Procedure I 510.4 / Procedure I, III
Vibration 514.2 / Procedure VIII, X 514.3 / Procedure I Cat. 8 514.4 / Procedure I Cat. 8 514.5 / Procedure I Cat. 20
Shock 516.2 / Procedure I, II, III, V 516.3 / Procedure I, IV, V 516.4 / Procedure I, IV, V 516.5 / Procedure I, IV, V
Kenwood has always connected with people through sound. Now we want to expand the world of sound in ways that only Kenwood can,
listening to our customers and to the pulse of the coming age as we head toward a future of shared discovery, inspiration and enjoyment.
■KMC-30
Microphone
■KMC-32
16-key Keypad
Microphone
■KMC-9C
Desktop Microphone
■KES-3
External Speaker
■KLF-2
Line Filter
■KPS-10A
Regulated DC
Power Supply
■KMB-10
Key Lock Adapter
■KMB-19
Installation Kit
■KGP-2A
GPS Receiver Modem
(requires KCT-39 option)
■KGP-2B
GPS Controller Modem
(requires KCT-39 option)
■KDS-100
Mobile Data Terminal
(requires KCT-39 option)
■KCT-18
Ignition Sense Cable
(requires KCT-39 option)
■KCT-36
3m Extension Cable
(for KCT-39)
■KCT-39
Connection Cable
