Kenwood KVT-819DVD User manual

This product uses Lead Free solder.
This product complies with the RoHS directive for the European market.

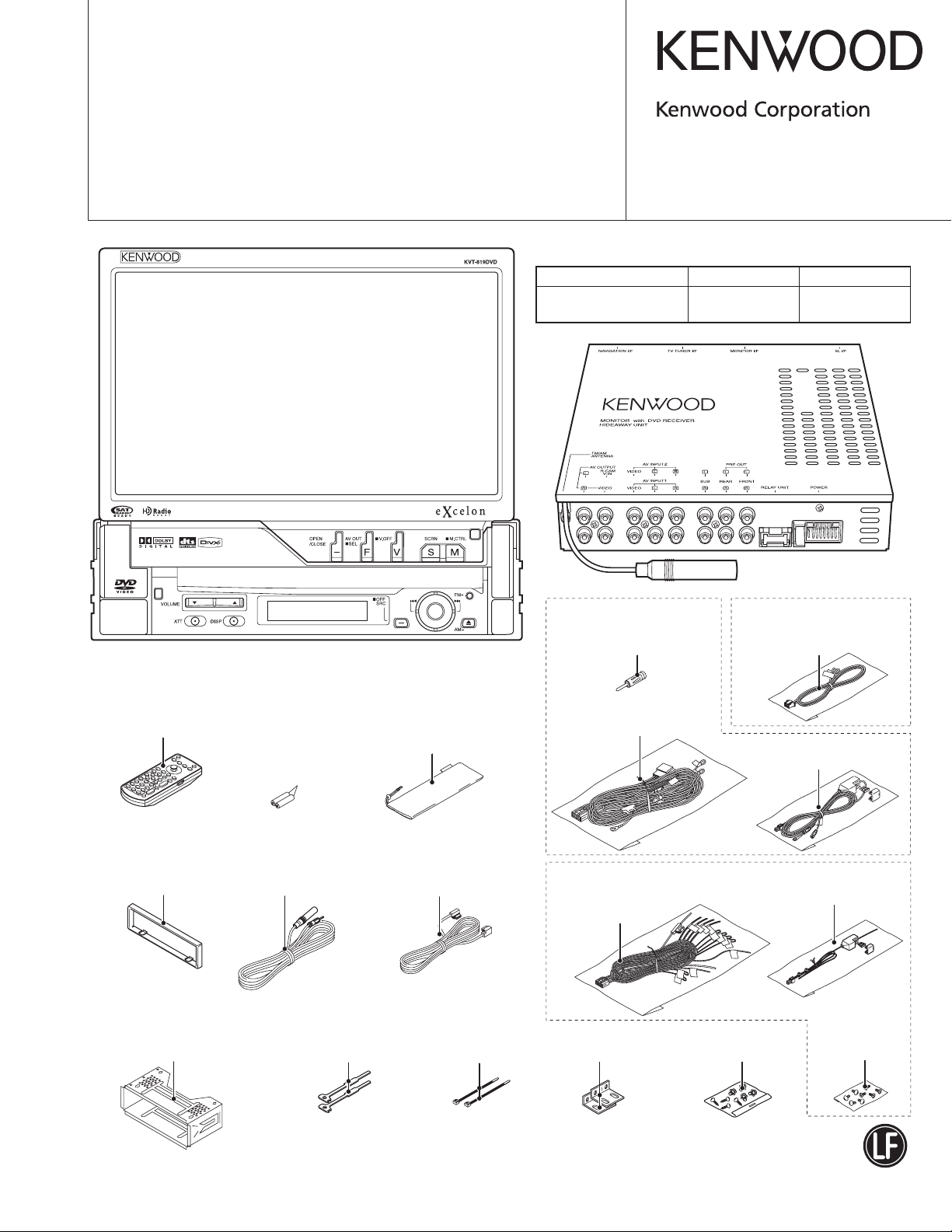

MONITOR WITH DVD RECEIVER
KVT-819DVD/829DVD
/829DVDY/839DVD
SERVICE MANUAL © 2007-5 PRINTED IN JAPAN
B53-0528-00 (N)521
SIZE AAA BATTERY
(NOT SUPPLIED)
Cord with plug (6m)
(E30-6688-05)
Carrying case
(W01-1661-05): E,M,X type
(W01-1664-05): K,R type
Cord with plug (6m)
(E30-6483-05)
DC cord (6m)
(E30-6681-15)
DC cord (6m)
(E30-6680-05)
Screw set
(N99-1775-05)
Mounting hardware
(J22-0054-14) x2
Lever
(D10-4674-04) x2
Remote controller
(A70-2082-15)
Mounting hardware assy
(J21-9823-03)
Escutcheon
(B07-3159-02)
Illustrations is KVT-819DVD
TDF SPARE-PANEL
Screw set
(N99-1753-05)
Antenna adaptor
(T90-0552-05)
Cord with plug (1m)
(E30-6693-05)
DC cord (35cm)
(E30-6676-15)
DC cord (35cm)
(E30-6675-05)
Wire band
(J61-0620-05) x2
E type M,X type
K,M,R,X type
KVT-819DVD/829DVD
/829DVDY/839DVD
MODEL TDF PANEL No. TDF NAME
Y33-2760-61 TDF-819DVD
RC-DV330

2
KVT-819DVD/829DVD
/829DVDY/839DVD
●The IC106 in the DIGITAL I/O UNIT (X88-2020-14) is not a replaceable component.
In case of defective of this IC, replace the entire unit (X88-2020-14).
●The IC5, IC21, and IC60 in the DVD unit (X37-1120-03) are not replaceable components.
In case of defective of any of these ICs, replace the DVD mechanism assembly. (The IC5 has a device key, which shall be
made consistent with the S/No. of the mechanism assembly after replacement. Thus you cannot replace only the board.)
●MICROCOMPUTER’S TERMINAL DESCRIPTION, TEST MODE, ADJUSTMENT are the same as KVT-719DVD.
Please refer to the service manual (KVT-719DVD: B53-0507-00).
In assembling the Traverse UD arm, Drive cam assembly,
Drive gear 5 and Drive gear 4C, align register marks on
these components.
GEAR POSITION IN A DVD MECHANISM
Drive gear 5
Drive cam assembly
Do not forcibly press gears to engage their teeth
but freely let the gears fall under their own weight
and engage their teeth.
Traverse UD arm
Drive gear 4C
Inscriptions
(register marks)
on gears
Align 6 marks
as shown in the
figure

3
KVT-819DVD/829DVD
/829DVDY/839DVD
Observe the instructions described in this document when
you are going to replace the parts or components that are
shown in this document.

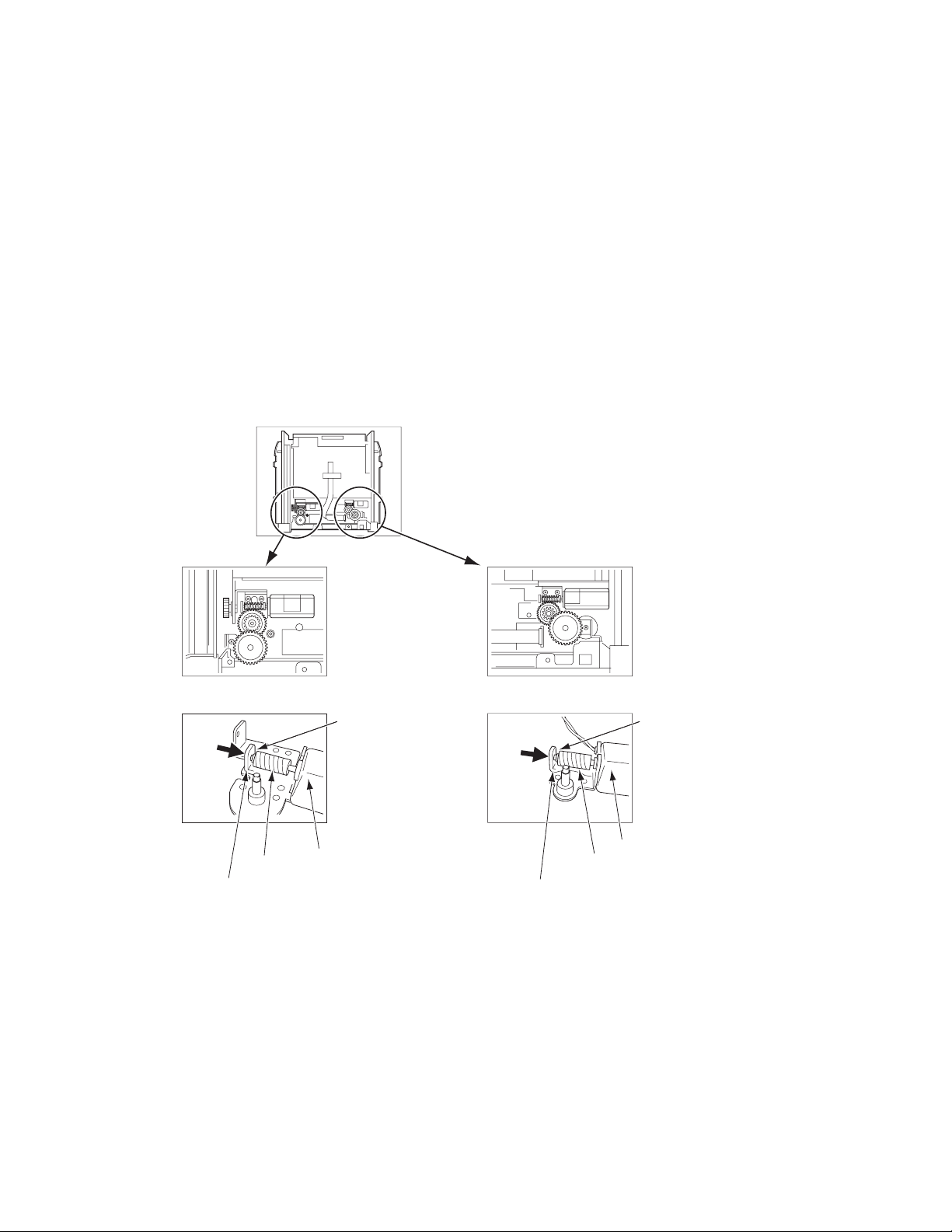

1. Replacement of motor flat spring
• When mounting the flat spring that shall be in contact
with the worm gear, press the spring toward the direction
shown with an arrow so that there will be no gap between
the tip of the gear and the spring and then mount the
spring. The gear shall be pressure-inserted into the
motor.
• Note that there are two motors. Above operation of
mounting the flat spring is required on both of them.
CAUTIONS IN ASSEMBLING PANEL DRIVE MECHANISM (A10-5171)
Tilt drive gear train Slide drive gear train
Mount the flat spring
while pressing it
towards the direction
shown with an arrow so
that there will be no
clearance.
Mount the flat spring
while pressing it
towards the direction
shown with an arrow so
that there will be no
clearance.
DC Motor
Worm
Flat Spring
DC Motor
Worm
Flat Spring

4
KVT-819DVD/829DVD
/829DVDY/839DVD

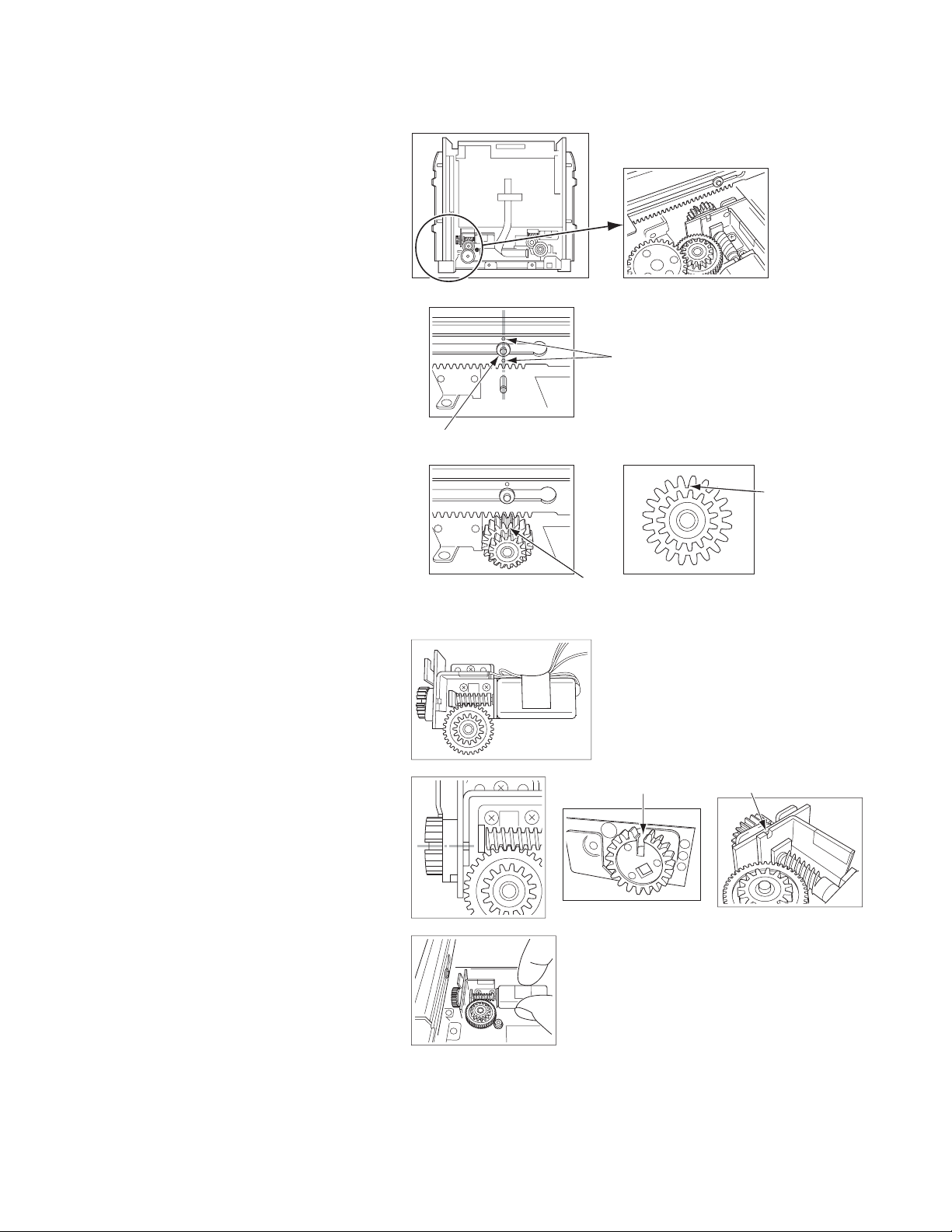

2. Phase matching among gears
• Monitor tilt is driven under the control of the
rotary sensor and the phase matching among
gears and sensor is required.
The procedure for the phase matching is
described in the rest of this subsection.
1) Align the mark on the rack with the pin. (When
the monitor is folded down at 0 degree, the
rack is located at the position where the mark
and pin are aligned.
2) Insert the gear while keeping aligning the rack
pin with the notched section on the tilt gear 7.
3) Pre-assemble the tilt motor bracket assembly
(BKT Assy).
4) Align the notch on the sensor BKT with the
concave section of the sensor in the Assy.
5) While keeping the conditions stated in 3) and
4), insert the tilt motor BKT Assy transversally,
and fix the motor.
Tilt drive gear train
Location of mark
on the Rack
T-Rack-A Pin
Location of
notched section
Tilt Gear 7
Location of
notched section
Sensor Tilt Sensor Bkt
CAUTIONS IN ASSEMBLING PANEL DRIVE MECHANISM (A10-5171)

5
KVT-819DVD/829DVD
/829DVDY/839DVD
3. Insertion of slider
• This subsection describes cautions for inserting the
slider (slide section inside of the unit) into the outer
chassis.
1) On the rail at the left side of the slider, there is a part
called a stabilizer that is used to minimize play in right
and left sides.
The slide is made of resin. (Note that the rail is shown
at the right side of the slider in the picture.)
When inserting the slider, press the stabilizer towards
the direction shown with a blue arrow and insert it into
the groove on the rail.
2) PCB holder is pushed out towards the downside
of the picture due to the spring force and thus the
chassis and photo reflection sheet may be get caught
by the holder during the assembly.
Insert the slider while slightly lifting up the holder with
a pair of tweezers or any other similar device.
3) Insert the gear after confirming that the both of D
shaft gears at the right and left sides of the slider are
aliened with the tip of the right and left racks on the
chassis.
(Otherwise the slider will be inserted sidelong.
(Slider -Slide section inside of the unit)
Stabilizer
PCB Holder
These portions
tend to be get
caught.
Hold and lift up the holder
with a pair of tweezers.
Push the opposite side of
the PCB holder towards
the downside of the picture
and lift up the portions
that may get caught.
D shaft gear
D shaft gear
Rack gear
Rack gear
CAUTIONS IN ASSEMBLING PANEL DRIVE MECHANISM (A10-5171)

6
KVT-819DVD/829DVD /829DVDY/839DVD

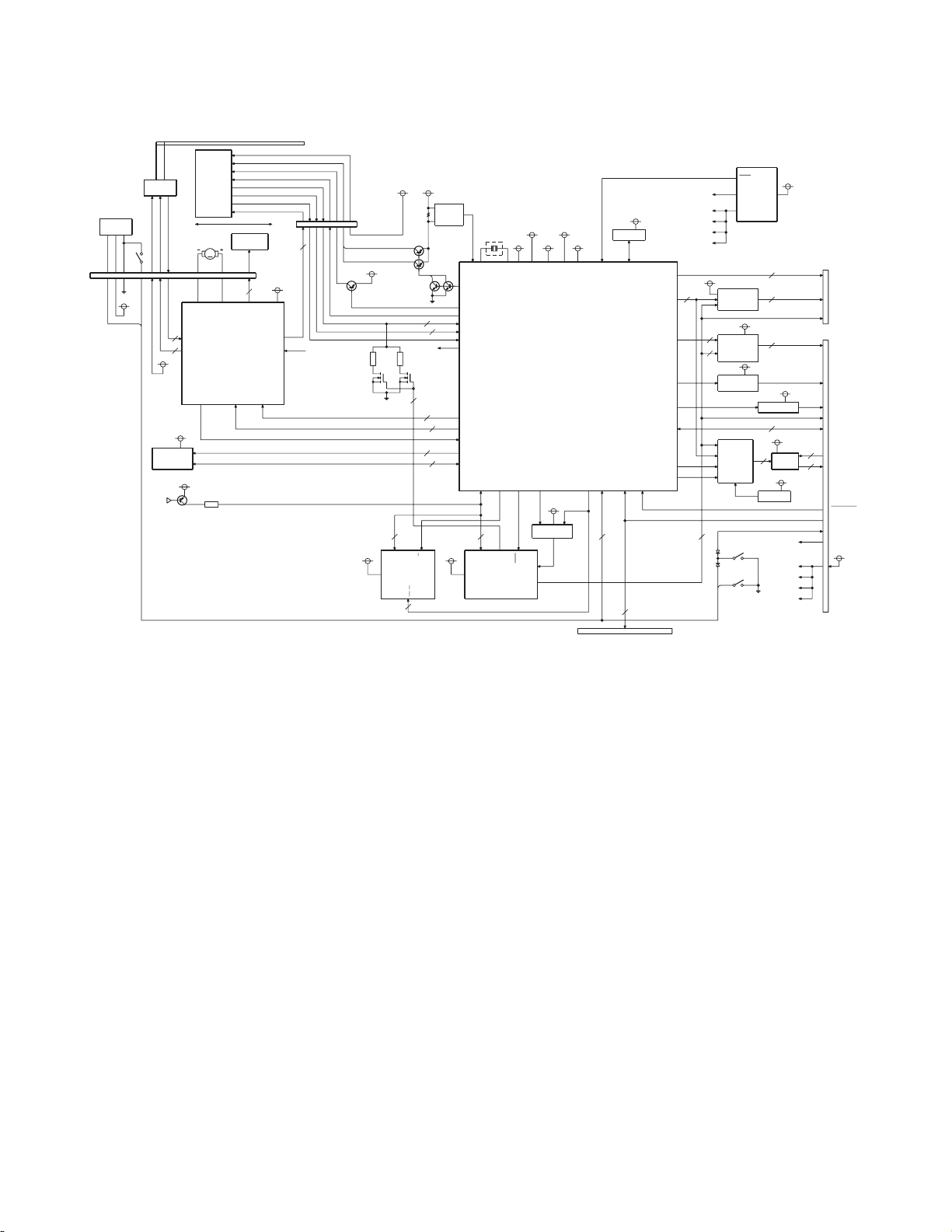

BLOCK DIAGRAM
BU3.3V
IC1
PON 3.3V
Q22
SW14V
J1
DC CN
DC/DC
IC101
D5V
MECHA
7.5V or 5V V5V
TC3.3V
DC/DC
IC102
USB5V
SW3.3V
P5V
Q43
LED9V
DVDA8V
Q31
AREF
A8V
Q35
DRIVER
MOTOR
IC501,502
iPod
CN401
SPDIF
J501
IC400 IC401
AUDIO SEL
IC408 (SUB)
IC407 (MAIN)
to DVD MECHA
CN502CN503
to X34
SYS-COM
IC201
IC402
PARALLEL
SERIAL
Q304,306-308
RGB SW
IC403
IC404
RGB SW
CN501
GAMMA IC
IC301
to X88
CN501
VIDEO IN SW
IC405
DVD MUTE
IC406
OUT SW
VIDEO
IC450
SW
LED
SERIAL
(MID)
PARALLEL
CN503
IC303
to X35 to X16
18.5V
DC/DC
IC100
-12V 12.5V
to X14
CN300
SERIAL
PARALLEL
IC301
CONTROLLER
TIMING
IC302
to INV
CN302
CN104
to X14
CN101
to X16
J101
SI
ZACTION MECHA
CN303
to X35
LED SW
OPEN/CLOSE
SCREEN//MODE
FNC/VSEL/
CIRCUIT
INVERTER
to BACK LIGHT
CN1
to TOUCH PANEL
CN501
to LCD PANEL
CN503
LCD PANELTOUCH PANELBACK LIGHT
DIMMER
AUTO
IC401
to X16
J201
GND
IC201
REMO
SW
EJECT/
SRC/
RESET
ATT/
VOL+
VOL/
DISP
FM
AM
CN201
(MID) MINI LCD
DVD MECHA
DC CN
J1
RELAY SW
J705
BU5V
Q51
SW5V
Q53
A8V
Q71
9V (MID)
IC904
1/2VCC (MID)
V5V
Q61
IC910,911
POWER
IC301
J501
LEVEL SHIFT
IC106
IC501,502
DET MUTE E2PROM
AUDIO
u-COM
IC101
SERIAL
PARALLEL
IC105
5V AMP
(MID)
IC901
(MID)
5V AMP
IC902
(MID)
5V AMP
IC903
MUTE MUTE MUTE MUTE
SEL
AUDIO
IC203 (SUB)
IC202 (MAIN)
OUTPUT SECTION
E-VOL
INPUT
ESCTION
REAR
PRE OUT
SUB AV OUTFRONT
J351
LX
J401
A251
F/E
E2PROM
RDS IC
IC251
AV IN1
J703
BACK CAM
AV IN
AV OUT
IC723
VIDEO SW
IC804
IC803
VIDEO SW
VIDEO SW
IC805
VSYNC SW
J702
NAVI I/F TV-TUNER I/F
J701
IC701
RGB SW
809
CN327
IC332
A5V
IC105
1.8V
USB2
5V (MID)5V
USB1
OSD IC
IC309
CPLD
IC322 IC104
MEDIA PROCESSOR
IC106
VIDEO ENC
IC302
to X14
X100 IC301
2ch DAC
IC305
LPF
IC211 IC202,203 IC200
32,768kHz
X202
IC201,205
NOR FLASH
128Mbit 256Mbit
SDRAM
X'TAL
14.7456MHz
IC101 (MID)
IC100
IC207
AUTHENTICATION
iPod
PROTECT
OVER CURRENT
USB CN
CN101
USB2
5V (MID)
5V
USB1
W251
IC201
BUFF
DELAY
REG
REG
BUFF
IC807-
811
810,
ISO
ISO
ISO ISO
PRE OUT
J704
AMP IC
IC106
IC802,
806,
AV IN
AV IN2
J704
IC722
ISO
BU DET
ACC DET
PON
MECHA 7.5V or 5V
A8VV5V
USB
iPod
DVD
AMUTE
DVD SCL
DVD SDA
DVD RESET
DISC DET
MAIN
SUB
BU DET
SW1/2/3/4 AUTO
iPod COMP
A8V
BU3.3V
SEL DATA
SEL CLK
V IN SW1/2/3
V OUT SW
VCOM IN VR/VG/VB
SW3.3V
EX M+/M- RI M+/M- SW A/B/C Z SWT/CNT R SENS
XDATA
YDATA
OPEN/CLOSE
REMO
SRC
KEY3
RESET
X0/X1/Y0
SP DATA
PWM
HSY ADJ
ENABLE
INV PWM
INV SW
SP CLK
VCOM R/G/B POLS
V5V
V5V
OSD BLK
GAN COMP
V5V
DVD R/G/B
DVD COMP
M CLK
M DATA
SYS ON
M REQ
S DATA
S REQ
RESET
VOUT
V5V
RESET
X34 COMP
X34 R/G/B
GRA SYNC
V5V
GRA R/G/B
D5V
X16 ILL
LED9V
LED R
LED G
LED B
(MID)
SDA SCL
RGB SW1/2
GAN VSW
DVD R/G/B
GAN SYNC SW
REMO
SRC
MINI CLK
MINI CS
MINI DATA
(MID)
EJECT
RESET
REMO
KEY2
OSD MODE
FILD DET
CIR BU DET
CIRMREQ
CIR STBY
CIR CON
CIR SREQ
CIR RST
CIR INI
CIR RX
CIR TX
SW3.3V
NCLP
BLK HSY
HSY
VSY
STH
DOT CLK
CPV
BL14V
TC3.3V
PON3.3V
V5V
MECHA8V
LED9V
TP3.3V
SMOTOR M/P
TMOTOR M/P
HPOSI1/2/3/4
MODE1/2/3
NT/PAL
MIRROR
KEY1 OPEN/CLOSE
SP DATA
SP CLK
POLS
BLK/HSY
VSY/CPV
NCLP
DOT CLK
STH
VCOM R/G/B AUTO DIM
EX M+/M-
RI M+/M-
SW A/B/C
Z SWT/CNT
R SENS
DSI
(MID)
MINI CS
MINI CLK
MINI DATA
PANEL DET
RESET
EJECT
REMO
KEY2
SRC BU3.3V
+12.5V
BL14V
INV PWM
ENABLE
PWM
X1
XDATA
YDATA
X0
Y0
CX
CPH1
CPV2
HDIR
STV1/2
UPSD
STH1/2
OE1/2/3
R/G/B VCOM
TP3.3V PON3.3V TC3.3V 18.5V -12V V5V AUTO DIM
TP3.3V
PON3.3V
BL14V
TC3.3V
18.5V
-12V
LED9V
V5V
SW3.3V
LED9V
LED R
(MID)
LED G
X16 ILL
D5V
LED B
BU3.3V
SW3.3V
X16 ILL
LED9V
LED R
LED G
(MID)
D5V
LED B
DET PAN E L
KEY2
SRC RESET EJECT
MINI DATA MINI CLK MINI CS
REMO
X16 ILL
D5V
LED G
LED R
LED9V
SW3.3V
LED R
LED G
LED B
P5V
V5V
D5V
A8V
AREF
LINE MUTE
EXT CON
ANT CON
P CON
W REMO
ILLUMI
REVERSE
PARKING
PWIC STBY
BU DET
PON OFFSET DET
RELAY SW1/2 RELAY DET1/2
I2C SCL/SDA MUTE 0/1/2/A/B/C PWIC DC DET
BU MUTE
BU5V SW5V
BEEP
MUTE
SYS ON
M DATA
M CLK
M REQ
BU5V
BU
S DATA
S REQ
MUTE (SYS BU-DET)
RESET
REMO
A IN SEL 1/2/3/4
V IN SEL 1/2/3
V OUT SEL 1/2/3
SEL DATA SEL CLK
SW5V
TV RESET
SW5V
W REMO MIX REMO
V SYNC DET
AUTO SW 1/2
TV SC CON TV JUDGE TV CLK TV MC REQ TV SC REQ TV MC DATA TV SC DATA NAVI TX NAVI RX RGB MUTE RGB SW
RDS CLK TUN SMET TUN SCL TUN SDA TUN IFC AM +B RDS QAUAL RDS DATA RDS AFS RDS NOISE
LX RST LX CON LX MUTE LX CLK LX REQ M LX REQ S LX DATA M LX DATA S
BU5V BU5V BU5V BU5V
X14 AUDIO
TV
AVIN1
LX
MAIN
SUB
TUNER
NAVI
AVOUT
A8V
BU3.3V
SW3.3V
V5V
USB5V
A8V
SW5V
A8V
V5V
AVIN1
V5V
NAVI
TV
BACK CAM AVIN1
X14 VIDEO
MIX REMO
NAVI RX
NAVI TX
A8V
TV
NAVI RGB TV RGB
V5V
RGB SW RGB MUTE
TV MC REQ
TV SC DATA
TV MC DATA
TV SC REQ
TV SC CON
TV CLK
TV JUDGE
TV RST
AVIN1
BACK CAM
USB5V V5V SW3.3V BU3.3V A8V
A8V
SW3.3V
OSD R/G/B OSD BCK/FILD DET OSD MODE HSY/VSY
STH DOT CLK
GRA SYNCVSYNC
HSYNC
GRA R/G/B
SP CLK EP R/G/B
CPV
OSD DATA
OSD CE
OSD CLK
CS6
CS0
CIR BU DET
CIR CON
CIR SREQ
CIR MREQ
CIR STBY
CIR RST
CIR INI
CIR MDATA
CIR SDATA
SDO0
LRCLK
SCLK
MCLK
USB L/R
CP READY
SCL SDA
ENB (MID) ENA FLGB (MID) FLGA
ADDRESS DATA
USBm0 USBp0
USB5V
USBm1 USBp1
SPDIF
R/G/B
GAN
OSD R/G/B
TC3.3V
V5V
MUTE
BU5V
A8V
BU
A8V
NAVI
BU
V IN SEL 1/2/3
V OUT SEL 1/2/3
VIN
X14 VIDEO
RGB OUT
CIR RST
BACK CAM
V5VV5V
AVIN2 AVIN2
A8V
AVIN2
(X14-983)
(X35-471)
(X35-471)
(X34-489)
(X88-200)
(X16-392)
(X16-392)

7
KVT-819DVD/829DVD
/829DVDY/839DVD
BLOCK DIAGRAM
(X37-112)
MOTOR
SPINDLE
LIM-SW
HALL IC
M
LO/EJ
DC MOTOR 2PHASE
STEPPING
KDP2C
OPTICAL
PICKUP
(28P)
CONNECTOR
P5V
P5V ACTUATER
MOTOR &
DRIVER
(30P)
CONNECTOR
A5V A5V
IC39
IOPDET
A3.3V
Q27
Q12,13
Q10,11
D3.3V
IC1
SDRAM
IC54
D3.3V
D3.3V
A3.3V V3.3V
PLL3.3V D1.2V
D3.3V
Q25
ROM D-FF
IC10
IC5 IC42
D3.3V D3.3V
FLASH
D3.3V
LOGIC
IC55
CONNECTOR(35P)
BUFFER
IC53
IC57
AUDIO
DAC
IC15
VIDEO AMP
IC12
3.3V to 1.2V
IC49
D3.3V
D1.2V
IC50,51
L.P.F
A8V
5V REG
IC60
A8V
A5V
A5V
ADATA0-2
BCK/LRCK
PD
Y/G,Pb/B,Pr/R
VIDEO
SPDIF
AMUTE
SDA,SCL
AREFL
Lch
MASTER/SLAVE
RESET
CONNECTOR
(10P)
(50P)
CONNECTOR
Rch
AREFR
DISC DET
IFSELIF-SEL
SW LOST
SW LOEND
D5V
A5V
P5V
A8V
D7
D3.3V
V3.3V
PLL3.3V
A3.3V
IC9
E2PROM
D3.3V
D1.2V
IC21
SW REG
F/E+B/E+MCU
DVN
DISC
Q14,15
D5V
VIDEO AMP
HALL BIAS U.V.W COIL HALL SENSOR
PDIC VCC
DVD LD/CD LD
HFM
VREFH
THERMISTER
PDIC I/V OUT
IMON/VR DVD/VR CD
FO+-,TR+-
3
3
H1H,H1L,HB
A1,A2,A3
FO6,RO6
FO4,RO4
FO5,RO5
FO3,RO3
FO2,RO2
VREF,EC VHALF
STBY BMS FG
SPIN,IN2-6,MUTE
4
LPC01/LPC02
DRV0
VREFH
LPC1/LPC2
A,B,C,D,E,F,FE1,FE2,RF
TEMP(AD1)
2
9
VHALF
DQM3,P9
DRV1,DRV2,DRV3,DRV4
PWM0,PWM1,P10
FG,P5
MDQ0-15
NWE,NCAS,NRAS,NCSM,MCK0
BA0-1,MA0-11,DQM0-1
IOP
(AD0)
7
2
21
16
2
27MHz
IF-SEL
E
DQ0-15
W,G A0-20
CLR
D1-8
Q1,Q2
CLK
Q3-8
23
8
EXADT11
EXADT DQM2 NEXCE 0-15
A19
NEXWE
EXADR16-19 EXADT0-15 NEXOE P15 NEXWE P6,P14 P0,P3 DD0-15,DA0-1,CS1FX,CS3FX INTREQ,IORDY,DASP,PDIAG DMARQ,DIOW,DIORDMACK RESET MASTER
16 4
2
3
4
2
R+
L-
R-
L+
DACCK
ADOUT3
P1,P2
IECOUT
DAC4OUT
DAC0-3OUT
SRCK,LRCK
ADOUT0-2
2
2
3
PON
3
2
6
30
ATAPI I/F
P7,P8
NRST
POR
SW2
SW1
2
4
SW EIEND
P12(CE)
CLAMP/BIAS,
POWER SAVE

8
KVT-819DVD/829DVD
/829DVDY/839DVD
●VIDEO CONTROL UNIT (X14-983x-xx)
Ref. No. Application / Function Operation / Condition / Compatibility
IC1 3.3V regulator BU_3.3V
IC2 3.3V regulator TC3.3V
IC10 OP AMP AREF power supply (4V)
IC101 DC-DC control IC DC-DC control (Mechanism 7.5V, V5V)
IC102 DC-DC control IC DC-DC control (SW3.3V, D5V)
IC201 MPU System µ-com
IC202 Reset IC Reset IC
IC203 EEPROM Save settings
IC204 EEPROM ROM correction
IC205 AND Inverter PWM buffer
IC301 Chroma gamma Chroma gamma
IC302 NOT HSY reverse buffer
IC303 Monostable multivibrator HSYNC delay
IC304 NOT HSYNC delay
IC400 VIDEO ISO AMP iPod video signal
IC401 AUDIO ISO AMP iPod audio signal
IC402 Serial/parallel conversion Extension of µ-com port
IC403 Video switch X34 RGB or Graphic RGB
IC404 Video switch IC403 RGB or DVD RGB
IC405 Video switch iPod or DVD or Graphic or X34 Composite signal
IC406 Video switch For AVOUT (To X34)
IC407 Audio selector MAIN
IC408 Audio selector SUB
IC450 Serial/parallel conversion Extension of µ-com port (only for MID model)
IC501 Motor driver Tilt
IC502 Motor driver Slide
IC503 NOT Remote controller signal waveform shaping
Q1 SW ACC_DET detection circuit
Q2~10 SW BU_DET detection circuit
Q13 Short protection BU power supply regulator (8.5V)
Q14 8.5V regulator BU power supply regulator (8.5V)
Q15~17 8.5V regulator control BU power supply regulator (8.5V)
Q19~21 SW P-ON 14V control
Q22 SW FET P-ON 14V ON/OFF
Q23,24 Emitter follower Analogue power supply reference circuit
Q25,26 SW T_P3.3V switch
Q31 8V regulator DVD A8V regulator
Q32~34 8V regulator control DVD A8V regulator
Q35 8V regulator A8V regulator
Q36~38 8V regulator control A8V regulator
COMPONENTS DESCRIPTION

9
KVT-819DVD/829DVD
/829DVDY/839DVD
Ref. No. Application / Function Operation / Condition / Compatibility
Q43 9V regulator LED9V regulator
Q44~46 9V regulator control LED9V regulator
Q101 SW DC-DC output voltage switching
Q103,106
Q108,111
SW DC-DC protection control
Q104 SW DC-DC SW FET (5V or 8V)
Q105 SW DC-DC SW FET (5V)
Q109 SW DC-DC SW FET (3.3V)
Q110 SW DC-DC SW FET (5V)
Q201 SW µ-com reset SW
Q203 SW KEY RESET
Q204,205 SW LED SW (Red)
Q206,207 SW LED SW (Green)
Q208~210 SW TDF power supply SW
Q211,212 SW TDF LCD back light SW (Blue)
Q301 Buffer Composite signal
Q304 Buffer VCOM
Q305 MUTE IC301 SYNC OUT MUTE
Q306 Buffer RGB Signal_R
Q307 Buffer RGB Signal_G
Q308 Buffer RGB Signal_B
Q309 Buffer HSY SYNC
Q401 Buffer Graphic SYNC
Q501 MUTE DVD MUTE (Lch)
Q502 MUTE DVD MUTE (Rch)
Q503 SW DVD MUTE control
Q504 Buffer SPDIF signal
Q508 Buffer Remote control signal
●SWITCH UNIT (X16-3920-11)
Ref. No. Application / Function Operation / Condition / Compatibility
IC201 Remote controller photoreceptor Remote controller photoreceptor
Q101 For switching DSI signal DSI signal control
Q204 For switching LED. Switch LED_Blue or LED Green of MINI_LCD.
Q205 For switching LED. Switch LED_Blue or LED Red of MINI_LCD.
Q206 For switching LED Switch LED_Red or LED_Green
●ELECTRIC UNIT (X34-489x-xx)
Ref. No. Application / Function Operation / Condition / Compatibility
IC61 3 terminal regulator Video5V generation
COMPONENTS DESCRIPTION

10
KVT-819DVD/829DVD
/829DVDY/839DVD
Ref. No. Application / Function Operation / Condition / Compatibility
IC71 3 terminal regulator Audio8V and Tuner8V generation
IC101 µ-com Primarily, audio board control
IC102 Reset IC µ-com reset voltage (4.2V) monitoring
IC104 Logic IC (AND) Synthesis of remote control signal from X14 and Wired_remote control signal
IC105 Serial/Parallel IC Control output of AudioSW IC
IC106 Logic IC Conversion of communication level (3.3 →5) between X14 system µ-com
IC201 Electronic volume IC Audio volume control and audio signal selection
IC202 Logic IC (multiplexer) Audio signal selection (Sub)
IC203 Logic IC (multiplexer) Audio signal selection (Main)
IC251 RDS decoder IC For RDS signal processing and demodulation
IC301 Power IC Power amplifier for speaker output
IC501 isoAMP IC Isolation of audio signal (L/R/G) from X14 (Main)
IC502 isoAMP IC Isolation of audio signal (L/R/G) from X14 (Sub)
IC701 isoAMP IC Isolation of audio signal (L/R/G) from TV tuner
IC702 Logic IC (AND) Buffer for NAVI_REMO
IC722 isoAMP IC Isolation of audio signal (L/R/G) from AVIN2 (External input)
IC723 isoAMP IC Isolation of audio signal (L/R/G) from AVIN1 (External input)
IC802 Video switch IC Selection of AVIN1, AVIN2, BCAM, TV, and NAVI video signals
IC803,804 Video switch IC Selection of TV, X14VIDEO, ANIN1, and ANIN2 video signals
IC805 Video switch IC Selection of BCAM, AVIN1, and AVIN2 video signals
IC806 Video switch IC Selection of AVIN1, AVIN2, BCAM, TV, and NAVI video signals
IC807 Video switch IC Selection of TV, and NAVI RGB R signal
IC808 Video switch IC Selection of TV, and NAVI RGB G signal
IC809 Video switch IC Selection of TV, and NAVI RGB B signal
IC810,811 Video switch IC Selection of AVIN1, AVIN2, BCAM, TV, and NAVI video signals
IC901 OPAMP Buffer for 5VPRI of front L/R
IC902 OPAMP Buffer for 5VPRI of rear L/R
IC903 OPAMP Buffer for 5VPRI of sub woofer L/R
IC904 Switching regulator IC Generation of ±9V power supply
IC910,911 OPAMP Generation of mid point power supply for POWER AMP IC
Q1 Transistor Reverse detection circuit
Q2 Transistor Parking detection circuit
Q3 Transistor ILLUMI detection circuit
Q4,6 Transistor Bu detection circuit
Q7~10 Transistor P_CON output circuit
Q11,12 Transistor ANT_CON output circuit
Q13 Transistor EXT_CONT output circuit
Q14 Transistor Relay SW1 output, and over current detection circuit
Q15 Transistor Relay SW2 output, and over current detection circuit
Q51 Transistor Bu5V generation
Q52 Transistor Bu5V circuit
COMPONENTS DESCRIPTION

11
KVT-819DVD/829DVD
/829DVDY/839DVD
Ref. No. Application / Function Operation / Condition / Compatibility
Q53,54 Transistor SW5V circuit
Q61,62 Transistor Vedeo5V circuit
Q70~72 Transistor Audio8V and Tuner8V generation
Q81~85 Transistor Relay SW1 output, and over current detection circuit
Q91~95 Transistor Relay SW2 output, and over current detection circuit
Q101 Transistor µ-com reset circuit
Q102,103 Transistor TV reset circuit
Q104,105 Transistor DET MUTE circuit (Trigger Reset)
Q107 Transistor DET MUTE circuit (Trigger X14Bu-DET)
Q251,252 Transistor On when AM (Tuner8V)
Q351 Transistor Pre-OutMute Mute transistor (FL)
Q352 Transistor Pre-OutMute circuit (Front, Rear)
Q353 Transistor Pre-OutMute Mute transistor (FR)
Q354 Transistor Pre-OutMute Mute transistor (RL)
Q355 Transistor Pre-OutMute Mute transistor (RR)
Q356 Transistor Pre-OutMute Mute transistor (SUB L)
Q357 Transistor Pre-OutMute circuit (SUB)
Q358 Transistor Pre-OutMute Mute transistor (SUB R)
Q359 Transistor Pre-OutMute Mute transistor (AV-OUT L)
Q360 Transistor Pre-OutMute circuit (AV-OUT)
Q361 Transistor Pre-OutMute Mute transistor (AV-OUT R)
Q802~808 Transistor Sync separation circuit of BCAME, AVIN1, and AVIN2
Q809 Transistor Current amplification and buffer for ROUT
Q810 Transistor Current amplification and buffer for GOUT
Q811 Transistor Current amplification and buffer for BOUT
Q813 Transistor For ROUT MUTE
Q814 Transistor For GOUT MUTE
Q815 Transistor For BOUT MUTE
Q901,
Q903~910
Transistor Power supply for Pre-Out amplifier Circuit to generate ±9V
Q923~927 Transistor Circuit to generate the midpoint potential for Power AMP IC
●VIDEO UNIT (X35-4710-10)
Ref. No. Application / Function Operation / Condition / Compatibility
IC1 Inverter control IC Control and drive of the inverter circuit for the back light
IC101 DC/DC converter IC
+12.5V power supply for VCOM amplifier (Gamma IC) and -12.0V/+18.5V power supply for LCD
IC102 Mono-multi Delay 5V power supply for DC/DC IC
IC103 NOT Reverse
IC301 Serial/parallel conversion Extension of µ-com port
IC302 AND Buffer to delay V.SYNC
IC303 PLL LPF LPF for PLL control (VT voltage control)
COMPONENTS DESCRIPTION

12
KVT-819DVD/829DVD
/829DVDY/839DVD
Ref. No. Application / Function Operation / Condition / Compatibility
IC304 Timing controller IC Control of LCD module
IC401 Dimmer sensor Detection for auto-dimmer
Q1 Dimmer SW Turn on or off in response to the PWM control signal to dimmer the back light
Q2,3 Inverter driver Drive the inverter circuit
Q4 Switch SW to change the free run frequency for inverter control IC
Q5 5V constant voltage 5V power supply for inverter control IC
Q301 VCO For PLL oscillation
Q303 Buffer For PLL clock
Q501 Touch panel Y1 SW Y0 (X0) SW: On in response to Y (X) axis input and off in response to X (Y) axis input
Q502 Touch panel X1/Y0 SW
X1 SW: Turn on in response to sensing of the touch on the panel or X axis input and apply voltage
Q503 Touch panel Y1 SW Y1 SW: Turn on in response to Y axis input and apply voltage
●DIGITAL I/O UNIT (X88-2020-14)
Ref. No. Application / Function Operation / Condition / Compatibility
IC100 Fixed Current Limit
Power Distribution Switch Large current distribution switch for USB1
IC101 Fixed Current Limit
Power Distribution Switch Large current distribution switch for USB2
IC104 Exclusive OR Gate EP_SYNC (composite sync) output
IC105 Low Dropout Voltage
Linear Regulator SW3.3V →1.8V (for EP9307IRZ)
IC106 System-On-Chip Processor Media Processor
IC108 Inverter E_HSYNC Buffer
IC200 Triple Inverter Sub Clock Buffer
IC201 Octal Bus Transceiver Flash Memory data line switching (DA0~7)
IC202,203 SDRAM 256Mbit SDRAM for work memory
IC205 Octal Bus Transceiver Flash Memory data line switching (DA8~15)
IC207 iPod Authentication Coprocessor iPod Authentication
IC211 NOR Flash Memory 128Mbit Flash Memory for program data and graphic data
IC301 Stereo DAC Audio signal digital/analog converter
IC302 Color TV signal encoder Graphic signal digital/analog converter
IC305 Dual OP-Amp.(LPF) Stereo DAC Output LPF
IC309 On-Screen Display Controller On-Screen Display analog signal output
IC316 Triple Inverter Dot Clock(14.4MHz) Buffer
IC322 CPLD 2/3 frequency dividing and PAL thinning control (compression processing circuit)
IC332 Low Dropout Voltage Regulator A8V →A5V(for Stereo DAC and LPF)
IC336 Triple Schmitt Inverter VSY, HSY Buffer
IC337 Triple Schmitt Inverter CPV, STH Buffer
Q302 General Purpose Transistor OSD ROUT Current Amplifier
Q303 General Purpose Transistor OSD GOUT Current Amplifier
Q304 General Purpose Transistor OSD BOUT Current Amplifier
COMPONENTS DESCRIPTION

13
KVT-819DVD/829DVD
/829DVDY/839DVD
●DVD UNIT (X37-1120-03)
Ref. No. Application / Function Operation / Condition / Compatibility
IC1 One chip LSI for DVD player RF signal processing / Servo processing / Decoding processing / AV decoding processing
IC5 FLASH ROM To retain F/W for one chip LSI (Nonvolatile memory)
IC9 EEP ROM To retain data for one chip LSI (Nonvolatile memory)
IC10 Driver IC Fo coil / Tr coil / SP motor / SLD motor / LO-EJ motor drive
IC12 1ch video AMP +6dB amplifier with internal composite video output filter
IC15 Audio DAC DA converter for 2ch analogue audio output
IC21 2-output switching REG 5V →3.3V/1.2V
IC39 OP-AMP for Iop measurement For Iop measurement
IC42 Logic IC for port extension For port extension
IC49 Low voltage logic For S/PDIF signal amplitude conversion (3.3V →1.2V)
IC50 OP-AMP for audio LPF LPF for 2ch analogue audio output (Rch)
IC51 OP-AMP for audio LPF LPF for 3ch analogue audio output (Lch)
IC54 SDRAM To retain data for one chip LSI (Nonvolatile memory)
IC55,56 Logic IC for port extension For port extension
IC57 3ch video amplifier With built-in filter +6dB amplifier for component/RGB video output
IC60 Power supply for 5.0V 8V →5V (Exclusively for audio DAC)
Q1 Transistor with internal resistor LO_MUTE control
Q2 Transistor with internal resistor For FG signal
Q3 Transistor with internal resistor For BMS
Q4 Transistor with internal resistor DRMUTE control
Q10 Front end transistor for APC Control of CD laser diode emission
Q11 Front end transistor for APC Control of DVD laser diode emission
Q12 Rear end transistor for APC Control of CD laser diode emission
Q13 Rear end transistor for APC Control of DVD laser diode emission
Q14 MOS-FET ON/OFF control of CD laser diode
Q15 MOS-FET ON/OFF control of DVD laser diode
Q20 MOS-FET for level shifter Level shifter for I2C clock
Q21 MOS-FET for level shifter Level shifter for I2C data
Q24 MOS-FET For Iop measurement
Q25 Transistor with internal resistor IFSEL control
Q27 Transistor with internal resistor HFM ON/OFF control
Q28 Transistor for APC For CD laser diode protection (Current limiter)
Q29 Transistor for APC For DVD laser diode protection (Current limiter)
COMPONENTS DESCRIPTION

14
KVT-819DVD/829DVD
/829DVDY/839DVD
ABCDE
1
2
3
4
5
6
7

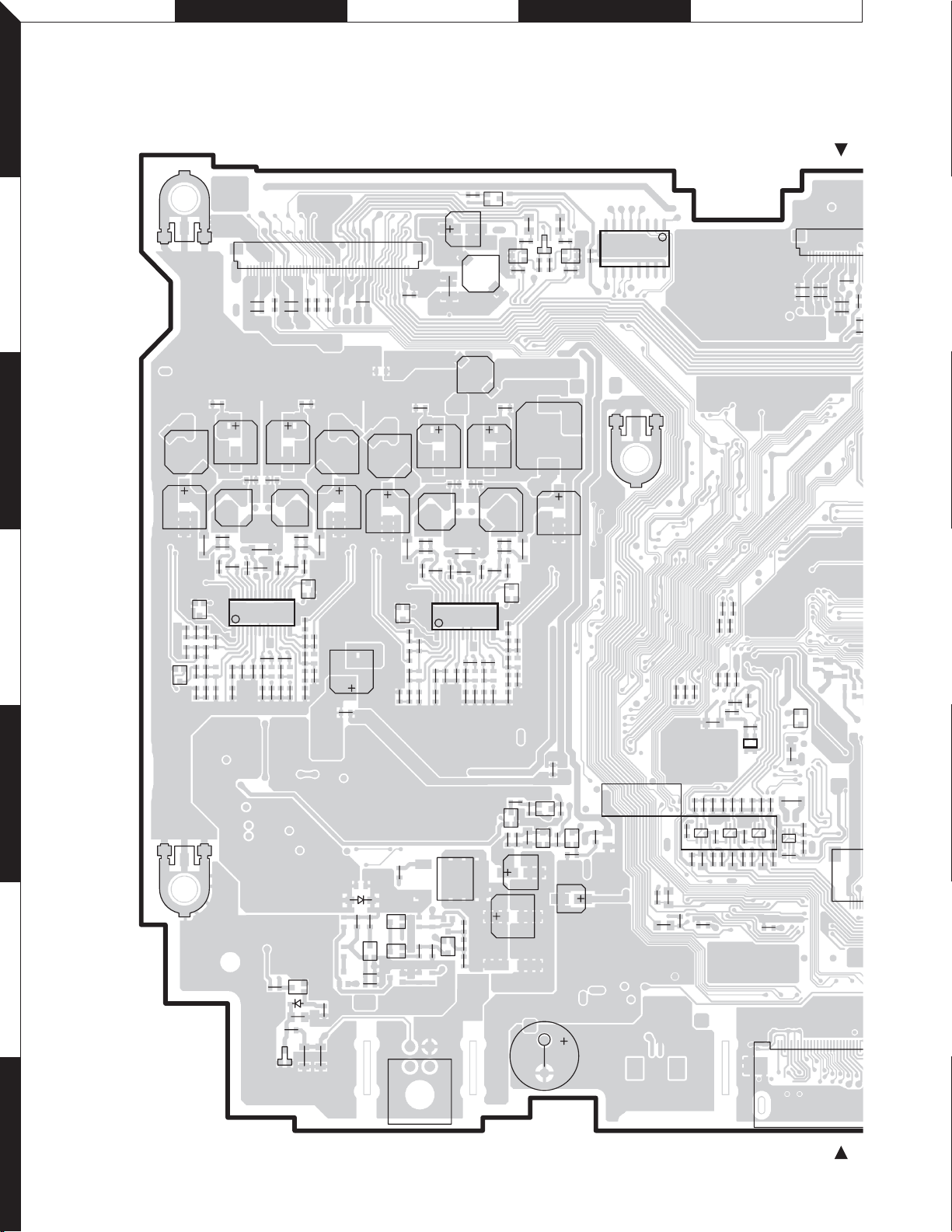

PC BOARD (COMPONENT SIDE VIEW)
VIDEO CONTROL UNIT X14-983x-xx (J76-0389-32)
J1
Q26
Q14
D4
Q306
Q307
Q308
Q23
CN502
Q17
J502
Q309
D2
Q1
Q13
Q15
Q16
Q25
Q201
Q101
Q103
Q106
Q108
Q111
P102
P101
P105
D3
Q503
Q501
Q24
Q502
D501
IC202
IC101 IC102
IC450
28
31
42
EBC
1
1
1
C
1
C1
1
R22
R25
C202
C203
L201
C450
R257
C356
C358
R347
R349
R351
R353
R354
R355
R1
R2
R3
C433 C434
C502
L101
C14
R248
C505
C506
C510
C508
C20
C6
C503
R
5
R5
R40
R43
C507
L2
C19
L103 L105L107
R120 R158
R170
R171
C153
R154
R162
C112
R116
R124
C171
C130
C140
C183
R104
R133
C120
C143
C181
R143
C161
C511
C359
C504
R388
C193
C192
C194
C4
C5
R65
R4
R24
R27
C204
C205
C200
C199
C191
R262
R389
C23
C215
C104
C105
C107
C108
C110
C114
C145
C146
C148
C149
C151
C155
R102R103
R106 R108
R112
R115
R118
R145
R146
R150
R153
R156
C353
C354
C355
R348 R350
R352
R357
R359
R361
C102
C106
C109
C111
C116
C121
C126
C127
C138
C139
C147
C150
C152
C157
C162
C167
C168
C177
C178
C184
C350
C351
C352
C197 C198
L102
L104
L106
L108
R26
R28 R29
R41
R44
R77
R105
R107
R111 R114
R117
R121
R122
R123
R125
R130
R131
R132 R135
C214
C216
R144
R149 R152
R155
R159
R160
R161
R163
R168
R169
R172
R204
R205
R206
R207
R243 R244
R245 R246
R356
R358
R360
C217
R18
R522
R525 R526
R527
C530
C531
C532
C533
C534
L500
R
5
R89
L3
R39
R60
C34
R460
R539
R461
R540
C552
C551
C443
C444
R531
R532
R533
R530R529
L501
C539
50
60
68
2
6
8
916
15
14
28 15
114
43
2
EB
ECB
CEB
EBC
CBE
ECB
EBC
BE
BE
BE
BE
BE
BEBE
BE
BE
BEBE
BE
BE
BE
BE BE
E
B
BE
BE

15
KVT-819DVD/829DVD
/829DVDY/839DVD
JIHGF
1
2
3
4
5
6
7
CN501
CN301
0
2J501
CN401
D310
D311
D312
D313
D314
D315 D316
D317
D318
D319
D320
D321
D322
D323
D324
P104
P103
IC406
IC301
1
1
1
1
1
F301
R542
R454
C303
C304
C305
C306
R301
R305
R308
6
C429
C337
C502
5
05
C503
R518
C501
R276
C504
R326
C313
C316 C317
C319
C322 C325
R307
R311
R313
R324
C301
C307 C308
C309 C310
C311 C312
C314
C331
C430
C431
C432
R302
R303
R304
R306
R309
R310
R316 R319
R325
R327
R328 R329
R370
R371
R372
R375 R376
R377
R378
R379 R380
R381
R382
R383
R384
R385 R386
R387
R455
R501
R504
R506
R507
R508
R509
R510
R511
R512 R513
R514 R515
X301 X302
C530
5
31
C529
R519
C513
C514
C348
68
26
SPD DIF
12 25
36
3748
13 24
5
3
46
Refer to the schematic diagram for the values
of resistors and capacitors.
X14-983x-xx
Ref. No. Address
IC101
IC102
IC202
IC301
IC406
IC450
Q1
Q13
Q14
Q15
Q16
Q17
Q23
Q24
Q25
Q26
Q101
Q103
Q106
Q108
Q111
Q201
Q306
Q307
Q308
Q309
Q501
Q502
Q503
4B
4C
5E
3G
4G
2D
6B
6C
5C
6C
6C
6C
5D
5D
5C
5D
4A
4B
4B
4C
4D
5E
5D
5D
5D
5E
2C
2D
2C

16
KVT-819DVD/829DVD
/829DVDY/839DVD
KLMNO
1
2
3
4
5
6
7
VIDEO CONTROL UNIT X14-983x-xx (J76-0389-32)
Q212
Q203
Q304
Q205
Q207
Q35
Q38
Q
3
Q210
Q31
Q211
CN503
D503
D404
Q504
Q32
Q36
Q204
Q206
Q208
Q209
D510
D511
D512
D513
D514
D515
D516
D518
D502
D504
D505
D506
D507
D402
D401
D405
D523
D524
D525
D526 D527
Q305
Q401
D301
D403
Q301
D508
Q508
D528 D529
D530
D531
D532
D533
D534
D535
D536
D406
D400
D517
IC201
IC501IC502
IC302
IC405
IC403
IC404
IC407
IC408
IC10
IC205
IC402
IC401
IC503
IC2
IC203
IC204
IC303
IC304
IC400
1
C201
C208
C209
R230
R237
R254
R255
R256
R258
C515
C516
R450
C339
C344
L301
R318
R335
R337
L305
L303
R444
R421
R431
C409
C416
C423
L403
C327
C328
C329
C330
L302
C333
C334
C335
C336
R344
C16
C435 L404
R265
R266
C12
C13
CP403
L401
R58
R61
C549
R42
R214
C212
R581
C11
C408
L402
CP401
CP402
R420 C548
C29
R211
R212
R213
C404
R415
C521
R590
R591
C210
C211
C340 C342
R209
R210
R228
R229
R241
R331
R535
C405
C406
C407
R
R56
R57
R59
R62
R412
R552
R554
R556
R558
C206
C207
C452
R201
R231
R232
R233
R247
R538
R249
R250
R259
R260
R261
R537
X201
R215
C523
C364
C519
C362
C361
R592
C363
C321
C324
C338
C428
R312
R317
R334
R336
R338
R346
R413
R426
R428
R430
R437
R440
R443
R453
R568
R569
R570
R571
C315
C323
C341
C343
C401
C402
C403
C410
C411
C412
C413
C414
C415
C417 C418
C419
C420
C421
C422
C424
C425
C426
C427
C440
C442
C445
C447
R593
R50
R55
R74
R1
6
R202
R203
R208
R216
R217 R218
R219
R220
R221
R222
R223
R224
R225
R226R227
R234
R235
R236
R238
R239
R240
R242
R251
R252
R253
R320
R321
R322
R330
R332
R339
R342
R345
R373
R374
R401
R402
R403
R404
C400
R410 R411
R414
R422
R423
R424
R425
R427
R429
R432
R433
R434
R435
R436
R438
R439
R441
R442
R445
R446
R447
R448
R449
R451
R452
R456 R457
R458 R459
R505
C448
C22
R263
R264
R534
C512
R551
R553
R555
R557
R559
R560
R561
R562
R563
R564
R565
R566
R567
R582
R583
R584
R585 R586
R587
R588
R589
R594
X202
R536
C540
C542
C544
C546
C528
C518
C541
C543
C545
C547
C535
R573
R574
R575
R572
R595
R596
R597
R598
R405
R394
R400
C213
C27
C28
R577
R576
C465
R463
R464
C464
C463
C260
C451
C553
C554
R502
R503
1
8
16
1
8
7
1
14
1
11
1
1
22
3
7
14 8
18
16 9
18
16 9
9
8
5
1
4
1
4
8
5
1
1
45
31
54
54
13
45
31
4
58
3
45
5
10 6
45
31
14 8
17
8
16
9
16
9
1
8
45
8
100
25
76 50
26
5175
EB
BE
BE
BE
BE
BE
BEC
BCE
BE
BE
EB
BE
EB
BE
BE
BE
BE
EB
BE
BE
EB
BE
E
PC BOARD (FOIL SIDE VIEW)

17
KVT-819DVD/829DVD
/829DVDY/839DVD
TSRQP
1
2
3
4
5
6
7
D1
Q2
Q4
Q20Q21
Q22
Q43
Q46
Q38
Q33
Q37
Q31
Q34
Q3
Q5
Q7
Q9
D101 D102
D103 D104
Q105 Q104
Q45
Q32
Q36
Q6
Q8
Q10
Q19
Q44
Q109Q110
0
IC1
R136
R127
R165
R166
C2
R6
R11
30
R34
C16
C17
R69
R58
2
14
R129
C189
C10
C11
R53
C7
R167
C122
C132
C163
C173
R138
1
2
C117
C118
C158
C159 C172
C187
C188
R175
C131
C185
C186
R137
R188
C141
C190
C119
C182
R176
C160
C195
R228
R
229
C196
R51 R52
R54
R56
R57
R59
R62
C3
C8
R8
R9
R10
R13
R16
R17
R19
R36
R38
R67
R68
R70
C101
C115
C123
C124
C128
C129
C133
C134
C136
C137
C142
C156
C164
C165
C169
C170
C174
C175
C179 C180
R7
R12
R14
R15
R35
R37
R50
R66
R73
R74
R76
R126 R134
R164 R173
C22
C517
C24
R500
C94 C92
C520
C96
C98
C95 C93
C97
C99
I
5
8
O
G
BE
BE
B
E
BE BE
BE
B
E
BE
BE
BEBE
BE
BE
BE
BEBE
DDDD
SSSG
BE
BE
BE
G
D
S
D
GS
DD
G
D
S
D
GS
DD
G
D
S
D
GS
DD
G
D
S
D
GS
DD
B
E
BE BE
BE
Refer to the schematic diagram for the values
of resistors and capacitors.
X14-983x-xx
Ref. No. Address Ref. No. Address
IC1
IC2
IC10
IC201
IC203
IC204
IC205
IC302
IC303
IC304
IC400
IC401
IC402
IC403
IC404
IC405
IC407
IC408
IC501
IC502
IC503
Q2
Q3
Q4
Q5
Q6
Q7
Q8
Q9
Q10
Q19
Q20
Q21
6P
5M
6O
4N
3N
3N
4O
4L
4L
4L
5L
5L
4M
4M
3M
3M
6O
6N
6M
6L
2O
5Q
5Q
5Q
5Q
5Q
5Q
5Q
5Q
5Q
5R
5R
5R
Q22
Q31
Q32
Q33
Q34
Q35
Q36
Q37
Q38
Q43
Q44
Q45
Q46
Q104
Q105
Q109
Q110
Q203
Q204
Q205
Q206
Q207
Q208
Q209
Q210
Q211
Q212
Q301
Q304
Q305
Q401
Q504
Q508
5Q
2O
2P
2P
2P
5O
5O
5P
5P
5P
5P
5P
5P
3R
3Q
3P
3P
5N
3O
4O
3N
4N
3O
3O
3O
3O
3O
3L
3L
3M
3L
6M
2O

18
KVT-819DVD/829DVD
/829DVDY/839DVD
UVWXY
1
2
3
4
5
6
7
J100
J101
P301 P302
P303 P304
CN327
CN101
D104
D105
D109
D102 D103
D300
D106
D107
D108
IC305
IC105
IC100
IC303
IC309
IC106
IC302
IC300
IC101
IC301
IC200
IC207
IC322
DIGITAL I/O UNIT X88-2020-14 (J76-0394-42)
1
4
1
1
1
5
1
1
15
48
1
11
3
1
37
40
1
1
4
1
13
10
5
R502
R503
R505
R496
R498
R500
C113
C138
C139
C200
C202
C300
C106
CP204
R157
R158
L302
CP205
C342
CP206
R293
C112
R294
R295
R6
R8
R177
CP128
CP129 CP130
CP131 CP147
CP148
CP149
CP150
CP151
CP152
CP153
CP154
R178
CP207
C100
R179
C101
L203
L204
L205
L212
L306
L307
L310
R105
R107
R108 R109
R1
R116
R118
R124
R126
R220
R221
R267
R268
R269
R270
R271
L300
L301
L304
C143
R159
C330
L305
C352
C354
C355
C356
C357
C360 C361
C375
C376
R465
L101
C126
C133
L102
C130
C134
C118
R112
C311
C322
C336
R37
R36
C227
R212
C228
R213
C362 C363
C303
C304
C305
C306
C308
C313
C319 C320
C325
R318
R443
R444
R445
C331
C332
R320
C201
C314
C316
R301
R300
R35
R33
C153
C317
R34
C302
CP104
C142
C230 C231
R13
C264
C301
C307
C107 C389
C392
C394
C395
R180
C140
R181
R182
R292
R115
U1 A1
U17 A17
R121
R123
R162
R129
R137
R219
R248
R249
R250
R258 R259 R260
R265 R266
R304
R305
R308 R310
R321
R322
R185
R186
C315
R440
C309
C310
C312
C318
C328
C329
R467
C367
C368
R344
R345
R458
C337
C338
C340
C341
C349
C351
R187
CP105
R188
R189
R190
R191R192
R160
R161
R163
R166
CP155
CP156
CP157
CP158
CP159
R165
R164
R167
R170
R172
R171
R175
R203
R329 R328
R202
R200
L303
R104
R134
R139
R150
R153
R174
R173
R176
R255
R3
R9
R273
R10
R315 R317
R324
R325
R326
R327
R459
R332
R333
R343
R5
R373
R14
R463 R464
R473
R478
R485 R486
R487
R494
X100
X202
C148
R284
R285 R286
R287
C154
R462
C478
L200
R523
R291
R15
R16
R142
R141
R529
C275 R297
C800
C801
C802
C803
C804
C805
C807
C808
C809
C810
C811
C812 C813
C814
R601 R600
R602
R603
C601
C602
R703
R705
81
31
20
10 21
30
6
36 25
12
24
48
37
4
6
3
1
5
48
24
13
12
2536
20
1110
81
4
60
12
36 25
37
48
24
13
3
5
4
80 61
21 40
20 41
60
TP302
TP200
TP300

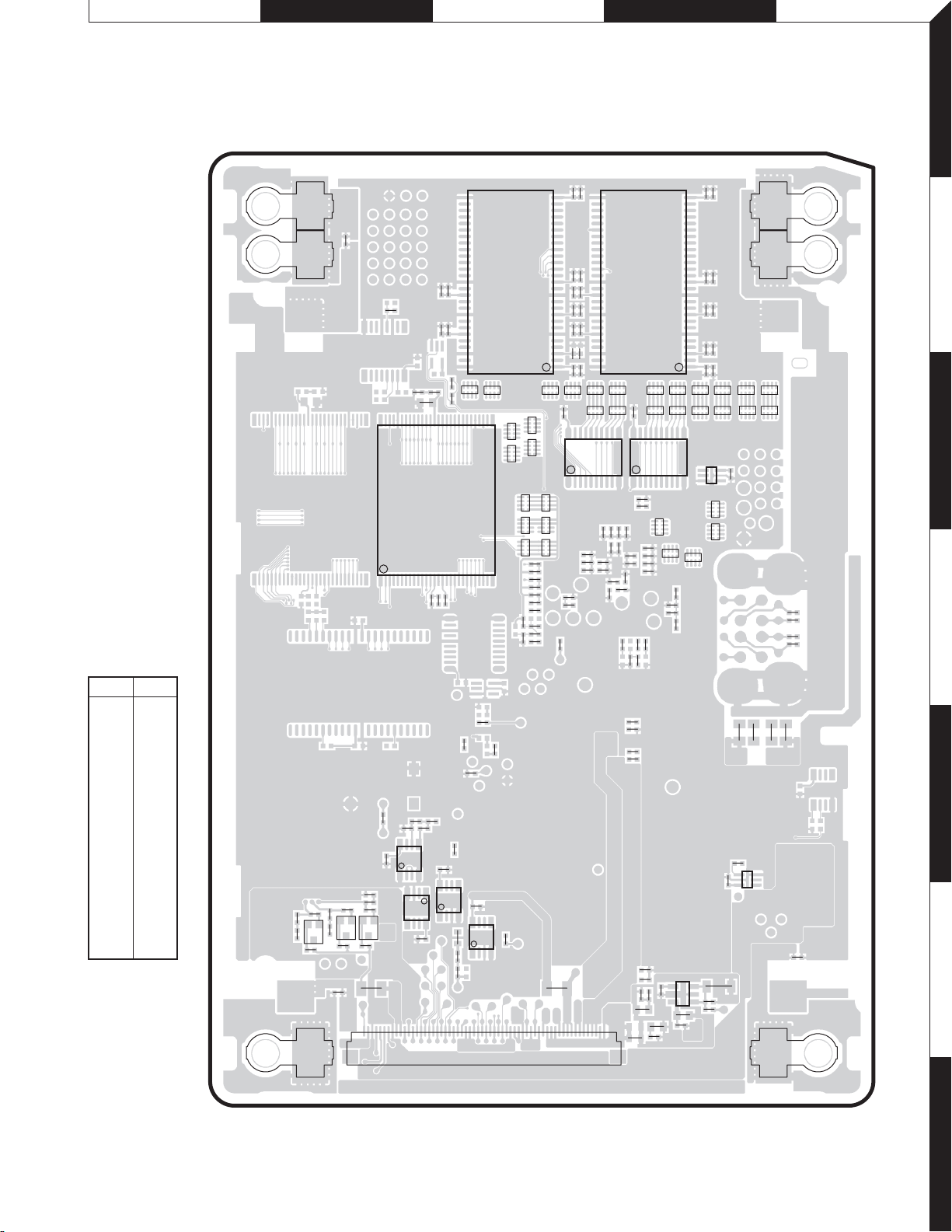

PC BOARD (COMPONENT SIDE VIEW)
Refer to the schematic diagram for the values of resistors and capacitors.
X88-2020-14
Ref. No Address
IC100
IC101
IC105
IC106
IC200
IC207
IC301
IC302
IC305
IC309
IC322
5V
5V
5V
4V
2V
2V
6V
5V
6V
5X
5W

19
KVT-819DVD/829DVD
/829DVDY/839DVD
ADACABAAZ
1
2
3
4
5
6
7
R29
R482
R2
C125
L104
L103
C456
R481
R472
R31
C102
R7
CP132
CP133
CP134
L308
R148
L309
C114
C105 C108 C109
C110
C117
C115
C116
C120
C119
C122
C124
C128
C129
R30
C103
C104
C127
C121
C123
C135
R32
C217 C218 C219 C220 C221
C233
C234
C222 C223 C224 C225 C226
C235C236
R527
C471
C327
C460
C464
C468
C244
C247
R12
CP106
CP107
CP108
CP109
C400
C401
R17
R18
R506
R507
R447
R524
C144
R183
R140
R145
R146
R149
R509
R184
R376
R438
R461
C326
C358
C470
R199
CP117
CP118
CP119
CP120
CP121
CP122
CP123
CP124
CP125
CP126
CP127
CP135
CP136
CP137
CP138
CP139
CP140CP141
CP142
CP143
CP144
CP145
CP146
R169
R168
R130
R131
R132
C482
R147
R701
R223
R227
R193
R276
R316
R197
R198
R195
R196
R194
R367
R368
R369
R370
R371
R372
R446
R4
R452
R455
R469
R474
R493
CP160
L106 L105
R296
C324
C323
R348
R352
R357
R24
R522
R347
R351
R356
C203
C204
CP200
CP201
CP202
CP203
C149
C472
C473
R525
R201 C712 C713
C702 C703 C704 C700
C707 C708
C706
C709
C705
C710
C701
C711
C715
C600
14
85
14
58
14
58
14
58
3
15
4
3
1
5
4
1
34
5
1
20 11
10
20 11
110
128
2956
154
28 27
54
28 27
1
601
BE
BE BE
P306 P305
P307P308
P310 P309
CN328
Q302
Q303
Q304
IC201IC205
IC202IC203
IC104
IC316
IC108
IC332
IC336
IC337
IC211
IC335
DIGITAL I/O UNIT X88-2020-14 (J76-0394-42)
PC BOARD (FOIL SIDE VIEW)
Refer to the schematic diagram for the values of resistors and capacitors.
X88-2020-14
Ref. No Address
IC104
IC108
IC201
IC202
IC203
IC205
IC211
IC316
IC332
IC336
IC337
Q302
Q303
Q304
6AC
3AC
3AC
2AC
2AB
3AB
3AB
6AB
6AC
6AA
6AB
6AA
6AA
6AA

20
KVT-819DVD/829DVD
/829DVDY/839DVD
AE AF AG AH AI
1
2
3
4
5
6
7
D101
D103
D307
D301
D305
D314
D303
CN104
D309
Q303
Q301
D104
D102
D7
Q5
CN502
CN503
Q502
Q503
D4
D5
D6
D8
Q4
D10
CN501
IC101
IC301
IC304
IC303
IC1
VIDEO UNIT X35-4710-10 A/2 (J76-0385-22)
X35 B/2
1
1
1
1
1
4
1
1
C
E
C102
C307
C330
C347
R324
R325
C101
C319
C321
C304
C335
C315
C316
C318
C328
C327
C301
C104
C107
C108
C118
C103
C106
C110
C308
L102
C338
C334
C303
C305
C306
L101
L103
R358
R361
R362
R366
R367
R368 R369 R370
R376
L104
L105
L106
L303
L302
R105
R380
C115
R201
R609
R610
R611
R612
C116
C302
C311
C313
C317
C324
C325
C337
R313
R320
R334
R333
R336
R371
R385
R397
R357
R304
R396
R319
R391
R393
R218
R316
R392
R394
R339
R329
R330
R348
R321
R219
C109
C112
C113
C320
C331
C332
C339
R102
R104
R331
R332
R355
R377
C322
C100
C326
C323
C329
C114
L306
L307
R101
R103
R359
R360
R338
R399
R341 R352
R343
R342
R344 R337
R389
R340 R350
R351
R398
R349
R354
R373
R378
R346
R347
R328
R326 R327
R345
CP303
CP302
CP301
R374
C340
C346
R365
C348
R119
R381
C349
C350
C1
C2
C24
F1
R10
C9
C11
C423 C504
C501
C12
C14
C17
C502
L401 L501
C6
C8
C13
C22
C25
R6
R12
R14
R18
R22
R501
C18
C28
C3
C16
R21
R24
R9
R23
R15
5
10 6
89
16 64 49
32
17
16 33
48
19
10
11
20
1
50
30
B
B
C
ECEB
ECB
3
1
4
5
BE
BE
BE
BE
VR203
+12.5V
-12.0V
+18.5V
VGND
BLK
VR
HSY
+3.3V
VCOM
COMP
VB
VG
NCLP
VSY
PC BOARD (COMPONENT SIDE VIEW)
Refer to the schematic diagram for the values of resistors and capacitors.
X35-4710-10
Ref. No Address
IC1
IC101
IC301
IC303
IC304
Q4
Q5
Q301
Q303
Q502
Q503
4AH
4AF
3AF
2AG
3AG
4AH
4AH
3AH
3AG
6AH
5AH
