Kenwood KIFF7017 Service manual

Built-In Fridge Freezer
KIFF7017
installation / instructions manual
KIFF7017_IB_170726_grace.indd 1 26/7/17 5:57 pm

Contents
safety warnings .................................................................................................................. 3
unpacking............................................................................................................................ 5
installation........................................................................................................................... 6
location ............................................................................................................................ 6
free space requirements.................................................................................................. 6
reversing the door swing ................................................................................................. 7
cleaning before use ......................................................................................................... 8
before using your unit...................................................................................................... 8
product overview................................................................................................................ 9
main unit.......................................................................................................................... 9
operation ........................................................................................................................... 10
switching on your unit.................................................................................................... 10
control panel.................................................................................................................. 10
adjusting the temperature.............................................................................................. 10
noises inside the unit!.................................................................................................... 10
tips for keeping food in the unit ......................................................................................11
preparations for freezing ................................................................................................11
defrosting frozen food.................................................................................................... 12
cleaning............................................................................................................................. 12
cleaning the interior and the exterior of the unit ............................................................ 12
maintenance...................................................................................................................... 13
changing the internal LED light ..................................................................................... 13
care when handling / moving your unit.......................................................................... 13
servicing ........................................................................................................................ 13
switching off for long periods of time ............................................................................. 13
condensation ................................................................................................................. 13
disposal............................................................................................................................. 13
specications.................................................................................................................... 14
product che..................................................................................................................... 14
KIFF7017_IB_170726_grace.indd 2 26/7/17 5:57 pm

3
safety warnings
For your continued safety and to reduce the risk of injury or electric
shock, please follow all the safety precautions listed below.
• Read all instructions carefully before using the unit and keep them
for future reference.
• Retain the manual. If you pass the unit onto a third party, make
sure to include this manual.
• This appliance is intended for indoor household use and similar
applications such as:
– farm houses and by clients in hotels, motels and other residential
type environment;
– bed and breakfast type environment;
– staff kitchen areas in shops, offices and other working
environment;
– catering and similar non-retail applications.
• Ensure that the plug is easily accessible to enable disconnection
from the mains supply.
• If the mains cable is damaged, it must be replaced by the
manufacturer, its service agent or a qualified technician in order to
avoid a hazard.
• Choose a location for your unit away from heat sources such as
radiators or fires as refrigerant and vesicant are burnable.
• The unit must be manoeuvred by a minimum of 2 persons.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
• Children should be supervised to ensure that they do not play with
the unit.
• If your unit is fitted with a lock to prevent children being trapped
inside, keep the key out of reach and not in the vicinity of the unit.
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
KIFF7017_IB_170726_grace.indd 3 26/7/17 5:57 pm

4
WARNING
IT IS HAZARDOUS FOR ANYONE OTHER THAN
AUTHORISED SERVICE PERSONNEL TO CARRY OUT
SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL
OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT
ATTEMPT REPAIRS YOURSELF.
WARNING
•Keep ventilation openings in the unit enclosure or in the built-
in structure clear of obstructions.
•Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
•Do not use electrical appliances inside the food storage
compartments of the unit, unless they are of the type
recommended by the manufacturer.
•Do not damage the refrigerant circuit (The refrigerant is a
very environmental-friendly gas but is also combustible. Take
care when transporting or moving the unit to ensure that the
refrigeration circuit is not damaged. In the event of damage
avoid naked flames or ignition sources and ventilate the room
in which the unit is placed for a few minutes.)
•When positioning the appliance, ensure the supply cord is not
trapped or damaged.
•Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
• Do not store bottles or glass containers in the freezer
compartment. Contents can expand when frozen (fizzy
drinks) which may break the bottle and damage your freezer
compartment. (If applicable)
KIFF7017_IB_170726_grace.indd 4 26/7/17 5:57 pm

5
unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
Thank you for purchasing your new Kenwood Fridge Freezer.
These operating instructions will help you use it properly and safely.
We recommend that you spend some time reading this installation/instruction
manual in order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this installation/
instruction manual for future reference.
If items are missing or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
The Main Unit
Salad Bin Cover Shelf
Wine Rack
Fridge Glass Shelf x 3
Salad Bin
Small Freezer Drawer x 2 Large Freezer Drawer
Upper Fridge Door Shelf
Egg Tray x 2 Instruction Manual
Ice Tray
Middle Fridge Door Shelf Lower Fridge Door Shelf
Fridge Door Shelf Flap
Instruction
Manual
Freezer Glass Shelf
KIFF7017_IB_170726_grace.indd 5 26/7/17 5:57 pm

6
installation
installation
location
When selecting a position for your unit you should make sure the floor is flat and firm, and the
room is well ventilated with an average room temperature of between 16°C and 38°C. Avoid
locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight
as it may increase the electrical consumption. Extreme cold ambient temperatures may also
cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor
installation. Do not drape the unit with any covering.

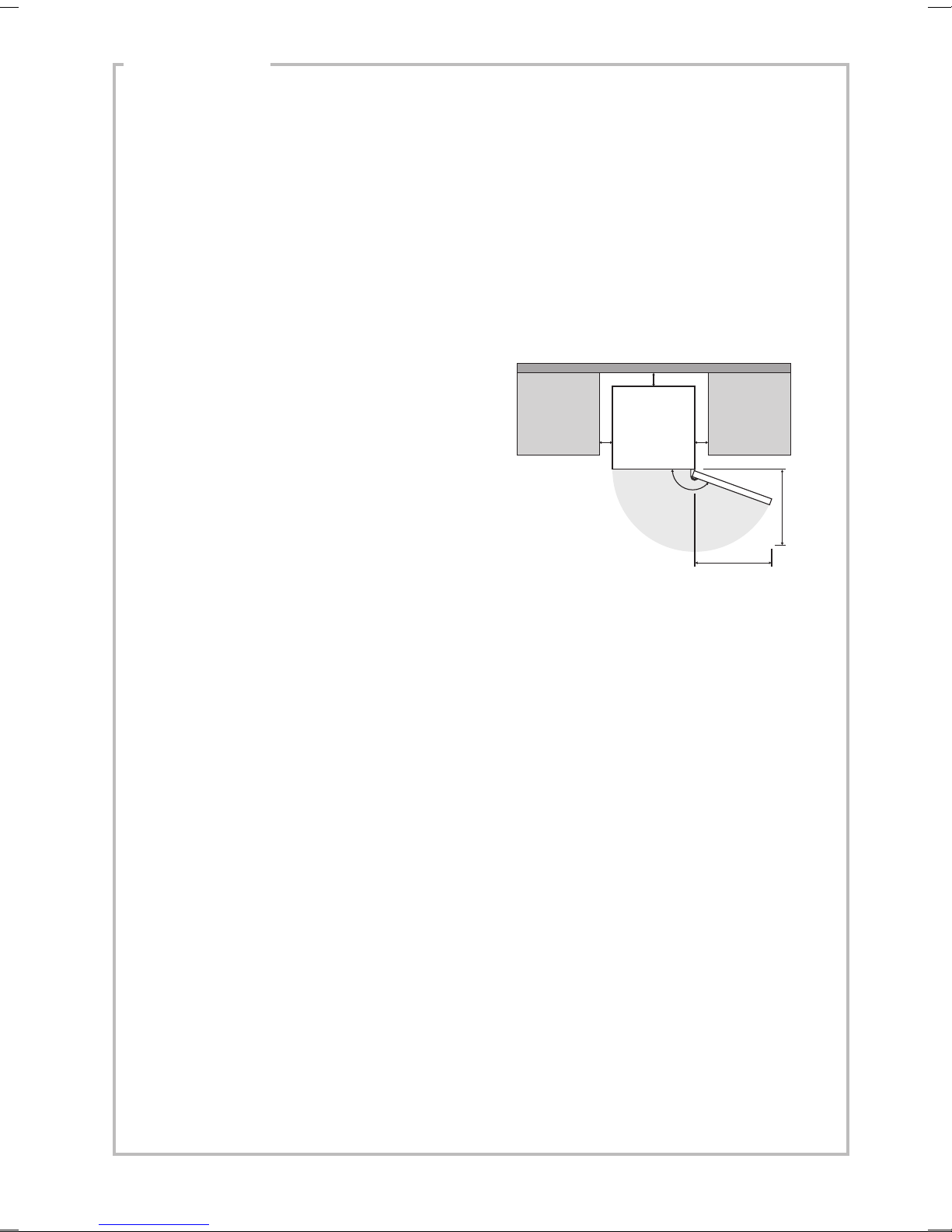

free space requirements
When installing the unit, ensure that 25 mm of
free space is left at both sides, 50 mm at the
rear of the unit and 25 mm at the top of the unit.
The door can be opened to the right or the left,
depending on which best suits the location.
Please ensure there is more than twice the width
and depth distance space of the unit to fully open
the door to a maximum angle.
Y mm
X mm
KIFF7017_IB_170726_grace.indd 6 26/7/17 5:57 pm

7
installation
• Ensure the unit is unplugged and empty.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit
on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
• If you want to have the door swing reversed, we recommend that you contact a
qualified technician. You should only try to reverse the door yourself if you believe that
you are qualified to do so.
• Ensure the freezer door is aligned
horizontally and vertically, so that the
seals are closed on all sides before
finally tightening the hinge.
reversing the door swing
tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner
1. The side at which the door opens can be
changed from the right side (as supplied)
to the left side, if the installation site
requires. Tilt the appliance slightly towards
the rear and prop it securely. Unscrew the
door hinge screws and remove the hinge
pin bracket. Open the door a little way and
lift it out upwards.
2. Unscrew the middle hinges and remove,
then remove freezer door. Unscrew the
lower hinge.
3. Screw the lower hinge to the opposite side,
then replace the freezer door and hold in
position.
4. After placing the freezer door, screw the
middle hinge back onto the opposite side
of the unit.
KIFF7017_IB_170726_grace.indd 7 26/7/17 5:57 pm

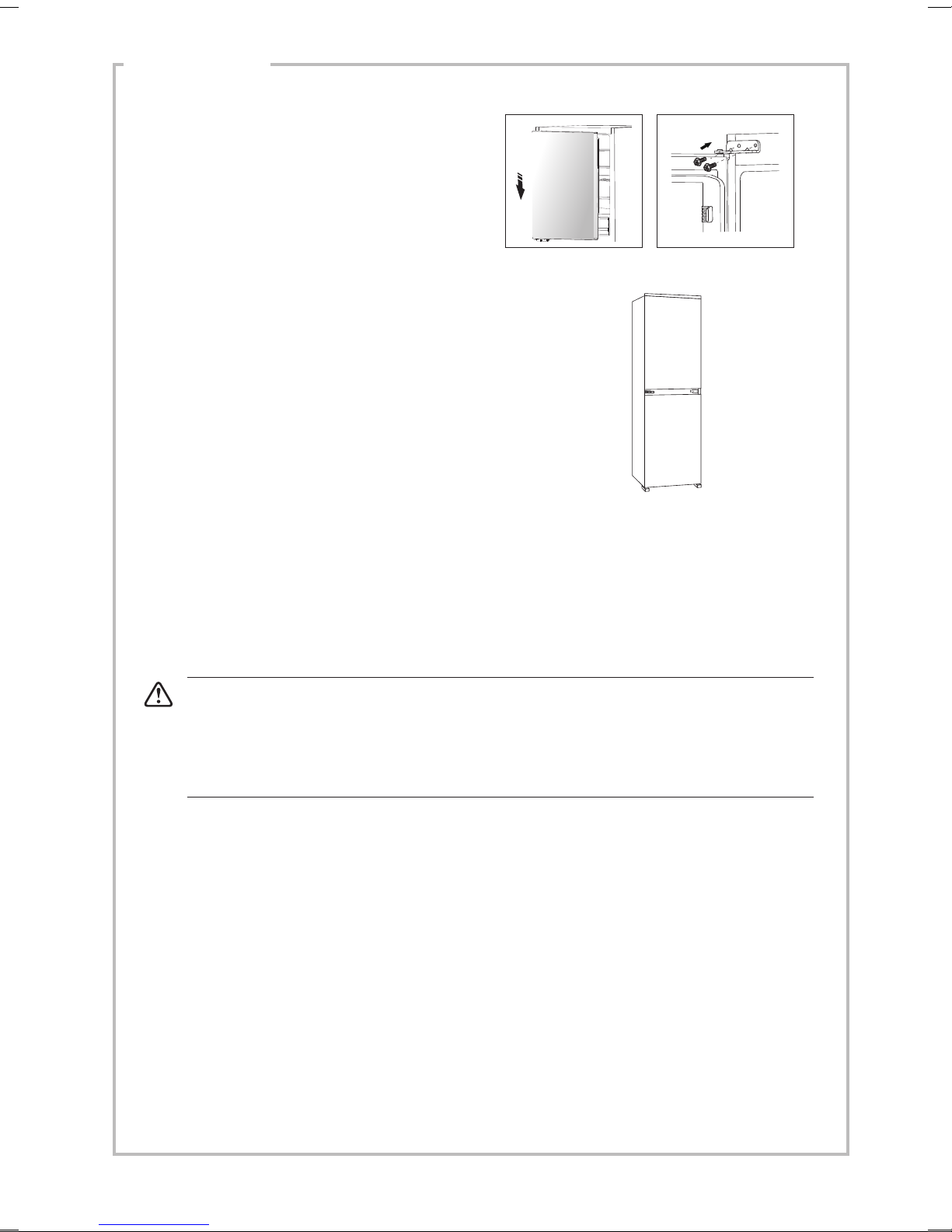

8
installation
5. Slot upper door into middle hinge pin and
hold in position. Screw the upper hinge
onto the opposite side of the unit.
6. With the door closed, check that the door
is aligned horizontally and vertically and
that the seals are closed on all sides
before finally tightening the hinge.
cleaning before use
Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water
using a sponge or cloth. Wipe completely dry before replacing the drawers. Clean the exterior of
the unit with a damp cloth.
If you require more information refer to the Cleaning section.
before using your unit
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working
properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.
• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to
settle.
KIFF7017_IB_170726_grace.indd 8 26/7/17 5:57 pm

9
product overview
main unit
Egg Tray x 2 Ice Tray
Freezer Drawers
Control Panel
Fridge Glass
Shelves
Salad Bin
Wine Rack
Salad Bin
Cover Shelf
Fridge Door
Shelves
Fridge Door
Shelf Flap
Freezer Glass
Shelf
KIFF7017_IB_170726_grace.indd 9 26/7/17 5:57 pm

10
adjusting the temperature
Press the Temp button to adjust the internal temperature of the unit. The corresponding indicator will
light up to display the current setting.
noises inside the unit!
You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but
you should be aware of them!
These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has
become more pronounced since the introduction of CFC free gases. This is not a fault and will
not affect the performance of your unit. This is the compressor motor working, as it pumps the
refrigerant around the system.
operation
switching on your unit
1. Connect the mains cable to the mains socket. The lights on the control panel will light up for 3
seconds and there will be a long beep.The default temperature for the unit is 5°C.
2. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it
with food.
3. If you are concerned that your unit is not being kept
cold enough and wish to check the temperature,
you will need a special fridge/freezer thermometer.
These are available from most supermarkets
and hardware shops. Place the thermometer in
either the fridge or freezer compartment and leave
overnight. The correct temperature for the fridge compartment should be at the recommended
5°C or lower. The correct temperature for the freezer compartment should be -18°C or lower.
control panel
1. Press the Temp button to adjust
the temperature of the unit. The
corresponding indicator will light up
to display current setting.
2. Press Super Cool button to
activate Super Cool mode. The
unit’s temperature will decrease
more rapidly than normal. The
Super Cool and 2°C indicators will
light up.
Super Cool mode will automatically
switch off after 3 hours.
3. If abnormal conditions are
detected, the alarm indicator will
flash and a buzzer will sound.
Press the Alarm button to
deactivate.
Alarm will sound if the door is
left open for over 2 minutes.
Closing the door will deactivate
the alarm.
4. The unit can be switched on or
off by pressing this button.
KIFF7017_IB_170726_grace.indd 10 26/7/17 5:57 pm

11
tips for keeping food in the unit
• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid
bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices
and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the compartments. Ensure all parts
of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and
vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the
internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the doors.
We recommend that you only open the doors when you need to put food in or take food out.
preparations for freezing
• Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes
faster, takes less time to defrost and enables you to control the quantity you need better.
• Leave cooked food to cool completely. Chill food before freezing if possible.
• Consider how you will want to cook the food before freezing it.
• Don’t freeze food in metal containers if you may want to microwave it straight from the freezer.
• Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil
(heavy duty grade only). If in doubt, double wrap your food. Don’t use aluminium foil for acidic
foods, e.g. citrus fruits. Don’t use thin cling film, glass, or used food containers without cleaning.
• Exclude as much air from the container as possible. You could buy a special vacuum pump
which sucks excessive air out of the packaging.
• Leave a small amount of air space when freezing liquids to allow expansion.
• You can use the space in the freezer most efficiently if you freeze liquids
(or solids with liquids, e.g. stew) in square blocks. This is known as
“Preforming”. Pour the liquid into a polythene bag which is inside a square
sided container. Freeze it, and then remove it from the container and seal
the bag.
• Label your frozen foods as they will look the same when in frozen state.
Use special freezer tapes, labels and pens with different colours. This
allows you to easily organise and to effectively use the freezer. Write the
contents and date; otherwise the frozen food might exceed the storage time
and this could cause food poisoning. Please refer to your food packaging
for the recommended storage time.
• You may also add the weight and cooking notes, e.g. “defrost first”, “cook from frozen” and keep
a separate log of what is in each drawer. This will save opening the door and searching around
unnecessarily.
KIFF7017_IB_170726_grace.indd 11 26/7/17 5:57 pm

12
defrosting frozen food
1. Take the frozen food out from the freezer compartment and uncover the frozen food. Let it
defrost at room temperature. Don’t forget that defrosting in a warm area encourages the growth
of bacteria and low temperature cooking may not destroy dangerous bacteria.
2. Drain off and throw away any liquid lost during defrosting.
3. Always make sure there are no ice-crystals in the food before cooking, particularly with meat.
These crystals indicate that the food has not fully defrosted.
4. Cook food as soon as possible after defrosting.
5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if
you intend to cook the food immediately afterwards.
Never re-freeze anything that has been defrosted unless you cook it again, to kill off harmful
bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items.
This prevents drying or freezer-burn and a build up of frost on any remaining food.
cleaning
cleaning the interior and the exterior of the unit
• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm
water using a sponge or cloth. Wipe completely dry before replacing the shelves, drawers and
salad bin.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make
sure that the doors are closed to avoid the polish getting on the magnetic door seals or inside
the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be
vacuumed using a soft brush attachment.
KIFF7017_IB_170726_grace.indd 12 26/7/17 5:57 pm

13
maintenance
changing the internal LED light
The internal light is an LED panel that cannot be changed by the user. Please contact a qualified
service agent.
care when handling / moving your unit
Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by
holding the edges of the top surface.
servicing
The unit should be serviced by an authorised engineer and only genuine spare parts should be
used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by
inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.
switching off for long periods of time
When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all
food and clean the appliance, leaving the door ajar to prevent unpleasant smells.
condensation
Condensation may appear on the outside of the unit. This may be due to a change in room
temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified
technician for assistance.
disposal
Old units still have some residual value. An environmentally friendly method of disposal will ensure
that valuable raw materials can be recovered and used again. The refrigerant used in your unit and
insulation materials require special disposal procedures. Ensure that none of the pipes on the back
of the unit are damaged prior to disposal.
Up to date information concerning options of disposing of your old unit and packaging from the new
one can be obtained from your local council office.
When disposing of an old unit break off any old locks or latches and remove the door as a
safeguard.
KIFF7017_IB_170726_grace.indd 13 26/7/17 5:57 pm

14
specifications
Rated Voltage 220-240V~, 50 Hz
Rated Current 0.7 A
Rated Power Defrost: 130 W
Dimension (H x W x D) 1772 x 540 x 540 mm
Features and specifications are subject to change without prior notice.
product fiche
Brand Kenwood
Model KIFF7017
Household Appliance Category 7
Energy Efficiency Class A+
Energy consumption 269 kWh per year, based on standard test results for 24 hours. Actual energy
consumption will depend on how the appliance is used and where it is located.
Fridge Storage Volume 183 L
Freezer Storage Volume 57 L (4-star)
Frost-free for the freezer compartment.
Temperature Rise Time 12 hours
Freezing Capacity 3 kg / 24 hours
Climate Class
N, ST
This appliance is intended to be used at an ambient
temperature between 16°C and 38°C.
Airborne Acoustical Noise 39 dB(A) re 1 pW
KIFF7017_IB_170726_grace.indd 14 26/7/17 5:57 pm

KIFF7017_IB_170726_grace.indd 15 26/7/17 5:57 pm

IB-KIFF7017-170726V1
The symbol on the product or its packaging indicates that this
product must not be disposed of with your other household
waste. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for
the recycling of waste electrical and electronic equipment. The
separate collection and recycling of your waste equipment at the
time of disposal will help conserve natural resources and ensure
that it is recycled in a manner that protects human health and the
environment.
For more information about where you can drop off your waste
for recycling, please contact your local authority, or where you
purchased your product.
Manufactured for DSG Retail Limited under Licence from Fisher & Paykel Appliances Italy SpA.
DSG Retail Limited is responsible for after sales service.
Need Help with your product?
Your product is supported by Knowhow
under a Trademark Licence from Fisher & Paykel Appliances Italy SpA.
For help or spare parts please call us on:
0344 561 1234
DSG Retail Ltd. (co. no. 504877)
1 Portal Way, London, W3 6RS, UK
KIFF7017_IB_170726_grace.indd 16 26/7/17 5:57 pm

01 02 03
04
08
12
07
1110
09
05 06
Ensure there is clearance each side of the unit to allow
slight sideways movement for servicing when required.
Remove part K from the rear and reattach to the front.
Tighten the top hinge bracket.
Slowly and carefully push the unit into the
installation compartment.
PARTS LIST
• You may need:
40mm
min.
200cm2
min.
200cm2
Loosen the screws slightly to adjust the bracket
placement until it’s in contact with the cabinet, then
tighten the screws to the cabinet.
Tighten the screws and place the Cover D onto Part B.
Cut the rubber strip to length and place at the sides
of the cabinet cover. If the strip is curved, it can
beome straight again by heating with a hair dryer.
Adjust the position of Part B, make sure Part A can
smoothly slide into Part B.
Ensure the correct measurement is used for the
installation of Part A. Tighten the screws and place
Cover C onto Part A.KIFF7017-Installation-170801V1
Tighten the screws and place the cover.
Tighten the bottom hinge and place the cover on
top.
Tighten the top hinge brackets and place the screw
cover.
(UK) (EU)
56 0 - 56 8
17 7 2- 1 78 0
550
200
cm
2
200 cm 2
40
L
1772
1 3
4
3 5
( m m )
21 0 0
K
K
4mm
m m
G
45
54mm
(L+5)mm
G
x 2
x 8
x 1
K
x 1
Use anti-cut safety gloves whilst
performing the installation.
Built-In Fridge Freezer
KIFF7017
installation instructions
(at the back of fridge)
KIFF7017_Installation_170801_grace.pdf 1 1/8/17 11:15 am
