Kenwood KMD70X19 Service manual

1
SAFETY WARNINGS
REFRIGERATOR
For your continued safety and to reduce the risk of injury or electric shock,
please follow all the safety precautions listed below.
• Read all instructions carefully before using the unit and keep them for
future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to
include this manual.
• This appliance is intended for indoor household use and similar
applications such as:
– farm houses and by clients in hotels, motels and other residential type
environment;
– bed and breakfast type environment;
– sta kitchen areas in shops, oces and other working environment;
– catering and similar non-retail applications.
• Ensure that the plug is easily accessible to enable disconnection from
the mains supply.
• If the mains cable is damaged, it must be replaced by the manufacturer,
its service agent or a qualied technician in order to avoid a hazard.
• Choose a location for your unit away from heat sources such as radiators
or res as refrigerant and vesicant are burnable.
• The unit must be manoeuvred by a minimum of 2 persons.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• Children aged from 3 to 8 years are allowed to load and unload
refrigerating appliances.
• Children should be supervised to ensure that they do not play with the
unit.
IB safety_Refrigerator_UK_Kenwood_Final200420.indd 1IB safety_Refrigerator_UK_Kenwood_Final200420.indd 1 23/4/2020 7:12 PM23/4/2020 7:12 PM

2
• If your unit is tted with a lock to prevent children being trapped inside,
keep the key out of reach and not in the vicinity of the unit.
• Do not store explosive substances such as aerosol cans with a
ammable propellant in this appliance.
• Do not store bottles or glass containers in the freezer compartment.
Contents can expand when frozen (zzy drinks) which may break the
bottle and damage your freezer compartment. (If applicable)
• To avoid contamination of food, pay attention to the following:
-opening the door for long periods can cause a significant increase of
the temperature in the compartments of the appliance;
-clean regularly surfaces that can come in contact with food and
accessible drainage systems;
-clean water tanks if they have not been used for 48 hours; flush the
water system connected to a water supply if water has not been
drawn for 5 days;
-store raw meat and fish in suitable containers in the refrigerator so
that it is not in contact with or drip onto other food;
-two-star frozen-food compartments are suitable for storing pre-
frozen food, storing or making ice-cream and making ice cubes;
-one-, two- and three-star compartments are not suitable for the
freezing of fresh food;
-if the refrigerating appliance is left empty for long periods, switch
off, defrost, clean, dry and leave the door open to prevent mould
developing within the appliance.
• Do not place heavy or wet items on top of the appliance.
WARNING
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE
PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE
THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT
REPAIRS YOURSELF.
IB safety_Refrigerator_UK_Kenwood_Final200420.indd 2IB safety_Refrigerator_UK_Kenwood_Final200420.indd 2 23/4/2020 7:12 PM23/4/2020 7:12 PM

3
The table below contains general guidelines on the storage of food in the
refrigerator (wherever applicable).
Refrigerator location Type of food
Fridge door • Foods with natural preservatives, such as
jams, juices, drinks, condiments.
• Do not store perishable foods.
Crisper bin (salad bin) • Fruits, herbs and vegetables should be
placed separately in the crisper bin.
• Do not store bananas, onions, potatoes,
garlic in the refrigerator.
• Fridge shelf – bottom
• Chiller bin
Raw meat, poultry, sh (for short-term
storage)
Fridge shelf – middle Dairy products, eggs
Fridge shelf – top Foods that do not need cooking, such as
ready-to-eat foods, deli meats, leftovers.
Freezer drawer/shelf • Foods for long-term storage.
• Bottom drawer/shelf for raw meat,
poultry, sh.
• Middle drawer/shelf for frozen vegetables,
chips.
• Top drawer/shelf for ice cream, frozen
fruit, frozen baked goods.
IB safety_Refrigerator_UK_Kenwood_Final200420.indd 3IB safety_Refrigerator_UK_Kenwood_Final200420.indd 3 23/4/2020 7:12 PM23/4/2020 7:12 PM

4
• Properly storing foods in the fridge or freezer with the correct
temperature settings can help prevent foods from spoiling easily and
thus help prevent food waste. For example, for peeled or cut veggies,
storing them in the fridge (fresh food area) for 2 to 3 days instead of
leaving then out at room temperature can retain their freshness and
keep them from going bad. Meats and seafoods can be stored in the
freezer (-18°C) for months without going bad.
The table below contains general guidelines on the storage temperature
in each compartment type (wherever applicable).
Compartment Storage temperature
(°C)
Unfrozen
compartments
Pantry 17
Fresh food 4
Wine storage 12
Cellar 12
Chill compartment Chiller bin 2
Frozen compartments 0-star & ice-making 0
1-star -6
2-star -12
3-star -18
freezer (4-star) -18
IB safety_Refrigerator_UK_Kenwood_Final200420.indd 4IB safety_Refrigerator_UK_Kenwood_Final200420.indd 4 23/4/2020 7:12 PM23/4/2020 7:12 PM

5
WARNING: Risk of re/ammable materials
WARNING
• Keep ventilation openings in the unit enclosure or in the built-in
structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
• Do not use electrical appliances inside the food storage
compartments of the unit, unless they are of the type
recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very
environmental-friendly gas but is also combustible. Take care when
transporting or moving the unit to ensure that the refrigeration
circuit is not damaged. In the event of damage avoid naked flames
or ignition sources and ventilate the room in which the unit is
placed for a few minutes.)
• When positioning the appliance, ensure the supply cord is not
trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance.
IB safety_Refrigerator_UK_Kenwood_Final200420.indd 5IB safety_Refrigerator_UK_Kenwood_Final200420.indd 5 23/4/2020 7:12 PM23/4/2020 7:12 PM

The symbol on the product or its packaging indicates that this
product must not be disposed of with your other household
waste. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for
the recycling of waste electrical and electronic equipment. The
separate collection and recycling of your waste equipment at the
time of disposal will help conserve natural resources and ensure
that it is recycled in a manner that protects human health and
the environment.
For more information about where you can drop o your waste
for recycling, please contact your local authority, or where you
purchased your product.
Need Help with your product?
Your product is supported by Knowhow
under a Trademark Licence from Fisher & Paykel Appliances Italy SpA.
For help or spare parts please call us on:
0344 561 1234
IB safety_Refrigerator_UK_Kenwood_Final200420.indd 6IB safety_Refrigerator_UK_Kenwood_Final200420.indd 6 23/4/2020 7:12 PM23/4/2020 7:12 PM

IB safety_Refrigerator_UK_Kenwood_Final200420.indd 7IB safety_Refrigerator_UK_Kenwood_Final200420.indd 7 23/4/2020 7:12 PM23/4/2020 7:12 PM

IB safety-Refrigerator-UK-Kenwood-200420V1
DSG Retail Ltd. (co. no. 504877)
1 Portal Way, London, W3 6RS, UK
EU Representative
DSG Retail Ireland Ltd (259460)
3rd Floor Oce Suite,
Omni Park SC, Santry, Dublin 9, Republic of Ireland
Manufactured for DSG Retail Limited under Licence from Fisher & Paykel Appliances Italy SpA.
DSG Retail Limited is responsible for after sales service.
IB safety_Refrigerator_UK_Kenwood_Final200420.indd 8IB safety_Refrigerator_UK_Kenwood_Final200420.indd 8 23/4/2020 7:12 PM23/4/2020 7:12 PM

70cm Multi-Door Total Frost Free
Fridge Freezer
KMD70X19
installation / instructions manual
KMD70X19_IB_RC_200623_grace.indd 1KMD70X19_IB_RC_200623_grace.indd 1 23/6/2020 5:48 PM23/6/2020 5:48 PM

Contents
unpacking............................................................................................................................ 3
installation........................................................................................................................... 4
location ............................................................................................................................ 4
levelling the unit............................................................................................................... 4
free space requirements.................................................................................................. 4
cleaning before use ......................................................................................................... 4
before using your unit...................................................................................................... 4
product overview................................................................................................................ 5
main unit.......................................................................................................................... 5
operation ............................................................................................................................. 6
temperature setting ......................................................................................................... 6
super refrigerating mode ................................................................................................. 6
super freeze mode .......................................................................................................... 6
vacation mode ................................................................................................................. 7
door alarm ....................................................................................................................... 7
child lock.......................................................................................................................... 7
noises inside the unit!...................................................................................................... 7
tips for keeping food in the unit ....................................................................................... 7
temperature control for bin .............................................................................................. 8
preparations for freezing ................................................................................................. 8
defrosting frozen food...................................................................................................... 9
cleaning the interior and the exterior of the unit............................................................. 9
maintenance...................................................................................................................... 10
changing the internal LED light ..................................................................................... 10
care when handling / moving your unit.......................................................................... 10
servicing ........................................................................................................................ 10
switching off for long periods of time ............................................................................. 10
condensation ................................................................................................................. 10
disposal............................................................................................................................. 10
specications.....................................................................................................................11
KMD70X19_IB_RC_200623_grace.indd 2KMD70X19_IB_RC_200623_grace.indd 2 23/6/2020 5:48 PM23/6/2020 5:48 PM

3
unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.

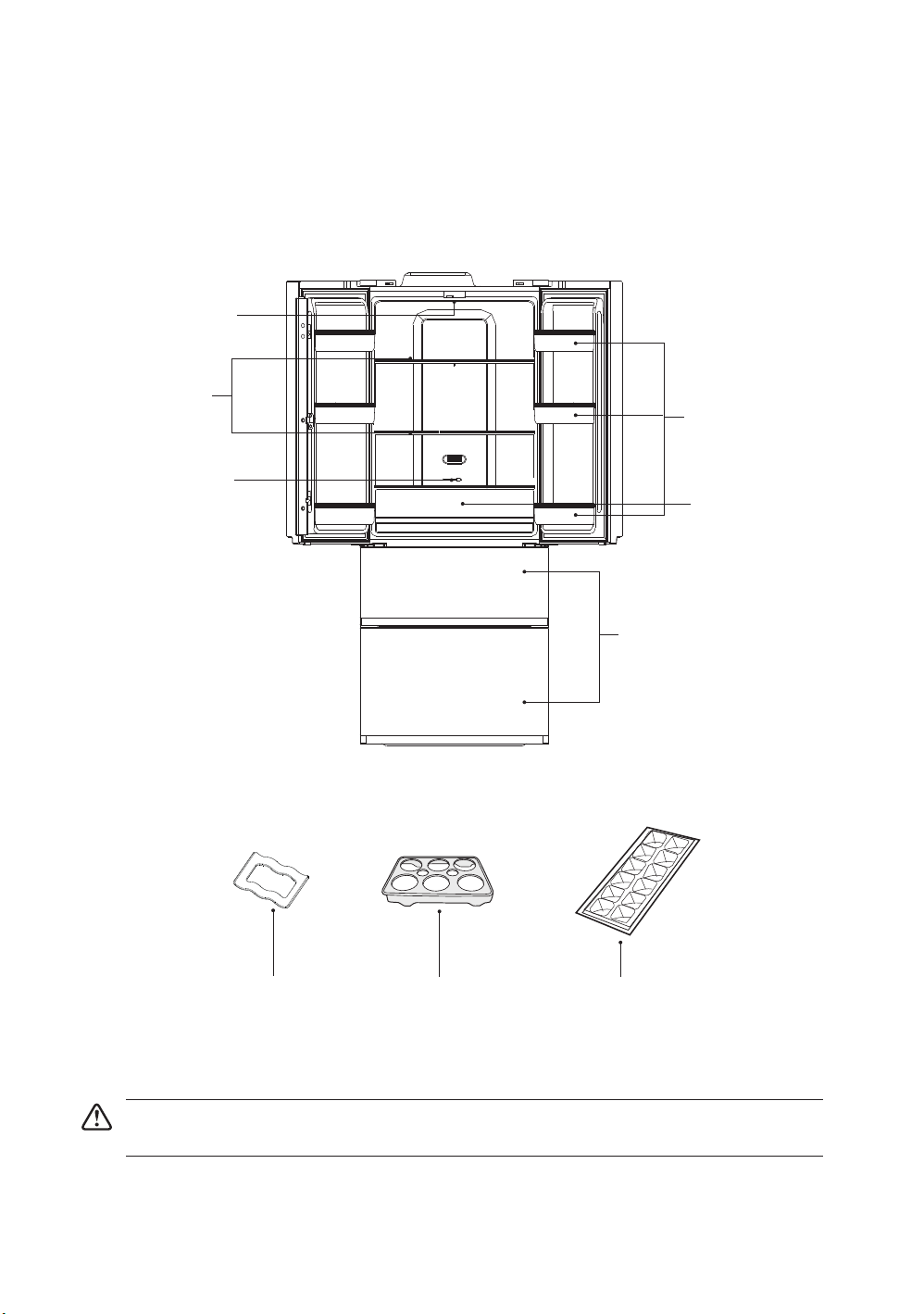

The following items are included:
Thank you for purchasing your new Kenwood Fridge Freezer.
These operating instructions will help you use it properly and safely.
We recommend that you spend some time reading this installation/instruction
manual in order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this installation/
instruction manual for future reference.
If items are missing or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
Main Unit
Bin Cover Shelf x 1Fridge Glass Shelf x 2
Bin x 1
Fridge Door Shelf x 6
Egg Tray x 1
Instruction Manual
Ice Tray x 1
Instruction
Manual
Wine Tray x 1
Washer x 2
KMD70X19_IB_RC_200623_grace.indd 3KMD70X19_IB_RC_200623_grace.indd 3 23/6/2020 5:48 PM23/6/2020 5:48 PM

4
installation
installation

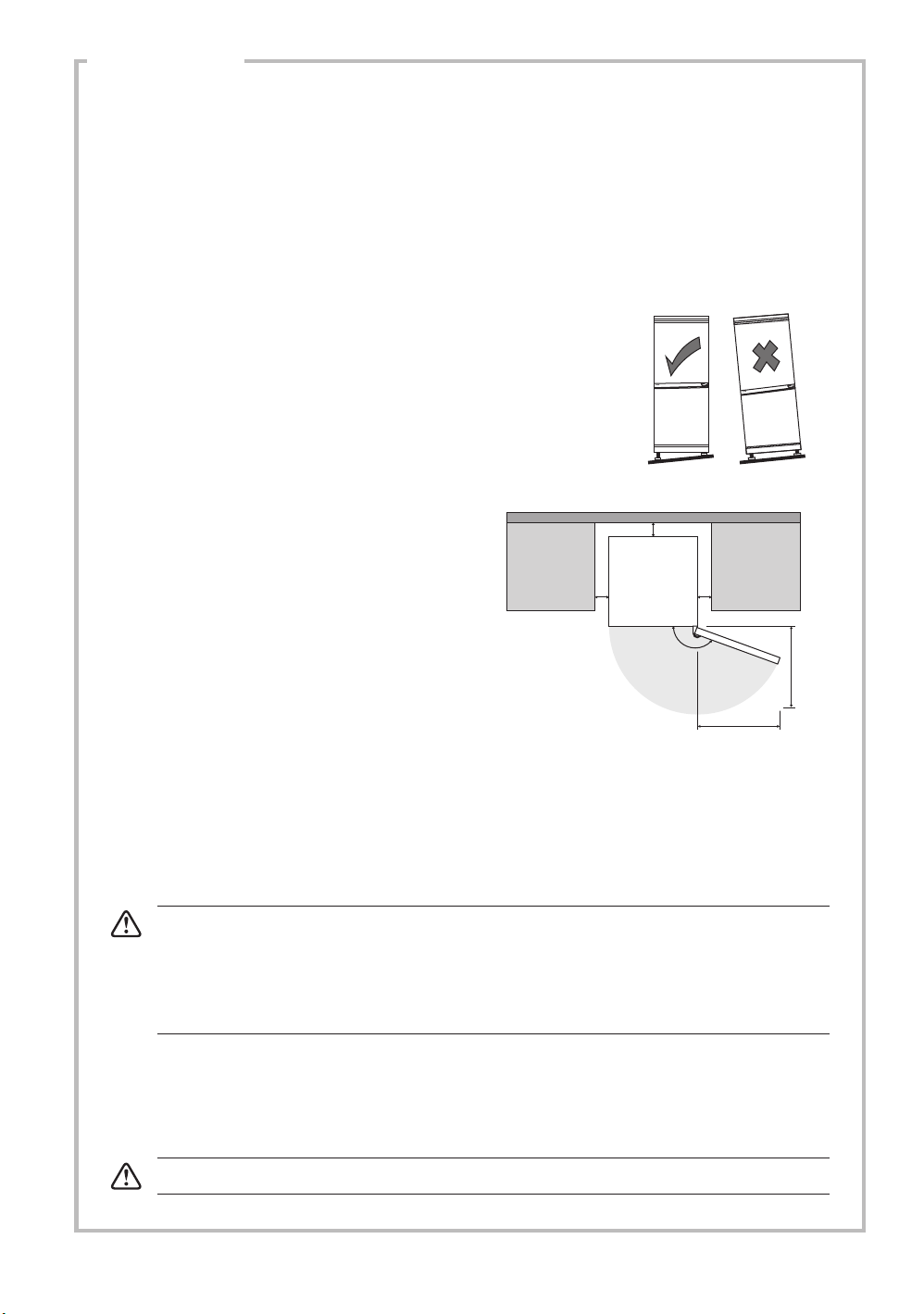

location
When selecting a position for your unit you should make sure the floor is flat and firm, and the
room is well ventilated with an average room temperature of between 16°C and 43°C. Avoid
locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight
as it may increase the electrical consumption. Extreme cold ambient temperatures may also
cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor
installation. Do not drape the unit with any covering. This refrigerating appliance is not intended
to be used as a built-in appliance.
Y mm
X mm
levelling the unit
To do this adjust the two levelling feet at the front of the unit.
If the unit is not level, the doors and magnetic seal alignments
will not be covered properly.
free space requirements
When installing the unit, ensure that 25 mm of
free space is left at both sides, 50 mm at the
rear of the unit and 25 mm at the top of the unit.
The door can be opened to the right or the left,
depending on which best suits the location.
Please ensure there is more than twice the width
and depth distance space of the unit to fully open
the door to a maximum angle.
Do not lay the unit flat as this may damage the coolant system.
cleaning before use
Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water
using a sponge or cloth. Wipe completely dry before replacing the drawers. Clean the exterior of
the unit with a damp cloth.
If you require more information refer to the Cleaning section.
before using your unit
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working
properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.
• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to
settle.
KMD70X19_IB_RC_200623_grace.indd 4KMD70X19_IB_RC_200623_grace.indd 4 23/6/2020 5:48 PM23/6/2020 5:48 PM

5
product overview
main unit
Egg Tray Ice Tray
Fridge Glass
Shelf
Temperature Control for
Bin Bin with Cover
Shelf
Fridge Door
Shelf
Freezer Drawer
LED Light
Wine Tray
All accessories such as drawers, shelves and balconies should be kept like the diagram
here for the most efficient use of energy.
KMD70X19_IB_RC_200623_grace.indd 5KMD70X19_IB_RC_200623_grace.indd 5 23/6/2020 5:48 PM23/6/2020 5:48 PM

6

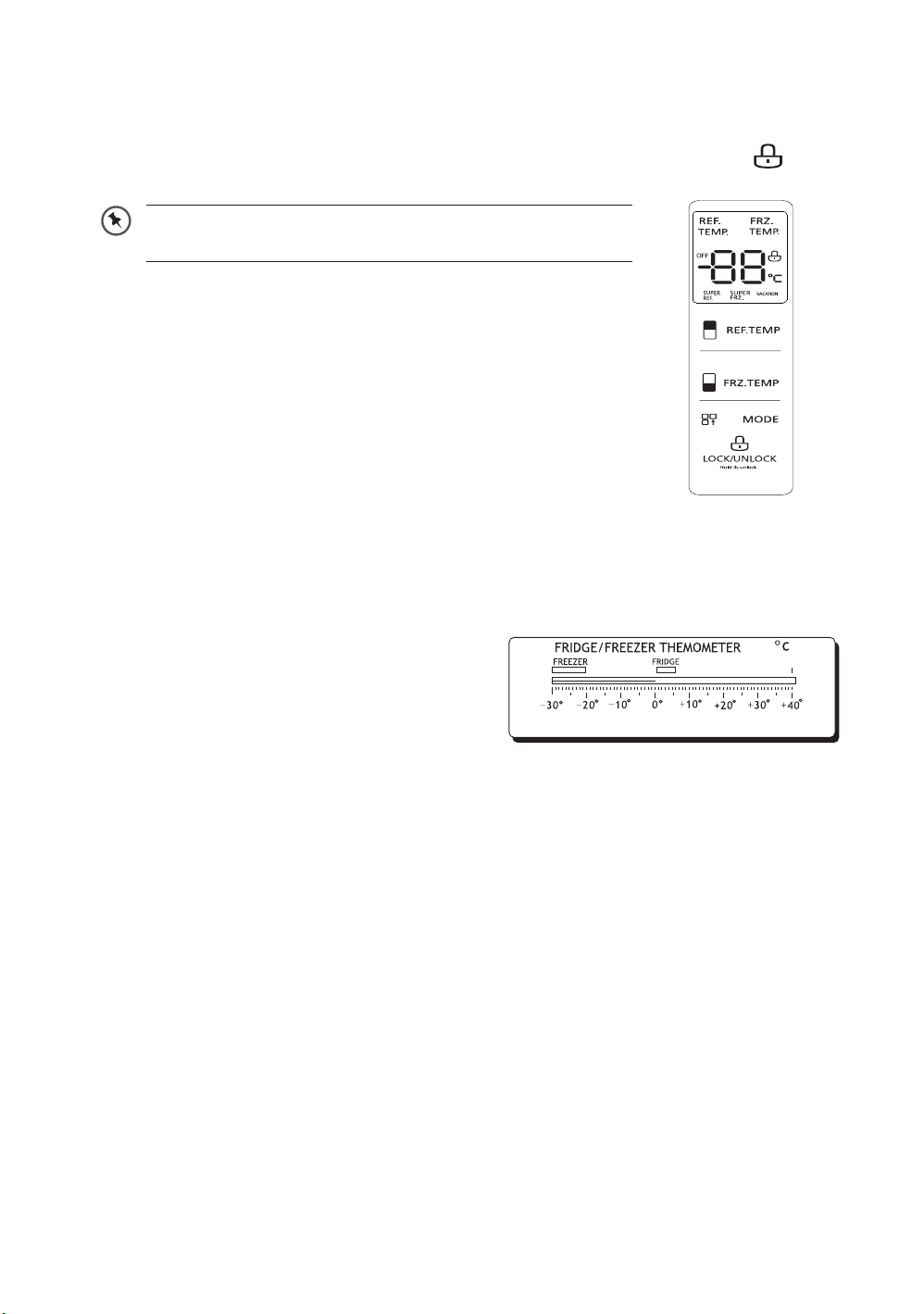

To save energy, the screen display will automatically turn off
after approximately 60 seconds if no button is pressed.
operation
Connect the mains cable to the mains socket. The internal temperature of your unit is controlled
by an electronic control panel on the door. Before changing any setting, ensure the lock is
disabled.
temperature setting
• Fridge compartment temperature setting
1. Temperature range: 2°C to 8°C.
2. Press the REF. TEMP button repeatedly to set the temperature. The
recommended temperature is 5°C.
• Freezer compartment temperature setting
1. Temperature range: -24°C to -16°C.
2. Press the FRZ. TEMP button repeatedly to set the temperature. The
recommended temperature is -18°C.
• The unit may not operate at the correct temperature if it is in a particularly hot or a particularly
cold room, or if you open the doors often.
• To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it
with food.
• If you are concerned that your unit is not
being kept cold enough and wish to check the
temperature, you will need a special fridge/
freezer thermometer. These are available from
most supermarkets and hardware shops. Place
the thermometer in either the fridge or freezer
compartment and leave overnight. The correct
temperature for the fridge compartment should be at the recommended 2-8°C. The correct
temperature for the freezer compartment should be -18°C or lower.
super refrigerating mode
• Press the MODE button repeatedly to select the super refrigerating mode. “SUPER REF.” will
be illuminated. Temperature in the fridge is quickly lowered to 2°C and food in the fridge can be
kept fresh for a longer period.
• To switch off, press the MODE button repeatedly until no modes are displayed, and the fridge
temperature will resume to the previous setting. Otherwise, the super refrigerating mode will exit
automatically after 2.5 hours.
super freeze mode
• Press the MODE button repeatedly to select the super freeze mode. “SUPER FRZ.” will be
illuminated. Temperature in the freezer will be quickly lowered to -24°C.
• To switch off, press the MODE button repeatedly until no modes are displayed, and the freezer
temperature will resume to the previous setting. You can also set the super freeze mode hours
to either 6 hours or 48 hours. Press and hold the FRZ. TEMP button for 3 seconds, “6” will be
displayed which means 6 hours, press the FRZ. TEMP button again and “48” will be displayed
which means 48 hours. Super freeze mode will exit automatically after the selected hours.
KMD70X19_IB_RC_200623_grace.indd 6KMD70X19_IB_RC_200623_grace.indd 6 23/6/2020 5:48 PM23/6/2020 5:48 PM

7
When vacation mode is on, the fridge compartment will automatically turn off (“OFF” will be
illuminated) and the freezer compartment will be set at -18°C.
vacation mode
• If you will be away for a period of time, you can set the fridge to vacation mode. Press the
MODE button repeatedly to select the vacation mode. “VACATION” will be illuminated. Do not
store any food in the fridge during holiday mode.
• To switch off, press the MODE button repeatedly until no modes are displayed, and the fridge
and freezer temperature will resume to the previous setting.
door alarm
• If the door is open for about 2 minutes, an alarm will sound continously. Press any button or
simply close the door to clear the alarm.
child lock
When child lock is activated, pressing all buttons will not work.
• To activate child lock, press and hold the LOCK / UNLOCK button for 3 seconds. will
illuminate.
• To deactivate child lock, press and hold the LOCK / UNLOCK button for 3 seconds. will
extinguish.
noises inside the unit!
You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but
you should be aware of them!
These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has
become more pronounced since the introduction of CFC free gases. This is not a fault and will
not affect the performance of your unit. This is the compressor motor working, as it pumps the
refrigerant around the system.
tips for keeping food in the unit
• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid
bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices
and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the compartments. Ensure all parts
of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and
vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the
internal temperature of the unit.
To save energy, avoid opening the doors frequently or keeping them opened for a long time.
When there is no button operation or door opening for about 30 seconds, the unit will
automatically enter child lock state.
KMD70X19_IB_RC_200623_grace.indd 7KMD70X19_IB_RC_200623_grace.indd 7 23/6/2020 5:48 PM23/6/2020 5:48 PM

8
• To prevent cold air escaping from the unit, try to limit the number of times you open the doors.
We recommend that you only open the doors when you need to put food in or take food out.

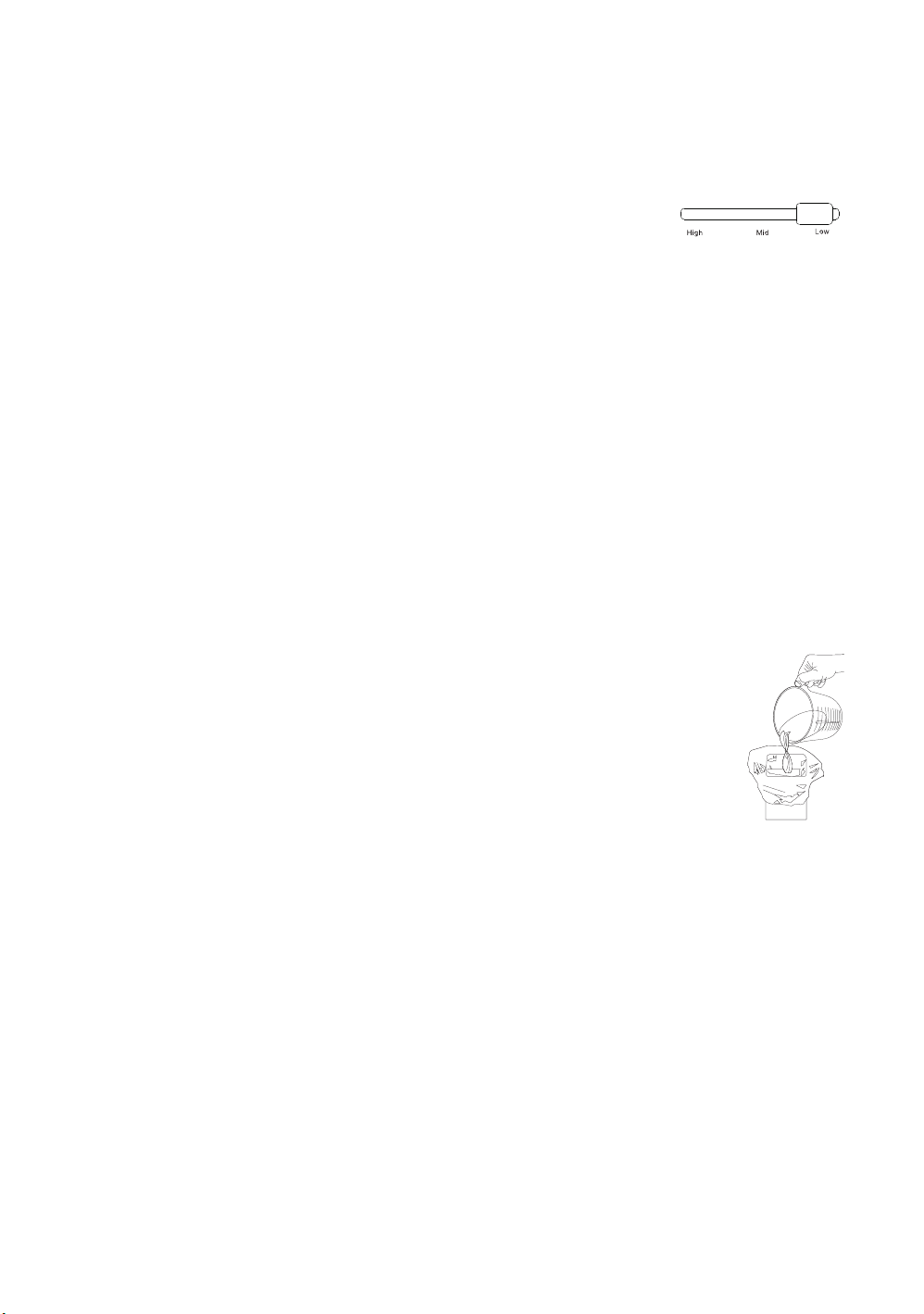

temperature control for bin
• The Bin can function either as chiller bin (to keep seafood and meat fresh
for a short period of storage), fresh bin (to store fresh instant food) or
crisper (salad) bin.
• To function as a crisper (salad) bin, slide the temperature control to High.
• To function as a fresh bin, slide the temperature control to Mid, the temperature in the Bin will be
cold but not frozen.
• To function as a chiller bin, slide the temperature control to Low, the temperature in the Bin will
be under 0°C.
preparations for freezing
• Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes
faster, takes less time to defrost and enables you to control the quantity you need better.
• Leave cooked food to cool completely. Chill food before freezing if possible.
• Consider how you will want to cook the food before freezing it.
• Don’t freeze food in metal containers if you may want to microwave it straight from the freezer.
• Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil
(heavy duty grade only). If in doubt, double wrap your food. Don’t use aluminium foil for acidic
foods, e.g. citrus fruits. Don’t use thin cling film, glass, or used food containers without cleaning.
• Exclude as much air from the container as possible. You could buy a special vacuum pump
which sucks excessive air out of the packaging.
• Leave a small amount of air space when freezing liquids to allow expansion.
• You can use the space in the freezer most efficiently if you freeze liquids (or solids
with liquids, e.g. stew) in square blocks. This is known as “Preforming”. Pour the
liquid into a polythene bag which is inside a square sided container. Freeze it, and
then remove it from the container and seal the bag.
• Label your frozen foods as they will look the same when in frozen state. Use
special freezer tapes, labels and pens with different colours. This allows you to
easily organise and to effectively use the freezer. Write the contents and date;
otherwise the frozen food might exceed the storage time and this could cause food poisoning.
Please refer to your food packaging for the recommended storage time.
• You may also add the weight and cooking notes, e.g. “defrost first”, “cook from frozen” and keep
a separate log of what is in each drawer. This will save opening the door and searching around
unnecessarily.
KMD70X19_IB_RC_200623_grace.indd 8KMD70X19_IB_RC_200623_grace.indd 8 23/6/2020 5:48 PM23/6/2020 5:48 PM

9
defrosting frozen food
• Take the frozen food out from the freezer compartment and uncover the frozen food. Let it
defrost at room temperature. Don’t forget that defrosting in a warm area encourages the growth
of bacteria and low temperature cooking may not destroy dangerous bacteria.
• Drain off and throw away any liquid lost during defrosting.
• Always make sure there are no ice-crystals in the food before cooking, particularly with meat.
These crystals indicate that the food has not fully defrosted.
• Cook food as soon as possible after defrosting.
• Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if
you intend to cook the food immediately afterwards.
Never re-freeze anything that has been defrosted unless you cook it again, to kill off harmful
bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items.
This prevents drying or freezer-burn and a build up of frost on any remaining food.
cleaning the interior and the exterior of the unit
• Remove all foods from the unit. For foods from the freezer, place them well-covered in other cool
storage containers.
• Switch off and unplug the unit.
• Remove all the shelves, drawers and other accessories. Wash them then wipe dry.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm
water using a sponge or cloth. Wipe completely dry before replacing the shelves, drawers and
salad bin.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make
sure that the doors are closed to avoid the polish getting on the magnetic door seals or inside
the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be
vacuumed using a soft brush attachment.
• Do not use any abrasive or acidic cleaners. Do not use steam cleaners.
KMD70X19_IB_RC_200623_grace.indd 9KMD70X19_IB_RC_200623_grace.indd 9 23/6/2020 5:48 PM23/6/2020 5:48 PM

10
maintenance
changing the internal LED light
The internal light is an LED panel that cannot be changed by the user. Please contact a qualified
service agent.
care when handling / moving your unit
Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by
holding the edges of the top surface.
servicing
The unit should be serviced by an authorised engineer and only genuine spare parts should be
used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by
inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.
switching off for long periods of time
When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all
food and clean the appliance, leaving the door ajar to prevent unpleasant smells.
condensation
Condensation may appear on the outside of the unit. This may be due to a change in room
temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified
technician for assistance.
disposal
Old units still have some residual value. An environmentally friendly method of disposal will ensure
that valuable raw materials can be recovered and used again. The refrigerant used in your unit and
insulation materials require special disposal procedures. Ensure that none of the pipes on the back
of the unit are damaged prior to disposal.
Up to date information concerning options of disposing of your old unit and packaging from the new
one can be obtained from your local council office.
When disposing of an old unit break off any old locks or latches and remove the door as a
safeguard.
KMD70X19_IB_RC_200623_grace.indd 10KMD70X19_IB_RC_200623_grace.indd 10 23/6/2020 5:48 PM23/6/2020 5:48 PM

11
specifications
Rated Voltage 220-240V~, 50 Hz
Rated Current 0.8 A
Rated Power 150 W (Defrost: 220 W)
Climate Class
N, ST, T
This appliance is intended to be used at an ambient
temperature between 16°C and 43°C.
Dimension (H x W x D) 1808 x 713 x 731 mm
Features and specifications are subject to change without prior notice.
