Kenwood KUL55X17 Service manual

55cm Undercounter Fridge Larder
KUL55X17
installation / instructions manual
KUL55X17_IB_170119_grace.indd 1 19/1/17 10:01 am

KUL55X17_IB_170119_grace.indd 2 19/1/17 10:01 am

Contents
safety warnings .................................................................................................................. 4
unpacking............................................................................................................................ 6
installation........................................................................................................................... 7
location ............................................................................................................................ 7
levelling the unit............................................................................................................... 7
installing the rubber support ............................................................................................ 7
free space requirements.................................................................................................. 7
installing the door handle ................................................................................................ 8
reversing the door swing ................................................................................................. 9
cleaning before use ....................................................................................................... 10
before using your unit.................................................................................................... 10
product overview...............................................................................................................11
main unit.........................................................................................................................11
operation ........................................................................................................................... 12
switching on your unit.................................................................................................... 12
adjusting the temperature.............................................................................................. 12
noises inside the unit!.................................................................................................... 12
tips for keeping food in the unit ..................................................................................... 13
cleaning............................................................................................................................. 13
defrosting....................................................................................................................... 13
cleaning the interior and the exterior of the unit ............................................................ 13
maintenance...................................................................................................................... 14
changing the internal LED light ..................................................................................... 14
care when handling / moving your unit.......................................................................... 14
servicing ........................................................................................................................ 14
switching off for long periods of time ............................................................................. 14
condensation ................................................................................................................. 14
disposal............................................................................................................................. 14
specications.................................................................................................................... 15
KUL55X17_IB_170119_grace.indd 3 19/1/17 10:01 am

4
safety warnings
For your continued safety and to reduce the risk of injury or electric
shock, please follow all the safety precautions listed below.
• Read all instructions carefully before using the unit and keep them
for future reference.
• Retain the manual. If you pass the unit onto a third party, make
sure to include this manual.
• This appliance is intended for indoor household use and similar
applications such as:
– farm houses and by clients in hotels, motels and other residential
type environment;
– bed and breakfast type environment;
– staff kitchen areas in shops, offices and other working
environment;
– catering and similar non-retail applications.
• Ensure that the plug is easily accessible to enable disconnection
from the mains supply.
• If the mains cable is damaged, it must be replaced by the
manufacturer, its service agent or a qualified technician in order to
avoid a hazard.
• Choose a location for your unit away from heat sources such as
radiators or fires as refrigerant and vesicant are burnable.
• The unit must be manoeuvred by a minimum of 2 persons.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
• Children should be supervised to ensure that they do not play with
the unit.
• If your unit is fitted with a lock to prevent children being trapped
inside, keep the key out of reach and not in the vicinity of the unit.
KUL55X17_IB_170119_grace.indd 4 19/1/17 10:01 am

5
WARNING
IT IS HAZARDOUS FOR ANYONE OTHER THAN
AUTHORISED SERVICE PERSONNEL TO CARRY OUT
SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL
OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT
ATTEMPT REPAIRS YOURSELF.
WARNING
•Keep ventilation openings in the unit enclosure or in the built-
in structure clear of obstructions.
•Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
•Do not use electrical appliances inside the food storage
compartments of the unit, unless they are of the type
recommended by the manufacturer.
•Do not damage the refrigerant circuit (The refrigerant is a
very environmental-friendly gas but is also combustible. Take
care when transporting or moving the unit to ensure that the
refrigeration circuit is not damaged. In the event of damage
avoid naked flames or ignition sources and ventilate the room
in which the unit is placed for a few minutes.)
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
• Do not store bottles or glass containers in the freezer
compartment. Contents can expand when frozen (fizzy
drinks) which may break the bottle and damage your freezer
compartment. (If applicable)
KUL55X17_IB_170119_grace.indd 5 19/1/17 10:01 am

6
unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
Thank you for purchasing your new Kenwood Fridge.
These operating instructions will help you use it properly and safely.
We recommend that you spend some time reading this installation/instruction
manual in order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this installation/
instruction manual for future reference.
If items are missing or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
Main Unit
Salad Bin Cover ShelfGlass Shelf x 2
Salad Bin
Upper Door Shelf x 2
Egg Tray
Instruction Manual
Lower Door Shelf
Instruction
Manual
Door Handle with 2
handle screw hole
covers
Rubber Support with
screw
KUL55X17_IB_170119_grace.indd 6 19/1/17 10:01 am

7
installation
installation
location
When selecting a position for your unit you should make sure the floor is flat and firm, and the
room is well ventilated with an average room temperature of between 16°C and 43°C. Avoid
locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight
as it may increase the electrical consumption. Extreme cold ambient temperatures may also
cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor
installation. Do not drape the unit with any covering.
Max. 160°
Y mm
X mm
levelling the unit
To do this adjust the two levelling feet at the front of the unit.
If the unit is not level, the doors and magnetic seal alignments
will not be covered properly.
free space requirements
When installing the unit, ensure that 25 mm of
free space is left at both sides, 50 mm at the
rear of the unit and 25 mm at the top of the unit.
The door can be opened to the right or the left,
depending on which best suits the location.
Please ensure there is more than twice the width
and depth distance space of the unit to fully open
the door to a maximum angle of 160°.
installing the rubber support
In the case the loading on the door is heavier than
in the unit, opening of the door may cause the
refrigerator the risk of tipping forward. To prevent
tipping, insert the rubber support at the bottom of
the door.
1. Tilt the appliance backward and locate the
screw hole at the bottom left side of the door.
2. Insert the screw into the hole of the rubber
support.
3. Align the rubber support with the hole on
the bottom left side of the door, then tighten
securely with a screwdriver.
rubber support
scr e w
KUL55X17_IB_170119_grace.indd 7 19/1/17 10:01 am

8
installation
2. Take the door handle and remove the 2 handle screw
hole covers from the door handle. Align the door handle
with the screw holes on the door and screw tightly.
Replace the 2 handle screw hole covers on the door
handle.

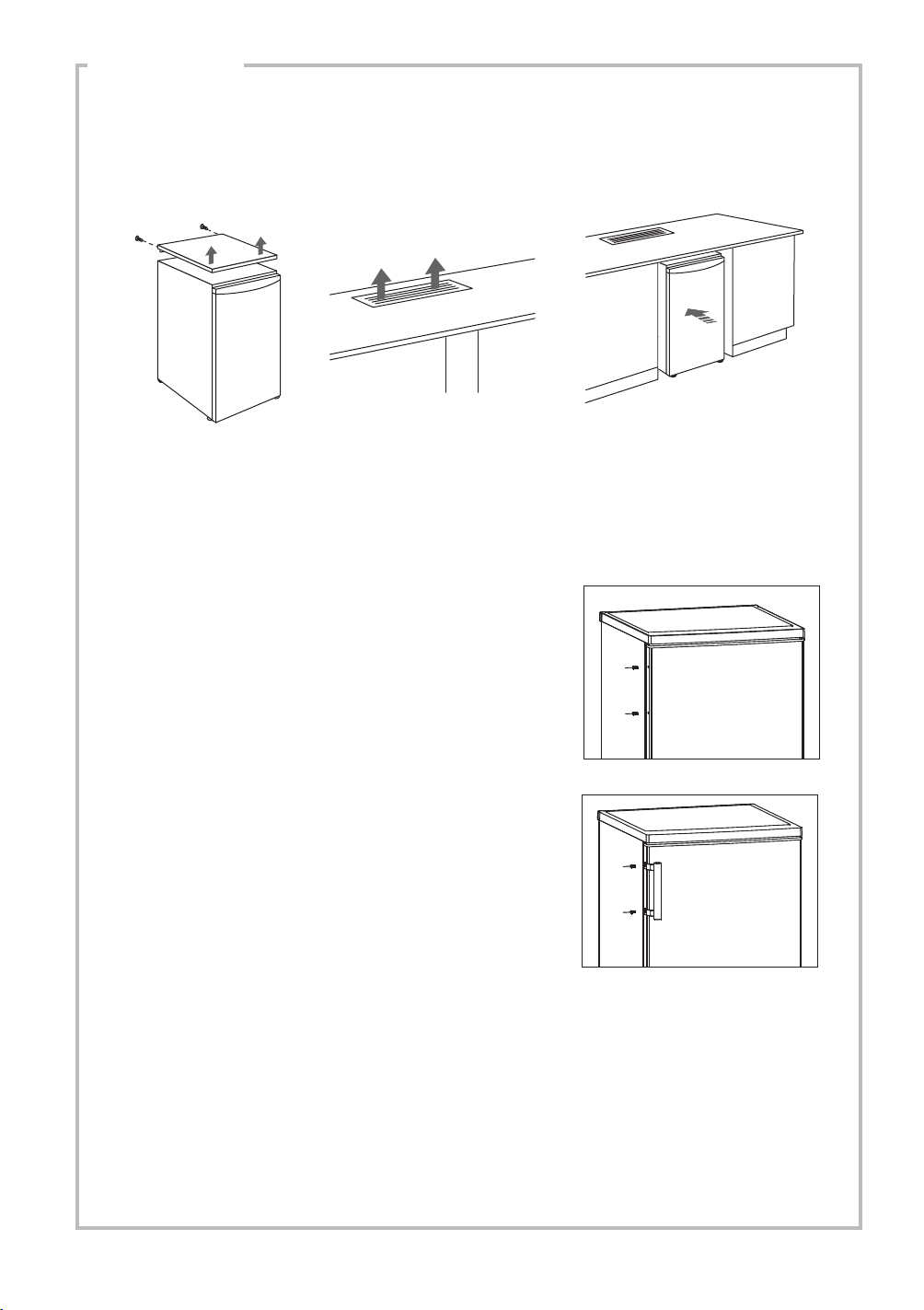

installing the door handle
1. Remove the screws from the door.
Benefits of increased ventilation:
• Loweredpowerconsumption • Improvedcoolingperformance
• Reducerunningcosts  • Prolongproductlifespan
If the appliance is placed under a continuous worktop, the appliance lid (if applicable) may
be removed and a ventilation grille of at least 200 cm2(available from DIY shops or specialist
retailers) should be installed to the worktop above the rear of the appliance to increase
ventilation.
KUL55X17_IB_170119_grace.indd 8 19/1/17 10:01 am

9
installation
• Ensure the unit is unplugged and empty.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit
on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
• If you want to have the door swing reversed, we recommend that you contact a
qualified technician. You should only try to reverse the door yourself if you believe that
you are qualified to do so.

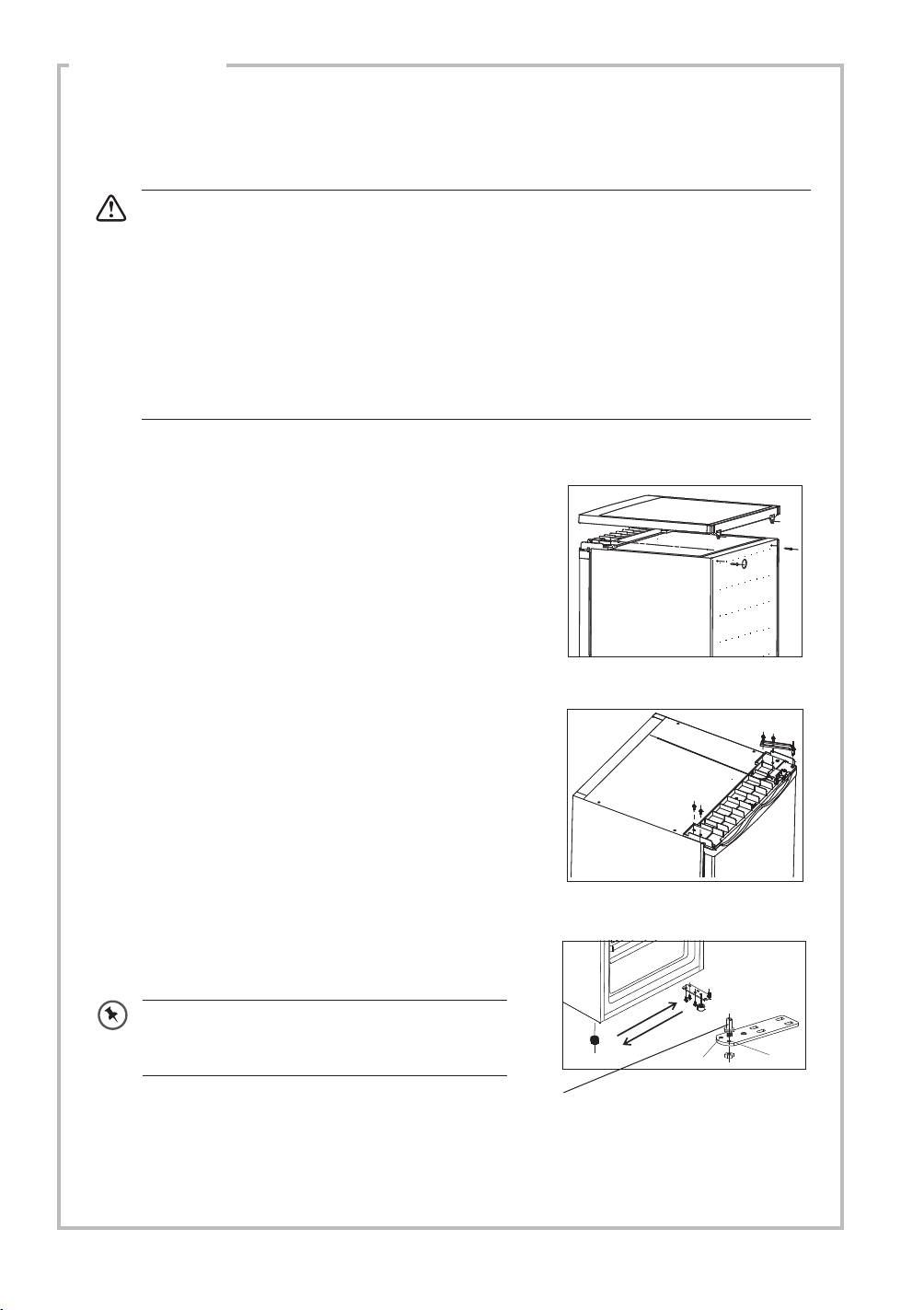

reversing the door swing
tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner
1. Remove the two screws from the back of the top
cover, then lift the top cover and place it on a padded
surface to prevent from scratching.
2. Remove the four screws (2 from each side). Remove
the upper hinge. Lift the door and place it on a
padded surface to prevent from scratching.
Before transferring the bottom hinge to the
other side, move the bottom hinge pin from
hole 1 to 2. Tighten the pin securely.
3. Lay down the unit. Remove both levelling feet, and
bottom hinge. Swap their position.
①
②
Bottom
hinge pin
KUL55X17_IB_170119_grace.indd 9 19/1/17 10:01 am

10
installation
cleaning before use
Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water
using a sponge or cloth. Wipe completely dry before replacing the drawers. Clean the exterior of
the unit with a damp cloth.
If you require more information refer to the Cleaning section.
before using your unit
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working
properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.
• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to
settle.

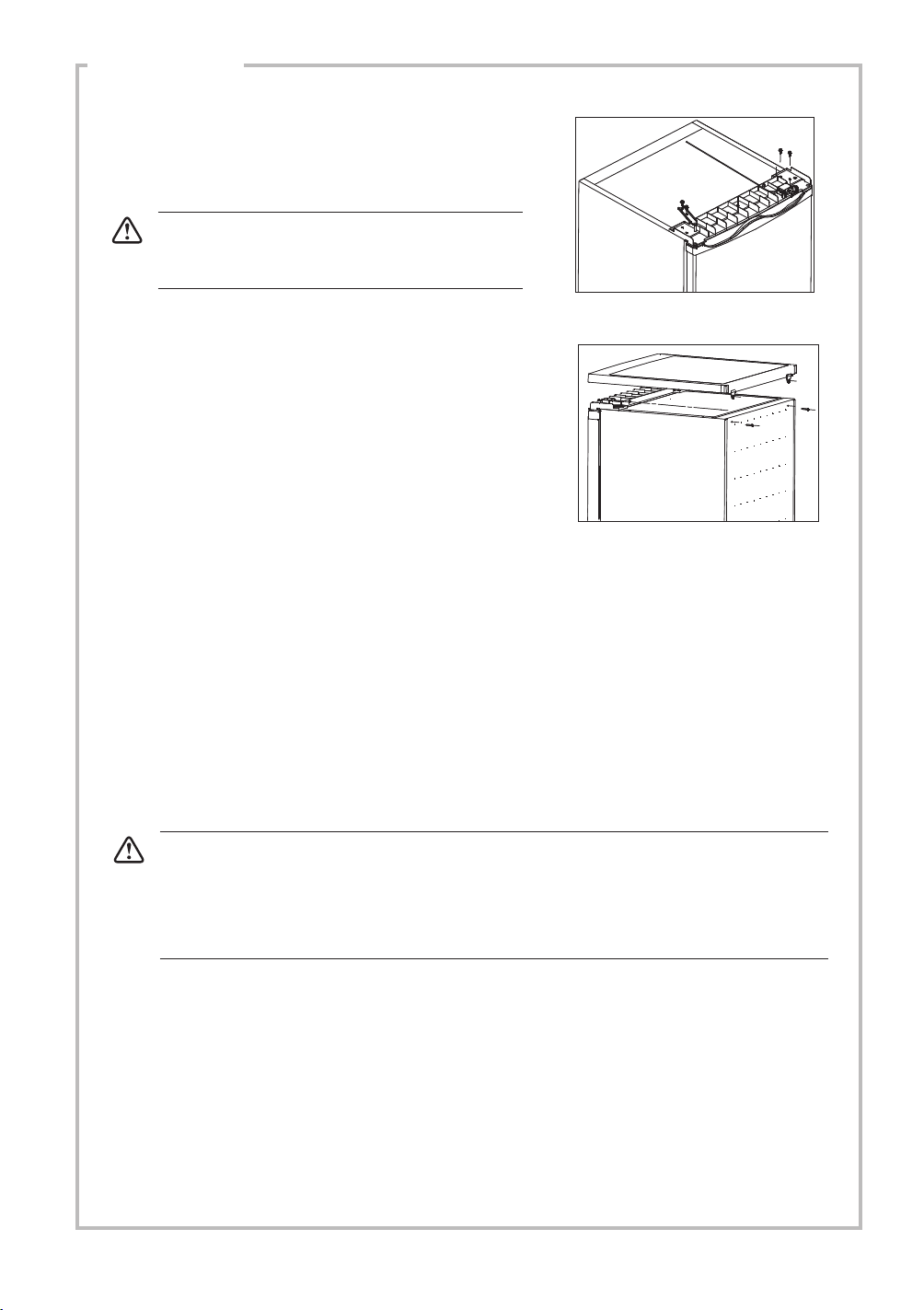

5. Put back the top cover. Tighten the 2 screws at the
back of the top cover.
6. Transfer the door handle to the other side of the door
accordingly. Remove the 2 door screw hole covers
from the other side of the door and swap their position
with the door handle.
4. Stand the unit. Place the bottom hole of the door
onto the bottom hinge pin. Insert the upper hinge
pin into the upper hole of the door. Screw the upper
hinge tightly. Screw also the other side tightly.
Ensure the door is aligned horizontally and
vertically, so that the seals are closed on all
sides before finally tightening the hinge.
KUL55X17_IB_170119_grace.indd 10 19/1/17 10:01 am

11
product overview
main unit
Egg Tray
Door
Shelf
LED Light and
Thermostat Control Dial
Glass
Shelf
Salad Bin
Cover Shelf
Salad Bin
KUL55X17_IB_170119_grace.indd 11 19/1/17 10:01 am

12
operation
switching on your unit
1. Before connecting the unit to the mains supply
make sure that the thermostat control dial is set
at position 0. This is located on the right side of
the cabinet. Connect the mains cable to the mains
socket.
2. Adjust the thermostat control dial to the desired
position, bear in mind that the higher the number,
the lower the temperature. Position 2or 3or 4is
the recommended setting when operating at normal
room temperature (between 16°C and 43°C).
3. The unit may not operate at the correct
temperature if it is in a particularly hot or a
particularly cold room, or if you open the door
often.
4. To ensure that the unit is cool enough to sufficiently
chill your food, wait 24 hours before filling it with
food.
5. If you are concerned that your unit is not being kept
cold enough and wish to check the temperature,
you will need a special fridge/freezer thermometer.
These are available from most supermarkets and
hardware shops. Place the thermometer in the
fridge and leave overnight. The correct temperature
for the fridge should be at the recommended 0-8°C.
adjusting the temperature
The internal temperature of the unit is controlled by a thermostat. The recommended position is
between 1to 4for colder working environments (i.e. during winter) and between 5to 7for hotter
environments. Please adjust according to the environment.
noises inside the unit!
You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but
you should be aware of them!
These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has
become more pronounced since the introduction of CFC free gases. This is not a fault and will
not affect the performance of your unit. This is the compressor motor working, as it pumps the
refrigerant around the system.
KUL55X17_IB_170119_grace.indd 12 19/1/17 10:01 am

13
tips for keeping food in the unit
• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid
bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices
and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the compartments. Ensure all parts
of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and
vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the
internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the door. We
recommend that you only open the door when you need to put food in or take food out.
cleaning

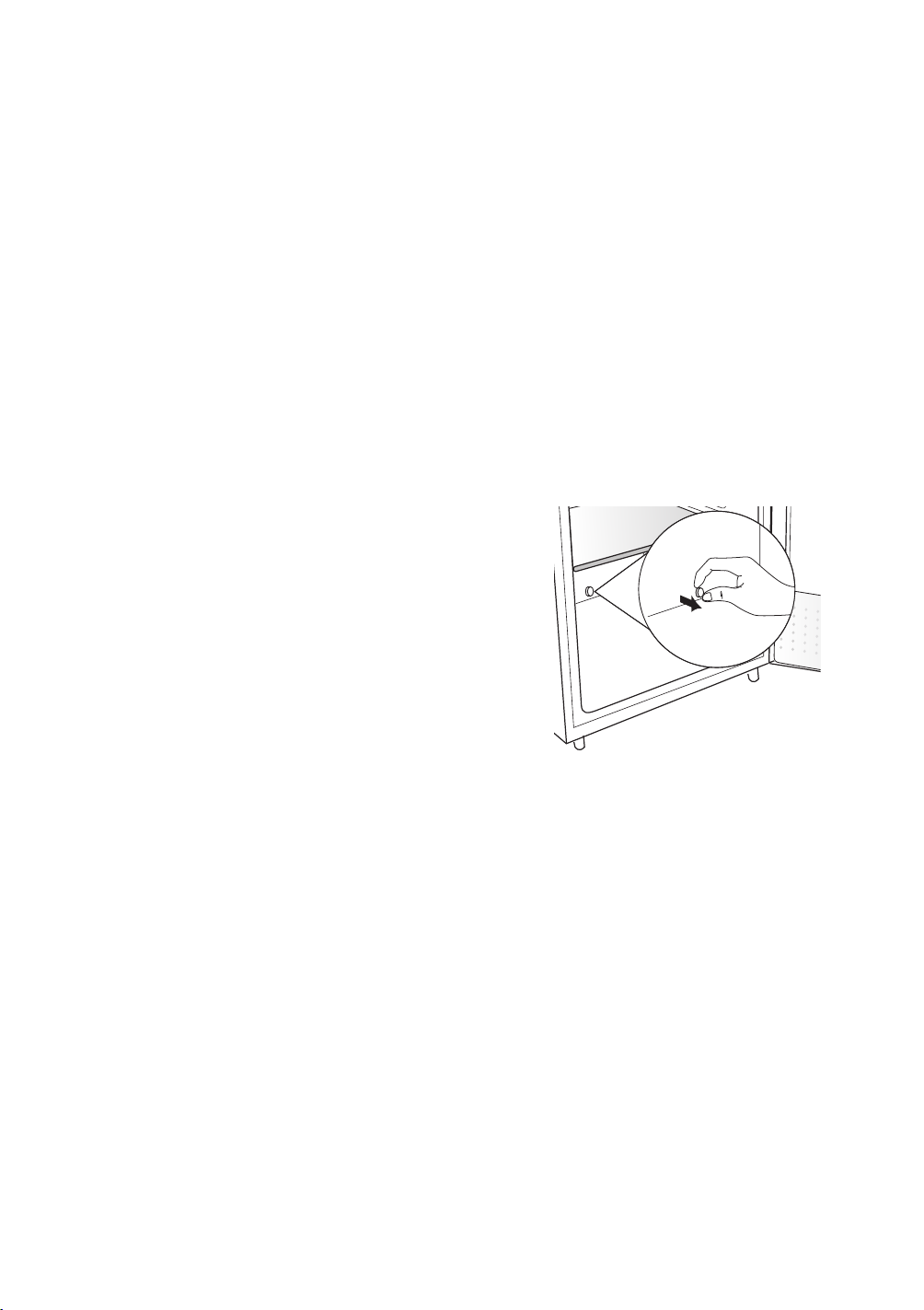

defrosting
Frost may accumulate on the inner rear surface of the appliance
which will defrost during the off cycle of the compressor.
Water is channelled via the drain hole to the collection tray
above the compressor where it will evaporate.
Please ensure the drain hole is checked and cleaned on a
regular basis so water can exit the storage compartment.
cleaning the interior and the exterior of the unit
• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm
water using a sponge or cloth. Wipe completely dry before replacing the shelves, drawers and
salad bin.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure
that the door is closed to avoid the polish getting on the magnetic door seals or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be
vacuumed using a soft brush attachment.
KUL55X17_IB_170119_grace.indd 13 19/1/17 10:01 am

14
maintenance
changing the internal LED light
The internal light is an LED light. Before changing the light, switch off the appliance and unplug it
first. If the light will not work, contact a qualified service agent.
care when handling / moving your unit
Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by
holding the edges of the top surface.
servicing
The unit should be serviced by an authorised engineer and only genuine spare parts should be
used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by
inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.
switching off for long periods of time
When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all
food and clean the appliance, leaving the door ajar to prevent unpleasant smells.
condensation
Condensation may appear on the outside of the unit. This may be due to a change in room
temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified
technician for assistance.
disposal
Old units still have some residual value. An environmentally friendly method of disposal will ensure
that valuable raw materials can be recovered and used again. The refrigerant used in your unit and
insulation materials require special disposal procedures. Ensure that none of the pipes on the back
of the unit are damaged prior to disposal.
Up to date information concerning options of disposing of your old unit and packaging from the new
one can be obtained from your local council office.
When disposing of an old unit break off any old locks or latches and remove the door as a
safeguard.
KUL55X17_IB_170119_grace.indd 14 19/1/17 10:01 am

15
specifications
Model KUL55X17
Appliance Category Category 1 (Refrigerator with one or more fresh-food
storage compartments)
Overall Dimension (H x W x D) 845 x 560 x 575 mm
Fresh Food Storage Volume 137 L
Frozen Food Storage Volume N/A
Defrosting Type Static
Climate Class N, ST, T
This appliance is intended to be used at an ambient temperature between 16°C and 43°C.
Storage Temperature Fridge:0-8°C,average≤4°C
Energy Consumption 0.323 kWh / 24 hours
Energy consumption 118 kWh per year, based on standard test results for 24 hours.
Actual energy consumption will depend on how the appliance is used and where it is located.
Airborne Acoustical Noise 40 dB
Energy Grading A+
Temperature Rise N/A
Freezing Capacity N/A
Rated Voltage 220-240 V~
Rated Current 0.5 A
Features and specifications are subject to change without prior notice.
KUL55X17_IB_170119_grace.indd 15 19/1/17 10:01 am

IB-KUL55X17-170119V1
The symbol on the product or its packaging indicates that this
product must not be disposed of with your other household
waste. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for
the recycling of waste electrical and electronic equipment. The
separate collection and recycling of your waste equipment at the
time of disposal will help conserve natural resources and ensure
that it is recycled in a manner that protects human health and the
environment.
For more information about where you can drop off your waste
for recycling, please contact your local authority, or where you
purchased your product.
DSG Retail Ltd. (co. no. 504877)
1 Portal Way, London, W3 6RS, UK
Manufactured for DSG Retail Limited under Licence from Fisher & Paykel Appliances Italy SpA.
DSG Retail Limited is responsible for after sales service.
Need Help with your product?
Your product is supported by Knowhow
under a Trademark Licence from Fisher & Paykel Appliances Italy SpA.
For help or spare parts please call us on:
0344 561 1234
KUL55X17_IB_170119_grace.indd 16 19/1/17 10:01 am
