Kenwood KIL60W14 Quick guide

BUILT-IN 60CM WHITE
UNDERCOUNTER LARDER
KIL60W14
installation / instructions manual
KIL60W14_IB_140507_grace.indd 1 7/5/14 3:43 pm

KIL60W14_IB_140507_grace.indd 2 7/5/14 3:43 pm

Contents
safety warnings .................................................................................................................. 4
unpacking............................................................................................................................ 6
installation........................................................................................................................... 7
location ............................................................................................................................ 7
levelling the unit............................................................................................................... 7
free space requirements ................................................................................................. 7
reversing the door swing ................................................................................................. 8
height regulation............................................................................................................ 10
installation of the unit under the worktop....................................................................... 10
fastening the unit under the worktop ..............................................................................11
mounting the kitchen cabinet door .................................................................................11
cleaning before use ....................................................................................................... 13
before using your unit.................................................................................................... 13
product overview.............................................................................................................. 14
main unit........................................................................................................................ 14
operation ........................................................................................................................... 15
switching on your unit.................................................................................................... 15
adjusting the temperature.............................................................................................. 15
noises inside the unit!.................................................................................................... 15
tips for keeping food in the unit ..................................................................................... 15
cleaning............................................................................................................................. 16
defrosting....................................................................................................................... 16
cleaning the interior and the exterior of the unit ............................................................ 16
maintenance...................................................................................................................... 16
changing the internal LED light ..................................................................................... 16
care when handling / moving your unit.......................................................................... 17
servicing ........................................................................................................................ 17
switching off for long periods of time ............................................................................. 17
condensation ................................................................................................................. 17
disposal............................................................................................................................. 17
specication...................................................................................................................... 18
KIL60W14_IB_140507_grace.indd 3 7/5/14 3:43 pm

4
safety warnings
For your continued safety and to reduce the risk of injury or electric
shock, please follow all the safety precautions listed below.
• Read all instructions carefully before using the unit and keep them
for future reference.
• Retain the manual. If you pass the unit onto a third party, make
sure to include this manual.
• This appliance is intended for indoor household use and similar
applications such as :
- farm houses and by clients in hotels, motels and other residential type
environment;
- bed and breakfast type environment;
- catering and similar non-retail applications.
• Ensure that the plug is easily accessible to enable disconnection
from the mains supply.
• Keep ventilation openings in the unit enclosure clear of
obstructions.
• Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
• Do not use electrical appliances inside the food storage
compartments of the unit, unless they are of the type
recommended by the manufacturer.
• If the mains cable is damaged, it must be replaced by the
manufacturer, its service agent or a qualified technician in order to
avoid a hazard.
• Choose a location for your unit away from heat sources such as
radiators or fires as refrigerant and vesicant are burnable.
• Do not damage the refrigerant circuit (The refrigerant is a very
environmentally friendly gas but is also combustible. Take
care when transporting or moving the unit to ensure that the
refrigeration circuit is not damaged. In the event of damage avoid
naked flames or ignition sources and ventilate the room in which
the unit is placed for a few minutes.)
• The unit must be manoeuvred by a minimum of 2 persons.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
KIL60W14_IB_140507_grace.indd 4 7/5/14 3:43 pm

5
• Children should be supervised to ensure that they do not play with
the unit.
• If your unit is fitted with a lock to prevent children being trapped
inside, keep the key out of reach and not in the vicinity of the unit.
• Do not store volatile or flammable substances, such as aerosol
cans with a flammable propellant, in the unit.
WARNING
IT IS HAZARDOUS FOR ANYONE OTHER THAN
AUTHORISED SERVICE PERSONNEL TO CARRY OUT
SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL
OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT
ATTEMPT REPAIRS YOURSELF.
KIL60W14_IB_140507_grace.indd 5 7/5/14 3:43 pm

6
unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.

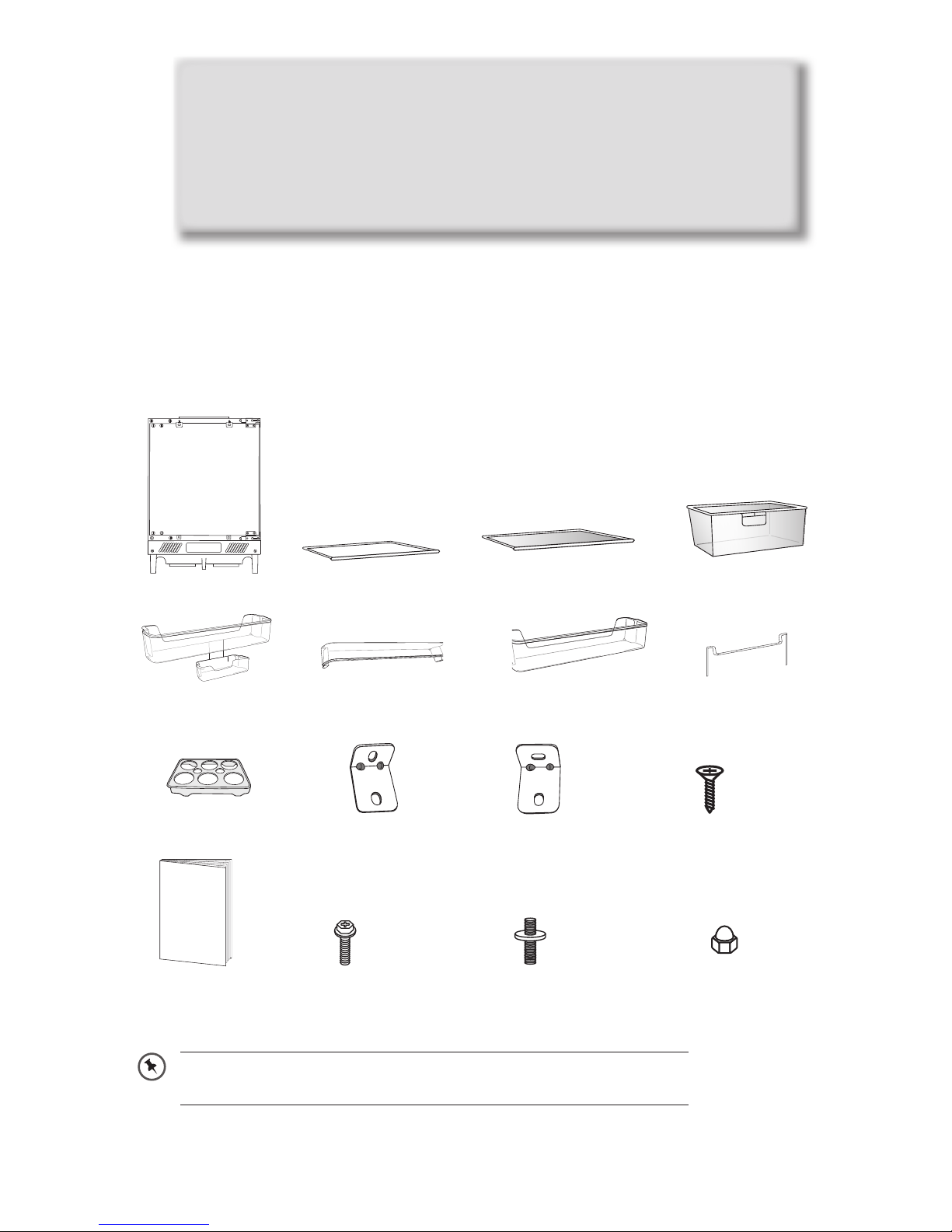

The following items are included:
Thank you for purchasing your new Kenwood Larder.
These operating instructions will help you use it properly and safely.
We recommend that you spend some time reading this installation/instruction
manual in order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this installation/
instruction manual for future reference.
If items are missing or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
Upper Fridge Door
Balcony
Upper Fridge Door
Balcony Cover
Shelf x 2 Salad Bin Cover Salad BinMain Unit
Upper Connecting
Block x 2
Lower Connecting
Block x 2
Egg Tray x 2 ST4.2 x 13 Screw
x 7
Double Threaded Bolt x 2Bolt x 2 Domed Headed
Nut x 2
Instruction / Installation
Manual x 1
Instruction
Manual
Lower Fridge Door Balcony Bottom Wire Rack
KIL60W14_IB_140507_grace.indd 6 7/5/14 3:43 pm

7
installation
installation
location
When selecting a position for your unit you should make sure the floor is flat and firm, and the
room is well ventilated with an average room temperature of between 16°C and 38°C. Avoid
locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight
as it may increase the electrical consumption. Extreme cold ambient temperatures may also
cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor
installation. Do not drape the unit with any covering.

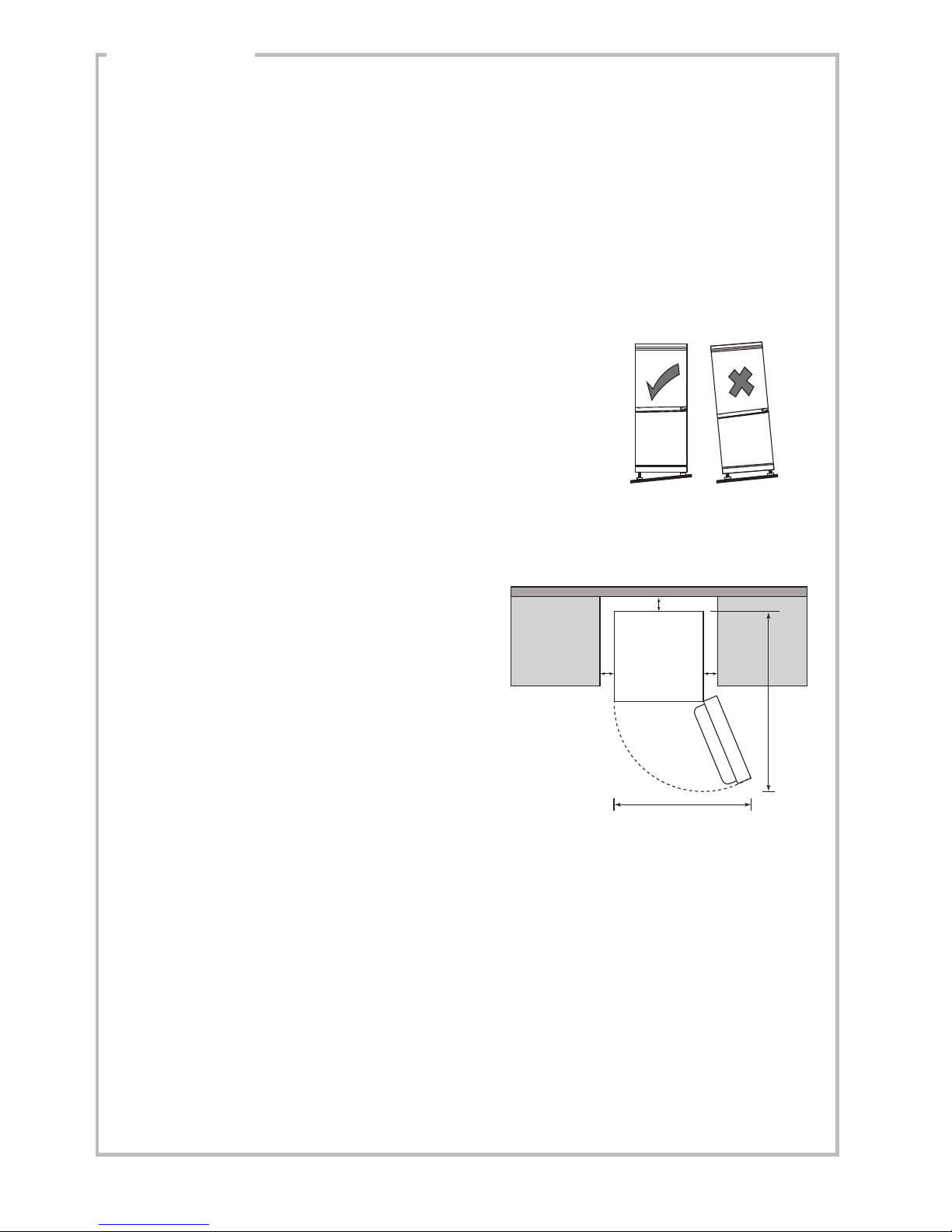

levelling the unit
To do this adjust the two levelling feet at the front of the unit.
If the unit is not level, the doors and magnetic seal alignments will
not be covered properly.
free space requirements
When installing the unit, ensure that 25 mm
of free space is left at both sides, 50 mm at
the rear of the unit and 25 mm at the top of
the unit. The door can be opened to the right
or the left, depending on which best suits the
location. Please ensure there is adequate
space for the door to fully open to 160°.
KIL60W14_IB_140507_grace.indd 7 7/5/14 3:43 pm

8
installation
• Ensure the unit is unplugged and empty.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit
on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
• If you want to have the door swing reversed, we recommend that you contact a
qualified technician. You should only try to reverse the door yourself if you believe that
you are qualified to do so.
reversing the door swing
tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

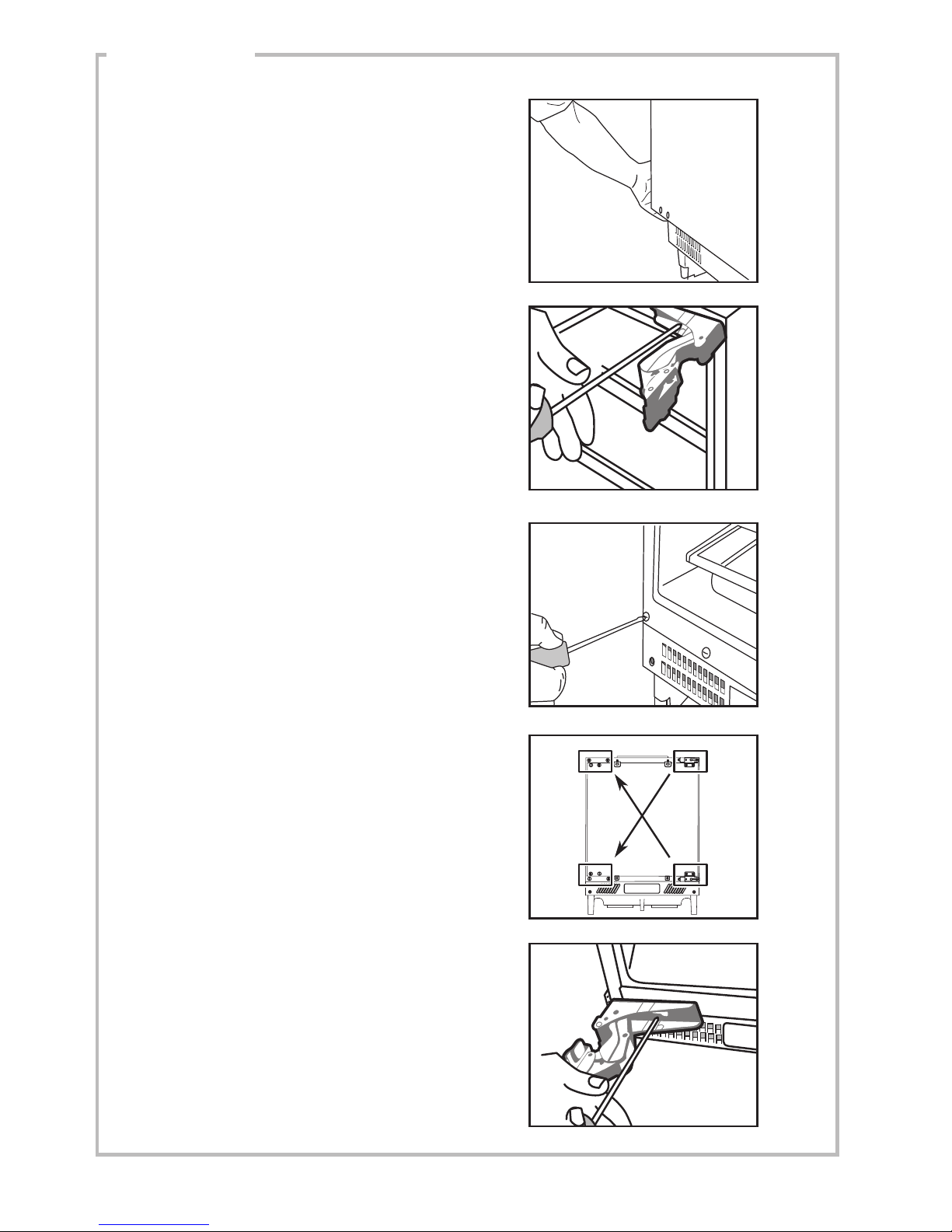

1. Remove the 4 blanking plates from the
outside of the fridge door.
2. With the door closed, remove the screws
on the outside of the hinges. Start with the
top hinge.
3. Open the hinges away from the door.
KIL60W14_IB_140507_grace.indd 8 7/5/14 3:43 pm

9
installation
4. Remove the door while supporting the
bottom of the door. Be careful with the
hinges.
5. With the hinges open, undo the screws
holding them to the cabinet. Be careful with
the hinges, use a long shafted screwdriver
if you have one.
6. Remove the 4 blanking plates from the
fridge cabinet.
7. Turn the hinges over and place them
diagonally on the opposite corner of
the cabinet. Screw them back in place.
Replace all the blanking plates on the
opposite side of both the cabinet and the
fridge door.
KIL60W14_IB_140507_grace.indd 9 7/5/14 3:43 pm

10
installation
8. With the door closed, check that the door
is aligned horizontally and vertically and
that the seals are closed on all sides
before finally tightening the bottom hinge.
Re-adjust the levelling feet as needed.

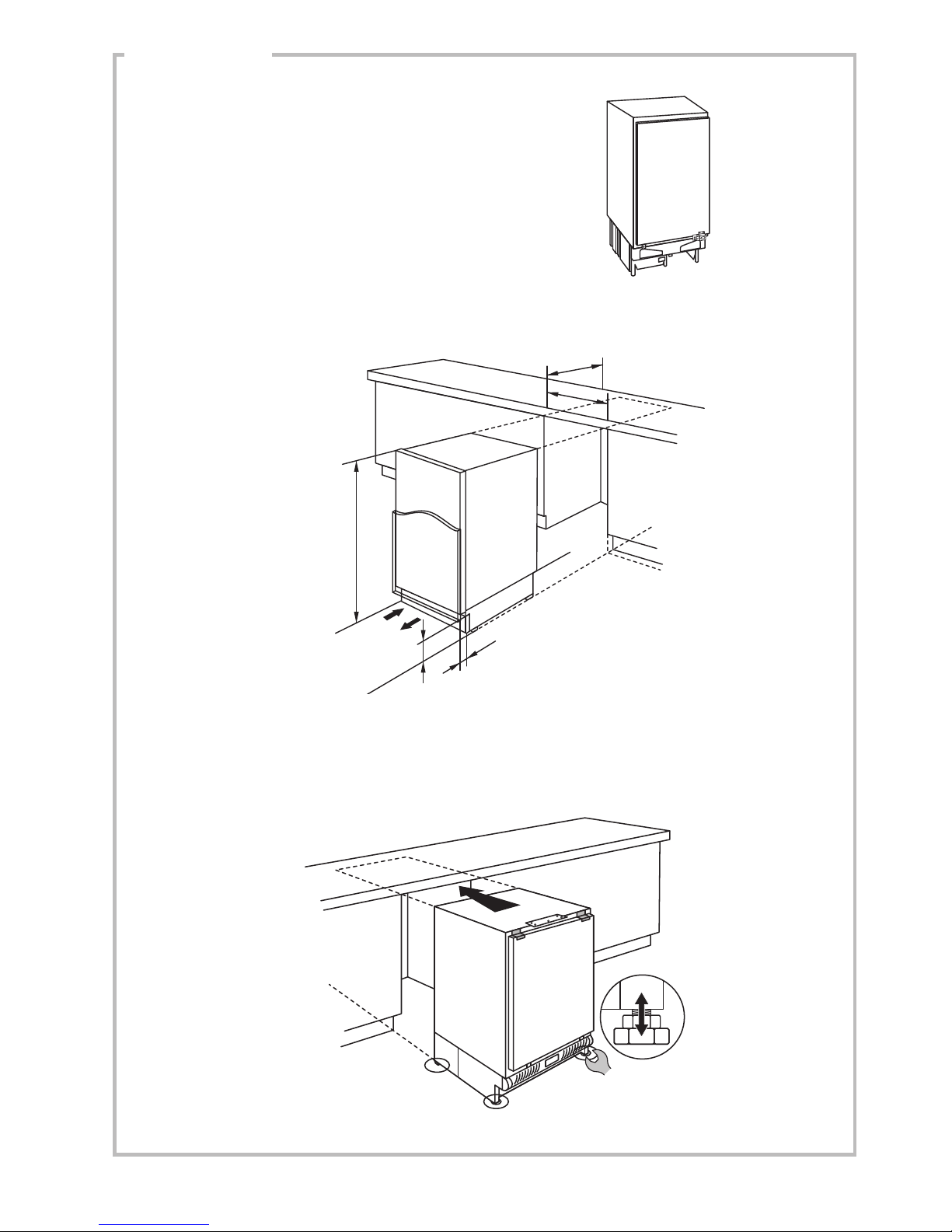

height regulation
installation of the unit under the worktop
825 = 100 - 170
25 - 80
825 - 870
min 580
600
870 = 180 - 250
KIL60W14_IB_140507_grace.indd 10 7/5/14 3:43 pm

11
installation

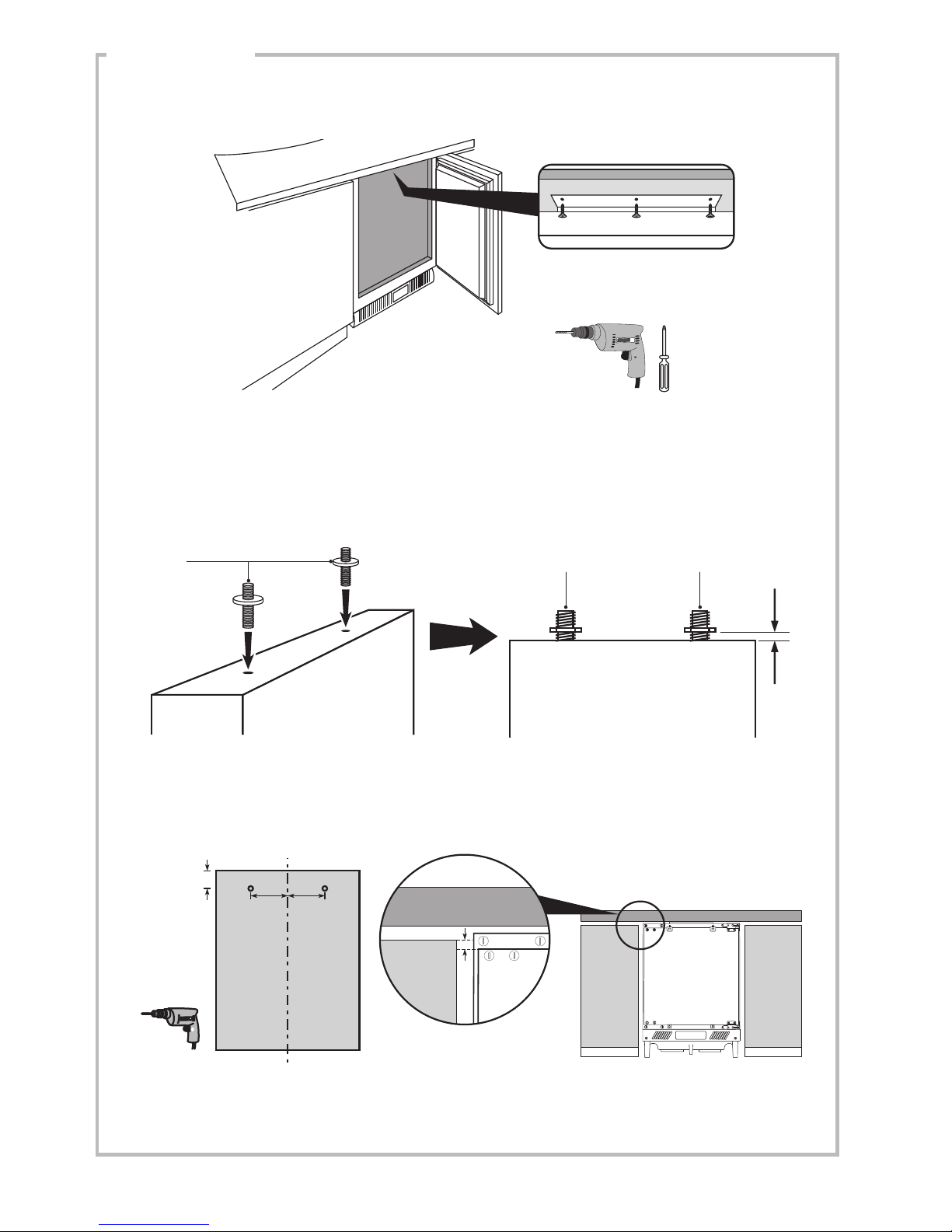

fastening the unit under the worktop
Screw the unit to the worktop using the
screws provided (3 x ST4.2 screws).
Remember to drill the holes.
mounting the kitchen cabinet door
1. Fit both the double threaded bolts to the top of the fridge door. Leave a gap of 2mm between
the double threaded bolt and the top of the fridge door.
Fridge
Door
A
A+9.5mm
A: the distance between the top
of the fridge door to the top of the
adjacent cabinet door.
Ø2.8mm
10mm depth
130mm
Aesthetic
Door
130mm
Double
Threaded Bolt
2mm
Double Threaded Bolt
Fridge Door Fridge Door
2. Drill the holes on the inside of the aesthetic door according to the dimension of the diagram
shown below. Only drill to a depth of 10 mm.
KIL60W14_IB_140507_grace.indd 11 7/5/14 3:43 pm

12
installation
3. Fit the upper connecting blocks after
drilling holes. Screw
Upper
Connecting
Block
Aesthetic Door
Fridge Door
Lower Connecting
Block
Bolt
Aesthetic Door
Fridge Door
Aesthetic
Door
4. Fit the lower connecting blocks to the
bottom of the fridge door.
5. Hang the aesthetic door onto the fridge
door.
6. Align the door by adjusting the double
threaded bolts.
KIL60W14_IB_140507_grace.indd 12 7/5/14 3:44 pm

13
installation
Aesthetic
Door
Domed Headed
Nuts
Fridge Door
Fridge Door Aesthetic
Door
Ø2.8 mm
10mm screw
7. Once alignment is achieved , fit the domed
headed nuts.
8. Open the fridge door and screw the
bottom of the aesthetic door to the lower
connecting block. Remember to drill the
holes Ø2.8 mm to a depth of 10 mm.
cleaning before use
Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water
using a sponge or cloth. Wipe completely dry before replacing the drawers. Clean the exterior of
the unit with a damp cloth.
If you require more information refer to the Cleaning section.
before using your unit
before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working
properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.
• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to
settle.
KIL60W14_IB_140507_grace.indd 13 7/5/14 3:44 pm

14
product overview
main unit
Upper Fridge
Door Balcony
Cover
Upper Fridge
Door Balcony
Lower Fridge
Door Balcony
Bottom Wire
Rack
Salad Bin Cover
Salad Bin
Temperature Regulator
Adjustable Glass Shelf
Egg Tray
KIL60W14_IB_140507_grace.indd 14 7/5/14 3:44 pm

15
operation
switching on your unit
1. Connect the mains cable to the mains socket. The
internal temperature of your unit is controlled by a
thermostat. Position 7is the coldest and position 0
turns the unit off.
2. Adjust the thermostat control dial to the desired position, bear in mind that the higher the
number, the lower the temperature. Position 2 or 3 or 4 is the recommended setting when
operating at normal room temperature (between 16°C and 38°C).
3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly
cold room, or if you open the door often.
4. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it
with food.
5. If you are concerned that your unit is not being kept
cold enough and wish to check the temperature,
you will need a special fridge/freezer thermometer.
These are available from most supermarkets and
hardware shops.
Place the thermometer in the fridge compartment
and leave overnight. The correct temperature for
the fridge compartment should be 5°C or lower.
adjusting the temperature
The internal temperature of the unit is controlled by a thermostat. Position 7 is the coldest setting.
The recommended position is 2, but it should be adjusted according to the environment.
noises inside the unit!
You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but
you should be aware of them!
These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has
become more pronounced since the introduction of CFC free gases. This is not a fault and will
not affect the performance of your unit. This is the compressor motor working, as it pumps the
refrigerant around the system.
tips for keeping food in the unit
• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid
bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect
juices and cover it properly. Place the container on the lowest shelf at the bottom of the fridge
compartment.
• Leave space around your food, to allow air to circulate inside the compartments. Ensure all parts
of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and
vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the
internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the door. We
recommend that you only open the door when you need to put food in or take food out.
2
KIL60W14_IB_140507_grace.indd 15 7/5/14 3:44 pm

16
cleaning
defrosting
Frost may accumulate on the inner rear surface of the appliance which will automatically defrost
during the off cycle of the compressor. Water is channelled via the drain hole to the collection tray
above the compressor where it will evaporate. Please ensure the drain hole is checked and cleaned
on a regular basis so water can exit the storage compartment.
cleaning the interior and the exterior of the unit
• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm
water using a sponge or cloth. Wipe completely dry before replacing the shelves and drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure
that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be
vacuumed using a soft brush attachment.
maintenance
changing the internal LED light
1. Before carrying out bulb replacement, always turn the
thermostat control dial to Position 0, then disconnect the
mains supply.
2. Unscrew and remove the bulb cover.
3. Pull out the lampholder fixed block.
4. Remove the old bulb.
5. Replace with a new LED bulb (Max. 1.5W). Please make
sure that it is pushed to the bottom. Re-fit the lampholder
fixed block into the slot.
6. Re-fit and screw the bulb cover, reconnect your unit to the
mains supply, switch on and reset the thermostat.
KIL60W14_IB_140507_grace.indd 16 7/5/14 3:44 pm

17
care when handling / moving your unit
Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by
holding the edges of the top surface.
servicing
The unit should be serviced by an authorised engineer and only genuine spare parts should be
used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by
inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.
switching off for long periods of time
When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all
food and clean the appliance, leaving the door ajar to prevent unpleasant smells.
condensation
Condensation may appear on the outside of the unit. This may be due to a change in room
temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified
technician for assistance.
disposal
Old units still have some residual value. An environmentally friendly method of disposal will ensure
that valuable raw materials can be recovered and used again. The refrigerant used in your unit and
insulation materials require special disposal procedures. Ensure that none of the pipes on the back
of the unit are damaged prior to disposal.
Up to date information concerning options of disposing of your old unit and packaging from the new
one can be obtained from your local council office.
When disposing of an old unit break off any old locks or latches and remove the door as a
safeguard.
KIL60W14_IB_140507_grace.indd 17 7/5/14 3:44 pm

18
specification
Model KIL60W14
Fresh Food Storage Volume 133L
Storage Temperature 0°C-8°C,average≤4°C
Energy Consumption 0.321kwh/h
Energy consumption 117 kwh per year, based on standard test results for 24 hours.
Actual energy consumption will depend on how the appliance is used and where it is located.
Household Appliances Category Category 1
(Fridge / Larder)
Energy Grading A+
EU Ecolabel N/A
Defrosting Type Automatic Defrost
Climate Class N~ST
This appliance is intended to be used at an ambient temperature between 16°C and 38°C.
Airborne Acoustical Noise 43 dB(A)
Temperature Rise Time N/A
Rated Voltage 220 - 240V~
Rated Current 0.6A
Overall Dimension (W x D x H) 590 x 543 x 820 mm
Features and specifications are subject to change without prior notice.
KIL60W14_IB_140507_grace.indd 18 7/5/14 3:44 pm

KIL60W14_IB_140507_grace.indd 19 7/5/14 3:44 pm

IB-KIL60W14-140507V1
Visit Partmaster.co.uk today for the easiest way to
buy electrical spares and accessories. With over
1 million spares and accessories available we can
deliver direct to your door the very next day. Visit www.partmaster.co.uk or call
0844 800 3456 (UK customers only). Calls charged at National Rate.
DSG Retail Ltd. (co. no. 504877)
Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK
DSG Retail Limited is responsible for after sales service.
If you have a query about the product please contact our product support
line 0844 561 6263 (Currys).
For general information about this appliance
and handy hints and tips, please visit
www.knowhow.com/knowledgebank or call 0344 5611234.
The symbol on the product or its packaging indicates that this
product must not be disposed of with your other household
waste. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for
the recycling of waste electrical and electronic equipment. The
separate collection and recycling of your waste equipment at the
time of disposal will help conserve natural resources and ensure
that it is recycled in a manner that protects human health and the
environment.
For more information about where you can drop off your waste
for recycling, please contact your local authority, or where you
purchased your product.
KIL60W14_IB_140507_grace.indd 20 7/5/14 3:44 pm
