Kenwood KCH-20R User manual

SERVICE MANUAL
COPYRIGHT © 2015 JVC KENWOOD Corporation No.RA027<Rev.001>
2015/6
B5B-7206-00
REMOTE CONTROL HEAD
RA027<Rev.001>20156SERVICE MANUALB5B-7206-00
KCH-20R
COPYRIGHT © 2015 JVC KENWOOD Corporation
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
This product complies with the RoHS directive for the European market. This product uses Lead Free solder.

1-2 (No.RA027<Rev.001>)
Document Copyrights
Copyright 2015 by JVC KENWOOD Corporation. All rights reserved.
No part of this manual may be reproduced, translated, distributed, or transmitted in any form or by any means, electronic, mechan-
ical, photocopying, recording, or otherwise, for any purpose without the prior written permission of JVC KENWOOD Corporation.
Disclaimer
While every precaution has been taken in the preparation of this manual, JVC KENWOOD Corporation assumes no responsibility
for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein.
JVC KENWOOD Corporation reserves the right to make changes to any products herein at any time for improvement purposes.
Bluetooth Copyrights
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
JVC KENWOOD Corporation is under licence. Other trademarks and trade names are those of their respective owners.
SECTION 1
PRECAUTION
This service manual does not describe PRECAUTION.
R

(No.RA027<Rev.001>)1-3
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
2.1 INSTALLATION
2.1.1 Installing the Remote control head (KCH-20R)
The KCH-20R control head is used to remotely operate the
NX-5700/5800 series transceiver.
The KCH-20R is connected to the KCT-71 remote control cable.
The KRK-15B is connected to the NX-5700/5800 RF Deck with
the KCT-71.
2.1.2 Connection image

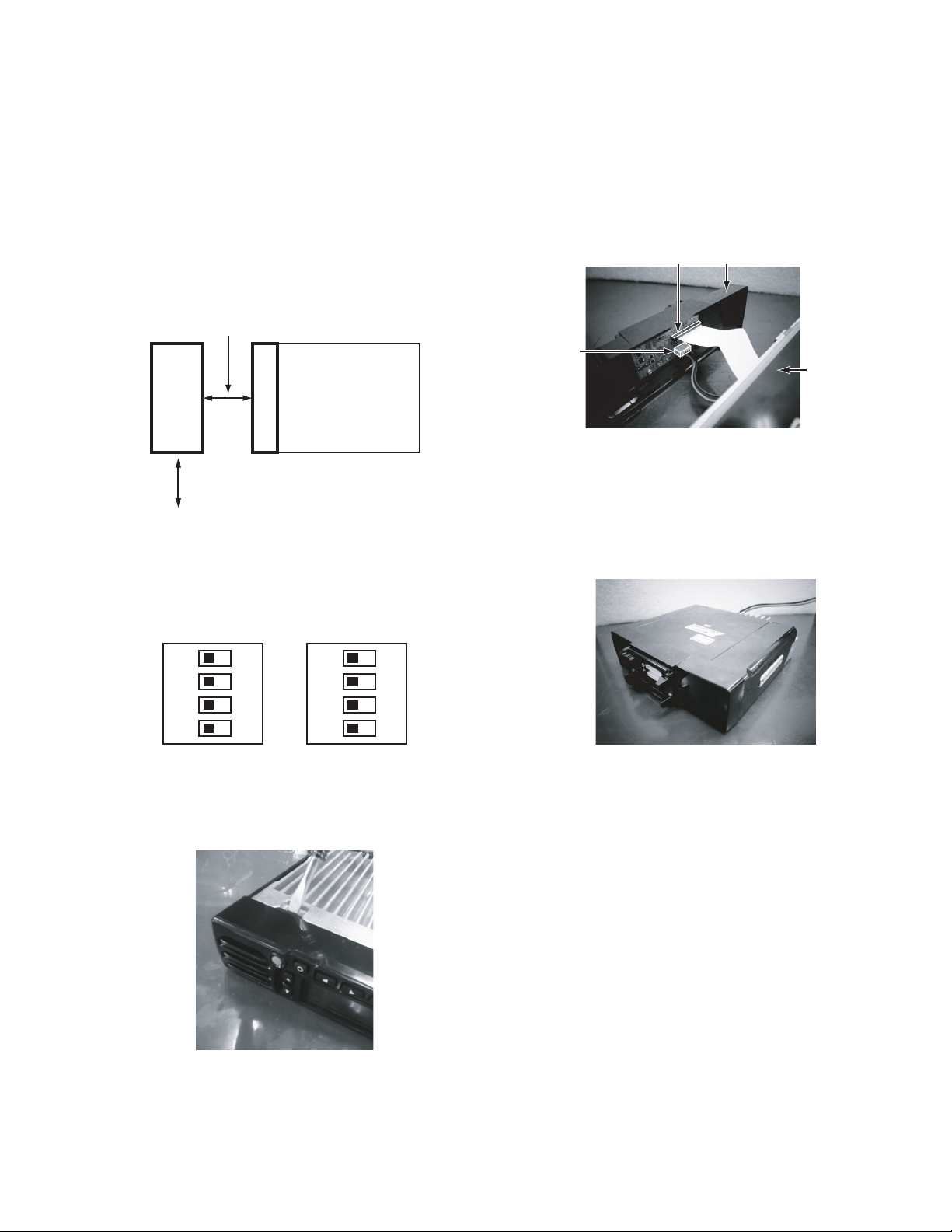

2.1.3 DIP Switch setting
All DIP switches for single remote (KCH-20R and KRK-15B)
must be set as "ON".
2.1.4 Remove the Operation panel from the transceiver
(NX-5700, NX-5800 only)
(1) Lift the two tabs of the panel on the bottom of the transceiv-
er with a flat-head screwdriver and remove the panel from
the chassis. (Fig. 1)
Fig.1
(2) Remove the flat cable from the display unit connector
(CN6) of the panel.
(3) Remove the cable from the display unit connector (CN2) of
the panel.
2.1.5 Install the KRK-15B onto the NX-5700, NX-5800 RF
Deck
(1) Insert the cable into the interface unit (XC3-0090-20) con-
nector (CN2) of the KRK-15B.
(2) Insert the flat cable into the interface unit connector (CN1)
of the KRK-15B. (Fig. 2)
Fig.2
Note:
The blue line of the flat cable and the flap of connector
are as same side.
After inserting, the flat cable should be locked with the
connector (flap) surely.
(3) Fit the KRK-15B with four tabs onto the front of the chassis.
(Fig. 3)
Fig.3
Note:
When installing the KRK-15B onto the front of the chas-
sis, hold down the flat cable with your fingers to prevent
it from being caught.
NX-5700/5800
RF Deck
KCT-71
Remote Control Cable
KRK-15B
Featured Panel
KCH-20R
KCT-72
Connection Cable
KCH-20R
1 2 3 4 ON
KRK-15B
1 2 3 4 ON
KRK-15BCN1
CN2
RF Deck

1-4 (No.RA027<Rev.001>)

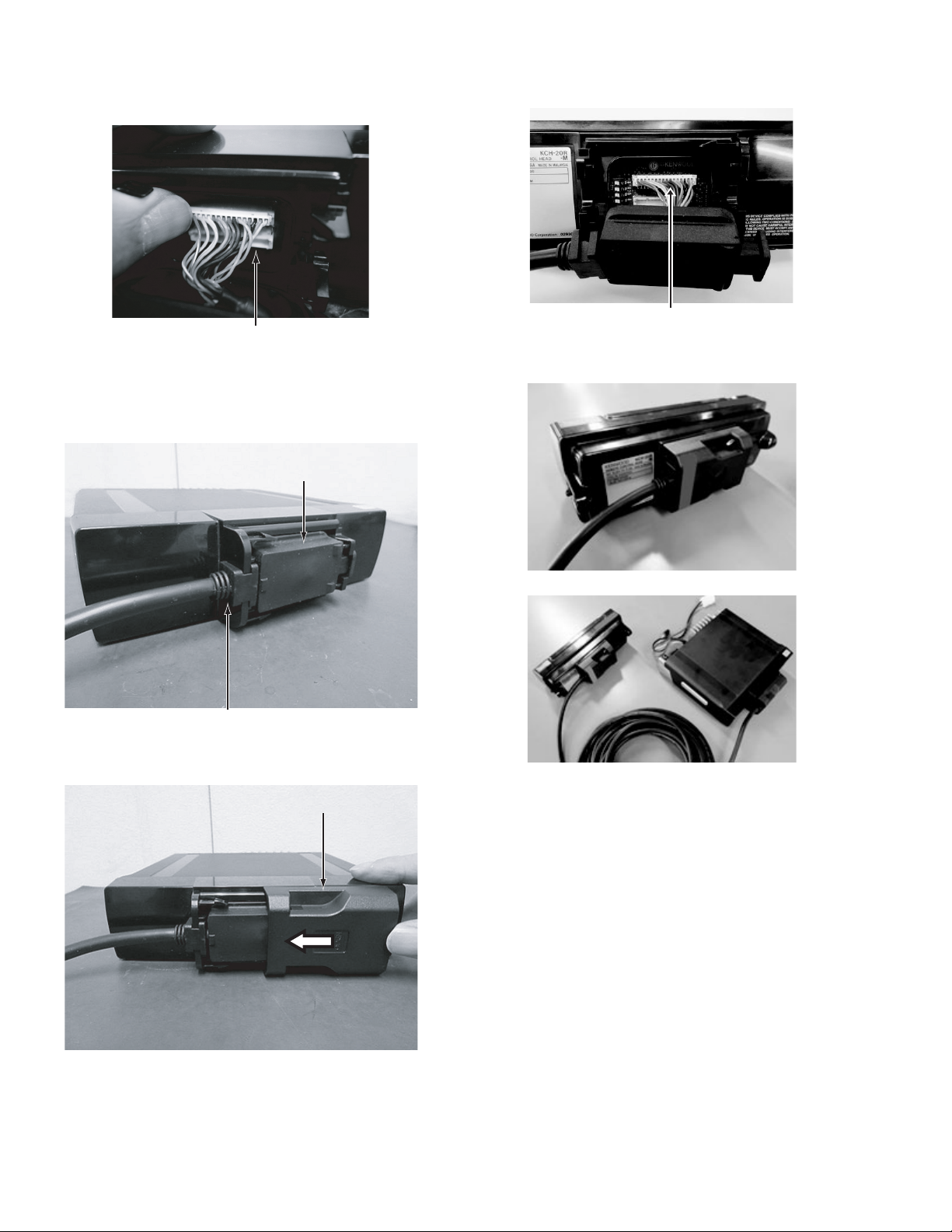

2.1.6 Connect the KRK-15B and KCH-20R with the KCT-71
(1) Insert one lead wire with connector of the KCT-71 into the
connector (CN3) of the KRK-15B. (Fig. 4)
Fig.4
(2) Secure the cable bush as shown in the figure 5 and attach
the waterproof packing.
Note:
There is a direction to the installing of the cable bush.
Fig.5
(3) Slide the molding cover so as not to float the waterproof
packing and attach so that it is locked. (Fig. 6)
Fig.6
(4) Insert the other lead wire with connector of the KCT-71 into
the connector (CN5) of the KCH-20R.(Fig. 7)
Fig.7
(5) Attach the waterproof packing and molding cover in the
same way of step 2 and 3.(Fig. 8) (Fig. 9)
Fig.8
Fig.9
KCT-71 lead wire with connector
KRK-15B
CN3
Waterproof Packing
Cable Bush
Molding Cover
KCH-20R
KCT-71 lead wire with connector
CN5

(No.RA027<Rev.001>)1-5
2.1.7 Fixing method of KCH-20R microphone cord
This mounting hardware is intended to protect the modular
jack under use environment.
(Microphone can be used without this mounting hardware.)
Microphone cord should be fixed so that the curl portion is lower
side.
Refer to the following figs
Fig.10
Fig.11
Fig.12
PAN HEAD SEMS SCREW
(N67-3006-43)
MOUNTING HARDWARE
(J2B-0051-00)
Fixing the Microphone cord
NG: Curly cord upper side OK: Curly cord lower side

1-6 (No.RA027<Rev.001>)
2.2 CIRCUIT DESCRIPTION (KCH-20R)
2.2.1 Overview
KCH-20R is a remote control panel with 2.75" LCD and extended keys. KCH-20R has built-in Bluetooth and micro SD card slot. The
Bluetooth supports HSP. KCH-20R has two circuit units. XC3-010 is Sub unit and XC3-011 is Interface unit. There consist of a power
supply circuit, audio circuit, control circuit and the Bluetooth circuit.
2.2.2 Power supply circuit
SB is provided from Mobile Deck (NX-5700 or NX-5800) when Mobile DECK turns on. SB is connected to modular jack , IC1 and IC2.
IC1 regulates SB voltage to 5.36V(53DC) and IC2 regulates SB voltage to 3.9V(39DC). Both ICs operate whenever SB is supplied.
53DC is the power supply for Class-D Audio Amplifier, CAN transceiver, IC8(50D) and each LED.
39DC is the power supply for all DC/DC and regulators except for IC1(53DC), IC2(39DC).
A1 regulates 39DC to 1.2V(12D) and 12D provides the power to MPU core.
IC5 outputs 1.8V(18D) while 12D is operating. 18D provides the power to MPU I/O, DDR, Codec DSP and enables each regula-
tor(IC3, IC4, IC6). 18D_Flash is the power supply for Flash memory. After 33D turns on, IC10(switch IC) operates and 18D_Flash
starts working.
IC8 regulates 5.36V(53DC) to 5.0V(50D) and provides the power to Level shift circuit and Audio circuit. 50D is enabled while 18D is
operating.
IC3, IC4 and IC6 is provided 3.9V(39DC) and while 18D is operating, each IC outputs 3.0V(30LCD), 3.3V(33A) and 3.3V(33D).
30LCD is the power for LCD module. 33A is the power for Audio circuit and Codec analog section. 33D is the power for MPU I/O,
Codec I/O, CAN transceiver and Flash memory.
IC9 regulates 3.9V(39DC) to 3.3V(33SD). 33SD is the power for SD Circuit. When SD Card is used, MPU outputs 33SDC High signal
and IC9 starts working.
Power supply diagram is described Fig. 1.

(No.RA027<Rev.001>)1-7
Fig.1 Power supply diagram
External Interface
XC3-011
Level shift circuits,
Audio circuits
MPU core
Flash memory
CAN transceiver,
Flash memory,
Bluetooth circuits
CAN transceiver
Modular Interface
XC3-010
CN5 SB
IC1
5.4V DC/DC
53DC
CN13
CN1
Class-D Audio Amplifier
18D
IC8
5V AVR
53DC
50D
SB
12D
39DC
IC2
3.9V DC/DC
12D Q1
Level shift
A1
1.2V DC/DC
IC5
1.8V DC/DC
18D
IC10
Switch
18D_Flash
33D
IC6
3.3V AVR
33D
18D
18D
18D
“33SDC”
3.3V AVR
IC9 33SD SD Circuit
LCD module
30LCD
IC3
3.0V AVR
3.3V AVR
IC4 33A Audio circuits,
Codec Analog section
MPU I/O,CodecI/O,
MPU,Mobile DDR,
Codec DSP,
Bluetooth circuits
Key backlight/LED indicator

1-8 (No.RA027<Rev.001>)
2.2.3 Audio circuit
2.2.3.1 RX Audio
KCH-20R has two RX Audio input channels, AFIA+/- and AFIB+/-. And the MPU selects the one of the two channels, and then applied
to digital potentiometer IC (IC22/XC3-010). (The channel to use is notified by serial communication from RF Deck.)
The digital potentiometer IC adjusts RX Audio signal amplitude equal to the value of selected volume step, and output it.
RX signal through digital potentiometer IC is put into codec IC (IC17/XC3-010). KCH-20R has several output method of RX audio
signal (Speaker port, Bluetooth headset, and micro SD card recording). When use speaker output path, this audio signals pass through
to output port of codec IC. When use other output method, codec IC convert this signal to digital data, and transmits to the MPU (IC14/
XC3-010).
That analog output signal from codec IC is converted to balanced signal by operational amplifier (IC18/XC3-010).
And converted signal goes to Class-D audio amplifier (IC2/XC3-011). The audio amplifier is controlled to shut-down or power-up, by
MPU.
2.2.3.2 TX Audio
KCH-20R has four microphone input channels. First one is connected to modular interface (J2/XC3-010), second is connected to
external interface connector (CN2/XC3-011). Third is Bluetooth headset. Fourth is micro SD recording playback. When use modular
interface or external interface, these two microphone signals are selected by analog multiplexer IC (IC29/XC3-010), and applied to
microphone amplifier. The microphone amplifier consists of operational amplifier and AGC. And its output is connected to Codec IC.
The total gain of amplifiers in Codec IC is set to 0dB. The output signal of codec IC is converted to balanced signal by operational
amplifier (IC28/XC3-010). The converted signals are switched by analog switch IC (IC35/XC3-010, IC36/XC3-010), and output to ei-
ther MICA+/- or MICB+/-. The output channel is notified from RF Deck by serial communication.

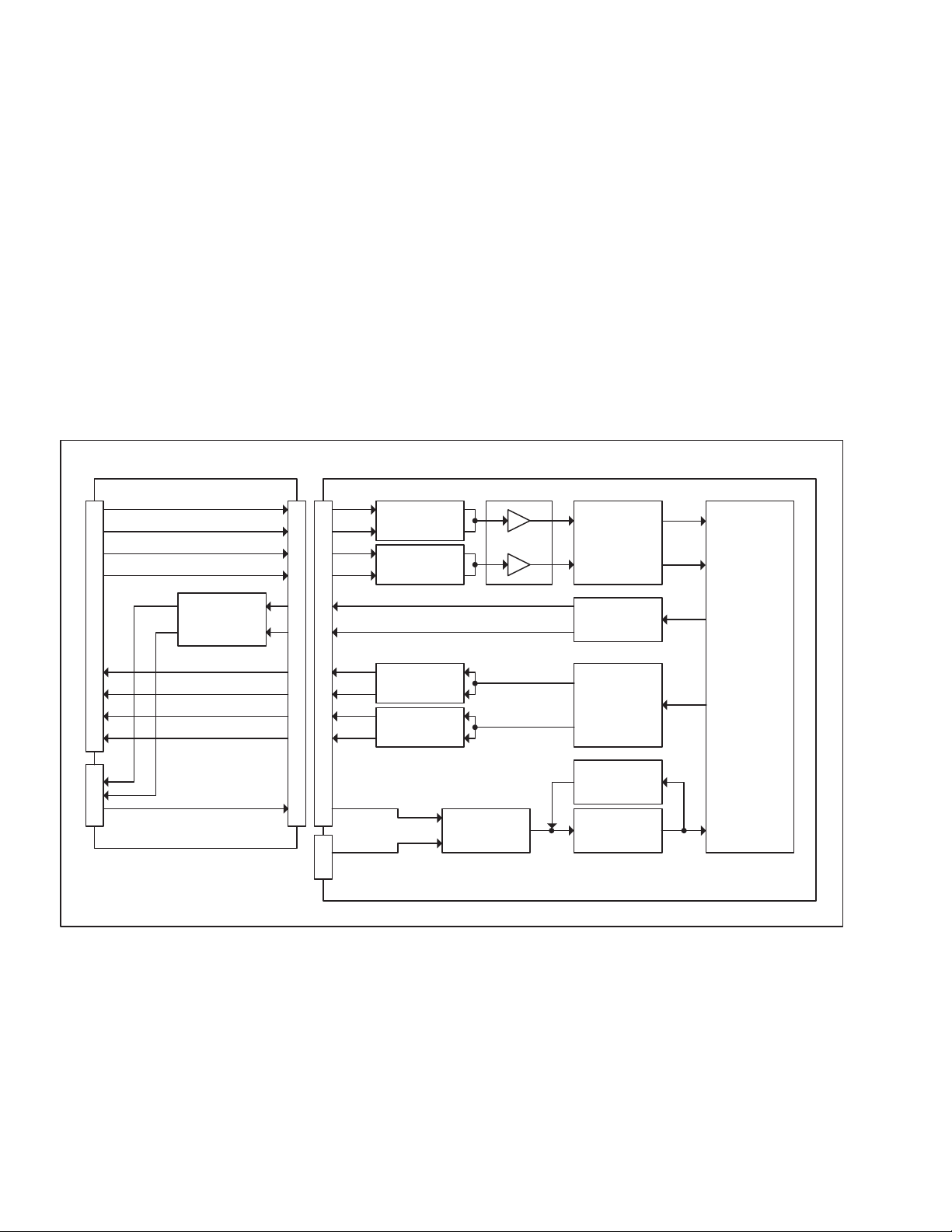

Fig.2 Audio Circuit
2.2.4 Control circuit
The control circuit consists of MPU (IC14/XC3-010) and its peripheral circuits. IC14(XC3-010) mainly performs the followings;
(1) Serial communication between RF deck and KCH-20R.
(2) Controlling the audio circuits including codec IC.
(3) Controlling the display, and micro SD card.
(4) Controlling the Bluetooth circuit.
2.2.4.1 MPU
The MPU is 32bit RISC processor, equipped with peripheral functions. The maximum operating clock of MPU is 288MHz, and power
source are 3.3V/1.8V/1.2V DC. The MPU controls the flash memory, Mobile DDR, the audio circuits, the key-matrix, external I/O cir-
cuit, the display (LCD), the Bluetooth, and the micro SD card.
Analog SW
Analog SW
Digital
Potentiometer
Codec
OP AMP
OP AMP
Analog SW
Analog SW
AGC
Multiplexer
XC3-010XC3-011
CN5 RX Audio CN13
IC2
Audio
Power AMP
TX Audio
CN2
CN1
AFiA+
AFiB+
AFiA-
AFiB-
AFO+
AFO-
MICA+
MICB+
MICA-
MICB-
ACC_MIC
MIC
J2
IC29
IC36
IC35
IC15
IC16
IC19
IC22
IC18
IC28
OP AMP
D37,D38,Q17
IC23
IC17

(No.RA027<Rev.001>)1-9
2.2.4.2 Memory Circuit
Memory circuit consists of the MPU and the Mobile DDR (IC23/XC3-010), the flash memory (IC29/XC3-010). The flash memory has
capacity of 256Mbit that contains the program for the MPU and stores the data. That program can be easily updated from external
devices. The Mobile DDR has capacity of 512Mbit. The MPU copies the program from the flash memory to the Mobile DDR. The MPU
uses the Mobile DDR as a work area.
2.2.4.3 Serial interface between RF deck and KCH-20R
KCH-20R is controlled by serial interface from RF deck. That interface consists of CAN transceiver (IC1/XC3-010), but that does not
support CAN protocol. UART communication is used between CAN transceiver and MPU.
2.2.4.4 LCD control interface
The MPU controls LCD through the LCD interface connector (CN57/XC3-010). LCD is controlled by parallel bus with 16bit data width.
2.2.4.5 Key detection
KCH-20R has 19 keys. The keys except the AUX key and Power key is included in key-matrix circuit. Key-matrix consists of 4 input
ports and 5 output ports. When key is pressed, the MPU starts scanning the keys and detects which key was pressed.
AUX key is connected to MPU independently. The power key is connected to RF deck through the RF deck interface connector (CN5/
XC3-011).
2.2.4.6 External I/O
KCH-20R has external interface connector (CN2/XC3-011). That interface has two output and two input terminals.
The output terminal is open collector type. The input terminal has level shift circuit, it permits input the 5V signal.
2.2.4.7 micro SD circuit
The micro SD card interface consists of 4bit data bus and control signals. Maximum data transfer speed is 36MHz.
2.2.5 Bluetooth Circuit
The main component of the Bluetooth circuit is Bluetooth IC (IC12/XC3-010) and level converter circuit.
The clocks of Bluetooth IC requires 19.2MHz for core and 32.768kHz slow clock (X1/XC3-010 and X2/XC3-010) for UART.
Bluetooth IC communicates to the MPU (IC14/XC3-010) on the HCI UART. Interface of UART & Digital audio (I2S) between the MPU
and the Bluetooth IC, have level conversion at the level converter IC (IC13/XC3-010 and IC11/XC3-010).
The Bluetooth IC is powered by 1.8V and 3.3V which are supplied from 2 discrete external regulators (IC5/XC3-010 and IC6/XC3-
010).
TX/RX frequency is 2400-2483.5MHz (79ch Hopping, 2402-2480MHz, 1MHz step). Transmitting power is +2dBm at Bluetooth an-
tenna input.
Bluetooth antenna is surface mount chip antenna (ANT1/XC3-010), and that is connected to the Bluetooth IC through the LC filter
(L30/XC3-010).
Fig.3 Bluetooth Circuit
Frequency configuration for Bluetooth is following:
There are two LO modes: 2X and Offset LO (OSLO). 2X where LO is 2*RF_FREQ (e.g. when transmitting at 2441MHz it is at
4882MHz). OSLO where LO is at (2/3)*RF_FREQ (e.g. when transmitting at 2441MHz it is at 1627.333MHz).
In RX the 2X is always used.
In GFSK TX if power is 10dBm or more then OSLO is used.
In EDR2 TX if power is -12dBm or more then OSLO is used.
In EDR3 TX if power is -12dBm or more then OSLO is used.
Otherwise 2X is used for TX as well.
Converter
Level
Converter
UART
PCM
Antenna
IC14
MPU
X1
19.2MHz
RF SW
D31/Q8
3.3V
3.3V
IC13
Level
IC11
1.8V 1.8V
IC12
Bluetooth IC
L30
LC Filter
X2
32.768kHz
ANT1
Bluetooth

1-10 (No.RA027<Rev.001>)
2.3 COMPONENTS DESCRIPTION
2.3.1 Sub unit (XC3-0100-20)
2.3.2 Interface unit (XC3-0110-20)
Ref. No. Part Name Description
A1 DC-DC
CONVERTER
DC-DC CONVERTER (12DC)
IC1 MOS IC CAN transceiver IC
IC2 MOS IC DC-DC Converter (39DC)
IC3 MOS IC Voltage regulator (30LCD)
IC4 MOS IC Voltage regulator (33A)
IC5 MOS IC Voltage regulator (18D)
IC6 MOS IC Voltage regulator (33D)
IC7 MOS IC Voltage detector IC
IC8 MOS IC Voltage regulator (50D)
IC9 ANALOG IC Voltage regulator (33SD)
IC10 MOS IC DC switch
IC11 MOS IC Level converter IC
IC12 MOS IC Bluetooth IC
IC13 MOS IC Level converter IC
IC14 MPU IC MPU
IC15,16 MOS IC Analog switch (AF)
IC17 MOS IC Codec IC
IC18,19 MOS IC AF amplifier
IC20 MOS IC Logic control
IC21 MOS IC Logic control
IC22 MOS IC D/A Converter IC
IC23 MOS IC DC/AF amplifier (Vref/AF)
IC24 SRAM IC SDRAM
IC25 MOS IC A/D Converter IC
IC26 MOS IC Analog switch
IC27,28 MOS IC AF amplifier
IC29 MOS IC Analog switch (AF)
IC30 ROM IC Flash memory
IC31 MOS IC Analog switch
IC32 MOS IC Logic control
IC34 MOS IC DC amplifier (Buffer/Vref)
IC35,36 MOS IC Analog switch (AF)
IC37 MOS IC Logic control
IC38 MOS IC LED Driver IC (LCD backlight)
PH1 PHOT
TRANSISTOR
Illuminance sensor
Q1 FET DC switch
Q2,Q3 FET DC switch (Open drain)
Q4 DIGI
TRANSISTOR
DC switch
Q5 TRANSISTOR Buffer amprifier (TCXO)
Q6 DIGI
TRANSISTOR
DC switch
Q7-Q14 FET DC switch
Q15,Q16 FET DC switch
Q17 TRANSISTOR Mic AGC
Q18 FET DC switch
D1, 2 VARISTOR ESD protection
D3 DIODE Reverse current prevention
D4-6 LED LED_Key Backlight
D7 DIODE Reverse current prevention
D8-10 LED LED_Key Backlight
D11 DIODE Reverse current prevention
D12-15 LED LED_Key Backlight
D16 DIODE DC-DC Converter (39DC)
D17 DIODE Reverse current prevention
D18-21 LED LED_Key Backlight
D22 DIODE Reverse current prevention
D23,24 ZENER DIODE Overvoltage protection
D25-28 LED LED_Key Backlight
D29,30 DIODE Reverse current prevention
D31 DIODE DC switch
D32 LED Green-LED_Indicator
D33 LED 3colors-LED_Indicator
D34 DIODE DC Level shifter
D36 DIODE DC Level shifter
D37,38 DIODE ARRAY Mic AGC Detection
D39 DIODE Overvoltage protection
D40 DIODE DC Level shifter
D41 ZENER DIODE Overvoltage protection
D42,43 VARISTOR ESD protection
D44 VARISTOR Current protection
D45,46 VARISTOR ESD protection
D47-51 ZENER DIODE ESD protection
D57 DIODE DC discharge
D58 LED Red-LED_Indicator
D59 DIODE DC smoothing
Ref. No. Part Name Description
IC1 MOS IC DC-DC CONVERTER (53DC)
IC2 ANALOG IC Audio power amplifier (class D)
D1 VARISTOR Current protection
D4 DIODE DC-DC CONVERTER (53DC)
D5 DIODE Reverse current prevention
D6 VARISTOR ESD protection
D7 VARISTOR ESD protection
D8 VARISTOR ESD protection
D9 VARISTOR ESD protection
Ref. No. Part Name Description

(No.RA027<Rev.001>)1-11
2.4 TERMINAL FUNCTION
2.4.1 Sub unit (XC3-0100-20)
Pin No. Name I/O Function
CN1
1 SB I Switched power supply
2 SB I Switched power supply
3 SB I Switched power supply
4 SB I Switched power supply
5 NC - No connection
6 GND - Ground
7 GND - Ground
8 GND - Ground
9 AFo+ O AF signal output plus
10 ACC_ME - AUX MIC ground
11 AFo- O AF signal output minus
12 ACC_MIC I AUX MIC signal input
13 AFiA+ I AF signal input plus_A
14 MICA+ O MIC signal output plus_A
15 AFiA- I AF signal input minus_A
16 MICA- O MIC signal output minus_A
17 AFiB+ I AF signal input plus_B
18 MICB+ O MIC signal output plus_B
19 AFiB- I AF signal input minus_B
20 MICB- O MIC signal output minus_B
21 /PRST I Reset signal
22 /PSW O Detection signal output of power switch
23 AUXI0 I AUX input_0
24 AUXI1 I AUX input_1
25 AUXO0 O AUX output_0
26 AUXO1 O AUX output_1
27 H_1/2 I Head Number setting terminal
28 /AMP_PD I Power-Down signal of the Audio Amplifi-
er
29 GND - Ground
30 GND - Ground
31 CAN+ I/O CAN data plus
32 CAN- I/O CAN data minus
33 GND - Ground
34 GND - Ground
35 53DC I 5.4V input
36 53DC I 5.4V input
CN57
1 VSSA - Ground
2 VSSA - Ground
3 VSSA - Ground
4VCCO3Voutput
5VCCO3Voutput
6 VSSD - Ground
7 VSSD - Ground
8 VSSD - Ground
9 IOVCC O 1.8V output
10 IOVCC O 1.8V output
11 RDX O LCD driver RD signal
12 WRX O LCD driver WR signal
13 DCX O LCD driver data/command switch signal
14 CSX O LCD driver chip select signal
15 DB1 I/O LCD driver data output
16 DB2 I/O LCD driver data output
17 DB3 I/O LCD driver data output
18 DB4 I/O LCD driver data output
19 DB5 I/O LCD driver data output
20 DB6 I/O LCD driver data output
21 DB7 I/O LCD driver data output
22 DB8 I/O LCD driver data output
23 DB10 I/O LCD driver data output
24 DB11 I/O LCD driver data output
25 DB12 I/O LCD driver data output
26 DB13 I/O LCD driver data output
27 DB14 I/O LCD driver data output
28 DB15 I/O LCD driver data output
29 DB16 I/O LCD driver data output
30 DB17 I/O LCD driver data output
31 CABC - No connection
32 RESX O LCD driver reset signal
33 IM0 O Interface mode select
34 LEDA O 54M output (LED light anode)
35 LED1 I LED light cathode 1
36 LED2 I LED light cathode 2
37 LED3 I LED light cathode 3
38 LED4 I LED light cathode 4
CN60
1 ENC3 I Rotary Switch Input
2 ENC2 I Rotary Switch Input
3 ENC0 I Rotary Switch Input
4 ENC1 I Rotary Switch Input
5 GND - Ground
6 GND - Ground
7 50D O 5.0V output
8 VOLDET I Volume Level Input
J1 (microSD)
1 DAT2 I/O Data 2
2 CD/DAT3 I/O Data 3
3 CMD I/O Command input/output
4 VDD O 3.3V output
Pin No. Name I/O Function

1-12 (No.RA027<Rev.001>)
2.4.2 Interface unit (XC3-0110-20)
5 CLK O Clock output
6 VSS - Ground
7 DAT0 I/O Data 0
8 DAT1 I/O Data 1
9 CD I/O Card detect switch
10 COMMON - Ground
11 GND1 - Ground
12 GND2 - Ground
J2 (MIC jack)
1 BLC_4/
D+2
I/O Back light control signal / USB PHY data
plus
2 SB_2 O Switched power supply
3GND-Ground
4PTT/
TXD_3
I/O PTT input / Serial data output
5 ME_3 - MIC ground
6 MIC_3 I MIC signal input
7HOOK/
RXD/D-2
I/O Hook detection / Serial data input / USB
PHY data minus
8DM/
KVL_3
I/O MIC data detection
Pin No. Name I/O Function
CN13
1 53DC O 5.4V output
2 53DC O 5.4V output
3GND -Ground
4GND -Ground
5 CAN- I/O CAN data minus
6 CAN+ I/O CAN data plus
7GND -Ground
8GND -Ground
9 /AMP_PD O Power-Down signal of the Audio Amplifi-
er
10 H_1/2 O Head Number setting terminal
11 AUXO1 I AUX output_1
12 AUXO0 I AUX output_0
13 AUXI1 O AUX input_1
14 AUXI0 O AUX input_0
15 /PSW I Detection signal input of power switch
16 /PRST O Reset signal
17 MICB- I MIC signal input minus_B
18 AFoB- O AF signal output minus_B
19 MICB+ I MIC signal input plus_B
20 AFoB+ O AF signal output plus_B
21 MICA- I MIC signal input minus_A
22 AFoA- O AF signal output minus_A
Pin No. Name I/O Function
23 MICA+ I MIC signal input plus_A
24 AFoA+ O AF signal output plus_A
25 ACC_MIC O AUX MIC signal output
26 AFi- I AF signal input minus
27 ACC_ME - AUX MIC ground
28 AFi+ I AF signal input plus
29 GND - Ground
30 GND - Ground
31 GND - Ground
32 NC - No connection
33 SB O Switched power supply
34 SB O Switched power supply
35 SB O Switched power supply
36 SB O Switched power supply
CN2 (ACC Interface)
1GND -Ground
2 SP+ O Speaker output
3 SP- O Speaker output
4 Ao2 O AUX output 2
5 Ao1 O AUX output 1
6 Ai2 I AUX input 2
7 Ai1 I AUX input 1
8 AUX_ME - AUX MIC ground
9 AUX_MIC I AUX MIC signal input
10 GND - Ground
11 SB O Switched power supply
12 IGN I Ignition sense input
13 GND - Ground
CN5
1 /PRST I Reset signal
2 /PSW O Detection signal output of power switch
3 MICA+ O MIC signal output plus_A
4 MICA- O MIC signal output minus_A
5 MICB+ O MIC signal output plus_B
6 MICB- O MIC signal output minus_B
7GND -Ground
8 NC - No connection
9 SB I Switched power supply
10 NC(IGN) - No connection (Ignition sense output)
11 AFiA+ I AF signal input plus_A
12 AFiA- I AF signal input minus_A
13 AFiB+ I AF signal input plus_B
14 AFiB- I AF signal input minus_B
15 CAN+ I/O CAN data plus
16 CAN- I/O CAN data minus
Pin No. Name I/O Function

(No.RA027<Rev.001>)1-13
SECTION 3
DISASSEMBLY
3.1 Precautions for Disassembly
3.1.1 Remove the top cover from the shield cover
(1) There are four shield covers on the Sub unit and interface
unit, the top covers can be removed.
(2) Use tweezers to slightly lift the edge of the top cover. <1>
Note:
Push evenly on the top cover and be careful that you
do not bend it as you install it on the shield cover.
(3) As you do step 2 above, vary the position you hold the top-
cover as you lift it, and remove the top cover <2>.
Note:
Once the top cover is removed, it cannot be used
again.
SECTION 4
ADJUSTMENT
This service manual does not describe ADJUSTMENT.
(There is no adjustment item on KCH-20R.)
Shield cover
Subunit
Interface unit
<<1><1>
<2>
<2>
<2>

1-14 (No.RA027<Rev.001>)
SECTION 5
TROUBLESHOOTING
5.1 Fault Diagnosis of the BGA (Ball Grid Array) IC
Overview
A flowchart for determining whether or not the transceiver can be powered on (the LCD does not function even if the power
switch is turned on) due to broken BGA parts.
BGA parts
MPU (IC14), mobile DDR (IC24), Flash memory (IC30)
Checking power supply voltage
Checking voltage
Points to be checked
Points to be checked
Points to be checked
Normal voltage
Normal voltage
1.2V
19.2MHz
12D R68
1.8V18D R74
3.3V
1.8V
33D R66
1.8V18D_Flash R101
Power supply of each device is connected through the coil.
[MPU]
12D: L9, L10, L11, L12, L13
18D: L14, L15
33D: L20
[mobile DDR]
18D: L33
[Flash Memory]
33D: L35
18D_Flash: L34
Checking the clock
Checking the clock
Normal voltage (1.2V)
19.2MHz
MPU side R70
When a normal
value is confirmed.
When a normal
value is confirmed.
When a normal
value is confirmed.
Checking the Reset/Control signal
Checking the control signal input to the MPU
/RST D34 (Anode side)
The BGA parts are not broken.
Checking for an abnormal point
12D has an abnormal voltage.
[MPU]
Remove L9~L13 to check the voltage of the 12D.
If the voltage becomes normal, the MPU is broken.
18D has an abnormal voltage.
[MPU]
When an abnormal
value is confirmed.
When an abnormal
value is confirmed.
When an abnormal
value is confirmed.
Checking SB (Battery) voltage
Points to be checked Normal voltage
13.6V 15%
SB CN2
The BGA parts are not broken.
If the CN2 is 0V or unstable, check the SB
output of NX-5700/5800 Main unit.
When an abnormal
value is confirmed.
When a normal
value is confirmed.
[mobile DDR]
[MPU]
NOTE:
A1(12D DC/DC Converter Device) is fragile
in the scratch.
Be careful when you touch this parts.
NOTE:
Because it depends on the battery performance, it may be
less than the voltage value that has been described above.
Remove L14 and L15 to check the voltage
of the 18D.
If the voltage becomes normal, the MPU is broken.
Remove L33 to check the voltage of the 18D.
If the voltage becomes normal, the mobile
DDR is broken.
33D has an abnormal voltage.
Remove L20 to check the voltage of the 33D.
If the voltage becomes normal, the MPU is broken.
[Flash memory]
Remove L35 to check the voltage of the 33D.
If the voltage becomes normal, Flash memory
is broken.
18D_Flash has an abnormal voltage.
[Flash memory]
Remove L34 to check the voltage of the 18D_Flash.
If the voltage becomes normal, Flash memory
is broken.
If the voltage is not corrected, there is a problem
other than the BGA parts.

(No.RA027<Rev.001>)1-15
Checking the output signal
from the MPU
When an abnormal
value is confirmed.
When an abnormal
value is confirmed.
When an abnormal
value is confirmed.
When an abnormal
value is confirmed.
When an abnormal
value is confirmed.
When a normal
value is confirmed.
When a normal
value is confirmed.
When a normal
value is confirmed.
The LCD displays control
It is unlikely that the BGA parts are broken.
Points to be checked Normal voltage
1.8V
Points to be checked Normal voltage
Points to be checked Normal voltage
/CS4 CP7 (8 pin) After power-on, and
1.8V 0V 1.8V,
1.8V fixed later
/CS4 has an abnormal voltage.
Check each of the following items.
Check to see the terminal of L37 and CP7.
Remove the LCD Module.
As a result, if the abnormality yet,
the MPU or Flash memory or mobile DDR may
be broken.
If the IC37 (2 pin) is 0V,
the MPU or Flash memory or mobile DDR
may be broken.
Points to be checked Normal voltage
The BGA parts are not broken.
Remove the LCD Module.
If the voltage becomes normal, the LCD Module
is broken.
The LCD displays “INIT ERROR 1”. An error occurs when the mobile DDR internal
RAM reads or writes.
The mobile DDR may be broken.
Check the flowchart from beginning.
1) /RST Reset
2) /FRST LOW
LOW
LOW
LOW
Reset
Reset
3) /CS2_2 Active
4) LCDRST
5) /CS_4
:MPU reset signal
:Flash memory reset signal
:Flash memory chip select signal
:LCD reset signal
:LCD controller chip select signal LOW Active
Descriptions of signal names
When a normal
value is confirmed.
Points to be checked Normal voltage
/CS2_2 CN48 After power-on,
and
1.8V 0V 1.8V,
1.8V fixed later
Remove R215.
When a normal
value is confirmed.
When an error display appears on the LCD
Checking the control signal output from the MPU.
18D L42
30LCD L43
1.8V
3.0V
1.8V
The LCD displays control
LCDRST IC37 (4 pin)
If the voltage of MPU side becomes 0V or 1.8V,
MPU is broken.
If the voltage of MPU side becomes normal,
Flash memory or chip resistor (R215) may be broken.
When a normal
value is confirmed.
/FRST D40 (Anode side)
If the /FRST is always 0V ,the MPU is broken.
Remove D40 to check the voltage of Flash
memory side R208.
If the voltage becomes abnormal, Flash
memory is broken.

1-16 (No.RA027<Rev.001>)
5.2 Failure diagnosis of the Bluetooth section
Overview:
When the Bluetooth function does not operate, use this flowchart to determine the problem.
I can not pair with the Bluetooth (BT) headset.
No
Yes
Bluetooth antenna (ANT1)
LC filter (L30)
Bluetooth IC (IC12)
Level conversion IC (IC11, IC13)
TCXO 19.2MHz (X1)
32.768kHz clock (X2)
18D Regulator (IC5)
33D Regulator (IC6)
MPU IC (IC14)
L30 ANT1
I2S
LC
Replace the IC5,L4,C47,C49,
R74,R45,R51,L25,L26.
Replace the IC6,L2,R71,C59,
C38,C43,R66,L24,L27.
[/BT_SHDN line circuit
Major parts for a Bluetooth circuit
Make sure the BT headset have enough power?
Turn on your BT headset?
Put your BT headset into pairing mode?
Verify the BT power supply.
18D L25 : 1.8V
When a normal
condition is confirmed.
When an abnormal
condition is confirmed.
Verify the BT power supply.
33D L24 : 3.3V
When a normal
condition is confirmed.
When an abnormal
condition is confirmed.
Verify the 32.768kHz clock for the BT.
X2(3Pin) : Square waveform,
32.768kHz, 1.8Vp-p
When a normal
condition is confirmed.
Verify the BT control signal
(/BT_SHDN).
R132 : BT ON : 1.8V
BT OFF : 0V
When a normal
condition is confirmed.
When an abnormal
condition is confirmed.
Replace the R132.
is faulty]
When an abnormal
condition is confirmed. [The 32.768kHz clock
circuit is faulty]
Replace the X2,L28,C133,
R134.
[The BT power supply line
33D circuit is faulty]
When an abnormal
condition is confirmed.
When an abnormal
condition is confirmed.
[The MPU IC is faulty]
Replace the PCB.
Replace the PCB.
[The BT IC is faulty]
Replace the PCB.
[The MPU or BT IC is faulty]
When an abnormal
condition is confirmed.
[The BT power supply line
18D circuit is faulty]
When an abnormal
condition is confirmed.
Replace the PCB.
[The MPU or BT IC is faulty]
Try again pair with BT headset.
Charge the BT headset. Turn on your BT headset
and bring it within one to two meters.
Antenna
Bluetooth
Filter
Clock
32.768kHz
X2
Bluetooth
IC
IC12
UART
I2S
IC13
Level
conversion
IC
IC11
Level
conversion
IC
19.2MHz
TCXO
X1
IC
MPU
IC14
UART

(No.RA027<Rev.001>)1-17
for the BT. (19.2M_BT)
C108 : Sine waveform,
19.2MHz, 0.2 to 1.2 Vp-p
Verify the BT control signal (RXD0).
IC13 (16 pin):
Square waveform UART data of
3.3V logic.
Baud rate:
Default: 115.2kbps
After: 3.967Mbps.
[The 19.2MHz clock is faulty]
Replace the X1, R60, R47,
R48, C36, C39
Still replace the PCB in the
case of abnormal condition.
Verify the BT control signal (TXD0).
IC13 (15 pin):
Square waveform UART data of
3.3V logic.
19.2MHz,1.2Vp-p
of 1.8V logic
Still replace the PCB in the
[The BT_RX (TXD0)
signal (BT_TX).
[The RXD0 (BT_TX)
Replace the IC13, CP2.
Replace the ANT1, L45,C156,
R142, R147, L30, C138
Descriptions of signal names
(1) 33D: BT IC 3.3V power supply
(2) 18D: BT IC 1.8V power supply
(3) TXD0: BT serial data line connected to UART TX of MPU IC (MPU to BT IC)
(4) RXD0: BT serial data line connected to UART RX of MPU IC (BT IC to MPU)
(5) BT_RX: BT serial data line connected to UART RX of BT IC (MPU to BT IC)
(6) BT_TX: BT serial data line connected to UART TX of BT IC (BT IC to MPU)
(7) /BT_SHDN: BT active control of MPU IC (MPU to BT IC) High: Active, Low: Reset
[The BT IC is faulty]
Replace the PCB.
Replace the R67, C52, R72, R73,
Q5, R80, R83, C65, L8, C67, C71,
R85, Q8, R88,R89, R92, R96,
Q11, C108
When a normal
condition is confirmed.
Verify the 19.2MHz clock circuit When an abnormal
condition is confirmed.
When a normal
condition is confirmed.
IC13 (6pin) or CN30 :
Square waveform UART data
Baud rate:
Default: 115.2kbps
After: 3.967Mbps.
When a normal
condition is confirmed.
When an abnormal
condition is confirmed.
When an abnormal
condition is confirmed.
When a normal
condition is confirmed.
Replace the ANT Matching Parts.
When an abnormal
condition is confirmed.
[The MPU or BT IC is faulty]
Replace the PCB.
line circuit is faulty]
condition is confirmed.
When a normal
of 1.8V logic.
Square waveform UART data
IC13 (5 pin) or CN31:
Verify the BT control
When an abnormal
condition is confirmed.
condition is confirmed.
When an abnormal
Replace the IC13.
line circuit is faulty]
When an abnormal
condition is confirmed.
condition is confirmed.
When a normal
When an abnormal
condition is confirmed.
the BT is faulty]
[The 19.2MHz clock circuit for
condition is confirmed.
When an abnormal
condition is confirmed.
When a normal
C52 : Square wave,
Verify the 19.2MHz clock When an abnormal
condition is confirmed.
[The MPU IC is faulty]
case of abnormal condition.
[The BT IC is faulty]
Replace the PCB.
[The BT IC is faulty]
Replace the PCB.
[The MPU IC is faulty]
Replace the PCB.
Verify the BT control signal (BT_RX)
Replace the CP2.

1-18 (No.RA027<Rev.001>)
5.3 Replacing Sub Unit
Sub Unit Information
Method of confirming "Orginal Separate Unit" and "Service Separate Unit"
Supplied Accessories of "Service Sub Unit"
"Service Separate Unit" Data
The following data is written on the service unit.
•Firmware
After Changing the PCB
After changing the printed circuit board, update Firmware following the instructions.
If you write different Market Firmware, there are times communication with the FPU is not possible.
(1) Connection procedure
Connect the transceiver to the personal computer using the programming interface (KPG-46U or KPG-46X).
(2) Programming
a) Start up the firmware programming software (KENWOOD Firmware Loder).
The KFL.exe exists in the KPG-D1/D1N installed folder.
b) Set the baud rate to "auto" or 1152000, 576000, 115200, and 57600.
c) Set the firmware to be upgrade by file name item.
d) Turn the transceiver power ON, and enter the firmware programming mode. *Note
e) Check the connection between the transceiver and the personal computer, and make sure that the transceiver is in the Pro-
graming mode.
f) Press "Write" button in the window.
When the transceiver starts to receive data, the [LOADING] display on LCD.
The Firmware is written to DECK (NX-5700/NX-5800) and KCH-20R at the same time.
g) If writing ends successfully, the checksum is calculated and a result is displayed.
*Note:
Model Name Orginal
Sub Unit Number
For Service
Sub Unit Number
KCH-20R XC3-0100-20 XC3-0100-21
Item (Including Parts Number) Quantity
Sub Unit (XC3-010) 1
Protecting Sheet (H21-0792-04) 1
Individual Box (H5A-0312-00) 1
XC3-010 Foil side
0-20
0-21
R501
-
0
E4:Shield Case for
Digital Block
E2:Shield Case for
DC/DC Block
E3:Shield Case for
Bluetooth Block
Mode Operation
Firmware programming
mode
• [AUX (Orange)] + Power ON
• [ ] + Power ON
Select the “Firmware Prog” using the [] / [] key.
Press the [ ] key.
• If Write is performed by KFL, Firmware programming mode will start automatically.

A
1
BCDEFG
2
3
4
5
6
7
8
9
10
HIJKLMNOPQ
(No.RA027<Rev.001>) 2-1
SUB UNIT (XC3-0100-20)
SCHEMATIC DIAGRAM
GREEN-LED_INDICATOR
D32
SUB UNIT:XC3-0100-20
INTERFACE UNIT(XC3-0110-20) CN13
MIC AGC
DC SW
DC SW
Q13-14
DC SW
Q10,12,15
DC SW
DC SW
Q8,11
DC SW
Q7,9
(TCXO)
BUFFER AMP
Q5
DC SW
Q4,6
Q2,3
DC SW (OPEN DRAIN)
DC SW
ILLUMINANCE SENSOR
(LCD BACK LIGHT)
LED DRIVER IC
LOGIC CONTROL
IC35-36
ANALOG SW (AF)
(BUFFER/VREF)
DC AMP
LOGIC CONTROL
ANALOG SW
FLASH ROM
ANALOG SW (AF)
AF AMP
AF AMP
ANALOG SW
A/D CONVERTER IC
IC25
SDRAM
(VREF/AF)
DC/AF AMP
D/A CONVERTER IC
IC22
IC20,21
LOGIC CONTROL
AF AMP
AF AMP
CODEC IC
ANALOG SW (AF)
ANALOG SW (AF)
MPU
BLUETOOTH IC
IC13
LEVEL CONVERTER IC
IC11
LEVEL CONVERTER IC
DC SW
VOLTAGE REGULATOR (33SD)
IC8
VOLTAGE REGULATOR (50D)
VOLTAGE DETECTOR IC
IC6
VOLTAGE REGULATOR (33D)
VOLTAGE REGULATOR (18D)
IC5
IC4
VOLTAGE REGULATOR (33A)
VOLTAGE REGULATOR (30LCD)
IC3
D16,IC2
IC1
CAN TRANSCEIVER IC
D59
DC SMOOTHING
DC DISCHARGE
D57
CURRENT PROTECTION
D44
ESD PROTECTION
D42-43,45-51
PROTECTION
OVER VOLTAGE
D39,41
D37,38
MIC AGC DETECTION
DC LEVEL SHIFTER
DC LEVEL SHIFTER
DC LEVEL SHIFTER
D33
3COLOR-LED_INDICATOR
D58
RED-LED_INDICATOR
D31
DC SW
D29,30
REVERSE CURRENT PREVENTION
D23,24
OVER VOLTAGE PROTECTION
DC-DC CONVERTER (39DC)
D6,10,15,21,27,28
LED_KEY BACKLIGHT
D14,20,26
LED_KEY BACKLIGHT
D5,9,13,19,25
LED_KEY BACKLIGHT
D4,8,12,18
LED_KEY BACKLIGHT
D3,7,11,17,22
PREVENTION
REVERSE CURRENT
D1,2
ESD PROTECTION
DC-DC CONVERTER (12DC)
5.32V
1.80V
3.00V
1.81V
1.82V
3.90V
13.5V
STANDBY:0V
RX:0V
TX:3.24V
MicA_EN
2.50V
3.30V
0V
TX:71.6mVrms
TX:73.2mVrms
TX:5mVrms
TX:132.6mVrms
TX:77mVrms
1.65V
STANDBY:0V
RX:0V
TX:0V
AFiB_EN
STANDBY:0V
RX:3.24V
TX:0V
AFiA_EN
RX:149.1mVrms
RX:149.0mVrms
RX:150.3mVrms
RX:150.2mVrms
RX:267.5mVrms
TX:73.2mVrms
OFF:0V
ON:1.80V
BT
OFF:0V
ON:1.80V
BT
3.29V
1.80V
3.29V
1.80V
TX:70.8mVrms
TX:72.6mVrms
RX:66.6mVrms
RX:67.6mVrms
RX:802.5mVrms
RX:802.5mVrms
5.00V
5.34V
2.99V
3.29V
1.81V
3.30V
3.29V
1.80V
1.19V
3.92V
LED ON:2.47V
LED ON:2.61V
LED ON:3.53V
2.45V
3.42V
G
H:USB
L:UART
IC31
(Service)
-
0-21
SB
GND
DM/KVL
Shield Case For OMAP
RB G R
AUXO1
AUXO0
Power Switch
AUXBackMenuHomeSide2Side1
Customize1Customize2Function
Customize3LeftRightUpDown
CustomizeCCustomizeBCustomizeA
(AUX_MiC)
(AUX_ME)
Shield Case For 39DC
Customize4
NC7
NC6
NC5
NC4
NC3
NC2
NC1
A25
A24
IC11,IC13
1.8V
3.3V3.3V
L=Bn An
DIRn H=An Bn
LEVEL CONVERT
1.8V(An)-3.3V(Bn)
R501
0-20
Destination
FOr BYTE PORT
BT ANT
Shield Case For BT
$CN10,$CN11,$CN16,$CN17,$CN118,$CN19
Type0 Display Type Select
PCB VER
TP For Production
Internal Pull-Up
Vref
33SD
33SD
MicB_EN
MicB_EN
TXD2
50D
50D
33A
33A
33A
33A
39DC
39DC
39DC
39DC
39DC
39DC
39DC
39DC
50D
50D
CANAF
CANAF
CANAF
RXAF-
RXAF-
RXAF-
Vref
Vref
Vref Vref
MicA_EN
MICB-
MICB+
MICA-
MICA+
ACC_MIC
ACC_ME
25REF
/RST
33D
33D
33D
KEYi0
KEYi1
KEYi2
KEYi3
53DC
53DC
AFiB-
AFiB+
AFiA+
AFiA-
AFo-
AFo+
30LCD
/PTT_5V
/PTT_5V
/PTT_5V
VOLDET
ENC3
ENC2
ENC0
ENC1
MIC2/VBUS
DVDD18_1
50D
50D
PTT_CN
D+2
D-2
AUXO1
33D
AUXO0
MICA+
MICB-
MICA-
MICB+
AFVOL+
AFVOL+
AFVOL-
AFVOL-
/RD
/WR
ADD[23]
/CS4
DAT[3]
DAT[2]
DAT[1]
DAT[0]
DAT[4]
DAT[7]
DAT[6]
DAT[5]
DAT[9]
DAT[10]
DAT[11]
DAT[8]
DAT[13]
DAT[15]
DAT[14]
DAT[12]
LCDRST
/VBUSDET
LED2B
LED2B
LED1G
KEYBLC
50D
ACC_MIC
/RST
/CS_CoD
SPi1_SDi
i2S_MCK
CoD_SDo
CTS0 RTS0 TXD0
RXD0
i2S_SCK
BT_SDi
BT_SDo
i2S_LRCK
i2S_SCK
33D
BLC_2/D+
19.2M_BT
RXD2
33SD
18D
18D
18D
18D
18D
18D
18D
33D
33D
33D
33D
LED1R
LED1R
BUSSWC
H_1/2 H_1/2
MBLCSW
RXAF+
RXAF+ RXAF+
RXAF+
CANAF_DACout
CANAF_DACout
CANAF_DACout
MBLCSW
/CS_ADC
SPi1_SCK
SPi1_SDo
SPi1_SDi
MICIN
MICIN
BT_TX
RTC_XI
LCDRST
AUXI0
AUXI1
BUSSWC
33D
TXD1
TXD1
/TXDEN
/TXDEN
MICOUT
MICOUT
MICOUT
MICOUT
DM/KVL
DMoUT
/DMCoNT
DMiN/KVL
HOOK/RXD/D-
RXD1
U0_DP
U0_DP
MoDBLC
U0_DM
U0_DM
U0_DM
U0_DP
UMODE
/DMCoNT
LED2R
LED2G
LCDBLC
MiC_SEL
MiC_SEL
MiC_SEL
50D
/BT_SHDN
CAN+
/AMP_PD
H_1/2
/PSW
/PRST
19.2M
19.2M
AUXI0
AUXI1
AFiB_EN
AFiB_EN
MicA_EN
MicA_EN
AFiB_EN
AFiA_EN
33A
33A
MicB_EN
Vref
33A
33A
MIC/VBUS
ME
ACC_ME
SPAF
SPAF
AFo+
AFo+
AFo+
AFo-
AFo-
25REF
33A
AFiA-
AFiB+
AFiA+
AFiB-
33D
33D
18D
18D
UMODE
RTC_XI
RXD1
TXD1
53DC
53DC
DMiN/KVL
DMoUT
/PTT_5V
/PTT
AFiA_EN AFiA_EN
/TXDEN
MoDBLC
33D
33D
/AMP_PD
19.2M_BT
19.2M_BT_REQ
19.2M_BT_REQ
33SDC
/PSW
/PRST
PLL0_VDDA
SB
SB
SB
33SDC
USB12
PLL1_VDDA
50D
33A
18D_Flash
DVDD33
DDR18
CVDD
RVDD
i2S_LRCK
TXD2
RXD2
SB
50D
50D
33D
BT_RTS
BT_CTS
BT_RX
BT_AOUT
BT_AIN
BT_SYNC
/RD /WR
DDR18
/FRST /FRST
/BT_SHDN
BT_CLK
SD_DAT[1]
SD_DAT[0]
SD_CMD
SD_DAT[3]
DDR_A[0]
DDR_D[0]
DDR_D[1]
DDR_A[12]
DDR_CS
DDR_WE
DDR_D[15] DDR_D[14] DDR_D[13] DDR_D[12] DDR_D[11] DDR_D[10]
DDR_D[9] DDR_D[8] DDR_D[7] DDR_D[6] DDR_D[5] DDR_D[4] DDR_D[3] DDR_D[2]
DDR_A[13]
DDR_CLKP
DDR_CLKN
DDR_DQS[1] DDR_DQS[0]
50D
/FLDM
/SD_DET
SD_CLK
AUXO0
AUXO1
DAT[0]ADD[0]
/WR
/RD
/CS2_2
LEDA
DDR_A[13]
SD_DAT[2]
18D
33D
/SD_DET
/EMG
/VBUSDET
ME2
18D
18D
18D_Flash
18D 18D
33D
33D
30LCD
39DC
18D
33D
LCDBLC
33D
i2S_SCK
i2S_LRCK
CoD_SDi
SPi1_SDo
SPi1_SCK
BT_RF1
UM
/CS_EV
SPi1_SDi
SPi1_SDo
/CS_ADC
SPi1_SCK
ENC3
ENC2
ENC1
ENC0
/EMG
KEYi3
KEYi2
KEYi0
KEYi1
KEYo4
KEYo3
KEYo2
KEYo1
KEYo0
KEYo4 KEYo3 KEYo2 KEYo1 KEYo0
SD_CLK
DDR_A[11] DDR_A[10]
DDR_A[9] DDR_A[8] DDR_A[7] DDR_A[5] DDR_A[4] DDR_A[3] DDR_A[2] DDR_A[1]
DDR_CKE DDR_RAS DDR_CAS
DDR_DQM[0] DDR_DQM[1]
DDR_BA[1]
DDR_A[6]
DDR_BA[0]
/CS2
PLL0_VDDA
PLL1_VDDA
CVDD
DVDD33
DVDD18_1
USB12
CVDD
RVDD
DVDD18_1 DVDD18_1
DVDD33
18D
DDR_D[9]
DAT[12]
DDR_D[12]
DDR_D[11]
DDR_D[13]
ADD[9]
DDR_A[6]
DDR_D[2]
DDR_D[6]
DDR_A[5]
DAT[14]
DAT[7]
ADD[17]
DAT[3]
ADD[22]
DDR_A[2]
ADD[13]
DDR_CS
DDR_A[1]
DDR_D[5]
ADD[3]
DAT[15]
DDR_A[11]
ADD[21]
DDR_CKE
DAT[4]
ADD[1]
DDR_A[9]
DDR_D[7]
DDR_D[4]
DAT[11]
ADD[16]
ADD[8]
DDR_A[0]
/WP
DAT[8]
DDR_DQM[0]
ADD[12]
ADD[19]
DDR_A[10]
DDR_RAS
DDR_BA[0]
DAT[5]
DDR_D[0]
DDR_DQS[1]
ADD[6]
DDR_D[1]
DAT[9]
DDR_D[8]
DDR_A[3]
DDR_A[12]
DAT[10]
DDR_A[8]
DDR_D[10]
DDR_D[15]
ADD[4]
DAT[13]
DDR_D[14]
DDR_D[3]
DDR_DQS[0]
DAT[2]
DDR_WE
DDR_A[7]
DDR_A[4]
ADD[7]
DDR_BA[1]
DAT[1]
ADD[20]
DDR_CAS
DDR_CLKP
ADD[2]
ADD[23]
DDR_CLKN
ADD[5]
ADD[14]
ADD[18]
ADD[11]
ADD[15]
DDR_DQM[1]
ADD[10]
DAT[6]
BT_SDi
BT_SDo
/CS_CoD
SPi0_SDo
RTS0
TXD0
RXD0
CoD_SDo
CoD_SDi
/CS2 /WP
SD_CMD
SD_DAT[0]
SD_DAT[2]
i2S_MCK
SD_DAT[3]
SD_DAT[1]
DAT[3] DAT[2] DAT[0] DAT[1]
ADD[17] ADD[18] ADD[16]
DAT[13] DAT[14] DAT[15] DAT[12] DAT[11] DAT[10] DAT[8] DAT[9] DAT[6] DAT[7] DAT[5] DAT[4]
ADD[15] ADD[13] ADD[14] ADD[12] ADD[10] ADD[11] ADD[8] ADD[9] ADD[7] ADD[6]
CTS0
SPi0_SCK
ADD[19] ADD[22] ADD[21] ADD[23] ADD[20] ADD[1] ADD[0] ADD[3] ADD[2] ADD[4] ADD[5] /CS4
SPi0_SDo
/CS_EV
SPi0_SCK
B
C
CB
RN262CS
D31
0.1u
C298
100p C297
100p C296
100k R290
100k
R289
100k R288
100k
R287
L58
L57
L56
L55
L54
L53
0
R286
RB521CM-30
D59
(D)
82k
R27
10k
R284
10k
R283
10k
R282
10k
R281
100pC294
47pC293
47pC292
47pC290
47pC289
47pC288
47pC287
47pC286
47pC284
47pC283
47pC282
47pC281
47pC280
47pC279
47pC278
SML-P12U
D58
SMLP13EC8T
D32
100p
C276
100p
C275
L52
L51
L50
L49
100p
C274
L48
L47
RB521CM-30
D57
100p
C273
L46
Q3
SSM3K335R
Q2
SSM3K335R
5.6n
L45
CE
3
VIN
4
VSS 2
VoUT 1
XC6223D331G-G
IC6
100p
C272
100p
C271 100p
C270
100p C269
100p
C268
470k R280
0.1u
C265
47k
R279
DZ2S068M D50 DZ2S068M D47
EMZ6.8N
D51
DZ2S068M D49 DZ2S068M D48
4.7k
R278
4.7k
R277
100
R276
100
R275
3300p
C263
0.01uC262
0.1u C260
39kR274
1M
R273
1u
C259
1u
C258
15k
R271
15k
R270
10kR269
10kR268
5
6
7
8
4
3
2
1
47*4
CP11
5
6
7
8
4
3
2
1
47*4
CP10
5
6
7
8
4
3
2
1
47*4
CP9
5
6
7
8
4
3
2
1
47*4
CP8
5
6
7
8
4
3
2
1
47*4
CP7
L44
VIo2
D8
VSS3
E8
VSS1
H7
VCC G5
VSS2
H2
A1
A8
B1
C1
D1
H1
H8
RY/BY A4
DNU E1
RFU2 F7
RFU1 G1
DQ15 G7
DQ14 F6
DQ13 G6
DQ12 F5
DQ11 G4
DQ10 F4
DQ9 G3
DQ8 F3
DQ7 E6
DQ6 H6
DQ5 E5
DQ4 H5
DQ3 H4
DQ2 E4
DQ1 H3
DQ0 E3
VIo1
F1
WP
B4
RESET
B5
WE
A5
oE
G2
CE
F2
G8
F8
A23
C8
A22
B8
A21
C5
A20
D4
A19
D5
A18
C4
A17
B3
A16
E7
A15
D7
A14
C7
A13
A7
A12
B7
A11
D6
A10
C6
A9
A6
A8
B6
A7
A3
A6
C3
A5
D3
A4
B2
A3
A2
A2
C2
A1
D2
A0
E2
IC30
E4
VCC 5
oUTY 4
GND3
INA2
INB1
TC7SZ08FE
IC37
2.2k
R240
470p C245 0.1u
C246
390
R97
1
3
2
Q12
SSM3K15AMFV
1u
C227
6.8k
R227
0
R82
0.01uC72
VDD 3
oUT 4
DS
2
VSS1
S-80135ANPF-G
IC7
0
R147
0
R142
0.5p C150
10
R160
10*4
CP4
10*4
CP3
10*4
CP5
10*4
CP2
10*4
CP1
0
R157
47p
C124
47k
R117
1u
C121
0.1u
C119
100p
C115
0
R93
0.1u
C87
0.1u
C59
220 R91
5
3
2
16
4
SSM6N37FE
Q10
1u
C206
5
3
2
16
4
SSM6N37FE
Q16
1k
R190
10k
R201
10k
R185
VCC 8
CoNT1 7
oUT_IN2 6
IN_oUT2 5
GND4
CoNT23
oUT_IN12
IN_oUT11
TC7W66FKF
IC26
0.01uC196
100k
R180
220p
C190
100k
R184
0.01u
C197
100k
R179
100k
R183
VDD 8
oUT2 7
IN2- 6
IN2+ 5
VSS4
IN1+3
IN1-2
oUT11
BU7242NUX
IC27
220p
C189
1uC161
1uC160
10*4
CP6
0
R24
1u
C163
0
R102
0
R98
0
R50
0
R49
18k
R182
12k
R186
1uC130
0.1u
C129
RB521CM-30
D30
Q14
SSM3K15AMFV
470R109
47k
R95
470R108
47k
R90
Q13
SSM3K15AMFV
RB521CM-30
D29
DZ2J180(M)
D23
47k R59
DZ2J180(M)
D24
47k
R61
VCC 5
oUTY 4
GND
3
INA
2
G
1
TC7SET125FUF
IC32
0
R210
0.1u
C178
10k
R171
33k
R176
RB521CM-30
D39
1k
R214
0.1u
C175
DZ2J062(M)
D41
2.2k
R203
VCC 8
G2 7
Y1 6 A2 5
GND
4
Y23 A12 G1
1
TC7WT125FUF IC20
0
R212
150
R228
0.1u
C222
VCC 8
G2 7
Y1 6 A2 5
GND
4
Y23 A12 G11
TC7WH126FK IC21
0.1u
C221
VCC 10
S9
D+ 8
D- 7
oE 6
GND
5
2D-
4
2D+
3
1D-
2
1D+
1
BD11600NUX
IC31
1k
R175
10k
R226
B30-2365-05
D12
680
R28
680
R35
S70-0901-05
S8
S70-0901-05
S12
680
R40
B30-2365-05
D8
S70-0901-05
S5
680
R21
B30-2365-05
D18
S70-0901-05
S2
B30-2365-05
D4
S70-0901-05
S9
680
R56
B30-2365-05
D25
S70-0901-05
S3
S70-0901-05
S6
B30-2365-05
D5
2.2k
R22
2.2k
R41
S70-0901-05
S13
S70-0901-05
S16
2.2k
R29
B30-2365-05
D13
B30-2365-05
D19
2.2k
R36
B30-2365-05
D9
0
R163
100k
R199
10p
C205
VDD 8
oUT2 7
IN2- 6
IN2+ 5
VSS4
IN1+3
IN1-2
oUT11
BU7242NUX
IC28
100k
R218
10p
C218
100k
R217
100k
R197
10p
C213
100k
R209
0.01uC211
100k
R219
0.01uC231
100k
R238
1u
C240
1u
C242
VCC 8
CoNT1 7
oUT_IN2 6
IN_oUT2 5
GND
4
CoNT2
3
oUT_IN1
2
IN_oUT1
1
TC7W66FKF
IC35
100k
R239
1u
C239
VCC 8
CoNT1 7
oUT_IN2 6
IN_oUT2 5
GND
4
CoNT2
3
oUT_IN1
2
IN_oUT1
1
TC7W66FKF
IC36
100k R241
100k
R235
1u
C241
0.01uC230
1u
C201
6.3
2.2u C208
4 5
3 16 2
HN1B04FE(GR)
Q17
1k
R194
47k
R204
0
R200
1k
R195
15k
R205
470k
R207
1u
C200
6.3
2.2u C207
DA221
D38
DA221
D37
470k
R206
10uC172
100p
C234
47k
R220
1uC229
18k
R196
0
R225
0
R224
0.22u
C202
33k
R193
0.1uC173
0.1uC217
100p
C235
47kR174
(G)
22p
C195
VDD 8
oUT2 7
IN2- 6
IN2+ 5
VSS
4
IN1+
3
IN1-
2
oUT1
1
BU7462NUX
IC23
47k
R221
47k
R173
1500p
C198
680
R230
1k
R177
1uC228
0.1u
C209
22k
R202
0
R170
10u
C232
VCC 8
CH0 7
CH1 6
A5
GND
4
VEE
3
INH
2
CoMMoN
1
TC7W53FKF
IC29
680
R229
1M
R192
10u
C233
0.01uC181
100p
C174
1u
C149
1u
C145
100k
R158
10p
C158
VDD 8
oUT2 7
IN2- 6
IN2+ 5
VSS
4
IN1+
3
IN1-
2
oUT1
1
BU7242NUX
IC18
100k
R164
10p C168
100k
R159
33k
R153
10p
C159
33k
R151
0.01uC166
33k
R161
0.1u
C170
100k
R145
1u
C141
0.01uC167
VDD 8
oUT2 7
IN2- 6
IN2+ 5
VSS4
IN1+3
IN1-2
oUT11
BU7242NUX
IC19
1u
C142
VCC 8
CoNT1 7
oUT_IN2 6
IN_oUT2 5
GND
4
CoNT2
3
oUT_IN1
2
IN_oUT1
1
TC7W66FKF
IC15
0.01uC155
1u
C143
100p C162
100k
R140100k R139
VCC 8
CoNT1 7
oUT_IN2 6
IN_oUT2 5
GND
4
CoNT2
3
oUT_IN1
2
IN_oUT1
1
TC7W66FKF
IC16
100k
R165
100k
R152
100k
R156
0.01uC154
100k
R143
100p
C169
1u
C140
100k R162
L19
0.01u
C96
2.2u
C68
STBY 6
GND 5
NoISE 4
VoUT2
3
VoUT1
2
VIN
1
BH33MA3WHFV
IC9
1k
R94
2.2u
C69
STBY
3
VIN
4
GND 2
VoUT 1
BU30TD2WNVX
IC3
1u
C53
1k
R52
1u
C46
L5
L1
10u C79
1u
C93
L10
0
R68
0.01u
C86
47k
R86
0.1u
C106
E2
0
R101
0.1uC35
0
R99
10u
C51
100p
C91
10uC49
L9
100p
C89
1k
R84
PH
10
GND
9
CoMP
8
VSENSE
7
PWRGD
6RT/CLK 5
SS/TR 4
EN 3
VIN 2
BOOT 1
TPS54240DGQ
IC2
L2
10u C88
100k
R62
RB060M-40
D16
VoUT 3
GND 4
EN2
VIN1
LXDC2HN18F163
IC5
0.01u
C92
1u
C95
0.01u
C83
STBY
3
VIN
4
GND 2
VoUT 1
BU33TD2WNVX
IC4
0.1u
C94
10uC37
L11
L23
4.7u
C27
0.01u
C82
L7
39pC33
1k
R53
10u C78
100p
C34
0.01u
C81
1u
C75
22k
R71
0.01u
C30
0.1u
C107
1u
C54
100k
R45
100p
C102
0
R74
1u
C74
(D)
12k
R55
10u
C48
1800p
C41
VoUT 3
VDD 4
GND2
CE1
MM3404A50URE
IC8
0.01u
C99
100p
C97
VIN 8
MoDE 7
VoUT 4
EN 1
GND5
9GND4
6GND3
5GND2
3GND1
2
W02-3785-05
A1
L12
10u
C40
100k
R44
0
R81
0.1u
C76
5
3
2
16
4
EM6M2
Q1
10u C85
(D)
47k
R54
10u C73
0.1u
C109
0.1u
C100
12u
L3
L13
10u C90
L15
4.7u
C28
L6
CE
3
VIN
4
VSS 2
VoUT 1
XC8102AA07-G
IC10
1k
R51
1uC43
0.01u
C31
L21
0.1u
C103
L14
100k
R34
0.01u
C84
0
R66
10u
C105
100p C110
L4
1u
C44
100p
C42
1u
C38
0.1u
C77
1u
C98
4.7u
C47
0.01u
C80
L22
4.7k
R31
L20
0.1u
C29
D2
S
8
CANH
7
CANL
6
VIo
5
RXD 4
VCC 3
GND 2
TXD 1
TJA1051TK/3
IC1
SPC10501A01
D1
0.1u
C32
1/8
120
R20
53DC
36
53DC
35
GND
34
GND
33
CAN-
32
CAN+
31
GND
30
GND
29
/AMP_PD
28
H_1/2
27
AUXO1
26
AUXO0
25
AUXI1
24
AUXI0
23
/PSW
22
/PRST
21
MICB-
20
AFiB-
19
MICB+
18
AFiB+
17
MICA-
16
AFiA-
15
MICA+
14
AFiA+
13
ACC_MIC
12
AFo-
11
ACC_ME
10
AFo+
9
GND
8
GND
7
GND
6
NC
5
SB
4
SB
3
SB
2
SB
1
CN1
0
R189
1u
C164
16
10u
C26
0.1u
C24
100p
C4
470
R64
470
R65
LTA014EEBFS8
Q6
LTA014EEBFS8
Q4
1u
C165
0
R187
0
R181
L27
L26
B1 16 B2 15 B3 14 B4 13
DIR3 12
OE 11
GND 10
DIR4 9
A4
8
A3
7
A2
6
A1
5
DIR1
4
VCC(A)
3
VCC(B)
2
DIR2
1
74AVC4TD245GU
IC13
B1 16 B2 15 B3 14 B4 13
DIR3 12
OE 11
GND 10
DIR4 9
A4
8
A3
7
A2
6
A1
5
DIR1
4
VCC(A)
3
VCC(B)
2
DIR2
1
74AVC4TD245GU
IC11
10
R146
10
R141
1
2
NJL7502RA
PH1
R501
0
1k
R150 1k
R149
49.9
R148
RB521CM-30
D40
0.1u
C112
10k
R106
SPC10501A01 D42 SPC10501A01 D45
NC1 6
AINM 5
AINP 4
MXo 3
AGND1 2
+VA1 1
REFP
24
REFM
23
GPIo
22
+VBD
21
BDGND
20
SDo
19
SDI
18
SCLK
17
CS
16
AGND2
15
+VA2
14
NC4
13
NC3 12 CH0 11 CH1 10 CH2 9 CH3 8 NC2 7
ADS7958SRGE
IC25
1k
R257
1k
R260
1k
R259
1k
R258
1k
R256
5
3
2
16
4
SSM6N37FE
Q9
1k
R69
330
R58
330
R43
330
R38
1k
R30
1k
R23
330
R57
330
R42
330
R37
B30-2365-05
D28
B30-2365-05
D27
B30-2365-05
D21
B30-2365-05
D15
B30-2365-05
D10
B30-2365-05
D6
B30-2365-05
D26
B30-2365-05
D20
B30-2365-05
D14
S70-0901-05
S1
S70-0901-05
S19
S70-0901-05
S18
S70-0901-05
S17
S70-0901-05
S15
S70-0901-05
S14
S70-0901-05
S11
S70-0901-05
S10
S70-0901-05
S7
S70-0901-05
S4
0.1u C111
10k
R133
10k
R130
GND1 GND2
oUTIN
L30
100
R132
2
1
T90-1137-05
ANT1
0.75p
C156
E3
47kR191
1000p
C199
6 5
2
4
1 3
B30-2364-05
D33
0
R112
1k
R167
1k
R136
GND212
COMMON10 GND111
CD9DAT18DAT07VSS6CLK5VDD4CMD3CD/DAT32 DAT21
J1
$CN11
100
R125
8
7
6
5
4
3
2
1
CN60
100p
C237
100k R236
100k R237
L32
10k
R169
VCC
oUTPUT
GND VCoNT
L77-3123-05
19.2MHz
X1
100p
C3
0.1u
C23
0R261
0R263
0R262
0R264 0R265 0R266
22
R70
47k
R48
47k
R47
2.2k
R126
1000p
C255
J2
10k
R115
10k
R114
LED4
38
LED3
37
LED2
36
LED1
35
LEDA
34
IM0
33
RESX
32
CABC
31
DB17
30
DB16
29
DB15
28
DB14
27
DB13
26
DB12
25
DB11
24
DB10
23
DB8
22
DB7
21
DB6
20
DB5
19
DB4
18
DB3
17
DB2
16
DB1
15
CSX
14
DCX
13
WRX
12
RDX
11
IOVCC
10
IOVCC
9
VSSD
8
VSSD
7
VSSD
6
VCC
5
VCC
4
VSSA
3
VSSA
2
VSSA
1
CN57
1u
C238
D270k
R243
L36
0.1u C243
L4 8
L3 7
L2 6
L1 5
VIN
4
ISET
3
GND
2
EN
1
BD1754HFN
IC38
2 1
10
95
83
7
6
4
L39
2 1
10
95
83
7
6
4
L41
2 1
10
95
83
7
6
4
L40
2 1
10
95
83
7
6
4
L37
2 1
10
95
83
7
6
4
L38
0.1u
C125
1u
C126
2.2u
C147
4.7u
C144
4.7u
C148
L29
0.1u
C146
L31
4.7u
C153
4.7u
C157
SCLK F6
DBVDD F5
IN2L
C6
AUX2
C5
DACDAT F2
MCLK F1
SDA E6
DCVDD E5
SDoUT/GPIo4 E4
CIFMoDE/GPIo3 F4
GPIo1 F3
GND2
E1
IN2R D6
IN1R D5
IN1L/DMICDAT D4
CS/GPIo2 D3
DNC6 D2
DNC5 D1
LRCLK
E3
BCLK
E2
MICBIAS
C4
ADCDAT
C3
LINEoUTR
C2
LINEoUTL
C1
AUX1
B6
DNC4
B5 DNC3 B4
GND1
B3
SPKoUTL
B2
SPKoUTR
B1
DNC2
A6
DNC1
A5
VMIDC
A4
LDoVDD
A3 LDoVoUT
A2 SPKVDD
A1
WM8947ECS
IC17
100p
C61
100p
C60
1
3
2
Q7
SSM3K15AMFV
100
R76
100
R77
1k
R96 0.01u
C108
Q11
SSM3K15AMFV
100k
R89
100k
R92
1k
R88
100k
R85
EM6M2Q8
10
R83
4.7u
C204
0.1u C236
47k
R232
47k
R231
22p
C138
0
R267
SPC10501A01 D43 SPC10501A01 D46
1000p
C250
1000pC253
0.1u
C251
0
R253
0
R252
0
R251
0
R250
0
R247
0
R248
1u
C123
100p C127
1u
C128
1u
C116
MINISMDC020F
D44
2.2k
R119 2.2k
R118
2.2k
R120
2.2k
R121
2.2k
R122
2.2k
R123
2.2k
R124
0.1u
C203
0.1u C194
0.1u
C182
2.7k
R107
2.7k R105
1.2k
R103
5
3
2
16
4
SSM6N37FE
Q15
L43
L35
L34
4.7kR208
2.2k
R154
100p
C104
47k
R100
100p
C58 100
R75
100p
C62
100
R78
100p
C63
100
R79
RB521CM-30
D22
100
R46
100
R39
RB521CM-30
D17
100
R32
RB521CM-30
D11
RB521CM-30
D7
100
R25
RB521CM-30
D3
100
R19
68k
R111
39k
R135
0
R134
0.1u C133
L28
3 4
2 1
L77-3121-05
X2
10k
R110
$CN35
0.1u
C214
0.1u
C215
1u
C216
L42
0.1u
C249
0
R215
0.22u
C114
0.1u
C185
100k
R223
VSSQ5
E1
VSSQ1
D9
VSSQ4
C1
VSSQ3
B9
VSSQ2
A3
VSS3
K1
VSS2
F1
VSS1
A1
VDDQ5 E9 VDDQ4 D1 VDDQ3 C9 VDDQ2 B1 VDDQ1 A7
VDD3 K9 VDD2 F9
DQ9 D2
DQ8 E3
DQ7 E7
DQ6 D8
DQ5 D7
DQ4 C8
DQ3 C7
DQ2 B8
DQ1 B7
DQ0 A8
VDD1 A9
A12 H3
NC1 F7
NC2 F3
UDQS E2
LDQS E8
DQ15 A2
DQ14 B3
DQ13 B2
DQ12 C3
DQ11 C2
DQ10 D3
UDM
F2
LDM
F8
WE
G7
CAS
G8
RAS
G9
BA1
H9
BA0
H8
CS
H7
CKE
G1
CK
G2
CK
G3
A11
H2
A10/AP
J7
A9
H1
A8
J3
A7
J2
A6
J1
A5
K3
A4
K2
A3
K8
A2
K7
A1
J9
A0
J8
IC24
0.1u C224 0.1u C225
0.1u
C191
100k
R222
0.1u
C187
0.1u
C193
0.1u
C180
0.1u
C184
22u
C179
0.1u
C192
L33
1u
C220
0.1u
C183
0.01u
C71
4.7u
L8
10p C67
0.01u
C65
1k
R67
0.01u
C52
33k
R73 680
R80
15k
R72
100p
C64
0.01u
C66
Q5
DSC90010(S)
10
R60
100pC36 0.01u
C39
10k
R113
Q18
SSM3K15AMFV
DVDD3318_C10
R4
DVDD3318_C9
P12
DVDD3318_C8
P6
DVDD3318_C7
P5
DVDD3318_C6
N13
DVDD3318_C5
M13 DVDD3318_C4
L13 DVDD3318_C3
L4
DVDD3318_C2
K13
DVDD3318_C1
J5
DVDD3318_B11
K15
DVDD3318_B10
J14
DVDD3318_B9
G9
DVDD3318_B8
F13
DVDD3318_B7
F12
DVDD3318_B6
F11
DVDD3318_B5
F10
DVDD3318_B4
F8
DVDD3318_B3
F7
DVDD3318_B2
F6
DVDD3318_B1
E14
DVDD3318_A6
H5
DVDD3318_A5
G15
DVDD3318_A4
G14
DVDD3318_A3
G5
DVDD3318_A2
F15
DVDD3318_A1
F5
DVDD18_10 R13
DVDD18_9 P13 DVDD18_8 L6 DVDD18_7 K5 DVDD18_6 J13 DVDD18_5 G12 DVDD18_4 G11 DVDD18_3 G10 DVDD18_2 G6 DVDD18_1 F14
RVDD3 N7 RVDD2 H14 RVDD1 E5
CVDD18 N8 CVDD17 M9 CVDD16 M8 CVDD15 L12 CVDD14 K12 CVDD13 K6 CVDD12 J12 CVDD11 J6 CVDD10 H13
CVDD9 H12 CVDD8 H11 CVDD7 H10 CVDD6 H7 CVDD5 H6 CVDD4 G13 CVDD3 G8 CVDD2 G7 CVDD1 E15
NC19
M3
RSV2 T19
NC18 N4
NC17 P2
NC16 P1
NC15 M2
NC14 P3
USB_CVDD M12
NC13 P14
NC12 P15
USB0_VDDA18 N14
USB0_VDDA33 N18
DDR_DVDD18_10 R9
DDR_DVDD18_9 R8
DDR_DVDD18_8 R7
DDR_DVDD18_7 P10
DDR_DVDD18_6 P9
DDR_DVDD18_5 P8
DDR_DVDD18_4 P7
DDR_DVDD18_3 N10
DDR_DVDD18_2 N9
DDR_DVDD18_1 N6
DDR_VREF R6
DDR_ZP U12
RTC_CVDD L14
PLL1_VDDA N15
PLL0_VDDA
L15
VSS36
P11
VSS35
N12
VSS34
N11
VSS33
N5
VSS32
M11
VSS31
M10
VSS30
M7
VSS29
M6
VSS28
M5
VSS27
M4
VSS26
L11
VSS25
L10
VSS24
L9
VSS23
L8
VSS22
L7
VSS21
L5
VSS20
K11
VSS19
K10
VSS18
K9
VSS17
K8
VSS16
K7
VSS15
J11
VSS14
J10
VSS13
J9
VSS12
J8
VSS11
J7
VSS10
H15
VSS9
H9
VSS8
H8
VSS7
A19
NC11
N16
NC10
M14
VSS6
M1
VSS5
L3
VSS4
K2
VSS3
K1
VSS2
H2
VSS1
H1
RTC_VSS
H18
PLL1_VSSA
M15
PLL0_VSSA
M17
oSCVSS
L18
PRU1_R30[0]/PRU1_R31[1]
K4
MMCSD1_DAT[1]/PRU1_R30[1]/PRU1_R31[2]
J3
MMCSD1_DAT[2]/PRU1_R30[2]/PRU1_R31[3]
K3
MMCSD1_DAT[3]/PRU1_R30[3]/PRU1_R31[4]
H3
PRU1_R31[29]
W19
PRU0_R31[23]
W18 PRU0_R31[24]
W17 PRU0_R31[25]
V17 PRU0_R31[26]
W16
PRU0_R31[27]
R14
PRU0_R31[28]
V16
PRU0_R31[29]
U18
GP6[5]
P17
PRU0_R30[9]/PRU0_R31[9]
R15
PRU0_R30[10]/PRU0_R31[10]
R19
PRU0_R30[11]/PRU0_R31[11]
R18
PRU0_R30[12]/PRU0_R31[12]
T16
PRU0_R30[13]/PRU0_R31[13]
U19
PRU0_R30[14]/PRU0_R31[14]
V19
PRU0_R30[15]/PRU0_R31[15]
V18
GP6[6]
V15
GP6[7]
W14
NC9
N3
NC8
N1
NC7
N2
NC6
J2
NC5
J1
NC4
L2
NC3
L1
LCD_AC_ENB_CS
R5
MMCSD1_DAT[4]/LCD_VSYNC
G4
MMCSD1_DAT[5]/LCD_HSYNC
H4
MMCSD1_DAT[6]/LCD_MCLK
F2
MMCSD1_DAT[7]/LCD_PCLK
F1
MMCSD0_CLK
E9
NC2
P19
NC1
P18
USB0_VDDA12
N17
USB0_DRVVBUS
K18
USB0_VBUS
N19
USB0_ID
P16
USB0_DP
M19
USB0_DM
M18
RTC_ALARM/DEEPSLEEP
F4
RTC_Xo
H19
RTC_XI
J19
oSCoUT
K19
oSCIN
L19
CLKoUT
T18
RTCK/GP8[0]
K17
EMU1
K16
EMU0
J16
TRST
L17
TCK
J15
TDo
J18
TDI
M16
TMS
L16
RESEToUT
T17
RSVDN
J17
RESET
K14
DDR_D[0] U15 DDR_D[1] U14 DDR_D[2] V14 DDR_D[3] U13 DDR_D[4] V13
LCD_D[0] W1
LCD_D[1] W2 LCD_D[2] W3 LCD_D[3] V1 LCD_D[4] V2 LCD_D[5] V3 LCD_D[6] U1 LCD_D[7] U2
LCD_D[8]/BooT[0] U3 LCD_D[9]/BooT[1] T1
LCD_D[10]/BooT[2] T2 LCD_D[11]/BooT[3] T3 LCD_D[12]/BooT[4] R1 LCD_D[13]/BooT[5] R2 LCD_D[14]/BooT[6] R3 LCD_D[15]/BooT[7] P4
DDR_DQGATE1 R12 DDR_DQGATE0 R11
DDR_BA[0] V8 DDR_BA[1] T9 DDR_BA[2] U8
DDR_DQS[1] V11 DDR_DQS[0] T14
DDR_DQM[1] R10 DDR_DQM[0] W13
DDR_CS V9
DDR_CAS U9 DDR_RAS W9
DDR_WE T8
DDR_CKE V7
DDR_CLKN W7
DDR_CLKP W8
DDR_A[0] U7 DDR_A[1] T7 DDR_A[2] W6 DDR_A[3] V6 DDR_A[4] U5 DDR_A[5] V5 DDR_A[6] W5 DDR_A[7] U6 DDR_A[8] U4 DDR_A[9] T6
DDR_A[10] W4 DDR_A[11] T4 DDR_A[12] V4 DDR_A[13] T5
DDR_D[5] V12 DDR_D[6] W12 DDR_D[7] W11 DDR_D[8] T13 DDR_D[9] T11
DDR_D[10] T10 DDR_D[11] T12 DDR_D[12] U10 DDR_D[13] V10 DDR_D[14] U11 DDR_D[15] W10
AMUTE/UART2_RTS D5
AFSR C2
ACLKR A1
AHCLKR/UART1_RTS A2
AFSX B2
ACLKX B1
AHCLKX/USB_REFCLKIN/UART1_CTS A3
AXR0/ECAP0_APWM0/CLKS0 F3
AXR1/DX0 E1
AXR2/DR0 E2
AXR3/FSX0 E3
AXR4/FSR0 D1
AXR5/CLKX0 D3
AXR6/CLKR0 C1
AXR7 D2
AXR8/CLKS1/ECAP1_APWM1 E4
AXR9/DX1 C3
AXR10/DR1 D4
AXR11/FSX1 C5
AXR12/FSR1 C4
AXR13/CLKX1 B3
AXR14/CLKR1 B4
AXR15/ECAP2_APWM2 A4
GP8[12] G3
MMCSD1_CMD J4
MMCSD1_CLK G2
MMCSD1_DAT[0] G1
GP6[8] T15
GP6[9] U16
GP6[10] W15
GP6[11] U17
GP6[12] R16
GP6[13] R17
SPI1_SoMI H17
SPI1_SIMo G17
SPI1_SCS[7]/I2C0_SCL G16
SPI1_SCS[6]/I2C0_SDA G18
SPI1_SCS[5]/UART2_RXD F17
SPI1_SCS[4]/UART2_TXD F16
SPI1_SCS[3]/UART1_RXD E18
SPI1_SCS[2]/UART1_TXD F19
SPI1_SCS[1] F18
SPI1_SCS[0] E19
SPI1_ENA H16
SPI1_CLK G19
SPI0_SoMI C16
SPI0_SIMo C18
SPI0_SCS[5]/UART0_RXD C19
SPI0_SCS[4]/UART0_TXD D18
SPI0_SCS[3]/UART0_CTS E17
SPI0_SCS[2]/UART0_RTS D16
SPI0_SCS[1] E16
SPI0_SCS[0] D17
SPI0_ENA C17
SPI0_CLK D19
EMA_WAIT[1]
B19
EMA_WAIT[0]
B18
EMA_oE
B15
EMA_WEN_DQM[0]
C8
EMA_WEN_DQM[1]
A5
EMA_WE
B9
EMA_A_RW
D10
EMA_CS[5]
B16
EMA_CS[4]
F9
EMA_CS[3]
A17
EMA_CS[2]
B17
EMA_CS[0]
A18
EMA_CAS
A9
EMA_RAS
A16
EMA_SDCKE
D8
EMA_CLK
B7
EMA_BA[1]
A15
EMA_BA[0]
C15
EMA_A[0]
C14
EMA_A[1]
D15
EMA_A[2]
B14
EMA_A[3]
D14
EMA_A[4]
A14
EMA_A[5]
C13
EMA_A[6]
E13
EMA_A[7]
B13
EMA_A[8]
A13
EMA_A[9]
D12
EMA_A[10]
C12
EMA_A[11]
B12
EMA_A[12]
D13
EMA_A[13]
D11
EMA_A[14]/MMCSD0_DAT[7]
A12
EMA_A[15]/MMCSD0_DAT[6]
C11
EMA_A[16]/MMCSD0_DAT[5]
E12
EMA_A[17]/MMCSD0_DAT[4]
B11
EMA_A[18]/MMCSD0_DAT[3]
E11
EMA_A[19]/MMCSD0_DAT[2]
C10
EMA_A[20]/MMCSD0_DAT[1]
A11
EMA_A[21]/MMCSD0_DAT[0]
B10
EMA_A[22]/MMCSD0_CMD
A10
EMA_D[0]
C9
EMA_D[1]
A8
EMA_D[2]
B8
EMA_D[3]
E8
EMA_D[4]
B5
EMA_D[5]
E7
EMA_D[6]
C6
EMA_D[7]
D7
EMA_D[8]
E10
EMA_D[9]
D9
EMA_D[10]
A7
EMA_D[11]
D6
EMA_D[12]
A6
EMA_D[13]
B6
EMA_D[14]
C7
EMA_D[15]
E6
IC14
L25 L24
10k
R168
RB521CM-30
D36
4.7u
C25
10k
R116
RB521CM-30
D34
0.1u
C248
1u
C257
1000p
C256
1000p
C186
1k
R172
100p
C177
0.1u
C188
VoUT2 24
VoUT1 23
VIN1 22
VIN8 21
VoUT8 20
VoUT7 19
VIN7
18
GND
17
RESET
16
VDAREF2
15
VDAREF1
14
VIN6
13
VoUT6
12
VoUT5
11
VIN5
10
VIN4
9
VoUT4
8
VoUT3
7
VIN3
6
DI 5
CLK 4
LD 3
VDD 2
VIN2
1
R2A20178NP
IC22
0.1u
C122
0.1uC135
0.1u C134
0.1uC137 0.1u
C136
0.1u
C132
0.1u C131
1u
C113
0.1u
C120
0.1u
C118
0.1u
C117
VSS_RF_BT
B10
VSS_DCo_BT A9
VDD_RF_BT B9 BT_TESTTM A10
VDD1P8_FM
J8
VSS_PASYNTH_FM
J10
VBAT1
A2
VDD1P8V_2
A3
VDDS1 B3
BT_AUD_CLK D1
BT_AUD_FSYNC D2
BT_AUD_IN D3
BT_AUD_oUT C3
BT_HCI_UART_TX A4
BT_HCI_UART_RX B5
BT_HCI_UART_CTS B4 BT_HCI_UART_RTS B7
BT_HoST_WAKEUP A5
BTFM_nSHUTDoWN A6
VDD_DIG1 E5
VSS_DIG6 B6
BT_GPIo<6> H5 BT_GPIo<5> D7 BT_GPIo<4> C5 BT_GPIo<3> D6 BT_GPIo<2> C7
BT_TESTTP B8
VSS_DPLL_BT A7
VDD_DCo_BT A8
BT_RF
C10
VDD1P8V_BT
C8
VDD_LDoIN_CLASS1P5_BT
D8
VDD_CLASS1P5_BT
D9
VDD_PPAIF_BT
D10
REF_CLK_LV E7
REF_CLK_HV E8
BT_WAKEUP H10
VSS_REF_CLK E9
VSS_DIG3 E10
VDD_SRAM1 F9
VDD_DIG4 F10
VSS_DIG1 G9
VDDS2 G10
FM_I2C_SDA E6
FM_I2C_SCL F6
FM_IRQ G6
FM_I2S_CLK F8
FM_I2S_FSYNC
F7
FM_I2S_oUT
G7
FM_I2S_IN
G8
FM_AUD_IN_L
H7
FM_AUD_IN_R
H8
RTC_CLK
H9
VSS_LNA_GPS3
K2
TEST_EN
L10
VSS_PA_FM
J9
FM_RFP_oUT
K9
FM_RFP_IN
L9
VSS_RF_FM
K8
FM_ABGAP_CAP
L8
VSS_ADCPLL_FM
J7
FM_AUD_oUT_R
K7
FM_AUD_oUT_L
L7
REF_CLK_REQ
J6
VDD_DIG3
K6
VPP
L6
VSS_DIG4
J5
VDDS3
K5
VDD_SRAM2
L5
CLK_REQPoL
G4
VSENSE
J4
IFoRCE
L4
GPS_I2C_UART_SEL
H4
GPS_PA_EN
G3
GPS_EXT_LNA_EN
H6
GPS_IRQ
G5
VSS_MIX_GPS
K3
VDD_IF_GPS
K4
VSS_LNA_GPS2
L3
GPS_LNA_IN
L2
VSS_LNA_GPS1
L1
VDD_PLL_GPS
J2
VSS_PLL_GPS
J1
VDD1P8_GPS
J3
GPS_TP
H3
GPS_TM
H2
GPS_UART_TX
F5
GPS_UART_RX
E3
GPS_SENS_I2C_SCL
F4
GPS_SENS_I2C_SDA
E4
GPS_nSHUTDoWN
D5
GPS_TIMESTAMP
C6
GPS_PPS_oUT
C4
TCXo_LDo_IN
H1
VSS_DIG2
F3
VDD_DIG2
F2
VDD_TCXo
G1
VSS_TCXo_CLK
G2
TCXo_CLK_LV
F1
TCXo_LDo_VPRoG
E1
VDDS4
E2
TCXo_CLK_REQ
D4
VSS_DIG5
C2
VDD_SRAM_LDo
C1
VDD_DIG_LDo
B2
VDD1P8V_1
B1
PMTEST_1P8V
A1
IC12
0.1u
C210
100k
R213
10k
R216
0.1u C212
1u
C219
1k
R198
0.1u
C226
VDD 8
oUT2 7
IN2- 6
IN2+ 5
VSS
4
IN1+
3
IN1-
2
oUT1
1
BU7242NUX
IC34

(No.RA027<Rev.001>) 2-2
MEMO
