KEPO KPT-1340P22 User manual

Ningbo Kepo ElectronicsCo.,Ltd.
波凯普电子有限公司
http://www.chinaacoustic.com
E-Mail:[e-mail]
Drawing No.OEM1824SPC P.1/10
规格书
Specification forPiezoelectric
Sounder
KPT-1340P22
1. 范围Scope
本规格书适用于压电式声响器 通常它用在系统中做报警或提示的声响器用。如果将该产
品用于其它领域，请与我们取得联系。
Thisproduct specificationisapplied tothepiezoelectricsounderusedfor sounder inalarm
systems.Pleasecontact uswhen usingthisproduct foranyother applicationsthan
describedinthe above.
2. 品名 及相关事项 Part Number
2.1 凯普型号 KepoPart Number: KPT-1340P22
2.3 客户型号 Customer'sPartNumber:
2.4 客户编号 Customer'sDrawing Number : 9900387013
3. 额定极限条件 MaximumRating
项目 Item 规格Specification
3.1 最高输入电压
MaximuminputVoltage
3.2 工作温度范围
Operating Temperature Range
30 Vp-p 以下 /max.
-20 ～+70℃
3.3 储存温度范围
StorageTemperatureRange -30 ～+85℃
Approved by Checked by Issued by
Date
2.2 客户名称 Customer'sName: fujitsugeneral
No.25Baoyuanroad Dongqian Lake,IndustryArea,Dongqian town,Ningbo City,China(PostCode:315121)
2.5 符合ROHS标准 CompliancewithRoHS
3.4 回流焊条件
Reflowcondition MaxTemperture160 C
Max260sec

4. 电性 ElectricalCharacteristics
测试条件参见下项
Refertonextitemformeasuring method.
静电容量
ElectrostaticCapacity(at 100Hz)
声压
SoundPressureLevel
4.2
4.1
项目 Item 规格Specification
9500pF±30%
70dB 以上
5. 测试方法 Measuring Method
5.1声压测试线路 S.P.L.MeasuringCircuit
10cm
Mic. Amp.
压电声响器
piezoelectricsounder
输入信号:3Vp-p,4KHz,方波
Input Signal:3Vp-p,4KHZ,Squarewave
5.2测试环境 Measuring Condition
温度+25±3℃，湿度60±10%R.H.标准测试状态,在没有疑问的场合,可以在温度+5~+35℃,
湿度45~85%R.H.的范围内测试.
Partshallbemeasuredunderacondition(Temperature :+5to+35 ℃,Humidity:45
to85%R.H.)unless thestandardcondition(Temperature :+25 ±3℃,Humidity:60±10
%R.H.)isregulatedmeasure.
MIC: ND10 普通声级计或等同品
MIC: ND10 S.P.L. or equivalent
S.G. : DF1010 振荡器或等同品
S.G. : DF1010 Oscillater or equivalent
额定电压
RatedVoltage
4.3 3Vp-pSquare wave
谐振频率
ResonantFrequency
4.4 4.0±0.5KHz
Drawing No.OEM1824SPC P.2/10
No.25Baoyuanroad Dongqian Lake,IndustryArea,Dongqian town,Ningbo City,China(PostCode:315121)
E-Mail:[e-mail]
波凯普电子有限公司
http://www.chinaacoustic.com
Ningbo Kepo ElectronicsCo.,Ltd.

6. 机械性PhysicalCharacteristics
耐冲击性
6.1
实验项目
Item 实验条件 TestCondition 实验后规格
Specification
峰值加速度980m/s2
,半正弦波,XYZ三个方
向各3次冲击实验后,测试声响器.
Sounder shall be measuredafter being applied
shock(980m/s2 ) for each threemutually
perpendicular directions toeach of 3times by half
sine wave.
耐振动性Soundershall be measured afterbeing applied
vibration of amplitude of 1.5mm with10to55Hzband of
vibration frequency toeachof 3perpendiculardirections
for2hours.
振动频率 10～55Hz,1.5mm 全振幅,XYZ 三
个方向各2小时试验后,测试声响器.
6.2
6.3
耐焊接性
将声响器的插针插入(插至距声响器壳体
1.5mm处为止)+350±5℃的焊锡槽3±0.5秒
或+260±5℃的焊锡槽10±1秒,然后在常温中
放置4小时后,测试声响器.
Lead terminalareimmersed up to1.5mm from
sounder'sbodyinsolderbathof +350 ±5℃for3±0.5
secondsor±260±5℃for10±1seconds, and then
soundershall be measured afterbeing placed innatural
condition for4hours.
Shock
Vibration
Resistant
SolderingHeat
Resistance
6.4
可焊性
Solderability Leadterminalsareimmersedinrosinfor 5
secondsand then immersedinsolder bath
of +260±5℃for 3±0.5seconds.
先将声响器的插针浸入松香液5秒钟,然后浸
入+260±5℃熔融的锡槽中3±0.5秒.
6.5
插针强度分别在每个插针的轴向施加9.8牛顿的静荷
重10秒.
The force10 secondsof 9.8Nisapplied to
eachterminalinaxialdirection.
Terminal
StrengthPulling
符合表1的要
The measured
valueshallmeet
Table1.
插针表面90%以
上被焊锡润湿.(插
针的段面除外)
90%min.lead
terminalsshall be
wetwithsolder.
(Except theedge
ofterminal)
插针没有断开和
可见的损伤
Novisible
damageand
cuttingoff
Drawing No.OEM1824SPC P.3/10
No.25Baoyuanroad Dongqian Lake,IndustryArea,Dongqian town,Ningbo City,China(PostCode:315121)
E-Mail:[e-mail]
波凯普电子有限公司
http://www.chinaacoustic.com
Ningbo Kepo ElectronicsCo.,Ltd.

先放置于温度 -40±2℃的制冷箱内30分钟，然后放置
于室温(+20℃)15分钟后, 放置于+80±2℃的烘箱内30分
钟，再放置于室温(+20℃)15分钟.
经过以上循环5次,在常温下放置 4小时后，测试声响器
。
Afterbeing placed inachamberat -30 ±2℃for30
minutes, soundershall be placed at roomtemperature(+20
℃).After15 minutesat thistemperature,soundershall be
placed inachamberat +80±2℃. After30 minutesat this
temperature, soundershall be returned toroom
temperature(+20℃)for15 minutes.
After5abovecycles, soundershallbe measured after
being placed innaturalcondition for4hours.
放置于90%～95%R.H.,温度+40±2℃的
环境试验箱内240小时，然后取出，在常温
下放置4小时后，测试声响器。
放置于温度-40±2℃的制冷箱内240小时，然
后取出，在常温下放置4小时后，测试声响器。
Afterbeing placed inachamberwith-40 ±2℃for240
hoursand then being placed innaturalcondition for4hours,
soundershall be measured.
Afterbeing placed inachamberwith+85 ±2℃for240
hoursand then being placed innaturalcondition for4hours,
soundershall be measured.
放置于温度+85±2℃的烘箱内240小时，然
后取出，在常温下放置4小时后，测试声响器。
7.4
Temperature
Cycle
温度循环
7.3
7.2
. 环境性EnvironmentalCharacteristics
7.1 高温放置
Humidity
耐湿性
ColdTest
(Storage)
DryHeatTest
(Storage)
低温放置
实验项目
Item
The measured
valueshallmeet
Table1.
符合表1的要
实验后规格
Specification
实验条件
TestCondition
声压级
Sound PressureLevel
项目
Item
表1Table1
试验后变化量
Specification after test
初始值±10dB
Initial Value±10dB
Afterbeing placed inachamberwith90 to95%R.H.at
+40±2℃for240 hoursand then being placed innatural
condition for4hours, soundershall be measured.
7.5 连续运行试验
Run continuously
test
在20Vp-p/4KHzSquarewave条件下，连续工作
240小时，然后取出，在常温下放置4小时后，测试
声响器
Run continuouslyfor 240 hourswithinput signal
20Vp-p,4KHzSquarewave, sounder shall be
measured after being placed innatural condition
for 4hours.
Drawing No.OEM1824SPC P.4/10
No.25Baoyuanroad Dongqian Lake,IndustryArea,Dongqian town,Ningbo City,China(PostCode:315121)
E-Mail:[e-mail]
波凯普电子有限公司
http://www.chinaacoustic.com
Ningbo Kepo ElectronicsCo.,Ltd.

KEPO

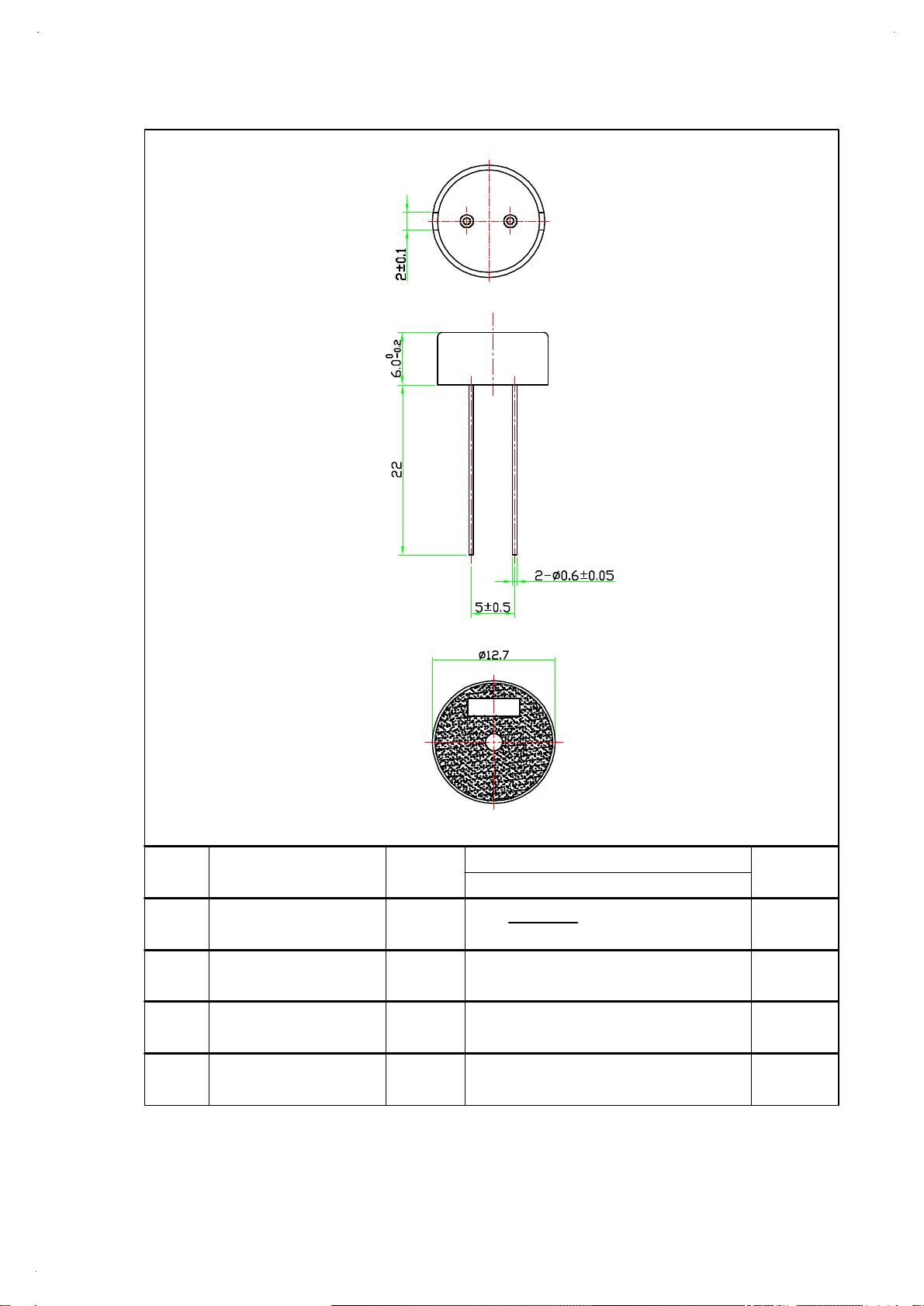

8. 外形图 Dimensions
单位 :毫米
UNIT: mm
公差: ±0.5
TOLERANCE: ±0.5
1
No.
2
3Case
壳体
PCB
印制板
Pin
插针
Part Name
型号 Q'TY
数量
1
2
1
Remarks
备注
FR-4
PC
H62
Material
材质
Piezp-Element
蜂鸣片 1H65
PiezoCeramic
4
Drawing No.OEM1824SPC P.5/10
PBT(G20)
No.25Baoyuanroad Dongqian Lake,IndustryArea,Dongqian town,Ningbo City,China(PostCode:315121)
E-Mail:[e-mail]
波凯普电子有限公司
http://www.chinaacoustic.com
Ningbo Kepo ElectronicsCo.,Ltd.

9. 包装标准 Packaging Standard
9.1 产品的最小包装是纸箱(500pcs/箱),它应该清楚的标明型号,数量,出厂检验批号.
在运输及储存的过程中,产品必须不会受到机械损伤.
Each minimumpackage unit of productsshall be inacarton box and it shall be clearlymarked with
Part Number, quantityand outgoing inspection number.
Thereshall be no mechanical damage on productsduring transportation and/or instorage.
名称代号尺寸公差参考
产品直径 DØ12.7 ±0.5
产品高度 A6.0 0
-0.2
插针直径 d1 Ø0.6 ±0.05
产品间距P25.4 ±0.5
纸带孔间距PO 12.7 ±0.2
插针间距F5.0 ±0.5
偏移量
△h0±1.0
纸带宽 W18.0 ±0.5
定位间距W1 9.0 ±0.5
产品上限位置H1 26.0max.
孔直径 DO Ø4.0 ±0.2
纸带厚度t0.6 ±0.2
Name Symbol Dimension Tolerance preference
Product Diameter
Product Height
PinDiameter
Product Distance
PaperTape HoleDistance
Excursion
Orientation Distance
UpperLimit Place
HoleDiameter
PaperTape Thickness
PinDistance
PaperTape Width
Drawing No.OEM1824SPC P.6/10
W
DO
PO
F
H1
d1
P
W1
A
D
△h
单位：mm(参考值)
No.25Baoyuanroad Dongqian Lake,IndustryArea,Dongqian town,Ningbo City,China(PostCode:315121)
E-Mail:[e-mail]
波凯普电子有限公司
http://www.chinaacoustic.com
Ningbo Kepo ElectronicsCo.,Ltd.

Drawing No.OEM1824SPC P.7/10
Q'TY:500PCS
SIZE:330x55x230mm
Picture35000PCS
Q'TY:5000PCS(10 Box)
SIZE:490X360X315mm
Picture45000PCS
Lable
Picture2500PCS
Picture1500PCS
EligibilityCertificate
CompanyName ：NingBoKEPOElectronicsco.,LTD
P/N：QTY：
Production Date ：Inspector ：
Shipment Date ：
Lot Number ：
ROHSCompliance
No.25Baoyuanroad Dongqian Lake,IndustryArea,Dongqian town,Ningbo City,China(PostCode:315121)
E-Mail:[e-mail]
波凯普电子有限公司
http://www.chinaacoustic.com
Ningbo Kepo ElectronicsCo.,Ltd.

如果产品使用于下列高可靠性的装置时,请与我们取得联系,以免对人的生命,财产和身
体造成损害.
Pleasecontactusbefore usingourproductsfortheundermentionedapplications
requiring especiallyhighreliabilityinordertopreventdefectswhichmight directlycause
damage toother party'slife,bodyor property(listed below).
⑴Aircraft equipment 飞行 备
⑵Aerospaceequipment 航天 备
⑶Underseaequipment 潜水 备
⑷Medicalequipment 医疗 备
⑸Transportationequipment(automobiles,trains,ships) 交通施
⑹Trafficsignalequipment 交通信号备
⑺Disasterprevention/crimeprevention equipment 防灾害/防犯罪 备
⑻Data-processing equipment 数据处理 备
⑼Applicationsofsimilarcomplexityorreliabilityrequirementscomparabletothe
applicationslistedintheabove以及与上述相类似或可靠性要更高的 备
Incaseof usingsolder ironforsoldering,the top of solderingiron's
temperature shouldbekept less than +350 ℃.Moreover thesolderingtimeshouldbe
alsokeptwithin3seconds.
在使用烙铁的情况下,应注意烙铁头的温度应该保持在+350℃以下,并且焊接时间控
制在3秒内.
Washingofthecomponent isnot acceptable. Becauseitisnotsealded.
11.4该声响器不适合洗涤,因为它不密封.
Pleasepayattention nevertobe applied DCvoltagetopiezosounder.
11.3请注意永远不要给压电声响器施加直流电压.
Pleasepayattentiontoprotectoperating circuit from surgevoltageprovided by
somethingofforcesuchasfailing,shockandtemperaturechanging.
11.2请注意保护工作电路不会因失误,跌落和温度变化而产生浪涌电压.
The componentmaybe damaged if mechanicalstressoverthisspecificationis
applied.
11.1如果产品所承受的机械应力超过规定的值,元件可 被破坏.
11. 注意事项 CautionsforUse
11.5
10. 警告Cautions
Drawing No.OEM1824SPC P.8/10
No.25Baoyuanroad Dongqian Lake,IndustryArea,Dongqian town,Ningbo City,China(PostCode:315121)
E-Mail:[e-mail]
波凯普电子有限公司
http://www.chinaacoustic.com
Ningbo Kepo ElectronicsCo.,Ltd.

纸张
PAGE
版本号
Rev.No.
1.0
12. 版本Revision
日期
DATE
2005.11.08 /
简扼描述
DESCRIPTION
primary
标记
SIGN
2006.05.261.1 5 Change case high toshort
1.1 2006.05.26 5 Change pinrigiditytosoft
1.2 2008.02.21 5 Change Material
Drawing No.OEM1824SPC P.9/10
No.25Baoyuanroad Dongqian Lake,IndustryArea,Dongqian town,Ningbo City,China(PostCode:315121)
E-Mail:[e-mail]
波凯普电子有限公司
http://www.chinaacoustic.com
Ningbo Kepo ElectronicsCo.,Ltd.
1.3 2008.07.03 Change Packing Size 7
1.3 2008.07.03 1 Add Reflowcondition

波凯普电子有限公司
No.25Baoyuanroad Dongqian Lake,IndustryArea,Dongqian town,Ningbo City,China(PostCode:315121)
E-Mail:[e-mail] http://www.chinaacoustic.com
Ningbo Kepo ElectronicsCo.,Ltd.
11. Remarks
The productsmust be measured up toRankAof FujitsuGeneral Group
ontherestrictionoftheuseofcertainhazardoussubstance.
TheDataofRankApleaserefertoaccessory.
Drawing No.OEM1824SPC P.10/10
