KERONG KR-S8064RF User manual

Technology Change Life
User manual

Technology Change Life
Preface
Dear Customers:
Thanks for choosing this cabinet lock offered by Kerong
Industry (HK) Co ., Limited . Please read this 《User Manual 》
carefully before using.
Thanks for your kind understanding and support!

Technology Change Life
Contents
1. Product....................................................................................................................................1
2. Product Appearance..............................................................................................................2
2.1 Lock body..........................................................................................................................2
2.2 Front panel.........................................................................................................................2
2.3 Lock hook..........................................................................................................................2
2.4 Screws................................................................................................................................2
2.5 External power supply.......................................................................................................3
3. Product Installation Dimensions..........................................................................................4
4. Installation Drawings............................................................................................................6
5. Product Functions.................................................................................................................7
5.1 Functions & Features........................................................................................................7
5.2 Parameters.........................................................................................................................7
6. Operations..............................................................................................................................9
6.1 Public Mode......................................................................................................................9
6.1.1 Mode introduction...........................................................................................................9
6.1.2 Set lock into public mode..............................................................................................10
6.1.3 Set manager fingerprint.................................................................................................10
6.1.4 Set user fingerprint........................................................................................................10
6.1.5 How to use user fingerprint...........................................................................................10
6.1.6 Set delete user fingerprint..............................................................................................10
6.2 Private Mode....................................................................................................................11
6.2.1 Mode introduction..........................................................................................................11
6.2.2 Set lock into private mode..............................................................................................11
6.2.3 Set manager fingerprint..................................................................................................12
6.2.4 Set user fingerprint.........................................................................................................12
6.2.5 How to use user fingerprint............................................................................................12
6.2.6 Set delete user fingerprint...............................................................................................12
6.3 Limited Public Mode.......................................................................................................13
6.3.1 Mode introduction..........................................................................................................13
6.3.2 Set lock into limited public mode..................................................................................13
6.3.3 Set manager fingerprint.................................................................................................13
6.3.4 Set user fingerprint........................................................................................................14
6.3.5 How to use user fingerprint...........................................................................................14
6.3.6 Set delete user fingerprint..............................................................................................14
7. Reset Lock..............................................................................................................................15
8. Warm Tips.............................................................................................................................15

Technology Change Life
- 1 -

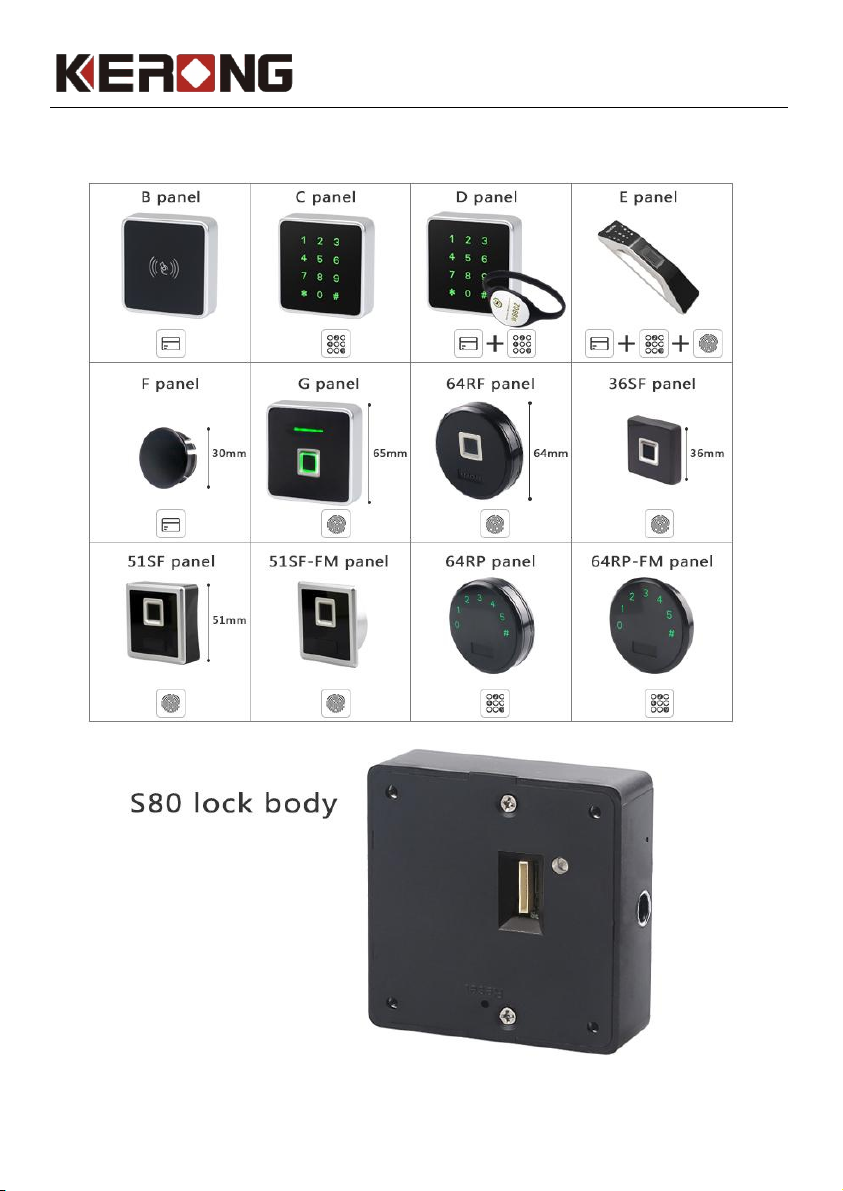

1. Relative Products

Technology Change Life
- 2 -
2. Product Appearance
2.1 Lock body
Material: ABS
Size: 80*80*27mm
2.2 Front panel
Material: PC+Acrylic
Size: φ64mm
2.3 Lock hook
Different hook types suit for various application
Hook A suits for both vertical and horizontal installation
Hook D and Hook E suit for horizontal installation
2.4 Screws
Suitable screws for different material cabinets
(wooden/metal) and different door thickness.
2.5 External power supply
With external battery box and power adaptor
to work with lock body or front panel for
emergency power supply.

Technology Change Life
- 3 -

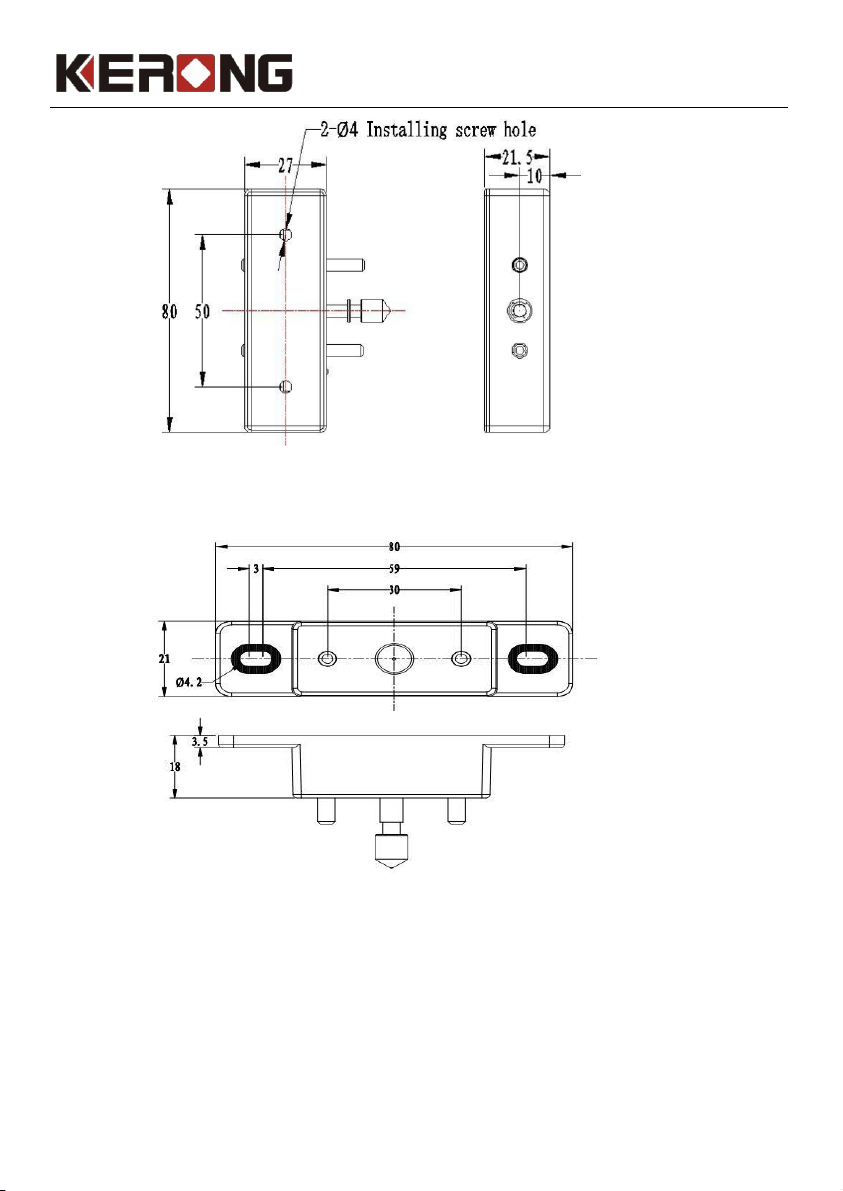

3. Product Installation Dimension
Lock body
Front Panel

Technology Change Life
- 4 -
Hook A
Hook E

Technology Change Life
- 5 -

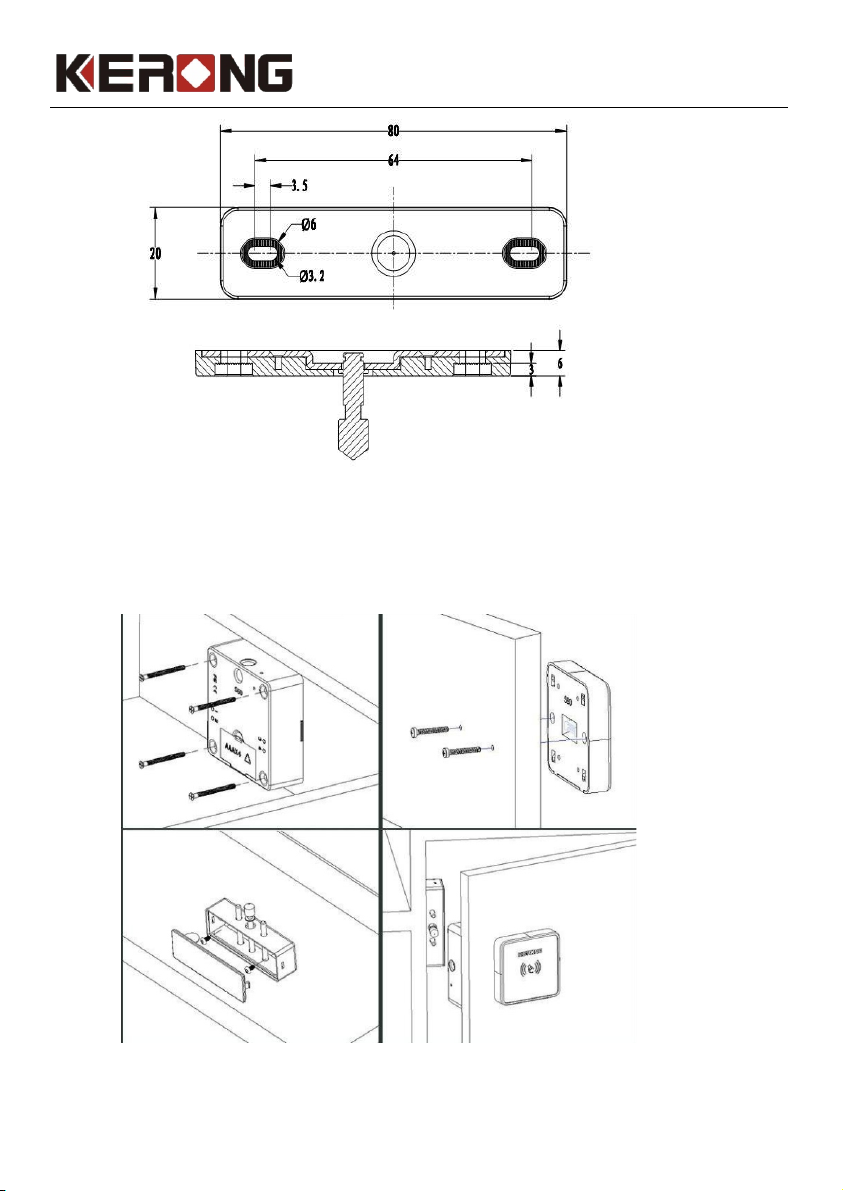

Hook D
4.Installation Drawing

Technology Change Life
- 6 -
5. Product Functions
5.1 Parameters
Material ABS for lock body shell, Acrylic & PC for panel
Power consumption Static power consumption <100uA
dynamic power consumption<200mA
Working voltage DC6V(4*AAA 1.5V)
Batteries can standby for around 1 year
Working environment Working temperature -15℃~ +65℃
Working humidity 10% ~ 90%RH
Anti-static Air static 15KV
Touch static 8KV
5.2 Functions & Features
Functions Features
Sound prompt Lock will prompt with sound when input correct/wrong
fingerprint, battery is in low voltage, unlocking for a long time
Light prompt
Green: correct operation
Red: wrong operation
Blue: low voltage
White: standby status
Low voltage alarm:
1.When battery’s voltage is lower than 4.5V, light will shine
in blue and lock sounds “di di” on every opening or alarm
automatically when lower than 4.5V to remind user change new
batteries

Technology Change Life
- 7 -
Alarm functions
2. When voltage is less than 4V, lock can’t be locked until
change new batteries.
3. Lock can work normally 1000 times after low voltage
warning
Lock status alarm:
1. Lock will keep warning for 10s if it keeps unlocking status
more than 30s.
2. ※Lock status alarming function only exists in private mode.
Press button 1+2 can enable/disable this function.
Locking protection:
Input wrong fingerprint, lock will shine in red twice and
prompt with “di di”.Wrong for 5 times continuously, lock will
be unavailable for 5mins.
During unavailable period:
1. Use manager fingerprint can make it available.
2. Input user fingerprint lock will prompt with “di di di di di”
and light shines in red.
Fingerprint functions
1. Manager fingerprint: For setting user fingerprint and delete
fingerprint, also can be used for emergency unlock .
2. User fingerprint: Only be used for unlocking.
Button functions
Button 1: Set manager fingerprint and user fingerprint.
Button 2: Delete user fingerprint.
Button 3: Change working mode.
Button 4: Change to single key mode or double key mode.
Reset: Reset the lock.

Technology Change Life
- 8 -
6. Operations
6.1 Public Mode

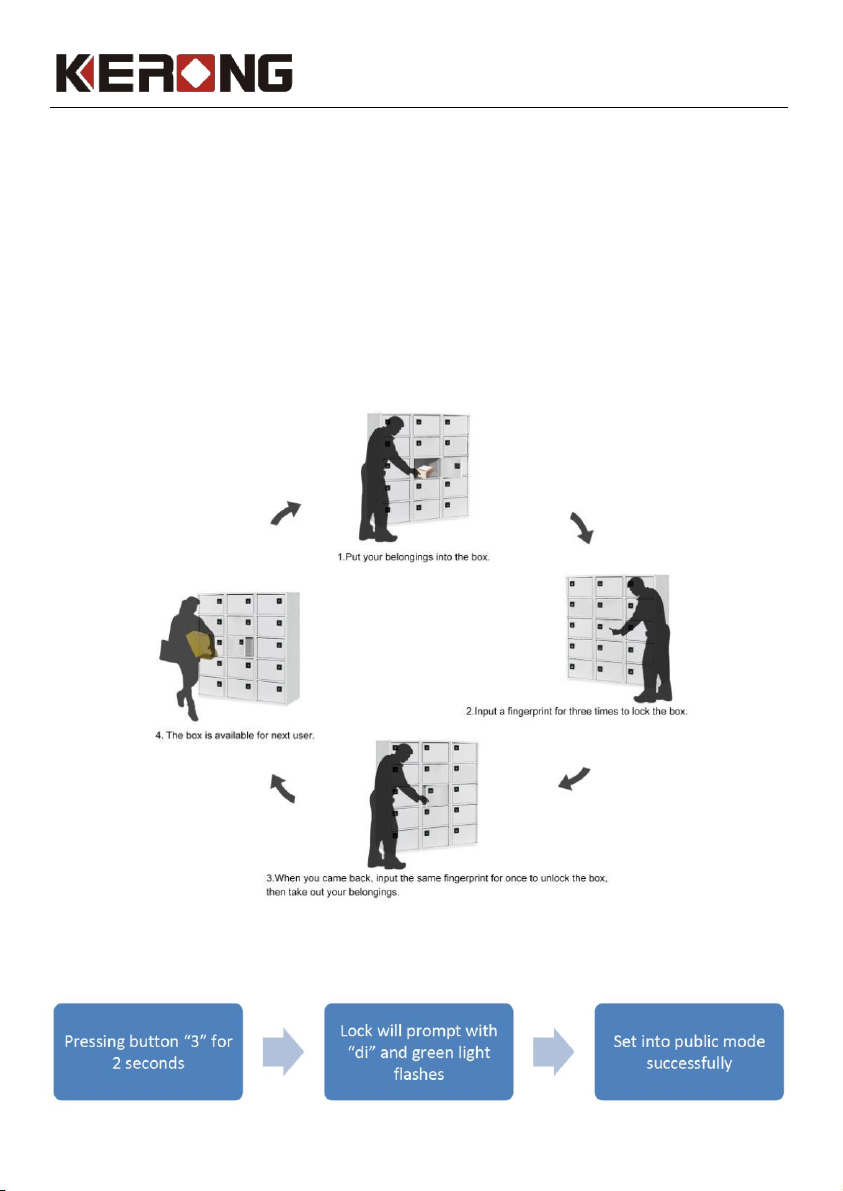

6.1.1 Mode introduction
Lock keeps unlocking under public mode, manager fingerprint should be programmed
first(manager fingerprint can be used for emergency unlock). Any fingerprint to lock and same
fingerprint to unlock.
6.1.2 Set lock into public mode

Technology Change Life
- 9 -

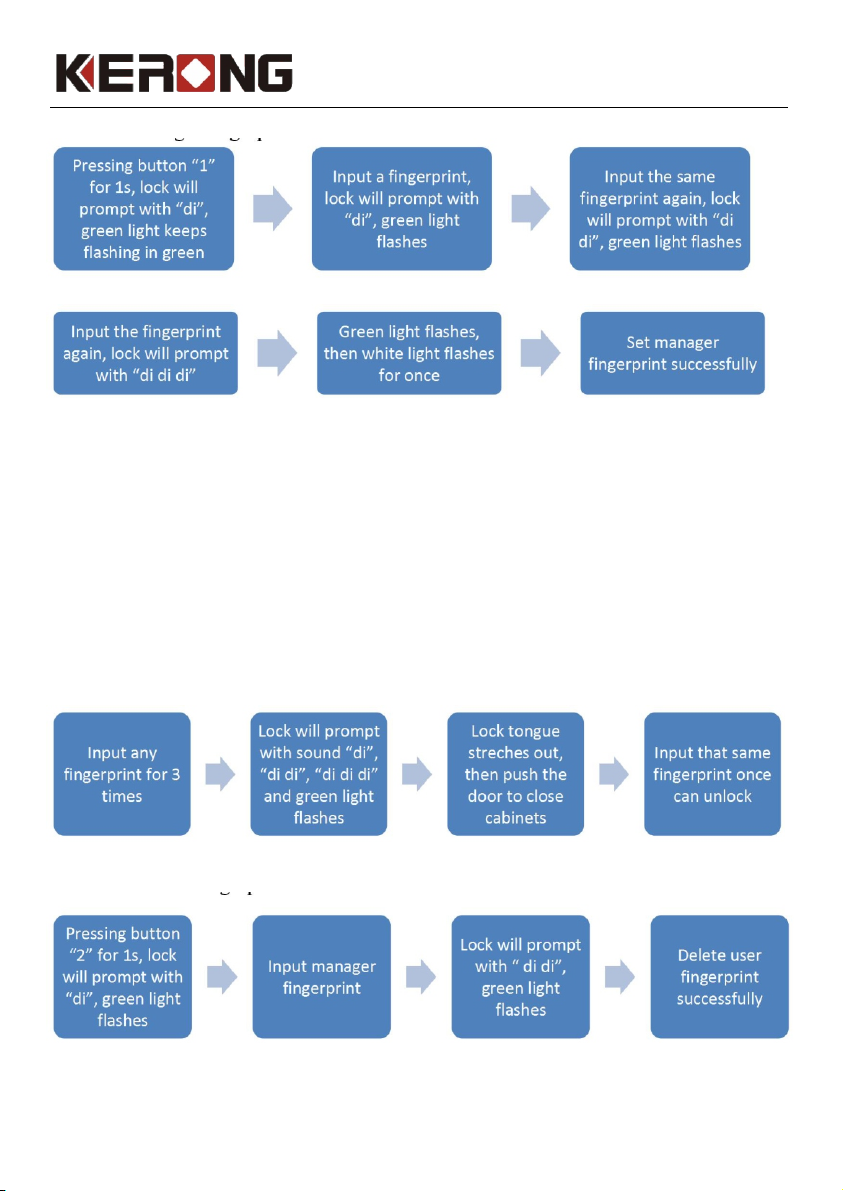

6.1.3 Set manager fingerprint
Notice:
1. One lock only can have one manager fingerprint.
2. Manager fingerprint can be used for emergency unlock.
6.1.4 Set user fingerprint
※In public mode, no need to set user fingerprint. Input any fingerprint for 3 times can lock,
then same fingerprint once to unlock.
6.1.5 How to use user fingerprint
6.1.6 Delete user fingerprint
Notice:
1. After deleting, all user fingerprints will be invalid, then need to set again.

Technology Change Life
- 10 -
6.2 Private Mode
6.2.1 Mode introduction
Lock keeps locking under private mode, manager fingerprint and user fingerprint should be
programmed first. Push the door to close, and use the user fingerprint to unlock.
6.2.2 Set lock into private mode
6.2.3 Set manager fingerprint

Technology Change Life
- 11 -
Notice:
1.One lock only can have one manager fingerprint.
2. Manager fingerprint can be used for emergency unlock.
6.2.4 Set user fingerprint
Notice:
1. One lock can have max 100pcs user fingerprint.
6.2.5 How to use user fingerprint
6.2.6 Delete user fingerprint

Technology Change Life
- 12 -
Notice:
1. After deleting, all user fingerprints will be invalid, then need to set again.
6.3 Limited Public Mode
6.3.1 Mode introduction
Lock keeps locking first under limited public mode, manager fingerprint and user fingerprint
should be programmed first. Lock will keep unlocking after unlocked, then input user
fingerprint, push the door can close the box.
6.3.2 Set lock into limited public mode

Technology Change Life
- 13 -
6.3.3 Set manager fingerprint
Notice:
1. One lock only can have one manager fingerprint.
2. Manager fingerprint can be used for emergency unlock.
6.3.4 Set user fingerprint
Notice:
1. One lock can have max 100pcs user fingerprint.

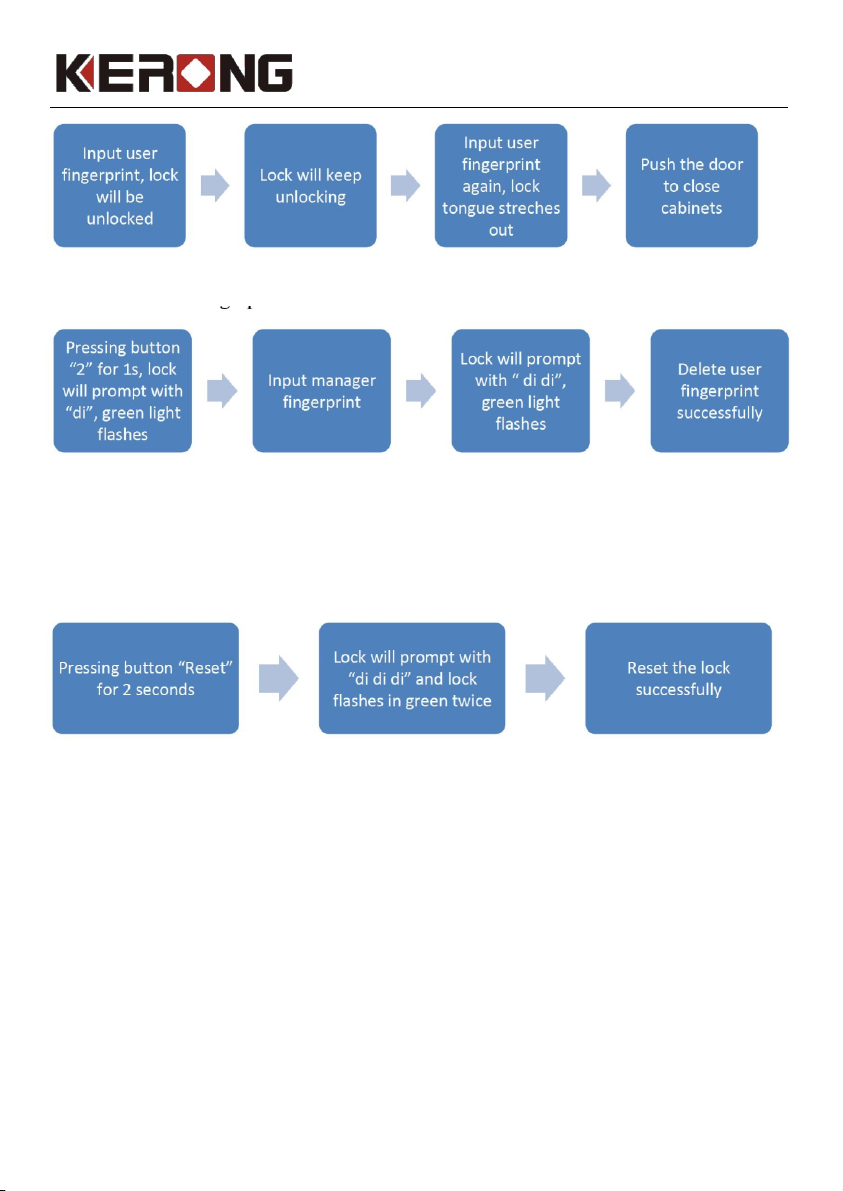

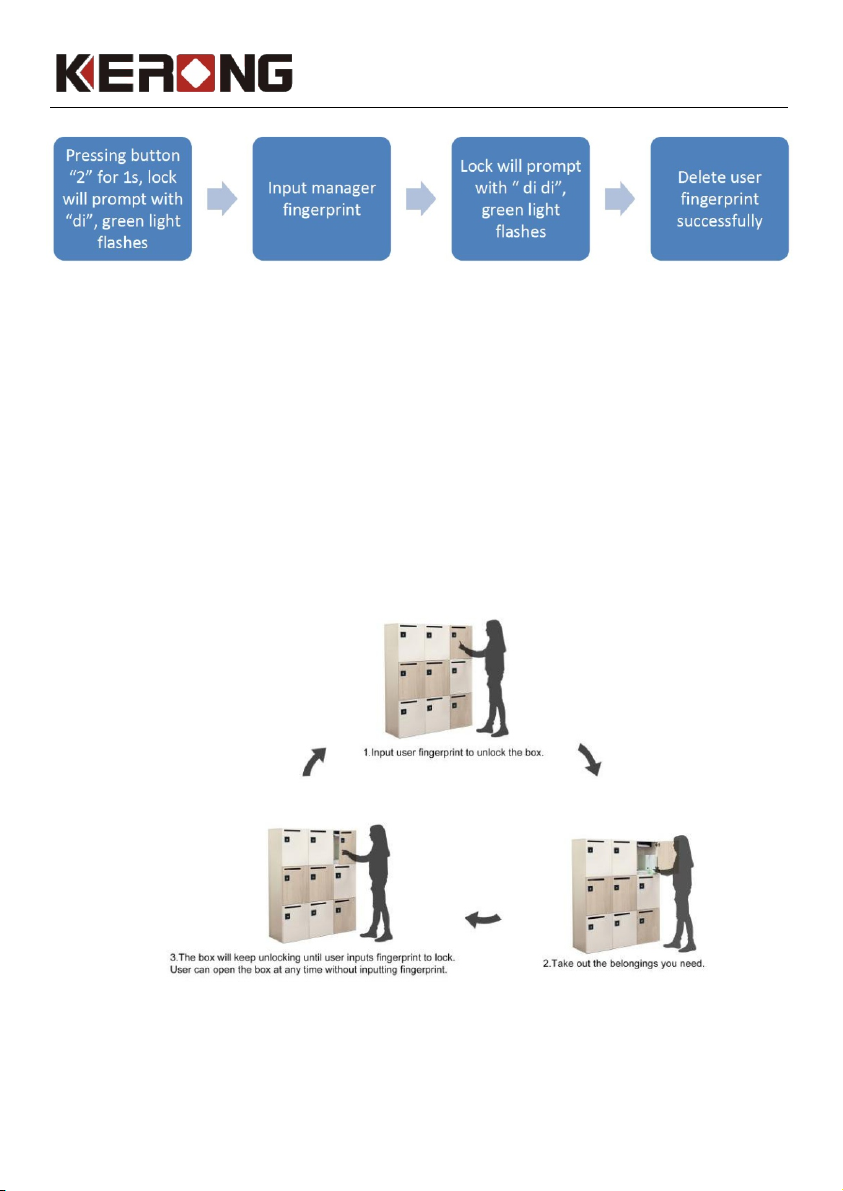

6.3.5 How to use user fingerprint

Technology Change Life
- 14 -
6.3.6 Delete user fingerprint
Notice:
1. After deleting, all user fingerprints will be invalid, then need to set again.
7. Reset lock
Notice:
After resetting, the lock will be factory setting and all fingerprints are invalid, need to be set
again.
8. Warm Tips
1. Light shines in blue means batteries are nearly run out, please change new batteries in time.
2. Please make sure the lock can work, batteries are included and all fingerprints are set before
installation.
3. Changing working mode from private mode to limited public mode, all fingerprints will still
be valid. But from limited public mode to public mode, all fingerprints will be invalid, need to
set again.
